Fyn Power Station: Technical Profile and Operational Context

Overview

The Fyn Power Station, located in Odense on the island of Funen, stands as a significant thermal generation asset within the Danish energy infrastructure. Operated by the Swedish-Danish energy giant Vattenfall, the facility has evolved from a traditional coal-fired complex into a multi-fuel installation capable of burning coal, straw, and municipal waste. This fuel flexibility allows the plant to adapt to fluctuating energy markets and shifting environmental policies in Denmark. The station contributes to both electricity generation and district heating, serving the surrounding urban areas with combined heat and power (CHP) efficiency. As of 2026, the plant remains operational, though its active capacity and unit configuration have shifted significantly since its initial commissioning in 1953. The total installed capacity is approximately 626 MW, reflecting the aggregate potential of its various generating units.

Operational Units and Capacity

The power station comprises eight distinct units, though not all have operated simultaneously in recent years. The core of the plant's current output comes from Unit 3 and Unit 7, which are primarily coal-fired. Unit 3 has a capacity of 235 MW and is characterized by a 141-meter-tall chimney. Unit 7 is the larger of the two, with a capacity of 362 MW and a prominent 235-meter chimney. This chimney is the second-tallest in Denmark, serving as a recognizable landmark in the Odense skyline. Unit 8, with a capacity of 35 MW, is dedicated to biomass, specifically straw, highlighting the plant's integration of agricultural residues into the energy mix. Additionally, the Odense CHP plant contributes 24 MW, further enhancing the district heating supply. The operational status of these units can vary based on maintenance schedules, fuel availability, and grid demand. Vattenfall manages the plant's output to optimize efficiency and minimize emissions, leveraging the different fuel types to balance cost and environmental impact.

Did you know: The 235-meter chimney of Unit 7 is not just a structural feature but a critical component for dispersing emissions, allowing the plant to meet stringent Danish air quality standards despite its coal usage.

Role in the Danish Energy Mix

Denmark's energy landscape is characterized by a heavy reliance on wind power, but thermal plants like Fyn provide essential baseload and flexibility. The ability to switch between coal and biomass allows the Fyn Power Station to adjust its carbon footprint dynamically. Straw, a locally sourced biomass, reduces transportation emissions and supports the regional agricultural economy. Municipal waste incineration adds another layer of sustainability, turning urban refuse into energy while reducing landfill volume. This multi-fuel approach is crucial for grid stability, especially during periods of low wind or high demand. The plant's CHP capability ensures that waste heat is not lost, improving overall thermal efficiency compared to simple cycle power generation. Vattenfall's operation of the plant aligns with broader strategies to transition away from pure coal dependency, although coal remains a significant fuel source for the larger units. The plant's continued operation reflects the complex balance between renewable integration and the need for reliable thermal backup in the Danish grid.

History and Development

Construction of the Fyn Power Station began in 1953, marking a significant expansion of thermal generation capacity on the island of Funen. The initial phase focused on establishing Unit 1 to serve the growing industrial and residential demand in Odense. During the mid-20th century, Danish energy infrastructure was heavily reliant on domestic lignite and imported hard coal, positioning Fyn as a cornerstone of the regional grid. The plant’s early design reflected the engineering standards of the 1950s, prioritizing steam turbine efficiency and straightforward flue gas management.

The facility underwent several expansion phases over the subsequent decades to accommodate load growth. Units 3 and 7 were added to increase output, with Unit 7 becoming a defining feature of the Odense skyline. Its 235-metre chimney stands as the second-tallest in Denmark, a structural necessity for dispersing emissions over the urban area. Unit 3, equipped with a 141-metre chimney, provided additional flexibility. These units solidified the plant's role as a baseload provider, primarily burning coal to drive high-pressure steam turbines.

Background: The tall chimneys at Fyn were not merely aesthetic; they were critical for air quality in Odense, allowing sulfur dioxide and particulate matter to disperse before reaching ground level, a common strategy before widespread flue gas desulfurization (FGD).

As of 2010, the operational landscape of Fyn had shifted significantly. Only Units 3, 7, and 8 remained active, reflecting a strategic consolidation. Unit 8, with a capacity of 35 MW, introduced biomass into the fuel mix, signaling an early move toward diversification. This transition was driven by Danish energy policy, which increasingly emphasized district heating integration and carbon reduction. The plant adapted by incorporating municipal waste and straw, reducing reliance on pure coal.

The shift to a mixed-fuel strategy aligns with broader national goals to decarbonize the power sector. By utilizing local biomass and waste, Fyn reduced its carbon footprint while supporting the circular economy. The integration of the Odense CHP plant, adding 24 MW of capacity, enhanced thermal efficiency by capturing waste heat for district heating networks. This approach maximized energy output per ton of fuel, a key metric in modern power generation.

Vattenfall, the current operator, has managed these transitions, balancing operational continuity with technological upgrades. The plant’s evolution from a coal-dominated facility to a mixed-fuel station illustrates the adaptability required in a changing energy market. Despite the closure of earlier units, Fyn remains operational, contributing to Denmark’s energy security. The retention of Units 3, 7, and 8 ensures a stable output, with coal still playing a role alongside renewable biomass.

The historical development of Fyn Power Station reflects the dynamic nature of energy infrastructure. From its 1953 inception to its current mixed-fuel configuration, the plant has adapted to technological and policy shifts. Its continued operation underscores the importance of flexibility in power generation, especially in a country like Denmark, which aims to lead in renewable integration. The plant’s legacy is one of resilience, evolving to meet the demands of both the grid and the environment.

Technical Specifications and Units

The Fyn Power Station operates a diverse fleet of generating units, reflecting its evolution from a traditional coal-fired facility to a multi-fuel power plant. The station's total installed capacity is approximately 626 MW, distributed across several units with varying fuel inputs and technological generations. As of the most recent operational data, the primary active units are Unit 3, Unit 7, and Unit 8, supplemented by the Odense CHP (Combined Heat and Power) plant. This mix allows Vattenfall to optimize fuel costs and manage carbon emissions by adjusting the ratio of coal, straw, and municipal solid waste based on market conditions and availability.

Unit Breakdown and Capacity

Unit	Capacity (MW)	Primary Fuel	Chimney Height
Unit 3	235	Coal	141 m
Unit 7	362	Coal	235 m
Unit 8	35	Biomass (Straw/Waste)	Variable
Odense CHP	24	Mixed	Variable

Unit 7 is the largest single contributor to the station's output, with a net capacity of 362 MW. It is a high-pressure steam turbine unit designed primarily for hard coal combustion. Unit 3, with 235 MW, serves as a flexible mid-sized unit, also coal-fired but often utilized for load-following in the Danish grid. Unit 8, at 35 MW, is a smaller, more specialized unit that handles biomass fuels, particularly straw from the surrounding agricultural region of Funen. The Odense CHP plant adds 24 MW of electrical output while providing district heating to nearby buildings, enhancing the overall thermal efficiency of the site.

Steam Parameters and Boiler Configuration

The boilers at Fyn Power Station are configured to handle the varying moisture and calorific values of its mixed fuels. Coal-fired units like 3 and 7 typically operate with high-pressure steam parameters, often exceeding 160 bar and temperatures around 540°C to 560°C. These parameters are critical for achieving high thermal efficiency in the Rankine cycle. The biomass unit, Unit 8, likely operates at slightly lower pressures and temperatures to accommodate the higher chlorine content and potential for corrosion associated with straw and municipal waste. The station employs fluidized bed or pulverized coal boilers, though specific boiler types for each unit are not always publicly detailed in operator reports.

Chimney Heights and Flue Gas Dispersion

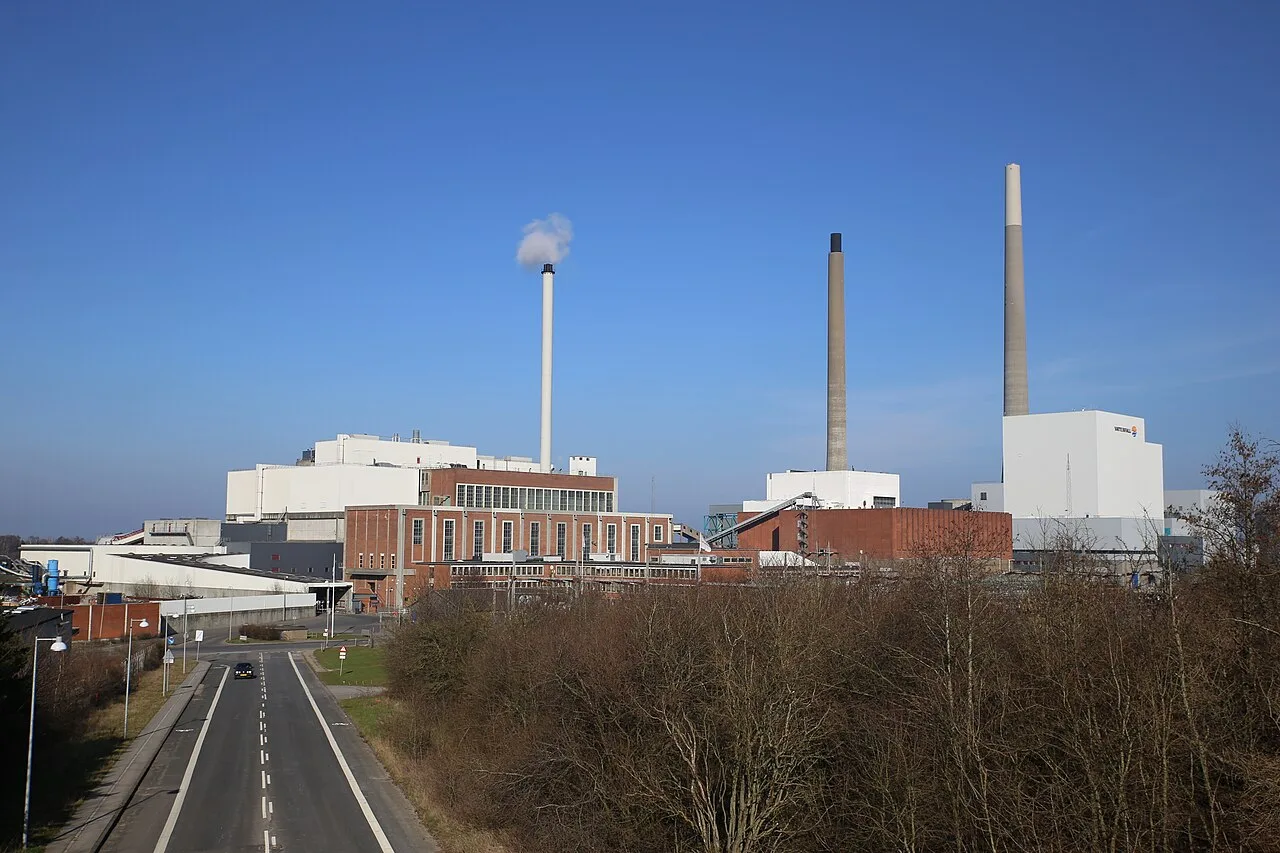

The station features two prominent chimneys that dominate the Odense skyline. Unit 7 is served by a 235-meter (771 ft) tall chimney, making it the second-tallest chimney in Denmark. This significant height is crucial for effective flue gas dispersion, helping to minimize ground-level concentrations of sulfur dioxide, nitrogen oxides, and particulate matter. Unit 3 has a shorter chimney, standing at 141 meters (463 ft). The difference in height reflects the varying emission profiles and historical construction dates of the units. Taller chimneys allow hot flue gases to rise further into the atmosphere before cooling and mixing with ambient air, thereby reducing local air quality impacts. This is particularly important for coal-fired units, which tend to have higher sulfur and ash emissions compared to biomass units.

Did you know: The 235-meter chimney of Unit 7 is not just a structural feature but a key environmental control measure. Its height helps disperse emissions over a wider area, reducing the immediate impact on Odense's air quality.

The operational strategy at Fyn Power Station involves balancing these units to meet both electrical demand and environmental targets. The ability to switch between coal and biomass allows Vattenfall to respond to carbon pricing mechanisms in the Nordic power market. However, the reliance on coal in Units 3 and 7 means that the station remains a significant source of CO₂ emissions, despite the presence of the smaller biomass unit. The future of these units may depend on further investments in carbon capture technology or a gradual shift towards higher proportions of renewable fuels.

How does the mixed-fuel combustion system work?

The Fyn Power Station operates as a multi-fuel facility, primarily utilizing coal, straw, and municipal solid waste. This diversity requires distinct combustion technologies tailored to the physical and chemical properties of each fuel. Coal, being the dominant energy source for units 3 and 7, is typically processed through pulverization. The coal is ground into a fine powder and blown into the furnace, where it mixes with preheated air. This creates a turbulent flame with high heat release rates, ideal for generating the steam pressures needed for large-scale turbine efficiency. The boiler design for these units features a large furnace volume to ensure complete combustion of the carbon-rich particles.

In contrast, straw and municipal waste are often fired on moving grates. Straw, a bulky biomass with high moisture content, requires a different airflow management strategy. The grate system allows for staged combustion, where primary air is supplied from below the fuel bed and secondary air is injected above. This helps to burn off volatile gases released during the initial drying and pyrolysis phases. Municipal waste, which varies significantly in composition, also benefits from grate firing, which provides mechanical agitation to ensure even burning and ash removal. The boiler sections handling these fuels must accommodate lower energy densities and higher slagging tendencies, often requiring larger heat transfer surfaces relative to the fuel input.

Caveat: Mixing fuels in a single boiler is technically complex. While some units at Fyn can co-fire, the operational flexibility is often limited by the need to maintain stable steam temperatures and pressure, which differ significantly between coal and biomass combustion profiles.

The heat recovery process is integral to the plant's efficiency, particularly for district heating. High-pressure steam drives the turbine generators for electricity production. After passing through the turbine, the steam is condensed in a heat exchanger, transferring its latent heat to water circulating through the local district heating network. This allows the plant to supply thermal energy to homes and industries in Odense, reducing overall fuel consumption per unit of energy delivered. The integration of these systems ensures that waste heat, which would otherwise be lost to cooling towers or rivers, is utilized effectively.

Fuel Characteristics Comparison

Understanding the differences in fuel properties is essential for managing the combustion process. The following table outlines the typical energy density and moisture content for the primary fuels used at the Fyn Power Station. These values influence the boiler design, air supply requirements, and ash handling systems.

Fuel Type	Average Energy Density (MJ/kg)	Average Moisture Content (%)	Primary Combustion Method
Hard Coal	22–25	8–12	Pulverized Coal
Straw	14–16	15–20	Moving Grate
Municipal Waste	10–15	25–35	Moving Grate

Coal offers the highest energy density, making it efficient for base-load power generation. Straw has a lower energy density and higher moisture, requiring more air for combustion and resulting in a larger volume of flue gases. Municipal waste presents the most variability, with moisture content heavily dependent on the mix of organic and inorganic materials. The plant's operational strategy must account for these variations to maintain optimal thermal efficiency and minimize emissions such as nitrogen oxides and particulate matter. The ability to switch between fuels or co-fire provides resilience against supply chain disruptions and price fluctuations in the energy market.

Environmental Impact and Emissions

As a mixed-fuel facility burning hard coal, straw, and municipal waste, Fyn Power Station presents a complex environmental profile. The combustion of lignite and hard coal is the primary driver of carbon dioxide emissions, while the co-firing of biomass (straw) and waste offers a pathway to reduce the net carbon intensity of the generated electricity. As of 2026, the plant operates under the stringent air quality standards imposed by the Danish Environmental Protection Agency and the European Union’s Industrial Emissions Directive (IED). These regulations require continuous monitoring and control of sulfur dioxide (SO₂), nitrogen oxides (NOₓ), and particulate matter (PM) to mitigate local air pollution and regional acidification.

Flue Gas Cleaning Technologies

To manage sulfur dioxide emissions, the plant utilizes Flue Gas Desulfurization (FGD) systems. In a typical wet scrubber configuration, flue gas is washed with a slurry of limestone or lime, which reacts with the SO₂ to form gypsum, a by-product often used in construction. This process can remove up to 90–95% of the sulfur content from the exhaust stream, significantly reducing the contribution to acid rain. For nitrogen oxides, which are formed during the high-temperature combustion of coal, the plant employs deNOx technologies. Selective Catalytic Reduction (SCR) is the most common method, where ammonia or urea is injected into the flue gas stream and passed over a catalyst, converting NOₓ into nitrogen and water vapor. This is crucial for meeting the tight NOₓ limits set for large combustion plants in the EU.

Caveat: While biomass co-firing reduces fossil CO₂ emissions, straw combustion can introduce specific challenges, such as higher alkali metal content leading to fouling and corrosion in boilers, and potential emissions of ammonia and hydrogen chloride if not properly managed.

Particulate matter control is achieved through electrostatic precipitators (ESPs) or fabric filters (baghouses). These devices capture fine ash particles, including fly ash and bottom ash, preventing them from being released into the atmosphere. The efficiency of these systems is critical for controlling PM2.5 and PM10, which have significant health impacts on the local population in Odense. The municipal waste component of the fuel mix also requires careful management of heavy metals and dioxins, often addressed through activated carbon injection and high-temperature combustion.

Chimney Height and Local Dispersion

The plant features two prominent chimneys: Unit 7 has a 235-meter (771 ft) chimney, making it the second-tallest in Denmark, while Unit 3 has a 141-meter (463 ft) chimney. These structures are not merely architectural features but are essential for the atmospheric dispersion of pollutants. The height allows the flue gas plume to rise above the local boundary layer, reducing ground-level concentrations of SO₂, NOₓ, and PM in the immediate vicinity of the plant. This is particularly important in an urban setting like Odense, where residential areas are in close proximity to the power station. The tall chimney helps to minimize local nuisance, such as odor from municipal waste combustion and visible plumes.

Carbon Intensity and Regional Context

Compared to other Danish power plants, Fyn’s carbon intensity is moderate. Denmark has aggressively expanded its wind power capacity and utilizes significant amounts of biomass in its energy mix. Consequently, coal-fired plants like Fyn face increasing pressure to reduce their CO₂ footprint. The co-firing of straw and municipal waste helps lower the effective carbon intensity per megawatt-hour generated, as the carbon released from biomass is considered part of the short-term carbon cycle, unlike the fossil carbon in coal. However, as Denmark moves towards a more renewable-heavy grid, the role of coal plants is evolving, with a focus on flexibility and efficiency to complement intermittent wind power. The plant’s ability to adapt its fuel mix and upgrade its emission control systems will be key to its continued operational viability in the low-carbon transition.

What distinguishes Fyn from other Danish power stations?

Fyn Power Station stands out in Denmark’s energy landscape not for its sheer size compared to coastal giants, but for its strategic location and operational flexibility. Located in Odense on the island of Funen, it serves as a critical hub for the region’s district heating network, a role less emphasized by plants situated further from dense urban centers. While many Danish power stations have transitioned heavily toward natural gas or wind integration, Fyn maintains a distinct multi-fuel profile. It burns coal, straw, and municipal waste, allowing for a degree of fuel switching that enhances resilience against price volatility in any single commodity market. This mixed-fuel approach is less common among the largest base-load plants, which often standardize on one primary fuel to optimize boiler efficiency.

The plant’s integration with the local Combined Heat and Power (CHP) infrastructure is a defining feature. The Odense CHP plant, with a capacity of 24 MW, works in tandem with the larger generating units to provide thermal energy to households and industries across Funen. This synergy improves overall energy efficiency, as waste heat from electricity generation is captured rather than lost to the atmosphere. In contrast, plants like Asnæs, located on the coast of Zealand, are primarily focused on electricity generation and export to the national grid, with less direct reliance on a dense local heating network. Fyn’s ability to adjust output based on both electrical demand and thermal needs gives it a unique operational rhythm compared to its peers.

Comparing Fyn to other major Danish power stations highlights these differences in scale, fuel strategy, and geography. Asnæs Power Station, for instance, is significantly larger and relies predominantly on coal and natural gas. Aalborg Power Station, another key player, has undergone extensive modernization and utilizes a mix of coal and biomass, but its location in northern Jutland serves a different regional dynamic. Fyn’s older infrastructure, with units dating back to 1953, reflects a longer history of continuous operation and incremental upgrades, particularly in flue gas desulfurization (FGD) and deNOx systems to meet evolving environmental standards.

Background: The plant’s Unit 7 features a 235-meter chimney, making it the second-tallest in Denmark. This structural prominence is a visual marker of its historical significance and the scale of emissions management required for its coal-fired operations.

Power Station	Primary Fuel(s)	Capacity (MW)	Commissioned	Location
Fyn	Coal, Straw, Municipal Waste	626	1953	Odense, Funen	Asnæs	Coal, Natural Gas	1,600+	1950s	Asnæs, Zealand
Aalborg	Coal, Biomass	1,200+	1950s	Aalborg, Jutland

The decision to maintain a mixed-fuel strategy at Fyn reflects a pragmatic approach to energy security. While newer plants might prioritize single-fuel efficiency, Fyn’s diversity allows it to adapt to market fluctuations. This flexibility is increasingly valuable as Denmark integrates more variable renewable energy sources like wind and solar. However, the reliance on coal, even in a mixed context, keeps Fyn under scrutiny regarding carbon emissions. The plant’s ongoing operations involve balancing historical infrastructure with modern environmental demands, a challenge shared by many legacy power stations across Europe. The trade-off is clear: operational resilience through fuel diversity versus the environmental cost of continued coal combustion.

Operational Challenges and Future Outlook

Operating a multi-fuel facility like Fyn Power Station presents distinct logistical and economic hurdles. The plant's ability to switch between coal, straw, and municipal waste allows for fuel flexibility, but this comes at the cost of complex supply chain management. Straw, in particular, requires extensive preprocessing and storage to maintain calorific value, a challenge that becomes more pronounced during peak winter demand when biomass prices often spike. Coal prices, while historically stable, have experienced significant volatility in recent years due to global market dynamics, directly impacting the marginal cost of electricity generation at the site.

Carbon pricing has become an increasingly critical factor in the plant's operational economics. Under the European Union Emissions Trading System (EU ETS), each tonne of CO₂ emitted carries a financial penalty that varies with market conditions. As of 2026, the carbon price has exerted substantial pressure on coal-fired generation across Northern Europe. For Fyn, which relies heavily on coal in Units 3 and 7, this translates into higher operating costs compared to gas or renewable alternatives. The plant must balance these rising fixed costs against the relatively lower fuel costs of coal, a trade-off that narrows profit margins during periods of low electricity demand.

Strategic Context: Vattenfall has indicated that biomass integration is a key lever for reducing the carbon intensity of the Fyn site, though full conversion depends on regional feedstock availability and subsidy structures.

Policy Impact and Biomass Integration

Denmark’s energy policy landscape, shaped by the Energy Agreement and broader EU climate targets, has accelerated the shift away from pure coal dependency. The Danish government’s push for a 70% reduction in greenhouse gas emissions by 2030 (relative to 1990 levels) has incentivized the co-firing of biomass with coal. Fyn has leveraged this by utilizing Unit 8, a dedicated biomass unit, and modifying other units to accept straw and wood pellets. This strategy not only reduces the carbon footprint per megawatt-hour but also secures subsidies under the Danish support schemes for renewable energy.

However, the potential for further biomass integration is constrained by the availability of local feedstock. Competition for straw and wood pellets from other regional plants and industrial users can drive up prices, potentially eroding the economic advantage of biomass over coal. Vattenfall must continuously evaluate the cost-benefit ratio of increasing biomass share versus investing in new technologies or securing long-term supply contracts. The plant’s operational strategy, therefore, involves a delicate balance between maximizing biomass utilization and maintaining the flexibility to switch to coal when biomass becomes too expensive or scarce.

Future Outlook and Vattenfall’s Strategy

Vattenfall’s strategic plans for Fyn Power Station reflect a gradual transition rather than an abrupt phase-out. The company has identified the site as a potential hub for future energy flexibility, possibly integrating storage solutions or hydrogen-ready turbines. The tall chimneys of Units 3 and 7, while iconic, also represent significant capital assets that may be retrofitted to accommodate new fuel types or emission control technologies. Retrofitting Unit 7, the largest coal unit, could involve installing advanced flue gas desulfurization (FGD) and selective catalytic reduction (SCR) systems to meet stricter NOx and SO₂ limits, extending its operational life.

Decommissioning specific units remains a viable option if market conditions deteriorate. Unit 8, being smaller and dedicated to biomass, may face different economic pressures compared to the larger coal units. Vattenfall may choose to keep Unit 8 operational for peak load coverage while phasing out Unit 3 or 7 if the carbon price continues to rise. The decision will depend on a comprehensive assessment of the plant’s residual value, the cost of capital for new investments, and the evolving Danish electricity market structure. As of 2026, the plant remains operational, but its long-term viability hinges on its ability to adapt to a low-carbon energy landscape.

Frequently asked questions

What types of fuel sources are utilized by the Fyn Power Station?

The facility employs a mixed-fuel combustion system that primarily uses coal and biomass to generate energy. This combination allows for flexibility in fuel sourcing and helps optimize the efficiency of the combined heat and power (CHP) units.

Which company is responsible for the operational strategy of the Fyn Power Station?

Vattenfall manages the operational strategy for the power station, focusing on integrating its CHP capabilities into the regional energy grid. Their approach aims to balance energy production with cost-efficiency and environmental considerations.

How does the mixed-fuel combustion system function at this facility?

The system works by burning a blend of coal and biomass simultaneously within the boilers to produce steam. This steam drives turbines for electricity generation while also providing heat for district heating networks, maximizing overall thermal efficiency.

What are the key environmental impacts associated with the Fyn Power Station?

Environmental impacts include emissions from coal combustion, which are mitigated through various filtration and capture technologies. The integration of biomass helps reduce the overall carbon footprint compared to a purely coal-fired operation.

What distinguishes the Fyn Power Station from other power plants in Denmark?

It is distinguished by its specific configuration of CHP units and its strategic location in Odense, serving both local and regional energy demands. Its operational model emphasizes the synergy between electricity generation and district heating more intensively than some older facilities.
