Overview
Parabolic trough collectors represent a mature and widely deployed class of concentrated solar power (CSP) technology designed to convert direct normal irradiance (DNI) into thermal energy. The fundamental architecture consists of long, curved reflective mirrors arranged in a parabolic shape along their longitudinal axis. These mirrors focus incoming solar radiation onto a linear receiver tube, also known as a heat collection element (HCE), which is positioned along the focal line of the parabola. This geometric configuration allows for high optical concentration ratios, typically ranging from 30 to 100, depending on the precision of the mirror surface and the tracking system’s accuracy.
The receiver tube is usually a double-pipe design. The inner pipe carries the heat transfer fluid (HTF), commonly synthetic oil or molten salt, while the outer pipe is made of borosilicate glass to minimize convective and radiative heat losses. The annular space between the pipes is often evacuated to create a near-vacuum insulation layer. As the HTF absorbs the concentrated solar flux, its temperature rises significantly, typically reaching between 150°C and 400°C for oil-based systems. This thermal energy is then transported to a power block, where it generates steam to drive a conventional Rankine cycle turbine generator.
A critical operational feature of parabolic trough systems is single-axis tracking. The collector arrays rotate continuously throughout the day, following the sun’s apparent path across the sky. This tracking mechanism ensures that solar rays strike the parabolic surface at a near-perpendicular angle, maximizing the amount of light reflected onto the receiver. The efficiency of this optical collection process can be approximated by the equation η_optical = η_mirror × η_receiver × η_tracking, where each term represents the respective efficiency of the mirror reflectance, receiver absorption, and tracking accuracy. This mechanical simplicity contributes to the technology’s reliability and lower levelized cost of energy (LCOE) compared to point-focus CSP technologies like solar towers.
Parabolic troughs are particularly well-suited for regions with high direct normal irradiance, such as the Mojave Desert in California, the Almeria province in Spain, and the Atacama Desert in Chile. The technology’s modularity allows for incremental capacity expansion, making it an attractive option for utility-scale solar thermal plants. Furthermore, the integration of thermal energy storage (TES) systems, often using molten salts, enables parabolic trough plants to provide dispatchable power, extending generation beyond peak sunlight hours and enhancing grid stability. This dispatchability distinguishes CSP from photovoltaic (PV) systems, offering a hybrid advantage in terms of power quality and temporal flexibility.
How does a parabolic trough collector work?

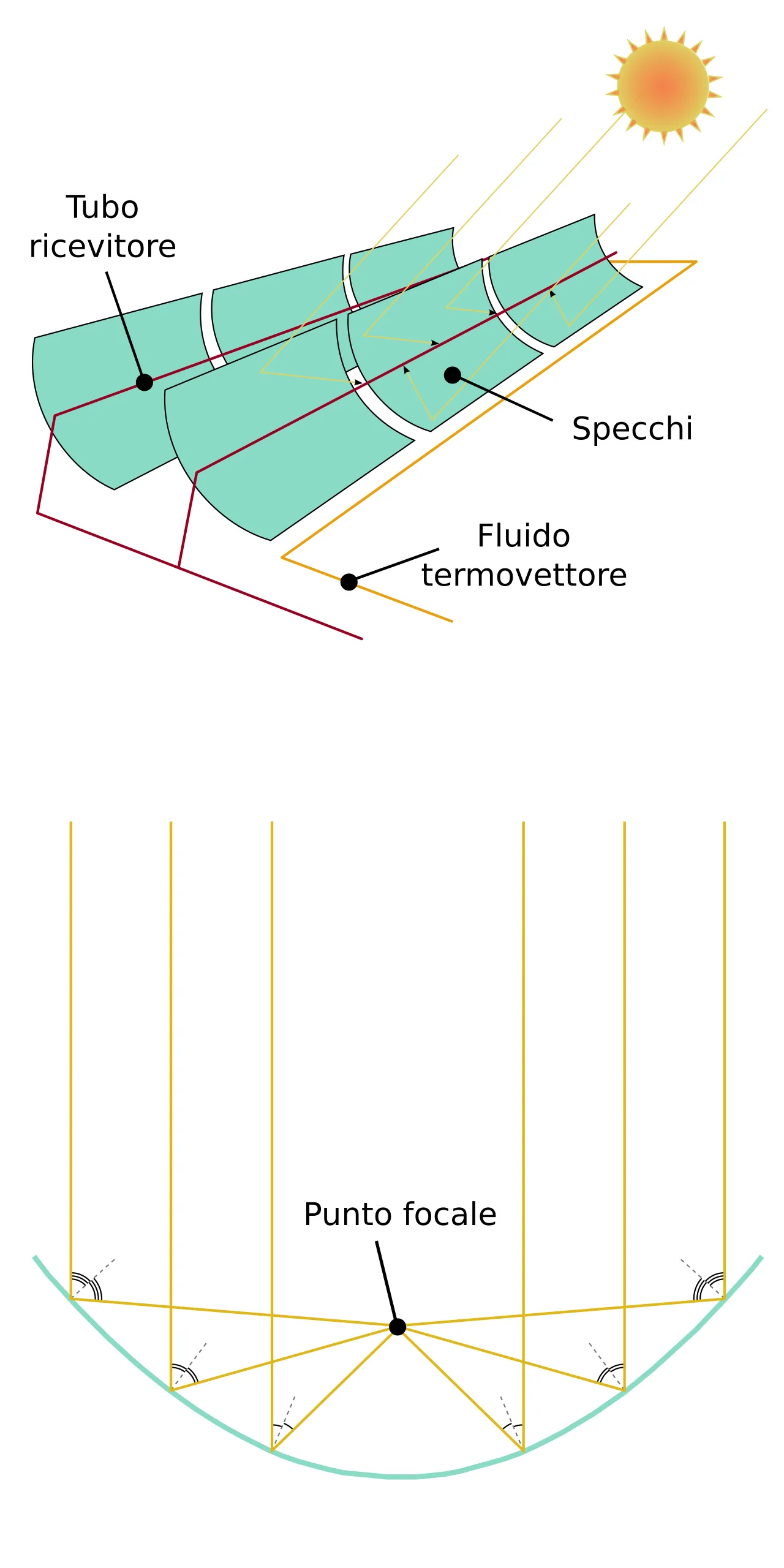

Parabolic trough collectors operate on the principle of linear concentration of solar radiation. The system utilizes a long, curved reflector shaped as a parabolic cylinder. This specific geometric profile ensures that parallel rays of sunlight striking the mirror surface are reflected and focused onto a single linear focal line. Positioned along this focal line is the receiver tube, which absorbs the concentrated solar energy and converts it into thermal energy. The receiver typically consists of a metallic absorber tube, often coated with a selective surface to maximize solar absorption while minimizing thermal radiation losses, enclosed within a transparent glass envelope. The space between the absorber and the glass is usually evacuated to reduce convective heat transfer.
The optical performance of a parabolic trough is defined by its ability to concentrate sunlight. The concentration ratio, C, is determined by the aperture width, W, and the diameter of the receiver tube, D, expressed as C=W/D. Typical concentration ratios range from 30 to 100, depending on the optical quality of the mirror and the acceptance angle of the system. The parabolic shape is mathematically described by the equation y=4fx2, where f is the focal length. This geometry ensures that incident rays parallel to the axis of symmetry converge at the focal point, maximizing the irradiance on the receiver.
To maintain optimal focus, the collector assembly must track the sun's apparent motion across the sky. Most parabolic trough systems employ single-axis tracking, rotating the parabolic mirror around its longitudinal axis. This movement compensates for the sun's daily path, ensuring that the solar beam remains perpendicular to the aperture plane for maximum reflection efficiency. The thermal energy absorbed by the receiver tube is transferred to a heat transfer fluid (HTF) circulating within the tube. Common HTFs include synthetic oils or molten salts, which carry the thermal energy to a power block where it generates steam to drive a turbine generator. The efficiency of the system depends on the optical efficiency of the mirror, the thermal efficiency of the receiver, and the tracking accuracy of the drive mechanism.
What are the main components of a parabolic trough system?
Parabolic trough systems rely on four primary functional components that work in concert to convert direct normal irradiance into thermal energy. The structure is defined by its geometry and the thermodynamic cycle it drives.
Reflector Assembly
The reflector consists of long, curved mirrors arranged in a parabolic shape. These mirrors are typically made of polished glass or aluminum mounted on a steel backing. The parabolic cross-section focuses incoming solar radiation onto a linear focal line. The accuracy of the parabolic curve determines the optical efficiency of the system, minimizing spillage and shading losses.
Receiver (Absorber Tube)
Positioned along the focal line is the receiver, also known as the absorber tube. This component is usually a metallic tube coated with a selective surface to maximize solar absorption and minimize thermal radiation losses. In many designs, the metallic tube is enclosed within a glass envelope, creating a vacuum insulation layer. This vacuum reduces convective heat loss, allowing the fluid inside to reach higher temperatures. The receiver absorbs the concentrated sunlight and transfers the heat to the fluid flowing through it.
Heat Transfer Fluid (HTF)
The heat transfer fluid circulates through the receiver tubes, absorbing the thermal energy. Common HTFs include synthetic oils, molten salts, or water/steam. Synthetic oils can operate at temperatures up to approximately 400°C, while molten salts can reach higher temperatures, enabling greater thermodynamic efficiency. The heated fluid is then transported to a heat exchanger, where it generates steam to drive a turbine-generator set or is used directly in a thermal process.
Tracking Mechanism
To maximize solar collection, parabolic troughs employ a single-axis tracking system. The mirrors rotate around a horizontal axis to follow the sun’s apparent path across the sky. This tracking ensures that the solar rays remain perpendicular to the parabolic surface, concentrating the light onto the receiver throughout the day. The tracking system is driven by motors and controlled by sensors or astronomical algorithms to optimize alignment.
Applications in solar power generation
Parabolic trough collectors serve as a foundational technology in utility-scale concentrated solar power (CSP) generation. These systems utilize long, curved mirrors to focus sunlight onto a receiver tube running along the focal line. The concentrated solar radiation heats a thermal transfer fluid circulating within the tube, typically synthetic oil or molten salt. This heated fluid then transfers its thermal energy to water, producing high-pressure steam that drives a conventional Rankine cycle turbine generator. This configuration allows for significant dispatchability when paired with thermal energy storage systems.
Utility-Scale Power Plants
In large-scale solar farms, parabolic troughs are arranged in extensive fields to maximize land use and solar capture. The technology is particularly valued for its maturity and reliability compared to other CSP variants. Plants employing this technology often integrate thermal storage, enabling electricity generation even after sunset or during periods of cloud cover. The thermal energy stored in molten salt tanks can provide several hours of full-load power output, enhancing grid stability. This capability distinguishes CSP from photovoltaic systems, which generally require battery storage for similar dispatchability.
Industrial Process Heat
Beyond electricity generation, parabolic trough collectors are increasingly applied to industrial process heat (IPH). Many industrial sectors, such as food processing, textiles, and chemical manufacturing, require temperatures between 100°C and 400°C. Parabolic troughs can efficiently deliver heat within this range, reducing reliance on fossil fuels for boilers and dryers. The direct heating of process fluids or the generation of steam for turbines offers a cost-effective solution for industries seeking to decarbonize their thermal energy consumption. This application leverages the same optical principles as power generation but optimizes the receiver design for direct thermal output.
The efficiency of parabolic trough systems depends on several factors, including solar irradiance, mirror reflectivity, and receiver insulation. Typical optical efficiencies range from 70% to 80%, while thermal efficiencies can reach up to 95% depending on the operating temperature. The overall electrical efficiency of a parabolic trough CSP plant generally falls between 15% and 20%. These performance metrics make the technology competitive in regions with high direct normal irradiance (DNI), such as the southwestern United States, North Africa, and the Middle East.
Environmental benefits include reduced greenhouse gas emissions and lower water consumption compared to traditional thermal power plants, especially when dry cooling systems are employed. The modular nature of parabolic trough fields also allows for phased construction and easier maintenance. As solar technology continues to evolve, parabolic troughs remain a key component in the global transition toward renewable energy infrastructure.
Worked examples
Optical Concentration Ratio
The geometric concentration ratio (C) of a parabolic trough is the ratio of the aperture area to the receiver area. For a standard unit with an aperture width of 5 meters and a focal length of 1.5 meters, the optical path focuses sunlight onto a linear receiver. Assuming a receiver tube diameter of 0.15 meters, the concentration ratio is calculated by dividing the aperture width by the receiver diameter.
Calculation:
- Aperture Width (W) = 5 m
- Receiver Diameter (D) = 0.15 m
- C = W / D
- C = 5 m / 0.15 m = 33.33
This indicates that the solar flux is concentrated approximately 33 times its original intensity at the focal line.
Thermal Power Output
Thermal power output depends on the direct normal irradiance (DNI), the aperture area, the optical efficiency, and the thermal efficiency of the receiver. Consider a trough with an aperture area of 100 square meters operating under a DNI of 800 W/m². Assume an overall optical efficiency of 0.75 and a thermal efficiency of 0.80.
Calculation:
- DNI = 800 W/m²
- Aperture Area (A) = 100 m²
- Optical Efficiency (η_opt) = 0.75
- Thermal Efficiency (η_th) = 0.80
- Thermal Power (P_th) = DNI × A × η_opt × η_th
- P_th = 800 × 100 × 0.75 × 0.80
- P_th = 48,000 W = 48 kW
The unit delivers 48 kilowatts of thermal power to the heat transfer fluid.
Heat Transfer Fluid Temperature Rise
The temperature rise of the heat transfer fluid (HTF) depends on the thermal power, the mass flow rate, and the specific heat capacity. For a standard synthetic oil HTF with a specific heat capacity of 2.5 kJ/(kg·K), and a mass flow rate of 3 kg/s, the temperature increase can be determined.
Calculation:
- Thermal Power (P_th) = 48 kW = 48 kJ/s
- Mass Flow Rate (m_dot) = 3 kg/s
- Specific Heat Capacity (c_p) = 2.5 kJ/(kg·K)
- Temperature Rise (ΔT) = P_th / (m_dot × c_p)
- ΔT = 48 / (3 × 2.5)
- ΔT = 48 / 7.5 = 6.4 K
The heat transfer fluid experiences a temperature increase of 6.4 Kelvin as it passes through the receiver.
Advantages and limitations
Parabolic trough collectors offer distinct operational characteristics when compared to other Concentrated Solar Power (CSP) technologies, particularly solar power towers and linear Fresnel reflectors. A primary advantage is the maturity of the technology, which has led to lower capital costs and reduced financial risk for developers compared to the more complex solar tower systems. The single-axis tracking mechanism is mechanically simpler than the dual-axis heliostat fields required for power towers, resulting in lower maintenance requirements and higher availability rates. Additionally, parabolic troughs are well-suited for hybridization with natural gas or biomass, allowing for flexible output during periods of variable solar irradiance.
Comparison with Solar Power Towers
Solar power towers generally achieve higher operating temperatures, often exceeding 400°C, which can lead to higher thermodynamic efficiency according to the Carnot efficiency formula η=1−ThTc. However, this comes at the cost of increased complexity and higher land-use density for the heliostat field. Parabolic troughs typically operate at lower temperatures, around 390–400°C, using synthetic oil as the heat transfer fluid, which limits maximum efficiency but simplifies the thermal storage integration. Power towers often use molten salt directly in the receiver, reducing heat exchanger losses, whereas troughs require a secondary heat exchanger to transfer energy from the oil to the molten salt or steam cycle.
Comparison with Linear Fresnel Reflectors
Linear Fresnel reflectors (LFR) utilize flat or slightly curved mirrors that track the sun on a single axis, similar to troughs. LFR systems generally have a lower levelized cost of energy (LCOE) due to reduced material usage and lower height requirements for the receiver, which reduces wind load and structural costs. However, parabolic troughs typically achieve higher optical efficiency because the mirrors are closer to the receiver, reducing cosine losses and shading effects. The optical efficiency ηopt of a trough system is generally higher than that of an LFR, leading to higher energy yield per square meter of aperture area. This makes troughs more suitable for sites with limited land availability, while LFRs are advantageous in areas with high land costs or complex terrain.
Thermal and Optical Limitations
Despite their advantages, parabolic troughs face limitations related to thermal losses and optical concentration ratios. The concentration ratio is typically between 30 and 100, which is lower than the 500–1000 ratios achievable with solar towers. This limits the maximum achievable temperature and, consequently, the thermodynamic efficiency of the power block. Furthermore, the use of synthetic thermal oil requires careful management to prevent degradation at high temperatures, adding to the operational complexity. Wind losses also play a significant role, as the large surface area of the parabolic mirrors exposes the heat transfer fluid to convective cooling, which can reduce overall system efficiency in windy sites.
