Concentrated solar power

Overview

Concentrated solar power (CSP), also referred to as concentrating solar power or concentrated solar thermal, represents a distinct category of renewable energy technology. Unlike photovoltaic systems that convert sunlight directly into electricity, CSP systems collect solar heat for multiple purposes, including cooking, desalination, and the generation of electric solar power. The fundamental mechanism involves using mirrors to concentrate a large area of sunlight toward a receiver. This concentration process transforms diffuse solar radiation into high-intensity thermal energy, which can then be utilized directly or converted into mechanical work.

The operational principle of CSP relies on the optical concentration of solar irradiance. Mirrors, which may be parabolic troughs, linear Fresnel reflectors, or heliostats in a power tower configuration, track the sun to focus light onto a central receiver. At the receiver, a heat transfer fluid absorbs the concentrated solar energy, reaching temperatures significantly higher than ambient conditions. This thermal energy is then used to generate steam, which drives a turbine connected to an electric generator. The system is currently classified as operational globally, with installations contributing to the broader solar energy mix. The technology allows for thermal energy storage, enabling electricity generation even when solar irradiance is variable, distinguishing it from direct current photovoltaic outputs.

Global capacity context for CSP is defined by its role in utility-scale solar thermal generation. While specific aggregate capacity figures vary by region and year, the technology is established in markets with high direct normal irradiance. The systems are engineered to handle the thermal load required for continuous power output, often integrating with existing grid infrastructure. The operational status of these plants indicates active contribution to electricity generation, leveraging the solar fuel source to produce dispatchable power. The concentration ratio, defined as the ratio of the collector area to the receiver area, is a critical parameter influencing the temperature and efficiency of the heat transfer process.

What are the main types of CSP technology?

Concentrated solar power systems are categorized into four primary technological configurations, each defined by its optical geometry and heat reception method. These designs determine the system's thermal efficiency, temperature output, and suitability for specific geographic or industrial applications.

Parabolic Troughs

Parabolic trough collectors use long, curved mirrors that focus sunlight onto a receiver tube running along the focal line. This linear concentration system is the most mature CSP technology. The receiver typically contains a heat transfer fluid, such as synthetic oil or molten salt, which absorbs the concentrated solar radiation. The fluid is then circulated to a heat exchanger to produce steam for driving a turbine. Parabolic troughs generally operate at temperatures between 300°C and 400°C, making them well-suited for medium-temperature thermal storage and direct steam generation.

Solar Power Towers

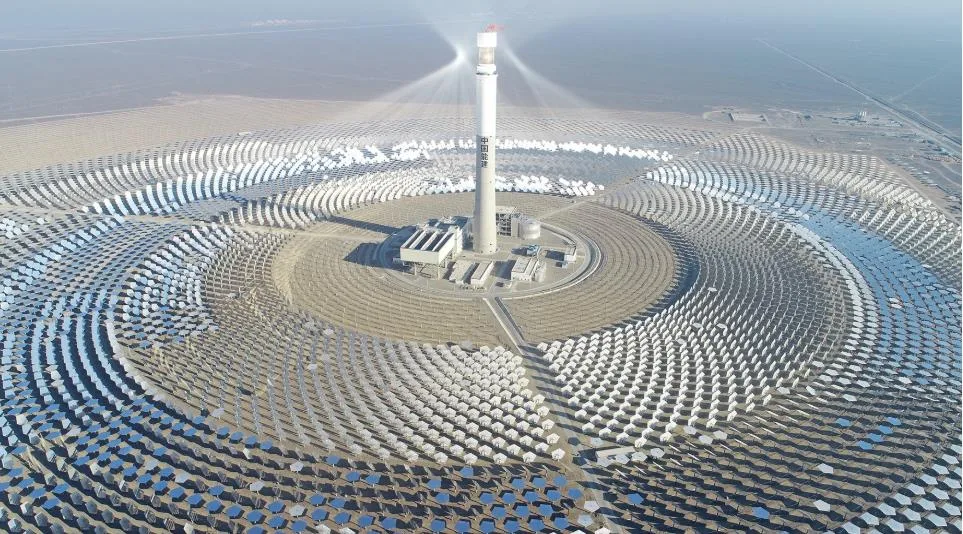

Solar power towers utilize a field of flat or slightly curved mirrors, known as heliostats, which track the sun in two axes. These mirrors reflect and concentrate sunlight onto a central receiver located at the top of a tower. This point-focus configuration achieves higher solar flux densities compared to linear systems. Consequently, power towers can reach significantly higher operating temperatures, often exceeding 500°C and reaching up to 600°C or more. These high temperatures improve the thermodynamic efficiency of the power cycle, particularly when using supercritical CO2 or advanced steam cycles.

Fresnel Reflectors

Linear Fresnel reflectors consist of long, flat or slightly curved mirror strips arranged in parallel rows. These mirrors focus sunlight onto a fixed elevated receiver. Unlike parabolic troughs, the mirrors are simpler and cheaper to manufacture, and the fixed receiver reduces maintenance complexity. However, the optical efficiency is generally lower due to shading and inter-reflection between mirror rows. Fresnel systems typically operate at temperatures similar to parabolic troughs, around 300°C to 350°C, and are often used in large-scale utility projects where land cost is a significant factor.

Dish Stirling Systems

Dish Stirling systems use a parabolic dish reflector to concentrate sunlight onto a Stirling engine receiver located at the focal point. This point-focus system achieves the highest concentration ratios among CSP technologies. The Stirling engine converts the thermal energy directly into mechanical energy, which drives an electric generator. Dish Stirling systems can reach very high temperatures, often exceeding 750°C, resulting in high thermodynamic efficiency. However, they are typically modular and less suited for large-scale thermal storage compared to tower or trough systems.

How does thermal energy storage work in CSP?

Concentrated solar power (CSP) systems achieve dispatchable electricity generation through thermal energy storage (TES), which decouples solar collection from power conversion. Unlike photovoltaic systems that store energy in batteries, CSP stores heat in a working fluid, allowing the turbine to run when the sun is not shining or during peak demand periods. This mechanism transforms intermittent solar input into a more stable, baseload-like power output, enhancing grid reliability.

Molten Salt Storage Systems

The most prevalent TES technology in modern CSP plants uses molten salt mixtures, typically composed of sodium nitrate and potassium nitrate. This eutectic mixture remains liquid over a wide temperature range, approximately 220°C to 620°C, making it ideal for high-temperature heat transfer and storage. The system generally employs a two-tank configuration: a hot tank and a cold tank. Solar collectors heat the salt, which is then pumped to the hot storage tank. When electricity is needed, the hot salt flows through a steam generator, transferring its thermal energy to water to produce high-pressure steam. The cooled salt returns to the cold tank, completing the cycle.

The thermal energy stored in the molten salt can be quantified using the specific heat capacity formula:

Where Q is the thermal energy, m is the mass of the salt, cp​ is the specific heat capacity, and ΔT is the temperature difference between the hot and cold states. This high energy density allows for several hours of full-power generation, often extending operation into the evening or night.

Synthetic Oil and Other Fluids

Earlier CSP designs and some parabolic trough plants utilize synthetic thermal oil as the heat transfer fluid. Synthetic oil can withstand temperatures up to approximately 400°C, though it is prone to thermal degradation at higher temperatures compared to molten salt. In oil-based systems, the hot oil passes through a heat exchanger to produce steam, while the oil is stored in insulated tanks. While effective, oil systems often require additional insulation and pumping power, and the maximum operating temperature limits the thermodynamic efficiency of the steam cycle compared to molten salt systems.

Dispatchability and Grid Integration

Thermal energy storage enables CSP plants to provide dispatchable power, meaning they can adjust output based on grid demand signals. By storing excess heat during midday peak solar irradiance and releasing it during evening peak demand, CSP plants can flatten the "duck curve" often seen in high-penetration solar grids. This flexibility reduces the need for rapid-ramping natural gas peaker plants and enhances the overall stability of the renewable energy mix. The ability to store energy directly as heat, rather than converting it to electricity and back, results in relatively low round-trip efficiency losses, making CSP a competitive option for long-duration storage.

Efficiency and theoretical limits

Concentrated solar power systems operate on thermodynamic principles, where the conversion of solar heat into electricity is fundamentally limited by the Carnot efficiency. This theoretical maximum depends on the temperature of the heat source and the sink. The efficiency is expressed as η=1−Thot​Tcold​​, where higher receiver temperatures generally yield greater electrical output. However, real-world performance is reduced by optical, thermal, and mechanical losses across the system components.

Optical and Thermal Losses

Optical losses occur when sunlight is reflected, absorbed, or scattered before reaching the receiver. These include mirror reflectivity, atmospheric attenuation, and cosine effects related to the sun's angle. Thermal losses involve heat escaping the receiver through convection, radiation, and conduction. Advanced receiver designs and vacuum insulation help mitigate these losses, but they remain significant factors in overall system efficiency. The concentration ratio, defined as the area of the aperture relative to the receiver area, also influences the operating temperature and subsequent thermodynamic efficiency.

Real-World Conversion Efficiencies

Actual conversion efficiencies vary by technology type and operational conditions. Parabolic troughs typically achieve lower efficiencies due to moderate operating temperatures, while power tower systems benefit from higher temperatures and thus higher Carnot efficiencies. Linear Fresnel reflectors offer a balance between cost and efficiency, and parabolic dishes can achieve high point-focus efficiencies but often require Stirling engines for conversion. The following table summarizes typical efficiency ranges for these technologies.

These efficiencies represent the ratio of electrical energy output to solar energy input. Variations arise from design choices, environmental factors, and the integration of thermal energy storage, which can affect the average annual performance. Understanding these limits is crucial for optimizing CSP plant designs and evaluating their competitiveness against other solar technologies.

Global deployment and market trends

Concentrated solar power (CSP) deployment has historically concentrated in regions with high direct normal irradiance (DNI) and supportive policy frameworks. The technology, which uses mirrors to concentrate sunlight toward a receiver for heat collection, has seen significant growth in specific global markets. Spain and the United States have traditionally led in installed capacity, driven by early feed-in tariffs and tax incentives. More recently, the Middle East and North Africa (MENA) region, particularly the United Arab Emirates, and China have emerged as key growth areas, leveraging large-scale land availability and strategic energy diversification goals.

Regional Market Leaders

The United States has been a pioneer in CSP technology, with major installations in the southwestern states. California and Arizona host significant solar thermal plants, utilizing parabolic trough and power tower technologies. The market has seen fluctuations based on federal investment tax credits and state-level renewable portfolio standards. Spain followed a similar trajectory, with a boom in the late 2000s and early 2010s, establishing itself as a global leader in parabolic trough capacity. The country's grid integration strategies have been studied extensively for their use of thermal energy storage.

In the Middle East, the United Arab Emirates has invested heavily in CSP to diversify its energy mix beyond oil and natural gas. Large-scale projects, such as those in the Mohammed bin Rashid Al Maktoum Solar Park, combine photovoltaic and CSP technologies to maximize land use and storage capabilities. China has also expanded its CSP footprint, focusing on the Gobi Desert and other arid regions where DNI is optimal. These projects often integrate with existing thermal power plants to enhance grid stability.

Global Capacity Overview

The following table summarizes the approximate distribution of CSP capacity by key regions and countries, reflecting the geographic concentration of the technology.

The global CSP market continues to evolve, with a focus on reducing levelized cost of energy (LCOE) through larger scales and improved thermal storage efficiency. The integration of CSP with existing thermal plants and the development of hybrid systems are key trends driving future deployment. As with any energy technology, the economic viability of CSP depends on factors such as DNI, land costs, and policy support, which vary significantly by region.

Applications beyond electricity generation

Concentrated solar power (CSP) extends beyond grid electricity generation to serve as a versatile thermal energy source for industrial and chemical processes. By using mirrors to concentrate a large area of sunlight toward a receiver, CSP systems generate high-temperature heat suitable for diverse applications, including cooking, desalination, and industrial process heating. This thermal flexibility allows CSP to integrate directly into sectors traditionally reliant on fossil fuel combustion.

Industrial Process Heating

Industrial process heating represents a significant non-electric application of CSP technology. Many manufacturing processes require temperatures ranging from 150 °C to 400 °C, which aligns well with the output of parabolic trough and linear Fresnel reflector systems. By directing concentrated solar heat to a thermal fluid or directly to the process, industries can reduce natural gas or coal consumption. This application is particularly effective in regions with high direct normal irradiance, where the consistency of solar input supports continuous thermal demand.

Enhanced Oil Recovery

In the oil and gas sector, CSP is utilized for enhanced oil recovery (EOR). The concentrated heat can be used to generate steam or hot water injected into reservoirs to lower the viscosity of crude oil, facilitating extraction. This solar thermal approach reduces the carbon footprint of EOR operations by displacing natural gas-fired steam generators. The integration of CSP with oil fields leverages the proximity of the heat source to the point of use, minimizing thermal losses and improving overall energy efficiency.

Solar Fuel Production

CSP also enables the production of solar fuels through thermochemical processes. High-temperature heat from CSP receivers can drive chemical reactions such as water splitting for hydrogen production or the decomposition of carbon dioxide. These processes convert solar energy into storable chemical energy, offering a pathway to decarbonize transport and industry. The ability to achieve temperatures exceeding 500 °C makes CSP uniquely suited for these endothermic reactions, complementing photovoltaic systems in the broader solar energy landscape.
