Solar tower power

Overview

Solar tower power represents a distinct class of concentrated solar power (CSP) technology designed to convert direct normal irradiance (DNI) into thermal energy, which is subsequently transformed into electricity. Unlike parabolic trough systems that focus sunlight onto linear receiver tubes, solar tower configurations utilize a large array of movable mirrors, commonly referred to as heliostats, to concentrate solar radiation onto a single central receiver mounted atop an elevated tower. This geometric arrangement allows for higher operating temperatures and improved thermodynamic efficiency compared to other CSP architectures.

Operational Principles

The fundamental operation of a solar tower plant relies on precise optical tracking. Each heliostat is equipped with dual-axis actuators that adjust the mirror's azimuth and elevation angles to reflect sunlight toward the central receiver throughout the day. The concentration ratio in tower systems can exceed 1,000, enabling the working fluid within the receiver to reach temperatures ranging from 400°C to 600°C, depending on the specific heat transfer medium employed. Common heat transfer fluids include molten salts, pressurized air, and supercritical carbon dioxide, each selected based on thermal stability and storage capacity requirements.

The thermal energy collected at the receiver is typically used to generate high-pressure steam via a heat exchanger. This steam drives a conventional Rankine cycle turbine-generator set, producing electricity that can be fed directly into the transmission grid. A critical advantage of the solar tower concept is its inherent compatibility with thermal energy storage. By circulating molten salt through the receiver and into insulated storage tanks, plants can decouple energy collection from power generation, allowing for dispatchable electricity output during periods of low solar irradiance or peak demand.

Technical Characteristics

The efficiency of a solar tower system is influenced by several factors, including the optical efficiency of the heliostat field, the thermal performance of the receiver, and the exergy quality of the heat transfer fluid. The central receiver design must balance high heat flux density against structural integrity and thermal stress. Advanced receiver coatings and modular construction techniques have been developed to minimize thermal losses and enhance durability under intense solar flux. The spatial arrangement of heliostats also plays a crucial role in minimizing shading and blocking effects, which can reduce the overall optical efficiency of the field. Proper site selection is essential, as solar tower plants require high direct normal irradiance levels to achieve optimal performance, making arid and semi-arid regions particularly suitable for deployment.

How does solar tower power work?

Solar tower power, also known as central receiver technology, operates by concentrating solar radiation onto a single focal point atop a central tower. The system relies on a large field of mirrors, called heliostats, which track the sun across the sky and reflect sunlight toward the receiver. This configuration allows for high operating temperatures, enabling efficient thermodynamic conversion of solar energy into electricity.

Heliostat Field Dynamics

The heliostat field consists of thousands of individual flat or slightly curved mirrors. Each heliostat uses dual-axis tracking systems to adjust its azimuth and elevation angles continuously. This ensures that the reflected beam remains accurately directed at the central receiver throughout the day. The geometric arrangement of the heliostats minimizes shading and blocking between adjacent mirrors, optimizing the total solar flux captured. The efficiency of the field depends on the optical quality of the mirrors and the precision of the tracking mechanisms.

Central Receiver and Heat Transfer

The central receiver is mounted at the apex of the tower and absorbs the concentrated solar flux. The receiver typically contains tubes or panels through which a heat transfer fluid circulates. Molten salt is a common heat transfer fluid due to its high thermal capacity and stability at high temperatures. As the fluid passes through the receiver, it absorbs heat from the solar radiation, reaching temperatures that can exceed 500°C. This heated fluid is then stored in insulated tanks or passed directly to a heat exchanger.

Thermodynamic Conversion

The thermal energy stored in the heat transfer fluid is used to generate steam in a heat exchanger. The steam drives a conventional turbine connected to a generator, producing electricity. The efficiency of this conversion process can be described by the Carnot efficiency formula, η=1−ThTc, where Tc is the temperature of the cold reservoir and Th is the temperature of the hot reservoir. Higher operating temperatures in the receiver lead to greater thermodynamic efficiency. The use of molten salt also allows for thermal energy storage, enabling power generation even when solar irradiance fluctuates or after sunset.

What are the main types of solar tower receivers?

Solar tower power plants utilize two primary configurations for heat absorption: internal (cavity) receivers and external (barrel) receivers. The choice between these architectures significantly influences thermal efficiency, optical losses, and the complexity of the heat transfer fluid (HTF) system. Internal receivers are characterized by a concave aperture facing the field of heliostats. This geometry allows for a "view factor" advantage, where secondary reflections off the cavity walls help trap radiation, reducing optical losses. However, internal receivers often require more complex insulation and can suffer from higher thermal stresses due to the concentration of flux on a smaller surface area.

In contrast, external receivers, often referred to as barrel receivers, present a convex or cylindrical surface to the heliostat field. This configuration simplifies the structural design and allows for easier integration of specific heat transfer fluids, most notably molten salt. Molten salt external receivers are a dominant technology in commercial solar tower projects due to the favorable thermophysical properties of the salt mixture, typically composed of sodium nitrate and potassium nitrate. The external geometry facilitates direct circulation of the molten salt through tubes mounted on the receiver surface, enabling efficient heat extraction and storage.

The thermal performance of these receivers can be analyzed using the Stefan-Boltzmann law for radiative heat loss, expressed as Qrad=σ⋅A⋅ϵ⋅(Trec4−Tamb4), where σ is the Stefan-Boltzmann constant, A is the surface area, ϵ is the emissivity of the receiver surface, Trec is the receiver temperature, and Tamb is the ambient temperature. External receivers generally exhibit higher radiative losses compared to internal cavity receivers because the entire heated surface is exposed to the sky, whereas the cavity geometry shields much of the heated surface from direct line-of-sight to the ambient environment. Despite this, the operational simplicity and compatibility with molten salt storage make external receivers a preferred choice for many large-scale installations.

Molten salt systems offer significant advantages in terms of energy storage capacity and temperature stability. The salt mixture remains liquid at operating temperatures ranging from approximately 290°C to 560°C, allowing for direct heat transfer without phase change complications. This enables the solar tower plant to maintain steam generation and power output even during periods of variable solar irradiance or brief cloud cover. The integration of molten salt in external receivers thus provides a robust solution for enhancing the capacity factor of solar tower power plants, bridging the gap between intermittent solar input and consistent electrical output.

Performance factors and Direct Normal Irradiation

Solar tower power plants rely on Direct Normal Irradiation (DNI) as the primary meteorological driver of efficiency. Unlike photovoltaic systems that capture both direct and diffuse sunlight, the heliostat fields of a solar tower must reflect concentrated beams to a central receiver. Consequently, DNI measures the solar radiation received per unit area on a surface that is always perpendicular to the sun's rays. High DNI values typically exceed 700 kWh/m²/year, ensuring that the thermal energy collected at the receiver is sufficient to maintain high temperatures in the heat transfer fluid, often molten salt or pressurized air.

Impact of DNI on Thermal Efficiency

The efficiency of a solar tower plant is directly proportional to the consistency and intensity of DNI. Variations in DNI affect the temperature stability of the heat transfer fluid, which in turn influences the thermodynamic cycle of the power block. When DNI is high, the receiver achieves optimal operating temperatures, maximizing the Carnot efficiency of the steam turbine or gas turbine. Conversely, low DNI leads to thermal losses, requiring auxiliary firing or strategic heat storage to maintain output. The relationship between DNI and electrical output is non-linear, as optical losses in the heliostat field increase with the angular distance from the sun.

Algerian Case Study Analysis

Algeria serves as a prominent case study for solar tower performance due to its exceptional DNI levels. The country's Sahara region experiences some of the highest global DNI values, often surpassing 250 W/m² annually. This high irradiance allows solar tower plants in Algeria to achieve higher capacity factors compared to plants in Europe or North America. The consistent solar resource reduces the need for extensive thermal energy storage (TES) to smooth out daily fluctuations. In Algerian projects, the high DNI enables the molten salt storage systems to reach higher temperatures, enhancing the exergy of the stored heat. This results in a more efficient conversion of thermal energy to electricity, particularly during peak demand hours when the sun is most intense. The Algerian context demonstrates that location-specific DNI analysis is critical for optimizing the sizing of heliostat fields and storage tanks, ensuring that the capital expenditure aligns with the thermal yield.

Applications and Use cases

Solar tower power technology serves two primary applications: centralized grid electricity generation and high-temperature industrial process heat. These use cases leverage the unique ability of central receiver systems to achieve higher temperatures than parabolic troughs, enhancing thermodynamic efficiency and expanding the range of viable thermal storage media.

Grid Electricity Generation

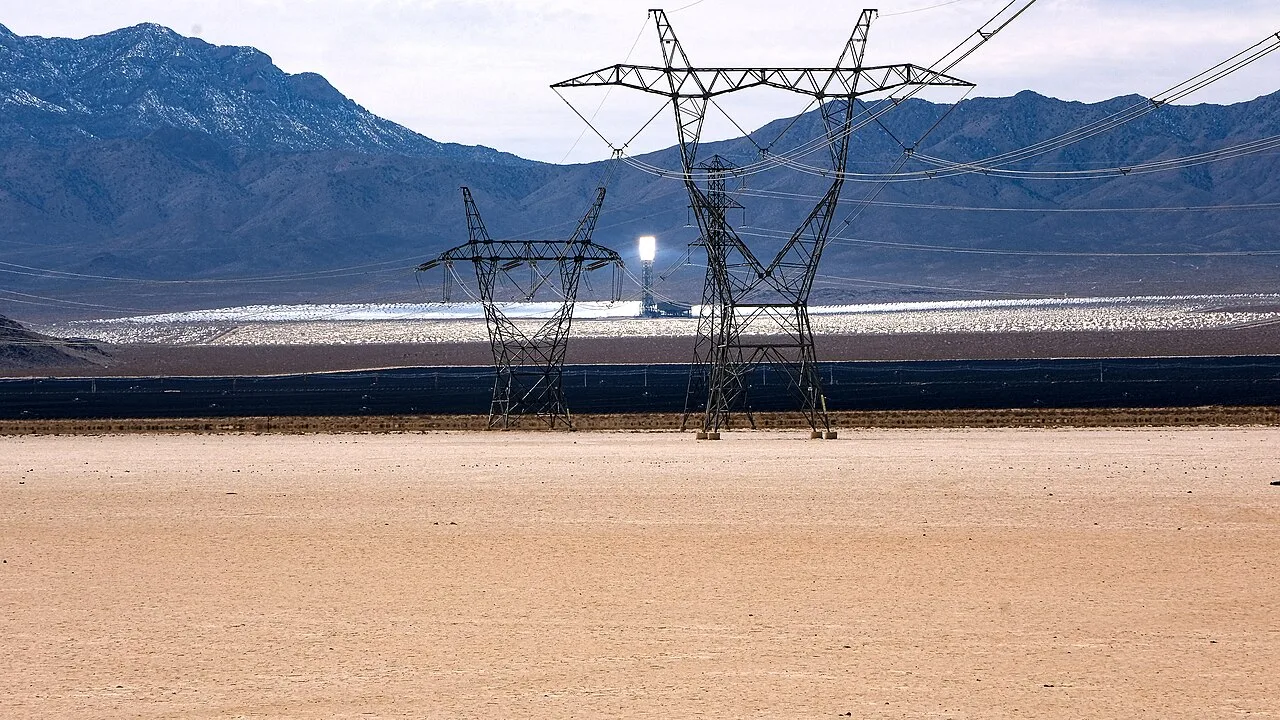

In utility-scale power plants, solar tower systems concentrate sunlight onto a central receiver atop a tall tower. The heated working fluid, typically molten salt or pressurized air, drives a heat exchanger to produce steam for a conventional Rankine cycle turbine. This configuration allows for efficient integration with thermal energy storage, enabling dispatchable electricity generation. The high operating temperatures, often exceeding 400°C to 550°C, improve the Carnot efficiency of the power block. Large-scale deployments demonstrate the technology's capacity to provide baseload or peak-shaving power, reducing reliance on fossil fuel peaker plants. The modular nature of heliostat fields allows for phased construction, optimizing capital expenditure relative to land availability and solar irradiance profiles.

Industrial Process Heat

Beyond electricity, solar towers are increasingly applied to industrial process heat, where temperatures between 200°C and 500°C are required. Sectors such as chemical processing, food dehydration, and textile manufacturing benefit from direct thermal input, reducing natural gas consumption. The high temperature stability of tower systems makes them suitable for multi-effect distillation in desalination plants and for driving absorption chillers in cooling applications. Industrial integration often utilizes hybrid systems, where solar thermal energy supplements fossil fuel boilers, ensuring continuous operation during variable solar irradiance. This application reduces carbon emissions in hard-to-abate industrial sectors, leveraging the high flux density achievable at the receiver. The technology supports decarbonization strategies by providing high-grade heat without direct combustion, enhancing energy security for industrial parks located in high-direct-normal-irradiance (DNI) regions.

Worked examples

Solar tower power plants convert direct normal irradiance (DNI) into electricity through a linear thermodynamic process. The energy output depends on the collector field area, optical efficiency, receiver thermal efficiency, and the power block’s thermodynamic efficiency. The following examples illustrate this calculation using generic parameters.

Example 1: Baseline Calculation

Consider a solar field with a collector area of 50,000 m² located in a region with a DNI of 700 W/m². The heliostat field has an optical efficiency of 75%, and the central receiver operates at a thermal efficiency of 85%. The power block converts thermal energy to electricity with an efficiency of 40%.

First, calculate the total solar power incident on the field. Multiply the area by the DNI value. 50,000 m² × 700 W/m² equals 35,000,000 W, or 35 MW of solar input.

Next, determine the thermal power captured by the receiver. Multiply the solar input by the optical and thermal efficiencies. 35 MW × 0.75 × 0.85 equals approximately 22.3 MW of thermal energy.

Finally, calculate the electrical output. Multiply the thermal power by the power block efficiency. 22.3 MW × 0.40 results in approximately 8.9 MW of electrical power.

Example 2: High-Irradiance Scenario

This example uses a larger field of 100,000 m² with a higher DNI of 900 W/m². The optical efficiency is 78%, the receiver efficiency is 88%, and the power block efficiency is 42%.

The incident solar power is 100,000 m² × 900 W/m², which equals 90 MW. The thermal power captured is 90 MW × 0.78 × 0.88, resulting in approximately 61.7 MW. The final electrical output is 61.7 MW × 0.42, yielding approximately 25.9 MW.

Example 3: Variable Efficiency Impact

Using the baseline parameters from Example 1, this example demonstrates the impact of reduced efficiency. If the optical efficiency drops to 70% due to soiling or aging, the thermal power becomes 35 MW × 0.70 × 0.85, which equals approximately 20.8 MW. The electrical output then drops to 20.8 MW × 0.40, resulting in approximately 8.3 MW. This illustrates that a 5% drop in optical efficiency reduces the final electrical output by roughly 0.6 MW.

Advantages and limitations

Solar tower power systems offer distinct thermodynamic advantages over parabolic trough technologies, primarily due to higher operating temperatures. While parabolic troughs typically operate at approximately 400 °C using synthetic oil as the heat transfer fluid, solar towers can reach temperatures exceeding 500 °C to 550 °C, and in some advanced designs, up to 700 °C using molten salt directly (per general CSP technical literature). This temperature differential allows solar towers to achieve higher thermal-to-electric conversion efficiencies, often reaching 20% to 25% net efficiency compared to 18% to 22% for troughs. The higher temperature also reduces the specific heat capacity requirement per unit of power, potentially lowering the cost of the heat transfer fluid loop.

Thermal Energy Storage Integration

One of the most significant advantages of solar tower technology is its inherent compatibility with cost-effective thermal energy storage (TES). Because the receiver is centrally located at the top of the tower, it is straightforward to integrate a two-tank molten salt storage system. The hot salt flows down the tower to the steam generator, while cold salt is pumped up to the receiver. This configuration allows for storage durations of 3 to 15 hours, providing significant dispatchability. In contrast, parabolic troughs often require a secondary heat exchanger to transfer heat from the synthetic oil to the molten salt, adding complexity and thermal losses. Direct molten salt receivers in towers eliminate this intermediate step, improving overall system efficiency and reducing balance-of-plant costs.

Land Use and Layout Efficiency

Land use efficiency varies between the two technologies. Solar towers utilize a heliostat field arranged in a roughly circular pattern around the central receiver. This layout can be more land-efficient than the linear arrangement of parabolic troughs, which often require wider spacing between rows to minimize shading and blocking effects, especially at lower latitudes. However, solar towers require a relatively flat terrain to ensure optimal heliostat alignment and minimal optical losses. Parabolic troughs can accommodate slightly more undulating terrain, potentially reducing site preparation costs. The specific land use efficiency depends on the solar resource quality and the desired capacity factor, with towers generally offering a higher power density per hectare in optimal sites.

Limitations and Challenges

Despite these advantages, solar tower technology faces several limitations. The initial capital cost can be higher than parabolic troughs, primarily due to the complexity of the heliostat field and the tower structure. Heliostats require precise dual-axis tracking systems, which can be more expensive and mechanically complex than the single-axis trackers used in troughs. Additionally, solar towers are more sensitive to shading and blocking effects in the heliostat field, which can reduce optical efficiency if not carefully designed. The central receiver also experiences high thermal stresses due to the concentrated solar flux, requiring advanced materials and cooling systems to maintain durability. These factors contribute to the higher levelized cost of energy (LCOE) for some solar tower projects compared to mature parabolic trough installations, although ongoing technological advancements continue to narrow this gap.
