Overview
The VVER-1000 is a standardized design of pressurized water reactor (PWR) developed primarily for the nuclear power industry in the Soviet Union and its successor states. It represents a significant evolution in nuclear engineering, characterized by a nominal electrical output of 1000 MW. The acronym VVER stands for Vodovodnyy Vodnyy Energeticheskiy Reaktor, which translates to "Water-Water Energy Boiling Reactor," although in technical English contexts, it is consistently classified as a pressurized water reactor. This distinction is critical for engineers and analysts, as the VVER-1000 utilizes a primary coolant loop under high pressure to transfer heat to a secondary steam loop, distinguishing it from boiling water reactors (BWRs) where steam is generated directly in the core.
The fundamental fuel source for the VVER-1000 is uranium, typically enriched to approximately 3% to 4% U-235, arranged in fuel assemblies within a cylindrical core. The operational status of these units is predominantly operational, forming a substantial portion of the nuclear fleet in Russia, Finland, and the Czech Republic, among others. The design emphasizes modularity and standardization, allowing for streamlined construction and maintenance procedures across different geographical locations. The reactor vessel is typically made of a steel alloy, housing the core, control rods, and the primary coolant system.
From a thermodynamic perspective, the VVER-1000 operates on a two-loop or multi-loop system, depending on the specific variant. The primary circuit carries pressurized water through the reactor core, absorbing heat generated by nuclear fission. This heat is then transferred to the secondary circuit via steam generators, producing steam that drives conventional turbine generators. The nominal capacity of 1000 MW is an electrical output, meaning the thermal power of the core is significantly higher, often cited in the range of 2900 to 3000 MWth, though exact figures can vary by specific plant configurations. This efficiency allows for competitive levelized costs of electricity in regions with established uranium supply chains.
The VVER-1000 design has undergone several iterations, often referred to as VVER-1000/320, VVER-1000/321, and VVER-1000/322, each introducing incremental improvements in safety systems, control mechanisms, and fuel utilization. These updates reflect the continuous refinement of the technology to meet evolving international safety standards, such as those set by the International Atomic Energy Agency (IAEA). The robustness of the design is evidenced by its widespread adoption and the longevity of its operational units, which have demonstrated high capacity factors and reliable performance over decades of service. Understanding the VVER-1000 is essential for analyzing the global nuclear landscape, particularly in Eastern Europe and Asia, where it remains a dominant reactor type.
Technical Specifications
The VVER-1000 is a standardized pressurized water reactor (PWR) design developed by the Soviet Union and later Russia, representing a significant evolution in nuclear power technology. The designation "VVER" stands for Vodovodnyy Vodnyy Energeticheskiy Reaktor, which translates to Water-Water Energy Reactor, indicating that both the coolant and the moderator are light water. The "1000" in the name refers to the nominal electrical capacity of approximately 1000 megawatts (MWe) per unit, although actual output can vary slightly depending on the specific series and operational conditions. This design has become one of the most widely deployed nuclear reactor types globally, particularly in Russia and Eastern Europe, due to its modular construction and operational reliability.
Core Design and Reactor Vessel

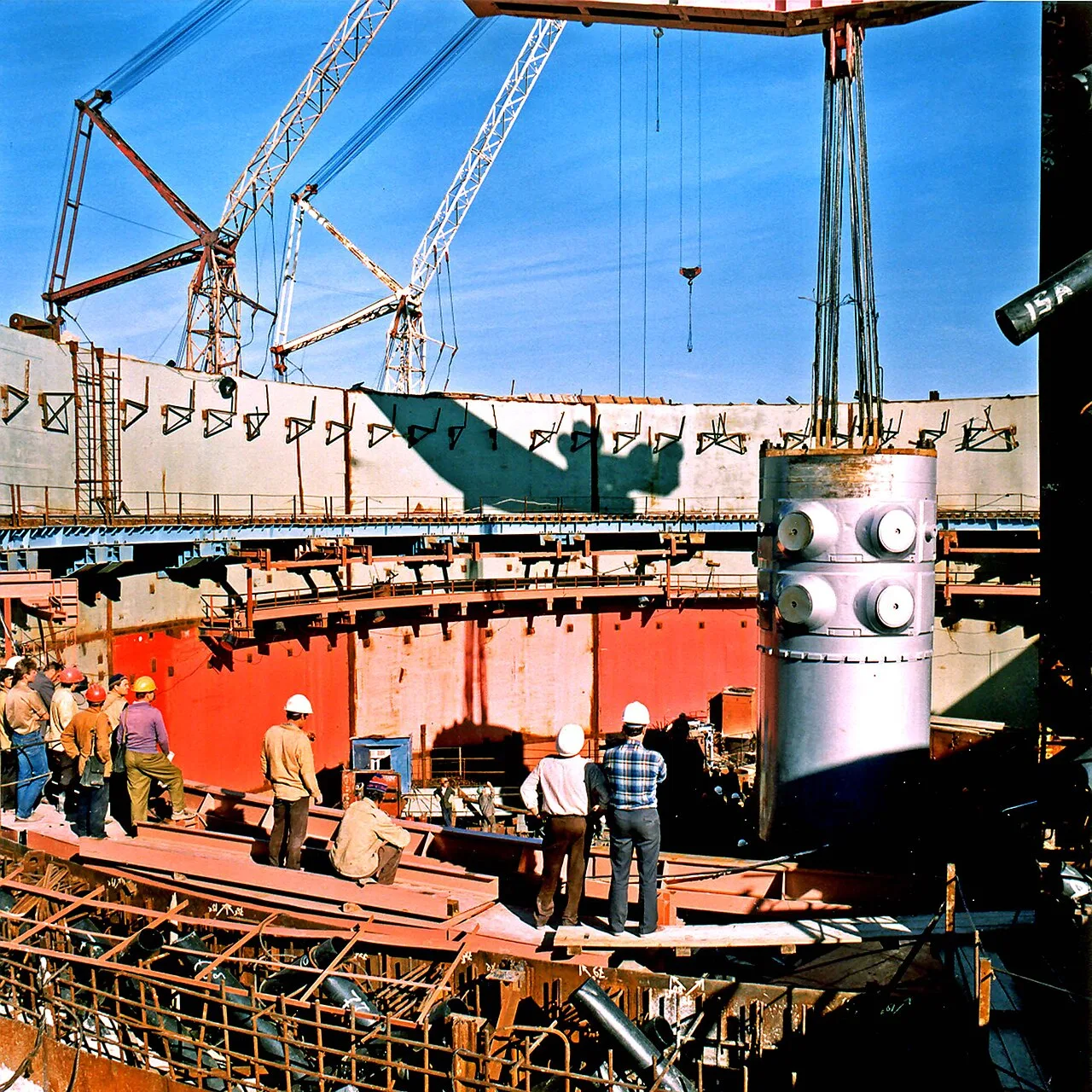

The reactor core is housed within a single pressure vessel, which is a defining characteristic of the PWR design. The VVER-1000 features a hexagonal lattice core, which allows for efficient fuel assembly arrangement and improved neutron flux distribution. The core typically contains around 163 to 169 fuel assemblies, depending on the specific sub-series (such as the VVER-1000/320 or VVER-1000/428). Each fuel assembly consists of multiple fuel rods containing uranium dioxide pellets enriched to approximately 3% to 4% uranium-235. The pressure vessel is constructed from a specialized steel alloy to withstand high temperatures and neutron irradiation, ensuring structural integrity over a design life of 40 to 60 years.
Coolant and Steam Generation
In the VVER-1000 design, high-pressure water circulates through the reactor core, absorbing heat generated by nuclear fission. This primary coolant loop operates at a pressure of approximately 155 to 163 bars, preventing the water from boiling despite temperatures reaching around 300°C to 320°C. The heated primary coolant then flows through steam generators, where it transfers thermal energy to a secondary water loop. In the secondary loop, the water boils to produce steam, which drives the turbine-generator set. This separation of the primary and secondary loops provides an additional layer of containment, reducing the radioactivity level in the turbine hall compared to boiling water reactors (BWRs).
Containment and Safety Systems
The VVER-1000 incorporates a robust containment structure designed to prevent the release of radioactive materials in the event of an accident. Early models featured a steel containment dome, while later series, such as the VVER-1000/428, utilize a concrete containment building with a steel liner, offering improved seismic resistance and thermal performance. The safety systems include multiple redundant emergency core cooling systems (ECCS), which inject borated water into the core to absorb neutrons and reduce reactivity during a shutdown. Additionally, the design includes a diverse range of safety features, such as control rods driven by hydraulic or magnetic mechanisms, and a passive residual heat removal system in newer variants.
Operational Parameters
The VVER-1000 is designed for a nominal electrical output of 1000 MWe, with a thermal power output of approximately 2900 MWth. The turbine-generator set typically operates at a speed of 3000 revolutions per minute, synchronized with the 50 Hz electrical grid common in Europe and Asia. The reactor's modular design allows for standardized manufacturing of major components, including the reactor pressure vessel, steam generators, and main coolant pumps, which facilitates construction and maintenance. The design has undergone several iterations to enhance safety, efficiency, and ease of operation, with continuous improvements in fuel burnup and control system automation.
What distinguishes the VVER-1000 from other PWRs?
The VVER-1000 is a pressurized water reactor (PWR) design developed primarily by the Soviet Union and later Russia, representing a distinct engineering lineage compared to Western PWR designs such as the Westinghouse AP1000 or the French EPR. While all PWRs share the fundamental principle of using pressurized water as both coolant and moderator, the VVER-1000 exhibits several structural and operational characteristics that differentiate it from its counterparts.
Core and Fuel Assembly Configuration
One of the most significant distinctions lies in the reactor core design. The VVER-1000 typically features a larger number of fuel assemblies compared to many Western PWRs. While specific counts vary by sub-model, the VVER core often contains over 160 fuel assemblies, arranged in a hexagonal lattice structure. This contrasts with the more common square lattice found in many Western designs. The fuel rods themselves are often clad in zircaloy, similar to Western standards, but the enrichment levels and burnup strategies can differ based on the specific uranium fuel cycle management practices of the operating entity.
Steam Generator and Primary Circuit Layout
The arrangement of the primary circuit components also sets the VVER-1000 apart. In many VVER-1000 units, the steam generators are located vertically within the reactor pressure vessel or immediately adjacent to it, depending on the specific generation (e.g., VVER-1000 vs. VVER-1000 V326). This vertical orientation can influence maintenance access and thermal-hydraulic performance. The primary coolant pumps are typically arranged in a specific configuration that affects the flow dynamics and redundancy of the cooling system. These design choices reflect the Soviet engineering philosophy of robustness and modularity, which sometimes prioritizes different failure modes than Western designs.
Containment Structure
The containment building of a VVER-1000 is another area of notable difference. Many VVER-1000 reactors utilize a double-containment system, featuring an inner steel or concrete shell and an outer concrete dome. This design aims to provide enhanced protection against both internal pressure loads and external impacts. The specific geometry and materials used in the containment structure are tailored to meet the seismic and environmental conditions of the diverse locations where VVER-1000 units have been deployed, from the Baltic states to the Black Sea region.
Operational Characteristics
Operationally, the VVER-1000 is known for its flexibility in load-following, which has become increasingly important as nuclear power integrates with variable renewable energy sources. The reactor control system, often featuring a combination of control rods and boron concentration adjustments, allows for relatively smooth power modulation. However, the specific control logic and instrumentation and control (I&C) systems have evolved over time, with newer VVER-1000 units incorporating more digital controls compared to the analog systems found in earlier generations.
These distinctions highlight the unique engineering heritage of the VVER-1000, making it a significant player in the global nuclear landscape. Understanding these differences is crucial for operators, regulators, and analysts evaluating the performance, safety, and economic viability of VVER-1000 units in comparison to other PWR technologies.
Why it matters
The VVER-1000 represents a cornerstone of modern nuclear energy infrastructure, serving as one of the most widely deployed pressurized water reactor (PWR) designs globally. With a standardized electrical capacity of 1000 MW, this reactor type has become a critical component in the energy mix of numerous nations, particularly within the Commonwealth of Independent States and increasingly in Western Europe and Asia. Its operational status remains robust, with units continuing to deliver baseload power, thereby enhancing grid stability and reducing carbon emissions in regions seeking energy diversification.
Global Proliferation and Standardization
The significance of the VVER-1000 lies largely in its role as a standardized technology platform. Unlike custom-built nuclear units, the VVER-1000 design allows for economies of scale in manufacturing, construction, and operation. This standardization has facilitated the export of Russian nuclear technology, enabling countries with varying levels of nuclear maturity to adopt a proven design. The reactor uses uranium as its primary fuel source, aligning with global supply chains and allowing for flexible fueling strategies, including the use of mixed-oxide (MOX) fuel to enhance fuel efficiency.
This widespread adoption has created a global ecosystem of VVER-1000 operators, fostering international collaboration in terms of maintenance, spare parts logistics, and technical upgrades. For energy analysts and engineers, the VVER-1000 serves as a benchmark for PWR performance in diverse geographical and climatic conditions, providing valuable data on long-term operational reliability.
Strategic Importance for Russian Energy Policy
For Russia, the VVER-1000 is not merely a technological export but a strategic asset in its broader energy diplomacy. The reactor design is a flagship product of Rosatom, the state-owned nuclear energy corporation, which leverages the VVER-1000 to secure long-term energy contracts and influence foreign policy. The operational status of these units ensures a steady revenue stream and strengthens geopolitical ties between Russia and its partner nations, who often rely on Russian expertise for fuel supply and technical support.
The continued operation and expansion of VVER-1000 units underscore Russia's commitment to maintaining its position as a leading nuclear power. This strategy supports domestic energy security while projecting soft power through energy infrastructure development abroad. As global energy landscapes evolve, the VVER-1000 remains a vital tool for Russia to influence international energy markets and maintain its competitive edge in the nuclear sector.
Frequently asked questions
The VVER-1000 is a pressurized water reactor (PWR) design developed primarily in the Soviet Union and later Russia. It represents one of the most widely deployed nuclear reactor types globally, known for its modular construction and robust safety features. The designation "VVER" stands for Vodovodny Vodnyy Energeticheskiy Reaktor, which translates to Water-Water Energy Reactor, indicating that water serves as both the coolant and the moderator. The "1000" denotes the nominal electrical output of approximately 1000 megawatts (MWe) per unit, although actual output can vary slightly depending on the specific sub-type and operating conditions.
What is the primary fuel source for VVER-1000 reactors?
VVER-1000 reactors utilize enriched uranium as their primary nuclear fuel. The fuel is typically arranged in cylindrical assemblies containing hundreds of fuel rods. This uranium-based fuel cycle is standard for most pressurized water reactors, allowing for efficient heat generation through nuclear fission. The use of uranium ensures a consistent and high-energy output, which is critical for maintaining the steam pressure required to drive turbines in the secondary loop.
What does the "1000" in VVER-1000 signify?
The number 1000 refers to the nominal electrical capacity of the reactor unit, measured in megawatts (MW). This capacity represents the amount of electricity the reactor can generate under standard operating conditions. While the thermal power output is higher, the 1000 MWe figure is the standard metric used to classify this specific generation of VVER reactors, distinguishing them from smaller VVER-440 units or larger VVER-1200 models. This capacity makes the VVER-1000 a significant contributor to national power grids, particularly in Eastern Europe and Russia.
What is the operational status of VVER-1000 reactors?
VVER-1000 reactors are currently operational in multiple countries. They form a substantial portion of the nuclear fleet in Russia, as well as in nations such as Finland, Hungary, and the Czech Republic. These reactors are known for their long service lives, with many units having been in service for several decades. Ongoing maintenance and modernization efforts continue to ensure their efficiency and safety, allowing them to remain competitive in the evolving energy landscape. Their operational status reflects the reliability and adaptability of the VVER design.
How does the VVER-1000 differ from other reactor types?
The VVER-1000 is a pressurized water reactor, meaning it uses ordinary water under high pressure to cool the reactor core. This distinguishes it from boiling water reactors (BWRs), where water boils directly in the core, and from heavy water reactors, which use deuterium oxide. The VVER design emphasizes modular construction, allowing for faster assembly and standardized components. Additionally, the VVER-1000 incorporates specific safety features, such as a large containment building and multiple redundant cooling systems, which are tailored to the operational experiences gained from earlier Soviet reactor designs.
Summary
The VVER-1000 is a pressurized water reactor (PWR) design that represents a significant evolution in Soviet and subsequent Russian nuclear power engineering. As a concept, it is defined by its standardized approach to nuclear energy generation, utilizing uranium as its primary fuel source. The designation "VVER" stands for Vodyany Vodyany Energetichesky Reaktor, which translates to Water-Water Energy Reactor, highlighting the dual role of water as both the coolant and the neutron moderator within the core. The "1000" in the name refers to its nominal electrical output capacity of 1000 MW, a benchmark that has made it one of the most widely deployed reactor types globally, particularly in the Commonwealth of Independent States and increasingly in Western Europe and Asia.
Technical Design and Operational Status
Operational status remains a key characteristic of the VVER-1000, with numerous units currently in service and contributing to the global baseload power supply. The reactor design incorporates a robust pressure vessel containing the active core, surrounded by a containment structure designed to mitigate potential releases of radioactivity. The use of uranium fuel assemblies allows for a flexible fuel cycle, often enriched to between 3% and 4% U-235, though specific enrichment levels can vary by operator and generation variant. The PWR configuration ensures that the primary coolant loop remains under high pressure to prevent boiling, transferring heat to a secondary loop via steam generators to drive turbine generators.
Global Deployment and Standardization
The VVER-1000's success is largely attributed to its modularity and the standardization of components across different manufacturing batches. This has facilitated easier maintenance, operator training, and supply chain management for nuclear utilities. The design has undergone several iterations, often referred to as generations or modifications, which have improved safety features, extended operational lifespans, and enhanced thermal efficiency. Despite these updates, the fundamental architecture remains consistent, allowing for a degree of interchangeability of parts and procedures. The reactor's footprint and auxiliary systems are designed to accommodate the 1000 MW output efficiently, making it suitable for both single-unit stations and multi-unit complexes.
Safety and Future Prospects
Safety remains a central focus for VVER-1000 operators and regulators. The design includes multiple redundant safety systems, including emergency core cooling, containment spray systems, and passive heat removal mechanisms in later variants. The operational history of VVER-1000 units has provided valuable data for continuous improvement, influencing the design of subsequent reactor models. As the global energy landscape shifts, the VVER-1000 continues to play a crucial role in decarbonization strategies, offering a reliable source of low-carbon electricity. Its enduring presence in the nuclear fleet underscores the effectiveness of its engineering principles and adaptability to evolving regulatory and market conditions.
