Overview

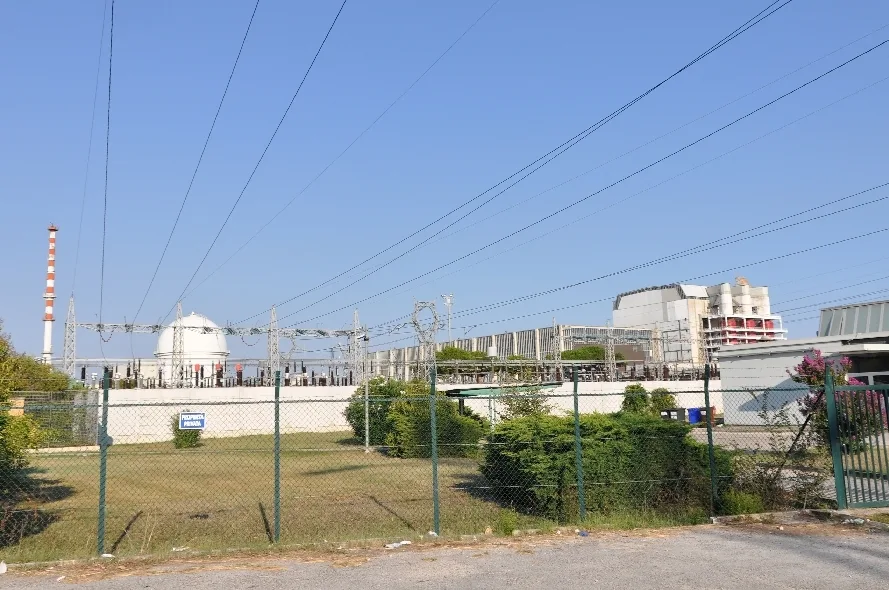

The Latina Nuclear Power Plant was a nuclear generating facility located in Latina, within the Lazio region of Italy. The plant is classified as a decommissioned nuclear power station, having served as an early example of nuclear energy infrastructure in the Italian national grid. Its primary operational unit was a single Magnox reactor, a technology that utilized natural uranium fuel and carbon dioxide as a coolant, which was characteristic of several early-generation nuclear plants in Europe during the mid-20th century. The facility had an installed electrical capacity of 153 MW, contributing to the regional energy mix during its active years.

Operational history at the Latina site began in 1963, with the plant remaining in service until 1987. This operational period of approximately two decades places the Latina plant among the earlier adopters of nuclear technology in Italy, preceding the more extensive expansion of nuclear capacity in the 1970s and the subsequent debates that would influence the country's nuclear policy. The plant was operated by SOGIN, the state-owned company established to manage the decommissioning and waste management of Italy's nuclear power stations. The decommissioned status of the plant reflects the broader trajectory of Italy's nuclear program, which saw a gradual reduction in reliance on nuclear power following various political and public referendums.

In addition to the primary Magnox reactor, the Latina site was also the location for a second, experimental reactor known as the CIRENE design. Construction on this second unit began in 1972, reflecting ongoing efforts to expand and diversify the technological capabilities at the site. However, the CIRENE reactor faced significant delays and was not completed until 1988, a year after the primary Magnox unit had already ceased operations. Despite its completion, the CIRENE reactor never entered full commercial operation, marking it as an experimental project that did not fully realize its potential contribution to the Italian energy infrastructure. The coexistence of the operational Magnox unit and the experimental CIRENE design highlights the site's role as a testing ground for nuclear technology in Italy during the latter half of the 20th century.

History of Construction and Early Operations

Construction of the Latina Nuclear Power Plant began in 1958, marking an early phase of Italy's nuclear energy expansion. The project was developed by a consortium involving SIMEA (Società Italiana Materiali Atomici) and the Nuclear Power Group, which coordinated the engineering and financial efforts required to establish the facility in Lazio. The plant was designed to house a single Magnox reactor, a technology characterized by its use of natural uranium fuel encased in magnesium-alloy cans. This design choice reflected the technological preferences of the late 1950s and early 1960s, prioritizing reliability and established engineering principles for early commercial deployment. The construction process involved significant civil works to accommodate the reactor building, turbine hall, and auxiliary systems necessary for a 153 MWe output. The site selection in Latina, Lazio, provided strategic access to the national grid and local water resources, facilitating the cooling requirements essential for the Magnox cycle. Throughout the construction phase, the consortium managed supply chains for specialized nuclear components, including the graphite moderator blocks and zircaloy fuel elements, ensuring alignment with the projected commissioning schedule. The engineering team addressed challenges related to the integration of the primary gas circuit and the secondary steam generation systems, which were critical for maintaining thermal efficiency. The progress of the construction was monitored by national regulatory bodies, which evaluated the structural integrity and safety features of the facility. The completion of the main reactor building and the installation of the turbine-generator set were key milestones that signaled the approach of the operational phase. The plant's design incorporated safety margins consistent with the standards of the era, including emergency core cooling systems and containment structures tailored to the Magnox technology. The involvement of SIMEA and the Nuclear Power Group ensured that technical expertise was leveraged from both domestic and international sources, enhancing the robustness of the final installation. The construction timeline was adhered to with relative precision, allowing for the subsequent phases of testing and commissioning to proceed without major delays. The facility was prepared to receive the first batch of uranium fuel assemblies, setting the stage for the initial criticality tests. The early operational planning included staff training and the establishment of maintenance protocols, which were essential for the long-term performance of the reactor. The Latina plant represented a significant investment in Italy's energy infrastructure, aiming to diversify the country's power generation mix and reduce dependence on imported fossil fuels. The construction efforts laid the groundwork for the plant's eventual role in the regional energy supply, contributing to the grid stability of the Lazio area. The technical specifications of the Magnox reactor were carefully implemented, ensuring that the plant could achieve its rated capacity of 153 MWe under normal operating conditions. The consortium's coordination was vital in managing the complex interplay between civil engineering, mechanical installation, and electrical integration. The completion of the construction phase was a testament to the collaborative efforts of the engineering teams and the strategic vision of the Nuclear Power Group. The facility was ready for the next stage of its lifecycle, which involved rigorous testing to validate the performance of the reactor systems. The early operations would provide valuable data on the behavior of the Magnox technology in an Italian context, informing future nuclear projects in the country. The construction history of the Latina plant is an important chapter in the development of nuclear power in Italy, reflecting the technological and organizational capabilities of the period. The plant's eventual decommissioning by SOGIN would later become a key aspect of its legacy, but its construction and early operations remain significant for understanding the evolution of Italy's nuclear infrastructure. The timeline of these early milestones is detailed below, providing a clear overview of the key events from the start of construction to the beginning of commercial operation.

Year Milestone
1958 Start of construction by SIMEA and Nuclear Power Group
1962 First criticality achieved
1963 Grid connection and initial operation
1964 Commercial operation begins

Technical Specifications and Reactor Design

The Latina Nuclear Power Plant was designed around a single Magnox reactor, a technology that utilized natural uranium fuel and a graphite moderator. This specific unit had an installed electrical capacity of 153 MWe. The plant's electrical output was generated by three turbo-generator sets, each rated at 70 MWe. These critical mechanical components were manufactured by C. A. Parsons, a prominent engineering firm known for its contributions to early nuclear and thermal power generation systems. The integration of these three sets allowed the plant to reach its total nameplate capacity, providing a steady output during its operational years.

Core Construction and Materials

The heart of the Magnox reactor at Latina was its graphite core, which served as the primary moderator to slow down neutrons and sustain the fission chain reaction. The graphite blocks for this core were manufactured by Anglo Great Lakes, a company with significant expertise in nuclear-grade graphite production. The quality and consistency of the graphite were essential for maintaining the thermal and neutron flux profiles within the reactor vessel. This component was central to the reactor's thermal-hydraulic performance and overall efficiency.

Auxiliary Power Systems

To ensure operational reliability and backup power during grid fluctuations or outages, the plant was equipped with auxiliary diesel generators. These generators were supplied by FIAT, the major Italian industrial conglomerate. The diesel units provided critical electrical power to essential reactor systems, including cooling pumps and control instrumentation, ensuring safe operation and shutdown capabilities. The selection of FIAT for these auxiliary systems reflected the integration of domestic industrial capacity into the plant's infrastructure. These components played a vital role in the plant's operational history from its commissioning until its decommissioning.

Operational Challenges and Capacity Reduction

The operational history of the Latina Nuclear Power Plant was significantly defined by material science challenges inherent to its Magnox design. The reactor utilized mild steel components, which proved susceptible to oxidation under the specific thermal and atmospheric conditions of the plant’s operation. These oxidation issues created a persistent engineering hurdle that directly impacted the thermal efficiency and output stability of the single 153 MWe unit.

Thermal Adjustments in 1969

In response to the progressive oxidation of the mild steel, plant engineers implemented a significant operational adjustment in 1969. The core temperature was reduced from an initial 390 °C to a more stable 360 °C. This thermal downgrade was a strategic decision to mitigate the rate of oxidation and preserve the structural integrity of the reactor components, although it came at the cost of immediate power output.

This temperature reduction triggered a corresponding decrease in the plant’s electrical capacity. The net capacity dropped from an initial 210 MWe to 160 MWe, settling at the final operational figure of 153 MWe. This adjustment illustrates the trade-offs required to maintain the longevity of early-generation nuclear technology. The plant continued to operate under these modified parameters for several decades, contributing to Italy’s energy mix until its eventual decommissioning.

Closure and Decommissioning Process

The operational lifespan of the Latina Nuclear Power Plant concluded in 1987, following a period of political and technical scrutiny that began several years earlier. In 1985, the plant underwent a license renewal process, which was a critical step in its continued operation amidst growing public debate over nuclear energy in Italy. Despite this administrative approval, the plant's fate was sealed by the global shockwaves of the Chernobyl disaster in 1987. The catastrophe triggered a nationwide referendum in Italy, resulting in a decisive public vote that led to the immediate shutdown of the Latina facility, along with other Italian nuclear sites. The plant, which had operated since 1963, thus ended its primary generation phase in 1987, marking the end of an era for Magnox technology in the region.

Transfer to SOGIN and Ownership

Following the shutdown, the ownership and operational responsibility for the decommissioned plant were gradually consolidated. In 1999, the ownership of the Latina Nuclear Power Plant was formally transferred to SOGIN, the state-owned holding company established to manage the decommissioning of Italy's nuclear power plants. This transfer was part of a broader strategic move to centralize the management of nuclear assets, ensuring a unified approach to the complex and lengthy decommissioning processes. SOGIN has since been the primary operator responsible for overseeing the site, managing the residual fuel, and planning the structural dismantling of the plant infrastructure.

Ongoing Decommissioning Work

The decommissioning process at Latina is an ongoing endeavor, characterized by phased technical operations aimed at returning the site to a state suitable for reuse. Recent efforts have focused on the removal of key reactor components. In 2024, significant progress was made with the removal of the steam generators, a critical step in the dismantling of the Magnox reactor system. This work is part of a broader timeline that aims to complete the decommissioning process by 2027. The removal of these large-scale components requires specialized engineering solutions and careful handling of radioactive materials, reflecting the technical challenges inherent in closing a nuclear facility that operated for over two decades. The planned completion in 2027 marks a major milestone in the long-term strategy of SOGIN to finalize the closure of the Latina site.

Why it matters

The Latina Nuclear Power Plant holds a foundational position in the history of Italian energy infrastructure as the nation's first operational nuclear power station. Located in Latina, Lazio, the facility marked the initial step in Italy's nascent nuclear program, demonstrating the country's early commitment to diversifying its energy mix beyond traditional hydroelectric and thermal sources. The plant's primary unit was a 153 MWe Magnox reactor, a technology choice that aligned Italy with the broader European nuclear landscape of the 1960s, particularly mirroring the early adoption strategies seen in the United Kingdom and France.

Pioneering Role in Italian Nuclear History

As the first of its kind in Italy, the Latina plant served as a critical testbed for operational procedures, workforce training, and regulatory frameworks that would influence subsequent nuclear developments across the peninsula. Its commissioning in 1963 established a precedent for nuclear siting in the Lazio region, leveraging local geographical and logistical advantages. The plant's operation until 1987 provided over two decades of data on nuclear performance in the Italian context, contributing to the national understanding of uranium fuel cycles and reactor maintenance protocols.

Magnox Technology and European Context

The selection of the Magnox reactor design for Latina was significant within the European nuclear technology portfolio. Magnox reactors, characterized by their graphite-moderated, carbon-dioxide-cooled systems and natural uranium fuel, were among the earliest commercial nuclear technologies deployed in Europe. By adopting this design, Italy joined a select group of European nations utilizing Magnox technology, facilitating technical exchanges and comparative analyses with peers in the UK and France. This technological alignment allowed Italian engineers to benefit from the broader European experience with Magnox operations, enhancing the reliability and efficiency of the Latina unit during its operational lifespan.

Legacy and Experimental Follow-Up

Beyond its primary Magnox unit, the Latina site also hosted the construction of a second reactor, the experimental CIRENE design. Although construction began in 1972, the CIRENE reactor was not completed until 1988 and never entered full operation. This secondary project underscored Latina's role not just as an operational powerhouse but also as a hub for nuclear innovation and experimental design in Italy. The presence of both a mature Magnox unit and an experimental CIRENE reactor highlighted the site's dual function in supporting both immediate energy production and long-term technological exploration within the Italian nuclear program.

What was the CIRENE reactor project?

The Latina Nuclear Power Plant site hosted a second, distinct nuclear energy initiative known as the CIRENE reactor project. While the primary facility was defined by its single Magnox unit, the CIRENE project represented an experimental approach to nuclear power generation in Italy. This second reactor was designed with a different technical configuration, aiming to explore alternative methods of energy production compared to the established Magnox technology already in operation at the site.

Construction Timeline and Delays

Construction of the CIRENE reactor began in 1972. This start date placed the project nearly a decade after the initial Magnox unit had begun its operational life at the Latina site. The timeline for the CIRENE reactor was significantly longer and more protracted than that of the first unit. While the Magnox reactor was commissioned in 1964, the experimental CIRENE design faced extended periods of development and building activity that spanned over fifteen years.

The construction process for the CIRENE reactor was not completed until 1988. This completion date occurred several years after the first Magnox reactor had already ceased its operations, which ended in 1987. The gap between the start of construction in 1972 and the final completion in 1988 highlights the extended nature of the experimental project. The delays meant that the CIRENE reactor was still under construction or in its final stages while the primary power-generating unit at Latina was winding down its service life.

Operational Status

Despite being completed in 1988, the CIRENE reactor never operated. This status distinguishes it sharply from the first Magnox unit, which contributed 153 MWe to the Italian grid for over two decades. The CIRENE reactor remained an experimental design that reached the completion phase but did not enter into active service for power generation. The site, therefore, housed one fully operational historical reactor and one completed but non-operational experimental unit.

The failure of the CIRENE reactor to operate means that the total historical energy output of the Latina Nuclear Power Plant comes exclusively from the single 153 MWe Magnox reactor. The CIRENE project remains a notable part of the site's history as an ambitious but ultimately unrealized experimental endeavor in Italian nuclear energy infrastructure. The operator, SOGIN, manages the legacy of both the decommissioned Magnox unit and the completed but unused CIRENE reactor at the Latina location in Lazio, Italy.

How does Magnox technology work?

The Latina Nuclear Power Plant utilized Magnox technology, a specific class of gas-cooled nuclear reactor design. This system relies on graphite as a moderator to slow down neutrons and carbon dioxide as the primary coolant circulating through the core. The fuel consists of uranium metal rods encased in magnesium alloy sheathing, which gives the technology its name. These fuel elements are arranged within a cylindrical graphite core, allowing for efficient heat transfer and neutron moderation. The carbon dioxide gas absorbs heat from the fuel rods and transfers it to a steam generator, where water is converted into steam to drive the turbine-generator set. This design was characteristic of early British nuclear power stations and was adapted for Italian operations at Latina. The reactor at Latina had an electrical capacity of 153 MWe, reflecting the scale typical of first-generation Magnox units. The graphite moderator blocks are stacked to form the core structure, providing both neutron slowing and structural support for the fuel channels. The carbon dioxide coolant operates under pressure, ensuring efficient thermal energy extraction from the uranium fuel. The magnesium alloy sheathing protects the uranium metal from the hot carbon dioxide gas, preventing oxidation and maintaining fuel integrity during operation. This technology represents an important phase in nuclear power development, preceding later generations of pressurized water reactors and advanced gas-cooled reactors. The Latina plant operated using this configuration from its commissioning in 1964 until its eventual decommissioning. The design allowed for natural uranium usage, reducing the need for extensive enrichment processes compared to later reactor types. The graphite core requires careful temperature management to maintain optimal neutron moderation and fuel performance. The carbon dioxide cooling loop is a closed system, minimizing radioactive release during normal operation. This technological approach provided reliable baseload power generation for the region during its operational lifespan. The plant's single Magnox reactor represented Italy's entry into nuclear power generation, utilizing proven British engineering principles adapted to local grid requirements. The system's simplicity and robustness contributed to its successful operation over two decades. The decommissioning process for Magnox reactors involves careful handling of the graphite moderator and magnesium alloy components, which become activated during long-term exposure to neutron flux. The Latina site serves as a historical example of early nuclear technology deployment in Southern Europe, showcasing the engineering solutions of the 1960s and 1970s. The technology's characteristics, including its fuel cycle and cooling system, defined the operational parameters and maintenance requirements for the facility throughout its service life.
