Parabolic trough collector system

Overview

Parabolic trough collector systems represent a mature and widely deployed class of Concentrated Solar Power (CSP) technology. These systems utilize long, curved mirrors shaped into a parabolic profile to concentrate sunlight onto a linear receiver tube positioned along the focal line of the parabola. Unlike photovoltaic systems that convert sunlight directly into electricity via the photovoltaic effect, parabolic troughs are fundamentally solar thermal technologies. They first convert solar radiation into heat, which is then used to generate steam or directly heat a working fluid. This thermal energy can drive a conventional Rankine cycle steam turbine for electricity generation or be utilized for industrial process heat applications, offering a distinct advantage in sectors requiring high-temperature thermal stability.

The core component of the system is the parabolic reflector, typically composed of glass or polished aluminum segments mounted on a steel support structure. These reflectors track the sun along a single axis, usually oriented north-south to maximize east-west solar exposure throughout the day. The receiver, often referred to as the "absorber tube," is a steel pipe coated with a selective surface to maximize solar absorption and minimize thermal radiation losses. It is housed within a transparent glass envelope, creating a vacuum or inert gas-filled annulus that provides thermal insulation. This design allows the heat transfer fluid (HTF) circulating through the tube to reach temperatures typically ranging from 150°C to 400°C, depending on the specific fluid and collector design.

Common heat transfer fluids include synthetic thermal oils, molten salts, and increasingly, direct steam generation (DSG) systems. The heated fluid is pumped to a heat exchanger or directly to a steam turbine generator set. The efficiency of the system depends on several factors, including the optical efficiency of the mirrors, the thermal efficiency of the receiver, and the mechanical efficiency of the tracking system. The overall optical efficiency ηopt can be approximated by the product of the reflector reflectance ρ, the intercept factor γ, and the transmittance of the glass envelope τ, expressed as ηopt≈ρ⋅γ⋅τ. This linear concentration ratio, typically between 30:1 and 90:1, distinguishes parabolic troughs from other CSP technologies like solar power towers, which achieve higher concentration ratios but with more complex optical alignment.

Parabolic trough plants are particularly valued for their dispatchability when integrated with thermal energy storage systems. By pumping hot fluid into insulated storage tanks, the plant can continue generating electricity even after sunset or during periods of cloud cover. This feature addresses one of the primary challenges of solar energy: intermittency. The technology has been operational in various scales, from small industrial heat installations to utility-scale power plants exceeding 200 MW of electrical capacity. Its established supply chain and predictable performance metrics make it a reliable component in the global mix of renewable energy infrastructure, complementing variable renewable sources like wind and photovoltaic solar.

How does a parabolic trough collector system work?

Parabolic trough collector systems represent a mature form of concentrated solar power (CSP) technology. The fundamental operating principle relies on a linear parabolic mirror that reflects and concentrates sunlight onto a receiver tube positioned along the focal line of the parabola. Unlike point-focus systems, this linear concentration allows for single-axis tracking, typically following the sun’s path from east to west throughout the day to maximize optical efficiency.

Optical Concentration and Receiver Design

The parabolic reflector is composed of multiple curved glass or metallic mirror segments that form a continuous trough. These mirrors track the solar irradiance, directing photons toward a centrally located receiver. The receiver consists of a darkened, selective-coated absorber tube enclosed within a transparent glass envelope. This design creates a vacuum-insulated cavity, significantly reducing convective and conductive heat losses from the absorber to the ambient environment.

The concentration ratio in parabolic troughs typically ranges from 30 to 100, depending on the optical quality of the mirror and the geometric aperture. The selective coating on the absorber tube maximizes solar absorptance while minimizing thermal emittance, allowing the working fluid inside to reach temperatures suitable for thermodynamic conversion.

Heat Transfer Fluid Circulation

A heat transfer fluid (HTF) circulates through the absorber tube, absorbing the concentrated solar thermal energy. Synthetic thermal oils are the most common HTF in operational plants, chosen for their stability at temperatures up to approximately 400°C. As the oil absorbs heat, its temperature rises, and it is pumped to a heat exchanger where thermal energy is transferred to a secondary working fluid, usually water, to generate high-pressure steam.

In some advanced configurations, molten salts or pressurized water are used directly as the primary HTF. These fluids allow for higher operating temperatures and improved thermal storage capabilities. The heated fluid drives a conventional Rankine cycle steam turbine, converting thermal energy into mechanical work and subsequently into electrical power. The cooled HTF then returns to the collector field to repeat the cycle, ensuring continuous energy capture during peak solar irradiance periods.

Design and performance characteristics

Parabolic trough collector (PTC) systems utilize curved, reflective mirrors to concentrate solar radiation onto a linear focal line. The geometric design is critical for optical efficiency. The aperture area determines the total solar energy intercepted, while the focal line geometry ensures that incident rays are directed toward the receiver tube. Precise tracking mechanisms, typically single-axis trackers, follow the sun’s path to minimize the incidence angle error. This alignment reduces cosine losses and ensures that the concentrated flux is uniformly distributed along the receiver.

Optical and Thermal Parameters

The performance of a PTC system is governed by several key parameters. Optical efficiency depends on the reflectivity of the mirrors, the transmissivity of the glass envelope, and the absorptivity of the receiver surface. Thermal losses occur through convection, conduction, and radiation from the receiver tube to the ambient environment. The use of evacuated glass envelopes or selective coatings helps mitigate these losses. The concentration ratio, defined as the ratio of the aperture area to the receiver area, influences the operating temperature and thermal efficiency.

Parameter	Typical Value / Range	Description
Concentration Ratio	30–100	Ratio of aperture area to receiver area
Optical Efficiency	0.7–0.85	Fraction of incident solar radiation absorbed by the receiver
Thermal Efficiency	0.6–0.75	Fraction of absorbed energy converted to useful heat
Operating Temperature	150–400 °C	Temperature of the heat transfer fluid (HTF)
Aperture Width	5–6 m	Width of the parabolic mirror field

The thermal efficiency ηth can be expressed as a function of the optical efficiency ηopt and thermal losses Qloss. The relationship is often modeled as ηth=ηopt−Aaperture⋅IsolarQloss. As the temperature of the heat transfer fluid increases, thermal losses rise, reducing overall efficiency. Therefore, system design must balance higher operating temperatures for better thermodynamic performance against increased thermal losses.

Low temperature steam generation

Parabolic trough collector systems are frequently deployed for low-temperature steam generation, a configuration distinct from the high-pressure steam cycles typical of utility-scale concentrated solar power plants. In these applications, the primary objective is to produce saturated or slightly superheated steam at temperatures ranging from 100 °C to 150 °C, which is particularly valuable for industrial process heat and district heating networks. The thermal efficiency of the system in this regime depends heavily on the optical concentration ratio and the heat transfer fluid used within the receiver tube.

Thermodynamic Considerations

The fundamental principle governing the energy capture in a parabolic trough is the concentration of direct normal irradiance (DNI) onto a linear focal line. The thermal power output, P_thermal, can be approximated by the equation P_thermal = A_aperture × DNI × η_optical × η_thermal, where A_aperture is the projected aperture area, and η_optical and η_thermal represent the optical and thermal efficiencies, respectively. For low-temperature applications, the thermal efficiency is often higher than in high-temperature counterparts because radiative losses from the receiver are proportional to the fourth power of the absolute temperature, Q_loss ∝ (T_receiver^4 - T_ambient^4).

When the target steam temperature is below 150 °C, the use of water as the direct heat transfer fluid becomes more feasible, reducing the complexity of the heat exchanger network. However, the lower temperature differential between the receiver and the ambient environment means that the system is more sensitive to optical errors, such as slope errors of the reflector and tracking inaccuracies. Consequently, the optical efficiency η_optical must be carefully optimized to maintain a high overall system performance.

Industrial Process Heat Applications

One of the most significant applications of low-temperature steam from parabolic troughs is in industrial process heat (IPH). Industries such as food processing, textile manufacturing, and chemical production often require steam at temperatures between 100 °C and 150 °C. By utilizing parabolic troughs, these industries can offset the use of fossil fuels, particularly natural gas and light diesel oil, thereby reducing both operational costs and carbon emissions. The integration of a thermal energy storage system, such as a simple hot water tank or phase-change material, can further enhance the flexibility of the steam supply, allowing for continuous operation even during periods of variable solar irradiance.

In district heating applications, parabolic trough systems can provide low-temperature hot water or steam to residential and commercial buildings. The steam is typically generated in a boiler heated by the heat transfer fluid circulating through the receiver tubes. The efficiency of this conversion process is critical, as the lower temperature of the steam means that the exergy efficiency of the system is inherently lower than that of high-temperature power generation cycles. Nevertheless, the simplicity and cost-effectiveness of low-temperature parabolic trough systems make them an attractive option for regions with high direct normal irradiance and a consistent demand for process heat or space heating.

It is important to note that the design of the receiver tube for low-temperature applications may differ from that of high-temperature systems. The glass envelope and selective coating on the absorber tube are optimized to minimize radiative and convective losses at lower temperatures. Additionally, the thermal expansion of the materials must be carefully managed to prevent mechanical stress and potential failure of the receiver assembly over time.

What are the main components of a parabolic trough system?

A parabolic trough collector system relies on the coordinated function of optical, structural, and thermal components to convert direct normal irradiance into usable heat. The system does not operate as a single monolithic unit but rather as an array of linear focusing elements. Each element must maintain precise geometric alignment to concentrate sunlight onto a linear focal line. The efficiency of the entire plant depends on the integrity of these individual components and their ability to track the sun’s apparent motion across the sky.

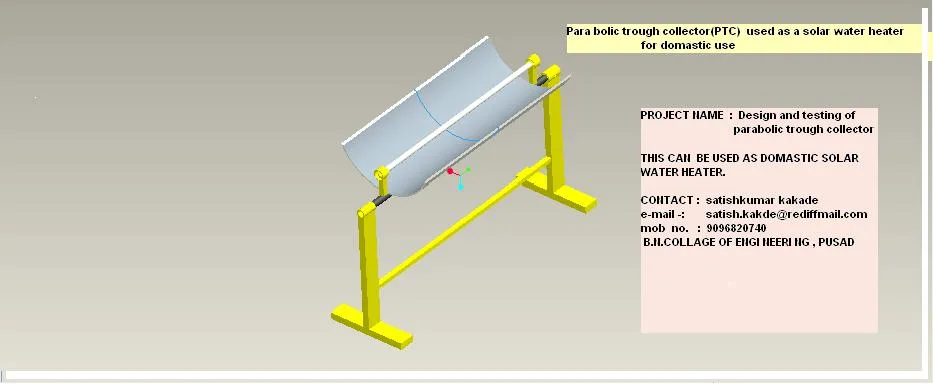

Parabolic Mirror and Optical Surface

The primary optical component is the parabolic reflector. This surface is typically constructed from glass mirrors with a silver or aluminum backing to maximize reflectivity. The mirror is shaped into a parabolic curve to focus incoming parallel rays of sunlight onto a single linear focal line. The accuracy of the parabolic shape is critical; deviations in the surface geometry cause optical errors that scatter the concentrated flux. The reflector is often segmented to manage manufacturing tolerances and thermal expansion. The surface must maintain high reflectivity over time to minimize optical losses, which are influenced by soiling, coating degradation, and angular incidence of the sunlight.

Receiver Tube and Absorber

Positioned along the focal line of the parabolic mirror is the receiver tube, also known as the absorber tube. This component is responsible for capturing the concentrated solar flux and converting it into thermal energy. The absorber tube is typically made of steel or aluminum and is coated with a selective surface to maximize solar absorption while minimizing thermal radiation losses. To reduce convective and radiative heat losses, the absorber tube is often enclosed within a glass vacuum jacket. The vacuum layer acts as an insulator, significantly reducing heat transfer to the ambient air. A heat transfer fluid, such as synthetic oil or molten salt, flows through the absorber tube, absorbing the thermal energy and transporting it to the power block or thermal storage system.

Support Structure and Tracking Mechanism

The parabolic mirror and receiver assembly are mounted on a robust support structure. This structure must withstand wind loads, thermal stresses, and the weight of the optical components. The support structure connects the collector to the tracking mechanism, which is essential for maintaining optimal alignment with the sun. Parabolic trough systems typically use a single-axis tracking mechanism, rotating the collector around a horizontal axis. This allows the system to follow the sun’s east-west path, maximizing the concentration of direct normal irradiance onto the receiver. The tracking system uses sensors and actuators to adjust the angle of the collector continuously throughout the day. Precise tracking minimizes the incidence angle modifier, ensuring that the optical efficiency remains high from sunrise to sunset. The mechanical design must balance stiffness to reduce optical errors with flexibility to accommodate thermal expansion and wind deflection.

Applications in solar power and industrial heat

Parabolic trough collector systems are primarily deployed in utility-scale Concentrated Solar Power (CSP) plants, where they serve as the dominant technology for generating electricity from direct normal irradiance. These systems are particularly valued for their ability to integrate thermal energy storage, allowing for dispatchable power generation that extends beyond daylight hours. In large-scale solar farms, arrays of parabolic mirrors focus sunlight onto receiver tubes containing a heat transfer fluid, typically synthetic oil or molten salt. This heated fluid generates steam in a heat exchanger, driving conventional steam turbines to produce electricity. The modular nature of trough technology facilitates scalable plant designs, making it suitable for diverse geographic locations with high solar insolation.

Utility-Scale Solar Power Generation

In utility-scale applications, parabolic troughs are often combined with thermal energy storage systems to enhance grid stability. The thermal energy storage capacity allows plants to store excess heat generated during peak solar hours and release it during periods of high demand or low irradiance. This capability is crucial for integrating CSP into the electrical grid, providing a more consistent power output compared to photovoltaic systems without storage. The efficiency of these systems depends on several factors, including the optical concentration ratio, the thermal properties of the heat transfer fluid, and the ambient temperature. Advanced control systems optimize the tracking of the sun to maximize energy capture throughout the day.

Industrial Process Heat Integration

Beyond electricity generation, parabolic trough collectors are increasingly utilized for industrial process heat (IPH) applications. Industries such as food processing, textiles, and chemical manufacturing require consistent heat sources at temperatures ranging from 150°C to 400°C. Parabolic troughs can directly supply this heat by circulating a heat transfer fluid through the receiver tubes, which then transfers thermal energy to the industrial process. This integration reduces reliance on fossil fuels, lowering both operational costs and carbon emissions. The flexibility of trough technology allows for customization to meet specific temperature and load requirements of various industrial processes, making it a versatile solution for decarbonizing industrial heat demand.

Advantages and limitations

Parabolic trough collector systems represent a mature technology within the Concentrated Solar Power (CSP) landscape, offering distinct operational characteristics when compared to other CSP types and Photovoltaics (PV). A primary advantage of parabolic troughs is their technological readiness and the widespread availability of thermal storage integration. By utilizing molten salt or synthetic oil as heat transfer fluids, these systems can decouple energy collection from electricity generation, allowing for dispatchable power output. This contrasts with standard PV systems, which typically require battery storage to achieve similar dispatchability, often at a higher levelized cost of energy (LCOE) for long-duration storage.

Efficiency and Thermodynamics

The optical efficiency of parabolic troughs is generally lower than that of solar power towers, which utilize heliostats to focus light onto a central receiver. Parabolic troughs typically achieve thermal efficiencies in the range of 40–50%, depending on the receiver design and operating temperature. The linear concentration ratio allows for simpler tracking mechanisms, requiring only single-axis tracking compared to the dual-axis tracking needed for solar towers. However, this simplicity comes at the cost of lower maximum operating temperatures, usually capped around 400°C for synthetic oil and up to 550°C for molten salt. Lower temperatures result in lower Carnot efficiency in the Rankine cycle, limiting the overall electrical efficiency compared to high-temperature solar tower or linear Fresnel systems.

Land Use and Spatial Requirements

Land use is a critical factor for CSP deployment. Parabolic trough systems require significant land area due to the spacing needed between collector rows to minimize shading and optical blocking. The land use intensity is generally higher than that of PV farms. While PV panels can be mounted on dual-axis trackers or placed on rooftops, parabolic troughs are predominantly ground-mounted and require relatively flat terrain. This makes them less suitable for fragmented landscapes compared to the more flexible deployment options available to PV technology.

Cost Considerations

From a cost perspective, parabolic troughs have historically been more expensive than PV systems on a per-watt basis. The capital expenditure (CAPEX) for parabolic trough plants is driven by the cost of the glass mirrors, steel structures, and thermal storage tanks. While PV module costs have decreased dramatically over the last two decades, the cost of CSP components has remained relatively stable. However, when factoring in the value of thermal storage, parabolic troughs can offer competitive LCOE in regions with high solar direct normal irradiance (DNI) and high electricity prices during peak hours. The formula for LCOE is given by:

LCOE=∑t=1n(1+r)tEt∑t=1n(1+r)tIt+Mt+Ft

Where It is investment cost, Mt is maintenance cost, Ft is fuel cost, Et is net electricity output, and r is the discount rate. For parabolic troughs, the fuel cost Ft is often negligible, but the high initial investment It and maintenance Mt must be balanced against the high value of stored energy Et.

Worked examples

Parabolic trough collector (PTC) systems convert direct normal irradiance (DNI) into thermal energy via a linear focusing geometry. The following examples illustrate the calculation of thermal output using standard engineering parameters. All calculations assume a collector aperture area of 100 m² and a Direct Normal Irradiance (DNI) of 800 W/m². The optical efficiency is defined as the product of the reflector reflectance, the glass transmittance, the intercept factor, and the cosine efficiency.

Example 1: Basic Thermal Output Calculation

Calculate the thermal power output for a PTC system with the following parameters: reflector reflectance of 0.85, glass transmittance of 0.92, intercept factor of 0.95, and cosine efficiency of 0.90. The heat transfer fluid (HTF) inlet temperature is 293 K (20°C) and the outlet temperature is 453 K (180°C).

Step 1: Calculate Optical Efficiency (η_opt)

η_opt = Reflectance × Transmittance × Intercept Factor × Cosine Efficiency

η_opt = 0.85 × 0.92 × 0.95 × 0.90 = 0.682

Step 2: Calculate Incident Solar Power

Power_In = DNI × Aperture Area

Power_In = 800 W/m² × 100 m² = 80,000 W (or 80 kW)

Step 3: Calculate Thermal Output Power

Power_Thermal = Power_In × η_opt

Power_Thermal = 80,000 W × 0.682 = 54,560 W (or 54.56 kW)

Example 2: Impact of Temperature on Thermal Efficiency

In this example, we evaluate how heat losses affect the net thermal efficiency. Assume the same optical efficiency (0.682) but include thermal losses. The thermal efficiency (η_thermal) is given by: η_thermal = η_opt - C_loss × (T_fluid - T_amb) / DNI, where C_loss is the loss coefficient (0.15 W/m²·K).

Parameters:

Fluid Temperature (T_fluid): 453 K
Ambient Temperature (T_amb): 303 K (30°C)
DNI: 800 W/m²
Aperture Area: 100 m²

Step 1: Calculate Thermal Loss Factor

Loss_Term = C_loss × (T_fluid - T_amb) / DNI

Loss_Term = 0.15 × (453 - 303) / 800 = 0.15 × 150 / 800 = 0.0281

Step 2: Calculate Net Thermal Efficiency

η_thermal = 0.682 - 0.0281 = 0.6539

Step 3: Calculate Net Thermal Output

Power_Net = DNI × Area × η_thermal

Power_Net = 800 × 100 × 0.6539 = 52,312 W (or 52.31 kW)

Example 3: Mass Flow Rate Determination

Determine the required mass flow rate of the Heat Transfer Fluid (HTF) to maintain the outlet temperature calculated in Example 1. Assume the HTF is Synthetic Oil with a specific heat capacity (C_p) of 2.3 kJ/kg·K (or 2,300 J/kg·K).

Step 1: Identify Thermal Power and Temperature Difference

Power_Thermal = 54,560 W (from Example 1)

ΔT = T_outlet - T_inlet = 453 K - 293 K = 160 K

Step 2: Calculate Mass Flow Rate (m_dot)

Power_Thermal = m_dot × C_p × ΔT

m_dot = Power_Thermal / (C_p × ΔT)

m_dot = 54,560 / (2,300 × 160)

m_dot = 54,560 / 368,000 = 0.148 kg/s

These examples demonstrate the direct relationship between optical properties, thermal losses, and fluid dynamics in parabolic trough systems. Accurate modeling of these variables is essential for sizing collectors and optimizing the thermodynamic cycle.

Frequently asked questions

How does a parabolic trough collector system function?

These systems use curved, mirror-like surfaces to concentrate sunlight onto a receiver tube running along the focal line. The concentrated solar radiation heats a working fluid, typically thermal oil or molten salt, which then transfers heat to generate steam for power production.

What are the primary components of this solar thermal technology?

A standard system consists of parabolic mirrors, a heat-absorbing receiver tube, a tracking mechanism to follow the sun, and a heat transfer fluid loop. Additional components include a steam generator, a turbine generator, and a cooling system to complete the thermodynamic cycle.

What types of applications are suitable for parabolic trough collectors?

They are primarily used in utility-scale solar power plants to generate electricity through low-temperature steam generation. Additionally, they are effective for providing industrial process heat for sectors such as food processing, textiles, and chemical manufacturing.

What are the main advantages of using parabolic trough systems?

These systems offer high efficiency in converting solar energy to thermal energy and can be integrated with thermal storage for extended power generation. They are also well-suited for large-scale deployment and can provide consistent baseload power when combined with backup fuels or storage.

What are the key limitations of parabolic trough collector technology?

The technology requires significant land area and performs best in regions with high direct normal irradiance. Additionally, the initial capital costs can be high, and the system efficiency may decrease if the sun is not directly overhead or if dust accumulates on the mirrors.
