Parabolic Trough Collector (PTC): Technology and Applications

Overview

Parabolic trough collectors (PTC) represent a mature technology within the concentrated solar power (CSP) sector, utilizing linear focusing optics to convert direct normal irradiance (DNI) into thermal energy. The fundamental design consists of a long, curved reflective surface shaped as a parabola, which concentrates sunlight onto a linear receiver tube positioned along the focal line of the parabolic curve. This configuration allows for single-axis tracking, typically oriented north-south to maximize solar exposure from east to west, though other orientations are employed depending on site-specific solar geometry and land availability.

The optical principle relies on the geometric property of the parabola, where parallel rays of sunlight striking the reflective surface are reflected toward a common focal line. The concentration ratio of a parabolic trough is defined by the ratio of the aperture area to the receiver area. Mathematically, the geometric concentration ratio Cg can be expressed as Cg=π⋅D⋅LW⋅L, where W is the aperture width, L is the length of the trough, and D is the diameter of the receiver tube. This simplifies to Cg=D4F, where F is the focal length of the parabolic mirror. Typical commercial parabolic trough systems achieve concentration ratios ranging from 30 to 100, enabling the heating of the working fluid to temperatures suitable for steam generation or direct expansion in a turbine.

The receiver assembly, often referred to as the heat collection element (HCE), is critical to the system's thermal efficiency. It typically comprises an absorber tube coated with a selective surface to maximize solar absorption and minimize thermal radiation losses, enclosed within a glass vacuum jacket. The vacuum layer significantly reduces convective and conductive heat losses, allowing the heat transfer fluid (HTF) circulating through the absorber tube to reach temperatures between 150°C and 400°C, depending on the specific fluid used. Synthetic oils are commonly employed as the HTF in many operational plants, while molten salts and water/steam are also utilized in advanced configurations.

Parabolic trough technology is distinguished by its scalability and modularity, making it suitable for utility-scale solar power plants. The linear focusing mechanism simplifies the mechanical design compared to point-focus systems like solar towers or dish engines, contributing to the technology's early commercialization and widespread deployment. The thermal energy collected by the HTF is transferred to a working fluid in a heat exchanger, generating high-pressure steam that drives a conventional Rankine cycle turbine-generator set. This integration with established steam turbine technology provides operational flexibility and facilitates thermal energy storage (TES) implementation, enhancing the dispatchability of solar power output.

Operational parabolic trough plants demonstrate the technology's viability for baseload and peak-load power generation. The continuous development of materials science and optical engineering has improved the durability and efficiency of the reflective surfaces and receiver tubes, reducing the levelized cost of energy (LCOE) over time. As a result, parabolic trough collectors remain a cornerstone of the global CSP landscape, offering a reliable source of renewable energy with inherent thermal storage capabilities.

How does a parabolic trough collector work?

Parabolic trough collectors (PTC) are a mature form of concentrated solar power technology that converts direct normal irradiance into thermal energy through precise optical focusing. The system relies on a long, curved, reflective surface shaped into a parabolic cylinder. This geometry ensures that parallel rays of sunlight striking the mirror are reflected and concentrated onto a linear focal line, rather than a single point. This linear concentration allows for the placement of a heat collection element directly along the axis of the curve, maximizing optical efficiency and simplifying thermal management compared to point-focus systems like solar towers.

Optical and Receiver Components

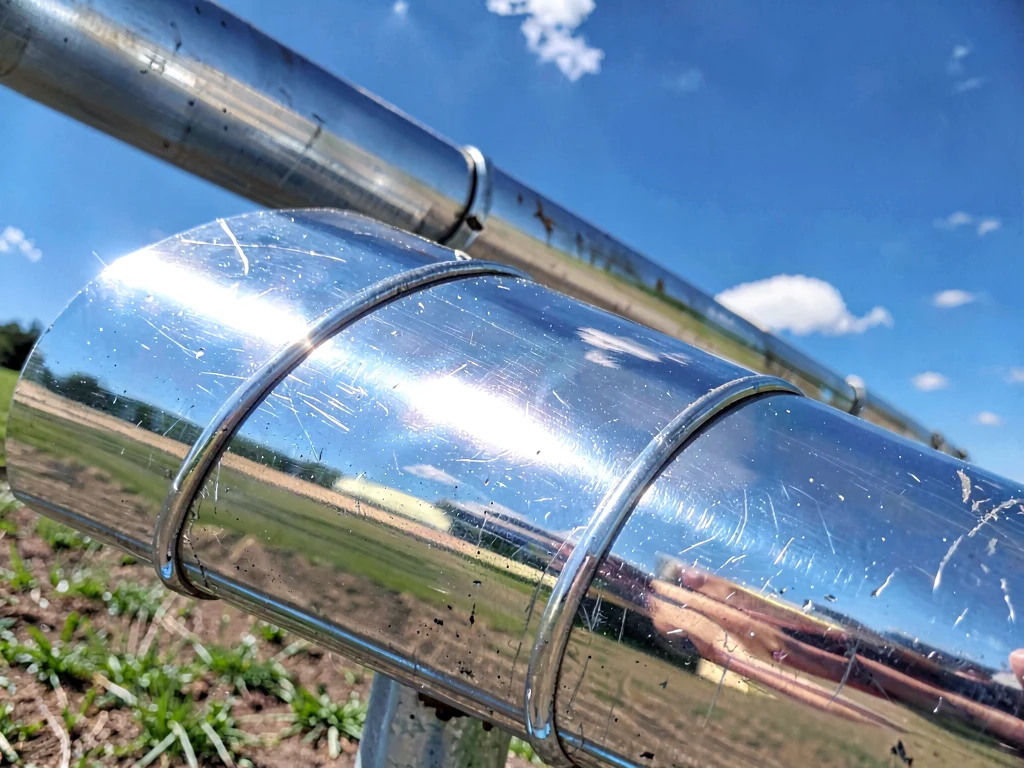

The core of the optical assembly is the parabolic reflector, typically constructed from silvered glass mirrors with high reflectivity to minimize optical losses. These mirrors are mounted on a steel support structure that maintains the precise parabolic shape required for optimal focusing. Located at the focal line is the receiver tube, also known as the absorber tube. This component is critical for capturing the concentrated solar flux. The receiver usually consists of a dark, selective-coated metal tube (often steel or copper) enclosed within a concentric glass envelope. The space between the metal absorber and the glass jacket is evacuated to create a vacuum, which significantly reduces convective and conductive heat losses, allowing the fluid inside to reach high temperatures.

Thermal Transfer Mechanism

Inside the absorber tube flows a heat transfer fluid (HTF). Common HTFs include synthetic thermal oils, molten salts, or pressurized water/steam, depending on the specific plant design and temperature requirements. As the HTF circulates through the receiver, it absorbs the concentrated solar energy, increasing in temperature. The thermal energy gained by the fluid is then transported to a heat exchanger, where it generates steam to drive a conventional Rankine cycle turbine-generator set. The thermal efficiency of this process depends on the optical concentration ratio, the selective coating’s absorptivity, and the vacuum integrity of the receiver envelope. The relationship between incident solar flux and absorbed heat can be generally expressed as Q_absorbed = A_aperture × I_DNI × η_optical, where I_DNI represents direct normal irradiance and η_optical is the overall optical efficiency of the system.

Mechanical Tracking System

To maintain optimal alignment with the sun throughout the day, parabolic troughs employ a single-axis tracking system. The collector arrays rotate around a longitudinal axis, typically oriented north-south to track the sun’s east-west movement. This mechanical movement is driven by electric motors or hydraulic actuators controlled by a solar position algorithm or sensor feedback. Single-axis tracking is mechanically simpler and often more cost-effective than the dual-axis tracking used in solar towers, making PTCs a competitive option for large-scale solar thermal plants. The structural design must withstand wind loads and thermal expansion while maintaining the precise parabolic curvature necessary for high optical concentration.

History

The development of parabolic trough collectors (PTC) spans more than a century, evolving from early 20th-century experimental setups to the backbone of modern concentrated solar power (CSP) infrastructure. The foundational principles were first demonstrated in the early 1900s, with significant early experiments conducted by engineers seeking to convert direct normal irradiance (DNI) into thermal energy. These early prototypes established the geometric and optical fundamentals that define the technology today.

Early Experimental Phase

In the early decades of the 20th century, researchers focused on validating the parabolic geometry for maximizing solar concentration. Early systems utilized simple glass mirrors and basic heat transfer fluids to demonstrate the viability of solar thermal conversion. These experiments were critical in identifying the relationship between the focal line of the parabolic curve and the receiver tube, establishing the core optical efficiency metrics. The technology remained largely experimental during this period, serving as a proof-of-concept for solar thermal energy storage and conversion.

Mid-Century Advances and the LS-3 Prototype

Significant advancements occurred in the mid-20th century, particularly with the development of the LS-3 (Linear Solar) prototype. This era saw the introduction of more sophisticated mirror materials and tracking mechanisms, which improved the concentration ratio and thermal stability of the system. The LS-3 project, among others, demonstrated the potential for PTC systems to drive steam turbines, bridging the gap between simple thermal heating and electricity generation. These mid-century experiments laid the groundwork for the commercialization of PTC technology in the late 20th century.

Commercialization and Modern CSP Plants

The commercialization of PTC technology accelerated in the late 20th century, leading to the construction of the first utility-scale CSP plants. These early commercial installations utilized synthetic oil as the primary heat transfer fluid, allowing for higher operating temperatures and improved thermodynamic efficiency. The success of these initial plants spurred further innovation, including the introduction of molten salt as a heat transfer and storage medium, which enhanced the dispatchability of solar thermal energy. Modern CSP plants continue to build on these advancements, integrating advanced control systems and high-temperature materials to maximize energy yield and reduce levelized cost of energy (LCOE).

The evolution of PTC technology reflects a continuous effort to optimize optical, thermal, and mechanical performance. From early experimental setups to large-scale commercial installations, PTC systems have played a crucial role in the diversification of the global energy mix, particularly in regions with high direct normal irradiance. The technology remains operational and continues to be refined through ongoing research and development efforts.

What are the main types of parabolic trough systems?

Parabolic trough collectors (PTC) represent a dominant configuration within Concentrated Solar Power (CSP) technology, characterized by their ability to focus sunlight onto a linear receiver. While the parabolic trough is the most mature CSP technology, it is often compared with other linear concentrator designs, most notably the Linear Fresnel Reflector (LFR). Understanding the distinctions between these systems is critical for engineers evaluating site-specific performance, thermal efficiency, and cost structures.

Parabolic Trough vs. Linear Fresnel

The fundamental difference between a parabolic trough and a Linear Fresnel system lies in the geometry of the mirrors and the resulting optical path. A standard PTC utilizes a single, continuous curved mirror that forms a parabolic shape. This geometry focuses incoming solar radiation onto a single focal line, where the receiver tube is positioned. In contrast, a Linear Fresnel system employs multiple, slightly angled flat or nearly flat mirror strips. These mirrors reflect sunlight to a fixed, elevated receiver above the field. The Fresnel design often offers a lower land-occupied footprint and simpler mechanical tracking systems, as the mirrors can pivot on a single axis near the ground. However, the parabolic trough typically achieves higher optical concentration ratios due to the precision of the parabolic curve, leading to higher thermal efficiencies in the receiver loop.

Receiver Technology Variations

Within the parabolic trough architecture, the receiver technology is a primary driver of thermal performance. The most common configuration is the Direct Absorber Collector (DAC), which consists of a metal absorber tube coated with a selective surface to maximize solar absorption, enclosed within a glass vacuum jacket to minimize convective and radiative heat losses. This vacuum insulation is critical for maintaining high temperatures, typically ranging from 150 °C to 400 °C, depending on the heat transfer fluid (HTF) used.

Alternative receiver designs include the Concentrated Vacuum Collector (CVC) and the Linear Fresnel Receiver (LFR), though the latter is specific to Fresnel fields. Some advanced PTC systems utilize molten salt directly within the receiver tube (Direct Molten Salt), eliminating the need for a secondary heat exchanger and allowing for higher operating temperatures compared to synthetic oil HTFs. The choice of receiver technology directly impacts the thermodynamic efficiency of the power block, often modeled using the Stefan-Boltzmann law for radiative losses: Qrad=σ⋅A⋅ϵ⋅(Tsurface4−Tsky4), where σ is the Stefan-Boltzmann constant, A is the surface area, and ϵ is the emissivity of the absorber coating.

Applications

Parabolic trough collectors are primarily deployed in two distinct energy sectors: utility-scale electricity generation and industrial process heat. These applications leverage the technology’s ability to concentrate solar radiation onto a linear receiver, achieving temperatures suitable for thermodynamic cycles or direct thermal utilization.

Utility-Scale Power Generation

In utility-scale solar thermal power plants, parabolic troughs serve as the primary heat collection element. The concentrated solar energy heats a heat transfer fluid (HTF), typically synthetic oil or molten salt, which circulates through the receiver tube located at the focal line of the parabolic mirror. The thermal energy is then transferred to a working fluid, usually water/steam, via a heat exchanger. This steam drives a conventional Rankine cycle turbine-generator set to produce electricity. This configuration allows for the integration of thermal energy storage (TES), enhancing the dispatchability of solar power. The electrical efficiency of the system, ηelec, is a function of the optical efficiency of the trough, the thermal efficiency of the receiver, and the thermodynamic efficiency of the power block.

Industrial Process Heat

Beyond electricity generation, parabolic troughs are increasingly utilized for industrial process heat (IPH). Many industrial sectors, such as food processing, textiles, and chemical manufacturing, require thermal energy in the range of 100°C to 300°C. Parabolic trough systems can directly supply this heat by heating water, steam, or thermal oil, which is then distributed through insulated piping to industrial consumers. This application reduces the reliance on fossil fuels, particularly natural gas and diesel, for low-to-medium temperature thermal demands. The integration of IPH systems can lead to significant reductions in carbon emissions and operational costs for industries located in regions with high direct normal irradiance (DNI). The thermal output, Qthermal, is determined by the aperture area of the collectors, the DNI, and the overall optical and thermal efficiencies of the system.

Worked examples

Parabolic trough collectors (PTC) concentrate sunlight onto a linear receiver tube, heating a thermal oil or molten salt working fluid. Performance depends on optical efficiency, thermal losses, and solar irradiance. The following examples illustrate typical calculations for energy output and efficiency, using standard engineering approximations for a 100-meter-long collector unit.

Example 1: Thermal Energy Output Calculation

Consider a PTC system with an aperture width of 5 meters and a length of 100 meters. The incident direct normal irradiance (DNI) is 800 W/m². Assume an overall optical efficiency of 0.75 and a thermal efficiency of the receiver of 0.85.

First, calculate the total aperture area:

Area = Width × Length = 5 m × 100 m = 500 m².

Next, determine the total solar power incident on the aperture:

Incident Power = DNI × Area = 800 W/m² × 500 m² = 400,000 W (or 400 kW).

Apply the optical efficiency to find the power absorbed by the receiver:

Absorbed Power = Incident Power × Optical Efficiency = 400 kW × 0.75 = 300 kW.

Finally, apply the thermal efficiency to determine the net thermal energy delivered to the working fluid:

Net Thermal Output = Absorbed Power × Thermal Efficiency = 300 kW × 0.85 = 255 kW.

This example shows that under moderate irradiance, a single 100-meter trough unit can deliver approximately 255 kW of thermal energy.

Example 2: Overall System Efficiency

Efficiency is often expressed as the ratio of useful thermal energy to the incident solar energy. Using the values from Example 1:

Overall Efficiency = Net Thermal Output / Incident Power.

Overall Efficiency = 255 kW / 400 kW = 0.6375.

Expressed as a percentage, the overall efficiency is 63.75%. This figure combines optical losses (reflection, shading) and thermal losses (convection, radiation) into a single performance metric. In real-world operations, this efficiency varies with the temperature of the working fluid and the ambient conditions.

Example 3: Impact of Irradiance Variation

Solar resources fluctuate throughout the day. Consider the same PTC unit (500 m² aperture) but with a higher DNI of 950 W/m², typical of midday in a desert region. Assume the efficiencies remain constant at 0.75 (optical) and 0.85 (thermal).

Incident Power = 950 W/m² × 500 m² = 475,000 W (475 kW).

Absorbed Power = 475 kW × 0.75 = 356.25 kW.

Net Thermal Output = 356.25 kW × 0.85 = 302.8125 kW.

Comparing the two scenarios, increasing the DNI from 800 W/m² to 950 W/m² raises the thermal output from 255 kW to approximately 303 kW. This demonstrates the direct proportionality between solar irradiance and thermal yield in PTC systems, assuming constant efficiency factors.

Advantages and limitations

Parabolic trough collectors (PTC) offer distinct operational advantages, primarily through the integration of thermal energy storage (TES). The use of molten salt as a heat transfer fluid allows for cost-effective storage, enabling electricity generation after sunset or during peak demand. This dispatchability reduces the need for backup power compared to photovoltaic (PV) systems. The technology also benefits from mature manufacturing processes and relatively low optical losses, contributing to stable performance in direct normal irradiance (DNI) rich regions.

Land Use and Spatial Requirements

A significant limitation of PTC technology is its land intensity. The linear arrangement of parabolic mirrors requires substantial horizontal space to minimize shading and end-effects between adjacent rows. This spatial requirement can lead to higher land acquisition costs and potential conflicts with local agriculture or ecology. The footprint is generally larger per megawatt compared to concentrated solar power (CSP) tower systems, although it remains more compact than utility-scale PV farms when storage is included.

Water Consumption and Cooling

Water consumption is a critical operational drawback, particularly in arid solar resources. Most PTC plants utilize wet cooling towers for the Rankine cycle, leading to high evaporative water losses. In water-scarce regions, this can strain local aquifers or river systems. While dry (air) cooling is an option, it reduces the overall thermal efficiency of the plant due to higher condenser temperatures, thereby impacting the levelized cost of energy (LCOE). The trade-off between water usage and efficiency is a key design consideration.

Thermal Efficiency and Temperature Limits

PTC systems are limited by the thermal stability of the heat transfer fluid. Conventional synthetic oils degrade at temperatures above 400°C, capping the thermodynamic efficiency of the steam cycle. Although molten salts allow for higher temperatures (up to 450°C), they require continuous pumping to prevent freezing, adding to parasitic loads. The optical efficiency ηopt and thermal efficiency ηth are influenced by direct normal irradiance (DNI), receiver temperature, and ambient conditions, often resulting in lower peak temperatures compared to solar power towers.
