Overview
The solar updraft tower (SUT) is a conceptual design for a renewable-energy power plant that generates electricity from low-temperature solar heat. This technology relies on thermal convection to convert solar radiation into mechanical energy, which is then transformed into electricity. The system operates as a large-scale thermal engine, utilizing the chimney effect to drive airflow through wind turbines. It represents a distinct approach to solar power generation, differing from photovoltaic and concentrated solar power systems by using air as the primary working fluid rather than steam or direct photon conversion.
The basic mechanism of a solar updraft tower involves three main components: a wide, greenhouse-like collector, a tall central chimney, and wind turbines. Sunshine heats the air beneath the vast collector roof, which surrounds the base of the tower. As the air temperature rises, it becomes less dense and begins to rise, creating a pressure difference that draws in more air from the periphery. This continuous flow generates a hot air updraft within the tall chimney tower. The resulting convection current drives wind turbines, which are typically placed in the chimney updraft or around the chimney base, to produce electricity.
The efficiency of the solar updraft tower depends on the temperature difference between the air inside the collector and the air at the top of the chimney. The chimney effect, also known as the stack effect, is the driving force behind the airflow. The pressure difference ΔP can be approximated by the formula ΔP = ρ₀gH(ΔT/T₀), where ρ₀ is the air density, g is the gravitational acceleration, H is the height of the chimney, ΔT is the temperature difference, and T₀ is the absolute temperature of the air. This equation highlights the importance of the chimney height and the temperature gradient in determining the power output of the system.
As a proposed operational status, the solar updraft tower remains a promising concept for large-scale renewable energy generation. The design allows for the utilization of low-temperature solar heat, making it suitable for regions with abundant sunshine and relatively flat terrain. The wide collector area maximizes solar exposure, while the tall chimney enhances the convection current, ensuring a steady airflow through the turbines. This combination of features makes the solar updraft tower a viable option for integrating solar energy into the power grid, particularly in areas where land availability is not a limiting factor.
How does a solar updraft tower work?
Solar updraft towers operate on the principle of converting low-temperature solar heat into electricity through natural convection. The system consists of a large, greenhouse-like collector roof that surrounds the base of a tall central chimney. Sunlight passes through the transparent or semi-transparent roof, heating the air within the collector area. As the air temperature rises, its density decreases relative to the cooler air outside, creating a pressure differential that drives the air upward into the chimney. This phenomenon, known as the chimney effect or stack effect, generates a continuous updraft that flows through the tower.
Key Design Factors
The power output of a solar updraft tower is primarily determined by two geometric factors: the collector area and the chimney height. A larger collector area captures more solar radiation, heating a greater volume of air. This increases the mass flow rate of the air entering the chimney. Simultaneously, a taller chimney enhances the pressure difference between the base and the top of the tower. This increased pressure gradient accelerates the air velocity, thereby increasing the kinetic energy available to drive the turbines. The interplay between these two dimensions is critical for optimizing efficiency and cost-effectiveness in the design phase.
Turbine Configuration
The airflow generated by the chimney effect drives wind turbines to produce electricity. These turbines can be positioned in two main configurations: within the chimney itself or around the base of the tower. Turbines placed inside the chimney benefit from higher, more consistent air velocities but require robust structural support to withstand the heat and flow dynamics. Turbines located at the base operate in a slightly less intense flow but are easier to access for maintenance. Both horizontal axis and vertical axis turbines are viable options, with the choice depending on specific design goals and site conditions.
Thermal Storage Methods
To extend operational hours beyond peak sunlight, solar updraft towers can incorporate thermal storage mechanisms. One common method involves using the ground itself as a heat sink, where the soil absorbs heat during the day and releases it at night. Other approaches include placing water bags or creating saltwater sinks within the collector area. These materials have high thermal mass, allowing them to store heat and gradually release it to the air, maintaining the temperature differential and sustaining the updraft even when solar input is reduced. These storage solutions enhance the reliability of the power generation process, making the technology more versatile for various energy demands.
History and development of solar updraft towers
The concept of solar updraft towers draws on early observations of solar thermal convection. Historical precedents include sketches attributed to Leonardo da Vinci and early patents by Alfred Rosling Bennett in 1896 and Isidoro Cabanyes in 1903. These early ideas laid the groundwork for modern designs that use large collector areas to heat air, driving turbines via the chimney effect.
Manzanares Prototype

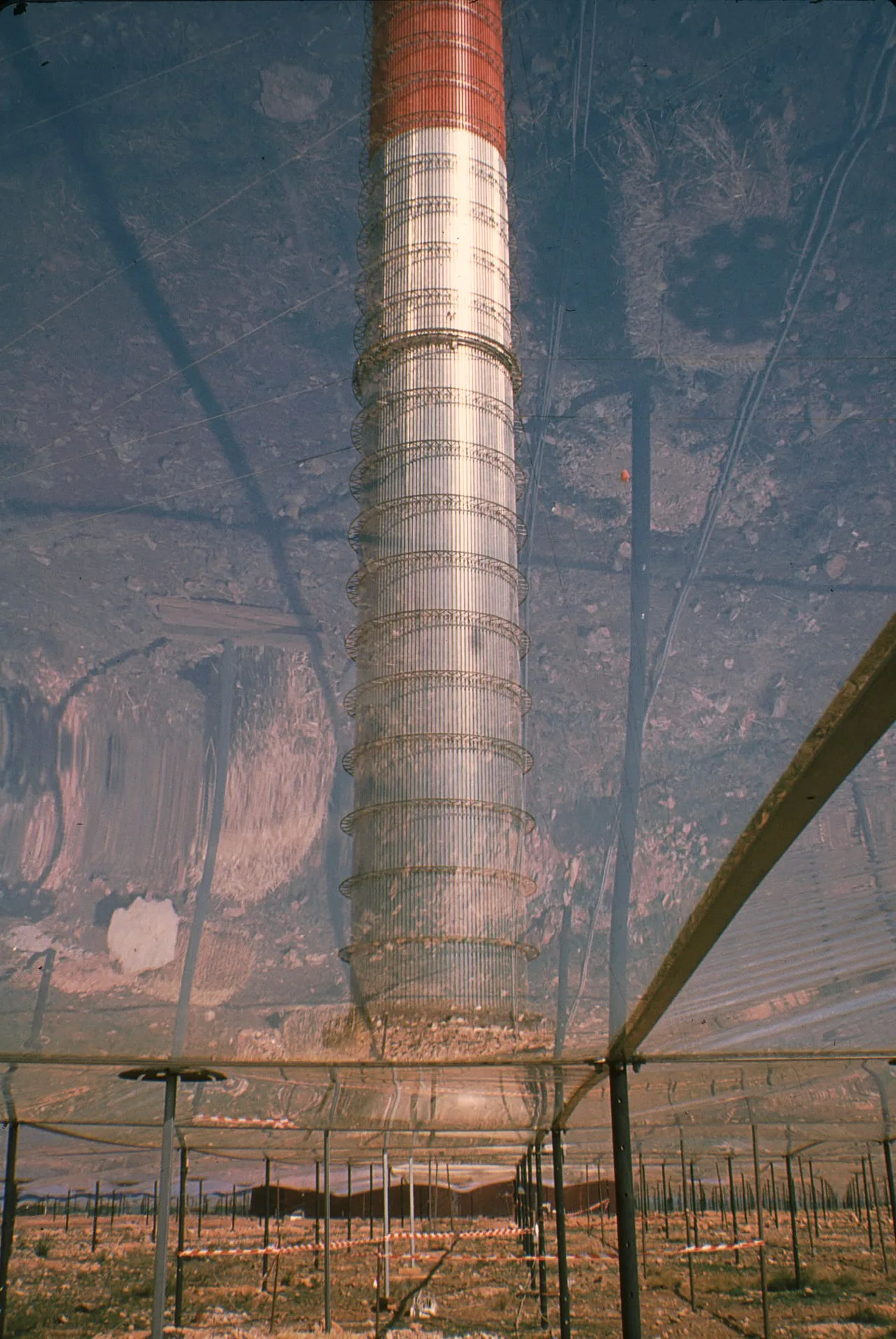

The first significant modern prototype was built in Manzanares, Spain, in 1982. Designed by engineer Jörg Schlaich, this facility featured a 195 m tall tower and a collector area that generated approximately 50 kW of electricity. The Manzanares plant operated until 1989, demonstrating the viability of the technology on a small scale. It served as a proof-of-concept for larger future installations.
Modern Proposals and Projects
Following the Manzanares success, several larger projects were proposed globally. A notable project was initiated in Jinshawan, China, around 2010. Other proposals have been explored in Australia, Namibia, and Turkey, aiming to leverage vast land areas and high solar irradiance. These projects highlight the potential for solar updraft towers to contribute to renewable energy portfolios, though many remain in the proposed or pilot stages. The technology continues to be evaluated for its cost-effectiveness and scalability in diverse geographic settings.
What are the efficiency and performance characteristics?
The solar updraft tower (SUT) is characterized by a relatively low thermodynamic conversion efficiency compared to other concentrated solar power (CSP) and photovoltaic (CPV) technologies. As of 2019, the overall efficiency of SUT systems was reported to be less than 2% (per energy sector analysis). This low figure stems from the large surface area required for the collector relative to the cross-sectional area of the chimney, which dictates the mass flow rate of the air. The fundamental performance is governed by the chimney effect, where the temperature difference between the air inside the collector and the ambient air creates a pressure gradient that drives the updraft.
Factors Affecting Performance
Several atmospheric and structural factors influence the efficiency of the updraft. Atmospheric winds can create drag on the collector roof and disrupt the laminar flow of air entering the chimney base. Reflection losses occur when sunlight strikes the greenhouse-like collector roof; if the transparency of the glazing is not optimized, a significant portion of the solar irradiance is reflected rather than absorbed to heat the air. The drag coefficient of the collector structure also plays a role in determining the net kinetic energy available to drive the wind turbines placed within the chimney or at its base.
Efficiency Improvements and Hybrid Systems
Research into enhancing SUT performance has identified specific modifications to increase the conversion rate. The implementation of transpired collectors has been shown to potentially double the efficiency of the system. Transpired collectors use perforated metal sheets that allow air to pass through, absorbing solar radiation directly and reducing thermal losses compared to traditional flat-plate collectors. Additionally, hybrid cooling-tower-solar-chimney systems have been proposed to integrate SUT technology with existing thermal power plants. In these hybrid configurations, the waste heat from the power plant is used to pre-heat the air in the collector, thereby increasing the temperature differential and strengthening the updraft, which in turn drives the turbines more effectively. These improvements aim to address the inherent low-temperature limitation of the standard SUT design.
Applications beyond electricity generation
Beyond electricity generation, the solar updraft tower (SUT) concept offers several secondary applications derived from the large collector area and thermal dynamics. The greenhouse-like roofed collector structure creates a microclimate suitable for agriculture and horticulture. Crops grown beneath the transparent cover benefit from the low-temperature solar heat and consistent airflow, potentially increasing yield in arid regions. This dual-use of land allows for simultaneous energy production and crop cultivation, enhancing the economic viability of the installation.
Water Extraction and Air Remediation
The thermal mass and airflow of the SUT facilitate water extraction and distillation. Moisture from the heated air can be condensed and collected, providing a fresh water source in arid environments. Additionally, the updraft can be utilized for the remediation of urban air pollution. In the Xi'an example, the tower's airflow helps draw in and filter ambient air, reducing particulate matter and improving local air quality. This application demonstrates the potential for SUTs to serve as environmental infrastructure in densely populated areas.
Cloud Formation and Precipitation
The continuous updraft of warm, moist air in the chimney can influence local meteorology. The rising air mass may reach the dew point, leading to cloud formation and potential precipitation. This effect can be particularly beneficial in regions with variable rainfall, enhancing local water resources. The potential for cloud formation adds another layer of utility to the SUT concept, integrating energy production with atmospheric management.
Suitability for Remote Regions and High Latitudes
The SUT design is well-suited for remote regions and high latitudes due to its reliance on low-temperature solar heat. The large collector area captures diffuse sunlight, making it effective even in areas with less intense solar irradiance. This adaptability allows for deployment in diverse geographical settings, expanding the potential reach of solar energy infrastructure. The simplicity of the technology and the use of common materials further support its applicability in remote locations.
Economic viability and capitalisation
The economic profile of the solar updraft tower (SUT) is characterized by a distinct cost structure dominated by substantial initial capital expenditures. The primary financial burden stems from the construction of the massive collector area, which requires a vast expanse of land to capture low-temperature solar heat, and the erection of the central chimney tower. These civil engineering works represent the bulk of the investment, creating a high barrier to entry compared to modular technologies. However, once constructed, the operating costs are relatively low, as the system relies on the continuous convection of air driven by the chimney effect to drive wind turbines, minimizing fuel and maintenance expenses.
Capital outlay and land requirements
The land requirement for a SUT is significant, necessitating a very wide greenhouse-like roofed collector structure surrounding the central base. This extensive footprint influences site selection and land acquisition costs, often requiring large, relatively flat areas with high solar insolation. The scale of the collector directly impacts the capital outlay, as the area must be sufficient to generate the necessary temperature differential to create a strong updraft. This contrasts with some wind or gas plants that may have more compact footprints per unit of capacity, although the SUT’s ability to utilize marginal land can mitigate some of these costs.
Comparison with other energy sources
When compared to nuclear power plants, the SUT generally involves lower initial capital costs per megawatt, although nuclear plants offer higher capacity factors and greater energy density. In contrast to wind and gas plants, the SUT’s cost structure is less sensitive to fuel price volatility, as solar heat is the primary driver. However, the lack of full-scale practical units as of mid-2018 introduces significant investment risks. The absence of widespread commercial deployment means that economies of scale and technological refinements are not yet fully realized, making cost projections less certain than for more mature technologies.
Investment risks and market status
The economic viability of the SUT is further complicated by the limited number of operational prototypes. As of mid-2018, there were no full-scale practical units widely in service, which hinders the accumulation of long-term performance data. This scarcity increases the perceived risk for investors, who must account for potential technological and operational uncertainties. The high initial capital outlay, combined with the lack of proven large-scale success, means that the SUT remains a proposed concept rather than a mainstream energy solution. Financial models must therefore incorporate higher risk premiums to attract capital, affecting the overall levelized cost of energy.
Worked examples: Prototype specifications
The solar updraft tower concept has been validated through several prototype and proposed projects worldwide. These examples illustrate the scaling relationships between collector area, tower height, and power output. Below is a comparison of key specifications for notable SUT projects.
| Project | Location | Tower Height (m) | Collector Area (ha) | Power Output (MW) | Status/Year |
|---|---|---|---|---|---|
| Manzanares | Spain | 190 | 7.4 | 1.1 | Prototype (1981) |
| Jinshawan | China | 144 | 35 | 11 | Prototype (2011) |
| Buronga | Namibia | 250 | 300 | 150 | Proposed |
| Fonte el Fresno | Spain | 250 | 300 | 150 | Proposed |
Example 1: Collector Area Calculation for Manzanares
To understand the scale of the Manzanares prototype, we calculate the radius of its circular collector. The collector area is 7.4 hectares. Since 1 hectare equals 10,000 square meters, the total area A is:
A=7.4×10,000=74,000 m2
Using the formula for the area of a circle A=πr2, we solve for the radius r:
r=πA=π74,000≈23,548≈153.4 m
The diameter is therefore approximately 2×153.4=306.8 m. This demonstrates that even a "small" prototype requires a collector diameter exceeding 300 meters.
Example 2: Power Density Comparison
Power density helps evaluate efficiency. We compare Manzanares and Jinshawan. For Manzanares, the power output is 1.1 MW over 7.4 ha:
DensityManzanares=7.4 ha1.1 MW≈0.149 MW/ha
For Jinshawan, the output is 11 MW over 35 ha:
DensityJinshawan=35 ha11 MW≈0.314 MW/ha
Jinshawan achieves more than double the power density of Manzanares, suggesting economies of scale or improved thermal dynamics in larger collectors.
Example 3: Scaling to Proposed Projects
The proposed Buronga and Fuente el Fresno projects aim for 150 MW output. Using Jinshawan’s density as a baseline estimate:
Estimated Area=0.314 MW/ha150 MW≈477.7 ha
However, the proposed designs specify 300 ha. This implies an expected power density of:
Expected Density=300 ha150 MW=0.5 MW/ha
This projected density is significantly higher than Jinshawan’s, indicating that future designs anticipate greater efficiency from taller towers (250 m vs. 144 m) and optimized turbine placement.
Future concepts and adaptations
Research into solar updraft tower (SUT) efficiency has explored several structural and hybrid adaptations to address the high capital costs associated with traditional concrete chimneys and large collector areas. One prominent concept is the atmospheric vortex engine, which proposes using a wide, shallow collector to drive a central chimney that generates a stable, rotating air column. This vortex effect can significantly increase the temperature differential and airflow velocity compared to standard laminar flow, potentially allowing for taller, more efficient towers with reduced structural mass.
Structural Innovations
To mitigate the material intensity of fixed chimneys, engineers have investigated telescopic or retractable chimneys. These structures can expand or contract based on thermal load and wind shear, optimizing the chimney effect while reducing stress on the base. Another experimental approach involves balloon-suspended chimneys, where a lightweight, aerodynamic tower is anchored by a large collector acting as a ground-based greenhouse. This design aims to minimize foundation costs and allows for modular deployment in diverse terrains.
Urban Integration and Hybrids
The "Airtower" concept integrates SUT principles into high-rise urban architecture. In this model, the building itself acts as the chimney, with solar collectors on the roof or surrounding structures driving air through the central void to power turbines. This approach seeks to harness the urban heat island effect alongside solar radiation, providing both electricity and natural ventilation for the structure. Additionally, hybrid systems combine updraft and downdraft mechanisms. By integrating photovoltaic panels or thermal storage within the collector, these hybrid towers can maintain airflow during periods of low solar irradiance, smoothing out the variable nature of solar power generation. Such adaptations aim to improve the levelized cost of energy (LCOE) and enhance the viability of SUTs in competitive renewable markets.
