Combined heat and power system for stoves with thermoelectric generators

How do thermoelectric generators work in stoves?

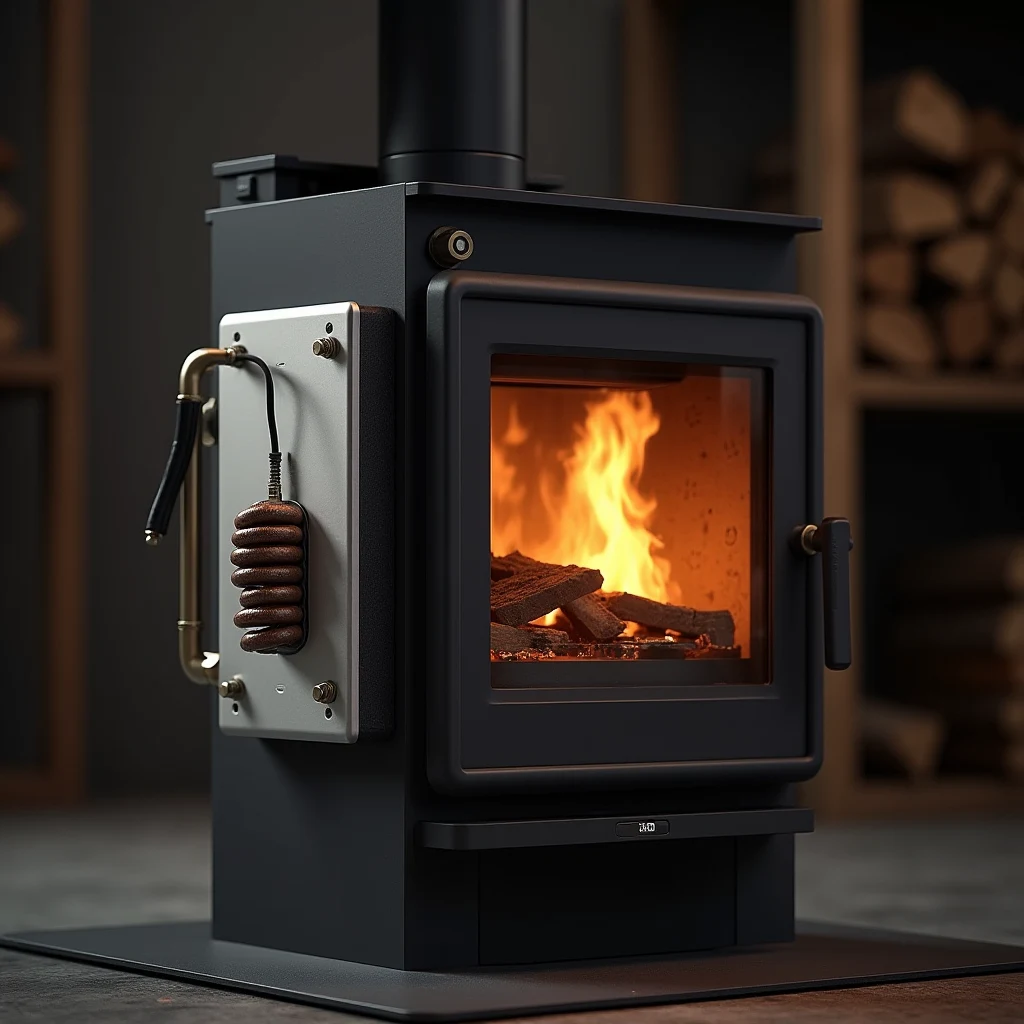

Thermoelectric generators (TEGs) integrated into stove systems operate on the Seebeck effect, a phenomenon where a temperature difference across a thermocouple creates an electromotive force. In this configuration, heat from the stove's combustion or radiant surface flows through a thermal gradient, converting waste heat directly into electricity without moving mechanical parts. The core component consists of pairs of p-type and n-type semiconductor materials, typically bismuth telluride or lead telluride, connected electrically in series and thermally in parallel.

The Seebeck Mechanism

The fundamental principle relies on charge carriers—electrons in n-type materials and holes in p-type materials—diffusing from the hot side to the cold side. This diffusion creates a potential difference, or voltage, proportional to the temperature gradient. The output voltage (V) for a single thermocouple pair is defined by the Seebeck coefficient (α) and the temperature difference (ΔT) between the hot junction (Th) and the cold junction (Tc):

V=α⋅ΔT=α⋅(Th−Tc)

In stove applications, Th is determined by the heat source, such as a wood-burning firebox or a gas flame, while Tc is maintained by a heat sink, often a finned aluminum block or water-cooled plate. Maximizing ΔT is critical for efficiency, as the voltage output scales linearly with the gradient. The total voltage of a TEG module is the sum of the voltages of individual thermocouples, allowing for scalable power output.

Thermal Management and Efficiency

Efficiency in stove-based TEGs is often limited by thermal resistance and the figure of merit (ZT) of the semiconductor materials. The power output (P) depends on the electrical load resistance (RL) and the internal resistance (Ri) of the module, following the maximum power transfer theorem:

Pmax=4RiV2

Effective heat sinking is essential to maintain a low Tc. If the cold side overheats, ΔT decreases, reducing voltage and power. Stove designs often use forced air convection or liquid cooling to enhance heat extraction. The Carnot efficiency limit also applies, meaning that higher hot-side temperatures generally yield better absolute efficiency, provided the semiconductor materials can withstand the thermal stress without degrading.

Applications and use cases

Combined heat and power (CHP) systems, also known as cogeneration, are primarily deployed in industrial settings where simultaneous thermal and electrical energy demands exist. In industrial applications, CHP captures waste heat from electricity generation—often from steam turbines, gas turbines, or internal combustion engines—and utilizes it for process heating, drying, or absorption cooling. This dual utilization significantly improves overall fuel efficiency compared to separate production of heat and power.

Industrial Applications

Industries with high thermal loads, such as chemical processing, food and beverage manufacturing, and paper production, are ideal candidates for CHP. In these facilities, the thermal output can drive evaporation, pasteurization, or distillation processes. The efficiency gain is substantial because, in traditional separate production, waste heat from power generation is often lost to the atmosphere via cooling towers or exhaust stacks, while heat is generated by burning additional fuel in boilers. By integrating these processes, industrial CHP systems can achieve total system efficiencies exceeding 70–80%, depending on the prime mover and the temperature level of the thermal output.

Residential and Commercial Use Cases

In residential and commercial sectors, CHP is typically implemented through micro-CHP units or district heating networks. Micro-CHP systems, such as those based on Stirling engines or microturbines, are installed in individual homes or small buildings to generate electricity and provide space heating and domestic hot water. These systems are particularly effective in climates with significant heating demands, where the thermal output is utilized year-round or seasonally.

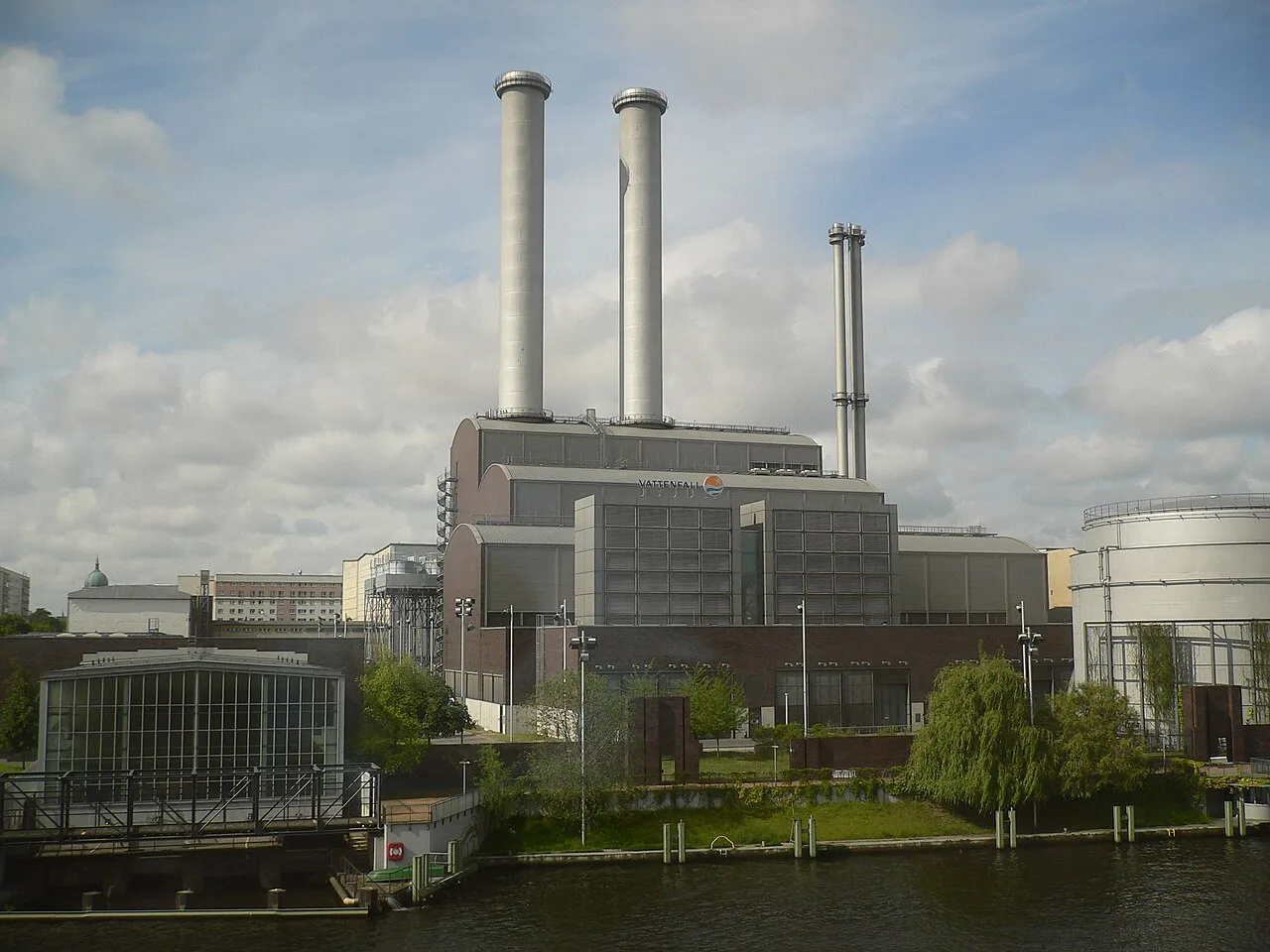

Commercial buildings, including hospitals, universities, and hotels, often utilize larger CHP units to meet consistent baseload demands for both electricity and thermal energy. In district energy systems, a central CHP plant generates heat and power that are distributed to multiple buildings via a network of insulated pipes. This approach is common in urban areas and campus-like settings, allowing for centralized maintenance and optimized fuel usage. The integration of CHP in these settings reduces peak electrical demand and lowers greenhouse gas emissions by maximizing the utility of each unit of fuel consumed.

What are the advantages of this system?

Combined heat and power (CHP) systems, also known as cogeneration, deliver significant advantages in energy efficiency, economic performance, and environmental sustainability compared to the separate production of electricity and heat. The primary benefit is the simultaneous utilization of thermal and electrical energy from a single fuel source, which fundamentally reduces energy waste.

Thermodynamic Efficiency

In conventional power generation, electricity is produced by converting heat into mechanical work, often leaving a substantial portion of the thermal energy unused. In a typical separate production system, electricity might be generated at 33–40% efficiency, while heat is produced at 70–90% efficiency. The overall system efficiency is often calculated as the sum of the electrical and thermal outputs divided by the total fuel input. The efficiency can be expressed as:

ηtotal=FfuelPelectric+Qthermal

CHP systems capture waste heat that would otherwise be lost to the atmosphere or water bodies, pushing total system efficiencies to 70–90% or higher. This high utilization rate means less fuel is required to produce the same amount of energy services.

Economic Benefits

The economic advantages of CHP stem from reduced fuel consumption and deferred capital costs. By generating electricity on-site, facilities can reduce their reliance on the grid, potentially lowering demand charges and energy costs. The simultaneous production of heat and power allows for better load matching, where the electrical load drives the thermal output or vice versa, optimizing operational flexibility. Over time, the capital investment in CHP infrastructure can yield significant return on investment through lower utility bills and enhanced energy security.

Environmental Impact

CHP systems contribute to environmental sustainability by reducing greenhouse gas emissions and improving air quality. Because less fuel is burned to produce the same amount of energy, emissions of carbon dioxide (CO2), nitrogen oxides (NOx), and sulfur dioxide (SO2) are significantly lower than in separate production systems. This reduction in emissions helps facilities meet regulatory requirements and corporate sustainability goals. Additionally, CHP can reduce the strain on the electrical grid, decreasing the need for peak-load power plants, which are often less efficient and more polluting.

Limitations and challenges

Combined heat and power systems face inherent technical and economic constraints that limit their universal applicability. A primary technical limitation is the spatial relationship between the energy source and the thermal load. Unlike electricity, which can be transmitted over long distances with relatively low losses via high-voltage grids, thermal energy—whether in the form of steam, hot water, or chilled water—suffers from significant distribution losses. These losses are governed by the temperature difference between the fluid and the ambient environment, often modeled using the equation Qloss=U⋅A⋅ΔT, where U is the overall heat transfer coefficient, A is the surface area, and ΔT is the temperature difference. Consequently, CHP is most efficient when the thermal load is within a few kilometers of the generation unit, restricting its viability in low-density suburban or rural areas compared to urban centers with high thermal demand density.

Economic and Market Barriers

Economic viability is heavily influenced by the relative pricing of electricity and heat, which are often sold in different markets with distinct pricing structures. In many liberalized energy markets, electricity prices are subject to volatile wholesale fluctuations, while heat prices may remain relatively stable or are tied to fuel costs. This price decoupling can lead to the "merit order" effect, where CHP units may need to run primarily for heat production, forcing electricity generation to follow thermal demand rather than electrical price peaks. If the electricity price does not sufficiently exceed the marginal cost of fuel, the financial return on the capital investment in the prime mover (such as a gas turbine or steam engine) may be lower than that of separate production systems.

Furthermore, the high capital expenditure (CAPEX) associated with CHP installations can create barriers to entry for smaller consumers. The payback period depends critically on the utilization factor, specifically the annual operating hours of the system. If the thermal load is highly seasonal—common in temperate climates where heating demand dominates in winter and cooling in summer—the prime mover may run at part-load or idle during shoulder seasons, reducing the overall efficiency and extending the payback period. Regulatory frameworks that do not adequately value the carbon savings or capacity factors of CHP can further diminish its economic attractiveness compared to separate heat and power generation.

Frequently asked questions

How do thermoelectric generators function within a stove system?

Thermoelectric generators in stoves operate on the Seebeck effect, converting waste heat directly into electricity. They consist of semiconductor materials placed between the hot combustion chamber and a cooler heat sink, creating a temperature gradient that drives an electric current.

What are the primary applications of this combined heat and power technology?

This system is commonly used in residential wood-burning stoves, pellet heaters, and industrial boilers to provide supplemental power. It can power small appliances like fans, lights, or digital controls, reducing reliance on external electrical grids or batteries.

What advantages does integrating thermoelectric generators offer for stove users?

The main benefits include increased overall energy efficiency by capturing waste heat and providing energy independence for small loads. It also simplifies installation by reducing the need for complex wiring and offers a relatively quiet, low-maintenance power source compared to mechanical alternators.

What limitations or challenges are associated with these systems?

Key challenges include the relatively low conversion efficiency of thermoelectric materials compared to traditional engines and the high cost of high-performance semiconductor modules. Additionally, maintaining a significant temperature difference between the hot and cold sides is crucial for optimal performance, which can be affected by ambient conditions.

How does this system contribute to overall energy efficiency?

By simultaneously producing usable heat for space warming and electricity from the same fuel source, the system achieves higher total energy utilization than using separate heating and power units. This cogeneration approach reduces fuel consumption and minimizes thermal waste that would otherwise escape through the flue or stove surface.
