Vanadium Redox Flow Battery Plant

Overview

The vanadium redox flow battery (VRFB) plant represents a specialized application of electrochemical energy storage technology, designed to provide grid-scale stability and flexibility. The specific 2 MW facility located in San Diego County, US, serves as a notable example of this technology in action. This plant utilizes the unique properties of vanadium ions to store and release electrical energy, distinguishing it from conventional lithium-ion or lead-acid batteries. The system operates by circulating liquid electrolytes through a stack of cells, where electrochemical reactions occur at the electrodes. This configuration allows for independent scaling of power and energy capacity, a key advantage for long-duration storage applications.

Technology Overview

Vanadium redox flow batteries rely on a single element, vanadium, which exists in multiple oxidation states. This characteristic minimizes cross-contamination between the two electrolyte tanks, enhancing the battery's lifespan and efficiency. The core components include two electrolyte tanks, pumps, a cell stack, and a power conversion system. During charging, electrical energy drives the oxidation of vanadium ions in the positive electrolyte and the reduction of vanadium ions in the negative electrolyte. Conversely, during discharging, the ions revert to their original states, releasing stored energy. The fundamental electrochemical reactions can be represented as follows:

Positive electrode: VO2++2H++e−↔VO2++H2O

Negative electrode: V3++e−↔V2+

The overall cell reaction is: VO2++V3++H2O↔VO2++V2++2H+

This reversible reaction enables the battery to undergo thousands of charge-discharge cycles with minimal degradation. The 2 MW plant in San Diego County leverages these properties to provide reliable energy storage, contributing to grid stability and renewable energy integration. The system's modular design allows for easy expansion and maintenance, making it a versatile solution for various energy storage needs. The plant's operation highlights the potential of VRFB technology to address the growing demand for flexible and durable energy storage systems in modern power grids.

How do vanadium redox flow batteries work?

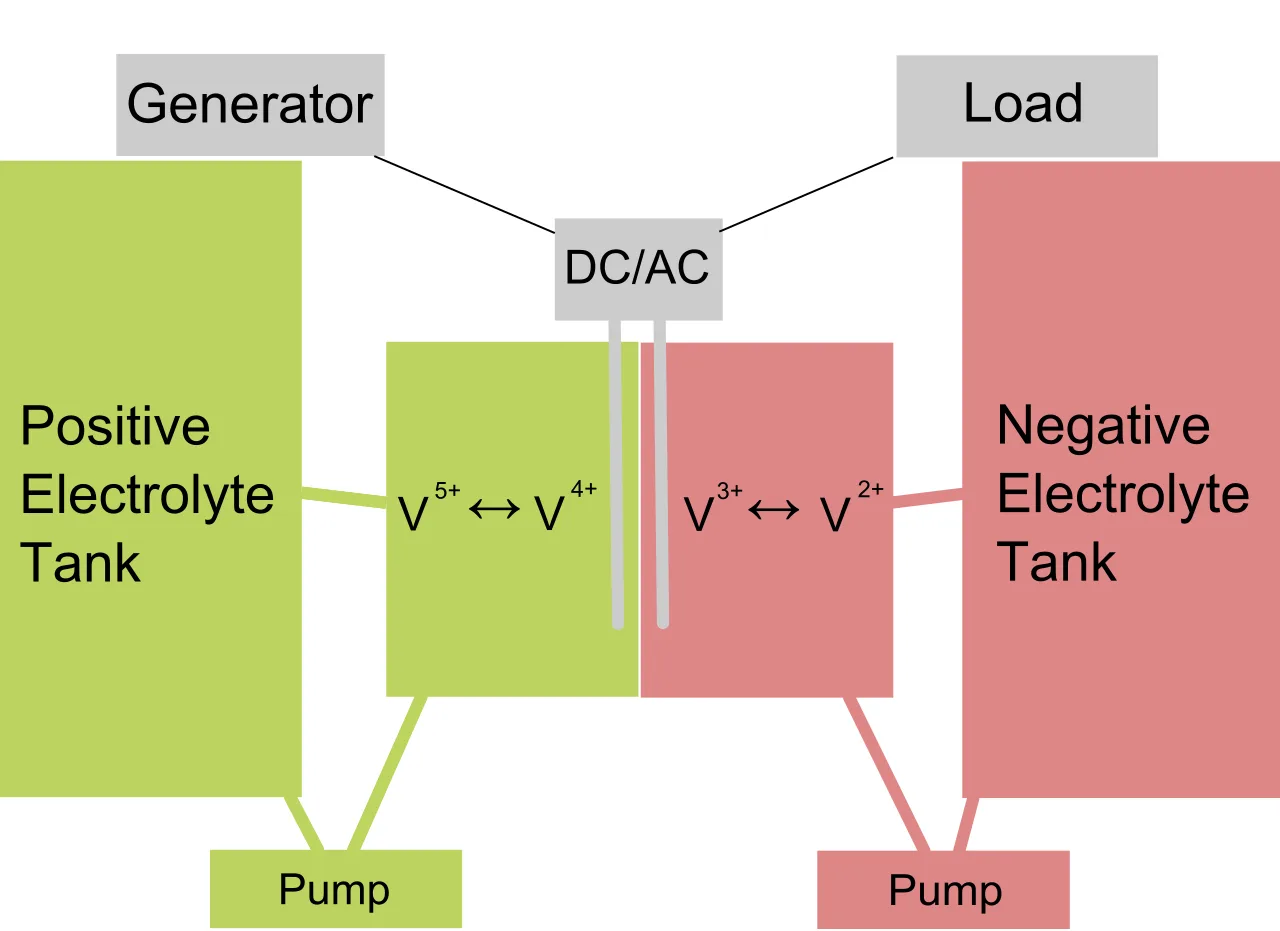

Vanadium redox flow batteries (VRFBs) store energy in liquid electrolytes containing vanadium ions, distinguishing them from solid-state counterparts like lithium-ion cells. The system relies on two separate tanks, each holding a vanadium-based solution, which are pumped through an electrochemical stack. This architecture decouples energy capacity, determined by the electrolyte volume, from power output, defined by the stack size. The core mechanism involves the reversible oxidation and reduction of vanadium ions across a semi-permeable membrane, typically made of Nafion, which separates the anolyte and catholyte.

Electrolyte Composition and Ion States

The defining feature of the vanadium system is the use of the same element, vanadium, in both half-cells, which minimizes cross-contamination over time. The anolyte contains vanadium ions in the +2 and +3 oxidation states, while the catholyte features ions in the +4 and +5 states. During charging, electrical energy drives the oxidation of vanadium(III) to vanadium(IV) at the positive electrode and the reduction of vanadium(IV) to vanadium(II) at the negative electrode. The relevant half-reactions are:

V3+ + H2O → VO2+ + 2H+ + e- (Cathode)

V4+ + e- → V2+ (Anode)

The overall cell potential is approximately 1.26 V. The electrolyte is usually dissolved in sulfuric acid (H2SO4) to ensure conductivity and stability. The color of the solutions changes visibly with the state of charge: the anolyte shifts from blue (V4+) to purple (V2+), and the catholyte changes from green (V3+) to yellow (V4+/VO2+).

Circulation and Stack Architecture

Pumps circulate the electrolyte from the storage tanks through the porous carbon felt electrodes within the stack. The membrane allows protons (H+) to pass through to maintain charge balance while keeping the larger vanadium ions relatively separated. During discharge, the process reverses: electrons flow from the anode to the cathode through the external circuit, while protons migrate through the membrane. This flow-based design enables long duration storage, as the electrolyte can be swapped or concentrated to adjust capacity without replacing the entire stack. The system’s efficiency is influenced by the viscosity of the electrolyte, the permeability of the membrane, and the pumping power required to maintain flow rates.

Technical specifications and design

The vanadium redox flow battery (VRFB) plant operates with a nominal power capacity of 2 MW, utilizing the unique electrochemical properties of vanadium ions to store and release energy. This technology is distinct from conventional lithium-ion or lead-acid batteries, as it decouples energy capacity from power rating through the use of liquid electrolytes stored in external tanks. The system's design allows for long-duration energy storage, making it suitable for grid stabilization, peak shaving, and renewable energy integration in the US market.

System Architecture and Components

The core of the VRFB system consists of three main components: the electrolyte storage tanks, the electrochemical cell stack, and the balance of plant (BoP). The electrolyte, composed of vanadium dissolved in sulfuric acid, circulates through the cell stack via pumps. The cell stack contains multiple cells connected in series, each separated by ion-exchange membranes that allow hydrogen ions (H+) to pass through while preventing the mixing of the positive (vanadium +5/+4) and negative (vanadium +4/+3) electrolytes.

The power rating of 2 MW is determined by the surface area of the membranes and the current density within the cell stack. Increasing the number of cells in series increases the voltage, while increasing the cell area increases the current. This modular design allows for scalable power output. The energy capacity, on the other hand, is determined by the volume and concentration of the electrolyte in the storage tanks. This decoupling enables the plant to be tailored for specific grid requirements, such as high power for frequency regulation or high energy for daily cycling.

Technical Parameters and Formulas

The following table outlines the typical technical parameters associated with a 2 MW VRFB system. These values are representative of standard industry configurations for this capacity class.

Parameter	Typical Value / Description
Power Capacity	2 MW
Energy Capacity	Variable (typically 4–8 MWh for 2–4 hour duration)
Electrolyte Volume	~100–200 m³ (depending on duration)
Cell Voltage	1.1 – 1.4 V per cell
Round-Trip Efficiency	70% – 80%
Lifetime	15–20 years (10,000+ cycles)
State of Charge (SoC)	0% – 100% (no degradation at extremes)

The energy stored in the system can be calculated using the following relationship:

E = P × t

Where E is the energy capacity (MWh), P is the power rating (2 MW), and t is the duration of discharge (hours). The power output is derived from the cell stack configuration:

P = V_cell × I_cell × N_cells

Where V_cell is the voltage per cell, I_cell is the current per cell, and N_cells is the number of cells in series. This formula highlights the modular nature of VRFBs, allowing for precise tuning of power output by adjusting the cell stack size independently of the electrolyte volume.

What distinguishes VRFB from other flow batteries?

Vanadium redox flow batteries (VRFBs) differ from other flow battery chemistries primarily through the uniqueness of their electrolyte composition and the resulting mitigation of crossover effects. In a standard VRFB, the same element—vanadium—serves as the active species in both the anolyte and catholyte, existing in different oxidation states: V(II)/V(III) in the negative half-cell and V(IV)/V(V) in the positive half-cell. This structural symmetry is critical for long-term stability. The primary degradation mechanism in flow batteries is crossover, where ions migrate through the semi-permeable membrane separating the two electrolyte tanks. In zinc-bromine (Zn-Br) and iron-chromium (Fe-Cr) systems, crossover leads to irreversible chemical changes. For example, in Zn-Br batteries, zinc ions crossing into the bromine side can precipitate or react, while bromine crossing into the zinc side causes self-discharge. In Fe-Cr systems, the migration of iron and chromium ions leads to a gradual imbalance in concentration, requiring periodic recharging or electrolyte replacement to maintain capacity.

Crossover and Membrane Selectivity

The vanadium system offers a distinct advantage in managing crossover. Because the active ion is vanadium in both tanks, even if V(IV) ions cross from the positive to the negative side, they simply change their oxidation state to V(III) during the next charge cycle. This means that while crossover causes some temporary capacity loss due to the mixing of oxidation states, it does not lead to the permanent chemical degradation seen in Zn-Br or Fe-Cr systems. The Nernst equation governs the potential difference, but the chemical identity remains stable. This characteristic allows VRFBs to achieve cycle lives exceeding [?] cycles with minimal electrolyte degradation, making them particularly suitable for long-duration energy storage applications where maintenance costs must be minimized over decades of operation.

Scalability and Energy Density

Scalability in flow batteries is inherently decoupled from power and energy capacity. Power is determined by the size of the stack (the electrochemical cell area), while energy is determined by the volume of the electrolyte tanks. VRFBs excel in this regard due to the high solubility of vanadium salts in sulfuric acid, allowing for higher energy density compared to iron-chromium systems. Zinc-bromine batteries offer higher energy density but suffer from the "bromine shuttle" effect and the need for complex phase separation agents to prevent bromine volatility. VRFBs, while having lower energy density than Zn-Br, offer a more robust and simpler electrolyte management system. The scalability of VRFB plants, such as the 2 MW facility in the US, demonstrates the technology's ability to modularly expand energy capacity by simply adding electrolyte volume without significant changes to the power conversion system. This modularity supports flexible deployment in grid-scale applications where land availability and specific duration requirements vary.

Worked examples

Understanding the operational parameters of a vanadium redox flow battery (VRFB) requires distinguishing between power and energy, two distinct metrics often conflated in energy storage analysis. Unlike solid-state batteries where power and energy are somewhat coupled, VRFB systems decouple these variables: power is determined by the stack size (electrode area), while energy is dictated by the electrolyte volume. The following worked examples illustrate these fundamental STEM concepts using standard parameters for a hypothetical 2 MW VRFB plant, consistent with the scale of the US-based facility referenced in the grounding data.

Example 1: Calculating Stack Power Output

Power output in a VRFB is a function of the cell voltage and the current flowing through the stack. Assume a hypothetical VRFB stack operates at a nominal cell voltage of 1.1 V per cell. If the stack consists of 100 cells connected in series, the total stack voltage is 110 V. To achieve a total power output of 2 MW (2,000,000 W), we calculate the required current using the formula P = V × I.

Rearranging for current (I): I = P / V. Substituting the values: I = 2,000,000 W / 110 V ≈ 18,182 A. This means the electrolyte must flow through the stack to sustain a current of approximately 18,182 amperes. This calculation demonstrates that to increase power without changing the electrolyte volume, one must increase the electrode area to handle the higher current density, or add parallel stacks.

Example 2: Determining Electrolyte Energy Density

Energy capacity is determined by the volume of the electrolyte tanks and the concentration of vanadium ions. Assume the system uses a 1.5 M (molar) vanadium electrolyte solution. The theoretical specific energy of a 1.5 M VRFB is approximately 25 Wh/L (watt-hours per liter) per tank, considering both positive and negative electrolyte volumes. If the plant has two 1,000 L tanks (one for each half-cell), the total electrolyte volume is 2,000 L.

Total Energy = Total Volume × Specific Energy. Total Energy = 2,000 L × 25 Wh/L = 50,000 Wh, or 50 kWh. For a 2 MW power output, this configuration provides 2.5 hours of duration (50 kWh / 2000 kW = 0.025 h, assuming the 2 MW is the peak power draw). This example highlights that to increase duration (energy) without changing power, one simply adds more electrolyte volume to the tanks, keeping the stack size constant.

Example 3: System Efficiency Calculation

Round-trip efficiency (RTE) measures how much energy is retained after charging and discharging. Assume the charging voltage is 1.3 V per cell and the discharging voltage is 0.9 V per cell. The voltage efficiency is V_discharge / V_charge = 0.9 / 1.3 ≈ 69.2%. If we also account for pump losses and current efficiency (95%), the total RTE is approximately 65-70%. This calculation is critical for economic modeling, as higher efficiency reduces the levelized cost of storage (LCOS) for the 2 MW plant.

Environmental impact and lifecycle

The environmental profile of vanadium redox flow battery (VRFB) systems is defined by the unique chemistry of the electrolyte and the upstream extraction processes required to secure the vanadium supply chain. Unlike lithium-ion technologies that suffer from capacity fade due to structural degradation of the cathode and anode, VRFBs store energy in liquid electrolytes contained within external tanks. This architectural distinction allows the electrolyte to retain its energy storage capacity for decades, significantly extending the operational lifecycle of the plant and reducing the frequency of component replacements.

Vanadium Mining and Upstream Impact

The primary environmental burden of VRFB deployment lies in the mining of vanadium. Vanadium is often extracted as a by-product of steel production (slag) or from heavy oil deposits, though dedicated mining operations exist in countries with significant reserves. The extraction process can generate substantial tailings and require significant water usage. In the United States, where this 2 MW plant is located, the sourcing of vanadium may involve importing raw materials or utilizing domestic slag from steel mills. The carbon footprint associated with the initial mining, refining, and transport of vanadium pentoxide (V2O5) to produce the electrolyte is a critical metric. Life cycle assessments indicate that while the upstream carbon intensity is higher than some mechanical storage solutions, the long cycle life of the battery helps amortize these initial emissions over thousands of charge-discharge cycles.

Electrolyte Recyclability and Circular Economy

A key advantage of vanadium redox flow batteries is the near-total recyclability of the electrolyte. Because the energy is stored in the liquid phase, the electrolyte can be drained, filtered, and reused or upgraded with minimal loss of performance. This contrasts with solid-state batteries where the active materials are often bound in complex composites. At the end of the plant's life, the vanadium electrolyte can be recovered with high purity, allowing for a circular economy model where the liquid asset retains significant residual value. The membrane, typically made of Nafion or other perfluorosulfonic acid polymers, presents a secondary recycling challenge, but the bulk of the stored energy material—the vanadium ions—remains chemically stable and recoverable.

Carbon Footprint and Lifecycle Analysis

The overall carbon footprint of a VRFB system is influenced by the balance between the embodied energy of the vanadium electrolyte and the operational efficiency of the plant. While the round-trip efficiency of VRFBs is generally lower than that of lithium-ion batteries, the longevity of the system can result in a lower carbon intensity per kilowatt-hour stored over a 15-20 year lifespan. The environmental impact is further mitigated by the non-flammable nature of the aqueous electrolyte, which reduces the need for intensive thermal management systems and fire suppression infrastructure compared to other electrochemical storage technologies.

Future developments

The vanadium redox flow battery (VRFB) plant in the US, with a capacity of 2 MW, represents a specific implementation of a broader technology class that is currently undergoing significant scaling and optimization. Future developments in this sector are driven by the need for long-duration energy storage (LDES) to complement intermittent renewable energy sources such as solar photovoltaics and wind power. Unlike lithium-ion batteries, which dominate short-duration storage, VRFBs offer distinct advantages in scalability and cycle life, making them particularly suitable for grid-level applications where the electrolyte volume can be adjusted independently of the power stack.

Emerging technological improvements focus on increasing the energy density of the vanadium electrolyte and enhancing the efficiency of the membrane materials. The energy density of a VRFB is largely determined by the concentration of vanadium ions in the electrolyte solution. The theoretical energy density can be expressed by the relationship between the cell voltage and the molar concentration of the active species. Improvements in membrane technology, such as the adoption of anion exchange membranes (AEM) and bipolar membranes, aim to reduce the crossover of vanadium ions, thereby minimizing self-discharge and improving round-trip efficiency. These advancements are critical for reducing the levelized cost of storage (LCOS) and making VRFBs more competitive in the broader energy storage market.

Hybrid systems are also a key area of development. Integrating VRFBs with other storage technologies, such as lithium-ion batteries or hydrogen fuel cells, can create hybrid energy storage systems (HESS) that leverage the strengths of each technology. For instance, lithium-ion batteries can handle high-power, short-duration fluctuations, while VRFBs manage longer-duration energy shifts. This hybridization can optimize the overall performance and economic viability of the storage solution, particularly in microgrids and behind-the-meter commercial and industrial applications.

Market projections for vanadium redox flow batteries indicate steady growth, driven by the increasing deployment of renewable energy and the need for grid stability. The cost of vanadium, the primary raw material, plays a significant role in the economic feasibility of VRFBs. Fluctuations in vanadium prices, often influenced by the steel industry's demand for ferrovanadium, can impact the capital expenditure of VRFB projects. However, the long cycle life of VRFBs, often exceeding 10,000 to 20,000 cycles with minimal capacity fade, provides a strong value proposition over the lifespan of the asset. As manufacturing scales up and supply chains mature, the cost per kilowatt-hour of stored energy is expected to decrease, further enhancing the market penetration of VRFB technology in the global energy infrastructure landscape.
