Overview
The redox flow battery cell is a specific electrochemical energy storage configuration defined in United States Patent 11316170. This patent, assigned to Sumitomo Electric Industries, details a cell architecture designed to optimize the efficiency and longevity of vanadium-based or hybrid redox flow systems. The invention addresses key challenges in flow battery technology, including membrane degradation, electrode polarization, and electrolyte crossover, which are critical factors in determining the round-trip efficiency and cycle life of the battery stack.
As defined in the patent documentation, the cell comprises an anode compartment, a cathode compartment, and a separator membrane positioned between them. The electrolyte solutions, typically containing vanadium ions in different oxidation states (e.g., V2+/V3+ for the anode and V4+/V5+ for the cathode), are pumped through the respective compartments. The electrochemical reactions occur at the electrode surfaces, where electron transfer takes place during charging and discharging cycles. The fundamental operation relies on the reversible redox reactions of the electrolyte species, allowing for scalable energy capacity independent of power output, a distinct advantage over solid-state battery technologies.
Technical Configuration and Innovation
US Patent 11316170 introduces specific structural innovations to enhance the performance of the flow battery cell. The patent describes a cell design that minimizes the distance between the electrodes and the separator, thereby reducing ohmic losses and improving power density. The separator membrane plays a crucial role in ion selectivity, allowing protons (H+) to pass through while minimizing the crossover of vanadium ions, which can lead to capacity fade over time. The cell architecture also includes features to ensure uniform electrolyte flow distribution, reducing concentration gradients and enhancing the utilization of the active materials.
The innovation lies in the integration of these components into a cohesive unit that can be easily assembled into larger stacks. This modularity is essential for scaling up flow battery systems for grid-scale energy storage applications. The patent also highlights the importance of material selection for the electrodes and separator, emphasizing the need for chemical stability and mechanical robustness to withstand the harsh operating conditions of the flow battery environment. Sumitomo Electric Industries' approach in this patent reflects a strategic focus on improving the economic viability of redox flow batteries by enhancing their technical performance and reducing maintenance requirements.
What is a redox flow battery cell?

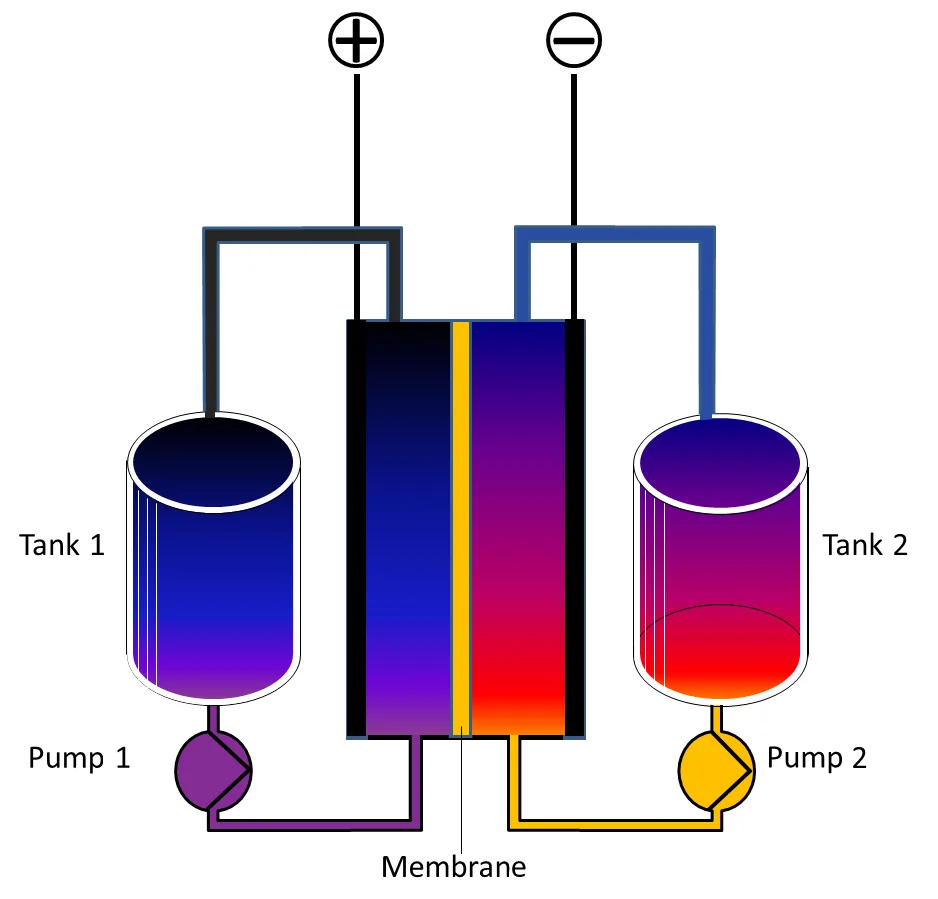

A redox flow battery cell is the fundamental electrochemical unit within a broader redox flow battery (RFB) system, designed specifically for large-scale energy storage. Unlike conventional solid-state batteries, such as lithium-ion or lead-acid types, the defining characteristic of a redox flow battery is the separation of energy capacity from power output. This is achieved by storing the electrochemical energy in liquid electrolyte solutions, which are housed in external tanks and pumped through the central cell stack.
The cell itself typically consists of two half-cells separated by an ion-exchange membrane. Each half-cell contains an electrode, often made of porous carbon felt or graphite, where the redox reactions occur. The electrolytes, comprising soluble redox-active species dissolved in a solvent (commonly water or organic solvents), circulate continuously. As the electrolytes flow past the electrodes, electrons are transferred through an external circuit, while ions migrate through the membrane to maintain charge balance. This continuous flow allows the system to be charged and discharged over extended periods without the rapid degradation often seen in solid-state counterparts.
The general electrochemical reaction in a redox flow battery can be represented by the following half-reactions for the positive and negative electrodes:
At the positive electrode (cathode during discharge):
Ox1 + ne⁻ ⇌ Red1
At the negative electrode (anode during discharge):
Red2 ⇌ Ox2 + ne⁻
The overall cell potential is determined by the difference in the standard reduction potentials of the two redox couples. This modular architecture allows for independent scaling of power (by increasing the surface area of the electrodes in the cell stack) and energy (by increasing the volume or concentration of the electrolyte in the external tanks). This distinguishes redox flow battery cells from other energy storage technologies where energy and power are intrinsically linked by the mass of the active solid materials.
Background
Redox flow batteries represent a distinct class of electrochemical energy storage systems, fundamentally different from conventional solid-state batteries. In this technology, energy is stored in liquid electrolytes contained in external tanks, which are pumped through a central power stack. This architecture decouples power capacity, determined by the stack size, from energy capacity, defined by the electrolyte volume. The term "redox" refers to the reduction-oxidation reactions that occur at the electrodes, where ions from the electrolyte exchange electrons with the current collectors. This mechanism allows for long-duration storage with minimal degradation, making the technology particularly relevant for grid-scale applications requiring flexibility and longevity.
Technological Development and Context
The development of redox flow battery cells has been driven by the need for scalable, long-duration energy storage solutions. Unlike lithium-ion batteries, which rely on solid active materials, flow batteries utilize liquid solutions, often based on vanadium or organic molecules. This liquid state facilitates easier maintenance and the potential for simple capacity upgrades by adding more electrolyte. The technology has evolved through various iterations, focusing on improving energy density, reducing cost, and enhancing the stability of the electrolyte solutions. Research has concentrated on optimizing the membrane separators and electrode materials to minimize crossover and maximize efficiency.
Role of Sumitomo Electric Industries
Sumitomo Electric Industries has played a significant role in the commercialization and advancement of redox flow battery technology. As a major player in the energy infrastructure sector, the company has invested in research and development to refine flow battery systems for industrial and grid applications. Sumitomo Electric Industries has focused on enhancing the performance and reliability of these cells, contributing to the broader adoption of flow batteries in the global energy market. Their efforts have included the development of proprietary electrolyte formulations and stack designs, aiming to reduce the levelized cost of storage. The company's involvement underscores the growing importance of flow batteries in the transition to a more flexible and resilient energy infrastructure, particularly in regions with high renewable energy penetration.
Applications
Redox flow battery cells are primarily utilized for stationary energy storage, offering distinct advantages in grid stability and long-duration power management. Their modular design allows for independent scaling of power and energy capacity, making them suitable for various applications where flexibility is critical. Unlike conventional lithium-ion systems, flow batteries excel in scenarios requiring extended discharge times without significant degradation of the electrolyte.
Grid Stabilization and Frequency Regulation
One of the key applications of redox flow battery cells is in grid stabilization. They provide rapid response times to fluctuations in electricity supply and demand, aiding in frequency regulation. This capability is essential for integrating variable renewable energy sources, such as solar and wind, which can cause intermittent power outputs. The ability to quickly charge and discharge helps maintain grid frequency within acceptable limits, ensuring a stable power supply.
Long-Duration Energy Storage
Flow batteries are particularly effective for long-duration energy storage. This is due to the nature of the electrolyte, which stores energy in liquid form within external tanks. The energy capacity can be increased by simply adding more electrolyte, while the power output is determined by the size of the cell stack. This decoupling of power and energy allows for cost-effective storage solutions for periods ranging from several hours to days, which is beneficial for shifting peak loads and managing seasonal variations in energy production.
Renewable Energy Integration
The integration of renewable energy sources into the grid is significantly enhanced by redox flow battery cells. They help mitigate the intermittency of solar and wind power by storing excess energy during periods of high production and releasing it during peak demand. This application supports the transition to a more sustainable energy mix by providing a reliable storage mechanism that complements the variable nature of renewables.
Backup Power and Microgrids
In microgrid applications, redox flow battery cells serve as a reliable backup power source. They can provide uninterrupted power supply to remote locations or isolated grids, enhancing energy security. The long cycle life and low maintenance requirements of flow batteries make them an attractive option for microgrids, where consistent performance and longevity are crucial.
Industrial and Commercial Applications
Beyond utility-scale applications, redox flow battery cells are also used in industrial and commercial settings. They can optimize energy costs by storing energy during off-peak hours and using it during peak tariff periods. This application helps businesses manage their energy expenses more effectively while contributing to overall grid stability.
