Redox Targeting-Based Vanadium Redox-Flow Battery

Background

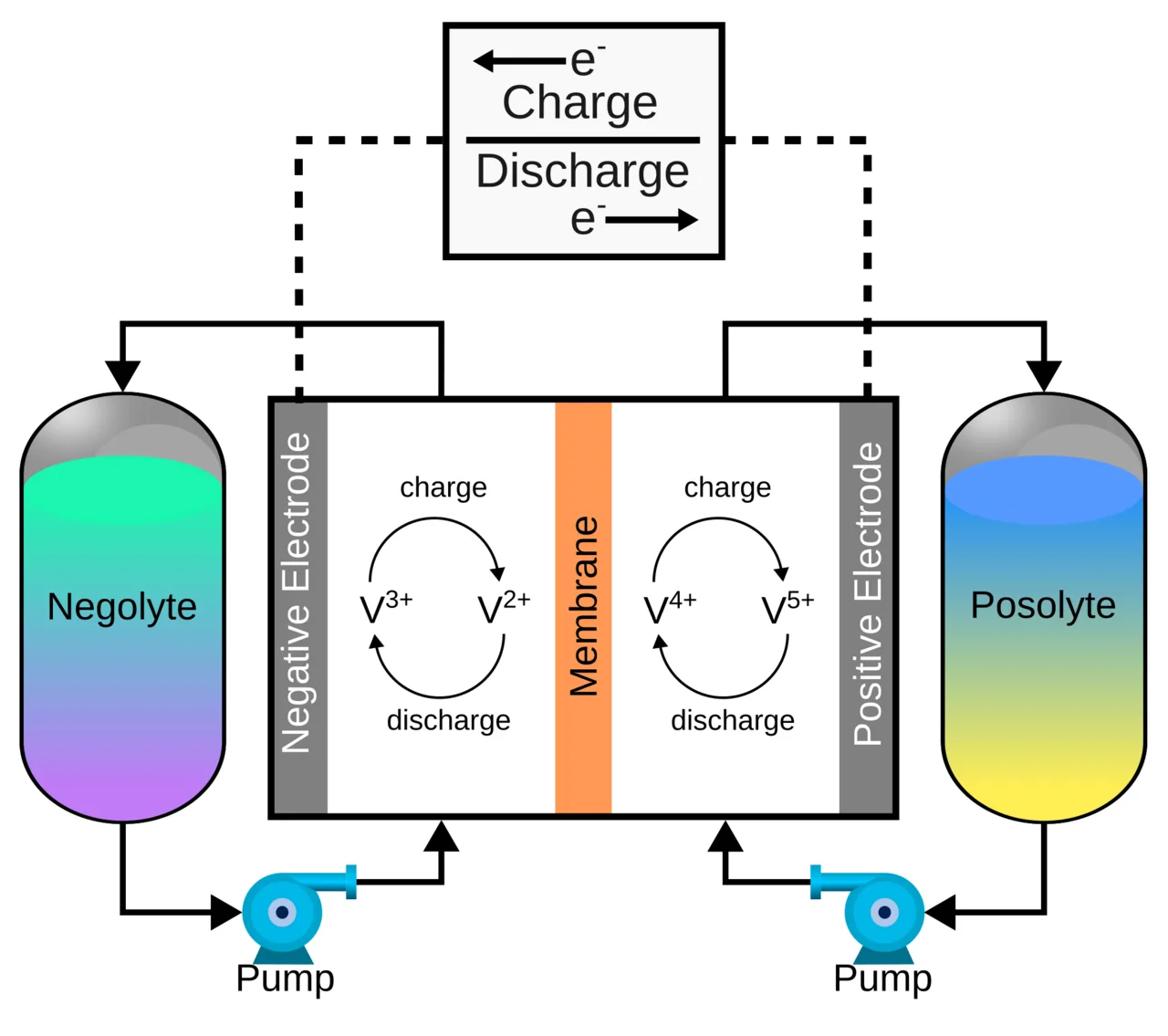

Vanadium redox flow batteries (VRFBs) represent a distinct class of electrochemical energy storage systems where energy and power are decoupled, primarily through the use of liquid electrolytes stored in external tanks. The technology relies on the unique property of vanadium, which can exist in four stable oxidation states (V²⁺, V³⁺, V⁴⁺, and V⁵⁺) in aqueous sulfuric acid solutions. This allows the same element to serve as the active species in both the positive and negative half-cells, significantly reducing cross-contamination issues compared to hybrid flow batteries. The fundamental charge storage mechanism involves reversible redox reactions at the electrode surfaces, typically expressed as V2+↔V3++e− in the anolyte and V4++e−↔V5+ in the catholyte. The overall cell potential is determined by the difference in standard reduction potentials of these couples, yielding a nominal voltage of approximately 1.26 V.

Despite their advantages, including long cycle life, scalability, and minimal degradation due to electrolyte crossover, VRFBs face challenges related to energy density and cost. The energy density is largely constrained by the solubility of vanadium ions in the electrolyte, which limits the concentration of active species and, consequently, the volumetric energy density. Additionally, the cost of vanadium metal and the balance of plant components, such as ion-exchange membranes and bipolar plates, contribute to the high levelized cost of storage. Recent research has focused on enhancing the performance of VRFBs through various strategies, including the optimization of electrolyte composition, the development of advanced electrode materials, and the improvement of membrane selectivity and conductivity.

Redox Targeting in VRFB Research

Redox targeting has emerged as a promising approach to address the limitations of conventional VRFBs. This strategy involves the introduction of additional redox-active species into the electrolyte to increase the energy density without significantly altering the vanadium concentration. By targeting specific redox potentials, researchers aim to expand the operating voltage window of the battery, thereby enhancing its energy storage capacity. The concept of redox targeting is based on the principle that the addition of complementary redox couples can fill the potential gaps between the primary vanadium redox pairs, leading to a more efficient utilization of the electrolyte volume.

The implementation of redox targeting requires careful selection of the additional redox species to ensure compatibility with the vanadium electrolyte and the membrane. Key considerations include the stability of the new redox couples, their diffusion coefficients, and their interaction with the electrode surfaces. Furthermore, the introduction of new species may affect the viscosity and conductivity of the electrolyte, which in turn influences the hydrodynamic performance of the flow battery. Recent studies have explored various organic and inorganic redox-active molecules, such as quinones, ferrocene derivatives, and metal-organic frameworks, as potential candidates for redox targeting in VRFBs.

One of the main challenges in redox targeting is the potential for crossover of the new species through the membrane, which can lead to capacity fade and voltage decay. To mitigate this, researchers have developed functionalized membranes with tailored pore sizes and surface charges to selectively block the targeted redox species while allowing the passage of protons. Additionally, the stability of the new redox couples under long-term cycling conditions is critical for the commercial viability of redox-targeted VRFBs. Degradation mechanisms, such as hydrolysis, oxidation, and polymerization, must be thoroughly investigated to ensure the longevity of the battery.

The scholarly article on redox targeting based vanadium redox flow batteries contributes to the broader field by providing a comprehensive analysis of the current state of research and identifying key areas for future development. By contextualizing the findings within the existing body of literature, the article highlights the potential of redox targeting to enhance the performance and cost-effectiveness of VRFBs. The integration of advanced materials and innovative electrolyte formulations represents a significant step forward in the evolution of flow battery technology, offering new opportunities for large-scale energy storage applications in renewable energy systems.

Applications

Redox targeting in vanadium redox flow batteries (VRFBs) primarily aims to enhance energy density and utilization efficiency, making the technology viable for specific grid-scale and stationary storage applications. By selectively concentrating active vanadium species in the electrolyte or electrode interfaces, this configuration addresses the traditional limitation of low volumetric energy density inherent to standard VRFBs. The scholarly literature identifies several key use cases where these enhanced characteristics provide distinct operational advantages.

Grid-Scale Energy Storage

One of the primary applications is in grid-scale energy storage systems, particularly for frequency regulation and peak shaving. Redox targeting allows for higher vanadium utilization rates, which can reduce the required electrolyte volume for a given energy capacity. This efficiency gain is critical for large-scale installations where space and material costs are significant factors. The ability to precisely control the state of charge through targeted redox reactions enables faster response times, which is essential for balancing intermittent renewable energy sources like solar and wind power.

Stationary Renewable Energy Integration

In stationary renewable energy integration, redox-targeted VRFBs are used to smooth out power output fluctuations. The enhanced energy density allows for more compact battery banks, facilitating deployment in areas with limited footprint availability, such as urban substations or hybrid solar-wind farms. The long cycle life and scalability of VRFBs, combined with the improved efficiency from redox targeting, make them suitable for long-duration storage needs, often exceeding four hours of discharge time.

Microgrids and Off-Grid Systems

Microgrids and off-grid systems benefit from the modularity and reliability of redox-targeted VRFBs. These systems often require robust energy storage solutions that can operate independently of the main grid for extended periods. The improved energy density reduces the overall system weight and volume, which is advantageous for remote locations where transportation and installation logistics are challenging. Additionally, the chemical stability of vanadium electrolytes minimizes degradation over time, ensuring consistent performance in harsh environmental conditions.

While redox targeting improves performance, it also introduces complexity in electrolyte management and electrode design. Future applications may focus on optimizing these parameters to further reduce costs and increase adoption in commercial and industrial sectors.
