Overview
Compressed-air-energy storage (CAES) is a method for storing energy for later use by compressing air and retaining it under pressure. At a utility scale, this technology enables energy generated during periods of low demand to be released during peak load periods, effectively matching variable production with fluctuating demand. The concept relies on the thermodynamic properties of air, where mechanical energy is converted into potential energy stored in a compressed gas volume. This approach provides a flexible solution for grid stability, allowing power systems to absorb excess generation and dispatch it when electricity prices or demand are highest.
The first utility-scale CAES project was commissioned in Huntorf, Germany, in 1978. This pioneering installation demonstrated the viability of using natural caverns for air storage and established the foundational operational model for subsequent developments. Since then, the technology has evolved to address the specific needs of modern power grids, particularly with the increasing integration of renewable energy sources. As wind and solar power become more prominent, the need for efficient, large-scale storage solutions has grown, driving renewed interest in CAES systems. These systems help mitigate the intermittency of renewables by storing surplus energy during high-production periods and releasing it during lulls.
A key challenge in CAES technology is the management of thermal energy. During the compression process, significant heat is generated, which must be either dissipated or stored to improve overall efficiency. In traditional diabatic CAES systems, much of this heat is lost to the environment, requiring fuel combustion during expansion to reheat the air. Advanced designs, such as adiabatic and isothermal CAES, aim to capture and reuse this thermal energy, thereby reducing fuel consumption and enhancing round-trip efficiency. The thermodynamic efficiency of these systems can be described by the ratio of electrical energy output to electrical energy input, often expressed as η=EinEout. Effective thermal management is critical for optimizing performance and reducing operational costs.
Despite these challenges, CAES remains a promising option for large-scale energy storage due to its relatively low capital costs and long operational lifespan. The technology continues to evolve, with ongoing research focused on improving efficiency, expanding storage options, and integrating with diverse energy sources. As the global energy landscape shifts towards greater flexibility and resilience, CAES is poised to play a significant role in balancing supply and demand across utility-scale networks.
How do different CAES architectures manage heat?
Compressed-air energy storage systems differ primarily in how they manage the thermodynamic heat generated during air compression. The four main architectures—adiabatic, diabatic, isothermal, and near-isothermal—employ distinct strategies to capture, store, or dissipate this thermal energy to optimize round-trip efficiency.
Adiabatic CAES
In adiabatic systems, the heat generated during compression is captured and stored in a thermal storage medium, such as molten salt or hot water. During expansion, this stored heat is reintroduced to the air, minimizing the need for external fuel. This method can achieve efficiency ranges of approximately 70% (Wikipedia, 2026).
Diabatic CAES
Diabatic systems, the most common commercial type, allow compression heat to escape, often requiring natural gas combustion during expansion to reheat the air. The McIntosh plant in Texas, for example, operates with a round-trip efficiency of about 27% (Wikipedia, 2026). This lower efficiency stems from the significant heat loss and fuel dependency.
Isothermal and Near-Isothermal CAES
Isothermal systems aim to maintain constant temperature during compression and expansion by continuously adding or removing heat. Near-isothermal designs use intermediate cooling and heating stages to approximate this ideal. These methods reduce the work required for compression and expansion, potentially increasing efficiency beyond adiabatic systems, though they often require more complex heat exchangers.
| Type | Heat Management | Efficiency Range |
|---|---|---|
| Adiabatic | Stored in thermal medium | ~70% |
| Diabatic | Dissipated or fueled | ~27% (McIntosh) |
| Isothermal | Continuous heat exchange | Variable |
| Near-Isothermal | Staged heat exchange | Variable |
What are the thermodynamic principles of air storage?
Compressed-air-energy storage (CAES) relies on thermodynamic principles governing gas expansion and compression. The process is fundamentally defined by how heat is managed during these phases, primarily categorized as isothermal, adiabatic, or polytropic. In ideal isothermal storage, the temperature of the air remains constant throughout compression and expansion. According to the ideal gas law, PV=nRT, if temperature (T) is held constant, the work done during compression equals the work recovered during expansion, theoretically yielding 100% round-trip efficiency. However, achieving perfect isothermal conditions requires infinite time for heat exchange, making it practically limited by the finite heat transfer rates of real-world systems.
In contrast, adiabatic storage assumes no heat exchange with the surroundings. During compression, the air temperature rises significantly, and this heat is either stored (in Adiabatic CAES, or A-CAES) or lost to the environment (in Diabatic CAES). When the air expands, it cools down. If the heat is not recovered, the expansion does less work than the compression required, reducing efficiency. This is why traditional diabatic CAES plants often burn natural gas to reheat the air before expansion, compensating for the lost thermal energy.
Constant-Volume vs. Constant-Pressure Storage
The thermodynamic behavior also depends on the storage vessel type. In constant-volume (isochoric) storage, such as a rigid tank, the volume (V) remains fixed. As air is compressed into the vessel, both pressure (P) and temperature (T) increase. The energy stored is a function of the pressure difference between the initial and final states. In constant-pressure (isobaric) storage, often seen in underground caverns like salt domes, the pressure remains relatively constant as the air expands or contracts the cavity. The volume changes, but the pressure is maintained by the weight of the overlying rock or water column.
Worked Example: Energy in a 1 m³ Vessel
Consider a 1 m³ vessel charged to 70 bars. Using the ideal gas law and assuming isothermal conditions for simplicity, the work done (W) to compress air from atmospheric pressure (P1≈1 bar) to 70 bars is given by W=P1V1ln(P2/P1). If we assume the initial volume of air at 1 bar is compressed into the 1 m³ vessel, the stored energy depends on the mass of air and the pressure ratio. For a 1 m³ vessel at 70 bars, the mass of air is significantly higher than at 1 bar, storing substantial potential energy. However, in real adiabatic conditions, the temperature rise during compression must be accounted for, reducing the net work recovered during expansion unless thermal energy is effectively managed. This example illustrates the critical role of pressure ratios and thermal management in determining the efficiency and capacity of CAES systems.
History of compressed air energy systems
The conceptual foundations of compressed-air energy storage (CAES) date back to the 19th century, with early municipal implementations demonstrating the technology's potential for urban energy management. In 1870, citywide compressed air systems were deployed in Paris and Birmingham, utilizing networks of pipes to distribute power for mechanical tools and lighting before the widespread adoption of electricity. A notable example is the 1896 Paris system, which featured a capacity of 2.2 MW and extended across 50 km of piping infrastructure (per historical engineering records).
While these early systems were primarily mechanical, the transition to utility-scale electrical storage began in the late 20th century. The first major diabatic CAES plant was commissioned in Huntorf, Germany, in 1978. This facility established the baseline for using natural gas combustion to heat compressed air during expansion, optimizing efficiency for grid-level demand. Following Huntorf, the McIntosh plant in the United States was commissioned in 1991, further validating the technology for large-scale energy arbitrage during peak load periods (per operational history data).
Technological evolution continued into the 21st century with efforts to reduce thermal losses. In 2012, a near-isothermal CAES project was initiated in Texas, aiming to minimize the need for external fuel by maintaining air temperature during compression and expansion phases. More recently, significant developments have emerged in China between 2022 and 2026, with new installations focusing on integrating CAES with renewable energy sources to enhance grid stability. These modern projects continue to refine the thermodynamic efficiency of the storage cycle, building upon the foundational principles established in the 19th and 20th centuries.
Global CAES projects and deployment
Global deployment of compressed-air energy storage (CAES) has expanded from early pilot plants to large-scale utility projects, particularly in China. The technology enables utility-scale energy storage by compressing air during periods of low demand and releasing it during peak load periods.
Operational Projects
The first operational CAES plant was commissioned in Huntorf, Germany, in 1978. In the United States, the McIntosh plant in Georgia has been a key operational facility. China has significantly accelerated deployment. The Jiangsu project was commissioned in 2022. Similarly, the Zhangjiakou project also began operations in 2022. A major expansion is the Huai'an project, which is noted for its 2.4 GWh capacity and a 2026 timeline.
Proposed and Funded Projects
Historical efforts to expand CAES in the United States include a 2009 US Department of Energy (DOE) funding initiative. This funding supported projects by Pacific Gas and Electric and Iberdrola, aiming to demonstrate the technology's viability in different geographic and grid contexts.
| Project Name | Location | Capacity | Year | Type |
|---|---|---|---|---|
| Huntorf | Germany | [?] | 1978 | Operational |
| McIntosh | United States | [?] | [?] | Operational |
| Jiangsu | China | [?] | 2022 | Operational |
| Zhangjiakou | China | [?] | 2022 | Operational |
| Huai'an | China | 2.4 GWh | 2026 | Operational/Proposed |
| Pacific Gas and Electric | United States | [?] | 2009 | Funded/Proposed |
| Iberdrola | United States | [?] | 2009 | Funded/Proposed |
The energy storage potential is often analyzed using thermodynamic principles. For adiabatic compression, the work input W can be approximated by W=k−1kP1V1[(P1P2)kk−1−1], where k is the adiabatic index, P is pressure, and V is volume. These projects illustrate the growing role of CAES in balancing variable renewable energy sources.
Applications in transportation and marine systems
Compressed-air-energy storage extends beyond stationary utility grids into mobile and marine applications, leveraging the high specific energy of pressurized gas. In transportation, pneumatic motors offer a clean alternative to internal combustion, utilizing the expansion of stored air to drive pistons or turbines. However, the integration of high-pressure vessels introduces critical safety and material considerations. Standards such as ISO 11439 govern the design and testing of composite overwrapped pressure vessels, ensuring integrity under cyclic loading and thermal stress. These standards are vital for vehicles where weight-to-capacity ratios directly impact efficiency and range.
Automotive and Hybrid Systems
Compressed air cars operate by storing energy in tanks, typically at pressures exceeding 300 bar, and releasing it through an expander motor. While pure pneumatic vehicles face challenges with low thermodynamic efficiency due to heat loss during expansion, hybrid configurations have shown promise. Collaborative efforts by Bosch and PSA Peugeot Citroën explored hybrid systems where compressed air assists the internal combustion engine or electric motor, particularly during acceleration phases. This synergy reduces fuel consumption and emissions by offloading peak power demands to the pneumatic system. Regenerative braking further enhances efficiency by capturing kinetic energy, compressing air, and storing it for subsequent use, effectively creating a closed-loop energy recovery mechanism.
Marine Diesel Engine Starting

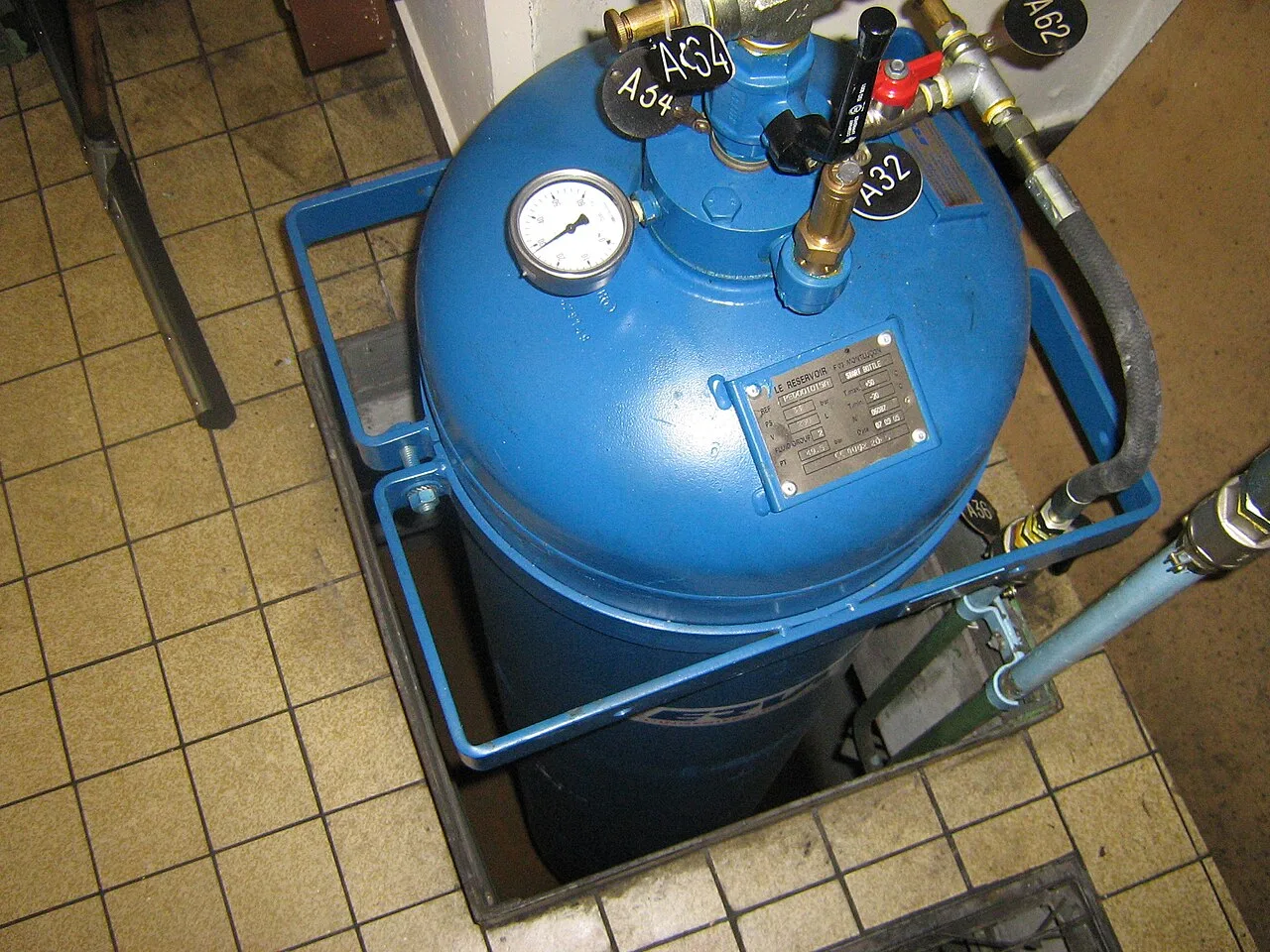

In marine engineering, compressed air serves as a primary starting mechanism for large diesel engines. High-pressure air, often stored in robust steel receivers, is injected into the cylinders to rotate the crankshaft, initiating the combustion cycle. This method is preferred for its reliability, simplicity, and ability to deliver high torque at low speeds. The specific energy of compressed air allows for compact storage solutions compared to battery banks of equivalent power output, making it ideal for space-constrained marine environments. Safety protocols ensure that air receivers are regularly inspected for corrosion and fatigue, maintaining operational readiness in harsh marine conditions.
Economic and environmental considerations
Compressed air energy storage (CAES) presents distinct economic and environmental profiles compared to other utility-scale storage technologies. The capital cost for CAES installations typically ranges from 500to1200 per kilowatt of capacity, making it a cost-competitive option for long-duration storage (per industry analysis). These systems are designed for a long operational lifespan, often exceeding 30 years, which helps amortize the initial infrastructure investment over decades of service.
Geological Requirements
The viability of a CAES plant is heavily dependent on local geology. The technology requires large, underground voids to store the compressed air. Salt domes are the most common geological formation used, as the salt structure provides natural airtight seals and structural integrity under pressure. Aquifers and depleted oil and gas fields are also utilized, though they may require additional lining or water management to maintain air quality and pressure. Improper site selection or pressure management can lead to environmental issues such as land subsidence, where the ground above the storage cavity slowly sinks due to the displacement of rock or water.
Environmental Impact and Policy
Compared to lithium-ion batteries, CAES has a lower material intensity per kilowatt-hour of storage, reducing the demand for critical minerals like lithium and cobalt. However, traditional diabatic CAES plants often rely on natural gas combustion to heat the air before expansion, resulting in carbon dioxide emissions. Advanced adiabatic systems aim to capture and reuse this heat, significantly reducing the carbon footprint. The International Energy Agency (IEA) and the US Department of Energy (US DOE) have identified CAES as a key technology for grid flexibility, offering policy support and funding to accelerate deployment and mitigate climate impacts.
