Overview
Cogeneration, also known as combined heat and power (CHP), is an energy production method that utilizes a heat engine or power station to generate electricity and useful thermal energy simultaneously. This process represents a fundamental departure from traditional separate generation systems, where electricity and heat are often produced in distinct facilities with significant energy losses. The core principle of cogeneration lies in the capture and utilization of heat that would otherwise be wasted during the electricity generation process. In conventional power plants, a substantial portion of the input energy is lost as exhaust heat, typically released into the atmosphere or a water body. Cogeneration systems intercept this thermal output, directing it toward industrial processes, space heating, or cooling applications, thereby increasing the overall efficiency of the energy conversion process.
The operational status of cogeneration is widely recognized as operational, with systems commissioned as early as 1882. This long history demonstrates the enduring relevance of the technology in optimizing energy use. The mixed primary fuel or source characteristic of cogeneration allows for flexibility in energy input, accommodating various fuel types depending on the specific application and available resources. This adaptability contributes to the widespread adoption of CHP systems across different sectors, including industrial, commercial, and residential applications.

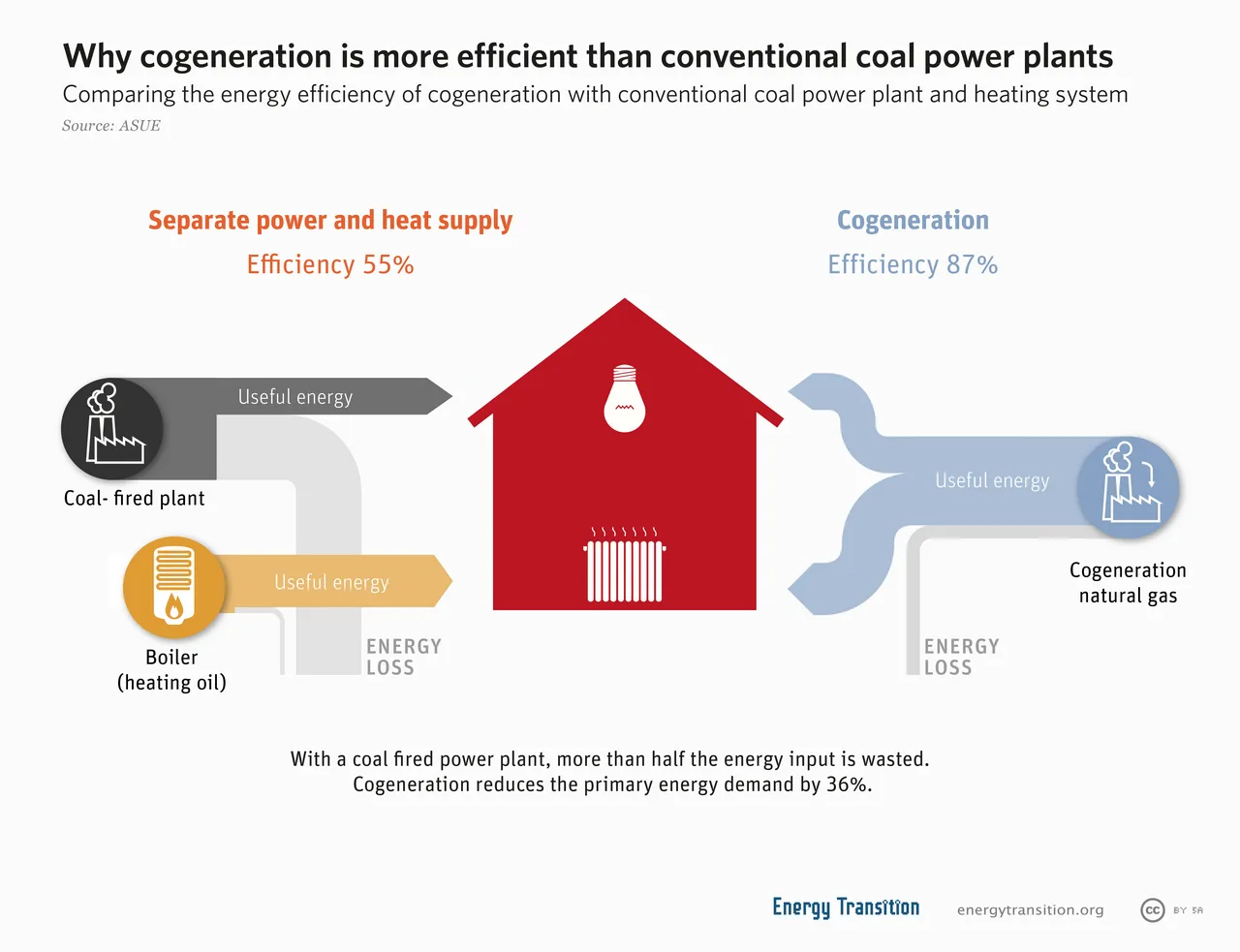

The distinction between cogeneration and traditional separate generation is primarily based on efficiency and resource utilization. In separate generation, electricity is produced in power plants, and heat is generated in boilers or furnaces, each with its own set of losses. Cogeneration integrates these processes, allowing for a more streamlined and efficient energy production system. The simultaneous generation of electricity and heat reduces the total fuel consumption required to meet both energy demands, leading to cost savings and a reduced environmental impact. This efficiency gain is a key driver for the continued use and expansion of cogeneration systems globally.
The basic principle of simultaneous electricity and heat generation in cogeneration systems involves the use of a prime mover, such as a turbine, engine, or fuel cell, to convert thermal energy into mechanical energy, which is then converted into electricity. The remaining thermal energy is captured and utilized for heating or cooling purposes. This integrated approach ensures that a higher proportion of the input energy is put to useful work, compared to separate generation systems. The efficiency of cogeneration systems can vary depending on the specific technology and application, but they generally offer significant improvements over traditional methods.
In summary, cogeneration or combined heat and power (CHP) is a highly efficient energy production method that generates electricity and useful heat simultaneously. This approach contrasts with traditional separate generation systems by capturing and utilizing waste heat, thereby increasing overall efficiency and reducing energy losses. With a history dating back to 1882 and the flexibility to use mixed fuel sources, cogeneration remains a vital technology in the global energy landscape, offering economic and environmental benefits across various sectors.
How does cogeneration improve thermal efficiency?
Cogeneration enhances thermal efficiency by capturing waste heat that conventional power generation typically discards. In a standard Rankine or Brayton cycle, a significant portion of the input energy is lost through the condenser or exhaust gases. Combined heat and power (CHP) systems utilize this residual thermal energy for space heating, industrial processes, or absorption cooling, thereby increasing the total useful energy output from a single fuel source.
Thermodynamic Principles and Efficiency Calculations
The efficiency of a cogeneration system is often evaluated using the Combined Efficiency metric, which sums the electrical and thermal outputs relative to the total fuel input. The relationship can be expressed as:
η_CHP = (W_e + Q_th) / E_fuel
Where We represents electrical work, Qth is the useful thermal heat, and Efuel is the total energy content of the fuel. This approach contrasts with conventional systems where thermal efficiency is calculated solely on electrical output, ignoring the latent heat recovered in CHP applications.
Efficiency Comparison: Conventional vs. CHP Systems
The following table illustrates the typical efficiency ranges for conventional power generation versus cogeneration systems, highlighting the performance gains achieved through thermal recovery.
| System Type | Electrical Efficiency | Thermal Efficiency | Combined Efficiency |
|---|---|---|---|
| Conventional (Steam Turbine) | 30–40% | 10–20% (often wasted) | 40–50% |
| Conventional (Gas Turbine) | 35–45% | 15–25% (exhaust heat) | 50–60% |
| CHP (Combined Cycle) | 45–55% | 30–40% (recovered) | 75–85% |
| CHP (Reciprocating Engine) | 35–45% | 40–50% (jacket/exhaust) | 70–80% |
These figures demonstrate that CHP systems can achieve combined efficiencies exceeding 70%, significantly outperforming conventional plants where up to 50% of the fuel energy is lost. The specific efficiency gains depend on the prime mover technology and the temperature level of the recovered heat, which must match the thermal demand of the end-use application.
What are the main types of cogeneration plants?
Cogeneration systems are categorized by their thermodynamic cycle configuration and the prime mover technology employed. The two primary cycle types are topping and bottoming cycles, which determine the sequence of energy conversion.Cycle Configurations
In a topping cycle, electricity is generated first by a heat engine, and the residual heat is then captured for thermal use. This is the most common configuration, where the "topping" engine extracts high-grade energy, leaving lower-grade heat for heating or absorption cooling. In contrast, a bottoming cycle generates heat first, typically via combustion or industrial process heat, which then drives a heat engine (often a steam turbine) to produce electricity. The exhaust heat from this engine is then utilized. The overall efficiency (ηCHP) is the sum of the electrical efficiency (ηelec) and the thermal efficiency (ηth):
η_CHP = η_elec + η_th
Prime Mover Technologies
Different prime movers suit various capacity ranges and fuel types. Gas turbines are widely used in industrial and utility-scale CHP, often utilizing natural gas. They offer high electrical efficiency and quick start-up times. Steam turbines are typical for larger installations, particularly where a boiler or waste heat source provides high-pressure steam; they are common in heavy industry and nuclear cogeneration. Reciprocating engines, including internal combustion (diesel/gas) and external combustion (Stirling) engines, are versatile and efficient for small to medium-scale applications. Fuel cells convert chemical energy directly into electricity and heat through electrochemical processes, offering high efficiency and low emissions, suitable for both stationary and micro-scale uses. Micro-CHP technologies, such as microturbines and Stirling engines, are designed for residential and small commercial buildings, typically producing under 50 kW of electricity.
| Plant Type | Typical Fuels | Capacity Range |
|---|---|---|
| Gas Turbines | Natural Gas, Diesel | 10 MW – 100+ MW |
| Steam Turbines | Steam (Coal, Gas, Nuclear) | 5 MW – 200+ MW |
| Reciprocating Engines | Natural Gas, Diesel, Biogas | 1 MW – 50 MW |
| Fuel Cells | Natural Gas, Hydrogen | 0.5 MW – 100+ MW |
| Micro-CHP | Natural Gas, Oil | 0.5 kW – 50 kW |
Industrial and District Heating Applications
Cogeneration systems are extensively deployed in industrial sectors where thermal energy demand is continuous and substantial. In pulp and paper mills, refineries, and chemical plants, the simultaneous production of electricity and heat significantly enhances overall energy efficiency. These facilities utilize waste heat from turbines or exhaust gases to drive secondary processes, reducing reliance on external fuel sources. The integration of combined heat and power (CHP) allows these industries to capture thermal energy that would otherwise be lost, converting it into useful work or process heat.
Heat Recovery Steam Generators
A critical component in many industrial cogeneration setups is the Heat Recovery Steam Generator (HRSG). An HRSG captures waste heat from gas turbines or internal combustion engines to produce steam. This steam can drive a steam turbine for additional electricity generation or be used directly in industrial processes. The efficiency of an HRSG depends on the temperature of the exhaust gas and the desired steam pressure. By recovering this thermal energy, HRSGs play a pivotal role in maximizing the fuel utilization of the cogeneration system.
District Heating Networks
District heating systems distribute thermal energy from a central source to multiple buildings, providing space heating and hot water. New York City operates one of the largest steam networks in the world, supplying heat to numerous commercial and residential buildings. This extensive infrastructure utilizes cogeneration plants to produce steam efficiently, reducing the overall carbon footprint of the urban area. The network's ability to provide consistent heat supply makes it a vital component of the city's energy infrastructure. Such systems demonstrate the scalability of cogeneration in urban environments, where heat demand is high and consistent.
Cogeneration using biomass and sugarcane bagasse
Biomass cogeneration represents a significant application of combined heat and power (CHP) technology, particularly in agricultural sectors where organic waste is abundant. In this configuration, biomass fuel—such as wood chips, agricultural residues, or dedicated energy crops—is combusted to generate steam, which drives a turbine for electricity production while simultaneously providing thermal energy for industrial processes. This dual output improves overall thermal efficiency compared to separate generation of heat and power.
Brazil's Sugar and Alcohol Sector
The sugar and alcohol industry in Brazil provides a prominent example of large-scale biomass CHP implementation. Sugarcane bagasse, the fibrous residue left after crushing the cane to extract its juice, serves as the primary fuel source. During the harvest season, bagasse is burned in boilers to produce high-pressure steam. This steam drives turbo-alternators to generate electricity, often exceeding the mill's immediate power needs, allowing for surplus export to the national grid. Simultaneously, lower-pressure steam is utilized for heating evaporators and condensers in the sugar refining and ethanol distillation processes. This integration has transformed many Brazilian mills into net energy exporters, enhancing the economic viability of the sector while reducing reliance on fossil-fuel-based grid electricity.
Environmental Advantages and Disadvantages
The environmental profile of biomass CHP is characterized by significant carbon dioxide (CO2 reduction potential, though not without specific emission challenges. The primary advantage lies in the carbon cycle: the CO2 released during combustion is roughly equivalent to the amount absorbed by the sugarcane plants during photosynthesis, creating a near-neutral carbon balance compared to the fossil carbon released by coal or natural gas. This can significantly lower the life-cycle greenhouse gas emissions of the produced energy.
However, biomass combustion also introduces specific air quality concerns. The burning of biomass, particularly if combustion temperatures are not optimized, can release dioxins and furans, which are persistent organic pollutants with potential toxic effects. Additionally, methyl chloride (CH3Cl) is a notable byproduct of sugarcane bagasse combustion. While methyl chloride occurs naturally, industrial emissions contribute to the atmospheric load, influencing stratospheric ozone dynamics. Effective emission control systems, such as electrostatic precipitators and selective catalytic reduction, are often required to mitigate these disadvantages and ensure that the environmental benefits of biomass CHP are fully realized.
Global Policy and Historical Development
Cogeneration, also known as combined heat and power (CHP), has evolved from a localized mechanical solution to a globally recognized energy efficiency standard. The concept dates back to 1882, when Thomas Edison’s Pearl Street Station in New York City utilized steam to drive both a generator and a turbine, effectively capturing waste heat alongside electricity. This early implementation established the foundational principle that simultaneous production reduces overall fuel consumption compared to separate generation.
Legislative Frameworks in Europe and the United States
In the European Union, policy development has been driven by directives aimed at harmonizing national markets. Directive 2004/08/EC defined high-efficiency CHP criteria, mandating member states to assess the potential for CHP deployment. This framework was significantly updated in 2023 with the recast of the CHP Directive, which introduced stricter efficiency thresholds and expanded the scope of eligible technologies to enhance the share of useful heat in final energy consumption. These legislative efforts aim to reduce carbon emissions by optimizing thermal and electrical outputs.
In the United States, the Public Utility Regulatory Policies Act (PURPA) of 1978 played a pivotal role in stimulating CHP growth. PURPA required utilities to purchase excess electricity from qualifying CHP facilities at the "avoided cost" rate, thereby improving the economic viability of small-scale installations. This policy helped integrate CHP into the broader grid infrastructure, encouraging industrial and commercial sectors to adopt combined production systems.
National Targets and Implementation
National strategies vary significantly across key markets. Germany has pursued an aggressive expansion of CHP, particularly in the residential sector through the widespread adoption of gas-fired micro-CHP units. The country’s policy framework emphasizes the integration of CHP with renewable energy sources to stabilize grid fluctuations. The United Kingdom has focused on district heating networks, leveraging CHP plants to supply thermal energy to urban centers, thereby reducing reliance on individual boiler systems.
Scandinavian countries, including Finland and Denmark, have long utilized CHP as a cornerstone of their energy systems. In Denmark, CHP is deeply integrated with the district heating infrastructure, often coupled with wind power to create a flexible energy mix. Finland similarly relies on CHP for both industrial process heat and municipal heating, achieving high capacity factors due to consistent thermal demand. These national targets reflect a broader trend toward decarbonizing the heat sector, recognizing that electricity generation alone is insufficient for total energy system efficiency.
Worked examples: Efficiency and Cost Analysis
Thermal Efficiency Calculation
The thermal efficiency of a cogeneration system is determined by the ratio of useful energy output to the total energy input. The formula is:
η_CHP = (E_electrical + E_thermal) / E_input
Example 1: A natural gas CHP unit produces 100 MWe of electricity and 80 MWth of heat. The fuel input is 220 MW.
η_CHP = (100 + 80) / 220 = 180 / 220 = 0.818 or 81.8%
This demonstrates the combined output significantly exceeds the electrical efficiency alone.
Example 2: A biomass CHP plant generates 50 MWe and 30 MWth with a fuel input of 110 MW.
η_CHP = (50 + 30) / 110 = 80 / 110 = 0.727 or 72.7%
The efficiency varies based on the fuel source and heat recovery technology.
Cost Analysis and Heat Pump Comparison
Installed costs for CHP systems vary by region and scale. Typical costs are £400/kW or US$577/kW. These costs include the prime mover, heat exchangers, and auxiliary systems.
Example 3: A 10 MW CHP system costs £400/kW.
Total Cost = 10,000 kW * £400/kW = £4,000,000
In the US market:
Total Cost = 10,000 kW * US577/kW=US5,770,000
Compared to heat pumps, CHP systems are often more cost-effective for high-temperature heat demands. Heat pumps excel at low-temperature heating but require significant electrical input. CHP provides simultaneous power and heat, reducing overall fuel consumption. The choice depends on the specific thermal load profile and fuel prices.
Challenges and Limitations
Cogeneration systems face significant spatial and thermodynamic constraints that limit their widespread adoption compared to simple-cycle power generation. The primary limitation is the proximity requirement between the heat source and the thermal load. Heat distribution networks, particularly for low-temperature steam or hot water, suffer from linear thermal losses as distance increases. To maintain high overall efficiency, the thermal load must typically be located within a radius of approximately 2 km from the prime mover. Beyond this threshold, the capital expenditure for insulated piping and the energy lost through conduction and convection often negate the efficiency gains of simultaneous heat and power production.
Thermodynamic Opportunity Costs
Extracting heat from the power cycle introduces an opportunity cost regarding electricity output. In a typical back-pressure turbine configuration, extracting steam for heating reduces the enthalpy drop across the turbine blades, thereby decreasing the electrical work output. This trade-off is governed by the First Law of Thermodynamics, where the total energy input equals the sum of electrical output, useful heat, and waste heat. The efficiency of the system can be expressed as ηtotal=EinputWelec+Quseful. However, maximizing thermal utilization often requires operating the turbine at a specific pressure, which may not align with the peak electrical demand, leading to a "heat-led" rather than "power-led" operation mode.
Water Treatment and Grid Integration
Water treatment in CHP systems is more complex than in simple-cycle plants due to the dual use of water as a working fluid and a heat transfer medium. In open-loop systems, the quality of the return water from thermal consumers can vary significantly, requiring robust chemical treatment to prevent corrosion and scaling in the heat exchangers. Poor water quality can lead to carryover, where droplets of water enter the turbine, causing blade erosion.
Grid integration challenges arise from the inflexibility of heat-led operation. Unlike simple-cycle gas turbines that can ramp up quickly, CHP units often need to maintain a minimum thermal output to satisfy heating demands, which may force the electrical output to remain high even during periods of low grid demand. This can lead to curtailment or the need for additional storage solutions to balance the electricity and heat profiles.
