Overview
A microbial fuel cell (MFC) is a type of bioelectrochemical fuel cell system, also referred to as a micro fuel cell, that generates electric current by harnessing the metabolic activity of bacteria. The fundamental operating principle involves diverting electrons produced from the microbial oxidation of reduced compounds at the anode to oxidized compounds, such as oxygen, at the cathode through an external electrical circuit. This process allows MFCs to produce electricity by utilizing electrons derived from biochemical reactions that are catalyzed by bacteria. The system effectively converts chemical energy stored in organic substrates into electrical energy through biological oxidation.
Classification and Electron Transfer Mechanisms
MFCs are generally classified into two main categories based on how electrons are transferred from the bacteria to the anode: mediated and unmediated systems. The distinction lies in the presence or absence of a chemical intermediary in the electron transport chain.
Mediated MFCs were the first type demonstrated in the early 20th century. In these systems, a mediator—a specific chemical compound—facilitates the transfer of electrons from the bacteria within the cell to the anode. The mediator accepts electrons from the bacterial metabolism and then shuttles them to the anode surface, where they enter the external circuit. This reliance on a chemical mediator was a defining characteristic of the earliest MFC designs.
Unmediated MFCs emerged later, specifically in the 1970s. In this configuration, the bacteria typically possess electrochemically active redox proteins, such as cytochromes, located on their outer membrane. These proteins enable the bacteria to transfer electrons directly to the anode without the need for an external chemical mediator. This direct electron transfer mechanism represents a significant evolution in MFC technology, simplifying the system and potentially reducing operational costs by eliminating the need for continuous mediator supply.
The development of these technologies has progressed from early demonstrations to practical applications. In the 21st century, MFCs have begun to find commercial use, particularly in the field of wastewater treatment. This application leverages the dual benefit of generating electricity while simultaneously oxidizing organic matter in the wastewater, thereby improving effluent quality. The operational status of MFC technology is currently active, with ongoing research and implementation expanding its role in bioenergy systems.
History of microbial fuel cells
The concept of the microbial fuel cell (MFC) was first demonstrated in 1911, marking the inception of bioelectrochemical energy conversion. Early iterations of this technology relied on mediated systems, where a chemical mediator was necessary to transfer electrons from the bacteria within the cell to the anode. This foundational period established the basic principle of generating electric current by diverting electrons produced from the microbial oxidation of reduced compounds on the anode to oxidized compounds, such as oxygen, on the cathode through an external electrical circuit. These early cells utilized the biochemical reactions catalyzed by bacteria to derive electrons for electricity production.
Transition to unmediated systems
Significant technological evolution occurred in the 1970s with the emergence of unmediated microbial fuel cells. This development reduced the dependency on chemical mediators by leveraging the natural properties of certain bacteria. In these unmediated systems, bacteria typically possess electrochemically active redox proteins, such as cytochromes, located on their outer membrane. These proteins enable the direct transfer of electrons from the microbial cells to the anode, streamlining the electron transport mechanism and enhancing the efficiency of the bioelectrochemical process.
Commercialization in the 21st century
By the 21st century, microbial fuel cells began to transition from experimental setups to commercial applications, particularly in the field of wastewater treatment. This shift highlighted the dual benefit of MFCs: generating electricity while simultaneously treating organic matter in water. The operational status of MFCs remains active, with ongoing research and deployment aimed at optimizing their performance in various environmental and industrial contexts. The technology continues to evolve, building on the foundational work from 1911 and the critical advancements of the 1970s to address modern energy and environmental challenges.
How do microbial fuel cells work?

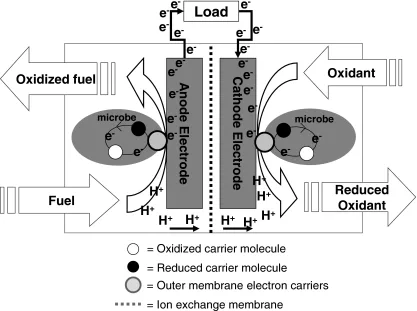

Microbial fuel cells (MFCs) generate electricity through the biochemical oxidation of reduced compounds by bacteria. This process diverts electrons produced at the anode to oxidized compounds, such as oxygen, at the cathode via an external electrical circuit. The system relies on microorganisms catalyzing biochemical reactions to derive electrons for power generation. MFC technology is categorized into two primary types: mediated and unmediated systems, each employing distinct mechanisms for electron transfer from the microbial source to the electrode.
Mediated and Unmediated Electron Transfer
Early MFCs, demonstrated in the early 20th century, utilized a mediator. A mediator is a chemical substance that facilitates the transfer of electrons from the bacteria within the cell to the anode. In these systems, the mediator acts as an intermediate carrier, shuttling electrons between the microbial surface and the electrode. This method was foundational in the initial development of bioelectrochemical fuel cell systems.
Unmediated MFCs emerged in the 1970s, introducing a more direct mechanism for electron transfer. In this configuration, bacteria possess electrochemically active redox proteins, such as cytochromes, located on their outer membrane. These proteins enable the direct transfer of electrons from the bacteria to the anode without the need for a chemical mediator. This extracellular electron transfer mechanism enhances the efficiency and simplicity of the system by reducing the reliance on external chemical additives.
Cell Components and Reactions
The operation of an MFC involves distinct reactions at the anode and cathode, separated by components that manage ion flow. The following table outlines the key components and their roles in the generation process:
| Component | Role in MFC Operation |
|---|---|
| Anode | Site of microbial oxidation of reduced compounds; electrons are released here. |
| Cathode | Site of reduction of oxidized compounds, such as oxygen; electrons are accepted here. |
| External Circuit | Pathway for electron flow from the anode to the cathode, generating electric current. |
| Mediator (in mediated MFCs) | Chemical that transfers electrons from bacteria to the anode. |
| Redox Proteins (in unmediated MFCs) | Electrochemically active proteins, such as cytochromes, on the bacterial outer membrane. |
While specific chemical formulas for the anode and cathode reactions can vary depending on the substrate and electron acceptor, the general principle involves the oxidation of organic matter at the anode and the reduction of an electron acceptor at the cathode. Proton exchange membranes may be used to separate the anode and cathode chambers, allowing protons to migrate while maintaining electrical neutrality. However, the provided grounding does not specify the exact chemical equations or the detailed role of proton exchange membranes beyond their general presence in fuel cell systems. The focus remains on the microbial catalysis and electron transfer mechanisms described in the source material.
The development of MFCs has progressed from early mediated systems to more sophisticated unmediated designs, leveraging the natural electrochemical properties of bacteria. This evolution has enabled the commercial application of MFCs in wastewater treatment in the 21st century, highlighting their potential for sustainable energy generation.
What are the main types of microbial fuel cells?
Microbial fuel cells are categorized based on electron transfer mechanisms and structural configurations. The primary distinction lies in whether a chemical mediator is required to shuttle electrons from the bacterial anode to the external circuit. Early 20th-century MFCs relied on mediated systems, where a chemical agent facilitates electron transfer from bacteria to the anode. In contrast, unmediated MFCs, which emerged in the 1970s, utilize bacteria with electrochemically active redox proteins, such as cytochromes, located on their outer membrane. These proteins enable direct electron transfer to the anode, reducing the need for external chemical additives.Comparison of MFC Types
The following table outlines the key differences between mediated and unmediated MFCs, as defined by the grounding data:
| Feature | Mediated MFC | Unmediated MFC |
|---|---|---|
| Electron Transfer Mechanism | Chemical mediator shuttles electrons | Direct transfer via outer membrane proteins |
| Key Biological Component | Bacteria (general) | Bacteria with cytochromes/redox proteins |
| Historical Emergence | Early 20th century | 1970s |
| Complexity | Requires addition of mediator chemical | Simpler, relies on bacterial surface properties |
While the grounding data specifically details mediated and unmediated categories, other configurations such as microbial electrolysis, soil-based, phototrophic, and membrane-specific MFCs represent further evolutionary branches in bioelectrochemical systems. Microbial electrolysis cells often require a small voltage input to drive water splitting, while soil-based MFCs utilize natural soil bacteria as the anodic source. Phototrophic MFCs integrate photosynthetic bacteria to enhance electron production under light exposure. Variations in membrane technology, such as nanoporous or ceramic membranes, influence ion exchange efficiency and overall cell resistance. However, without specific grounding details on the operational parameters or historical timelines of these subtypes, they are recognized primarily as structural or functional variants of the core microbial oxidation process. Commercial applications in the 21st century have primarily focused on wastewater treatment, leveraging these diverse configurations to optimize energy recovery from organic matter.
Applications in power generation and sensors
Microbial fuel cells (MFCs) have transitioned from laboratory curiosities to functional power sources for low-power electronic devices and sensors, leveraging their ability to generate electricity directly from the microbial oxidation of reduced compounds. The technology is particularly suited for environments where biomass or organic waste is abundant, allowing for continuous energy harvesting without frequent battery replacements. In the 21st century, commercial applications have expanded significantly, with wastewater treatment emerging as a primary use case where MFCs simultaneously treat effluent and generate power. This dual functionality makes MFCs attractive for decentralized power generation in remote or hard-to-reach locations.
Self-Powered Sensors and Biosensors
One of the most promising applications of MFC technology is in the development of self-powered wireless sensors. These devices utilize the electrons derived from biochemical reactions catalyzed by bacteria to power sensors that monitor environmental parameters. In biosensor applications, MFCs are used for the measurement of Biochemical Oxygen Demand (BOD), a key indicator of water quality. The current generated by the MFC is often proportional to the concentration of organic matter in the sample, providing a direct and continuous readout of BOD levels. This capability is valuable for real-time monitoring in wastewater treatment plants and natural water bodies, reducing the need for frequent sampling and laboratory analysis.
US Navy and Educational Applications
The US Navy has explored MFC technology for powering underwater sensors and devices, taking advantage of the marine environment's rich microbial life and organic matter. These applications often involve unmediated MFCs, which emerged in the 1970s and utilize bacteria with electrochemically active redox proteins, such as cytochromes, on their outer membrane to transfer electrons directly to the anode. This direct electron transfer mechanism simplifies the design and reduces the complexity of the fuel cell, making it more suitable for long-term deployment in marine environments. Additionally, MFCs have found use as educational tools, providing a tangible demonstration of bioelectrochemical principles and the potential for renewable energy generation. These educational applications help students and researchers understand the fundamental processes involved in microbial oxidation and electron transfer, fostering greater interest in bioenergy technologies.
Wastewater treatment and environmental remediation
Microbial fuel cells have transitioned from laboratory curiosities to functional units in environmental engineering, particularly in wastewater treatment systems. In these applications, MFCs simultaneously generate electricity and treat organic matter, leveraging the metabolic activity of bacteria to oxidize reduced compounds. The system diverts electrons produced during microbial oxidation at the anode to oxidized compounds, such as oxygen at the cathode, through an external electrical circuit. This dual function reduces the energy penalty traditionally associated with wastewater treatment, where aeration and pumping often consume significant power. The technology is categorized into mediated and unmediated types, with unmediated MFCs, which emerged in the 1970s, being particularly relevant for modern applications due to their reliance on electrochemically active redox proteins like cytochromes on the bacterial outer membrane. These proteins facilitate direct electron transfer to the anode, simplifying the system architecture and reducing the need for chemical mediators.
Pathogen Reduction and Bioremediation
Beyond energy generation, MFCs contribute to pathogen reduction and bioremediation. The electrochemical environment within the cell can inhibit bacterial growth, leading to a decrease in pathogen counts in the effluent. In bioremediation contexts, MFCs are deployed to clean up sediments and contaminated soils. The microbial communities in these systems oxidize organic pollutants, converting them into simpler compounds while generating a current. This process is effective in environments where traditional aeration is difficult, such as in anaerobic sediments. The electrons generated from the oxidation of these pollutants are transferred to the anode, providing a measurable indicator of remediation progress. The technology's ability to handle complex organic loads makes it suitable for treating industrial wastewater, where specific microbial strains can be selected to target particular contaminants.
Desalination and Commercial Use
In the 21st century, MFCs have started to find commercial use in wastewater treatment, with notable advancements in desalination projects around 2020. Microbial desalination cells (MDCs), a variant of MFCs, utilize the ion gradients generated by microbial activity to drive the removal of salts from water. This process, known as capacitive deionization, involves the migration of cations and anions through ion-exchange membranes toward the anode and cathode, respectively. The efficiency of these systems depends on the microbial community's ability to maintain a stable current and the properties of the membranes used. While still evolving, these applications demonstrate the versatility of MFCs in addressing multiple environmental challenges, from energy recovery to water purification. The integration of MFCs into existing infrastructure offers a pathway to more sustainable water management, reducing reliance on external power sources and chemical additives.
Challenges and advances in MFC technology
Scaling microbial fuel cells (MFCs) from laboratory prototypes to commercial installations faces significant technical and economic hurdles. A primary obstacle is the relatively low power density compared to conventional fuel cells, which limits their immediate applicability in high-energy-demand sectors. The efficiency of electron transfer between microorganisms and electrodes remains a critical bottleneck. In mediated MFCs, the reliance on chemical mediators to shuttle electrons from bacteria to the anode introduces cost and complexity, while unmediated systems depend on specific electrochemically active redox proteins, such as cytochromes, located on the bacterial outer membrane. This biological dependency requires careful selection and maintenance of microbial communities to ensure consistent performance.
Electrode Materials and Reactor Design
The choice of electrode materials significantly impacts MFC efficiency and cost. Traditional anodes often utilize carbon-based materials, such as graphite felt or carbon cloth, chosen for their conductivity and biocompatibility. However, the high cost of these materials can hinder large-scale deployment. Recent advances in reactor design aim to optimize the spatial arrangement of anodes and cathodes to minimize internal resistance. Innovations in synthetic biology have also begun to enhance microbial strains to improve electron yield and adaptability to varying substrate compositions. These biological engineering efforts seek to reduce the reliance on complex chemical mediators, thereby simplifying the system architecture.
Commercial Viability and Wastewater Treatment
Despite these challenges, MFCs have started to find commercial use, particularly in wastewater treatment. This application leverages the dual benefit of electricity generation and organic matter reduction, making MFCs attractive for integrating energy recovery into existing treatment processes. The operational status of MFCs is currently active, with ongoing research focused on improving longevity and maintaining stable microbial populations over time. While the technology was first demonstrated in the early 20th century, it is in the 21st century that practical applications are emerging. Future developments will likely focus on hybrid systems that combine MFCs with other bioelectrochemical technologies to enhance overall energy output and treatment efficiency.
