Overview

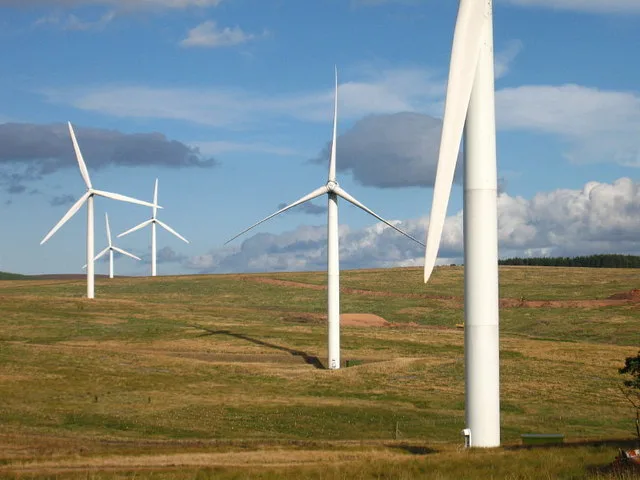

Crystal Rig Wind Farm is an operational onshore wind facility situated across the Lammermuir Hills, spanning the Scottish Borders and East Lothian regions of Scotland. The project represents a significant infrastructure asset in the United Kingdom's renewable energy portfolio, utilizing wind as its primary energy source. With a total installed nameplate capacity of 200.5 MW, the farm stands as one of the largest onshore wind installations in the UK. Its geographical distribution across two local authority areas highlights the extensive land use required for utility-scale wind generation in the Scottish Lowlands.
The facility was commissioned in 2004, marking a major milestone in the early development of Scottish wind power. When the initial phase was completed in May 2004, Crystal Rig held the distinction of being the largest wind farm in Scotland. Over time, the project has undergone three subsequent extensions, which have expanded its footprint and turbine count. These expansions have solidified its position as the second-largest wind farm in the UK in terms of nameplate capacity. Furthermore, in terms of the sheer number of turbines, it ranks among the top five largest installations in the country, reflecting a strategy that balances individual turbine output with aggregate unit count.
Ownership of the wind farm is held by Fred. Olsen Renewables, a key player in the UK's renewable energy sector. The operational management of the facility is conducted by Natural Power, which oversees the day-to-day performance and maintenance of the turbine array. The combination of strategic location on the windy Lammermuir Hills and phased development has allowed Crystal Rig to maintain its status as a leading onshore wind asset. The project's evolution from the largest in Scotland to the second largest in the UK underscores the rapid growth of the national wind energy sector since the early 2000s.
Why it matters
Crystal Rig Wind Farm holds a distinct position in the history of United Kingdom renewable energy infrastructure. Upon the completion of its initial phase in May 2004, the facility was recognized as the largest wind farm in Scotland. This early milestone established the site as a benchmark for onshore wind development in the region, demonstrating the viability of large-scale wind energy production on the Lammermuir Hills in the Scottish Borders. The farm’s growth trajectory, characterized by three subsequent extensions, has solidified its status as a major contributor to the national grid. Currently, Crystal Rig ranks as the second largest wind farm in the UK in terms of nameplate capacity. This ranking underscores the significance of strategic expansion in maintaining competitive output in a rapidly evolving energy landscape. The facility’s total capacity of 200.5 MW represents a substantial share of regional generation, providing a reliable source of variable renewable energy for the broader Scottish and UK power systems. The operational success of Crystal Rig, under the management of Natural Power, serves as a case study in the long-term performance of onshore wind assets commissioned in the mid-2000s. The farm’s ability to maintain high output levels over two decades highlights the importance of site selection and turbine technology in maximizing energy yield. Furthermore, Crystal Rig is noted as one of the top five largest wind farms in the UK by the number of turbines. This high turbine count indicates a design strategy that balances individual unit capacity with spatial distribution across the hilly terrain of the Lammermuir Hills. Such a configuration can offer advantages in capturing wind resources at varying altitudes and directions, potentially smoothing out generation profiles compared to farms with fewer, larger units. The regional impact of Crystal Rig extends beyond mere electricity generation. As a prominent infrastructure project in the Scottish Borders, it has influenced local land use patterns and contributed to the economic dynamics of the area through land leases and local supply chains. The farm’s visibility on the landscape has also played a role in public perception of wind energy in Scotland, serving as a tangible example of the transition towards cleaner energy sources. The continued operation of Crystal Rig demonstrates the enduring value of early investments in wind infrastructure. Its evolution from the largest in Scotland to the second largest in the UK reflects the dynamic nature of the sector, where new projects constantly challenge existing records. However, the sustained relevance of Crystal Rig highlights the importance of capacity and scale in achieving economies of scale and grid integration benefits. The facility’s performance data and operational history provide valuable insights for engineers and analysts evaluating the lifecycle performance of onshore wind farms. The significance of Crystal Rig is further amplified by its role in the broader context of UK energy policy. As the nation seeks to increase its reliance on renewable sources, established large-scale farms like Crystal Rig provide a stable foundation for grid stability and capacity planning. The farm’s contribution to the nameplate capacity of the UK wind sector helps illustrate the cumulative impact of individual projects on national energy targets. In summary, Crystal Rig Wind Farm matters because it represents a successful model of large-scale onshore wind development. Its historical precedence as Scotland’s largest wind farm, combined with its current status as the second largest in the UK, makes it a key reference point for understanding the growth and maturity of the British wind energy industry. The facility’s technical characteristics, including its turbine count and total capacity, offer concrete metrics for comparing the efficiency and scale of different wind energy projects across the region.
Development history
The development of the Crystal Rig Wind Farm occurred in multiple distinct phases, transforming it from a regional leader into one of the United Kingdom’s largest onshore wind installations. The initial construction, known as Phase 1, was completed in May 2004. At the time of its commissioning, Crystal Rig held the title of the largest wind farm in Scotland. This first phase established the foundation for subsequent expansions on the Lammermuir Hills in the Scottish Borders.
Following the success of the initial phase, the operator, Natural Power, pursued a strategy of incremental expansion to maximize the site’s nameplate capacity. The first extension, designated as Crystal Rig 1a, was added in 2007. This phase introduced additional turbine units, beginning the process of increasing the total output beyond the original 200.5 MW capacity. The expansion continued with the introduction of Crystal Rig 2 and Crystal Rig 2a in 2010. These additions significantly increased the number of turbines, contributing to the site’s status as one of the top five largest wind farms in the UK by turbine count.
The most recent major expansion, Crystal Rig III, was commissioned in 2016. The multi-phase development strategy allowed for continuous integration of turbine technology and grid connectivity improvements over more than a decade of operational history.
| Phase | Year | Details |
|---|---|---|
| Crystal Rig (Phase 1) | 2004 | Initial completion; largest in Scotland at the time. |
| Crystal Rig 1a | 2007 | First extension phase. |
| Crystal Rig 2 & 2a | 2010 | Second extension phase; increased turbine count. |
| Crystal Rig III | 2016 | Third extension phase; achieved second largest UK capacity. |
What turbines are used at Crystal Rig?
The Crystal Rig Wind Farm utilizes a diverse mix of turbine manufacturers and models, reflecting its development through multiple construction phases and subsequent extensions. The initial phase of the project, which established the site as the largest wind farm in Scotland upon its completion in May 2004, relied heavily on Nordex technology. Specifically, the first phase incorporated the Nordex N80 turbine model. These units formed the foundational capacity of the site, allowing it to achieve significant scale relative to other Scottish onshore projects at the time of its inception.
As the wind farm expanded through three distinct extensions, the turbine inventory grew to include models from Siemens. The later phases introduced the Siemens SWT-2.3 series, specifically the 2.3 MW variant. This addition of Siemens turbines contributed to the site’s growth in both nameplate capacity and the total number of turbines. The integration of the Siemens 2.3 MW units alongside the earlier Nordex installations created a heterogeneous fleet, which is common for large-scale onshore wind farms that undergo incremental development over several years.
The combination of these specific models—Nordex N80 and Siemens SWT-2.3 (2.3 MW)—supports the wind farm’s status as one of the top five largest in the UK in terms of turbine count. The use of the 2.3 MW Siemens turbines indicates a shift towards higher-capacity individual units in the later stages of development, complementing the earlier Nordex installations. This technical mix allows the operator, Natural Power, to manage a total installed capacity of 200.5 MW across the Lammermuir Hills. The diversity in turbine models also reflects the evolving technology landscape in the UK wind sector during the mid-2000s, moving from earlier generation models to more robust, higher-output designs as the farm expanded to become the second largest in the UK by nameplate capacity.
How is the wind farm connected to the grid?
The Crystal Rig Wind Farm connects to the national electricity network through a dedicated high-voltage link to the Scottish Power Transmission system. This connection is anchored at the Dunbar substation, which serves as the primary interface between the wind farm's generated power and the wider grid infrastructure in the Scottish Borders region. The integration at Dunbar allows for the efficient transmission of electricity from the Lammermuir Hills to key demand centers and interconnectors along the east coast of Scotland.
On-site Substation Infrastructure
Internal power collection and transformation are managed through specialized on-site substations designed to handle the variable output of the turbine array. Specific infrastructure was developed to accommodate the phased expansion of the wind farm. Notably, dedicated on-site substation facilities were established for the Crystal Rig 2 and Crystal Rig 2a extensions. These substations play a critical role in stepping up the voltage from individual turbine outputs to the transmission level required for the main export cable running to Dunbar. The design of these substations ensures that the additional capacity from the later phases integrates seamlessly with the original Phase 1 infrastructure, maintaining grid stability and maximizing energy capture efficiency across the entire site.
Grid Connection Details
| Component | Details |
|---|---|
| Primary Grid Connection | Scottish Power Transmission Network |
| Interconnection Point | Dunbar Substation |
| On-site Substations | Dedicated facilities for Crystal Rig 2 and Crystal Rig 2a |
| Transmission Region | Scottish Borders, Scotland |
The configuration of these grid connections supports the wind farm's status as one of the largest onshore facilities in the UK. The robustness of the link to the Dunbar substation is essential for managing the 200.5 MW nameplate capacity, ensuring that power generated across the extensive turbine array is reliably delivered to the national grid. This infrastructure was a key factor in enabling the three extensions that followed the initial Phase 1 completion in May 2004, allowing the site to grow from the largest in Scotland to the second largest in the UK by nameplate capacity.
Operations and maintenance
Crystal Rig Wind Farm is operated by Natural Power, which manages the day-to-day performance and strategic oversight of the facility. The operational framework relies on a collaborative maintenance structure involving technicians from Nordex and Siemens, reflecting the mixed turbine fleet that characterizes the site. Natural Power coordinates these efforts to ensure high availability and efficiency across the extensive array of wind turbines situated on the Lammermuir Hills.
Maintenance and Technical Support
Maintenance operations are executed by specialized technicians from both Nordex and Siemens. These teams perform routine inspections, preventive maintenance, and corrective repairs to minimize downtime. The coordination between the two manufacturers is critical given the scale of the wind farm, which is one of the top five largest in the UK in terms of the number of turbines. Natural Power oversees the scheduling and execution of these maintenance activities, ensuring that technical standards are met and that the turbines operate within optimal parameters.
Turbine Control Centre
The operational management of Crystal Rig is supported by a dedicated turbine control centre. This facility monitors the real-time performance of the turbines, tracking metrics such as power output, wind speed, and mechanical health. The control centre allows operators to identify anomalies quickly and dispatch maintenance crews efficiently. By centralizing data collection and analysis, the control centre enhances the responsiveness of the maintenance teams from Nordex and Siemens, contributing to the overall reliability of the wind farm.
Regional Service Infrastructure
To support the ongoing maintenance requirements, significant regional infrastructure has been established. A Siemens service centre and a Nordex base are located in Loanhead, a town in the Scottish Borders region. These facilities provide logistical support, housing spare parts, technical equipment, and administrative offices for the maintenance teams. The proximity of these bases to the Crystal Rig site enables rapid deployment of technicians and resources, reducing response times for both routine and urgent maintenance tasks. This local presence underscores the strategic importance of the wind farm to the regional energy infrastructure and the operational commitments of Natural Power, Siemens, and Nordex.
