Overview
The Ffestiniog Power Station is a 360-megawatt (MW) pumped-storage hydroelectricity scheme located near Ffestiniog in Gwynedd, north-west Wales. Operated by First Hydro, the facility has been in operational status since its commissioning in 1963. The plant utilizes water as its primary energy source, functioning as a critical component of the regional energy infrastructure in Great Britain.
Technical Specifications and Capacity
The power station features four water turbines situated at the lower reservoir, enabling the scheme to generate at full capacity within 60 seconds of a need arising. This rapid response capability makes the facility particularly valuable for grid stabilization and peak demand management. The scheme possesses a storage capacity of around 1.44 GWh (5.2 TJ), which provides power at maximum output for approximately four hours. This energy volume is sufficient to power the whole of North Wales for several hours, highlighting the plant's significant role in the local energy mix.
| Property | Value |
|---|---|
| Entity Type | pumped_storage |
| Primary Fuel/Source | water |
| Country | GB |
| Region | Gwynedd, north-west Wales |
| Operator | First Hydro |
| Commissioned | 1963 |
| Capacity | 360 MW |
| Storage Capacity | 1.44 GWh (5.2 TJ) |
| Operational Status | operational |
Why it matters
The Ffestiniog Power Station holds a pivotal position in the history of British energy infrastructure as the first major pumped-storage hydroelectricity scheme commissioned in the United Kingdom in 1963. Its development marked a strategic shift in grid management, introducing a flexible mechanism to balance supply and demand through water storage. Located near Ffestiniog in Gwynedd, north-west Wales, the facility utilizes water as its primary energy source, operating under the current management of First Hydro. The station remains operational, continuing to provide critical services to the regional and national power networks.
Grid Stability and Rapid Response
The technical significance of Ffestiniog lies in its exceptional speed of response, a defining feature of pumped-storage technology. The power station, situated at the lower reservoir, is equipped with four water turbines capable of reaching full capacity within 60 seconds of a signal. This rapid deployment allows the grid operator to address sudden fluctuations in electricity demand or unexpected outages from other generation sources. The ability to stabilize frequency and voltage so quickly makes the station an essential asset for grid reliability.
The scheme possesses a storage capacity of around 1.44 GWh (5.2 TJ), which is sufficient to sustain maximum output for approximately four hours. This energy reserve provides the capacity to power the entirety of North Wales for several hours, demonstrating its substantial impact on regional energy security. The station's design prioritizes versatility, allowing it to act as both a generator and a consumer of electricity depending on the grid's immediate needs.
| Performance Metric | Value |
|---|---|
| Installed Capacity | 360 MW |
| Storage Capacity | 1.44 GWh (5.2 TJ) |
| Time to Full Capacity | 60 seconds |
| Maximum Output Duration | 4 hours |
| Number of Turbines | 4 |
How does pumped storage work at Ffestiniog?
The Ffestiniog Power Station operates as a pumped-storage hydroelectricity scheme, a mechanism that functions essentially as a large-scale battery for the grid. The system relies on two primary water bodies: the upper reservoir, Llyn Stwlan, and the lower reservoir, Tanygrisiau Reservoir. During periods of high electricity demand, water is released from Llyn Stwlan, flowing downhill through penstocks to drive four water turbines located at the lower station. This flow converts potential energy into kinetic energy, spinning the turbines to generate electricity. The system is designed for rapid response, capable of reaching full 360 MW capacity within 60 seconds of the need arising.
Energy Storage and Efficiency
The scheme has a storage capacity of around 1.44 GWh (5.2 TJ), which allows it to power the whole of North Wales for several hours at maximum output. This storage capability is critical for grid stability, providing a buffer that can be deployed quickly during peak usage times. The efficiency of the round-trip process—pumping water up and generating power as it flows down—is approximately 72-73%. This means that for every unit of electrical energy used to pump the water to Llyn Stwlan, roughly 0.72 to 0.73 units are recovered when the water is released to generate power. The remaining energy is lost primarily due to friction in the pipes, turbine mechanics, and electrical conversion losses.
The Pumping Cycle
When electricity demand is low, typically during the night or on windy days with excess wind power, the process reverses. Electricity is drawn from the grid to power the turbines in reverse, acting as pumps. These pumps draw water from the Tanygrisiau Reservoir and push it back up to Llyn Stwlan. This restores the potential energy of the water, effectively "charging" the battery. The operator, First Hydro, manages this cycle to optimize the difference in price between off-peak and peak electricity hours, as well as to provide rapid reserve capacity for the national grid. The entire system is operational and has been a key component of the energy infrastructure in Gwynedd, north-west Wales, since its commissioning in 1963.
History and development
The development of the Ffestiniog Power Station began with conceptual planning in 1948, establishing the framework for a major pumped-storage hydroelectricity scheme in Gwynedd, north-west Wales. The legislative foundation was laid with the North Wales Hydro-Electric Power Act of 1955, which authorized the construction of the facility. This act was crucial in securing the necessary approvals and funding to transform the site near Ffestiniog into a key energy infrastructure asset for the region.
Construction and Commissioning
Physical construction of the power station commenced in 1957. The project was undertaken by the Central Electricity Generating Board (CEGB), which oversaw the engineering and installation of the plant's core components. The construction phase focused on developing the lower reservoir, where the four water turbines were installed to enable rapid power generation. The CEGB's involvement ensured that the station was integrated into the broader national grid infrastructure, designed to provide quick-response power to meet fluctuating demand.
The Ffestiniog Power Station was officially commissioned in 1963, marking the culmination of nearly two decades of planning and construction. Upon commissioning, the facility became operational with a total capacity of 360 MW. The station was designed to generate at full capacity within 60 seconds, providing a critical reserve power source for North Wales. The scheme features a storage capacity of around 1.44 GWh, sufficient to power the region for several hours at maximum output.
| Year | Event |
|---|---|
| 1948 | Initial concept for the pumped-storage scheme |
| 1955 | Passage of the North Wales Hydro-Electric Power Act |
| 1957 | Start of construction by the CEGB |
| 1963 | Commissioning of the 360 MW facility |
Engineering specifications
Reservoir Infrastructure

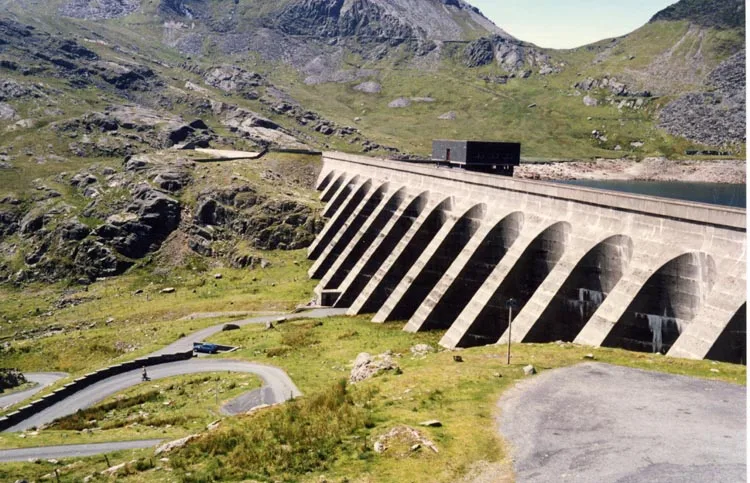

The Ffestiniog scheme relies on two primary reservoirs to facilitate pumped-storage hydroelectricity. The upper reservoir, Llyn Stwlan, is retained by a dam measuring 244 m in length and 34 m in height. The lower reservoir is bounded by the Tanygrisiau dam, which spans 550 m in length and rises 25 m high. These structures are critical for maintaining the hydraulic head required for power generation and pumping operations. The combined system provides a storage capacity of around 1.44 GWh (5.2 TJ), enabling the station to operate at maximum output for approximately four hours. This volume is sufficient to power the whole of North Wales for several hours during peak demand periods.
Turbine and Generation Systems
Located at the lower reservoir, the power station building houses four water turbines. These units are designed for rapid response, capable of generating at full 360 MW capacity within 60 seconds of the need arising. This quick-start capability makes the facility a valuable asset for grid stability and frequency regulation. The turbines utilize the potential energy stored in the upper reservoir, converting it into electrical energy through a reversible pump-turbine mechanism. The entire infrastructure is operated by First Hydro, ensuring coordinated management of the pumping and generating cycles.
Tunnel and Intake Configurations
The hydraulic connection between the two reservoirs is established through a network of tunnels and intake towers. These underground conduits minimize surface land use while maintaining efficient water flow between Llyn Stwlan and the lower reservoir at Tanygrisiau. The intake towers regulate water entry into the penstocks, controlling the flow rate to the turbines during generation and the pumps during storage phases. The precise engineering of these tunnels ensures minimal head loss, maximizing the overall efficiency of the 360 MW installation. The system's design reflects mid-20th-century advancements in pumped-storage technology, optimized for the rugged terrain of Gwynedd in north-west Wales.
What are the environmental and amenity impacts?
The development of the Ffestiniog Power Station was subject to significant scrutiny regarding its integration into the North Wales landscape, driven by specific legislative and advisory frameworks. The 1955 Act establishing the scheme included an amenity clause that mandated careful consideration of the visual and environmental impact of the infrastructure. This legal requirement facilitated the involvement of the Royal Fine Art Commission, which played a key role in evaluating the site’s aesthetic coherence. The Commission’s engagement ensured that the engineering works did not dominate the surrounding topography disproportionately, reflecting a mid-20th-century shift toward balancing industrial utility with scenic preservation in rural Wales.
During the construction phase, the management of earthworks and spoil disposal was critical to minimizing long-term landscape disruption. A landscape consultant was engaged to oversee these efforts, providing expert guidance on how to integrate the physical footprint of the power station into the natural terrain. The consultant’s recommendations focused on the strategic placement of spoil heaps and the restoration of disturbed ground. These measures were designed to reduce the visual intrusion of the construction materials and to facilitate the rapid re-establishment of native vegetation.
Planting efforts were a central component of the environmental mitigation strategy. Extensive planting programs were implemented around the lower reservoir and along the access routes to the upper reservoir. These initiatives aimed to screen the infrastructure from key vantage points and to blend the man-made structures with the existing woodland and moorland. The combination of spoil disposal planning and targeted planting helped to soften the visual impact of the 360 MW facility. This approach allowed the power station to function as a major energy asset while maintaining the amenity value of the Ffestiniog area for local residents and visitors.
Impact on the Ffestiniog Railway
The construction of the Ffestiniog Power Station significantly altered the landscape of north-west Wales, directly impacting the historic Ffestiniog Railway. The establishment of the upper reservoir required the flooding of a substantial portion of the railway's original route, submerging tracks, stations, and surrounding infrastructure beneath the water. This inundation necessitated a complex legal and engineering response to preserve the railway's operational continuity and historical integrity.
Following the flooding, a legal battle for compensation ensued between the railway operators and the power station developers. The dispute centered on the valuation of the submerged assets and the cost required to relocate the line. The legal proceedings resulted in a compensation award of £65,000, which provided the financial basis for the railway's deviation. This sum reflected the economic impact of losing the original right-of-way and the immediate costs associated with the initial phases of the relocation effort.
The physical realization of the new route was managed by the construction firm Sir Alfred McAlpine. Under their direction, the railway was deviated to accommodate the new hydroelectric infrastructure. The construction work involved building new track alignments that navigated the terrain around the expanding reservoir, ensuring that the line could continue to serve both passenger and freight traffic. The deviation marked a significant engineering adjustment to the railway's original design, integrating the transport corridor with the new energy infrastructure.
The collaboration between the energy sector and the railway company allowed the Ffestiniog Railway to survive the transformation of the local landscape. The new route constructed by Sir Alfred McAlpine became a defining feature of the railway's modern history. The success of this deviation ensured that the Ffestiniog Railway remained a functional transport link and a tourist attraction, despite the substantial changes to its physical path caused by the 360 MW pumped-storage scheme.
Frequently asked questions
What is the primary function of the Ffestiniog Power Station?
The facility operates as a pumped-storage hydroelectric scheme, which means it generates electricity by releasing water from an upper reservoir to spin turbines, and then pumps the water back up when energy demand is lower. This process allows it to act as a giant battery for the national grid, providing rapid power output during peak hours.
When was the Ffestiniog Power Station commissioned and where is it located?
Located in Gwynedd, Wales, the power station was officially commissioned in 1963. It holds the distinction of being the first major pumped-storage scheme in the United Kingdom, marking a significant milestone in British energy infrastructure.
What is the installed power capacity of the Ffestiniog scheme?
The station has a total installed capacity of 360 megawatts (MW). This substantial output allows it to contribute significantly to the electrical grid, particularly for balancing supply and demand over short periods.
How does the pumped-storage mechanism work at this specific site?
Water is stored in an upper reservoir, Llyn Mwyn, and released through penstocks to drive turbines in the lower reservoir, Llyn Tegid. When electricity is abundant and cheap, reversible pump-turbines are used to push the water back up to the upper lake for future generation.
What impact has the power station had on the local Ffestiniog Railway?
The construction and operation of the power station have influenced the adjacent Ffestiniog Railway, a historic narrow-gauge line. The scheme's infrastructure, including tunnels and water management, runs in close proximity to the railway tracks, creating a unique industrial and heritage landscape.
