Overview

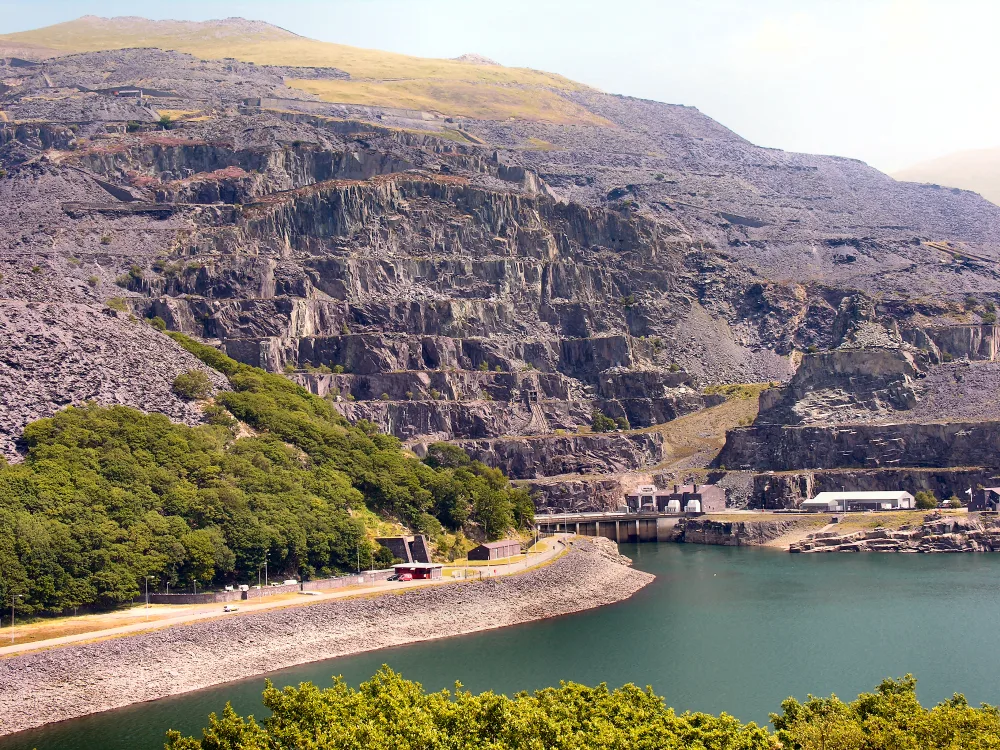

The Dinorwig Power Station is a major pumped-storage hydroelectric facility located in the Snowdonia National Park in Gwynedd, north Wales. Situated near the villages of Dinorwig and Llanberis, the scheme is an integral part of the United Kingdom’s energy infrastructure, providing critical grid stability and peak power supply. The station is widely recognized by its local epithet, "Electric Mountain" (Welsh: Mynydd Gwefru), a name that reflects its substantial physical presence within the rugged terrain of the Welsh landscape. The facility operates under the management of ENGIE, which serves as the primary operator for the station, ensuring its continued operational status within the national grid.
As a pumped-storage system, the power station functions by storing energy in the form of gravitational potential energy. Water is pumped from a lower reservoir to an upper reservoir during periods of low electricity demand, typically at night or when renewable generation is high. During peak demand periods, the water is released back through turbines to generate electricity, effectively acting as a giant battery for the grid. The scheme is designed to supply a maximum power output of 1,728 MW, with a total storage capacity of approximately 9.1 GWh (33 TJ). This capacity allows the station to respond rapidly to fluctuations in power demand, making it one of the most versatile assets in the British energy mix.
The station was commissioned in 1984, marking a significant milestone in the development of hydroelectric power in Wales. Its construction involved extensive engineering works, including the creation of two large reservoirs and a network of tunnels and penstocks that connect the upper and lower water bodies. The upper reservoir, Llyn Peris, was partially created by damming the existing lake, while the lower reservoir, Llyn Owen, was largely formed by damming the Afon Owen. The engineering complexity of the project is reflected in the sheer volume of concrete and steel used, as well as the precision required to manage the flow of water through the system.
Technical Specifications and Operational Role
The Dinorwig Power Station is equipped with six reversible Francis turbine-generators, each capable of producing up to 288 MW of power. This configuration allows the station to reach its peak output of 1,728 MW, with the ability to ramp up from zero to full capacity in just 18 seconds. This rapid response time is crucial for balancing the grid, particularly as the share of variable renewable energy sources, such as wind and solar, increases. The station’s ability to store and release energy quickly makes it an essential tool for managing the intermittency of these sources, ensuring a stable and reliable power supply for consumers across Wales and beyond.
The operational efficiency of the Dinorwig scheme is further enhanced by its strategic location within the Snowdonia National Park. The natural topography of the area provides an ideal setting for pumped-storage hydroelectricity, with the significant elevation difference between the upper and lower reservoirs maximizing the potential energy stored in the water. The station’s integration into the national grid allows it to play a key role in both frequency control and reserve power, contributing to the overall resilience of the UK’s energy infrastructure. As the grid continues to evolve, the Dinorwig Power Station remains a vital component, leveraging its unique capabilities to support the transition to a more sustainable and flexible energy system.
Why it matters
The Dinorwig Power Station represents a pivotal achievement in UK energy infrastructure, recognized at the time of its completion as the largest civil engineering contract awarded by the UK government. This scale of investment underscores the strategic importance of pumped-storage hydroelectricity in stabilizing the national grid. The facility is situated within the rugged terrain of Snowdonia National Park in Gwynedd, north Wales, specifically built inside the Elidir Fawr mountain. This geological integration allowed for the creation of a cavernous powerhouse that minimizes surface disruption while leveraging the natural topography for efficient water storage and discharge.
Grid Stability and Frequency Control
Beyond its raw power output, Dinorwig plays a critical role in frequency control for the UK grid. The station can supply a maximum power of 1,728 MW, providing rapid response capabilities to balance supply and demand fluctuations. This ability to quickly ramp up or down makes it an essential asset for grid operators, particularly as the energy mix evolves. The storage capacity of around 9.1 GWh (33 TJ) allows the station to store energy during periods of low demand and release it during peak times, effectively acting as a giant battery for the region.
| Key Statistics | Value |
|---|---|
| Entity Type | Pumped-storage hydroelectric |
| Location | Elidir Fawr, Snowdonia National Park, Gwynedd, Wales |
| Maximum Power | 1,728 MW |
| Storage Capacity | 9.1 GWh (33 TJ) |
| Operator | ENGIE |
| Commissioned | 1984 |
The engineering feat of constructing the station within Elidir Fawr involved significant logistical challenges, including the transport of materials and the excavation of vast underground caverns. This approach not only preserved the surface landscape of the national park but also utilized the mountain's structure to house the turbines and generators. The station's design reflects a sophisticated understanding of both hydraulic engineering and civil construction, making it a landmark project in the history of UK energy infrastructure.
How does pumped storage work at Dinorwig?
Dinorwig operates as a closed-loop pumped-storage hydroelectric scheme, functioning essentially as a giant battery for the grid. The system relies on the gravitational potential energy difference between two bodies of water: the upper reservoir, Marchlyn Mawr, situated at an elevation of 636 m, and the lower reservoir, Llyn Peris, located at 100 m. This significant head difference drives the energy conversion process. During periods of high electricity demand, water is released from Marchlyn Mawr, flowing through six reversible Francis turbine-generators housed in the underground caverns. The water descends the 536 m vertical drop, spinning the turbines to generate electricity, before discharging into Llyn Peris. This rapid discharge allows the station to reach its full output of 1,728 MW in just 15 minutes, providing crucial peak-shaving capabilities for the national grid.
Recharging the System
When electricity demand is low, typically during nighttime or periods of high wind generation, the cycle reverses. Electric motors drive the turbines in reverse, acting as pumps to move water from Llyn Peris back up to Marchlyn Mawr. This process consumes electricity, drawing power from the grid to restore the water's potential energy. The system is designed for high throughput, with water flow rates reaching up to 112 cubic meters per second during generation. The efficiency of this round-trip conversion—accounting for friction in the penstocks, turbine mechanics, and motor losses—is approximately 74% to 76%. This means that for every 100 units of electrical energy used to pump the water uphill, about 74 to 76 units are recovered when the water is let down to generate power.
Energy Storage Capacity
The total storage capacity of the scheme is around 9.1 GWh, equivalent to 33 TJ of energy. This capacity determines how long the station can operate at full power. At the maximum output of 1,728 MW, the stored energy can sustain generation for roughly 5 hours and 20 minutes. The energy balance can be conceptually represented by the potential energy formula E=m⋅g⋅h, where m is the mass of the water, g is gravitational acceleration, and h is the effective head. The efficiency factor η relates the electrical energy output to the potential energy input, illustrating the thermodynamic costs of lifting and lowering the water mass. This mechanism allows Dinorwig to stabilize grid frequency and provide rapid response services, making it a critical infrastructure asset in north Wales.
History and Construction
The development of the Dinorwig Power Station was formally authorized by the North Wales Hydro Electric Power Act 1973. This legislative framework established the foundation for one of the most significant civil engineering projects in the United Kingdom, transforming the landscape of Snowdonia National Park in Gwynedd, north Wales. The project was undertaken by a consortium led by the North Wales Hydro Electric Power Company, with ENGIE emerging as the primary operator following subsequent corporate consolidations. Construction commenced in 1974, marking the beginning of a decade-long effort to integrate massive infrastructure into the rugged terrain of the Llanberis area. The civil engineering challenges were substantial, requiring the movement of approximately 12 million tonnes of rock to create the necessary reservoirs and tunnel networks. The upper reservoir, Llyn Peris, and the lower reservoir, Llyn Mwyn, were strategically positioned to maximize the head difference, which is critical for the efficiency of the pumped-storage hydroelectric scheme. The construction process involved extensive tunneling through the bedrock of the Moelwyn range, connecting the two reservoirs via a series of penstocks and turbine halls. The project faced various logistical and environmental hurdles, including the need to minimize the visual impact on the surrounding national park. The design incorporated innovative engineering solutions to manage the water flow and power generation capabilities, ultimately achieving a maximum power output of 1,728 MW. The station was commissioned in 1984, bringing the "Electric Mountain" or "Mynydd Gwefru" into operational status. This commissioning date marked the culmination of the construction phase, which had seen significant investment in both labor and technology to ensure the reliability and efficiency of the facility. The North Wales Hydro Electric Power Act 1973 played a crucial role in streamlining the approval process, allowing for the coordinated effort required to move such vast quantities of earth and rock. The consortium's ability to manage these resources effectively was a testament to the engineering prowess of the era. The resulting infrastructure not only provided a critical source of renewable energy but also became a landmark in the region, symbolizing the integration of modern energy solutions with natural beauty. The construction timeline from 1974 to 1984 reflects the complexity of the project, with each phase carefully planned to mitigate risks and optimize performance. The movement of 12 million tonnes of rock was a monumental task, requiring advanced machinery and precise coordination. This effort laid the groundwork for the station's ability to store around 9.1 GWh of energy, making it a vital component of the UK's energy infrastructure. The successful completion of the Dinorwig Power Station in 1984 demonstrated the potential of pumped-storage hydroelectricity to provide flexible and reliable power generation, a feature that continues to be valuable in the evolving energy landscape.Technical Specifications and Components
The Dinorwig Power Station operates as a large-scale pumped-storage hydroelectric facility. The plant utilizes a maximum power output of 1,728 MW, with a total storage capacity of approximately 9.1 GWh (33 TJ). The system is designed to balance electrical load by storing energy in the form of potential energy in water, which is pumped to an upper reservoir during periods of low demand and released to generate electricity during peak demand.
Generator-Motor and Turbine Configuration
The power station features six main generator-motor units. Each unit has a capacity of 300 MW, manufactured by GEC. The turbines are of the Francis type, which are well-suited for the head and flow conditions of the Dinorwig scheme. The generator-motors operate at a synchronous speed appropriate for the frequency of the grid, allowing them to function as both generators and motors with high efficiency. The voltage levels are optimized for transmission to the national grid, ensuring minimal losses over the distance from the cavern to the substation.
Cavern Dimensions and Layout
The main machinery is housed in a large underground cavern, often referred to as the 'concert hall' due to its acoustic properties and spacious design. The dimensions of this cavern are significant, accommodating the six large generator-motor units, transformers, and switchgear. The cavern is located beneath Snowdonia National Park, providing a stable geological environment for the machinery. The layout allows for efficient maintenance and operation, with access tunnels connecting the cavern to the surface and the water conduits.
| Component | Specification |
|---|---|
| Generator-Motor Capacity | 300 MW per unit |
| Number of Units | 6 |
| Turbine Type | Francis |
| Manufacturer | GEC |
| Total Installed Capacity | 1,728 MW |
| Storage Capacity | 9.1 GWh (33 TJ) |
The technical specifications of Dinorwig reflect its role as a key component of the UK's energy infrastructure. The use of Francis turbines and large generator-motors ensures high efficiency and reliability. The underground location provides protection from environmental factors and minimizes the visual impact on the surrounding landscape. The plant's design allows for rapid response to changes in grid demand, making it valuable for frequency regulation and peak load management.
What is the financial case for Dinorwig?
The financial justification for the Dinorwig Power Station rests on its ability to convert capital-intensive infrastructure into a flexible asset that captures value across multiple electricity market products. As a pumped-storage hydroelectric scheme, its primary revenue mechanism is energy arbitrage: purchasing electricity during periods of low demand (typically at night) to pump water from the lower Llyn Peris reservoir to the upper Llyn Celyn reservoir, and generating power during peak demand hours when electricity prices are highest. The scheme’s maximum power output of 1,728 MW allows it to act as a "giant battery," smoothing out the variability of the grid.
Beyond simple energy arbitrage, Dinorwig generates steady income through ancillary services, particularly Short Term Operating Reserve (STOR) and frequency regulation. These services compensate the operator for the speed and reliability with which the plant can respond to grid imbalances. For instance, the plant’s ability to reach full output in just 18 minutes provides significant value to National Grid Electricity System Operator (NGESO). In 2016, the income derived specifically from these short-term operating reserves and frequency regulation services amounted to £10.8 million. This highlights that while energy arbitrage drives volume, ancillary services provide a crucial, stable revenue stream that enhances the overall financial resilience of the asset.
The payback period for such a large-scale infrastructure project is influenced by the interplay between the initial capital expenditure and the compound annual revenues from both energy sales and ancillary services. The storage capacity of around 9.1 GWh (33 TJ) determines the volume of energy that can be cycled daily, directly impacting the arbitrage potential. Financial models for pumped storage typically evaluate the Net Present Value (NPV) of future cash flows, where the value of flexibility increases as the grid integrates more variable renewable energy sources. The steady income from STOR and frequency regulation, such as the £10.8 million recorded in 2016, serves to de-risk the investment by providing revenue even when the spread between peak and off-peak electricity prices narrows.
Operational Role and Grid Stability
Dinorwig Power Station functions as a critical component of the United Kingdom’s electricity infrastructure, providing essential grid stability through its pumped-storage hydroelectric capabilities. The facility is designed to deliver rapid power output adjustments, making it particularly effective for managing peak demand periods. With a maximum supply capacity of 1,728 MW, the station can quickly ramp up generation to meet sudden increases in electricity consumption across the grid.
Rapid Response and Peak Capacity
The station’s ability to respond swiftly to demand fluctuations has made it a valuable asset for grid operators. One of the most notable examples of this capability is its role during major television broadcasts, particularly the Wimbledon tennis finals. When millions of viewers simultaneously switch on kettles during commercial breaks, the resulting spike in electricity demand can be met by Dinorwig’s turbines, which can reach full power output within minutes. This phenomenon, often referred to as the "TV pickup" effect, demonstrates the station’s importance in maintaining frequency stability during periods of variable consumption.
The rapid response time of Dinorwig distinguishes it from traditional thermal power stations, which may require hours to reach full capacity. The pumped-storage mechanism allows water to be released from the upper Llyn Peris reservoir through eight reversible Francis turbine-generators, enabling quick adjustments to power output. This flexibility is crucial for balancing the grid as the share of variable renewable energy sources, such as wind and solar photovoltaic, continues to grow.
Comparison with Spinning Reserve
Dinorwig’s operational role differs from that of spinning reserve, which typically involves thermal generators that are already running at partial load and can increase output relatively quickly. While spinning reserve provides an immediate buffer against minor fluctuations, Dinorwig offers a more substantial and flexible response capability. The station can both generate electricity and absorb excess power by pumping water back to the upper reservoir, effectively acting as a giant battery for the grid. This dual functionality allows for more efficient management of supply and demand over both short-term and medium-term periods.
Recent Investment and Future Outlook
In 2025, ENGIE, the current operator of Dinorwig Power Station, announced significant investment in the facility to ensure its continued operational efficiency and extend its service life. This investment reflects the growing recognition of pumped-storage hydroelectric schemes as vital assets for grid stability in an increasingly dynamic energy landscape. The station, commissioned in 1984, has maintained its operational status and continues to play a crucial role in the UK’s energy mix, particularly in north Wales within Snowdonia National Park in Gwynedd.
Tourism and Environmental Impact
The Dinorwig Power Station, locally known as Mynydd Gwefru or "Electric Mountain," serves as a significant tourist attraction within Snowdonia National Park in Gwynedd, north Wales. The site features a visitor centre that allows the public to view the underground caverns and machinery of this pumped-storage hydroelectric scheme. The facility has played a role in local tourism, drawing visitors interested in the engineering scale of the project, which can supply a maximum power of 1,728 MW. The visitor centre provides insights into the operation of the plant, which has a storage capacity of around 9.1 GWh.
Visitor Centre Closure
The visitor centre experienced periods of closure, notably in 2021 and 2023. These closures impacted the flow of tourists to the site, which is located near Dinorwig and Llanberis. The exact reasons for these specific closures are not detailed in the provided grounding, but they represent significant interruptions to the public access to the facility. The operator, ENGIE, manages the station, which has been operational since its commissioning in 1984. The closures may have been influenced by various factors, including maintenance, economic considerations, or broader external events affecting tourism in the region.
Environmental Impact on Arctic Char
The operation of the Dinorwig Power Station has had notable environmental effects on the local water bodies, specifically Llyn Peris and Llyn Padarn. These lakes are home to populations of Arctic char, a fish species sensitive to changes in water temperature and oxygen levels. The pumped-storage scheme involves moving large volumes of water between the upper reservoir, Llyn Peris, and the lower reservoir, Llyn Padarn, which can alter the thermal and oxygen profiles of the lakes. This can impact the habitat suitability for Arctic char, potentially affecting their population dynamics and distribution within the lakes. The environmental impact is a key consideration in the ongoing management of the power station and its surrounding ecosystem.
