Reactive power compensation approach with dynamic mode of load current

What is reactive power compensation?

Reactive power compensation is a fundamental concept in electrical power systems engineering, focusing on the management and optimization of reactive power flow to maintain voltage stability and improve overall grid efficiency. In alternating current (AC) systems, power is divided into two distinct components: active power and reactive power. Active power, measured in watts (W) or kilowatts (kW), represents the actual energy consumed by loads to perform useful work, such as generating heat, light, or mechanical motion. In contrast, reactive power, measured in volt-amperes reactive (VAR) or kilovolt-amperes reactive (kVAR), oscillates between the source and the load, creating the electromagnetic fields necessary for the operation of inductive devices like motors and transformers. While reactive power does not directly perform work, it is essential for maintaining the voltage levels required for stable grid operation.

Distinction Between Active and Reactive Power

The relationship between active power (P), reactive power (Q), and apparent power (S) is often visualized using the power triangle. Apparent power is the vector sum of active and reactive power, expressed by the formula S=P2+Q2. The ratio of active power to apparent power defines the power factor (cosϕ), a critical metric for efficiency. A power factor of 1.0 indicates that all power is active, meaning no reactive power is being exchanged. However, most industrial loads are inductive, causing the current to lag behind the voltage, resulting in a lagging power factor. This means that for a given amount of active power delivered, the total current flowing through the conductors is higher than necessary, leading to increased I2R losses in transmission lines and distribution networks.

Principles of Compensation

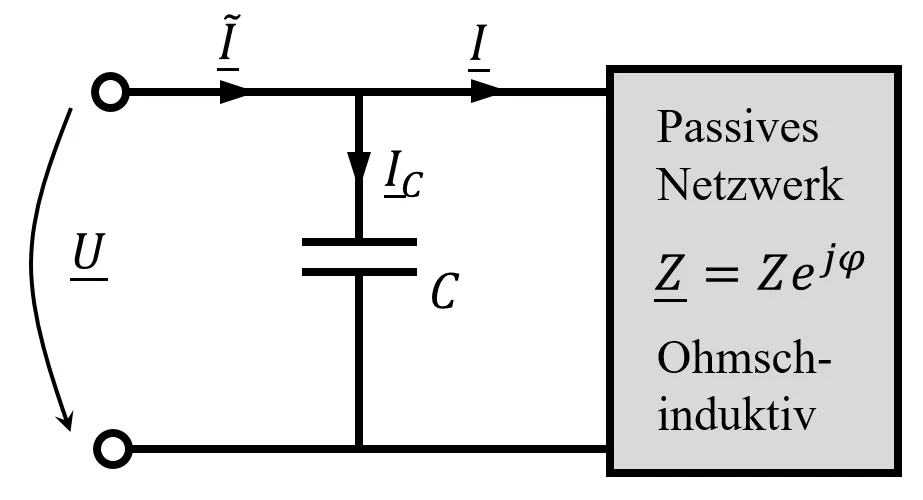

Reactive power compensation involves introducing devices into the power system to supply or absorb reactive power, thereby reducing the burden on the generators and transmission infrastructure. The primary goal is to bring the power factor closer to unity, minimizing the reactive component that must be transmitted over long distances. This process reduces voltage drops, frees up thermal capacity in cables and transformers, and lowers electricity costs for consumers who are often penalized for low power factors. Common compensation techniques include the use of shunt capacitors, which supply leading reactive power to counteract the lagging reactive power of inductive loads, and shunt inductors (or reactors), which absorb excess reactive power in systems dominated by capacitive effects, such as long underground cable runs. By strategically placing these compensating elements, grid operators can maintain voltage profiles within acceptable limits and enhance the stability of the power system under varying load conditions.

How does dynamic mode of load current work?

Dynamic reactive power compensation operates by continuously adjusting the reactive current injected into or absorbed from the electrical network to match the instantaneous demands of the load. Unlike static compensation, which relies on fixed capacitor banks or inductors, dynamic systems utilize power electronic converters or mechanically switched components to respond rapidly to fluctuations in voltage, frequency, and load profile. The fundamental mechanism involves the control of the load current's phase angle relative to the supply voltage, thereby managing the power factor and stabilizing the bus voltage.

Principles of Dynamic Current Control

In a dynamic mode, the compensation device acts as a controllable source or sink of reactive power, denoted as Q. The relationship between reactive power, voltage, and current is governed by the equation Q=VIsin(ϕ), where V is the RMS voltage, I is the RMS current, and ϕ is the phase difference between them. By dynamically altering I or ϕ, the system can maintain a target power factor, often approaching unity, which minimizes the total current flowing through the transmission lines for a given active power P.

The dynamic response is critical in networks with variable loads, such as those driven by induction motors or renewable energy sources. When the load current changes abruptly, the compensation system detects the deviation and adjusts its output within milliseconds. This rapid adjustment prevents voltage sags and swells, ensuring that the voltage magnitude remains within acceptable limits. The control loop typically measures the instantaneous voltage and current, computes the required reactive component, and commands the switching devices to inject the corrective current.

Implementation Mechanisms

Dynamic compensation is commonly implemented using Static Var Compensators (SVC) or Static Synchronous Compensators (STATCOM). These devices use thyristor-controlled reactors (TCR) or thyristor-switched capacitors (TSC) to provide continuous or stepped reactive power control. In more advanced configurations, voltage source converters (VSC) generate a sinusoidal reactive current that is in phase quadrature with the voltage. This allows for independent control of active and reactive power, providing greater flexibility in grid stabilization.

The effectiveness of dynamic compensation depends on the speed of the control system and the rating of the compensating elements. By maintaining the load current in a dynamic equilibrium with the supply, the system reduces losses, enhances thermal capacity, and improves the overall stability of the power distribution network. This mechanism is essential for modern grids facing increasing variability in both generation and consumption patterns.

Why is dynamic compensation significant?

Dynamic compensation addresses the limitations of static methods by providing rapid, continuous adjustment of reactive power flow, which is critical for modern grid stability. Static devices, such as capacitor banks and synchronous condensers, offer fixed or stepped reactive support. While cost-effective, their response time is often measured in seconds or even minutes, depending on switching mechanisms. In contrast, dynamic compensation systems, primarily utilizing power electronics, can adjust reactive power output within milliseconds. This speed is essential for mitigating transient voltage dips and oscillations that occur during sudden load changes or faults.

Response Time and Voltage Stability

The primary significance of dynamic compensation lies in its ability to stabilize voltage levels during transient events. When a fault occurs, the voltage at the point of common coupling can drop significantly. Static capacitors, whose reactive power output is proportional to the square of the voltage (QC=V2/XC), lose effectiveness as voltage drops. Dynamic compensators, such as Static Var Compensators (SVCs) and Static Synchronous Compensators (STATCOMs), can inject reactive current independent of the system voltage magnitude, or with much greater sensitivity. This allows them to support voltage recovery more effectively than static banks, preventing voltage collapse in heavily loaded transmission corridors.

Handling Nonlinear and Fluctuating Loads

Modern grids increasingly feature nonlinear loads, such as variable frequency drives and renewable energy sources like wind and solar PV. These sources introduce harmonic distortion and rapid power fluctuations. Static compensation methods often require complex filtering arrangements and may struggle with the rapid variability of renewable generation. Dynamic compensation systems can dynamically adjust their reactance to counteract these fluctuations. For instance, a STATCOM can generate or absorb reactive power almost instantaneously to smooth out the power output from a wind farm, thereby reducing the stress on the transmission network and improving power quality for downstream consumers.

Enhanced Grid Flexibility

Dynamic compensation enhances overall grid flexibility by allowing operators to manage reactive power reserves more efficiently. Unlike static condensers, which may need to be switched in and out to avoid overcompensation, dynamic devices can operate continuously across a wide range of leading and lagging power factors. This continuous adjustability reduces the need for frequent switching, thereby extending the lifespan of mechanical components and reducing maintenance costs. Furthermore, dynamic compensators can provide additional services, such as harmonic filtering and unbalance correction, making them a versatile tool for maintaining high-quality power delivery in complex, evolving grid architectures.

Applications of dynamic reactive power compensation

Dynamic reactive power compensation is essential in industrial facilities and transmission networks where load current modes fluctuate rapidly. Unlike static compensation, dynamic systems respond to transient changes in voltage and current, ensuring stability during sudden load shifts or fault conditions. These applications are critical for maintaining power quality and optimizing energy efficiency across diverse electrical infrastructures.

Industrial Applications

In industrial settings, dynamic reactive power compensation addresses the unique challenges posed by large motors, arc furnaces, and variable frequency drives. These loads often exhibit non-linear characteristics, leading to harmonic distortion and voltage fluctuations. Dynamic compensators, such as Static Var Compensators (SVCs) and Static Synchronous Compensators (STATCOMs), inject or absorb reactive power to stabilize the voltage profile. This is particularly important for processes requiring precise voltage control, such as aluminum smelting or steel production, where even minor deviations can affect product quality.

The application of dynamic compensation in industrial grids also helps mitigate the impact of starting large induction motors. When a motor starts, it draws a significant inrush current, causing a temporary voltage dip. Dynamic compensators can quickly supply the necessary reactive power to counteract this dip, reducing stress on other connected equipment and improving overall system reliability. This capability is crucial in industries with multiple large motors operating in sequence or simultaneously.

Transmission Grid Applications

In transmission grids, dynamic reactive power compensation plays a vital role in enhancing voltage stability and increasing power transfer capacity. Long transmission lines, especially those with high impedance, are susceptible to voltage drops under heavy load conditions. Dynamic compensators installed at strategic locations along the transmission path can adjust the reactive power flow to maintain optimal voltage levels. This dynamic adjustment helps prevent voltage collapse, a critical concern during peak demand periods or following a contingency event.

Furthermore, dynamic reactive power compensation supports the integration of renewable energy sources, such as wind and solar power, which often exhibit variable output. These sources can introduce fluctuations in reactive power demand, affecting grid stability. By dynamically adjusting the reactive power injection, compensators help smooth out these variations, ensuring a more consistent voltage profile. This is particularly important in grids with a high penetration of renewable energy, where the balance between active and reactive power can shift rapidly.

Technical Considerations

The effectiveness of dynamic reactive power compensation depends on the speed and accuracy of the control system. Modern compensators use advanced algorithms to monitor grid conditions and adjust reactive power output in real-time. The control system must account for factors such as load current modes, voltage levels, and harmonic content to optimize performance. In some cases, the compensator may need to switch between capacitive and inductive modes to respond to changing grid conditions.

The selection of the appropriate compensation technology depends on the specific requirements of the application. SVCs are widely used for their cost-effectiveness and reliability, while STATCOMs offer faster response times and greater flexibility. The choice between these technologies often involves a trade-off between performance, cost, and complexity. Engineers must carefully evaluate the load characteristics, grid topology, and operational requirements to determine the most suitable solution.

Worked examples

Reactive power compensation calculations rely on the relationship between active power (P), reactive power (Q), and apparent power (S). The power factor (cos φ) determines the ratio of P to S. Improving the power factor reduces the reactive current drawn from the source, thereby lowering losses and voltage drops. The following examples illustrate the step-by-step calculation of required compensation.

Example 1: Single Load Compensation

Consider an industrial motor drawing 100 kW of active power at a lagging power factor of 0.8. The goal is to improve the power factor to 0.95 using a capacitor bank.

First, calculate the initial reactive power (Q1). The tangent of the initial phase angle (φ1) is derived from cos φ1 = 0.8, giving tan φ1 = 0.75. Thus, Q1 = P × tan φ1 = 100 kW × 0.75 = 75 kVAR.

Next, calculate the target reactive power (Q2). For cos φ2 = 0.95, tan φ2 ≈ 0.329. Thus, Q2 = P × tan φ2 = 100 kW × 0.329 = 32.9 kVAR.

The required capacitive reactive power (Qc) is the difference: Qc = Q1 - Q2 = 75 kVAR - 32.9 kVAR = 42.1 kVAR. Therefore, a 42.1 kVAR capacitor bank is needed.

Example 2: Three-Phase System Voltage Drop

A 400 V three-phase line supplies a 50 kW load at 0.85 power factor. The line impedance is 0.5 Ω. Calculate the reactive power needed to limit the voltage drop.

Initial reactive power Q1 = 50 kW × tan(arccos(0.85)). tan(arccos(0.85)) ≈ 0.62. Q1 = 31 kVAR.

Apparent power S1 = √(P² + Q1²) = √(2500 + 961) ≈ 58.9 kVA.

Line current I = S1 / (√3 × V) = 58900 / (1.732 × 400) ≈ 85 A.

Voltage drop ΔV ≈ I × R × cos φ + I × X × sin φ. Assuming R ≈ X ≈ 0.5 Ω, ΔV ≈ 85 × 0.5 × 0.85 + 85 × 0.5 × 0.52 ≈ 36 + 22 = 58 V.

To reduce ΔV, add capacitors. If target PF is 0.95, Q2 = 50 × 0.329 = 16.45 kVAR. Qc = 31 - 16.45 = 14.55 kVAR. This reduces current and subsequent voltage drop.

Example 3: Dynamic Current Mode Adjustment

In dynamic compensation, the capacitor bank switches based on real-time Q. If Q varies between 20 kVAR and 80 kVAR for a 100 kW load, the system must switch steps of 10 kVAR. The controller monitors the phase difference between voltage and current. When Q exceeds the threshold for the current step, the next capacitor module closes, injecting reactive power to maintain the target power factor within ±0.02.

Comparison with other compensation methods

Reactive power compensation strategies differ fundamentally in their response speed, control granularity, and physical implementation. The choice between static capacitor banks, synchronous condensers, and dynamic load current modes depends on the specific requirements of the electrical network, particularly regarding voltage stability and harmonic distortion.

Static vs. Dynamic Compensation

Feature	Capacitor Banks (Static)	Synchronous Condensers	Dynamic Load Current Mode
Response Time	Slower (switching intervals)	Mechanical inertia dependent	Near-instantaneous (electronic)
Control Mechanism	Step-wise switching	Excitation current adjustment	Continuous phase angle modulation
Harmonic Impact	Prone to resonance	Inherent filtering capability	Dependent on converter topology
Power Factor Correction	Leading (Capacitive)	Lagging or Leading	Unity or adjustable

Capacitor banks provide a cost-effective solution for steady-state reactive power support but suffer from step-wise control, which can lead to voltage fluctuations during rapid load changes. In contrast, synchronous condensers offer smooth, continuous control by adjusting the DC excitation current, providing both inductive and capacitive reactive power. However, their performance is limited by mechanical inertia and maintenance requirements.

Dynamic load current mode, often implemented through power electronic converters, offers superior control precision. The fundamental relationship for reactive power Q in a three-phase system is given by Q=3VLILsin(ϕ), where VL is the line voltage, IL is the line current, and ϕ is the phase angle between voltage and current. In dynamic compensation, the goal is to minimize ϕ to approach unity power factor, thereby reducing the apparent power S=3VLIL. This method allows for real-time adjustment of the reactive current component IQ=ILsin(ϕ), ensuring optimal voltage regulation under varying load conditions.

Future directions in reactive power control

The evolution of reactive power compensation post-2018 is defined by the transition from static, component-based solutions to dynamic, digitally controlled systems. The proliferation of inverter-based resources (IBRs), such as solar PV and wind turbines, has fundamentally altered grid voltage profiles, necessitating faster response times than traditional synchronous condensers or capacitor banks could provide. Modern compensation strategies increasingly rely on hybrid topologies that combine the high-capacity handling of static var generators (SVGs) with the harmonic filtering capabilities of static synchronous compensators (STATCOMs).

Digitalization and AI-Driven Control

Advanced control algorithms are now integral to reactive power management. Machine learning models analyze real-time telemetry data to predict voltage fluctuations, allowing for preemptive compensation. These systems optimize the dispatch of reactive power to minimize transmission losses, often expressed as Ploss=I2R, where dynamic current I is modulated by reactive flow. The integration of wide-area measurement systems (WAMS) enables coordinated voltage control across broader grid sections, reducing the latency inherent in localized control loops.

Solid-State and Modular Multilevel Converters

Hardware advancements have shifted toward modular multilevel converter (MMC) topologies for high-voltage direct current (HVDC) and AC compensation. MMCs offer superior waveform quality and lower switching losses compared to traditional two-level converters, making them ideal for integrating large-scale renewable energy farms. These devices provide independent control of active and reactive power, enhancing grid stability during transient faults. The use of silicon carbide (SiC) and gallium nitride (GaN) semiconductors further increases switching frequencies, allowing for more compact and efficient compensation units.

Grid-Forming Inverters

A critical emerging trend is the adoption of grid-forming inverters, which emulate the inertial characteristics of synchronous generators. Unlike traditional grid-following inverters, these devices can establish voltage and frequency references, providing essential reactive power support even during weak grid conditions. This capability is crucial for maintaining stability in grids with high penetrations of variable renewable energy, where traditional synchronous condensers may become insufficient. Future standards are increasingly mandating these dynamic reactive power capabilities to ensure resilience against cascading failures.
