Overview
Balisor is a specialized system of illuminated beacons designed for high voltage power lines, functioning primarily as aircraft warning lights. The technology relies on cold-cathode low-pressure neon lamps to provide visibility for aviation safety. Originating in France, the system represents a specific engineering solution for marking overhead electrical infrastructure against the sky. The geographic coordinates 46.3204523, 4.7839506 are associated with this entity, situating its primary reference point within the French operational landscape. The system remains operational, continuing to serve its role in the energy infrastructure sector by enhancing the visibility of high voltage lines to aircraft.
How does the Balisor operating principle work?
The Balisor system operates by harvesting electrical energy directly from the high voltage power line, eliminating the need for external power sources or batteries for aircraft warning lights. This self-sustaining mechanism relies on the electric field generated by the high voltage cable and a secondary conductor positioned parallel to it.
Power Supply and Electric Field
The system obtains its power supply directly from the single cable through capacitive coupling. A high voltage cable creates a strong electric field in its immediate vicinity. The Balisor system utilizes the voltage difference between this high voltage cable and its immediate neighbor to generate the necessary potential for operation. This potential difference is harnessed by a second conductor that is insulated from but runs parallel to the high voltage cable. This configuration allows the system to draw energy continuously as long as the line is energized.
Discharge Mechanism
The harvested energy charges a capacitor across an air gap. When the voltage across this air gap reaches a specific threshold, it triggers the discharge lamp. The Balisor system uses a cold-cathode low-pressure neon lamp as the light source. This type of lamp is particularly suited for this application due to its efficiency and ability to produce a bright, visible light for aircraft warning purposes. The discharge through the neon lamp creates the illuminated beacon visible to pilots.
| Component | Function in Balisor System |
|---|---|
| High voltage cable | Generates the electric field and provides the primary voltage potential for power harvesting. |
| Second conductor | Insulated and parallel to the high voltage cable; works with the cable to create the voltage difference needed for capacitive coupling. |
| Air gap | Serves as the dielectric medium across which the capacitor charges; triggers the discharge when the voltage threshold is reached. |
| Discharge lamp | Cold-cathode low-pressure neon lamp that illuminates to serve as the aircraft warning beacon. |
What are the advantages and disadvantages of Balisor?
The Balisor system is defined by its operational simplicity and direct integration with the high-voltage infrastructure it serves. Unlike many aircraft warning light systems that require separate power supplies, generators, or complex wiring, the Balisor beacon draws its energy directly from the power line itself. This design choice eliminates the need for extensive auxiliary infrastructure, making the system highly efficient in terms of installation and long-term maintenance. The use of a cold-cathode low-pressure neon lamp further enhances this efficiency, as these lamps are known for their durability and low power consumption, which aligns well with the intermittent or continuous power draw from the high-voltage line.
Reliability is a significant advantage of the Balisor system. The mechanical simplicity of the neon lamp, combined with the robust nature of high-voltage lines, results in a system that is less prone to failure compared to more complex electronic lighting solutions. The economic viability of the Balisor system is also noteworthy. The cost savings associated with reduced installation complexity and lower maintenance requirements make it an attractive option for utility companies looking to minimize operational expenses while ensuring effective aircraft warning coverage.
However, the system has a notable disadvantage: it is dependent on the power line being active. When the high-voltage line is switched off, the Balisor beacons cease to function, leaving the line potentially invisible to aircraft. This limitation can be a significant concern in scenarios where the power line is frequently de-energized or during outages, requiring additional measures to ensure visibility.
The working principle of the Balisor system is particularly attractive because it leverages a phenomenon that is often considered a weakness in other contexts. The direct coupling of the beacon's power source with the high-voltage line means that the system's performance is inherently tied to the line's operational status. While this dependency can be a disadvantage, it also simplifies the system's design and reduces the potential for external power failures, making it a reliable solution for continuous monitoring and warning.
Where are Balisor beacons typically used?

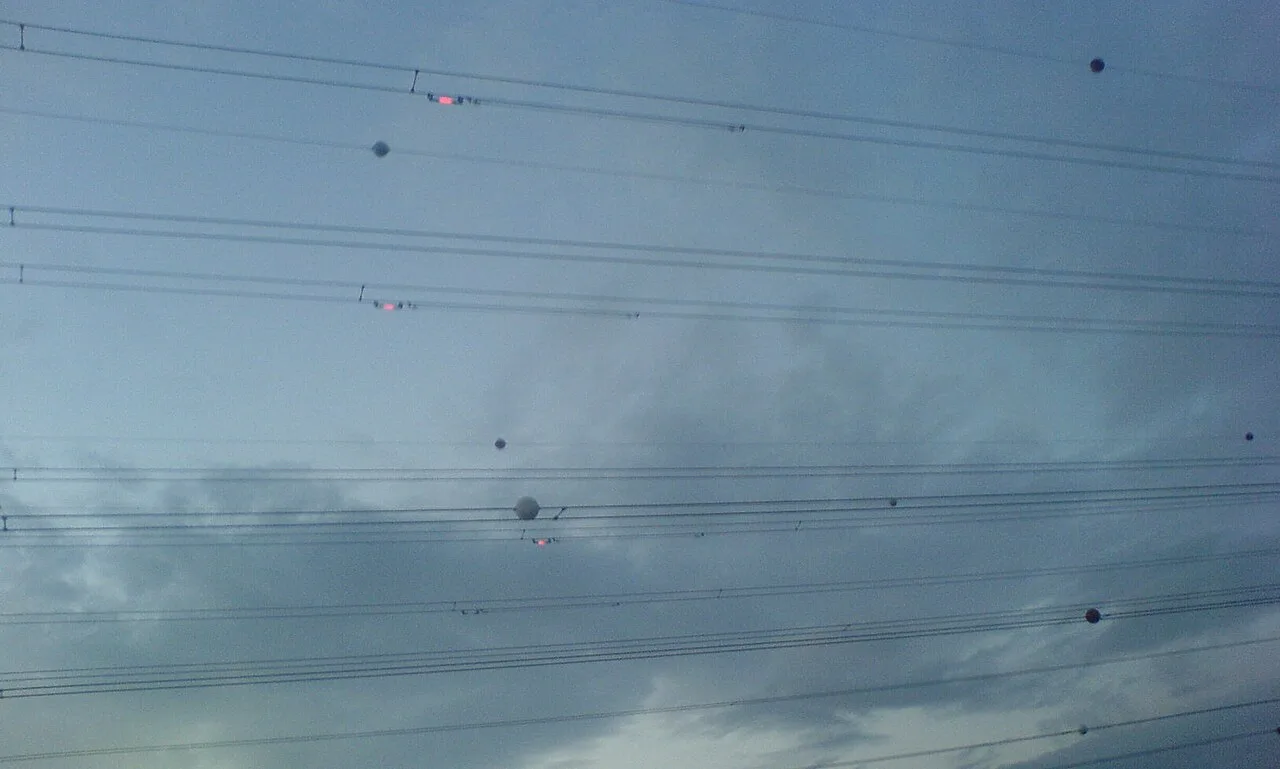

Balisor beacons are specifically engineered for deployment along high voltage power transmission lines, serving as critical visual markers for aviation safety. These illuminated systems are strategically positioned on overhead conductors to enhance the visibility of power lines that might otherwise be difficult for pilots to detect, particularly in low-light conditions or areas with complex terrain. The primary application involves marking lines that traverse or run in close proximity to airports, where the vertical clearance of aircraft during takeoff and landing phases makes the detection of obstructions paramount. The design of the Balisor system addresses the dual requirement for visibility during both day and night operations. During daylight hours, the beacons utilize brightly colored spherical housings, often in high-contrast colors such as orange or red, to stand out against the sky or surrounding landscape. These physical balls provide a static visual cue that can be easily spotted by pilots flying in clear weather conditions. As natural light diminishes, the system transitions to its illuminated state. The core of the Balisor beacon is a cold-cathode low-pressure neon lamp, which provides a reliable and consistent light source. These lamps are chosen for their durability and efficiency in outdoor environments. The light emitted is typically red, which is the standard color used in aviation for warning beacons. Red light is preferred because it is less dazzling to the human eye at night compared to white light, reducing pilot fatigue while maintaining high contrast against the dark sky. This red glow ensures that the power lines remain visible to aircraft navigating in the dark, providing a clear indication of the line's path and height. The integration of these beacons into the power grid infrastructure is essential for minimizing the risk of mid-air collisions between aircraft and high voltage lines. By providing a continuous and reliable visual signal, Balisor beacons help pilots maintain safe distances from power lines, thereby enhancing overall aviation safety in regions where overhead transmission lines are prevalent. The system's ability to function effectively in various lighting conditions makes it a versatile solution for power line marking, ensuring that the infrastructure remains visible to air traffic around the clock.What distinguishes Balisor from other power line lighting systems?
Balisor represents a specialized approach to high-voltage power line illumination, fundamentally distinct from conventional lighting systems through its power source and operational mechanism. The system utilizes cold-cathode low-pressure neon lamps that function as aircraft warning lights, drawing power directly from the electric field surrounding the conductors rather than relying on direct electrical wiring or independent battery banks. This method of capacitive coupling allows the beacons to remain operational without the need for extensive cabling along the line or frequent maintenance of battery cells, offering a streamlined solution for marking transmission corridors.
Operational Limitations on HVDC Lines
A critical distinction between Balisor and other lighting technologies is its specific suitability for alternating current (AC) systems. The Balisor system cannot be effectively used on high-voltage direct current (HVDC) power lines. The operation of the cold-cathode neon lamp in this configuration depends on the oscillating electric field generated by AC voltage. In a direct current environment, the electric field remains static, failing to induce the necessary charge displacement to sustain the illumination of the neon lamp. Consequently, engineers must select alternative lighting solutions, such as solar-powered LED systems or direct-wired indicators, when marking HVDC corridors, as the inherent physics of the Balisor design renders it incompatible with direct current transmission infrastructure.
Comparison with Direct Wiring and Battery Systems
The electric field method employed by Balisor offers unique advantages over traditional direct wiring and battery-dependent systems. Direct wiring requires physical connections to the phase conductors, introducing mechanical stress points and potential failure modes due to thermal expansion and vibration. Battery systems, while independent of the line's electrical state, demand regular maintenance cycles for cell replacement and are susceptible to degradation from environmental exposure. By leveraging the ambient electric field, Balisor eliminates the need for these additional components, reducing both initial installation complexity and long-term operational overhead. This self-sustaining nature makes it particularly valuable for remote transmission lines where access for maintenance is costly or logistically challenging.
Application on Mast Radiators
Beyond standard transmission towers, similar illuminated beacon devices are utilized on mast radiators. These structures, often used in radio and television broadcasting, benefit from the same cold-cathode technology to enhance visibility for aircraft. The application on mast radiators demonstrates the versatility of the electric field or induced power method in various high-voltage or high-altitude contexts. While the primary design focus of Balisor is on power line conductors, the underlying principle of using the structure's electrical properties to power warning lights is a shared characteristic with lighting systems deployed on broadcast masts, highlighting a broader engineering strategy for minimizing external power dependencies in tall infrastructure.
Technical specifications and design
Balisor systems rely on a specialized cold-cathode low-pressure neon lamp to provide visible warning signals for aircraft navigating near high-voltage power lines. This lighting technology is chosen for its reliability and distinct visual characteristics in various atmospheric conditions. The lamp produces a characteristic red glow, which offers high contrast against typical sky backgrounds, ensuring visibility for pilots during both day and night operations. The use of a cold-cathode design means the lamp does not require a heated filament, contributing to its durability and energy efficiency compared to traditional incandescent alternatives.
Electrical Configuration and Conductor Design
The operational principle of the Balisor system involves a secondary conductor, typically a few metres in length, installed alongside or integrated with the main high-voltage line. This secondary conductor is designed to carry a specific electric potential relative to the main line or ground, creating the necessary conditions for the neon lamp to ignite. The system leverages the high voltage already present on the power line, reducing the need for separate power sources or complex wiring infrastructure for each beacon.
A critical component of the Balisor design is the dielectric air gap that separates the neon lamp from the main electrical circuit. This air gap acts as a natural insulator, preventing continuous current flow and protecting the lamp from the full voltage of the power line. The discharge lamp is triggered only when the electric potential difference across the air gap reaches a specific threshold. When this threshold is exceeded, the air within the gap ionizes, allowing a brief discharge to pass through the neon lamp, causing it to emit its red light.
Triggering Conditions and Operational Stability
The conditions required to trigger the discharge lamp are carefully calibrated to ensure consistent operation. The dielectric strength of the air gap must be precisely matched to the voltage fluctuations of the high-voltage line. This ensures that the lamp ignites reliably under normal operating conditions while remaining stable during transient voltage spikes or minor fluctuations. The cold-cathode neon lamp is particularly well-suited for this application because it can handle the intermittent discharge currents without significant degradation over time.
The design also accounts for environmental factors that may affect the dielectric properties of the air gap. Variations in temperature, humidity, and atmospheric pressure can influence the ionization threshold, but the system is engineered to maintain functionality across a wide range of conditions. This robustness is essential for high-voltage power lines that often span diverse geographical and climatic zones, ensuring that aircraft warning lights remain operational regardless of external environmental changes.
Significance
The Balisor system represents a significant engineering solution for the visual identification of high voltage power lines, particularly in the context of aviation safety. Its primary significance lies in its status as the most economically viable option for aircraft warning lights on transmission corridors. By integrating the light source directly into the power line infrastructure, the system eliminates the need for separate power supplies, complex wiring, or external battery systems that are often required by alternative lighting technologies. This integration results in substantial cost savings in both initial installation and long-term maintenance, making it a preferred choice for extensive high voltage networks across various terrains.
Economic Viability
The economic advantage of Balisor stems from its ability to leverage the existing electrical infrastructure of the power line. Traditional aircraft warning lights often require dedicated power sources, such as solar panels with battery backups or separate low-voltage feeders. In contrast, the Balisor system uses the electric field phenomenon inherent in high voltage lines to power the light source. This eliminates the capital expenditure associated with auxiliary power systems and reduces the operational complexity. The simplicity of the design means fewer components are exposed to potential failure, thereby lowering the frequency and cost of maintenance interventions. For utility operators managing thousands of kilometers of transmission lines, this cost efficiency is a critical factor in selecting an aircraft warning system.
Robustness and Reliability
Balisor's reliability is rooted in its simple working principle and the use of a cold-cathode low-pressure neon lamp. This type of lamp is inherently robust, with fewer moving parts and a durable construction that can withstand harsh environmental conditions. The system's dependence on the electric field phenomenon ensures that the light is powered as long as the high voltage line is active, providing a direct correlation between the line's operational status and the visibility of the warning light. This simplicity reduces the likelihood of mechanical or electronic failures that can plague more complex lighting systems. The cold-cathode neon lamp is known for its long lifespan and consistent performance, further enhancing the system's overall reliability. This makes Balisor a dependable solution for ensuring the visibility of high voltage lines to aircraft, thereby reducing the risk of mid-air collisions and enhancing aviation safety.
