High-voltage direct current

Overview

High-voltage direct current (HVDC) represents a specialized method of electric power transmission that utilizes direct current (DC) at elevated voltage levels. This technology stands in direct contrast to the more prevalent alternating current (AC) transmission systems that dominate global power grids. The primary function of an HVDC system is to efficiently transport electrical energy over long distances or through specific geographic and operational constraints where AC systems may face limitations. The concept relies on converting AC power from generating stations into DC for transmission, and then converting it back to AC for distribution and consumption.

Voltage Ranges and System Characteristics

The defining characteristic of these systems is the magnitude of the voltage applied to the DC conductors. HVDC systems typically operate within a voltage range extending from 100 kV to 800 kV. These high voltage levels are essential for reducing resistive losses during transmission, thereby improving overall efficiency. The selection of a specific voltage level within this range depends on the power capacity of the line, the distance of the transmission path, and the characteristics of the interconnecting AC networks. The operational status of HVDC technology is firmly established, with systems having been in continuous operation since the first major commissioning in 1951. This long history demonstrates the reliability and adaptability of the technology across various grid environments.

Contrast with Alternating Current Transmission

The fundamental difference between HVDC and AC transmission lies in the nature of the current flow. In AC systems, the current periodically reverses direction, which introduces phenomena such as capacitive charging currents and skin effects that can limit efficiency over very long distances. HVDC systems eliminate these specific AC-related losses by maintaining a unidirectional flow of electrons. This makes HVDC particularly advantageous for point-to-point transmission links, submarine cable connections, and asynchronous interconnections between two AC grids that operate at different frequencies or are not phase-synchronized. While AC remains the standard for distribution networks due to the ease of voltage transformation using transformers, HVDC provides a complementary solution for bulk power transfer. The technology does not replace AC but rather serves specific engineering needs where the characteristics of direct current offer distinct operational benefits. The choice between HVDC and AC is determined by technical analysis of the specific transmission corridor and the economic trade-offs associated with converter station costs versus line conductor expenses.

History of HVDC transmission

High-voltage direct current (HVDC) technology has evolved significantly since its initial operational commissioning in 1951. Early developments in HVDC transmission relied on electromechanical systems, which utilized rotating machinery to convert alternating current (AC) to direct current (DC) and vice versa. These electromechanical converters, such as the Thury system, were among the first practical implementations of HVDC, enabling long-distance power transmission before the advent of solid-state electronics. The Thury system, named after its inventor, employed commutators and brushes to achieve the conversion, providing a robust solution for early 20th-century power grids.

As technology advanced, mercury-arc valves emerged as a key innovation in HVDC transmission. These valves, which utilized the properties of mercury vapor to control the flow of electric current, offered improved efficiency and reliability compared to electromechanical systems. Mercury-arc valves allowed for higher voltage levels and greater power capacities, making them suitable for expanding HVDC networks. This period marked a significant transition in HVDC technology, paving the way for more sophisticated converter designs.

The introduction of thyristors represented another major milestone in the history of HVDC transmission. Thyristors, also known as silicon-controlled rectifiers (SCRs), provided a solid-state alternative to mercury-arc valves, offering enhanced performance and reduced maintenance requirements. Modern HVDC systems predominantly use thyristor-based converters, which enable precise control over power flow and voltage regulation. The shift to thyristors has been instrumental in the widespread adoption of HVDC for long-distance and underwater power transmission, as well as for interconnecting asynchronous AC grids.

Throughout its development, HVDC technology has continued to evolve, incorporating advancements in materials science, power electronics, and control systems. These innovations have enhanced the efficiency, reliability, and flexibility of HVDC transmission, making it an essential component of modern power infrastructure. The chronological progression from electromechanical systems to mercury-arc valves and finally to thyristors reflects the ongoing efforts to optimize HVDC for diverse applications in the global energy landscape.

How do HVDC converters work?

HVDC systems rely on converter stations to transform alternating current (AC) into direct current (DC) for transmission and back to AC for distribution. Two primary topologies dominate modern infrastructure: Line-Commutated Converters (LCC) and Voltage-Source Converters (VSC). Each employs distinct semiconductor devices and control mechanisms to manage power flow.

Line-Commutated Converters (LCC)

LCC technology utilizes thyristors as the primary switching elements. Thyristors are semi-controlled devices that conduct current once triggered by a gate pulse and remain on until the current through them naturally crosses zero. This natural commutation requires a strong AC voltage source at the converter terminals, making LCC systems highly dependent on the grid's strength. The converter typically operates as a six-pulse or twelve-pulse bridge, filtering harmonics and smoothing the DC voltage. LCC converters are known for their high efficiency and robustness, particularly in long-distance, high-capacity transmission projects. However, they consume significant reactive power, often requiring capacitor banks or synchronous condensers at the terminals to stabilize voltage levels. The power flow direction is controlled by adjusting the firing angle of the thyristors, allowing for precise regulation of active power.

Voltage-Source Converters (VSC)

VSC technology employs fully controlled switches, most commonly Insulated-Gate Bipolar Transistors (IGBTs). Unlike thyristors, IGBTs can be turned on and off at will by applying a voltage to the gate terminal, enabling forced commutation. This independence from natural current zero-crossings allows VSC systems to operate with weaker AC grids or even connect to passive networks, such as offshore wind farms or island grids. VSC converters use Pulse Width Modulation (PWM) to synthesize the AC voltage waveform, offering superior control over both active and reactive power independently. This capability enhances voltage stability and reduces the need for external reactive power compensation. Additionally, VSC systems exhibit lower harmonic distortion and can facilitate black-start capabilities, where the DC system can restore power to the AC grid after a total outage. While VSC converters may have slightly higher losses than LCC systems due to switching frequencies, their flexibility and control precision make them ideal for complex grid integration scenarios.

What are the advantages of HVDC over AC?

High-voltage direct current (HVDC) systems offer distinct technical advantages over alternating current (AC) transmission, particularly in specific operational contexts. While AC remains the standard for most grid distribution, HVDC excels in long-distance bulk power transfer and asynchronous grid interconnections. The choice between AC and HVDC depends on factors such as distance, power capacity, and system stability requirements.

Losses and Conductor Requirements

HVDC systems typically exhibit lower electrical losses over long distances compared to AC systems. In AC transmission, losses arise from resistive heating, skin effect, and dielectric losses in cables. The skin effect causes current to flow predominantly near the conductor's surface, effectively reducing the cross-sectional area and increasing resistance. HVDC utilizes the full cross-section of the conductor, minimizing resistive losses. Additionally, HVDC lines require fewer conductors; a bipolar HVDC link uses two conductors plus a ground return, whereas a three-phase AC system requires three conductors. This reduction in conductor count lowers material costs and right-of-way requirements.

Stability Benefits

HVDC provides enhanced stability for long-distance transmission and interconnecting asynchronous AC networks. AC systems suffer from reactive power losses and voltage stability issues over long distances, requiring compensation devices like capacitors and reactors. HVDC systems allow precise control of active and reactive power flow, enhancing grid stability. They also enable the interconnection of AC grids with different frequencies or phase angles, facilitating power exchange between otherwise independent networks. This is particularly useful for integrating renewable energy sources, such as offshore wind farms, into the main grid.

Characteristic	AC Transmission	HVDC Transmission
Conductors Required	Three (three-phase)	Two (bipolar) + ground return
Losses over Long Distance	Higher (skin effect, dielectric losses)	Lower (full conductor utilization)
Reactive Power Compensation	Required (capacitors, reactors)	Minimal (controlled by converters)
Asynchronous Interconnection	Limited (synchronization required)	Excellent (frequency/phase independence)
Breaker Complexity	Simpler (natural current zero-crossing)	Complex (requires forced commutation)

The decision to use HVDC involves trade-offs. While HVDC offers lower losses and better stability for long distances, the converter stations (transformers, rectifiers, inverters) are more complex and expensive than AC substations. The "break-even distance" is the point where the savings in line costs and losses offset the higher converter station costs. For distances beyond this point, HVDC becomes economically advantageous. This technology is crucial for modern energy infrastructure, enabling efficient long-distance power transmission and grid integration.

What are the limitations and costs of HVDC?

High-voltage direct current (HVDC) systems, while efficient for long-distance transmission, face distinct economic and technical limitations compared to alternating current (AC) systems. The primary cost driver is the converter station, which transforms AC to DC and vice versa. These stations are capital-intensive, requiring large transformers, filters, and power electronic valves. For short transmission distances, the high fixed costs of converter stations may not be fully amortized, making AC transmission more economical. However, as distance increases, the lower line losses and reduced conductor requirements of HVDC often offset the initial station costs.

Converter Station Costs and Components

The expense of HVDC converter stations is significant. Each terminal includes line-commutated converters or voltage-sourced converters, depending on the technology. These components require substantial space and infrastructure. The cost per kilowatt of capacity is higher for HVDC than for AC, particularly when the transmission line is relatively short. Engineers must carefully evaluate the break-even distance, where the savings in line costs and losses equal the additional cost of the converter stations.

Harmonic Filtering and Power Quality

HVDC systems introduce harmonics into the AC grid due to the switching action of converter valves. Harmonic currents can cause overheating, resonance, and interference with communication lines. To mitigate these effects, extensive harmonic filtering is required at each converter station. These filters add to the capital cost and complexity of the system. The design of the filter bank must account for the specific harmonic spectrum generated by the converter topology, ensuring that total harmonic distortion remains within acceptable limits.

Availability and Reliability

While HVDC lines themselves are highly reliable, the converter stations have more moving parts and electronic components than AC substations. This can lead to lower availability factors for the entire HVDC link compared to a simple AC line. Maintenance of converter valves, cooling systems, and control electronics requires specialized expertise. However, advancements in power electronics, such as the use of insulated-gate bipolar transistors (IGBTs), have improved the reliability and reduced the maintenance needs of modern HVDC systems.

Multi-Terminal Complexity

Extending HVDC from a simple point-to-point link to a multi-terminal system adds significant complexity. In a multi-terminal HVDC grid, power flow control becomes more intricate, requiring advanced coordination between multiple converter stations. The interaction between different terminals can affect stability and fault clearance. Designing protection schemes for multi-terminal HVDC systems is challenging, as faults can propagate quickly through the DC line. These complexities can increase both the capital and operational costs of the system.

HVDC system configurations

High-voltage direct current transmission systems utilize various topological configurations to optimize power flow, cost, and reliability based on the specific geographic and electrical requirements of the link. The choice of configuration depends heavily on the distance, voltage level, and the need for redundancy between the sending and receiving ends.

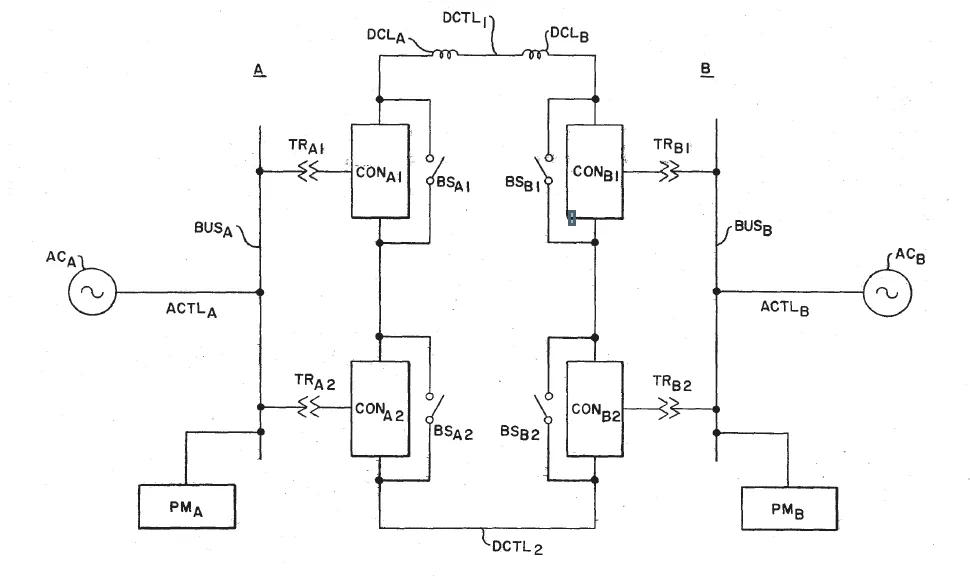

Monopole and Bipolar Arrangements

The monopole configuration is the simplest form of HVDC transmission, utilizing a single conductor to carry the direct current. The return path is often completed through the earth or sea, though an overhead metallic return conductor can also be used. This setup is frequently employed for initial phases of larger projects or for shorter links where cost efficiency is paramount. A single converter station operates at the positive or negative potential relative to the return path.

Bipolar systems enhance reliability by employing two conductors, one at a positive voltage and the other at an equal negative voltage relative to the earth or sea return. This arrangement allows the system to continue operating at half capacity if one pole fails, with the earth or metallic return carrying the imbalance. The symmetry of the bipolar setup helps minimize electromagnetic interference and corona effects, as the electric fields from the two poles partially cancel each other out. The total power transmitted is the sum of the power on each pole, calculated as P=V×I for each conductor, where V is the pole voltage and I is the pole current.

Back-to-Back and Multi-Terminal Systems

Back-to-back HVDC links connect two alternating current systems that operate at different frequencies or require asynchronous interconnection, without a significant overhead or submarine cable section. The converter stations are located close to each other, often in a single building or adjacent halls, allowing for efficient power transfer between, for example, a 50 Hz grid and a 60 Hz grid. This configuration is crucial for synchronizing large power grids that are not directly phase-locked.

Multi-terminal HVDC systems extend the basic bipolar or monopole concept by introducing additional converter stations along the transmission path. These systems can be arranged in radial, ring, or hybrid topologies, allowing for greater flexibility in power flow control and redundancy. In a radial multi-terminal system, multiple feeders connect to a main trunk line, while a ring configuration provides two paths for power to reach any given terminal. These complex arrangements require sophisticated control strategies to manage voltage stability and power distribution among the various nodes. The integration of multi-terminal HVDC is increasingly important for connecting offshore wind farms and integrating diverse renewable energy sources into the main grid.

Applications in modern power grids

High-voltage direct current (HVDC) systems are critical for modern power grid applications where alternating current (AC) transmission faces technical or economic limitations. The technology is widely used for submarine cable interconnections, asynchronous grid synchronization, and the integration of renewable energy sources into the main grid.

Submarine Cable Interconnections

HVDC is the preferred technology for long-distance submarine power links. In AC systems, the capacitance of underwater cables causes significant charging currents, which can limit the effective length of the cable and increase losses. HVDC systems mitigate this issue, allowing for efficient power transmission across bodies of water. This capability enables the connection of offshore wind farms and the interconnection of islands or coastal regions to the mainland grid.

Asynchronous Grid Interconnections

HVDC links allow two AC power systems with different frequencies or phases to exchange power without requiring strict synchronization. This is known as an asynchronous interconnection. It provides operational flexibility, allowing each grid to operate independently while still sharing power. This is particularly useful for connecting grids with different stability characteristics or for linking regional power pools.

Renewable Energy Integration

The integration of variable renewable energy sources, such as wind and solar photovoltaic (PV) systems, often benefits from HVDC technology. HVDC systems can efficiently transmit power from remote renewable energy generation sites to load centers. The controllability of HVDC power flow helps manage the variability of renewable generation, enhancing grid stability. HVDC converters can also provide reactive power support, aiding in voltage regulation within the AC grid.

Worked examples

High-voltage direct current (HVDC) technology is best understood through specific operational case studies that highlight its advantages over alternating current (AC) systems. The following examples illustrate how HVDC is applied in diverse geographic and technical contexts, from long-distance bulk power transmission to asynchronous grid interconnection.

Zhundong–South Anhui Link

The Zhundong–South Anhui link serves as a premier example of ultra-high voltage direct current (UHVDC) transmission. This project was designed to transport massive amounts of power from the coal-rich Zhundong Basin in Xinjiang to the industrial centers of South Anhui. The system operates at extremely high voltages to minimize resistive losses over the approximately 3,300 km distance. By utilizing DC transmission, engineers avoided the capacitive charging current issues that plague long AC lines, allowing for efficient power delivery across varied terrain. This link demonstrates how HVDC enables the integration of remote renewable and thermal resources into distant load centers.

Cabora Bassa–Johannesburg Interconnector

The Cabora Bassa–Johannesburg link illustrates the use of HVDC for cross-border power trade and asynchronous grid connection. This system transmits hydroelectric power generated at the Cabora Bassa Dam in Mozambique to the major load center of Johannesburg, South Africa. The HVDC link allows the two national grids, which may operate at slightly different frequencies or phase angles, to exchange power efficiently without requiring strict synchronization. This case highlights the flexibility of HVDC in international energy markets, enabling countries to leverage comparative advantages in generation sources, such as Mozambique's hydro resources, to meet South Africa's peak demand.

Spain–France Interconnector

The Spain–France interconnector showcases the role of HVDC in enhancing European grid stability and market integration. This link connects the Iberian Peninsula's power system with the broader Central European grid. By using HVDC, the interconnector allows for precise control of power flow, which helps manage congestion and facilitates the exchange of electricity between Spain and France. This system is critical for balancing the variable renewable energy outputs, such as wind and solar, across the two regions. The Spain–France link exemplifies how HVDC technology supports the creation of a more resilient and interconnected continental energy infrastructure.
