Deep water source cooling

Overview

Deep water source cooling (DWSC), also referred to as deep water air cooling, is a specialized method for providing both process and comfort space cooling by utilizing a large body of naturally cold water as a primary heat sink. This technology is classified as a renewable air cooling method because it relies on the thermal energy stored in natural water bodies rather than solely on mechanical compression or chemical absorption cycles. The system operates by drawing water from deep areas within lakes, oceans, aquifers, or rivers, where temperatures typically range from 4 to 10 °C. This temperature stability is critical for the efficiency of the cooling process, as the deeper the water source, the more consistent the thermal gradient available for heat exchange.

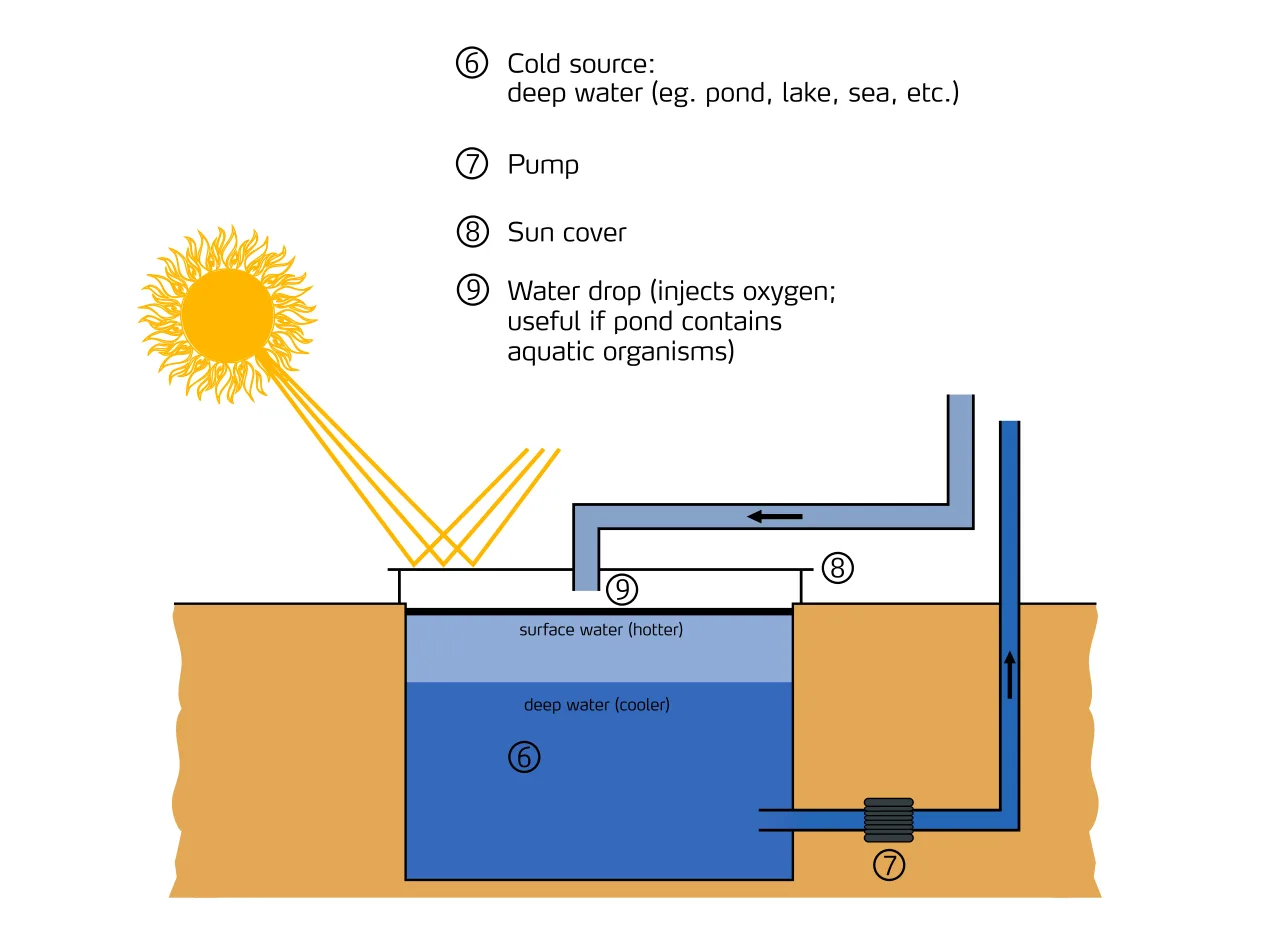

The fundamental mechanism of DWSC involves pumping this cold deep water through one side of a heat exchanger. On the other side of the exchanger, warm water from the building or industrial process flows, allowing thermal energy to transfer from the warmer fluid to the colder deep water. This direct or indirect heat exchange reduces the temperature of the process water, which can then be circulated through air handling units or radiators to provide comfort cooling. The use of a heat exchanger allows the deep water to remain relatively isolated from the building's internal water system, minimizing the need for extensive water treatment and reducing the potential for biological fouling within the primary cooling loops.

The operational status of DWSC systems is currently active, with various implementations demonstrating the viability of this approach in different geographical contexts. The efficiency of the system is often evaluated based on the temperature differential between the deep water source and the ambient air or process temperature. While specific thermodynamic formulas can describe the heat transfer rate, the core principle remains the utilization of the natural thermal stratification found in large water bodies. This method offers a sustainable alternative to traditional air conditioning systems, potentially reducing energy consumption and carbon emissions associated with mechanical cooling.

How does deep water source cooling work?

Deep water source cooling (DWSC) operates on the principle of using a large body of naturally cold water as a heat sink for process and comfort space cooling. The system draws water at temperatures ranging from 4 to 10 °C from deep areas within lakes, oceans, aquifers, or rivers. This temperature range is critical because water reaches its maximum density at approximately 3.98 °C, creating stable thermal stratification in deep bodies of water. This stratification, often marked by a thermocline, ensures that the deep water remains consistently cold, providing a reliable heat sink even when surface temperatures fluctuate significantly.

Thermodynamic Principles

The fundamental thermodynamic process involves transferring heat from a warmer fluid (such as chilled water in a building’s HVAC system) to the colder deep water. The efficiency of this transfer depends on the temperature differential between the two fluids and the heat exchanger’s surface area. The heat transfer rate can be expressed using the equation Q=U⋅A⋅ΔT, where Q is the heat transfer rate, U is the overall heat transfer coefficient, A is the heat exchanger area, and ΔT is the temperature difference between the warm and cold water streams.

Direct vs. Indirect Systems

DWSC systems can be configured as either direct or indirect cooling systems. In a direct system, the deep water is pumped directly into the building’s cooling coils, where it absorbs heat from the air or process fluids. This configuration is simpler and more cost-effective but requires high-quality deep water to minimize maintenance and fouling. In an indirect system, the deep water passes through a heat exchanger, transferring its cooling capacity to a secondary fluid loop. This secondary fluid then circulates through the building’s cooling coils. Indirect systems offer greater flexibility and protection against water quality issues but involve additional components and potential heat losses.

Feature	Direct System	Indirect System
Water Path	Deep water flows directly into building coils	Deep water flows through a heat exchanger
Complexity	Simpler, fewer components	More complex, includes heat exchanger and secondary loop
Water Quality Requirements	High, to minimize fouling and corrosion	Moderate, as deep water is isolated from building loops
Heat Losses	Lower, due to fewer transfer stages	Slightly higher, due to heat exchanger efficiency
Cost	Generally lower initial and operational costs	Higher initial cost due to heat exchanger and pumps

The choice between direct and indirect systems depends on factors such as water quality, building size, and desired efficiency. Both configurations leverage the natural cooling potential of deep water, offering an energy-efficient alternative to traditional mechanical cooling systems.

What are the advantages of deep water source cooling?

Deep water source cooling offers significant operational and environmental advantages by leveraging the thermal stability of deep aquatic bodies. The primary benefit is exceptional energy efficiency. Traditional vapor-compression systems often require substantial electrical input to drive compressors, whereas DWSC systems primarily rely on pumps to move water. This mechanical simplicity can reduce energy consumption to approximately one-tenth of that used by conventional air conditioning systems, depending on the temperature differential and distance to the heat sink.

Cost savings are a direct consequence of this reduced energy demand. Lower electricity usage translates to decreased operational expenditures for facility managers. Additionally, because the system utilizes naturally cold water as a heat sink, the reliance on mechanical refrigeration cycles is minimized. This reduction in mechanical complexity lowers maintenance costs and extends the lifespan of core components, such as heat exchangers and pumps, compared to the more intricate compressor units found in traditional systems.

The environmental impact of DWSC is notably positive due to the reduction in fossil fuel consumption. By lowering the electrical load on the grid, the indirect carbon emissions associated with power generation are significantly curtailed. Furthermore, DWSC systems can eliminate or drastically reduce the use of ozone-deploying refrigerants. Traditional systems often depend on chlorofluorocarbons (CFCs) or hydrofluorocarbons (HFCs), which have high global warming potentials. In contrast, DWSC can operate with water or water-glycol mixtures as the primary working fluid, thereby mitigating the risk of refrigerant leaks into the atmosphere.

Another critical advantage is the mitigation of Legionella pneumophila risks. Traditional cooling towers create a warm, moist environment ideal for bacterial growth, which can be aerosolized and inhaled by building occupants. DWSC systems, particularly those using closed-loop configurations, minimize the exposure of water to ambient air, thereby reducing the proliferation of Legionella bacteria. This enhances indoor air quality and reduces the need for chemical treatments, such as biocides, which are commonly used in open-loop cooling tower systems.

What are the disadvantages and limitations?

Deep water source cooling (DWSC) faces significant geographic and economic barriers that limit its widespread adoption. The primary constraint is the requirement for a deep body of water with stable thermal stratification. Effective DWSC systems typically require water depths of 50 to 70 meters to access the consistently cold thermocline, where temperatures remain between 4 and 10 °C year-round. This depth requirement excludes many shallow lakes, coastal areas with significant mixing, and rivers with fluctuating thermal profiles. The water must be drawn from deep areas within lakes, oceans, aquifers, or rivers, which necessitates specialized infrastructure such as long intake pipes or double-walled risers to minimize heat gain during extraction.

High Initial Capital Expenditure

The initial setup costs for DWSC are considerably higher than traditional air-source or ground-source heat pump systems. The capital expenditure includes the drilling or trenching of deep water intakes, the installation of corrosion-resistant piping, and the integration of plate heat exchangers. These components must withstand long-term exposure to aquatic environments, requiring materials such as stainless steel or polymer-lined pipes to mitigate biofouling and corrosion. The complexity of the installation process increases labor intensity, particularly in offshore or deep-lake environments where marine or sub-aquatic construction techniques are required. This high upfront investment creates a longer payback period, making the technology more viable for large-scale commercial or industrial projects rather than small residential applications.

Economic Viability and Demand Statistics

The economic viability of DWSC is highly dependent on the local climate and the balance between heating and cooling demands. In regions where cooling is the dominant load, the return on investment is more favorable. However, in temperate climates like Europe, the cooling demand often represents only a fraction of the total thermal load. Statistics indicate that in many European locations, cooling accounts for approximately 17% of the total thermal demand, while combined heating and cooling demand can be as low as 7% in certain seasonal analyses. This low utilization rate for the cooling component can reduce the overall efficiency of the system, as the infrastructure remains underutilized during the heating season unless a hybrid system is implemented. The economic model must therefore carefully balance the high initial costs against the long-term energy savings, taking into account the specific thermal profile of the location.

Cornell University Lake Source Cooling System

The Cornell University Lake Source Cooling System stands as a pioneering implementation of deep water source cooling technology in the United States. This system utilizes the naturally cold, deep waters of Cayuga Lake as a primary heat sink for air conditioning and process cooling across the university's campus infrastructure. By leveraging the stable thermal properties of the lake, the system significantly reduces reliance on traditional mechanical refrigeration, demonstrating the practical viability of DWSC for large-scale institutional use.

Technical Specifications and Infrastructure

The core of the system involves extracting water from significant depths within Cayuga Lake to ensure consistent low temperatures. The infrastructure includes a dedicated intake pipe extending approximately 3,200 meters in length with a diameter of 1,600 mm. This pipeline reaches a depth of 229 meters, accessing water layers that maintain the optimal temperature range required for effective heat exchange. The system is designed with a cooling capacity of 14,500 tons, which translates to approximately 51 MW of thermal power. This capacity allows the system to serve multiple major buildings on campus, integrating seamlessly with existing HVAC networks through plate-and-frame heat exchangers.

Economic Impact and Energy Efficiency

Implementation of the Cornell Lake Source Cooling System required a substantial capital investment, with total costs estimated between 55millionand60 million. Despite the initial expenditure, the system delivers significant operational savings. It achieves energy reductions of up to 80% compared to conventional chiller systems, primarily by minimizing the electrical load required for compressor-driven refrigeration. The efficiency gains are derived from the minimal temperature lift needed when using deep lake water, which often ranges from 4 to 10 °C, depending on seasonal stratification. This reduction in energy consumption not only lowers utility costs but also decreases the carbon footprint of the campus cooling operations, providing a compelling economic and environmental case for DWSC adoption in regions with suitable deep water bodies.

Enwave Energy Corporation system in Toronto

The Enwave Energy Corporation operates a prominent deep water source cooling (DWSC) system in Toronto, Canada, serving as a major case study for urban thermal energy infrastructure. This facility utilizes the naturally cold waters of Lake Ontario as a heat sink for both process and comfort space cooling across the downtown core. The system draws water at temperatures consistent with the typical 4 to 10 °C range used in DWSC applications, pumping it through heat exchangers to cool warm water on the secondary side without direct mixing, thereby preserving the quality of the lake water.

System Capacity and Infrastructure

The Enwave system has a significant cooling capacity of 59,000 tons, which equates to approximately 207 MW of thermal power. This capacity allows the network to serve numerous commercial buildings, offices, and residential complexes in the Toronto waterfront district. The infrastructure relies on a dedicated intake system located in Lake Ontario. The primary intake pipe extends 15,000 meters from the shore to the intake structure, ensuring access to deep, stable water temperatures. The intake structure is positioned at a depth of 85 meters, a strategic choice to access the thermocline where water temperatures remain consistently cold throughout the year, minimizing the need for mechanical refrigeration.

Integration with Water Filtration

A key feature of the Enwave system is its integration with the city's water filtration plant. The deep water drawn from Lake Ontario is not only used for cooling but also serves as a source for the municipal water supply. This dual-use approach enhances the efficiency of the infrastructure by leveraging the same deep water source for two critical urban utilities. The water is pumped through the heat exchanger for cooling and then directed to the filtration plant, where it undergoes treatment before being distributed to households and businesses. This integration reduces the overall energy consumption and carbon footprint of the city's cooling and water supply systems, demonstrating the potential of DWSC in urban planning. The system's operational status remains active, contributing to Toronto's efforts to enhance energy efficiency and sustainability in its built environment.

Sea water air conditioning applications

Sea water air conditioning (SWAC) is a specific application of deep water source cooling that utilizes the thermal mass of oceans and large lakes to provide process and comfort cooling. In these systems, cold water at 4 to 10 °C is drawn from deep areas within oceans or lakes and pumped through one side of a heat exchanger, which cools warm water on the other side of the exchanger. This method serves as an efficient alternative to traditional mechanical compression, leveraging naturally cold water as a heat sink.

Historical and Notable Implementations

One of the earliest and most prominent examples of SWAC is found in Sydney, Australia. The system was implemented for the AMP Building and the Sydney Opera House, demonstrating the viability of using deep ocean water for large-scale architectural cooling. These installations utilized the stable temperatures of the Tasman Sea to reduce energy consumption and carbon emissions associated with traditional air conditioning.

Similar systems have been deployed in other coastal regions. In Hong Kong, SWAC systems have been integrated into urban infrastructure to manage the high cooling demands of commercial and residential buildings. The system draws cold water from the deep waters of the harbor or adjacent sea, providing a sustainable cooling solution for the dense urban environment.

In Hawaii, SWAC technology has been explored and implemented for various resorts and buildings. The InterContinental Resort in Bora Bora is another notable example, where the clear, cold waters of the lagoon are used to cool the resort's facilities. This application highlights the potential of SWAC in tropical destinations where the temperature differential between surface and deep water is significant.

Project Developments and Cancellations

Despite its potential, SWAC projects can face challenges that lead to cancellations. A notable example is the Honolulu project, which was planned to provide district cooling using deep ocean water. However, the project was eventually cancelled due to various factors, including economic and technical considerations. This highlights the importance of thorough feasibility studies and economic analysis in the deployment of SWAC systems.

Global potential and future outlook

The application of deep water source cooling (DWSC) extends beyond individual building projects to significant regional energy savings potential. In Europe, studies indicate an annual electricity savings potential of 0.8 TWh if DWSC systems are widely adopted for process and comfort space cooling (European Commission, 2015). This potential is particularly promising in countries with extensive deep water bodies, including Italy, Germany, Turkey, and Switzerland. The technology leverages the natural thermal stratification of lakes and oceans, where water temperatures at depth remain stable at 4 to 10 °C throughout the year, providing a consistent heat sink for cooling applications.

Geographic Suitability

The efficacy of DWSC depends heavily on geographic and hydrological factors. Countries like Italy and Switzerland benefit from numerous alpine lakes with significant depth and thermal stability. Germany and Turkey also possess suitable water bodies, including deep reservoirs and coastal areas, which can serve as effective heat sinks. The technology is most effective in regions where the temperature differential between the deep water and the ambient air or building return water is substantial. This differential drives the efficiency of the heat exchanger, reducing the need for mechanical compression in traditional air conditioning systems.

Coupled Heating and Cooling

An advanced application of DWSC involves coupled heating and cooling systems, which maximize the utilization of the deep water resource. In this configuration, the cold water is used for cooling during the summer months, while the same water body can provide a heat source for heating during the winter. This is particularly effective when combined with heat pump technology, where the deep water serves as the evaporator side of the heat pump cycle. The coefficient of performance (COP) of the heat pump can be expressed as:

COP = Q_heating / W_input

where Q_heating is the heat delivered to the building and W_input is the work input to the heat pump. By utilizing the stable temperature of deep water, the COP can be significantly higher than that of air-source heat pumps, leading to greater energy efficiency and reduced operational costs.

Future Outlook

The future of DWSC looks promising, with ongoing research and development aimed at optimizing system design and expanding geographic applicability. Advances in heat exchanger technology, pump efficiency, and control systems are expected to further enhance the performance and cost-effectiveness of DWSC. Additionally, the integration of DWSC with renewable energy sources, such as solar PV and wind, can create hybrid systems that offer even greater energy savings and carbon reduction. As urbanization continues and the demand for efficient cooling solutions grows, DWSC is poised to play a significant role in the global energy landscape, particularly in regions with suitable water resources.
