Nuclear reactor safety systems: components and operational principles

Overview

Nuclear reactor safety systems constitute the integrated array of mechanical, electrical, and control components designed to ensure the stable operation of a nuclear power plant and to mitigate potential hazards during both normal and transient conditions. These systems are critical for managing the thermodynamic and neutronic behavior of the reactor core, primarily fueled by uranium, to prevent core damage and subsequent environmental contamination. The design philosophy behind these systems is rooted in redundancy, diversity, and independence, ensuring that if one component fails, others can assume its function to maintain safety margins. The operational status of these systems is continuously monitored to guarantee that the reactor remains within its defined safety envelopes.

Primary Safety Objectives

The fundamental framework for nuclear reactor safety is established by regulatory bodies, with the U.S. Nuclear Regulatory Commission (NRC) defining three primary objectives that guide the design and operation of safety systems. These objectives are sequential and interdependent, forming a layered defense strategy to protect both the reactor structure and the surrounding environment.

The first objective is to shut down the reactor. This involves initiating a controlled or rapid reduction in the reactor's power output by introducing neutron-absorbing materials into the core. This process, often referred to as achieving criticality or subcriticality, halts the fission chain reaction that generates heat. The speed and reliability of this shutdown mechanism are crucial for responding to sudden changes in reactor conditions, such as a loss of coolant or a spike in neutron flux.

The second objective is to maintain the reactor in a shutdown condition. Once the initial shutdown is achieved, the safety systems must ensure that the reactor does not spontaneously restart or drift back into a critical state. This requires continuous monitoring and control of the neutron population and the thermal-hydraulic conditions within the core. Maintaining this state is essential for allowing operators to assess the situation and implement further corrective actions if necessary.

The third and final objective is to prevent the release of radioactive material. This involves containing the radioactive isotopes generated within the reactor core and primary coolant system. Safety systems achieve this through multiple barriers, including the fuel cladding, the primary coolant pressure boundary, and the containment building. By effectively managing pressure, temperature, and water levels, these systems minimize the likelihood of radioactive leakage into the environment, thereby protecting public health and the ecosystem.

What are the main types of nuclear reactor safety systems?

Nuclear reactor safety systems are engineered to achieve three primary objectives: shutting down the reactor, maintaining it in a shutdown condition, and preventing the release of radioactive material (U.S. Nuclear Regulatory Commission). These systems are classified into four main categories, each addressing specific failure modes and operational states.

Reactor Protection System

The reactor protection system (RPS) is the first line of defense, designed to initiate a rapid shutdown, or "scram," by inserting control rods into the core. This action absorbs neutrons to halt the fission chain reaction. The RPS monitors parameters such as neutron flux, temperature, and pressure, triggering shutdown if thresholds are exceeded.

Emergency Core Cooling System

The emergency core cooling system (ECCS) ensures that the nuclear fuel remains submerged and cooled during transients or accidents, such as a loss of coolant. It injects borated water into the core to remove decay heat and prevent fuel cladding failure. The effectiveness of the ECCS is critical in mitigating the severity of a reactor accident.

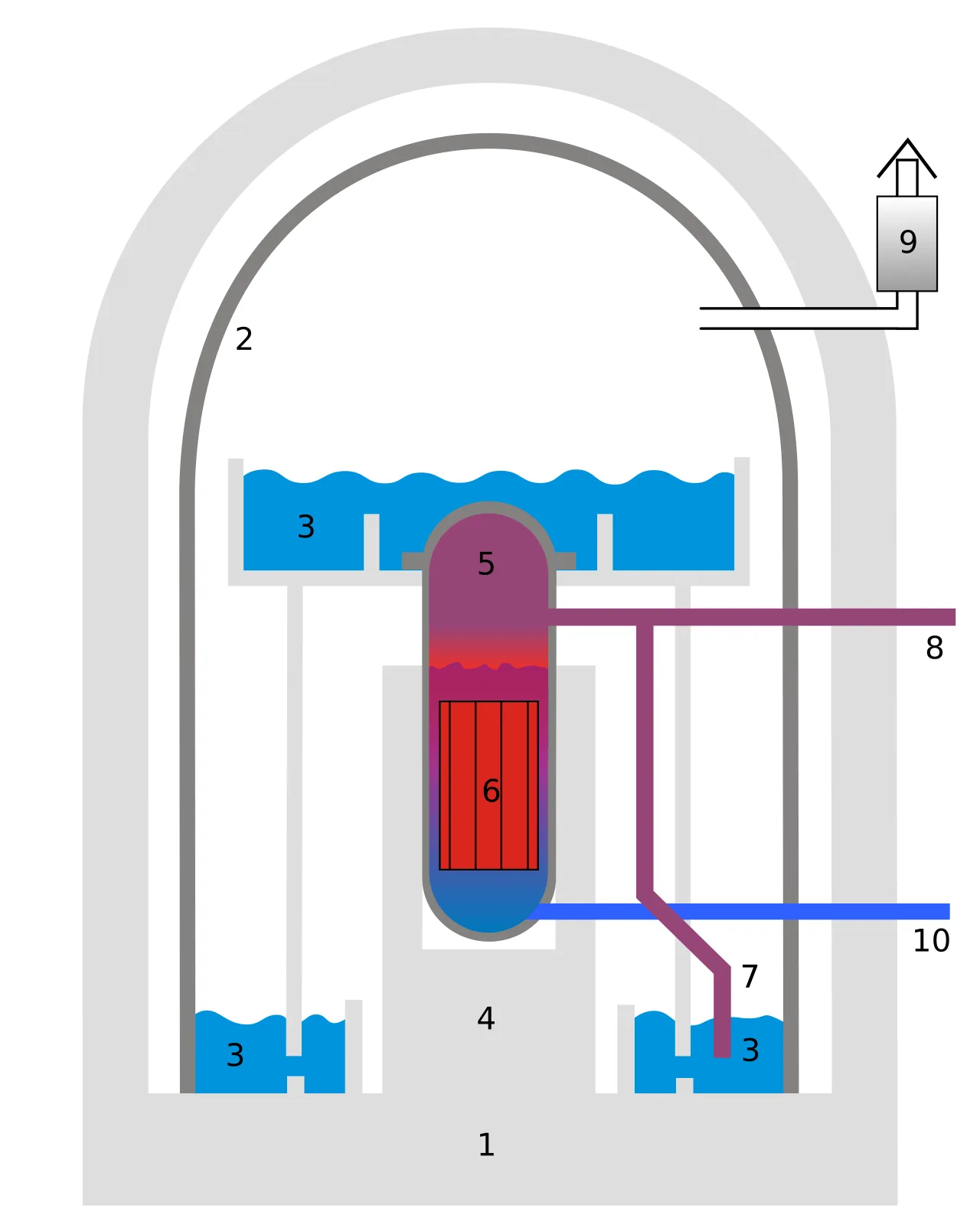

Containment System

The containment system is a robust physical barrier, typically a steel or concrete dome, surrounding the reactor vessel and primary coolant loop. Its primary function is to trap and confine radioactive materials released from the core during an accident, limiting their escape into the environment. The containment structure is designed to withstand internal pressure, temperature, and external impacts.

Electrical Systems

Electrical systems provide the power necessary to operate pumps, valves, and instrumentation. They include both AC and DC sources, often featuring redundant generators and battery backups to ensure reliability during grid failures. The electrical systems are critical for maintaining the operation of the RPS, ECCS, and containment cooling.

System Type	Primary Function
Reactor Protection System	Initiates rapid shutdown (scram) by inserting control rods
Emergency Core Cooling System	Cools the core and removes decay heat during transients
Containment System	Confines radioactive materials released from the core
Electrical Systems	Provides power to operate pumps, valves, and instrumentation

Reactor protection and control mechanisms

Reactor protection systems (RPS) serve as the primary automated defense mechanism for nuclear power plants, executing rapid responses to transient operational deviations. The U.S. Nuclear Regulatory Commission defines the core objectives of these systems as shutting down the reactor, maintaining it in a shutdown condition, and preventing the release of radioactive material. The RPS continuously monitors critical parameters such as neutron flux, coolant temperature, pressure, and flow rate. When any parameter exceeds predefined safety limits, the system triggers a "scram" or automatic shutdown to halt the fission process.

Control Rod Assemblies and Materials

The primary means of achieving criticality control is through control rods, which are inserted into the reactor core to absorb neutrons. These rods are typically composed of neutron-absorbing materials such as boron carbide, hafnium, or silver-indium-cadmium alloys. The choice of material depends on the reactor type and the specific neutron spectrum. In Pressurized Water Reactors (PWRs), control rods are often inserted from the top of the core, while in Boiling Water Reactors (BWRs), they may be driven from the bottom. The thermal expansion of these materials and their mechanical lubrication are critical for ensuring smooth insertion during a rapid shutdown sequence. Friction and thermal gradients can affect the insertion time, which is crucial for minimizing the peak power surge during a transient event.

Standby Liquid Control Systems

In addition to mechanical control rods, both BWRs and PWRs utilize standby liquid control (SLC) systems as a secondary means of reactivity control. In BWRs, the SLC system injects a concentrated boron solution into the reactor vessel through nozzles located in the lower plenum. This provides a uniform distribution of neutron absorbers, helping to flatten the power profile and providing additional shutdown margin. In PWRs, the primary coolant itself is often borated, serving as a continuous liquid control system. The concentration of boron in the primary coolant is adjusted over the fuel cycle to compensate for fuel burnup and xenon poisoning. The SLC system in PWRs may also involve the injection of borated water from external tanks into the pressurizer or the main coolant loops to provide rapid reactivity insertion during specific transients.

The integration of these mechanical and liquid control systems ensures that the reactor can be brought to a subcritical state under a variety of operational and accident scenarios. The reliability of the RPS is enhanced by redundancy and diversity, with multiple independent channels monitoring the same parameters to prevent single-point failures. The precise coordination between the control rod drive mechanisms and the liquid control injection systems is essential for maintaining core stability and preventing fuel cladding failure.

How do emergency core cooling systems work?

Emergency Core Cooling Systems (ECCS) are critical subsystems within nuclear reactor safety architectures, designed to fulfill the primary objective of preventing the release of radioactive material by maintaining core integrity during transients (per U.S. Nuclear Regulatory Commission definitions). These systems operate in phases to manage coolant inventory and pressure, ensuring that the fuel rods remain submerged and cooled even if the primary coolant loop is compromised.

High Pressure Coolant Injection (HPCI)

The High Pressure Coolant Injection system is typically the first line of defense in Pressurized Water Reactors (PWRs). It utilizes steam-driven pumps to inject borated water into the primary loop while the system pressure remains relatively high. This phase is crucial for compensating for small leaks or feedwater interruptions before the pressurizer relief valves open fully. The HPCI ensures that the core does not dry out during the initial stages of a loss-of-coolant accident (LOCA).

Automatic Depressurization System (ADS)

As the accident progresses, the pressure in the primary loop may exceed the capacity of the low-pressure injection systems. The Automatic Depressurization System addresses this by opening a series of relief valves in a staged manner. This controlled depressurization allows the Low Pressure Coolant Injection systems to become effective sooner, smoothing the transition between high-pressure and low-pressure cooling phases. The ADS prevents sudden pressure drops that could cause thermal shock to the reactor vessel.

Low Pressure Coolant Injection (LPCI) and Core Spray

Once the primary loop pressure drops sufficiently, the Low Pressure Coolant Injection system takes over. LPCI uses electrically driven pumps to deliver large volumes of borated water into the cold legs of the reactor vessel. Simultaneously, the Core Spray system activates, injecting coolant directly onto the fuel assemblies from the top of the reactor vessel. This direct contact helps remove decay heat more efficiently as the steam-water mixture flows through the core. The combination of LPCI and Core Spray ensures that the fuel rods are submerged and cooled, preventing clad failure.

Containment Spray Systems

The Containment Spray system operates within the reactor containment building to manage pressure and temperature during a significant LOCA. It sprays borated water mixed with condensants (such as ammonia or sodium acetate) into the containment atmosphere. This process condenses the steam released from the primary loop, reducing the overall pressure inside the containment structure. By lowering the pressure, the system minimizes the stress on the containment building and reduces the potential for radioactive material to escape through leaks or the containment isolation cooling system. The effectiveness of the spray system is often modeled using thermodynamic equations that relate steam partial pressure, temperature, and condensation rates.

Together, these ECCS components form a layered defense strategy. The HPCI handles the initial high-pressure phase, the ADS manages the transition, the LPCI and Core Spray provide bulk cooling, and the Containment Spray manages the final barrier. This integrated approach ensures that the reactor remains in a safe shutdown condition, aligning with the regulatory goals of maintaining core cooling and preventing radioactive release.

Containment structures and core catching devices

Nuclear reactor safety relies on multiple physical barriers to prevent the release of radioactive material, a primary objective defined by the U.S. Nuclear Regulatory Commission (per NRC safety definitions). The first barrier is the fuel cladding, typically made of zircalloy, which encases the uranium fuel pellets. The second barrier is the reactor pressure vessel, a thick steel structure that houses the core and primary coolant. These internal components are enclosed within the primary containment building, designed to withstand internal pressure and temperature spikes during a loss-of-coolant accident.

Containment Design Evolution

Modern reactor designs, such as the European Pressurized Reactor (EPR), feature reinforced concrete containment structures with a steel inner liner. The EPR containment is designed to handle high-pressure scenarios, utilizing a drywell and a wetwell to manage steam condensation. This design aims to prevent the rupture of the primary circuit and the subsequent release of radioactivity into the secondary containment or the environment. The structural integrity of these buildings is critical for maintaining negative pressure relative to the outside atmosphere, ensuring that any leaks flow inward rather than outward.

Core Catching Devices

For advanced safety, some reactor designs incorporate core catching devices to manage molten core material, known as corium, in the event of a severe accident. The French-Italian SNR-300 sodium-cooled fast reactor was one of the first to implement a dedicated core catcher. This device spreads the molten fuel over a large surface area, allowing for efficient cooling by the surrounding sodium or water, thereby preventing the corium from penetrating the reactor floor and the containment baseplate.

Russian reactor designs, particularly the VVER series, have also integrated core catching concepts. The VVER-1200 features a corium catchment system located beneath the reactor pressure vessel. In the event of a melt-through, the corium flows into a sacrificial layer that vaporizes to create a steam cushion, spreading the molten mass for more effective cooling. This approach minimizes the heat flux on the containment floor, reducing the risk of concrete-corium interaction, which can generate large volumes of combustible gases. The effectiveness of these devices is often analyzed using heat transfer equations, where the cooling rate Q is proportional to the surface area A and the temperature difference ΔT, expressed as Q=hAΔT, where h is the heat transfer coefficient.

Emergency electrical systems and station blackout

Emergency electrical systems provide the critical power required to drive pumps, valves, and control rods when normal grid connections are severed. The U.S. Nuclear Regulatory Commission defines the primary objectives of nuclear reactor safety systems as shutting down the reactor, maintaining it in a shutdown condition, and preventing the release of radioactive material (per U.S. Nuclear Regulatory Commission). Achieving these objectives during an accident relies heavily on the redundancy of the station's electrical infrastructure, primarily composed of diesel generators, motor-generator flywools, and battery banks.

Diesel Generators and Motor-Generator Flywools

Diesel generators serve as the primary backup power source for most light water reactors. They are designed to start automatically and reach full capacity within minutes of a grid failure. These generators drive the essential service water pumps and the main condensate extraction pumps, ensuring that heat is continuously removed from the reactor core and the steam generators. Motor-generator flywheels provide an intermediate layer of defense. These devices consist of an electric motor coupled to a large steel flywheel and an alternating current generator. When the grid power fails, the kinetic energy stored in the spinning flywheel keeps the generator running for several minutes, bridging the gap between the loss of AC power and the successful startup of the slower-responding diesel generators.

Battery Banks and Direct Current

Battery banks supply direct current (DC) power to critical instrumentation, control panels, and solenoid valves. While diesel generators provide alternating current (AC) for high-power loads, the DC batteries ensure that the control room remains illuminated and that the reactor protection system can trigger a scram signal. The reliability of these batteries is tested regularly to ensure they can sustain the load for the duration of the accident sequence.

Residual Heat Removal and Isolation Condenser Systems

Station blackout occurs when all alternating current power sources fail simultaneously. To defend against this, some reactors employ Isolation Condenser Systems (ICS) or Residual Heat Removal (RHR) pumps. The ICS is a passive or semi-passive system that removes decay heat from the reactor core by condensing steam in a separate vessel. This system is particularly effective in the early stages of a station blackout, reducing the pressure in the reactor vessel and allowing feedwater to be injected. The integration of these electrical and mechanical systems ensures that the three primary safety objectives are met even under severe operational stress.

Historical context and operational challenges

The operational safety of nuclear reactors is fundamentally anchored in three primary objectives defined by the U.S. Nuclear Regulatory Commission: shutting down the reactor, maintaining it in a shutdown condition, and preventing the release of radioactive material. These goals are not merely theoretical; they are the result of decades of empirical data derived from significant historical incidents. The integrity of these systems is continuously tested by external and internal variables, with the Essential Service Water Systems (ESWS) and containment spray mechanisms frequently identified as critical vulnerabilities during crisis scenarios.

The 1999 Blayais Flood: A Lesson in Redundancy

The 1999 flood at the Blayais nuclear power plant in France serves as a seminal case study in the importance of geographic and mechanical redundancy within safety systems. The incident involved a severe flood that submerged the plant’s diesel generators and critical electrical switchgear, threatening the primary cooling loops. This event highlighted the potential for a single natural phenomenon to compromise multiple layers of defense if the Essential Service Water Systems are not adequately isolated from flood zones. The failure modes observed at Blayais demonstrated that while the reactor could be shut down, maintaining that shutdown condition under prolonged power loss required robust backup water circulation. The incident underscored the necessity of rigorous probabilistic risk assessments that account for hydrological extremes, ensuring that the containment spray systems remain operational even when primary power sources are compromised by inundation.

The 2011 Fukushima Daiichi Accident: Systemic ESWS Failure

The 2011 Fukushima Daiichi nuclear accident in Japan represents the most significant modern challenge to nuclear reactor safety systems. The disaster was triggered by a tsunami that exceeded the design basis, leading to a station blackout that crippled the Essential Service Water Systems. Without the ESWS, the condensers could not reject heat from the primary cooling loops, leading to a sequential failure of the reactor cores. The containment spray systems, crucial for reducing pressure and temperature within the containment buildings, were also impacted by the loss of power and water supply. This cascade of failures resulted in the release of radioactive material, directly challenging the third primary safety objective. The Fukushima event revealed that while the reactor could be shut down, maintaining the shutdown condition and preventing release required a more resilient approach to water management and power redundancy. The accident prompted a global re-evaluation of safety margins, emphasizing that the physical protection of ESWS components against extreme external events is as critical as the thermodynamic design of the reactor itself.

Ventilation and radiation protection systems

Nuclear reactor safety systems incorporate specialized ventilation and radiation protection mechanisms to mitigate the release of radioactive material, fulfilling one of the three primary objectives defined by the U.S. Nuclear Regulatory Commission. These systems are critical for protecting both the plant operators and the surrounding public during normal operations and transient events.

Standby Gas Treatment Systems (SGTS)

Standby Gas Treatment Systems (SGTS) are designed to continuously monitor and treat the air within the reactor containment building. These systems extract air from the containment volume to remove airborne radioactivity, primarily in the form of aerosols and noble gases. The SGTS operates under standby conditions, activating or increasing flow rates depending on the concentration of radioactive isotopes detected in the containment atmosphere. This process helps maintain the containment building as a secondary barrier, reducing the pressure differential and the potential for leakage through seals and penetrations.

Filtration Technologies: HEPA and Activated Charcoal

The core of the gas treatment process relies on high-efficiency particulate air (HEPA) filters and activated charcoal filters. HEPA filters are engineered to capture fine particulate matter, including radioactive aerosols such as cesium-137 and iodine-131. These filters typically achieve a high removal efficiency for particles of specific micrometer sizes, ensuring that the majority of solid radioactive debris is retained within the containment system.

Activated charcoal filters are primarily utilized for the adsorption of gaseous radioactive isotopes, particularly volatile iodine and noble gases like xenon and krypton. The charcoal is often impregnated with specific chemicals, such as potassium iodide, to enhance the adsorption capacity and thermal stability. The effectiveness of these filters is influenced by factors such as temperature, humidity, and the flow rate of the treated gas. The combination of HEPA and charcoal filtration provides a robust defense against the release of diverse radioactive species.

Control Room Ventilation

Control room ventilation systems are designed to maintain a positive pressure relative to the surrounding containment building. This positive pressure ensures that, in the event of a leak in the control room walls or penetrations, air flows out of the control room rather than leaking in. This mechanism protects the operators from exposure to airborne radioactivity, allowing them to maintain command and control of the reactor during an accident. The ventilation system typically includes pre-filters and final HEPA filters to clean the incoming air, ensuring a comfortable and safe working environment for the crew. The integrity of the control room is vital for the successful execution of shutdown procedures and the maintenance of the reactor in a safe condition.

Worked examples

Pressurized Water Reactor (PWR) Safety Application

In a Pressurized Water Reactor, the primary objective of shutting down the reactor is achieved through the insertion of control rods. These rods, typically composed of neutron-absorbing materials, are dropped into the core to absorb neutrons and halt the fission chain reaction. The U.S. Nuclear Regulatory Commission defines this shutdown capability as a primary safety objective. Following the initial shutdown, maintaining the reactor in a shutdown condition often involves the use of boric acid dissolved in the primary coolant. Boron acts as a chemical shim, providing additional neutron absorption to compensate for fuel burnup and temperature changes, ensuring the reactor remains subcritical. This dual approach of mechanical control rods and chemical boric acid provides redundancy in maintaining the shutdown state.

Preventing the release of radioactive material in a PWR is managed by the containment structure. The primary coolant loop is sealed within a robust containment building, which serves as the final barrier against radiation leakage. In the event of a loss-of-coolant accident, the containment structure withstands pressure and temperature increases, limiting the escape of radioactive isotopes. This design directly addresses the NRC’s third safety objective: preventing the release of radioactive material. The integration of control rods for shutdown, boric acid for sustained subcriticality, and the containment building for radiation isolation forms the core safety strategy for PWRs.

Boiling Water Reactor (BWR) Safety Application

Boiling Water Reactors utilize a different configuration for achieving the same safety objectives. In a BWR, control rods are inserted from the bottom of the core, contrasting with the top-entry design of many PWRs. This bottom-entry mechanism ensures that gravity assists in the insertion of control rods during a shutdown, enhancing reliability. The primary objective of shutting down the reactor is met by these control rods absorbing neutrons to stop fission. Unlike PWRs, BWRs typically do not use boric acid in the primary coolant to the same extent, relying more heavily on the mechanical positioning of control rods and the density of the steam-water mixture for reactivity control. This distinction highlights how different reactor types apply the same fundamental safety principles using varied technological solutions.

For maintaining the shutdown condition, BWRs depend on the precise positioning of the control rods and the stability of the core’s steam void fraction. The prevention of radioactive material release is ensured by the BWR’s containment structure, which is designed to handle the specific pressure dynamics of a boiling core. The containment building acts as a barrier, capturing steam and air mixtures that may escape from the reactor vessel. This approach satisfies the NRC’s requirement to prevent the release of radioactive material. The safety system in a BWR thus integrates bottom-entry control rods for shutdown, void fraction management for sustained subcriticality, and a specialized containment structure for radiation isolation, demonstrating the adaptability of nuclear safety principles across different reactor designs.
