Pressurizer: Design, Operation, and Safety Functions in PWRs

Overview

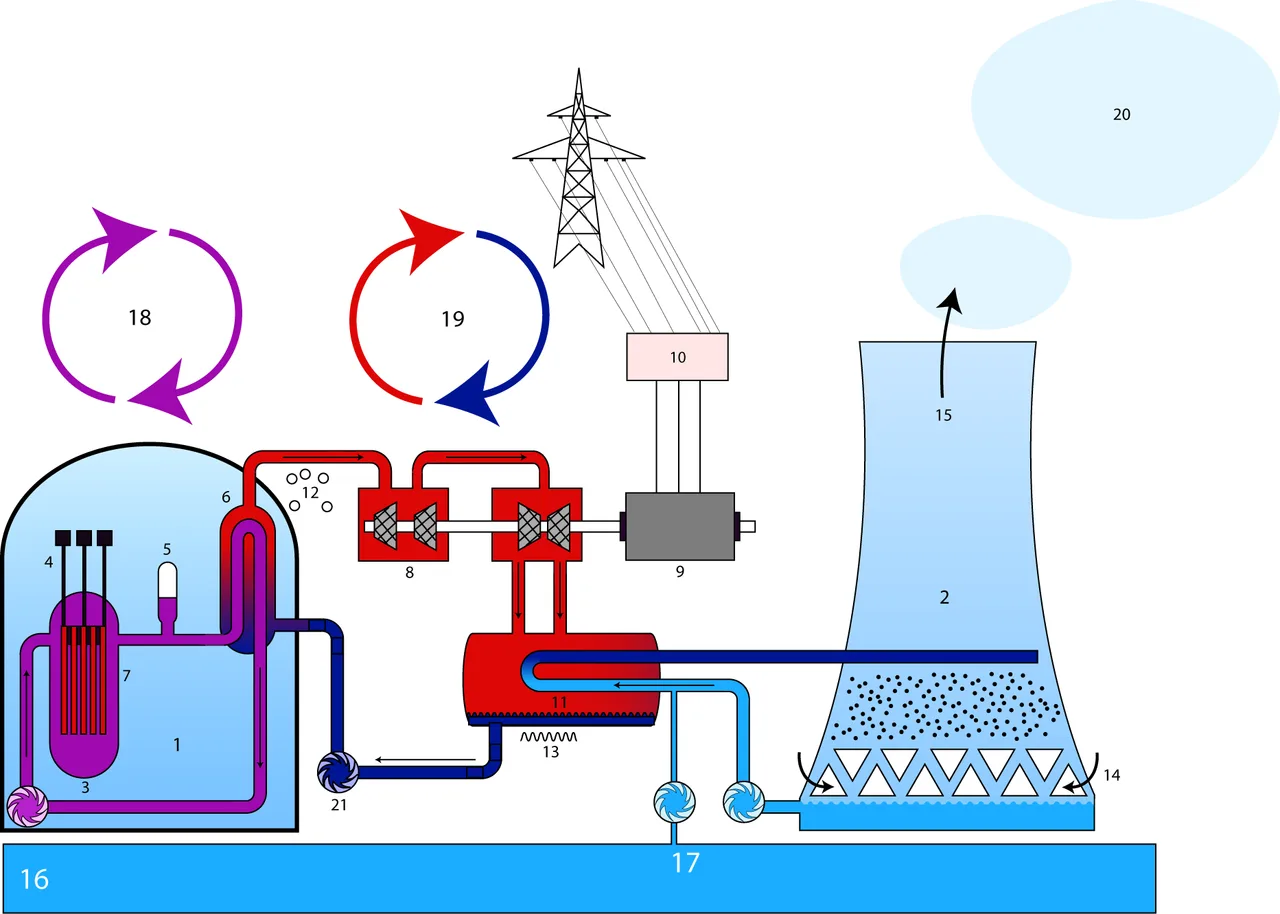

A pressurizer is a critical component of a pressurized water reactor (PWR) nuclear power plant. The fundamental design requirement of a PWR dictates that the primary coolant, which is water, must remain in a liquid state throughout the reactor coolant system, particularly within the reactor vessel. To ensure that boiling does not occur at the high operating temperatures experienced during normal operation or various transient states, the coolant is maintained at a pressure significantly higher than its vapor pressure. The pressurizer serves as the dedicated vessel that establishes and regulates this elevated system pressure.

The necessity for a separate pressurizing system arises from the thermodynamic properties of water. At the temperatures required for efficient heat extraction from the uranium fuel, water would naturally transition to a vapor phase unless constrained by sufficient hydrostatic pressure. The pressurizer achieves this by providing a volume where the relationship between temperature and pressure can be actively managed. By keeping the coolant in the liquid phase, the PWR design ensures optimal heat transfer characteristics and maintains the density of the moderator, which is crucial for controlling the nuclear fission chain reaction.

The operational status of pressurizers in active nuclear facilities is generally classified as operational, reflecting their continuous role in thermal-hydraulic stability. The component functions by containing a portion of the primary coolant loop, allowing for the expansion and contraction of water as temperatures fluctuate. This mechanism prevents the formation of steam bubbles in the core, which could otherwise lead to reactivity changes and potential thermal stresses. The pressurizer thus acts as the primary control element for the system's pressure, ensuring that the liquid state is preserved under all analyzed operating conditions.

How does a pressurizer maintain system pressure?

In a pressurized water reactor, the pressurizer ensures the primary coolant remains liquid by maintaining system pressure above the saturation pressure of water at operating temperatures. This prevents boiling within the reactor vessel and steam generators. The pressurizer is a vertical vessel connected to the hot leg of the primary loop, containing a mixture of water and steam. Pressure control is achieved through two primary mechanisms: electric heaters and a spray system.

Pressure Control Mechanisms

When system pressure drops, electric immersion heaters at the bottom of the pressurizer vaporize a portion of the water. This increases the steam volume, thereby raising the pressure. Conversely, when pressure rises, high-pressure water is sprayed from the top of the pressurizer. The spray condenses the steam, reducing volume and lowering pressure. These actions maintain pressure within a narrow band, typically around 155 bar (2250 psi) for many PWRs.

Thermodynamic Relationship

The relationship between temperature and pressure in the pressurizer follows the saturation curve of water. The pressure P is a function of the saturation temperature Tsat. For a given temperature, the pressure must exceed the vapor pressure to keep the coolant in the liquid phase. The ideal gas law provides a simplified approximation for the steam space: PV=nRT, where P is pressure, V is volume, n is the number of moles, R is the gas constant, and T is absolute temperature. However, the actual behavior is more complex due to the mixture of phases and the specific volume of water and steam at high pressures.

The pressurizer volume is designed to accommodate thermal expansion of the coolant. As the reactor heats up, water expands, increasing pressure. The spray system and heaters adjust the steam-water interface to manage this expansion. This dynamic balance ensures stable operation during transients, such as load changes or startup. The control system monitors pressure sensors and actuates the heaters or spray valves accordingly. This closed-loop control is critical for preventing cavitation in the reactor coolant pumps and maintaining efficient heat transfer in the steam generators.

Design and Physical Configuration

The pressurizer is a specialized cylindrical pressure vessel, typically featuring hemispherical ends, designed to maintain the thermal-hydraulic stability of the primary coolant loop in a pressurized water reactor (PWR). Its fundamental purpose is to prevent the reactor coolant from boiling by maintaining system pressure above the saturation pressure of the water at operating temperatures. This component is vertically mounted and directly connected to the reactor coolant system, usually via a hot leg pipe from one of the main coolant loops.

Parameter	Specification
Shape	Cylindrical vessel with hemispherical ends
Orientation	Vertical mounting
Connection	Directly linked to the reactor coolant system
Primary Function	Maintain liquid state of coolant by controlling pressure

The internal configuration of the pressurizer includes a spray nozzle at the top and electric heaters at the bottom. The spray system introduces cooler water from the cold leg of the reactor coolant system into the steam space of the pressurizer. This action condenses the steam, thereby reducing the system pressure when it rises above the setpoint. Conversely, the electric heaters are used to generate steam by heating the water in the lower portion of the vessel, increasing the pressure when it drops below the required level. This dual-mechanism approach allows for precise control of the primary system pressure, ensuring that the coolant remains in a subcooled liquid state throughout the reactor vessel and the primary loop.

The physical dimensions of the pressurizer are significant, often reaching heights of several meters and diameters of approximately two to three meters, depending on the specific reactor design. The vessel is constructed from high-quality stainless steel or carbon steel cladding to withstand the high temperatures and pressures of the primary coolant. The connection to the reactor coolant system is critical, as it allows for the rapid exchange of mass and energy between the pressurizer and the main loop, facilitating quick responses to transient states such as load changes or pump trips. The design ensures that the pressure within the system is maintained at a level that prevents boiling, which is essential for the efficient heat transfer from the nuclear fuel to the secondary steam generation system.

What is the role of the steam bubble in PWR operation?

The pressurizer serves as the primary pressure control vessel in a pressurized water reactor (PWR) coolant system. Its fundamental role is to maintain the reactor coolant in a liquid state by ensuring the system pressure remains above the saturation pressure of the water at operating temperatures. This prevents bulk boiling within the reactor vessel, which is critical for efficient heat transfer and core stability. The device achieves this through a two-phase mixture of liquid water and steam, creating a dynamic interface that responds to thermal and hydraulic changes.

The Steam Bubble as a Pressure Cushion

A key feature of the pressurizer is the presence of a steam bubble, or vapor space, above the liquid water level. This steam bubble acts as a compressible cushion that absorbs pressure fluctuations caused by thermal expansion or contraction of the coolant. When the reactor power increases, the coolant heats up and expands, pushing into the pressurizer. The steam bubble compresses, allowing pressure to rise gradually rather than spiking abruptly. Conversely, during a power decrease, the coolant contracts, and the steam bubble expands, preventing a sudden pressure drop. This moderation of pressure changes enhances the stability of the primary coolant system.

Water Level Monitoring and Control

The water level within the pressurizer is a critical parameter for operational control. It indicates the relative volume of liquid and vapor, which directly affects the system's ability to manage pressure. Sensors monitor the water level to ensure it remains within an optimal range. If the level is too high, the vapor space is reduced, diminishing the cushioning effect and potentially leading to over-pressurization. If the level is too low, the spray nozzles or heaters may become exposed, reducing their efficiency. The water level is adjusted using spray nozzles, which introduce cooler water from the cold leg to condense steam and lower pressure, and electric or steam heaters, which boil water to increase pressure. This dynamic balance ensures the coolant remains subcooled in the reactor vessel.

Significance in Transient States

During transient states, such as a reactor trip or turbine throttle, the pressurizer's steam bubble plays a vital role in smoothing out rapid pressure changes. The compressibility of the steam allows the system to accommodate volume changes without immediate mechanical stress on the piping and reactor vessel. This reduces the frequency of safety valve activations and minimizes thermal cycling fatigue. The interplay between the liquid water and steam phases ensures that the pressure remains within design limits, safeguarding the integrity of the primary coolant loop. The pressurizer thus functions as a critical buffer, maintaining the delicate balance required for stable PWR operation.

Safety Systems and Over-Pressure Relief

Pressurized water reactors require robust safety mechanisms to manage the high-pressure coolant environment. The primary device for over-pressure relief is the pilot-operated relief valve (PORV). This valve regulates system pressure by venting steam or water into a condensation tank when the pressure exceeds a set point. Proper operation of the PORV is critical; a failure can lead to significant thermal-hydraulic transients. In the event of a major over-pressure event, rupture discs serve as a secondary, often sacrificial, barrier to prevent catastrophic vessel failure. These discs burst at a predetermined pressure, allowing rapid depressurization into a dedicated tank or the containment building.

The "Go Hard" Condition

A specific and dangerous failure mode involving the PORV is known as the "go hard" or "go solid" condition. This occurs when the pilot-operated relief valve fails to fully close after a pressure spike, often due to debris or mechanical sticking. In this state, the main valve remains partially or fully open, creating a continuous leak path from the hot leg of the reactor coolant system to the pressurizer or condensation tank. This condition poses a significant risk because it can lead to a rapid loss of coolant inventory. If the feedwater pumps do not compensate for the leak, the water level in the pressurizer can drop, potentially exposing the electric heaters. Exposed heaters can cause a rapid temperature rise, leading to a secondary pressure spike or thermal shock to the reactor vessel. Operators must monitor the PORV position and pressurizer level closely to detect this condition early.

Worked examples

Pressurizers maintain reactor coolant system (RCS) pressure to prevent bulk boiling of the primary water. The following scenarios illustrate how electric heaters and spray valves adjust pressure during normal operation and transient states.

Normal Steady-State Operation

In a typical PWR, the RCS operates at approximately 155 bar. The pressurizer is connected to the hot leg of the reactor coolant loop. Under steady conditions, the water level in the pressurizer stabilizes around the midpoint of the vessel. The volume of liquid water expands slightly due to thermal fluctuations. To maintain the setpoint pressure, the control system modulates the electric heaters and the spray nozzles. If the pressure rises slightly above the setpoint, the spray valve opens. High-pressure water from the hot leg is sprayed into the steam dome of the pressurizer. The spray water condenses the steam, reducing the volume of the vapor space. This condensation lowers the pressure back to the target value. Conversely, if the pressure drops, the spray valve closes and the electric heaters activate. The heaters add thermal energy to the subcooled liquid water at the bottom of the pressurizer. This causes a small portion of the water to boil, generating steam. The increased steam volume raises the pressure to the desired level. This continuous modulation ensures the coolant remains in the liquid state within the reactor vessel.

Reactor Power Ramp-Up

During a power increase, the temperature of the coolant in the reactor core rises. As the hot leg temperature increases, the water expanding from the core enters the pressurizer. This thermal expansion pushes the water level in the pressurizer upward. The increased volume of liquid reduces the steam dome space. Consequently, the pressure in the RCS begins to rise. To counteract this, the control system opens the spray valve. The spray introduces cooler water from the hot leg into the steam dome. The condensation effect absorbs the excess pressure. If the power ramp is slow, the heaters may turn off to allow the natural expansion to stabilize the pressure. The goal is to keep the pressure within the operating band, preventing the safety relief valves from lifting. The pressurizer effectively acts as a buffer, absorbing the volumetric changes caused by the thermal expansion of the primary coolant.

Small Break Loss of Coolant Accident (SBLOCA)

In a small break LOCA, a pipe in the RCS leaks, causing a gradual loss of coolant mass. The pressure in the system begins to drop. The pressurizer water level decreases as water flows out through the break. The control system detects the pressure decline and activates the electric heaters. The heaters add heat to the remaining liquid water in the pressurizer. This causes more water to flash into steam, which helps to stabilize the pressure. However, as the mass of the coolant continues to decrease, the heaters may reach their maximum capacity. If the pressure continues to fall, the safety injection systems may activate to replenish the coolant. The pressurizer plays a critical role in the initial phase of the transient by using its steam dome and heaters to delay the pressure drop. This gives the control rods and injection pumps time to respond. The interplay between the heaters and the spray valves ensures that the pressure does not fall below the saturation pressure at the operating temperature, thus preventing widespread boiling in the core.

Applications in Nuclear Power Plant Design

Within the architecture of a pressurized water reactor, the pressurizer serves as a critical boundary condition for the primary coolant loop. Its primary function is to maintain the reactor coolant system at a pressure sufficiently high to prevent the boiling of water at operating temperatures. This requirement ensures that the coolant remains in the liquid state, particularly within the reactor vessel, which is essential for efficient heat transfer and core stability. The pressurizer achieves this by providing a separate pressurizing system that manages the vapor-liquid equilibrium of the coolant.

Integration with Primary Loop Components

The pressurizer is typically connected to the hot leg of the primary circuit, linking it directly to the reactor vessel and the steam generators. While the reactor vessel houses the core and the uranium fuel, and the steam generators facilitate heat exchange with the secondary loop, the pressurizer focuses exclusively on pressure regulation. This division of labor allows each component to optimize its specific function without compromising the thermodynamic integrity of the system. The pressurizer must withstand the same high pressures as the rest of the reactor coolant system, but its volume is generally smaller than that of the reactor vessel or the steam generators, reflecting its specialized role in volume expansion and contraction management.

Thermodynamic Function and Transient States

The operation of the pressurizer is governed by the relationship between pressure and temperature in the coolant. To prevent boiling, the system pressure must exceed the vapor pressure of the coolant at any given operating temperature. This relationship can be conceptualized through thermodynamic principles, where the saturation pressure Psat is a function of temperature T. The pressurizer ensures that the system pressure Psys remains above Psat(T) during steady-state operation and various transient states. By maintaining this pressure margin, the pressurizer prevents the formation of steam bubbles in the core, which could otherwise lead to reactivity changes and potential thermal-hydraulic instabilities. This control is vital for the safe and efficient operation of the nuclear power plant, ensuring that the coolant effectively removes heat from the uranium fuel while maintaining the liquid phase throughout the primary loop.
