Uranium enrichment technology

Overview

Uranium enrichment is a physical process used to increase the concentration of the fissile isotope uranium-235 (U-235) relative to the more abundant uranium-238 (U-238) in natural uranium ore. This technological concept is fundamental to nuclear fuel cycle infrastructure, enabling the production of fuel suitable for light water reactors, pressurized heavy water reactors, and specialized nuclear fuel assemblies. The process relies on separating isotopes that have nearly identical chemical properties but differ slightly in atomic mass, requiring precise physical or physicochemical mechanisms to achieve the desired isotopic ratio.

The scientific basis for uranium enrichment involves exploiting the mass difference between U-235 and U-238. In natural uranium, U-235 constitutes approximately 0.7% of the total uranium content, while U-238 makes up the remaining 99.3%. For most commercial nuclear power applications, the U-235 concentration must be increased to between 3% and 5%, a range known as low-enriched uranium (LEU). Higher concentrations are required for research reactors, naval propulsion, and nuclear weapons, depending on the specific energy density and neutron flux requirements of the system. The separation factor in enrichment processes is often expressed using the separation coefficient, which quantifies the efficiency of the separation stage.

Several distinct technological approaches have been developed to achieve uranium enrichment. The gaseous diffusion method utilizes a porous barrier through which uranium hexafluoride (UF6) gas is passed, allowing the lighter U-235F6 molecules to diffuse slightly faster than the heavier U-238F6 molecules. The gas centrifuge technology employs high-speed rotors to create a strong centrifugal force, pushing the heavier U-238 isotopes toward the periphery while the lighter U-235 isotopes concentrate near the center. Other methods include thermal diffusion, laser isotope separation, and electromagnetic separation, each offering different trade-offs in energy consumption, capital cost, and scalability.

The choice of enrichment technology significantly impacts the energy efficiency and economic viability of nuclear fuel production. Modern enrichment facilities increasingly favor gas centrifuges due to their lower specific energy consumption compared to historical gaseous diffusion plants. The development of advanced materials, such as maraging steel and carbon-fiber composites for centrifuge rotors, has further enhanced the performance and reliability of these systems. Understanding these technological distinctions is essential for analyzing global uranium supply chains, nuclear fuel market dynamics, and the strategic implications of nuclear fuel cycle infrastructure.

What are the main types of uranium enrichment technology?

Uranium enrichment is the process of increasing the relative abundance of the isotope uranium-235 (235U) in uranium feedstock. Natural uranium contains approximately 0.7% 235U, while the remainder is predominantly uranium-238 (238U). The choice of enrichment technology depends on factors such as feedstock form, desired product purity, and energy consumption. The two dominant industrial methods are gaseous diffusion and gas centrifugation, with emerging technologies including laser isotope separation and aerodynamic separation.

Gaseous Diffusion

Gaseous diffusion was the first large-scale enrichment method. It relies on the slight difference in molecular mass between uranium hexafluoride (UF6) molecules containing 235U and those containing 238U. The gas is forced through semi-permeable membranes. According to Graham's Law of Effusion, the rate of diffusion is inversely proportional to the square root of the molar mass:

Rate ∝ 1 / √M

Since 235UF6 is slightly lighter than 238UF6, it diffuses through the membrane marginally faster. This method requires thousands of stages in series to achieve significant enrichment and is energy-intensive, primarily due to the compression of the UF6 gas.

Gas Centrifugation

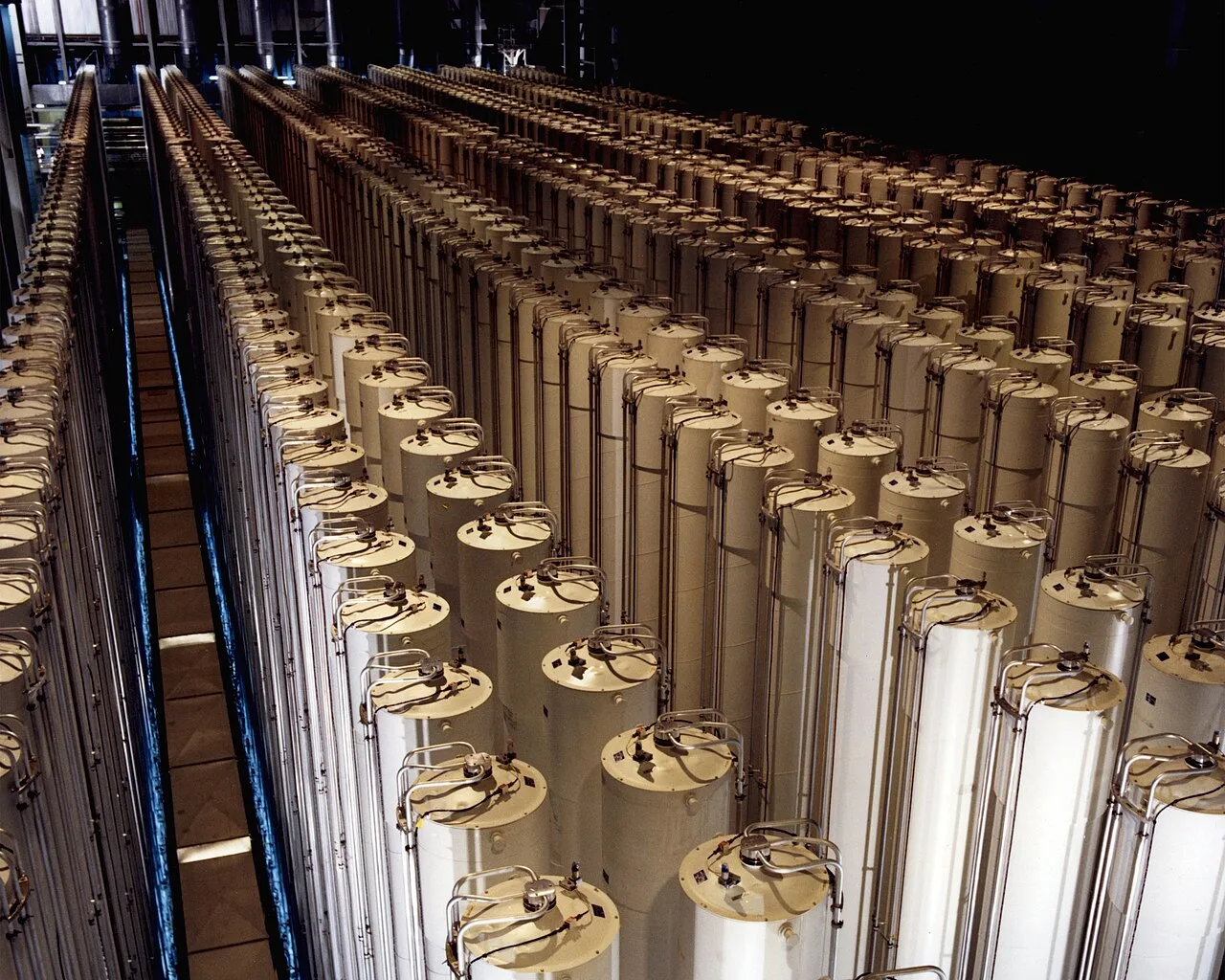

Gas centrifugation is currently the most common enrichment technology. It involves spinning UF6 gas at high speeds in cylindrical rotors. The centrifugal force pushes the heavier 238UF6 molecules toward the outer wall, while the lighter 235UF6 molecules concentrate near the center. The separation factor per stage is higher than in diffusion, requiring fewer stages and significantly less energy. Modern centrifuges often use advanced materials like carbon fiber to achieve rotational speeds exceeding 50,000 revolutions per minute.

Laser Isotope Separation

Laser enrichment, such as SILEX (Separation of Isotopes by Laser Excitation), uses tuned lasers to selectively excite 235U atoms or molecules. The excited species are then chemically or physically separated from the ground-state 238U. This method offers high separation factors and potential energy savings but requires precise control of laser frequencies and feedstock preparation.

Aerodynamic Separation

Aerodynamic methods, such as the Wilson-Somerville nozzle, use the interaction between a jet of UF6 gas and a counter-flowing stream of helium. The lighter 235UF6 molecules are deflected differently than the heavier 238UF6 molecules due to their inertia. This technology is less energy-intensive than diffusion but generally less efficient than modern centrifuges.

How does uranium enrichment work?

Uranium enrichment is the process of increasing the relative abundance of the isotope uranium-235 (235U) within a mixture of uranium isotopes.

Physical Principles of Isotopic Separation

The fundamental challenge in enrichment is that the two primary isotopes differ in mass by only three neutrons. The atomic mass of 235U is approximately 235.04 atomic mass units (amu), while 238U is approximately 238.05 amu. This results in a mass ratio of roughly 1.013, meaning 238U is only about 1.3% heavier than 235U. Consequently, no single physical process yields a highly enriched product in one step; instead, enrichment relies on cascading many stages to achieve the desired isotopic purity.

The degree of separation in a single stage is often described by the separation factor, denoted as α. For an ideal single stage, the separation factor is defined as:

α=x/(1−x)x′/(1−x′)

where x is the molar fraction of 235U in the feed, and x′ is the molar fraction in the product. Because α is close to 1 for most technologies, thousands of stages are typically required to move from natural uranium (0.7% 235U) to low-enriched uranium (3–5% 235U).

Common Enrichment Mechanisms

Several physical phenomena are utilized to achieve this separation. In gaseous diffusion, uranium hexafluoride (UF6) gas is forced through semi-permeable membranes. According to Graham's Law, the rate of effusion of a gas is inversely proportional to the square root of its molar mass. Therefore, lighter molecules containing 235U diffuse slightly faster than those containing 238U:

Rate238Rate235=M235M238≈349352≈1.0043

In gas centrifuge technology, UF6 gas is spun at high speeds in cylindrical rotors. The centrifugal force pushes the heavier 238U molecules toward the outer wall, while the lighter 235U molecules concentrate near the center axis. This method is more energy-efficient than gaseous diffusion and is currently the dominant technology globally. Other methods include thermal diffusion, which exploits temperature gradients to separate isotopes, and laser isotope separation, which uses tuned lasers to excite and ionize 235U atoms specifically, allowing for electromagnetic or chemical extraction.

Each technology aims to maximize the separation factor α while minimizing energy consumption and capital costs. The choice of technology depends on the scale of production, available energy sources, and the desired final enrichment level, whether for nuclear power (low-enriched uranium) or nuclear fuel cycles (high-enriched uranium).

Applications of uranium enrichment technology

Uranium enrichment technology serves as the foundational process for tailoring uranium isotopic composition to meet specific energy, industrial, and scientific demands. The primary application is in nuclear power generation, where low-enriched uranium (LEU), typically containing 3–5% uranium-235, is used as fuel in light water reactors. This concentration is critical for sustaining the chain reaction necessary for efficient electricity production. The enrichment process adjusts the ratio of uranium-235 to uranium-236 and uranium-237, optimizing the fuel cycle for thermal neutron absorption.

Nuclear Power and Fuel Cycles

In the nuclear fuel cycle, enrichment enables the utilization of uranium from various sources, including mined ore and recycled fuel. The technology supports the production of fuel assemblies for pressurized water reactors (PWRs) and boiling water reactors (BWRs). Advanced fuel cycles, such as those in fast breeder reactors, may require higher enrichment levels to maximize neutron economy. The enrichment process also facilitates the separation of uranium-238, which can be converted into plutonium-239 for mixed oxide (MOX) fuel, enhancing resource efficiency.

Other Sectors

Beyond power generation, uranium enrichment technology is vital in the nuclear fuel industry for producing high-assay low-enriched uranium (HALEU), which is essential for next-generation small modular reactors (SMRs) and research reactors. In the medical isotope sector, enriched uranium targets are used in nuclear reactors to produce molybdenum-99, a precursor to technetium-99m, a widely used diagnostic isotope. The technology also supports the nuclear fuel cycle management by enabling the precise control of isotopic purity, which is crucial for minimizing waste and optimizing reactor performance.

Scientific and Industrial Applications

In scientific research, highly enriched uranium (HEU) is used in research reactors and neutron sources for materials science and physics experiments. The enrichment technology allows for the production of uranium with specific isotopic compositions, which is essential for calibrating detectors and conducting precise measurements. In the industrial sector, enriched uranium is used in nuclear batteries and radiation sources for gauging and inspection equipment. The technology also plays a role in the nuclear fuel cycle by enabling the recovery of uranium from spent fuel, reducing the volume of high-level waste.

Energy Security and Diversification

Uranium enrichment technology contributes to energy security by diversifying the nuclear fuel supply chain. Countries with domestic enrichment capabilities can reduce their dependence on imported fuel, enhancing their energy independence. The technology also supports the development of advanced nuclear systems, such as molten salt reactors and gas-cooled reactors, which require specific uranium isotopic compositions. By optimizing the enrichment process, the nuclear industry can improve the efficiency and flexibility of nuclear power generation, contributing to a more resilient energy mix.

What distinguishes uranium enrichment from other nuclear processes?

Uranium enrichment is a distinct physical separation process within the nuclear fuel cycle, fundamentally different from mining, conversion, fabrication, and reprocessing. While mining extracts raw ore and conversion changes uranium’s chemical state (typically from U3O8 to UF6), enrichment alters the isotopic composition of the uranium itself. Specifically, it increases the relative abundance of the fissile isotope U-235 compared to the more abundant U-238. This step is critical because natural uranium contains only about 0.7% U-235, which is often insufficient to sustain a chain reaction in light water reactors, the most common reactor type globally.

Physical vs. Chemical Separation

The core distinction of enrichment lies in its reliance on physical properties rather than chemical reactions. The two primary isotopes, U-235 and U-238, are chemically nearly identical, meaning they react similarly with other elements. However, U-235 is slightly lighter than U-238. Enrichment technologies exploit this small mass difference. For example, in gaseous diffusion, UF6 gas is forced through semi-permeable membranes. The lighter molecules containing U-235 diffuse slightly faster than those with U-238. In gas centrifugation, the UF6 gas is spun at high speeds, forcing the heavier U-238 isotopes toward the outer wall while the lighter U-235 concentrates near the center. These are physical separation techniques, unlike chemical conversion which involves heating uranium dioxide with hydrogen and fluorine.

Position in the Fuel Cycle

Enrichment sits between conversion and fuel fabrication. After uranium is mined and milled into yellowcake, it is converted into uranium hexafluoride (UF6) gas, which is ideal for feeding into enrichment plants. Once enriched to the desired level (typically 3–5% U-235 for light water reactors), the UF6 is converted back into uranium dioxide (UO2) powder, pressed into pellets, and loaded into fuel rods. This contrasts with reprocessing, which occurs at the back end of the cycle. Reprocessing aims to recover unused uranium and plutonium from spent fuel rods to create Mixed Oxide (MOX) fuel, effectively recycling materials rather than preparing fresh fuel. Enrichment prepares new fuel; reprocessing recycles old fuel.

Key Technologies

The most common enrichment technologies are gaseous diffusion and gas centrifugation, with centrifugation increasingly favored for its energy efficiency. Gaseous diffusion requires significant energy to pump UF6 through thousands of membranes, while centrifuges use rotating cylinders to separate isotopes. Other methods, such as laser enrichment and ion exchange, have been developed but are less widely deployed. The choice of technology affects the capital cost, energy consumption, and footprint of the enrichment plant. Regardless of the method, the output is enriched uranium, which is essential for most commercial nuclear power generation.
