Pressurized water reactor

Overview

A pressurized water reactor (PWR) is a specific design of light-water nuclear reactor, utilizing ordinary water as both the primary coolant and the neutron moderator. This technology constitutes the dominant architecture in global nuclear power generation. According to authoritative industry data, PWRs represent almost 70% of the world's commercial reactor fleet, establishing them as the most common type of nuclear power reactor in operation today. This widespread adoption contrasts with other nations that have historically relied on alternative designs. For instance, Canada has heavily utilized different reactor technologies, and the United Kingdom has also depended on other designs. Meanwhile, countries such as Japan and India operate a diverse mix of PWRs alongside other reactor types, reflecting varied national energy strategies.

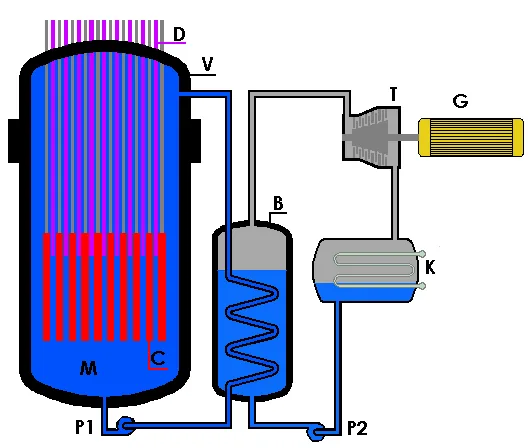

The fundamental operational principle of a PWR distinguishes it from other light-water reactor designs, particularly the boiling water reactor (BWR). The system is characterized by a two-loop configuration that separates the radioactive primary circuit from the secondary steam cycle. In the primary loop, water is pumped through the reactor core, where it absorbs heat generated by the fission of uranium fuel. To prevent this water from boiling despite high temperatures, the primary circuit is maintained under high pressure, typically around 155 bars, though the exact pressure varies by specific design. This pressurized hot water then flows into the steam generator.

Within the steam generator, heat is transferred from the primary coolant to the secondary loop water without direct mixing of the fluids. The secondary water boils to produce steam, which drives the turbine generator. This separation ensures that the water directly contacting the fuel remains under pressure and largely non-radioactive relative to the turbine system, simplifying maintenance and radiation shielding. The primary coolant, having released its heat, returns to the reactor core to be reheated, completing the cycle. This design offers operational stability and flexibility, contributing to the PWR's status as the leading technology in the global nuclear energy sector.

History of PWR development

The pressurized water reactor (PWR) is a type of light-water nuclear reactor that serves as the dominant design in global nuclear power generation. While some nations, such as Canada and historically the United Kingdom, have relied heavily on alternative reactor designs, other major operators including Japan and India utilize a mix of PWRs alongside other reactor types. The operational status of these facilities remains active, with uranium serving as the primary fuel source for energy production.

Development Timeline

The evolution of the PWR spans several decades, originating from early naval applications before transitioning to large-scale commercial deployment. The development trajectory includes key milestones such as the initial US Naval program in 1946, which laid the foundational engineering principles for the technology. This was followed by significant commercial adoption, notably at the Shippingport Atomic Power Station, which demonstrated the viability of PWRs for civilian electricity generation.

Operational history also includes critical events that shaped regulatory and engineering standards. The Three Mile Island incident in 1979 served as a pivotal moment in PWR operational history, influencing safety protocols and public perception of nuclear energy. In recent years, the technology has continued to evolve with the approval of Small Modular Reactors (SMRs) in 2020, marking a new phase in PWR deployment strategies aimed at flexibility and scalability.

Year	Milestone
1946	Initiation of the US Naval PWR program
1957	Commercial deployment at Shippingport Atomic Power Station
1979	Three Mile Island incident
2020	Recent approvals for Small Modular Reactors (SMRs)

The widespread adoption of PWRs is attributed to their robust design and operational reliability. As the most common reactor type, PWRs continue to play a central role in the global energy infrastructure, with ongoing developments in SMR technology further expanding their application in the energy sector.

How does a pressurized water reactor work?

Pressurized water reactors (PWRs) utilize a dual-loop system to convert nuclear heat into electricity, distinguishing them from boiling water reactors. The core component is the reactor vessel, which houses the fuel assemblies and the primary coolant loop. In this loop, water serves as both the neutron moderator and the primary heat transfer medium. High-pressure pumps circulate the water through the core, where it absorbs thermal energy generated by the fission of uranium atoms. Crucially, the primary coolant is maintained at a high pressure, typically around 155 bar (approximately 15500 kPa), which prevents the water from boiling despite reaching temperatures of approximately 300°C to 320°C. This pressurization is managed by a dedicated pressurizer vessel connected to the primary loop, ensuring the water remains in a liquid state for efficient heat transfer.

Heat Transfer and Secondary Loop

The thermal energy from the primary loop is transferred to the secondary loop via steam generators. These large heat exchangers contain thousands of tubes through which the hot primary coolant flows. On the shell side of the steam generator, secondary loop water is present. As the primary coolant passes through the tubes, it heats the secondary water, causing it to boil and turn into steam. Importantly, the primary and secondary loops remain physically separated, meaning the radioactive primary coolant does not directly mix with the steam driving the turbine. This separation provides an additional layer of radiation shielding for the turbine hall.

The generated steam in the secondary loop is at a lower pressure and temperature compared to the primary side, typically around 250°C to 270°C and 60 to 70 bar. This high-pressure steam is directed to the turbine assembly. As the steam expands through the turbine blades, it spins the turbine shaft, which is connected to an electrical generator. The mechanical rotation of the generator produces electricity. After passing through the turbine, the steam is condensed back into water in a condenser, often cooled by a tertiary loop involving a cooling tower or a body of water, before being pumped back to the steam generators to repeat the cycle. This thermodynamic process follows standard Rankine cycle principles, maximizing the efficiency of energy conversion from nuclear heat to electrical power.

What distinguishes PWRs from other reactor types?

Pressurized water reactors (PWRs) are distinguished by the separation of the primary coolant loop from the steam generation system. In a PWR, the primary coolant is kept under high pressure to prevent boiling, transferring heat to a secondary loop via steam generators. This contrasts with boiling water reactors (BWRs), where the coolant boils directly in the core, and RBMK reactors, which use graphite moderation with water cooling.

Comparison with Other Reactor Types

The following table outlines key differences between PWRs, BWRs, and RBMK reactors:

Characteristic	PWR	BWR	RBMK
Moderator	Light water	Light water	Graphite
Coolant	Light water (primary)	Light water	Light water
Steam Generation	Secondary loop	Direct cycle	Secondary loop
Pressure Vessel	Single large vessel	Single large vessel	Multiple channels

Safety and Temperature Coefficient

PWRs exhibit a negative temperature coefficient of reactivity, meaning that as the fuel temperature increases, the reactivity decreases. This inherent stability helps regulate the reactor's power output. The separation of the primary and secondary loops in PWRs also provides an additional barrier against radioactive release, enhancing safety compared to direct-cycle designs like BWRs. In contrast, RBMK reactors historically faced challenges with a positive void coefficient, which contributed to the Chernobyl accident. PWRs mitigate this risk through careful design and control mechanisms.

Core components and design specifications

Pressurized water reactors utilize a primary coolant loop to transfer heat from the nuclear core to a secondary steam generation system. The reactor vessel houses the fuel assemblies, control rods, and the active core. Fuel assemblies consist of uranium dioxide (UO2) pellets encased in Zircaloy cladding tubes, arranged in a lattice structure to optimize neutron flux and coolant flow. The primary coolant, ordinary water, is maintained at high pressure to prevent bulk boiling within the core, allowing it to reach temperatures significantly higher than the atmospheric boiling point.

Pressurizer and Primary Pumps

A dedicated pressurizer is connected to the primary loop to maintain system pressure, typically around 155 bar, ensuring the coolant remains in a liquid state despite high temperatures. The pressurizer contains a heated water volume and a steam space, using electric heaters or spray nozzles to adjust pressure. Primary coolant pumps circulate the heated water from the reactor vessel to the steam generators. These pumps are critical for maintaining thermal-hydraulic stability and ensuring sufficient heat removal from the core during operation.

Reactivity Control

Reactivity in a PWR is controlled through mechanical control rods and chemical shimming. Control rods, often composed of neutron-absorbing materials like boron carbide or hafnium, are inserted into the core to absorb neutrons and modulate the fission rate. Additionally, boric acid is dissolved in the primary coolant to provide uniform reactivity compensation. The concentration of boric acid is adjusted over the fuel cycle to offset the depletion of fissile uranium-235 and the buildup of neutron-absorbing fission products. This chemical shim allows for finer control of the reactor's power output and helps flatten the axial power distribution within the core.

Advantages and disadvantages of PWR technology

Pressurized water reactors (PWRs) offer distinct operational and economic characteristics that have driven their dominance in the global nuclear fleet. A primary advantage is operational stability. The separation of the primary and secondary loops allows for precise control of the reactor core pressure, typically maintained at approximately 155 bar, which prevents the bulk coolant from boiling despite high temperatures. This design simplifies the steam turbine system in the secondary loop, as the steam generated is relatively dry and free from primary loop radioactivity compared to boiling water reactors. The use of light water as both moderator and coolant provides a strong negative temperature coefficient of reactivity, enhancing inherent safety during transient events.

Fuel cycle efficiency in PWRs is optimized through the use of enriched uranium, typically between 3% and 5% U-232, allowing for longer fuel cycles compared to some heavy water or gas-cooled designs. However, the thermal efficiency of PWRs is generally limited to approximately 33–37%. This limit arises because the primary coolant must remain subcooled to maintain pressure, constraining the maximum temperature of the steam entering the turbine. In contrast, high-temperature gas-cooled reactors or liquid metal fast breeders can achieve higher thermal efficiencies due to higher operating temperatures. The thermal efficiency η can be approximated by the Carnot efficiency formula η=1−ThotTcold, where the lower Thot in PWRs reduces the theoretical maximum efficiency.

Construction costs for PWRs are significant, driven by the complexity of the pressurizer, steam generators, and the reinforced concrete containment structure. The steam generators are particularly critical and expensive components, serving as the heat exchange interface between the radioactive primary loop and the non-radioactive secondary loop. Corrosion issues are a persistent challenge in the primary circuit. The high temperature and pressure, combined with the presence of boric acid for reactivity control and dissolved oxygen, can lead to stress corrosion cracking in stainless steel and Inconel components. This requires rigorous water chemistry control and periodic inspection of the steam generator tubes and reactor vessel internals.

Tritium production is another operational consideration. Tritium is primarily produced in the primary coolant through the neutron activation of deuterium in the light water and lithium in the boric acid. While the tritium levels in PWRs are generally lower than in heavy water reactors, they require management to minimize leakage into the secondary loop through steam generator tube defects. The tritium inventory affects the radiological footprint of the plant and influences decommissioning strategies. Despite these disadvantages, the mature supply chain and proven reliability of PWR technology continue to make it the preferred choice for new nuclear builds in many countries, balancing performance with manageable operational complexities.

Applications in power generation and naval propulsion

Commercial Power Generation

Pressurized water reactors (PWRs) dominate the global nuclear energy landscape, representing almost 70% of the world's commercial reactor fleet. This widespread adoption is driven by the design's robust thermal-hydraulic stability and the prevalence of uranium as the primary fuel source. The technology is deployed extensively in major nuclear powers, including Japan and India, which operate a significant mix of PWRs alongside other reactor types. In contrast, countries such as Canada and the United Kingdom have historically relied more heavily on alternative designs, though PWRs remain a critical component of their energy infrastructure. Modern commercial deployments feature advanced designs such as the AP1000 and the European Pressurized Reactor (EPR), which incorporate passive safety systems and standardized components to enhance operational efficiency and reduce construction timelines. The VVER-1000 and VVER-1200 series are also prominent, particularly in Eastern Europe and Asia, offering scalable capacity options for diverse grid requirements.

Naval Propulsion

In naval applications, the PWR design is favored for its compactness and high power density, making it ideal for submarines and aircraft carriers. The reactor's ability to maintain high pressure in the primary coolant loop allows for efficient heat transfer to a secondary steam cycle, driving turbines without directly exposing the turbine machinery to radioactivity. This separation enhances crew safety and simplifies maintenance in confined naval spaces. The operational status of these reactors is typically long-term, with some naval PWRs operating for decades before refueling or overhaul, providing sustained propulsion and electrical power for extended deployments.

District Heating and Thermal Applications

Beyond electricity generation, PWRs are increasingly utilized for district heating and industrial process heat. By tapping into the secondary steam loop or using heat exchangers, nuclear plants can supply thermal energy to nearby urban centers, reducing reliance on fossil fuel-fired boilers. This dual-use capability improves the overall economic viability of nuclear facilities, especially in regions with high winter heating demands. The flexibility of the PWR design allows for load-following operations, enabling the reactor to adjust output in response to variable electricity demand while maintaining stable thermal output for district heating networks.

Worked examples: PWR operational parameters

The operational parameters of a pressurized water reactor (PWR) define the thermodynamic state required to prevent the coolant from boiling in the core. The primary loop maintains a pressure of 155 bar while the coolant reaches a temperature of 315 °C. These values are critical for maintaining the light-water moderator and coolant in a liquid state, ensuring efficient heat transfer from the uranium fuel rods to the steam generators. The flow rate of the primary coolant is typically around 100,000 gallons/min, which ensures adequate heat removal and temperature uniformity across the core.

Thermodynamic State Verification

To verify that water remains liquid at the core outlet, we compare the operating pressure to the saturation pressure at the operating temperature. At 315 °C, the saturation pressure of water is approximately 85 bar. Since the operating pressure is 155 bar, which is significantly higher than 85 bar, the water is in a subcooled liquid state. This prevents the formation of steam bubbles in the core, which could reduce the moderating effect of the water and lead to reactivity changes. The margin between the operating pressure (155 bar) and the saturation pressure ensures stable operation under normal conditions.

Heat Transfer Calculation

The heat transfer rate in the primary loop can be estimated using the mass flow rate and the temperature difference between the core inlet and outlet. Assuming a flow rate of 100,000 gallons/min and a temperature rise from approximately 290 °C to 315 °C, we can calculate the thermal power. First, convert the flow rate to mass flow: 100,000 gallons/min is approximately 378,541 kg/min or 6,309 kg/s. Using the specific heat capacity of water at high pressure (approximately 5.5 kJ/kg·K), the heat transfer rate is calculated as: Q = m * Cp * ΔT = 6,309 kg/s * 5.5 kJ/kg·K * (315 - 290) K = 6,309 * 5.5 * 25 = 867,487.5 kW, or approximately 867 MW. This value represents the thermal power transferred from the core to the coolant, which is then used to generate steam in the secondary loop.

Pressure Drop Analysis

The pressure drop across the primary loop is a critical design parameter. The operating pressure of 155 bar must account for the pressure drops across the core, steam generators, and the main coolant pumps. If the total pressure drop is estimated at 20 bar, the pump head must provide sufficient pressure to maintain the 155 bar at the core outlet. This ensures that the coolant flows at the required rate of 100,000 gallons/min. The pressure drop is influenced by the flow velocity, the geometry of the core, and the friction losses in the piping. Maintaining the correct pressure balance is essential for the stable operation of the PWR.
