Grid-connected inverter

Overview

A grid-connected inverter, also known as a utility-interactive inverter, is a power electronic device that converts direct current (DC) from a source into alternating current (AC) synchronized with the electrical grid. Unlike off-grid inverters that create their own voltage and frequency reference, grid-tied inverters must match the grid’s voltage magnitude, frequency, and phase angle to feed power seamlessly. This synchronization is critical for minimizing transient currents and ensuring stable power flow from distributed energy resources, such as photovoltaic arrays or battery storage systems, into the main distribution network.

Core Operational Principles

The primary function of a grid-connected inverter is to perform DC-to-AC conversion while maintaining precise control over the output waveform. Modern units typically use Pulse Width Modulation (PWM) to synthesize a near-sinusoidal AC output. The inverter continuously monitors the grid’s voltage and frequency using Phase-Locked Loop (PLL) circuits. By adjusting the switching states of power semiconductor devices, such as Insulated Gate Bipolar Transistors (IGBTs) or Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs), the inverter ensures that the output current is in phase with the grid voltage. This phase alignment maximizes the real power transfer, defined by the equation P=V⋅I⋅cos(ϕ), where ϕ is the phase difference between voltage and current.

Grid-tied inverters generally operate in current-source mode, meaning they regulate the output current to match the grid’s voltage profile. This allows multiple inverters to share the load without complex communication, provided they follow standard voltage-frequency characteristics. The devices also provide essential protection features, including anti-islanding detection, which automatically disconnects the inverter when the main grid fails. This prevents the inverter from feeding power into a de-energized line, protecting utility workers and ensuring that connected loads receive consistent power quality.

Role in Modern Power Systems

In contemporary energy infrastructure, grid-connected inverters are fundamental to the integration of renewable energy. They enable the bidirectional flow of electricity, allowing prosumers to export excess generation and import power during deficits. Advanced inverters contribute to grid stability by providing reactive power support, voltage regulation, and frequency response. As the share of inverter-based resources increases, their ability to emulate synchronous generator characteristics becomes vital for maintaining system inertia and resilience against disturbances. The operational status of these devices is continuously monitored to ensure compliance with grid codes, which dictate performance metrics such as total harmonic distortion (THD) and power factor correction.

How does a grid-connected inverter work?

Grid-connected inverters, also known as synchronous inverters, serve as the critical interface between direct current (DC) energy sources and the alternating current (AC) utility grid. The primary function is to convert DC power, typically from photovoltaic arrays or battery storage, into AC power that matches the grid’s specific voltage, frequency, and phase requirements. This process ensures that the injected power is sinusoidal and stable, allowing multiple distributed energy resources to feed into the same network without causing instability.

DC to AC Conversion Process

The conversion begins with the DC input, which is switched on and off rapidly using power electronic switches, such as MOSFETs or IGBTs. This switching creates a pulsed DC waveform. Through a process called Pulse Width Modulation (PWM), the width of these pulses is varied to approximate a sine wave. The resulting waveform is not yet a pure sine wave; it contains high-frequency harmonics introduced by the switching process. To refine this, the signal passes through an LC filter (inductor-capacitor filter), which smooths out the ripples, producing a near-sinusoidal AC voltage suitable for grid injection.

Synchronization and Phase-Locked Loop

For the inverter to feed power into the grid, its output must be synchronized with the grid’s voltage. This is achieved using a Phase-Locked Loop (PLL). The PLL continuously monitors the grid voltage’s phase angle, frequency, and amplitude. It adjusts the inverter’s internal oscillator to match these parameters precisely. If the inverter’s output voltage is not in phase with the grid voltage, reactive power will flow unnecessarily, or the system may experience torque oscillations. The synchronization ensures that the inverter acts as a voltage source inverter (VSI), pushing current into the grid based on the phase difference between the inverter voltage and the grid voltage.

Power Flow and Control

The active power (P) and reactive power (Q) delivered to the grid are controlled by adjusting the magnitude and phase of the inverter’s output voltage relative to the grid voltage. The relationship can be approximated by the following equations for a simple single-phase system:

P=XVinvVgridsin(δ)

Q=XVinvVgridcos(δ)−XVgrid2

Where Vinv is the inverter voltage, Vgrid is the grid voltage, X is the total reactance of the connection, and δ is the phase angle difference. By modulating δ and Vinv, the inverter can control the amount of real power generated and the reactive power support provided, enhancing grid stability and power factor correction.

What are the main types of grid-connected inverters?

Grid-connected inverters are broadly categorized by their power electronic topology and control architecture. The primary structural distinction lies between string inverters, microinverters, and central inverters, each optimizing for different scales of energy generation.

Power Electronic Topologies

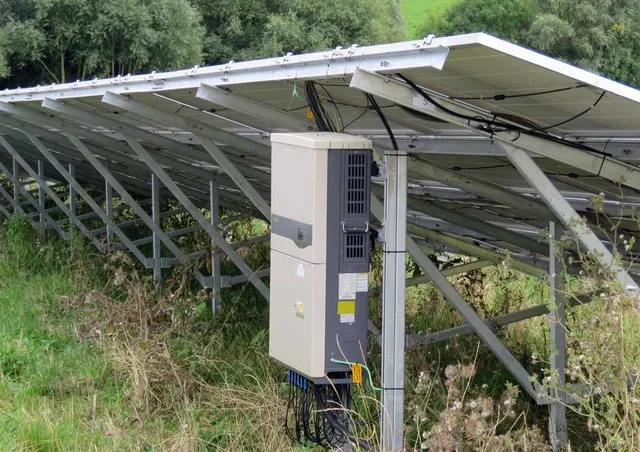

String inverters connect a series of photovoltaic modules or wind turbines to a single DC-AC conversion unit. They utilize Maximum Power Point Tracking (MPPT) algorithms to optimize the voltage-current product of the string. The conversion efficiency η is defined as:

η=PinPout×100%

Microinverters attach to individual modules, converting DC to AC at the source. This mitigates mismatch losses and shading effects, as each unit operates independently. Central inverters serve large-scale plants, aggregating DC from multiple strings into a high-power AC output, often using transformer-coupled or transformer-less designs.

Control Strategies

Control strategies dictate how the inverter interacts with the grid voltage and frequency. The most common approach is Pulse Width Modulation (PWM), which switches power devices at high frequencies to synthesize a sinusoidal AC waveform. The modulation index M relates the amplitude of the reference signal to the carrier signal.

Grid-tied inverters typically operate in two modes: Voltage Source Converter (VSC) and Current Source Converter (CSC). VSCs control the output voltage, making them suitable for weak grids, while CSCs regulate output current, offering inherent short-circuit protection. Modern inverters also employ Phase-Locked Loop (PLL) algorithms to synchronize the inverter’s output phase with the grid voltage, ensuring seamless power injection.

Applications in renewable energy systems

Grid-connected inverters serve as the critical interface between distributed energy resources and the utility grid, ensuring seamless power flow and stability. In solar photovoltaic (PV) systems, these devices convert the variable direct current (DC) output of solar arrays into alternating current (AC) that matches the grid's voltage, frequency, and phase. Modern PV inverters employ maximum power point tracking (MPPT) algorithms to optimize energy harvest under fluctuating irradiance conditions. They also provide essential grid-support functions, such as reactive power compensation and voltage regulation, which are increasingly mandated by grid codes to manage the high penetration of variable renewable energy sources.

Wind Energy Integration

In wind energy systems, inverters play a distinct role depending on the turbine generator type. For doubly-fed induction generator (DFIG) turbines, partial-scale inverters convert the slip power from the rotor circuit, allowing for efficient speed control and reactive power management. In contrast, permanent magnet synchronous generator (PMSG) turbines typically utilize full-scale back-to-back inverters. These systems convert the variable frequency AC from the generator to DC, and then back to grid-frequency AC. This configuration provides superior low-voltage ride-through (LVRT) capabilities, enabling wind farms to remain connected during grid faults, thereby enhancing overall system inertia and frequency stability.

Battery Energy Storage Systems (BESS)

For battery energy storage systems, grid-tied inverters facilitate bidirectional power flow, allowing batteries to charge from and discharge to the grid with high precision. These inverters are crucial for frequency regulation services, where rapid response times—often measured in milliseconds—are required to balance supply and demand. They convert the DC output of battery banks into AC, synchronizing with the grid using phase-locked loops (PLL). Advanced BESS inverters also support black-start capabilities, enabling the restoration of power to the grid following a total outage by creating a stable voltage and frequency reference for other generators. The integration of inverters in BESS also enhances power quality by filtering harmonics and correcting power factor, reducing the need for additional capacitive or inductive compensation equipment on the distribution network.

Key technical parameters and specifications

Grid-connected inverters, also known as synchronous inverters, serve as the critical interface between direct current (DC) sources and the alternating current (AC) utility grid. Their primary function is to convert DC power into AC power that matches the grid's voltage, frequency, and phase angle. The technical performance of these devices is defined by several key parameters that determine efficiency, power quality, and grid stability. These specifications are essential for system designers, engineers, and analysts evaluating inverter suitability for specific energy infrastructure projects.

Efficiency and Power Factor

Efficiency is a primary metric for inverter performance, representing the ratio of AC output power to DC input power. High efficiency minimizes energy losses during the conversion process. The efficiency (η) is calculated using the formula:

η=PDCPAC×100%

Modern grid-tied inverters typically achieve high efficiency ratings, often exceeding 96% at peak load. Efficiency varies with the load profile, meaning the inverter's performance at partial load may differ from its performance at full capacity.

The power factor (PF) indicates the phase relationship between voltage and current. A unity power factor (PF = 1) means voltage and current are in phase, maximizing real power delivery. Grid codes often require inverters to operate at specific power factors or to provide reactive power support. The power factor is defined as:

PF=SP

Where P is real power (Watts) and S is apparent power (Volt-Amperes). Inverters with a high power factor reduce the burden on the grid's reactive power compensation systems.

Total Harmonic Distortion (THD)

Total Harmonic Distortion (THD) measures the purity of the AC waveform produced by the inverter. Lower THD indicates a waveform closer to a pure sine wave, reducing stress on grid components. THD is calculated as the ratio of the root mean square (RMS) of the harmonic components to the RMS of the fundamental frequency component:

THD=V1V22+V32+⋯+Vn2×100%

Grid codes typically mandate a THD of less than 5% for current and voltage, ensuring compatibility with sensitive electrical equipment.

Parameter	Typical Value / Range	Description
Efficiency	96% – 98.5%	Ratio of AC output to DC input power.
Power Factor	0.8 lagging to 0.8 leading	Phase relationship between voltage and current.
Current THD	< 3% – 5%	Harmonic distortion of the output current.
Voltage THD	< 5%	Harmonic distortion of the output voltage.
Frequency Tolerance	49.5 Hz – 50.5 Hz (or 59.5 – 60.5 Hz)	Acceptable grid frequency range.
Voltage Tolerance	± 5% – 10%	Acceptable grid voltage range.

These parameters ensure that the inverter integrates seamlessly with the existing grid infrastructure, maintaining stability and power quality for all connected loads.

Challenges and future developments

Grid-connected inverters face significant challenges in maintaining stability as the share of inverter-based resources increases. Traditional grid stability relied on the rotational inertia of synchronous generators, but inverters introduce complex dynamic behaviors. Voltage and frequency regulation become critical tasks, requiring advanced control loops to synchronize the inverter output with the grid waveform. Without proper phase-locked loop (PLL) performance, inverters may experience phase drift or lock loss during disturbances, leading to tripping events. The interaction between multiple inverters can also lead to resonance issues, particularly in weak grids with low short-circuit ratios. Engineers must carefully tune control parameters to ensure stability under varying load and generation conditions.

Harmonics and Power Quality

Power quality degradation, primarily through harmonics, is a persistent challenge for grid-tied inverters. Switching devices such as IGBTs and MOSFETs generate high-frequency harmonics that can distort the current and voltage waveforms. These harmonics can cause overheating in transformers, nuisance tripping of protective devices, and interference with communication signals. Total Harmonic Distortion (THD) is a key metric, defined as THD=V1∑h=2∞Vh2×100%, where Vh is the RMS value of the h-th harmonic and V1 is the fundamental RMS voltage. Mitigation strategies include using higher switching frequencies, multi-level inverter topologies, and passive or active filters. Standards such as IEEE 1547 and IEC 61000-3 specify acceptable harmonic limits to ensure compatibility with other grid users.

Emerging Technologies

Future developments focus on enhancing the flexibility and intelligence of grid-connected inverters. Wide-bandgap semiconductors, including Silicon Carbide (SiC) and Gallium Nitride (GaN), are enabling higher switching frequencies and reduced losses, improving overall efficiency and power density. Advanced control algorithms, such as model predictive control (MPC) and adaptive droop control, are being deployed to improve dynamic response and facilitate seamless integration of distributed energy resources. The concept of "smart inverters" incorporates communication capabilities, allowing inverters to receive real-time grid data and adjust their output for voltage support, frequency regulation, and even black-start capabilities. These advancements are crucial for the transition to a more resilient and decentralized power system, where inverters play an active role in grid management rather than merely following the grid's lead.

Worked examples

Practical inverter sizing requires balancing DC array output against AC load demands while accounting for efficiency losses. The following examples illustrate standard calculation methods for residential and commercial applications.

Example 1: Residential Inverter Sizing

Consider a home with a peak AC load of 5 kW and a solar PV array rated at 6 kWDC. To determine the minimum inverter size, apply a safety factor of 1.1 to the peak load: 5 kW × 1.1 = 5.5 kWAC. The inverter must handle at least 5.5 kW continuous output. Next, verify the DC-to-AC ratio. A common ratio is 1.2:1. Here, 6 kWDC / 5.5 kWAC ≈ 1.09, which is within the optimal range for modern string inverters. If the inverter efficiency is 96%, the actual AC output from a full 6 kWDC input would be 6 kW × 0.96 = 5.76 kWAC. This confirms the 5.5 kWAC inverter is appropriately sized to handle the array’s output without excessive clipping.

Example 2: Commercial System with Power Factor Correction

A small commercial building has a real power (P) demand of 100 kW and a reactive power (Q) demand of 40 kVAR. The apparent power (S) determines the inverter’s volt-ampere (VA) rating. Calculate S using the formula: S = √(P² + Q²). Substituting the values: S = √(100² + 40²) = √(10,000 + 1,600) = √11,600 ≈ 107.7 kVA. The inverter must be rated for at least 107.7 kVA. The power factor (PF) is P / S = 100 / 107.7 ≈ 0.93. If the inverter’s native PF is 0.9, it may need a capacitor bank to correct the PF to 0.93, ensuring the inverter operates within its thermal limits and maximizing the usable real power output.

Example 3: Battery Backup Duration

For a hybrid system with a 10 kWh battery bank and a 2 kW continuous load, calculate the backup duration. First, account for Depth of Discharge (DoD). If the battery is a Lithium-Ion type with an 80% DoD, the usable energy is 10 kWh × 0.80 = 8 kWh. Next, factor in inverter efficiency. Assuming 95% efficiency, the effective energy delivered to the load is 8 kWh × 0.95 = 7.6 kWh. The backup duration is then 7.6 kWh / 2 kW = 3.8 hours. This calculation shows that while the nominal battery capacity is 10 kWh, the actual runtime under a 2 kW load is just under 4 hours due to system losses and DoD limits.
