Overview
Frequency conversion control is a fundamental concept in power electronics and grid stability, referring to the process of converting electrical energy from one frequency to another. This technology is critical in modern power systems, where different parts of the grid may operate at varying frequencies, or where renewable energy sources, such as wind and solar, produce power at fluctuating frequencies. The primary role of frequency conversion control is to ensure that the electrical power delivered to the load or transmitted across the grid meets the required frequency specifications, thereby maintaining stability and efficiency.
Role in Power Electronics
In power electronics, frequency conversion is typically achieved using devices such as inverters, converters, and cycloconverters. These devices manipulate the frequency of the input electrical signal to produce an output signal with the desired frequency. For example, in a direct current (DC) to alternating current (AC) conversion process, an inverter can adjust the frequency of the AC output to match the grid's requirements. This is particularly important in renewable energy systems, where the frequency of the generated power may vary due to changes in environmental conditions, such as wind speed or solar irradiance.
The control strategies employed in frequency conversion systems are designed to optimize performance, minimize losses, and enhance the overall reliability of the power system. Advanced control algorithms, such as pulse width modulation (PWM) and phase-locked loops (PLL), are commonly used to achieve precise frequency control. These techniques allow for dynamic adjustment of the output frequency in response to changes in the input signal or load conditions.
Impact on Grid Stability
Frequency conversion control plays a crucial role in maintaining grid stability, especially in power systems with a high penetration of renewable energy sources. In traditional power grids, the frequency is primarily determined by the rotational speed of synchronous generators. However, with the increasing integration of inverter-based resources, such as solar photovoltaics and wind turbines, the grid's frequency becomes more susceptible to fluctuations. Frequency conversion control helps to mitigate these fluctuations by ensuring that the power injected into the grid matches the required frequency, thereby preventing issues such as frequency deviations, voltage instability, and even blackouts.
Furthermore, frequency conversion control is essential in interconnecting power systems that operate at different frequencies. For instance, in some regions, the grid may be divided into zones operating at 50 Hz and 60 Hz. Frequency converters are used to synchronize these zones, allowing for seamless power exchange and enhancing the overall flexibility and resilience of the grid. This is particularly important in the context of energy storage systems, where frequency conversion can help to balance supply and demand by storing excess energy during periods of low demand and releasing it during peak demand.
Background
Frequency conversion control is a fundamental concept in electrical engineering and power systems, referring to the process of changing the frequency of an alternating current (AC) electrical power. This capability is critical for interconnecting power grids that operate at different standard frequencies, such as the 50 Hz systems prevalent in Europe and Asia and the 60 Hz systems common in North America and parts of South America. The historical development of frequency conversion is deeply intertwined with the standardization of electrical power systems in the late 19th and early 20th centuries, where the "War of Currents" between alternating and direct current, and subsequent frequency standardizations, created a fragmented global grid landscape.
Early frequency conversion relied primarily on electromechanical methods. The motor-generator set was the first widely adopted technology, consisting of an electric motor driven by the source frequency and a generator producing the target frequency. This method provided galvanic isolation and robustness but suffered from mechanical wear and relatively low efficiency. Another early electromechanical approach was the rotary converter, which combined motor and generator functions on a single shaft, offering compactness but requiring complex commutation mechanisms. These systems were essential for early industrial applications and the initial interconnection of regional grids, such as the links between the 50 Hz and 60 Hz systems in Europe during the post-war reconstruction period.

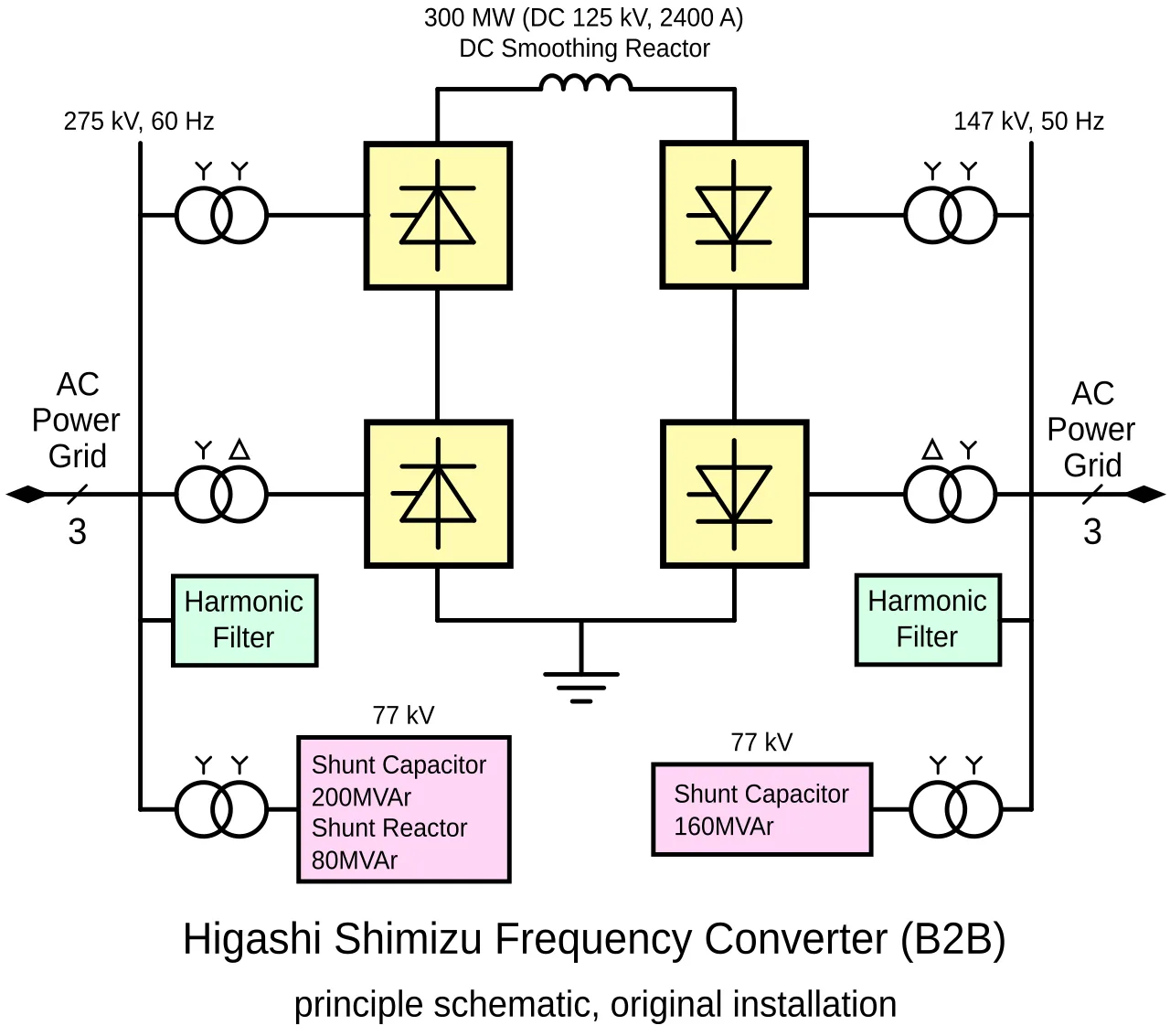

The advent of power electronics in the mid-20th century revolutionized frequency conversion. The introduction of the thyristor in the 1950s enabled the development of the back-to-back converter, where two thyristor-based converters are connected in series, sharing a common DC link. This technology allowed for precise control of power flow and frequency, with the ability to handle high power levels with fewer moving parts compared to motor-generator sets. The thyristor-based systems became the backbone of high-voltage direct current (HVDC) links used for frequency conversion, such as the Moanda link in Africa and the East-West Interconnector in the UK.
In recent decades, the rise of insulated-gate bipolar transistors (IGBTs) and other wide-bandgap semiconductors has led to the development of voltage-source converter (VSC) technology. VSC-based frequency converters offer greater flexibility, faster response times, and the ability to control both active and reactive power independently. This has enabled the creation of more compact and efficient frequency conversion systems, suitable for a wider range of applications, including the integration of renewable energy sources and the interconnection of microgrids. The evolution from electromechanical to electronic frequency conversion reflects the broader trend in power systems towards greater flexibility, efficiency, and controllability.
How does frequency conversion control work?
Frequency conversion control manages power transfer between asynchronous grids by decoupling the source and load frequencies through a multi-stage conversion process. This architecture is essential for connecting high-voltage direct current (HVDC) links, variable renewable energy sources, and flexible AC transmission systems (FACTS). The fundamental operation relies on converting alternating current (AC) to direct current (DC), processing the DC link, and then inverting the DC back to AC at the desired output frequency.AC-DC Conversion Stage
The process begins with the rectification stage, where input AC power is converted to DC. In traditional line-commutated converter (LCC) systems, thyristors are used to control the phase angle of the incoming AC voltage. Modern systems increasingly employ voltage-source converters (VSC) using insulated-gate bipolar transistors (IGBTs). These semiconductor devices switch on and off at high frequencies to synthesize the DC voltage level. The rectifier extracts the active power from the AC source, smoothing out the ripple through inductors and capacitors to create a relatively stable DC bus voltage.
DC Link and Processing
The DC link serves as the energy buffer between the input and output stages. It allows for independent control of active and reactive power. Capacitors in the DC link store energy, smoothing the power flow and stabilizing the voltage. In some configurations, a chopper circuit or a DC-DC converter adjusts the voltage level before it reaches the inverter. This stage is critical for filtering harmonics and ensuring that the DC voltage remains within the optimal operating range for the inverter switches, minimizing conduction and switching losses.
DC-AC Inversion and Frequency Synthesis
The inverter stage converts the DC power back to AC at the target frequency. Using pulse-width modulation (PWM) techniques, the inverter switches control the duration of the voltage pulses applied to the output filter. By adjusting the switching pattern, the inverter synthesizes a sinusoidal AC waveform with a precise frequency and amplitude. The output frequency is determined by the modulation index and the switching frequency of the IGBTs. This allows for fine-grained control over the output frequency, enabling synchronization with the receiving grid or load requirements. The inverter also manages reactive power flow by adjusting the phase angle of the output voltage relative to the grid voltage.
What are the main types of frequency converters?
Frequency conversion control systems are categorized by their topology and modulation strategy, primarily distinguishing between cycloconverters, PWM inverters, and matrix converters. These classifications define the efficiency, harmonic content, and complexity of the power electronic interface.
Cycloconverters
Cycloconverters perform direct AC-to-AC conversion without an intermediate DC link. They are typically used for high-power, low-speed applications. The output frequency is generally a sub-multiple of the input frequency, providing smooth control but with complex control logic and significant harmonic distortion in both input and output currents.
PWM Inverters
Pulse Width Modulation (PWM) inverters are the most common topology, featuring a two-stage conversion process: rectification to a DC link, followed by inversion back to AC. This architecture allows for independent control of output voltage and frequency. The modulation index M and the DC link voltage Vdc determine the output phase voltage amplitude Vout, often expressed as Vout=M⋅2Vdc for sinusoidal PWM. This type offers high efficiency and flexible control but requires bulky DC link capacitors or inductors.
Matrix Converters
Matrix converters provide direct AC-to-AC conversion using bidirectional switches, eliminating the need for a bulky DC link. This results in a more compact design with improved power factor and sinusoidal input/output currents. However, the control complexity is higher, and the voltage transfer ratio is limited to approximately 0.866 of the input voltage.
| Type | Topology | Key Advantage | Key Disadvantage |
|---|---|---|---|
| Cycloconverter | Direct AC-AC | High power, low speed | Low output frequency range |
| PWM Inverter | AC-DC-AC | Flexible control, high efficiency | Bulky DC link components |
| Matrix Converter | Direct AC-AC | Compact, sinusoidal currents | Complex control, voltage stress |
Frequency conversion in electric bicycles
Frequency conversion control is a critical technology in electric bicycles (e-bikes), enabling efficient power management and motor performance. This application leverages microcontroller-based systems to regulate the frequency of electrical signals driving the motor, optimizing torque and speed. A notable scholarly article from 2002 discusses the implementation of frequency conversion control using the C164 microcontroller, highlighting its role in enhancing e-bike performance.
Microcontroller-Based Control in E-Bikes
The C164 microcontroller, as described in the 2002 article, serves as the core component for frequency conversion in e-bikes. It processes input signals from sensors, such as pedal cadence and battery voltage, to adjust the motor's operating frequency. This dynamic adjustment ensures smooth acceleration and efficient energy use. The microcontroller's ability to handle real-time data makes it ideal for managing the complex interactions between the motor, battery, and rider input.
Technical Implementation
The frequency conversion process involves modulating the electrical signal's frequency to match the motor's requirements. For a brushless DC motor, the frequency f is related to the motor speed N (in RPM) and the number of pole pairs P by the formula: f=60N×P. The C164 microcontroller calculates the required frequency based on sensor inputs and adjusts the pulse-width modulation (PWM) signal accordingly. This ensures the motor operates at optimal efficiency across varying loads and speeds.
Benefits and Applications
Frequency conversion control in e-bikes offers several advantages, including improved energy efficiency, smoother ride quality, and extended battery life. By dynamically adjusting the motor's frequency, the system minimizes energy waste and reduces mechanical stress on components. This technology is particularly beneficial for urban e-bikes, where frequent starts and stops are common. The 2002 article emphasizes the C164 microcontroller's role in making frequency conversion control accessible and cost-effective for e-bike manufacturers.
In summary, frequency conversion control, as detailed in the 2002 scholarly article, represents a significant advancement in e-bike technology. The use of the C164 microcontroller enables precise and efficient motor control, enhancing the overall performance and user experience of electric bicycles.
Challenges and limitations
Frequency conversion control systems face significant technical hurdles that impact their reliability, efficiency, and overall cost-effectiveness. These challenges stem primarily from the inherent non-linearities introduced by power electronic switches and the dynamic nature of the electrical loads they serve. Addressing these limitations requires careful engineering trade-offs between performance, thermal management, and harmonic quality.
Harmonic Distortion and Power Quality
One of the most persistent issues in frequency conversion is harmonic distortion. The switching action of devices like Insulated Gate Bipolar Transistors (IGBTs) or Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs) generates non-sinusoidal voltage and current waveforms. These harmonics can propagate back into the source grid or affect the connected load, leading to overheating in transformers and motors, and increased dielectric stress on insulation. Total Harmonic Distortion (THD) is a key metric, often defined as:
THD=V1∑n=2∞Vn2×100%where Vn is the RMS value of the n-th harmonic and V1 is the fundamental component. High THD can cause resonance issues in the power system, potentially leading to capacitor bank failures or relay misoperations. Mitigating these effects often requires additional filtering stages, which add complexity and cost to the converter topology.
Thermal Management and Heat Dissipation
Efficiency losses in frequency converters manifest primarily as heat. Switching losses occur during the transition between on and off states, while conduction losses arise from the voltage drop across the semiconductor devices when current flows. In high-power applications, these losses can be substantial, necessitating robust thermal management systems. Inadequate cooling can lead to thermal runaway, reducing the lifespan of the power devices and potentially causing catastrophic failure. Advanced cooling techniques, such as liquid cooling or phase-change materials, are often employed in high-density converters to maintain optimal junction temperatures.
Efficiency Losses and Dynamic Response
While modern converters achieve high efficiency, losses still occur due to hysteresis in magnetic cores and eddy currents in inductors and transformers. These losses reduce the overall energy conversion efficiency, which is critical in large-scale applications like variable frequency drives (VFDs) for industrial motors. Additionally, the dynamic response of the control loop can be limited by the sampling rate of the digital controller and the bandwidth of the power devices. This can lead to phase lag and reduced stability margins, particularly under rapidly changing load conditions. Balancing these factors is essential for optimizing the performance of frequency conversion systems in diverse energy infrastructure applications.
