Overview
Flywheel frequency regulation is a mechanical energy storage technology designed to stabilize electrical grids by managing the balance between power generation and consumption. Unlike battery systems that rely on electrochemical reactions, flywheels store energy in the rotational kinetic energy of a mass. This method provides rapid response times, making it particularly effective for second-by-second adjustments in grid frequency. The technology is increasingly relevant as renewable energy sources, such as wind and solar, introduce greater variability into the power supply.
The basic principle of operation involves converting electrical energy into kinetic energy and vice versa. When electrical power is fed into the flywheel system, an electric motor accelerates a rotor to high speeds. The energy stored in the rotating mass is defined by the formula E=21Iω2, where E is energy, I is the moment of inertia, and ω is the angular velocity. To release energy, the rotor acts as a generator, converting the kinetic energy back into electrical power. This bidirectional flow allows the system to absorb excess power or inject power into the grid almost instantaneously.
Flywheel systems play a critical role in bridging the gap between generation and consumption. In a traditional grid, frequency deviations occur when the total load changes faster than generators can adjust their output. Flywheels respond to these deviations within milliseconds, providing a buffer that stabilizes the frequency. This rapid response is essential for maintaining grid stability, especially in regions with high penetration of intermittent renewable energy sources. The ability to charge and discharge quickly makes flywheels ideal for frequency regulation services, where speed often outweighs total energy capacity.
Did you know: Modern flywheel systems can achieve rotational speeds exceeding 10,000 RPM, significantly increasing their energy density compared to earlier models.
The design of flywheel systems has evolved to maximize efficiency and minimize energy loss. Early flywheels were made of steel and operated in air, leading to significant friction losses. Contemporary systems use composite materials for the rotor and operate in a vacuum to reduce drag. Some advanced designs incorporate magnetic bearings to eliminate mechanical contact, further enhancing efficiency. These improvements have extended the operational life of flywheels and reduced maintenance requirements, making them more competitive with other storage technologies.
Despite their advantages, flywheels have limitations. They typically store less energy per unit of mass compared to lithium-ion batteries, making them better suited for short-duration storage applications. Additionally, the high rotational speeds require robust containment structures to handle potential rotor failures. However, for frequency regulation, where power output and response time are prioritized over total energy capacity, flywheels offer a compelling solution. As grid demands evolve, flywheel technology continues to refine its role in ensuring stable and reliable power delivery.
How does flywheel frequency regulation work?
Flywheel energy storage systems (FESS) regulate grid frequency by converting electrical energy into kinetic energy. The core component is a rotor, typically made of carbon fiber or steel, spinning at high speeds within a vacuum chamber to minimize drag. A motor/generator unit drives the rotor and recovers energy during deceleration. Modern systems often use magnetic bearings to reduce friction, though rolling element bearings remain common in cost-sensitive applications.
Operation involves two primary phases. During charging, power electronics convert alternating current (AC) to direct current (DC) or variable frequency AC to accelerate the rotor. The kinetic energy stored is defined by the formula E=21Iω2, where I is the moment of inertia and ω is the angular velocity. When the grid frequency drops, the rotor decelerates, generating electricity that is fed back into the grid via an inverter. This response occurs within milliseconds, making FESS ideal for short-duration frequency regulation.
Caveat: While flywheels excel in power density, their energy density is lower than lithium-ion batteries, limiting their duration without significant rotor mass.
Technical Comparison
The following table compares key parameters of flywheel systems against lithium-ion batteries and broader battery energy storage systems (BESS). These values represent typical operational ranges as of 2026.
| Parameter | Flywheel (FESS) | Lithium-Ion (Li-ion) | BESS (Aggregate) |
|---|---|---|---|
| Power Density (kW/kg) | 0.5 – 2.0 | 0.3 – 1.5 | 0.2 – 1.0 |
| Energy Density (Wh/kg) | 10 – 50 | 150 – 250 | 100 – 200 |
| Round-Trip Efficiency | 85% – 92% | 85% – 95% | 80% – 90% |
| Response Time | 10 – 100 ms | 100 – 500 ms | 50 – 200 ms |
Flywheels are particularly effective for high-cycle applications, such as frequency containment reserve (FCR) and frequency restoration reserve (FRR). Their ability to handle thousands of charge/discharge cycles with minimal degradation makes them competitive in markets with volatile renewable generation. However, self-discharge rates are higher than batteries, requiring periodic "spin-up" to maintain readiness.
What are the main types of flywheel systems?
Flywheel energy storage systems are categorized by rotor material, bearing technology, and the ambient environment within the housing. These architectural choices directly dictate the specific energy density, power rating, and operational lifespan of the unit. The selection of components involves distinct engineering trade-offs between initial capital expenditure, maintenance frequency, and total cost of ownership.
Rotor Materials
The rotor is the primary mass storing kinetic energy. Steel rotors are the most common in industrial applications due to their high tensile strength and relatively low cost. However, steel is dense, which limits the maximum rotational speed before centrifugal forces cause structural failure. This results in a moderate specific energy density, typically ranging from 5 to 15 Wh/kg. Steel flywheels are robust and well-suited for high-power, shorter-duration discharge cycles, such as frequency regulation in power grids.
Carbon fiber composite rotors offer significantly higher specific energy, often exceeding 50 Wh/kg. The anisotropic nature of carbon fiber allows engineers to align the fibers to resist the high hoop stresses generated at the rim during rotation. This enables much higher rotational speeds, sometimes exceeding 10,000 RPM. While carbon fiber rotors provide greater energy density and faster response times, they are more expensive to manufacture and can be susceptible to delamination if not properly engineered. The choice between steel and carbon fiber depends on whether the application prioritizes energy capacity or power throughput.
Bearing Technologies
Bearings support the rotor and minimize frictional losses. Rolling element bearings, such as ball or roller bearings, are mechanically simple and cost-effective. They are commonly used in steel flywheel systems operating at lower speeds. However, rolling bearings have a finite lifespan due to mechanical wear and require periodic lubrication or replacement. This maintenance requirement can be a disadvantage in remote or hard-to-access installations.
Magnetic bearings levitate the rotor using electromagnetic forces, eliminating physical contact between the rotor and the stator. This drastically reduces friction, allowing for higher rotational speeds and longer operational lifespans, often exceeding 20 years with minimal maintenance. Magnetic bearings are essential for high-speed carbon fiber rotors. The trade-off is increased complexity and cost, as they require active control systems and power supplies to maintain levitation. In the event of a power failure, backup rolling bearings or air bearings often catch the rotor.
Vacuum Level
Air resistance, or windage loss, is a significant source of energy dissipation in flywheels. High-vacuum housings reduce the air pressure around the rotor to minimize drag. This is critical for high-speed rotors, particularly those made of carbon fiber, where windage losses can otherwise dominate the energy budget. Maintaining a high vacuum requires robust seals and sometimes a vacuum pump, adding to the system's complexity and cost. Atmospheric or low-vacuum systems are simpler and cheaper but are generally limited to lower speeds and shorter durations due to higher frictional losses.
Caveat: The energy stored in a flywheel is proportional to the square of the angular velocity (E=21Iω2). Therefore, increasing rotational speed is often more effective for boosting energy density than increasing the rotor's mass.
| Architecture | Specific Energy (Wh/kg) | Lifespan | Maintenance | Typical Application |
|---|---|---|---|---|
| Steel / Rolling / Atmospheric | 5–15 | 5–10 years | High | UPS, Industrial Power Quality |
| Steel / Magnetic / Vacuum | 10–20 | 10–15 years | Medium | Grid Frequency Regulation |
| Carbon Fiber / Magnetic / High Vacuum | 20–50+ | 15–20+ years | Low | High-Performance Grid Storage |
The optimal flywheel architecture depends on the specific requirements of the energy application. For short-duration, high-power needs like frequency regulation, steel rotors with magnetic bearings in a vacuum offer a balanced cost-performance ratio. For applications requiring longer duration and higher energy density, carbon fiber composites with advanced magnetic levitation and high-vacuum environments are preferred, despite their higher initial cost. Engineers must weigh these factors to select the most efficient and cost-effective solution for each use case.
Applications in power grids
Flywheel energy storage systems (FESS) are deployed in power grids primarily for high-cycle, short-duration frequency regulation tasks. Unlike electrochemical batteries, which excel at energy density, flywheels offer superior power density and cycle life, making them ideal for rapid charge and discharge events. The kinetic energy stored in a rotating mass is defined by E=21Iω2, where I is the moment of inertia and ω is the angular velocity. This physical characteristic allows flywheels to respond to grid frequency deviations within milliseconds, providing immediate inertia support.
Primary Frequency Response (PFR)
In primary frequency response, flywheels act as a buffer to stabilize grid frequency following sudden load or generation changes. When grid frequency drops, the flywheel discharges power almost instantaneously, slowing its rotational speed. Conversely, when frequency rises, it absorbs excess power, accelerating the rotor. This rapid response is critical for maintaining the balance between supply and demand in real-time. Flywheels are often preferred over batteries for PFR because they can handle thousands of cycles per day with minimal degradation, whereas lithium-ion batteries may suffer from thermal stress and capacity fade under similar high-frequency cycling conditions.
Spinning Reserve and UPS for Data Centers
Flywheels also serve as spinning reserve, providing backup power that can be brought online quickly to prevent blackouts. In data centers, flywheel-based uninterruptible power supplies (UPS) have become increasingly popular. They bridge the gap between a power outage and the startup of diesel generators, typically lasting 15 to 30 minutes. This application leverages the flywheel's ability to deliver high power output with high reliability. The mechanical nature of flywheels means they are less sensitive to temperature variations compared to batteries, which is advantageous in the controlled environments of data centers.
Smoothing Renewable Energy Intermittency
For wind and solar power, flywheels help smooth out the inherent intermittency of generation. Wind speed fluctuations and cloud cover can cause rapid changes in power output. Flywheels absorb excess energy during peaks and release it during troughs, providing a more stable power feed into the grid. This smoothing effect reduces the need for other fast-acting reserves, such as natural gas peaker plants or battery storage. The ability of flywheels to handle high cycle counts makes them particularly suitable for the variable nature of renewable energy sources.
Caveat: While flywheels excel in power density and cycle life, their energy density is generally lower than that of batteries. This means they are less effective for long-duration energy storage, such as shifting solar power from midday to evening. The choice between flywheels and batteries often depends on the specific duration and frequency of the grid event being addressed.
The integration of flywheels into power grids represents a nuanced approach to energy storage. They are not a one-size-fits-all solution but rather a specialized tool for specific grid challenges. Their mechanical simplicity and robustness offer a compelling alternative to electrochemical storage in certain applications. However, the trade-off between energy and power density must be carefully considered when designing grid storage solutions.
Worked examples
Flywheel energy storage systems (FESS) provide fast-responding inertia and power for grid frequency regulation. The core physics relies on kinetic energy stored in a rotating mass. The fundamental equation is E = 0.5 * I * ω², where E is energy in Joules, I is the moment of inertia in kg·m², and ω is the angular velocity in radians per second (rad/s). The moment of inertia for a solid cylindrical rotor is I = 0.5 * m * r², with m being mass and r the radius.
Example 1: Energy Sizing for a 1 MW, 10-Minute Event
Consider a regulation requirement of 1 MW continuous power output over 10 minutes. First, calculate the total energy needed. Time is 10 minutes × 60 seconds/minute = 600 seconds. Energy E = Power × Time = 1,000,000 W × 600 s = 600,000,000 J (600 MJ). This is the baseline energy the rotor must store, assuming 100% efficiency and full discharge. In practice, systems rarely discharge to zero RPM to maintain gyroscopic stability, so usable energy might be 70–80% of total stored energy.
Example 2: Determining Rotor Speed and Inertia
Assume a design target of 3,600 RPM (revolutions per minute) for the flywheel. Convert RPM to angular velocity: ω = (RPM × 2π) / 60 = (3600 × 6.283) / 60 ≈ 377 rad/s. Using the energy equation E = 0.5 * I * ω², solve for the required moment of inertia I. Rearranging gives I = 2E / ω². Substituting the values: I = (2 × 600,000,000 J) / (377 rad/s)² ≈ 1,200,000,000 / 142,129 ≈ 8,442 kg·m². This inertia value dictates the physical dimensions of the rotor.
Example 3: Calculating Rotor Mass and Radius
Using the inertia I ≈ 8,442 kg·m² and the formula for a solid cylinder I = 0.5 * m * r², we can determine mass and radius. Assume a rotor radius of 1 meter for simplicity. Then 8,442 = 0.5 × m × (1)², which simplifies to m = 16,884 kg. A 16.9-ton rotor with a 1-meter radius spinning at 3,600 RPM stores the required 600 MJ. If the radius is reduced to 0.5 meters, the mass increases significantly because I scales with the square of the radius. 8,442 = 0.5 × m × 0.25, leading to m = 67,536 kg. This demonstrates the trade-off between size, mass, and rotational speed.
Did you know: High-speed flywheels often use carbon-fiber composites to handle the centripetal forces, allowing speeds exceeding 10,000 RPM, whereas steel rotors typically max out around 3,000 RPM.
Power output during regulation depends on the torque applied and the rotational speed. Power P = Torque × ω. For a 1 MW output at 377 rad/s, the required torque is 1,000,000 / 377 ≈ 2,653 N·m. This torque is delivered by the motor-generator set coupled to the rotor. The system must respond within seconds to correct frequency deviations, leveraging the mechanical inertia to bridge the gap between generation and load changes.
What distinguishes flywheels from battery storage?
Flywheel energy storage systems (FESS) and electrochemical batteries serve distinct roles in grid frequency regulation due to fundamental differences in their physical mechanisms. Flywheels store energy kinetically in a rotating mass, whereas batteries store energy chemically. This distinction dictates their performance under the stress of high-frequency cycling, depth of discharge (DoD), and thermal environments.
One of the most significant advantages of flywheels is their exceptional cycle life. A flywheel can undergo hundreds of thousands, sometimes millions, of charge and discharge cycles with minimal degradation. In contrast, lithium-ion batteries typically degrade after several thousand cycles, and lead-acid batteries often struggle beyond a few hundred deep cycles. This makes flywheels highly suitable for applications requiring rapid, repeated power bursts, such as primary frequency response, where the system must react within milliseconds to stabilize grid frequency.
Depth of discharge is another critical differentiator. Flywheels can be discharged deeply—often up to 80–90% of their total capacity—without significant impact on their lifespan. Batteries, particularly lead-acid types, suffer accelerated degradation when frequently discharged beyond 50–70% of their capacity. Lithium-ion batteries handle deeper discharges better but still experience gradual capacity fade over time, especially under high C-rates (charge/discharge rates).
Temperature sensitivity also favors flywheels in certain environments. Electrochemical reactions in batteries are highly dependent on temperature. Extreme cold reduces lithium-ion battery capacity and power output, while excessive heat accelerates electrolyte evaporation and electrode degradation. Flywheels, operating in a vacuum-sealed housing to minimize air friction, are less affected by ambient temperature fluctuations, though their bearings and motor-generator sets require thermal management.
However, batteries excel in long-duration energy storage. Flywheels suffer from higher self-discharge rates due to bearing friction and air resistance (if not in a near-perfect vacuum), meaning they are best suited for short-duration applications, typically ranging from seconds to a few hours. Batteries, with lower self-discharge rates, can store energy for days or even weeks, making them ideal for shifting energy from peak production to peak consumption periods.
Comparative Metrics
| Metric | Flywheel (FESS) | Lithium-Ion Battery | Lead-Acid Battery |
|---|---|---|---|
| Cycle Life | 100,000 – 1,000,000+ | 2,000 – 5,000 | 300 – 700 |
| Depth of Discharge (DoD) | 80% – 90% | 80% – 90% | 50% – 70% |
| Temperature Sensitivity | Moderate | High | High |
| Self-Discharge Rate | High (10% – 20% per hour) | Low (1% – 5% per month) | Low (5% – 10% per month) |
| Ideal Duration | Seconds to Hours | Hours to Days | Hours to Days |
Caveat: While flywheels offer superior cycle life, their energy density is generally lower than that of lithium-ion batteries, meaning they require more physical space for the same amount of stored energy.
The choice between flywheels and batteries depends on the specific requirements of the frequency regulation task. For high-frequency, short-duration adjustments, flywheels provide unmatched durability and responsiveness. For longer-duration energy shifting and lower cycling frequencies, batteries offer greater energy density and lower self-discharge. In many modern grid applications, a hybrid approach is used, leveraging the strengths of both technologies to optimize performance and cost-efficiency.
Economic and operational considerations
Flywheel energy storage systems present a distinct economic profile compared to electrochemical batteries, primarily driven by the trade-off between capital expenditure (CapEx) and operational expenditure (OpEx). The levelized cost of storage (LCOS) for flywheels is highly sensitive to the number of full-load hours and cycle life. Unlike lithium-ion batteries, which degrade chemically over time, flywheels offer mechanical longevity, often exceeding 20,000 to 100,000 cycles with minimal capacity fade. This durability significantly reduces the OpEx component related to replacement, making flywheels economically attractive for high-frequency regulation markets where cycling intensity is high.
Capital costs remain the primary barrier to widespread adoption. The majority of the CapEx is attributed to the rotor assembly, vacuum enclosure, and magnetic bearings. Advanced composite rotors, such as carbon-fiber-reinforced polymers, allow for higher rotational speeds and energy density but carry a premium price tag. Maintenance requirements are generally lower than those of internal combustion engines but can be higher than static inverters due to the mechanical nature of the system. Key maintenance items include the vacuum seal integrity, bearing lubrication (if not fully magnetic), and the power electronics interface. Regular monitoring of vibration and temperature is critical to prevent catastrophic rotor failure, which can release significant kinetic energy.
Power electronics play a crucial role in the overall efficiency and performance of flywheel systems. The conversion of mechanical energy to electrical energy and vice versa involves a motor-generator set connected to a bidirectional inverter. These inverters introduce conversion losses, typically ranging from 5% to 10% round-trip, depending on the quality of the semiconductor devices (e.g., IGBTs or MOSFETs) and the control strategy. High-frequency switching can lead to thermal losses in the stator and rotor, which must be managed to maintain the vacuum and reduce air friction. The efficiency equation can be approximated as:
η_total = (E_out / E_in) * 100%
where E_out is the energy discharged and E_in is the energy charged. Typical round-trip efficiencies for modern flywheel systems range from 85% to 95%, which is competitive with lithium-ion batteries but lower than pumped hydro storage.

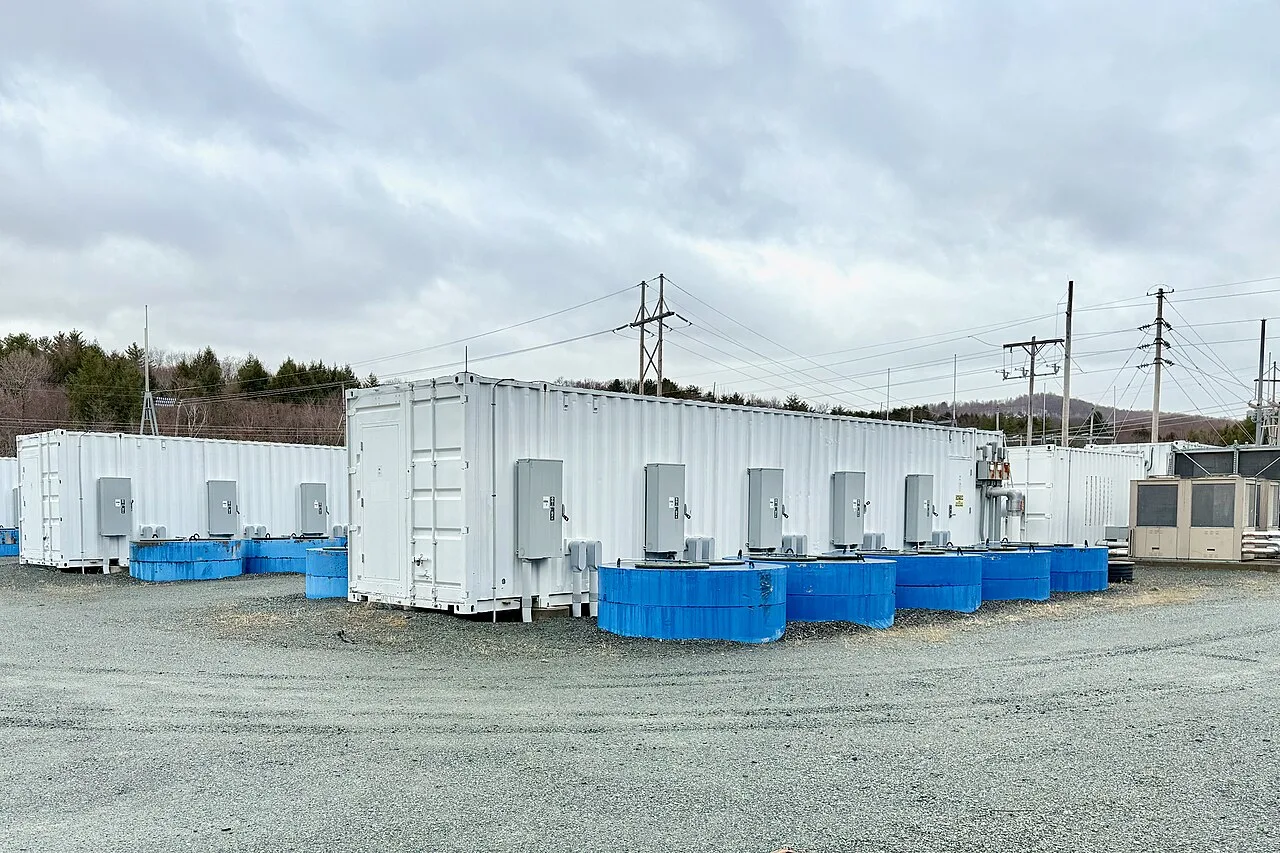

Scalability is another critical consideration. Flywheel farms, consisting of multiple units connected in parallel, offer modular scalability. This modularity allows for easier expansion and redundancy compared to single-unit installations. In a farm configuration, the failure of one unit does not necessarily compromise the entire system, enhancing reliability for grid frequency regulation. However, the control complexity increases with the number of units, requiring sophisticated power electronics to synchronize the phases and manage the load distribution. Single-unit installations are often used for specific industrial applications, such as uninterruptible power supplies (UPS) for data centers or voltage stabilization in renewable energy plants.
Caveat: The economic viability of flywheels is highly dependent on the specific grid service. For long-duration energy arbitrage, batteries may still be more cost-effective due to lower upfront costs per kWh, despite higher degradation rates.
The choice between flywheels and other storage technologies ultimately depends on the specific application requirements, including cycle life, response time, and energy density. Flywheels excel in high-power, short-duration applications, such as primary frequency regulation, where rapid response and long cycle life are paramount. As the grid becomes more dynamic with the integration of intermittent renewable sources, the economic case for flywheels continues to strengthen, particularly in markets that value power quality and speed over pure energy capacity.
Future trends and innovations
Research into next-generation flywheel energy storage systems (FESS) is focused on maximizing energy density and minimizing mechanical losses. A primary area of innovation involves the use of superconducting magnetic bearings (SMBs). Unlike conventional air bearings, which require complex active control systems and auxiliary power, SMBs utilize the Meissner effect to levitate the rotor with minimal friction. This technology can significantly reduce parasitic losses, allowing the rotor to coast for days or even weeks without power. However, the need for cryogenic cooling adds complexity and cost, making SMBs most viable for large-scale, stationary grid applications where the marginal gain in efficiency justifies the overhead.
Advances in materials science are equally critical. Modern rotors are increasingly constructed from advanced carbon-fiber composites rather than steel. These composites offer a high strength-to-density ratio, enabling rotational speeds exceeding 30,000 RPM. The kinetic energy stored in a flywheel is defined by the equation E=21Iω2, where I is the moment of inertia and ω is the angular velocity. By increasing ω through lighter, stronger materials, the energy density improves quadratically. Recent developments in woven carbon-fiber architectures aim to mitigate the "delamination" failure mode, where layers of the composite separate under extreme centrifugal force.
Caveat: While flywheels excel at power density and cycle life, their energy density remains lower than that of lithium-ion batteries. They are rarely used for long-duration storage without hybridization.
The integration of FESS with smart grid algorithms represents a significant operational shift. Modern grid management systems use predictive analytics to anticipate frequency deviations. By coupling flywheels with real-time data from phasor measurement units (PMUs), operators can deploy stored kinetic energy within milliseconds. This rapid response is crucial for arresting frequency drops following sudden load changes or generator trips. Advanced control strategies now allow flywheels to handle the high-frequency ripple of renewable energy sources, smoothing out the output of wind turbines and solar arrays more effectively than traditional governor responses.
Hybrid energy storage systems (HESS) combining flywheels and batteries are emerging as a dominant architecture for optimal performance. This approach leverages the strengths of both technologies: the flywheel handles high-power, short-duration transients, while the battery manages lower-power, long-duration energy shifts. In a typical hybrid setup, the flywheel absorbs the initial surge of power during a grid disturbance, reducing the C-rate stress on the battery cells. This synergy extends the battery's cycle life and improves the overall round-trip efficiency of the storage unit. Such systems are particularly effective in electric vehicle regenerative braking and microgrid stabilization, where both power and energy density are required.
Future trends also point towards modular, scalable flywheel units. Instead of single, massive rotors, developers are creating arrays of smaller, standardized flywheels. This modularity enhances reliability; if one unit fails, the others can compensate without a total system outage. This architecture aligns well with the distributed nature of modern renewable energy grids, allowing for flexible deployment in substations, data centers, and industrial facilities. As manufacturing costs for carbon composites and power electronics decrease, the levelized cost of storage (LCOS) for flywheels is expected to become more competitive with electrochemical alternatives.
