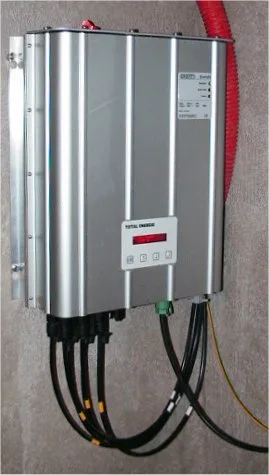

Solar Inverter: Function, Types, and System Integration

Overview

A solar inverter is the central processing unit of a photovoltaic (PV) system. Its primary function is to convert the direct current (DC) generated by solar panels into alternating current (AC), which is the standard form of electricity used by household appliances and the utility grid. Without this conversion, the electricity produced by silicon cells would be incompatible with most electrical loads, rendering the solar array largely ineffective. This device is often described as the "brain" of the system because it manages power flow, monitors performance, and ensures safety through rapid response to grid conditions.

The conversion process is not merely a change in waveform; it involves precise timing and voltage regulation. Photovoltaic modules produce DC electricity when sunlight strikes the semiconductor material, creating an electric field. However, the grid operates on AC, typically at 50 Hz or 60 Hz depending on the region. The inverter uses power electronic switches, such as MOSFETs or IGBTs, to chop the DC input into a series of pulses that approximate a sine wave. Modern inverters achieve this with high efficiency, often exceeding 97%, meaning very little energy is lost as heat during the transformation.

Maximum Power Point Tracking

One of the most critical secondary roles of a solar inverter is Maximum Power Point Tracking (MPPT). Solar panels do not produce a constant amount of power; their output varies with irradiance (sunlight intensity) and temperature. The relationship between voltage and current in a PV module is non-linear, forming a curve where there is a specific point at which the product of voltage and current is maximized. This point is known as the Maximum Power Point (MPP).

The inverter continuously adjusts the electrical load on the solar array to keep it operating at this peak efficiency. It does this by varying the voltage input to the DC-AC conversion stage. If the inverter’s internal algorithm detects that the power output is dropping, it shifts the operating voltage slightly and measures the result. This process happens hundreds of times per second, ensuring that the system captures the maximum available energy from the sun. The basic power equation is expressed as:

P = V × I

Where P is power in watts, V is voltage, and I is current. By optimizing V and I, the inverter maximizes P. Advanced inverters may feature multiple MPPT inputs, allowing different strings of panels to track their own peaks, which is particularly useful when shading affects only part of the array.

Grid Synchronization and Safety

For grid-tied systems, the inverter must synchronize the phase, frequency, and voltage of the AC output with the utility grid. If the grid voltage is 230 V at 50 Hz, the inverter must match these parameters precisely before feeding power back into the lines. This synchronization prevents sudden surges or dips that could disrupt other appliances. The inverter also provides critical safety features, such as Anti-Islanding protection. If the grid goes down, the inverter detects the loss of voltage and frequency, and within seconds, it shuts off the solar array. This prevents "islanding," where the solar panels continue to power a section of the grid, posing a risk to utility workers repairing lines.

Caveat: Not all inverters are created equal. String inverters are cost-effective for simple roofs, but microinverters or power optimizers offer greater granularity, allowing each panel to operate independently. This distinction matters significantly in complex roof layouts with partial shading.

The reliability of the inverter is often the limiting factor in a PV system's lifespan. While solar panels can last 25 to 30 years, inverters typically have a service life of 10 to 15 years, after which they may need replacement. This turnover is an important consideration in the levelized cost of energy (LCOE) calculations for solar projects. As technology advances, hybrid inverters are becoming more common, integrating battery storage management to allow for greater energy independence and grid services.

How does a solar inverter convert DC to AC?

Solar panels generate direct current (DC), meaning electrons flow in a single direction. Most household appliances and the utility grid, however, operate on alternating current (AC), where the flow of electrons reverses direction periodically. The inverter is the electronic bridge that transforms one into the other. This conversion is not merely a change in flow direction; it involves precise timing, voltage regulation, and waveform shaping to ensure the power is "clean" enough for sensitive electronics.

The core mechanism relies on high-speed switching. Inside the inverter, power electronic switches—typically Insulated Gate Bipolar Transistors (IGBTs) or Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs)—are turned on and off rapidly. By alternating which switches are closed, the inverter forces the DC current to reverse direction, creating a basic square wave. In a simple square wave, the voltage jumps instantly from positive to negative. While this works for basic resistive loads like incandescent bulbs, the abrupt transitions can cause humming in motors and flickering in lights.

Technical Note: The quality of the AC output is often measured by Total Harmonic Distortion (THD). A lower THD percentage indicates a waveform closer to a perfect sine wave, which is critical for grid-tied systems.

To smooth out the square wave, inverters use filtering techniques to create a modified sine wave. This involves adding intermediate voltage steps between the positive and negative peaks. It is a cost-effective solution for simpler systems but still contains harmonic distortions that can affect high-efficiency devices. For higher precision, modern inverters employ Pulse Width Modulation (PWM). In PWM, the inverter switches on and off thousands of times per second, varying the width of the voltage pulses. Wider pulses occur near the peak of the sine wave, while narrower pulses appear near the zero-crossing points. When passed through a low-pass filter (usually an inductor-capacitor combination), these pulses average out to form a near-perfect pure sine wave.

Voltage and Frequency Stabilization

Converting the waveform is only half the battle. The inverter must also stabilize the voltage and frequency to match the grid or the load. In grid-tied systems, the inverter synchronizes with the utility grid’s frequency, which is typically 50 Hz in Europe and Asia, or 60 Hz in North America. This synchronization is achieved through a Phase-Locked Loop (PLL), an electronic control circuit that adjusts the inverter’s output phase to match the grid. If the grid frequency drifts, the inverter adjusts its switching frequency to maintain alignment, ensuring smooth power injection.

Voltage stabilization is equally critical. Solar panels produce variable DC voltage depending on sunlight intensity and temperature. The inverter uses a Maximum Power Point Tracker (MPPT) to adjust the input DC voltage to an optimal level before conversion. On the AC side, the inverter regulates the output voltage (e.g., 230 V or 120 V) by adjusting the duty cycle of the PWM signals. If the voltage drops, the inverter increases the pulse width; if it rises, the pulse width decreases. This dynamic adjustment ensures that appliances receive consistent power, even as cloud cover changes the solar input.

The efficiency of this conversion process is vital. Modern inverters typically achieve efficiencies between 95% and 98%, meaning only a small fraction of the solar energy is lost as heat during the DC-to-AC transition. This efficiency is calculated as η=Pin​Pout​​×100%, where Pout​ is the AC power delivered to the load and Pin​ is the DC power from the panels. High efficiency directly translates to more usable energy from the same solar array, making the inverter a critical component in the overall performance of a photovoltaic system.

What are the main types of solar inverters?

Solar inverters convert direct current (DC) from photovoltaic modules into alternating current (AC) for grid or load consumption. The choice of inverter topology significantly impacts system performance, cost, and maintenance. Three primary architectures dominate the market: string inverters, microinverters, and power optimizers. Each addresses the trade-off between centralization and module-level control differently.

String Inverters

String inverters are the traditional standard. Multiple panels are connected in series to form a "string," which feeds into a single central inverter. This configuration is cost-effective for large, uniform roofs with minimal shading. However, the performance of the entire string is often limited by the weakest panel, a phenomenon known as the "bucket effect." If one panel is shaded or soiled, the current through the whole string drops, reducing overall yield. String inverters typically offer high conversion efficiency, often exceeding 97%, but their scalability is limited by the maximum DC input voltage and current ratings.

Microinverters

Microinverters are small, module-level power electronics (MLPE) devices attached to the back of each solar panel. Each panel converts DC to AC independently, eliminating the bucket effect. This makes microinverters ideal for complex roof geometries or areas with partial shading. They also allow for module-level monitoring, making it easier to identify underperforming panels. However, microinverters generally have a higher upfront cost per watt and may have slightly lower peak efficiency compared to high-end string inverters. They also introduce more points of failure, as each panel has its own inverter.

Power Optimizers

Power optimizers are another form of MLPE. Unlike microinverters, optimizers condition the DC power at the module level before sending it to a central string inverter. They use maximum power point tracking (MPPT) to optimize the voltage and current from each panel, mitigating shading losses. The central inverter then converts the optimized DC to AC. This hybrid approach combines the shading tolerance of microinverters with the lower cost and reliability of a single large inverter. Power optimizers are particularly useful when some modules face different directions or tilts.

The rise of battery storage has driven the adoption of hybrid inverters. These units combine the functions of a solar inverter and a battery charge controller. They can manage power flow between the panels, the battery, and the grid, maximizing self-consumption and backup capability. Hybrid inverters are essential for systems aiming for energy independence, allowing users to store excess solar energy during peak production and use it during evening hours or grid outages. The efficiency of power conversion in hybrid systems is critical, as energy passes through multiple stages: DC from panels, AC to battery (or DC-DC), and back to AC for loads.

Did you know: The efficiency of a solar inverter is not constant. It varies with the input power level, often peaking at 70-80% of its rated capacity. This is why right-sizing the inverter to the solar array is crucial for maximizing annual yield.

Selecting the right inverter depends on the specific site conditions, budget, and energy goals. For simple, unshaded roofs, string inverters remain the most cost-effective choice. For complex roofs with shading, microinverters or power optimizers offer superior performance. For systems with battery storage, hybrid inverters provide integrated control and efficiency. Understanding these differences helps in designing a solar power system that maximizes return on investment and energy production.

Key Performance Metrics and Efficiency

Evaluating a solar inverter requires looking beyond the single number often advertised on the datasheet. Peak efficiency represents the maximum conversion efficiency achieved at a specific load point, typically around 75% to 100% of the rated output power. While a high peak efficiency (often exceeding 98% for modern string inverters) is impressive, it is a snapshot. It tells you how well the inverter performs when the sun is shining brightly and the panels are producing near their nameplate capacity. However, solar arrays rarely operate at that exact point for the entire day.

European Efficiency and Weighted Averages

To capture real-world performance, engineers use European Efficiency (or Weighted Efficiency). This metric calculates a weighted average of the inverter’s efficiency across different load points, reflecting the typical daily production profile of a solar array in a temperate climate. The formula generally weights the efficiency at 10%, 20%, 40%, 60%, and 100% of the rated power. The weights are usually 5% at 10% load, 15% at 20% load, 25% at 40% load, 25% at 60% load, and 30% at 100% load.

This approach highlights that an inverter with a slightly lower peak efficiency might actually outperform a competitor if it maintains higher efficiency at lower loads. Early morning and late afternoon production, where the inverter might be running at 20% to 40% capacity, contributes significantly to the total annual energy yield. Ignoring these partial-load performances can lead to underestimating the total kilowatt-hours generated over the system's lifetime.

Caveat: European Efficiency is a standardized metric, but it assumes a specific load profile. In regions with high cloud cover or unique shading patterns, the actual weighted efficiency may differ slightly from the standard calculation.

MPPT Voltage Range and Tracking

The Maximum Power Point Tracker (MPPT) is the electronic subsystem that adjusts the electrical operating point of the solar modules to extract the maximum possible power. The MPPT voltage range defines the span of voltages over which the inverter can effectively track the maximum power point. A wider MPPT voltage range allows the inverter to start producing power earlier in the morning and continue later in the evening, as the voltage from the solar array changes with temperature and irradiance.

If the voltage drops below the minimum MPPT voltage, the inverter may "cut in" later or shut off prematurely. If it exceeds the maximum MPPT voltage, the inverter might clip the power or shut down to protect the electronics. Designers must ensure that the solar array's voltage characteristics align well with the inverter's MPPT window across the expected temperature range of the installation site.

Power Factor and Total Harmonic Distortion

Power Factor (PF) measures the ratio of real power (kW) delivered to the load versus the apparent power (kVA) flowing through the system. Modern grid-tied inverters typically maintain a power factor close to 1.0 (unity) at the point of common coupling, meaning the current and voltage waveforms are well-aligned. Some inverters can be adjusted to provide reactive power (kVAR) to help stabilize the local grid voltage, operating at a lagging or leading power factor as required by the utility.

Total Harmonic Distortion (THD) quantifies the distortion of the current waveform injected into the grid. Solar inverters use pulse-width modulation to convert DC to AC, which can introduce harmonic frequencies. A low THD (typically less than 3% to 5% at full load) indicates a cleaner sine wave, reducing stress on grid components and minimizing interference with other electrical devices. High THD can lead to overheating of transformers and nuisance tripping of circuit breakers.

These metrics collectively determine the quality of power delivered to the grid and the overall energy harvest. Focusing solely on peak efficiency can lead to suboptimal selections. A balanced view, considering European efficiency, MPPT range, power factor, and THD, provides a more accurate picture of an inverter's performance in a specific installation context.

Grid Integration and Smart Inverter Features

Modern photovoltaic systems rely on inverters to translate the electrical characteristics of solar panels into a form compatible with the utility grid. As of 2026, the inverter has evolved from a simple power converter into a critical node for grid stability. The grid demands precise synchronization of voltage, frequency, and phase. Without this synchronization, power from distributed solar sources can cause fluctuations that affect everything from household appliances to industrial motors. The inverter manages this interface, ensuring that the power fed into the grid matches the grid’s instantaneous needs.

Reactive Power Control

Active power (measured in watts) performs the actual work, while reactive power (measured in volt-amperes reactive, or VARs) supports the magnetic fields in motors and transformers. Traditional solar inverters focused primarily on active power. Modern smart inverters, however, actively manage reactive power to stabilize local voltage levels. By injecting or absorbing VARs, the inverter can correct voltage sags or swells without needing to adjust the active power output. This capability is essential as the penetration of solar power increases, reducing the need for bulky capacitor banks on distribution lines. The relationship is often managed through a power factor setting, where the inverter adjusts the ratio of active to reactive power to meet grid codes.

Frequency Response and Voltage Ride-Through

Grid frequency must remain within a narrow band, typically 50 Hz or 60 Hz depending on the region. Smart inverters use Power-Frequency (P-f) curves to adjust their active power output in response to frequency deviations. If the grid frequency drops, indicating a surplus of load over generation, the inverter can increase its power output. Conversely, if frequency rises, it can curtail output. This automatic response helps balance the grid in real-time. Additionally, Voltage Ride-Through (VRT) allows the inverter to stay connected to the grid during short-term voltage dips. Instead of disconnecting immediately, which can cause a cascade of disconnections and further instability, the inverter "rides through" the disturbance, providing support until voltage normalizes.

Background: Early solar installations often disconnected during minor grid disturbances, which exacerbated the very instability they were trying to mitigate. Modern codes now mandate ride-through capabilities to prevent this "clustering" effect.

Communication and Smart Grid Integration

To function as "smart" devices, inverters must communicate with other grid components. Protocols like Modbus and SunSpec allow for standardized data exchange. SunSpec, in particular, has become a widely adopted standard for solar inverter communication, enabling seamless integration with monitoring systems and grid operators. These communication channels allow for remote configuration, real-time performance monitoring, and advanced control strategies. In 2026, this connectivity enables utilities to treat thousands of distributed solar inverters as a single, flexible resource. This aggregation allows for more sophisticated grid management, including demand response and ancillary service provision. The inverter acts as a translator between the solar array and the broader energy ecosystem, ensuring that solar power is not just generated, but intelligently delivered.

Worked examples: Sizing and Selecting an Inverter

Proper inverter sizing is critical for system efficiency and cost-effectiveness. A common mistake is matching the DC array size exactly to the AC inverter rating (1:1 ratio). Modern design often favors "oversizing" the DC side relative to the AC side, typically using a DC/AC ratio between 1.1 and 1.3. This allows the inverter to produce its full rated power during early mornings, late afternoons, and cloudy days when solar irradiance is lower than peak conditions.

Example 1: Determining Inverter Capacity

Consider a residential solar array with a total DC capacity of 6 kW. The goal is to select an inverter that maximizes energy harvest without excessive clipping losses.

If we choose a standard 5 kW inverter, the DC/AC ratio is 6 kW / 5 kW = 1.2. This is a healthy ratio. On a bright winter day, the panels might produce 6 kW of DC power, but the inverter will clip the output to 5 kW. However, in summer, the inverter might hit its 5 kW limit for only a few hours around solar noon, while producing near-full power for many more hours. If we chose a 6 kW inverter (ratio 1.0), the inverter would be at full capacity more often, but it would be underutilized during low-light conditions, potentially wasting the "sweet spot" of the inverter's efficiency curve.

That is the trade-off. A ratio of 1.2 is often considered optimal for many climates, balancing capital cost against energy yield.

Example 2: Calculating MPPT Voltage Range

The Maximum Power Point Tracker (MPPT) must operate within the voltage range of the solar panels across different temperatures. Voltage increases as temperature decreases. We must ensure the array's voltage stays within the inverter's MPPT window at both the hottest and coldest expected temperatures.

Assume we use 20 solar panels, each with a maximum power voltage (Vmp) of 30 V at Standard Test Conditions (STC, 25°C). The temperature coefficient of Vmp is -0.3% per °C. The inverter has an MPPT voltage range of 100 V to 400 V.

First, calculate the total Vmp at STC: 20 panels × 30 V = 600 V. This seems high, so let's assume the panels are wired in 2 strings of 10 panels each, in parallel. The voltage is determined by the series connection. So, 10 panels × 30 V = 300 V. This is well within the 100–400 V range at 25°C.

Now, consider the coldest day. Assume the cell temperature drops to -10°C. The temperature difference is 25°C - (-10°C) = 35°C. Since the coefficient is negative, voltage increases. The percentage increase is 35°C × 0.3% = 10.5%. The new Vmp is 300 V × 1.105 = 331.5 V. This is still within the 400 V upper limit.

Next, consider the hottest day. Assume the cell temperature rises to 45°C. The temperature difference is 45°C - 25°C = 20°C. The percentage decrease is 20°C × 0.3% = 6%. The new Vmp is 300 V × 0.94 = 282 V. This is above the 100 V lower limit.

The calculations confirm that the 300 V nominal voltage stays within the 100–400 V MPPT range across the expected temperature swing. If the voltage had dropped below 100 V on hot days, the inverter might fall out of the MPPT window, losing efficiency.

Caveat: Always use the cell temperature, not just the ambient air temperature. On a clear day, the cell temperature can be 20–25°C higher than the ambient air temperature due to solar irradiance.

Example 3: Impact of Shading on MPPT

If the array is not uniformly shaded, multiple MPPT inputs can help. Suppose we have two strings of panels, each with a Vmp of 300 V. If one string is partially shaded, its voltage and current drop. If both strings are fed into a single MPPT, the shaded string's performance can drag down the unshaded string.

By using an inverter with two MPPT inputs, each string can operate at its own maximum power point. For example, if String A produces 300 V and String B produces 280 V due to shading, a single MPPT might settle at an intermediate voltage, suboptimal for both. With two MPPTs, String A operates at 300 V and String B at 280 V, maximizing total energy harvest. This is particularly useful for roofs with complex shading patterns from chimneys or trees.

Reliability, Maintenance, and Common Failures

Solar inverters are often treated as static components, but they are dynamic electromechanical systems with finite lifespans. Typical operational life ranges from 10 to 15 years, significantly shorter than the 25 to 30 years expected of photovoltaic modules. This mismatch creates a replacement cycle that impacts the levelized cost of energy (LCOE) for solar installations. Understanding failure modes is critical for system designers and asset managers alike.

Common Failure Points

The most frequent point of failure in string and micro-inverters is the electrolytic capacitor. These components manage voltage smoothing and reactive power. Over time, heat causes the electrolyte to evaporate, leading to capacitance drift and increased equivalent series resistance. This degradation often manifests as ripple voltage increase on the DC side. Fans in larger central inverters also wear out, especially in dusty or coastal environments. PCB corrosion is another silent killer, particularly in humid climates where solder joints oxidize over time.

Caveat: Capacitor failure is the leading cause of inverter downtime. Many warranties cover the inverter for 5 years but extend to 10 years with capacitor replacement. Check the fine print.

Thermal cycling accelerates these failures. The inverter’s semiconductor switches (IGBTs or MOSFETs) generate heat, and daily on/off cycles create expansion and contraction stresses. Poor ventilation or dust accumulation exacerbates this. In utility-scale plants, a single failed capacitor can trip an entire string, reducing output by several kilowatts.

Maintenance Routines

Residential inverters are often "plug-and-play," meaning they require minimal intervention. Visual inspection, checking LED status lights, and monitoring via a smartphone app are common. However, this ease can lead to complacency. A dusty heat sink or a loose AC connection can reduce efficiency by 5 to 10%. For utility-scale central inverters, maintenance is more rigorous. Technicians perform thermal imaging to spot hot spots, test capacitor health with ESR meters, and clean fans and filters. Preventive maintenance schedules typically occur annually or biennially, depending on the environment.

Key maintenance tasks include:

• Inspecting and cleaning heat sinks and fans to ensure proper airflow.
• Checking DC and AC connections for tightness and corrosion.
• Monitoring capacitor voltage and ripple current.
• Updating firmware to address software bugs and optimize performance.

Proactive maintenance can extend inverter life by 2 to 5 years, deferring capital expenditure. Neglecting it can lead to cascading failures, where one component’s stress affects others.

Residential vs. Utility-Scale Differences

Residential inverters prioritize ease of installation and user interface. They are often mounted on walls or rooftops, exposed to ambient temperature fluctuations. Utility-scale central inverters are housed in enclosures or containers, with more robust cooling systems. They handle higher power densities, often exceeding 500 kW per unit. The failure impact is also different: a residential inverter failure affects one household, while a utility inverter failure can disrupt a grid connection point, affecting hundreds of homes.

The trade-off is complexity. Utility inverters require skilled technicians for maintenance, while residential units can often be handled by general electricians. This distinction influences operational expenditure (OPEX) models for solar projects. As of 2026, the industry is seeing a shift towards modular inverter designs, which simplify replacement and reduce downtime.
