Offshore wind turbine simulation

Overview

Offshore wind turbine simulation represents a critical scholarly and engineering discipline focused on modeling the complex dynamic interactions between wind energy converters and their marine environments. As a concept, it integrates principles from aerodynamics, structural mechanics, hydrodynamics, and control theory to predict the performance, reliability, and fatigue life of turbines deployed in offshore conditions. The primary energy source is wind, but the simulation must account for the unique challenges of the offshore domain, including wave loading, current shear, and seabed geotechnical variability.

Core Technical Components

The simulation framework typically decomposes the turbine system into several coupled subsystems. Aerodynamic models calculate the thrust and torque generated by the rotor blades as they interact with the wind field. These models often employ blade element momentum (BEM) theory or more computationally intensive computational fluid dynamics (CFD) approaches. Structural dynamics models simulate the response of the tower, nacelle, and blades to these aerodynamic loads, as well as gravitational and inertial forces. For offshore installations, hydrodynamic models are essential to capture the interaction between the support structure (monopile, jacket, or floating platform) and the surrounding water body, including wave excitation and current drag.

Simulation Objectives and Methodologies

The primary objective of offshore wind turbine simulation is to reduce uncertainty in design and operation. Engineers use these simulations to optimize turbine placement within a wind farm, assess load cases for structural integrity, and develop advanced control strategies to maximize energy capture while minimizing mechanical stress. The field relies on high-fidelity numerical models that solve coupled differential equations representing the physical behavior of the system. While specific mathematical formulations vary, the general approach involves integrating equations of motion for the structural components with aerodynamic and hydrodynamic load calculations. This multi-physics approach allows researchers to evaluate the turbine's response under a wide range of operational and environmental conditions, from calm seas to extreme storm events.

What are the core components of offshore wind turbine simulation?

Offshore wind turbine simulation requires a high-fidelity representation of the electromechanical coupling between the rotor, the drive train, and the power electronics. The multibody drive train model captures the torsional dynamics that arise from the interaction of the rotating masses. This system is typically modeled as a two-mass or three-mass system, representing the low-inertia rotor and the high-inertia generator separated by a flexible shaft. The governing equations for the rotor and generator speeds, ωr and ωg, are derived from Newton’s second law for rotation:

Jrω˙r=Taer−Tshaft Jgω˙g=Tshaft−Telec

where Jr and Jg are the moments of inertia, Taer is the aerodynamic torque, Telec is the electromagnetic torque, and Tshaft is the torsional torque. Accurate simulation of Tshaft is critical for predicting fatigue loads on the gearbox and generator bearings under variable wind conditions.

Back-to-Back NPC Converters

The power conversion system in modern offshore turbines often employs back-to-back Neutral Point Clamped (NPC) converters. This topology is preferred for medium-voltage applications due to its ability to produce a three-level output voltage waveform, which reduces total harmonic distortion (THD) and switching losses compared to two-level converters. The NPC structure consists of four switching devices per leg with two series-connected DC-link capacitors that create a neutral point.

The modulation strategy must manage the voltage balance between the two capacitors to prevent drift, which can lead to overvoltage on one capacitor and undervoltage on the other. The output phase voltage Vao is determined by the switching states of the upper, middle, and lower devices:

Vao=2Vdc(S1−S4)

where Vdc is the total DC-link voltage and Si represents the binary state of the switches. This configuration allows for smoother voltage transitions, reducing the stress on the generator windings and the grid-side filter. Simulation models must account for the dynamic behavior of the DC-link capacitors and the switching frequency to accurately predict thermal performance and efficiency losses in the offshore environment.

How does fractional-order control function in this context?

Fractional-order control (FOC) represents a significant advancement in the simulation of offshore wind turbine dynamics, offering enhanced robustness and flexibility compared to classical integer-order controllers. In the context of offshore wind energy systems, the simulation framework integrates FOC to address the complex, non-linear behaviors inherent in turbine-aero-hydro-elastic interactions. This approach utilizes the fractional calculus operator, which generalizes the differentiation and integration orders from integers to real or complex numbers, allowing for more precise modeling of memory effects and hereditary properties in the system's response.

Mathematical Framework of Fractional-Order Control

The core of fractional-order control lies in the Riemann-Liouville or Caputo definitions of fractional derivatives. In simulation environments, the control law is often expressed using the fractional-order proportional-integral-derivative (FOPID) controller. The transfer function for a FOPID controller is defined as:

G(s) = K_p + K_i * s^(-λ) + K_d * s^μ

where K_p, K_i, and K_d are the proportional, integral, and derivative gains, respectively. The parameters λ and μ represent the fractional orders of integration and differentiation. This additional degree of freedom allows the simulation to tune the phase response of the controller more accurately, which is critical for stabilizing the turbine under variable wind speeds and wave-induced loads.

Application in Offshore Wind Simulation

Within the simulation framework, FOC is applied to various subsystems, including pitch control, torque control, and yaw alignment. The fractional-order models capture the viscoelastic behavior of the turbine blades and the damping characteristics of the offshore foundation more effectively than integer-order models. For instance, the pitch angle adjustment can be simulated using a fractional-order lead-lag compensator, which improves the transient response and reduces overshoot during gust events.

Furthermore, the integration of FOC in the simulation allows for better handling of time-delays and parameter uncertainties, which are common in offshore environments due to communication lags and structural flexibility. The simulation results typically demonstrate that FOC strategies yield lower root-mean-square (RMS) errors in speed regulation and reduced mechanical stress on the drivetrain components. This enhanced performance is attributed to the controller's ability to exploit the full spectrum of the system's dynamic behavior, rather than being constrained by the fixed orders of classical control theory.

The implementation of FOC in simulation tools requires numerical approximation methods, such as the Oustaloup recursive approximation or the Grunwald-Letnikov definition, to convert the fractional-order transfer functions into a form suitable for time-domain analysis. These approximations ensure that the simulation remains computationally efficient while maintaining the accuracy of the fractional calculus operations. Consequently, FOC provides a powerful tool for optimizing the performance and reliability of offshore wind turbines in complex operational scenarios.

Worked examples

Illustrative applications of multibody drive train and NPC converter models demonstrate the coupled electromechanical dynamics critical for offshore wind turbine simulation. These examples highlight how structural flexibility and power electronics interact under transient conditions, providing engineers with a framework for validating control strategies and component sizing.

Example 1: Drive Train Torsional Oscillation

Consider a simplified two-mass model representing the rotor and generator. The rotor inertia is 10000 kg·m², and the generator inertia is 5000 kg·m². The shaft stiffness is 1000 N·m/rad, and damping is 50 N·m·s/rad. If a step torque of 5000 N·m is applied to the rotor, the torsional twist angle θ can be estimated using the static relationship θ = T/k. Substituting the values, θ = 5000 / 1000 = 5 radians. This significant twist indicates that the drive train flexibility must be accounted for in the control loop to prevent resonance at the natural frequency, which is calculated as ω_n = sqrt(k/(1/J_r + 1/J_g)) = sqrt(1000/(1/10000 + 1/5000)) ≈ 14.14 rad/s. The simulation would show oscillations decaying over time due to the damping coefficient.

Example 2: NPC Converter Voltage Balancing

In a three-level Neutral Point Clamped (NPC) converter, maintaining the neutral point potential is crucial. Assume a DC link voltage of 600 V, split into two 300 V capacitors. If the switching function results in a net current of 2 A flowing into the neutral point, the voltage imbalance ΔV can be calculated using ΔV = I * Δt / C. With a capacitor value of 1000 μF and a time step of 1 ms, ΔV = 2 * 0.001 / 0.001 = 2 V. This small deviation shows the effectiveness of the balancing control strategy. The simulation verifies that without active balancing, the voltage drift would accumulate, leading to uneven stress on the switching devices and potential overvoltage on the upper or lower capacitor.

Example 3: Combined Electromechanical Response

Integrating both models, consider a wind gust increasing rotor speed by 5%. The generator torque must adjust to maintain power output. If the torque increases by 1000 N·m, the drive train twist increases by 1 radian (1000/1000). Simultaneously, the NPC converter adjusts the switching states to handle the increased current. If the current rises by 10 A, the neutral point voltage shift per millisecond is 10 * 0.001 / 0.001 = 10 V. The simulation demonstrates that the control system must coordinate the mechanical torque and electrical switching to minimize transient stresses. This coupled analysis ensures that the turbine operates efficiently and reliably under variable wind conditions, validating the design of both the drive train and the power electronics.

Applications

Offshore wind turbine simulation serves as the foundational tool for translating aerodynamic and hydrodynamic theory into reliable structural designs. Engineers utilize these computational models to predict how turbine components respond to complex environmental loads, ensuring that the mechanical systems can withstand decades of operation in harsh marine conditions.

Structural Load Analysis and Fatigue Prediction

The primary application of simulation is the quantification of extreme and fatigue loads on critical components such as blades, towers, and foundations. By modeling the interaction between wind shear, turbulence, and wave action, engineers can calculate stress cycles that dictate the lifespan of the turbine. Accurate load prediction is essential for optimizing material usage, reducing the levelized cost of energy (LCOE) without compromising structural integrity.

Aero-Hydro-Servo-Elastic Coupling

Modern simulations integrate multiple physical domains to capture the coupled behavior of the turbine system. This involves solving for aerodynamic forces, hydrodynamic responses of the floating or fixed foundation, and the servo-control actions of the generator and pitch systems. The interaction between these domains is critical; for instance, a change in blade pitch affects the aerodynamic torque, which in turn influences the generator speed and the overall motion of the floating platform. This multi-physics approach allows for the precise tuning of control algorithms to maximize energy capture while minimizing structural stress.

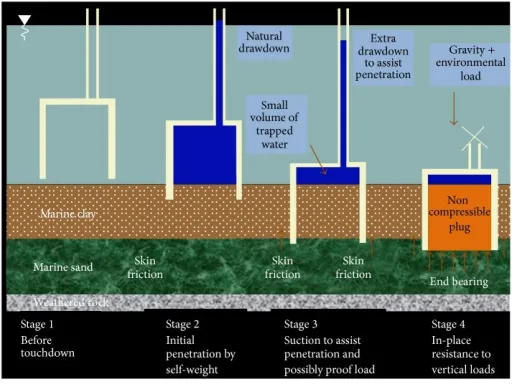

Floating Foundation Design

As offshore wind farms move into deeper waters, simulation becomes indispensable for designing floating platforms. Engineers use numerical models to evaluate the stability of semi-submersible, spar-buoy, and tension-leg platforms under varying wind and wave spectra. These simulations help determine the optimal mooring line configurations and anchor types required to keep the turbine aligned with the wind direction, ensuring efficient power generation and minimizing dynamic positioning errors.

Why it matters

Accurate simulation of offshore wind turbines is critical for ensuring the structural integrity and operational efficiency of increasingly large-scale installations. As turbines move further offshore and grow in size, the dynamic interactions between aerodynamic loads, hydrodynamic forces, and structural responses become more complex. Traditional simulation methods often struggle to capture these coupled dynamics with sufficient precision, leading to potential underestimation of fatigue loads and control inefficiencies. The integration of multibody drive train models and fractional-order control strategies addresses these challenges by providing a more nuanced representation of the turbine’s mechanical and electrical systems.

Role of Multibody Drive Train Models

Multibody drive train models are essential for capturing the intricate mechanical interactions within the turbine’s power conversion system. These models account for the flexibility and damping characteristics of components such as the rotor, main shaft, gearbox, and generator. By representing the drive train as a series of interconnected rigid and flexible bodies, simulations can more accurately predict torsional vibrations and resonant frequencies. This level of detail is particularly important for identifying critical speeds and optimizing the placement of dampers or tuners to mitigate excessive vibrations. Without such detailed modeling, the risk of premature component failure increases, potentially leading to costly downtime and maintenance operations in harsh offshore environments.

Advantages of Fractional-Order Control

Fractional-order control offers a powerful framework for enhancing the performance and robustness of offshore wind turbine control systems. Unlike traditional integer-order controllers, fractional-order controllers introduce additional degrees of freedom through the use of fractional derivatives and integrals. This allows for more precise tuning of the control response, enabling better adaptation to varying wind speeds and sea states. The flexibility provided by fractional-order control can lead to improved power capture, reduced mechanical stress on the turbine structure, and enhanced stability during transient events. For example, the application of fractional-order PID controllers has been shown to outperform their integer-order counterparts in terms of tracking error and robustness to parameter variations.

Impact on Reliability and Efficiency

The combination of multibody drive train models and fractional-order control significantly enhances the reliability and efficiency of offshore wind infrastructure. By providing a more accurate representation of the turbine’s dynamic behavior, these simulation techniques enable engineers to design more robust control strategies and optimize the mechanical design of the drive train. This leads to reduced fatigue loads on critical components, extending their service life and minimizing maintenance requirements. Additionally, improved control performance translates to higher energy capture and more consistent power output, contributing to the overall economic viability of offshore wind projects. As the industry continues to push the boundaries of turbine size and location, the importance of advanced simulation methods will only grow, ensuring that offshore wind remains a competitive and reliable source of renewable energy.
