Offshore wind farm layout optimization

Overview

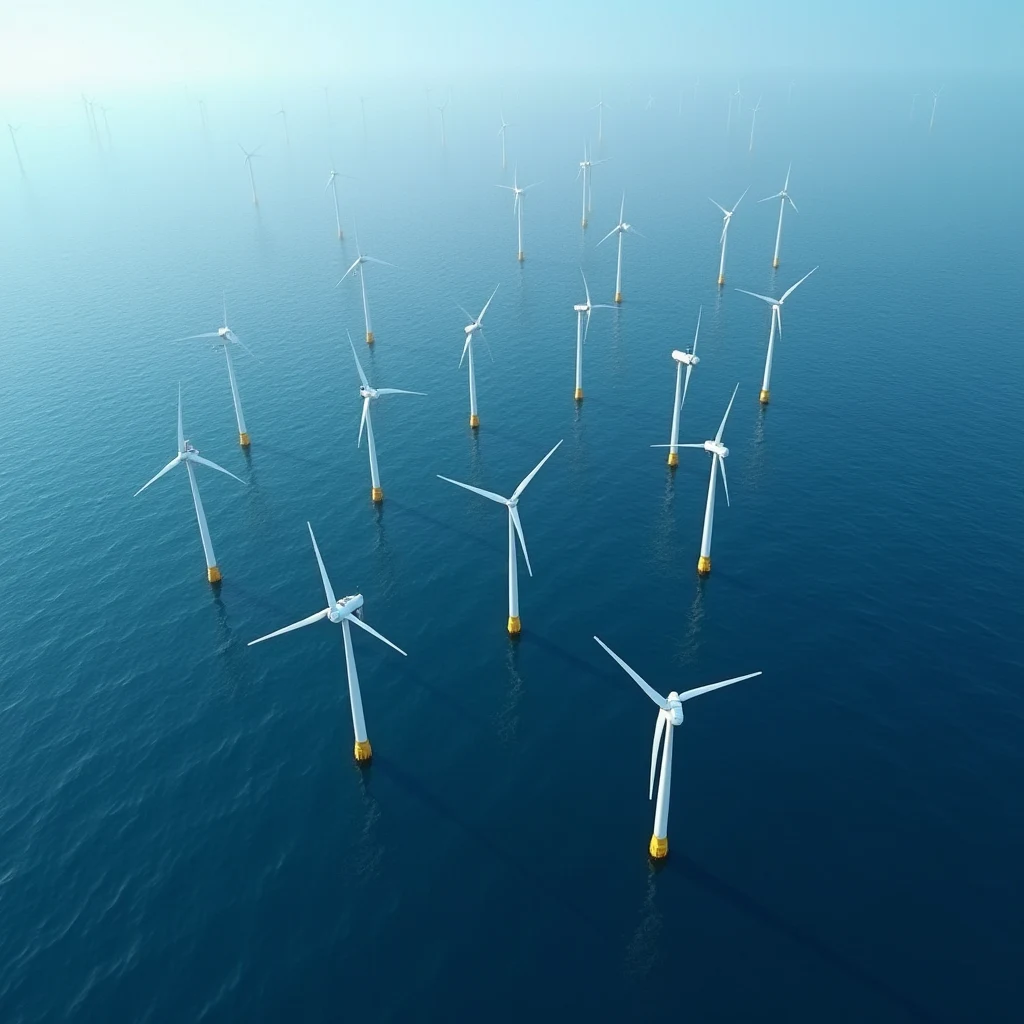

Offshore wind farm layout optimization constitutes a critical engineering and computational challenge in the renewable energy sector, directly influencing the levelized cost of energy (LCOE) and overall power output. The primary objective is to determine the spatial arrangement of wind turbines within a designated marine area to maximize energy capture while minimizing aerodynamic interference and infrastructure costs. This process is inherently complex due to the multi-dimensional nature of offshore environments, which involve variable wind speeds, directional distributions, seabed topography, and wake effects—phenomena where the turbulent air downstream of an upstream turbine reduces the wind speed available to downstream units.

Particle Swarm Optimization (PSO) has emerged as a prominent metaheuristic algorithm for solving this non-convex optimization problem. Inspired by the social behavior of bird flocking or fish schooling, PSO operates by maintaining a population of candidate solutions, referred to as "particles," which move through the search space. Each particle adjusts its position based on its own best-known position and the best-known position of the entire swarm. This iterative process allows the algorithm to explore the solution space efficiently, balancing exploration of new areas and exploitation of known good solutions.

In the context of wind farm layout, each particle represents a specific configuration of turbine coordinates. The fitness function typically quantifies the annual energy production (AEP) or net present value (NPV), penalizing configurations where turbines are too close (increasing wake losses) or too far apart (increasing cable costs). The mathematical formulation involves minimizing an objective function f(x) where x denotes the vector of turbine positions. PSO's ability to handle continuous and discrete variables makes it particularly suitable for integrating wake models, such as the Jensen or Gaussian models, into the optimization loop. By leveraging PSO, engineers can derive layouts that significantly outperform traditional grid-based or heuristic approaches, ensuring optimal energy yield and cost-efficiency for offshore wind developments.

What is particle swarm optimization?

Particle swarm optimization (PSO) is a computational method used to optimize the spatial arrangement of turbines within an offshore wind farm. It belongs to the class of swarm intelligence algorithms, inspired by the social behavior of bird flocking or fish schooling. In the context of offshore wind layout, PSO seeks to maximize total power output while minimizing wake losses and capital costs. Each potential layout configuration is represented as a "particle" moving through a multi-dimensional search space. The position of a particle encodes the coordinates of individual turbines, while its velocity determines how the layout evolves over successive iterations.

Algorithm Mechanics

The PSO algorithm operates by updating the velocity and position of each particle based on its own experience and the collective experience of the swarm. The velocity update equation is typically expressed as:

v_i(t+1) = w * v_i(t) + c1 * r1 * (p_best_i - x_i(t)) + c2 * r2 * (g_best - x_i(t))

Here, v_i is the velocity of particle i, w is the inertia weight, c1 and c2 are acceleration coefficients, and r1, r2 are random numbers. The term p_best_i represents the best position found by particle i (personal best), and g_best is the best position found by the entire swarm (global best). The position is then updated using x_i(t+1) = x_i(t) + v_i(t+1). This mechanism allows the swarm to balance exploration of new layout configurations and exploitation of known high-performing arrangements.

Application to Wind Farm Layout

Applying PSO to offshore wind farm layout involves defining a fitness function that quantifies the quality of a given turbine arrangement. Common objectives include maximizing annual energy production (AEP), minimizing wake effects, and reducing cable routing costs. The algorithm iteratively adjusts turbine positions to navigate complex terrain and meteorological data. PSO is particularly effective for offshore layouts due to its ability to handle non-linear constraints and large search spaces. By simulating thousands of layout variations, PSO identifies configurations that optimize energy capture while accounting for site-specific wind patterns and turbine interactions.

Why is layout optimization important?

Optimizing the spatial arrangement of turbines within an offshore wind farm is a critical engineering challenge that directly influences the Levelized Cost of Energy (LCOE). The layout determines how effectively the site captures wind resources while minimizing capital and operational expenditures. Poorly planned arrangements can lead to significant energy losses and increased maintenance costs, making optimization essential for project viability.

Wake Effects and Energy Yield

One of the most significant factors influencing layout is the wake effect. When wind passes through a turbine, it loses kinetic energy and gains turbulence, creating a "wake" that extends downstream. If subsequent turbines are placed too closely within these wakes, their energy capture efficiency drops substantially. This phenomenon can reduce the annual energy production (AEP) of the farm by up to 20% depending on wind speed and direction variability. Optimization algorithms model these interactions to space turbines adequately, balancing the number of units against the per-turbine yield. The goal is to minimize wake interference while maximizing the total swept area exposed to the prevailing wind vectors.

Cable Routing and Electrical Infrastructure

The configuration of subsea cables significantly impacts capital expenditure. Inter-array cables connect individual turbines to each other, while export cables link the farm to the onshore grid. An optimized layout minimizes the total length of these cables, reducing material costs and electrical losses. Complex routing can also increase installation time and exposure to seabed topography hazards. Engineers must balance the trade-off between shorter cable runs and optimal turbine positioning for wind capture. Efficient cable routing often involves creating a hierarchical network that groups turbines into clusters, feeding into central substations or directly to the export line.

Foundation Costs and Site Conditions

Foundation costs vary widely based on water depth, seabed geology, and turbine size. Optimization considers these site-specific conditions to place turbines where foundation types are most cost-effective. For instance, in areas with complex seabed topography, placing turbines on stable ground can reduce foundation complexity. The layout must also account for exclusion zones, such as shipping lanes and marine protected areas, which constrain where turbines can be installed. By integrating foundation cost models with wind resource data, developers can identify the most economically efficient positions for each turbine, ensuring that the high capital cost of offshore installations is justified by maximum energy output.

How does PSO apply to wind farm design?

Particle Swarm Optimization (PSO) addresses the turbine layout problem by treating each potential configuration as a "particle" moving through a multi-dimensional search space. The algorithm iteratively adjusts turbine coordinates to maximize energy yield while minimizing wake losses and capital expenditure. In offshore environments, the objective function heavily weights the reduction of aerodynamic interference, where upstream turbines cast velocity deficits on downstream units. The PSO framework evaluates these interactions using wake models, such as the Jensen or Gauss models, to calculate the power output of each turbine Pi based on local wind speed vi and direction θ.

Optimization Mechanics and Constraints

The optimization process relies on updating each particle’s position and velocity vectors according to its own best-known position (pbest) and the global best-known position (gbest) of the swarm. The velocity update equation incorporates cognitive and social components, often expressed as vid(t+1)=w⋅vid(t)+c1r1(pid−xid(t))+c2r2(pgd−xid(t)), where w is the inertia weight and c1,c2 are acceleration coefficients. This mechanism allows the swarm to explore diverse layouts before converging on an optimal arrangement that balances turbine spacing and alignment with prevailing wind vectors.

Offshore layouts face unique constraints compared to onshore farms. The algorithm must account for seabed topography, cable routing costs, and marine spatial planning zones. PSO handles these by assigning penalty values to configurations that violate minimum spacing requirements, typically defined as multiples of the rotor diameter D (e.g., 5D downstream, 3D lateral). These penalties are subtracted from the fitness score, guiding particles away from congested areas that exacerbate wake effects. The global best solution emerges when the swarm stabilizes, providing a layout that optimizes the Levelized Cost of Energy (LCOE) by balancing increased power capture against the incremental costs of turbine installation and electrical infrastructure.

Worked examples

Particle Swarm Optimization (PSO) is frequently applied to minimize wake losses and cable costs in offshore wind farm layouts. The following examples illustrate the algorithmic process using standard simplified models.

Example 1: Minimizing Wake Losses

Consider a hypothetical farm with three turbines (A, B, C) in a straight line with dominant north-to-south wind. The objective is to maximize annual energy production (AEP). PSO initializes particles representing coordinate sets. A particle might propose positions: A(0,0), B(500,0), C(1000,0) meters. The wake model calculates the velocity deficit. Turbine B experiences a wake from A. Turbine C experiences wakes from A and B. The fitness function calculates total AEP. If a new particle suggests B(500, 200), the lateral offset reduces the wake impact on B. The algorithm updates the velocity of the particle based on its personal best and the global best AEP. Over iterations, the swarm converges on a layout where turbines are staggered to minimize downstream velocity deficits, increasing total AEP compared to the linear arrangement.

Example 2: Minimizing Cable Length

In this scenario, the objective is to minimize the total length of subsea collection cables connecting turbines to the offshore substation. Assume five turbines and one substation. The layout is a 2D grid. PSO particles represent the sequence of connections or the coordinates if positions are variable. A particle might define a radial layout where each turbine connects directly to the substation. Another particle might define a string layout where T1 connects to T2, T2 to T3, and T3 to the substation. The fitness function sums the Euclidean distances between connected nodes. The algorithm evaluates the total cable length for each particle. If the string layout yields a shorter total length than the radial layout, it becomes the global best. The swarm adjusts velocities to explore variations, such as adding a collector line, converging on the topology that minimizes capital expenditure on cabling.

Example 3: Multi-Objective Optimization

Real-world layouts often balance AEP and cable cost. This is a multi-objective problem. PSO can use a weighted sum approach or Pareto optimization. The fitness function is F = w1 * AEP + w2 * Cable_Cost. Weights w1 and w2 reflect the relative importance of energy yield versus capital cost. A particle might propose a dense layout with high AEP but long cables. Another might propose a sparse layout with low wake losses but short cables. The algorithm iterates, updating particles based on the combined score. The final result is a set of non-dominated solutions (Pareto front), allowing engineers to choose a layout that best fits the specific financial and meteorological constraints of the site, demonstrating PSO’s flexibility in handling complex trade-offs in offshore wind farm design.

Applications in offshore wind energy

Particle Swarm Optimization (PSO) is a metaheuristic algorithm widely applied to the complex spatial arrangement of offshore wind turbines. The primary objective in offshore wind farm layout optimization is to maximize annual energy production (AEP) while minimizing capital and operational expenditures. PSO addresses this by simulating the social behavior of swarms, where each "particle" represents a potential turbine configuration. The algorithm iteratively updates particle positions and velocities based on individual and collective best solutions, converging on an optimal layout that accounts for site-specific constraints.

Wake Effect Mitigation

The most significant technical challenge in offshore layouts is the wake effect, where upstream turbines reduce the wind speed available to downstream units. PSO algorithms integrate wake models, such as the Jensen or Gaussian models, to quantify these losses. The optimization function often includes a term for total wake loss, calculated as:

AEP = Σ (P(v_i) * h_i)

where P(v_i) is the power output of turbine i at effective wind speed v_i, and h_i is the hourly wind frequency. By minimizing the overlap of turbine wakes, PSO identifies configurations that enhance the aggregate power output of the farm. This is particularly critical in offshore environments where higher wind speeds amplify the kinetic energy lost to turbulence.

Capital and Operational Cost Reduction

Beyond energy yield, PSO optimizes for economic efficiency. Offshore wind farms incur substantial costs related to foundation types, inter-array cabling, and subsea transmission lines. The algorithm can minimize the total length of electrical cabling by arranging turbines in compact, logical sequences, reducing both material costs and voltage drops. Additionally, PSO helps determine optimal spacing to balance land-use efficiency against wake losses. By reducing the total cable length and optimizing foundation placement relative to water depth and seabed topology, the levelized cost of energy (LCOE) is significantly lowered. This multi-objective approach ensures that the final layout is not just energetically efficient, but also economically viable for long-term operation.

Challenges and limitations

Optimizing offshore wind farm layouts using Particle Swarm Optimization (PSO) presents significant computational and technical challenges. The primary limitation is the high computational cost associated with evaluating the objective function for large-scale farms. Each particle in the swarm represents a potential layout, requiring complex wake effect calculations, often using models like the Jensen or Gaussian wake models. For a farm with dozens or hundreds of turbines, calculating the power output and annual energy production (AEP) for every particle in every iteration demands substantial processing power. This can lead to long convergence times, making real-time optimization difficult without high-performance computing resources.

Another critical challenge is the risk of premature convergence. PSO algorithms can sometimes get trapped in local optima, especially in complex, non-convex search spaces typical of offshore sites with varying bathymetry and wind directions. If the swarm’s inertia weight and cognitive/social parameters are not carefully tuned, particles may cluster around a sub-optimal layout before exploring the entire feasible region. This results in a layout that is "good" but not necessarily the "best," potentially leaving significant energy yield on the table.

Handling Constraints and Discretization

Offshore wind farm layouts are subject to numerous constraints that are difficult to encode directly into the PSO framework. These include minimum spacing between turbines to minimize wake losses, cable routing costs, and exclusion zones due to marine life or shipping lanes. Standard PSO operates in a continuous search space, but turbine positions are often discretized or constrained to specific grid points. Converting continuous particle positions to discrete coordinates can introduce noise and reduce the smoothness of the fitness landscape, complicating the swarm’s movement. Additionally, enforcing hard constraints like minimum distance requires penalty functions or repair mechanisms, which add complexity and can slow down convergence.

Furthermore, the stochastic nature of wind itself introduces uncertainty. PSO typically optimizes for a deterministic or average-case scenario, but real-world wind patterns are variable. A layout optimized for mean wind speed might underperform during extreme wind events or seasonal shifts. Integrating probabilistic models into the PSO objective function increases computational load and requires more sophisticated fitness evaluations to ensure robustness against wind variability and wake meandering effects.
