Grid synchronisation

Overview

Grid synchronisation is the fundamental operational procedure required to connect a generating unit—whether a synchronous generator, induction machine, or power-electronic inverter—to an existing electrical power network without causing disruptive transients. The core objective is to align the electrical characteristics of the incoming source with those of the main grid at the precise moment the circuit breaker closes. This alignment involves three critical parameters: voltage magnitude, frequency, and phase angle. If these parameters are mismatched, the sudden connection can result in high mechanical stress on turbine shafts, thermal stress on windings, and significant voltage dips or surges across the broader network.

Technical Parameters of Synchronisation

The process requires the generator’s terminal voltage (Vg​) to match the grid voltage (Vgrid​) in both magnitude and waveform. Frequency matching is equally critical; the generator’s rotational speed (for synchronous machines) or the switching frequency (for inverters) must align with the grid frequency, typically 50 Hz or 60 Hz depending on the regional standard. The most sensitive parameter is the phase angle (δ). The phase difference between the generator voltage vector and the grid voltage vector must be minimal at the instant of closure. Ideally, the phase angle difference approaches zero, meaning the peaks and troughs of the alternating current waveforms coincide.

Mathematically, the synchronisation condition can be expressed as minimizing the vector difference between the generator and grid voltages. The transient current (Itransient​) that flows upon closing the breaker is proportional to the voltage difference divided by the total impedance (Z) of the circuit:

Itransient​≈Z∣Vg​∠δg​−Vgrid​∠δgrid​∣​

If the phase angle δ is large, the numerator increases significantly, leading to a high in-rush current. This current can trigger protective relays, potentially causing the generator to trip offline or even leading to a cascading failure in weak grids. Modern synchronisation systems use automatic synchronisers or synchrometers to monitor these three variables in real-time, adjusting the prime mover’s speed and the excitation system’s voltage output until the tolerances are met within a predefined window, often measured in seconds or milliseconds for inverter-based resources.

How does grid synchronisation work?

Grid synchronisation is the precise alignment of a generator’s electrical output with the existing power network before closing the main circuit breaker. This process ensures that the incoming voltage, frequency, and phase angle match the grid’s parameters, minimizing transient mechanical and electrical stresses on the turbine-generator set.

Key Parameters

Successful synchronisation requires matching three critical variables. First, the voltage magnitude of the incoming generator must equal the grid voltage. Second, the frequency must align; in a 50 Hz system, the generator’s rotational speed must correspond to the frequency via f=120P⋅N​, where P is poles and N is RPM. Third, the phase angle difference between the generator and grid voltage vectors must approach zero at the moment of closure.

Monitoring Instruments

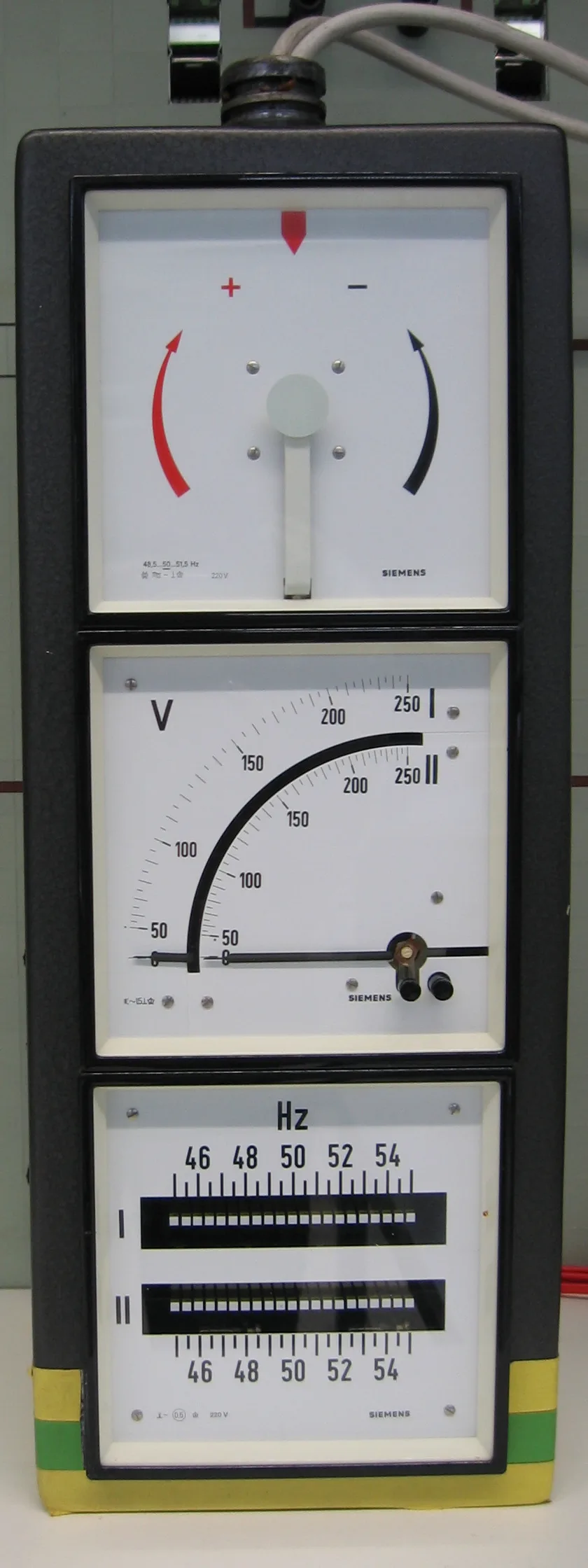

Operators rely on specific instruments to monitor these parameters. A synchrometer provides a visual indication of the phase angle difference and frequency deviation, often using a rotating needle or digital bar graph. A synchronoscope displays the relative phase rotation between the generator and the grid, typically showing a rotating pointer that indicates when the waveforms are in phase. Automatic synchronizers integrate these measurements, using logic controllers to adjust the generator’s excitation voltage and prime mover speed to achieve optimal alignment.

Manual vs. Automatic Methods

In automatic systems, the controller calculates the "lead time" — the interval required for the circuit breaker contacts to close. It triggers the closure slightly before the phase angles perfectly align, ensuring that the generator and grid voltages coincide exactly when the current begins to flow. This precision reduces the "slip frequency," preventing excessive torque on the generator shaft.

What are the main types of grid synchronisation?

Grid synchronisation methodologies are fundamentally divided into two categories based on the primary conversion technology: synchronous generators and inverter-based resources. These approaches dictate how electrical power is matched to the grid’s frequency, voltage, and phase angle before or during connection.

Synchronous Generator Synchronisation

Traditional synchronous generators rely on rotating mass to maintain frequency stability. Synchronisation requires matching the generator’s terminal voltage, frequency, and phase sequence to the infinite bus or the existing grid. The process typically involves closing the circuit breaker when the voltage difference is minimal, often using an automatic synchroniser that monitors the slip frequency. The kinetic energy stored in the rotor provides immediate inertia, helping to arrest frequency deviations following a disturbance.

Inverter-Based Resource Synchronisation

Inverter-based resources (IBRs), such as solar photovoltaics and wind turbines, utilize power electronics for grid connection. They are classified into two control strategies: grid-following and grid-forming.

Grid-following inverters rely on a phase-locked loop (PLL) to track the grid’s voltage and frequency. They behave as current sources, injecting power based on the reference signal from the grid. Without the grid, a pure grid-following inverter may lose synchronisation due to the lack of a voltage reference.

Grid-forming inverters emulate the behaviour of synchronous machines by establishing voltage and frequency independently. They act as voltage sources, providing essential inertia and short-circuit current contributions, which are critical for grids with high IBR penetration. This capability allows them to "black start" or stabilise weak grids.

Challenges in modern power grids

Hard and Soft Landing Scenarios

Technical Challenges and Formulas

HVDC Links and Grid Strength

Worked examples

Slip Frequency Calculation

Slip frequency determines the rate at which the voltage phase angle between a generator and the grid changes. It is defined as the difference between the generator frequency and the grid frequency. The formula is:

f_slip = f_gen - f_grid

Consider a synchronous generator approaching synchronization with a 50 Hz grid. If the generator is running at 50.2 Hz, the slip frequency is:

f_slip = 50.2 Hz - 50 Hz = 0.2 Hz

This indicates the generator voltage vector rotates 0.2 cycles per second relative to the grid voltage vector.

Closing Time Window Calculation

The closing time window is the duration during which the phase difference remains within an acceptable tolerance, typically ±10° to ±15°. The time for one complete slip cycle is T_slip = 1 / f_slip. The time window Δt for a phase tolerance Δθ (in degrees) is:

Δt = (Δθ / 360) × T_slip = (Δθ / 360) × (1 / f_slip)

Using the previous example with f_slip = 0.2 Hz and a tolerance of ±10° (total 20°):

T_slip = 1 / 0.2 = 5 seconds

Δt = (20 / 360) × 5 = 0.278 seconds

The breaker should close within this 0.278-second window centered on the zero-phase-crossing point.

Example with Higher Slip

If the generator frequency is 50.5 Hz, f_slip = 0.5 Hz. T_slip = 1 / 0.5 = 2 seconds. For a ±15° tolerance (30° total):

Δt = (30 / 360) × 2 = 0.167 seconds

Higher slip frequencies result in shorter closing windows, requiring faster breaker operation or more precise timing mechanisms to minimize mechanical and electrical stress during synchronization.

Applications and use cases

Grid synchronisation is a foundational procedure in power systems engineering, ensuring that an incoming generator, inverter, or converter station matches the voltage, frequency, and phase angle of the existing network before physical connection. This process is critical during the commissioning of new power plants, where the turbine-generator set must be brought up to speed and excitation before the main circuit breaker closes. Failure to align these parameters can result in significant mechanical torque on the rotor and transient electrical stresses, potentially damaging the prime mover or the stator windings. Modern synchronising relays continuously monitor the slip frequency and phase difference, closing the breaker at the optimal moment to minimise the in-rush current.

Microgrid Islanding and Reconnection

In microgrid applications, synchronisation governs the transition between grid-tied and islanded modes. When a microgrid islands from the main utility grid, its internal distributed energy resources (DERs) must maintain a stable frequency and voltage profile. Reconnection requires the microgrid’s point of common coupling (PCC) to match the utility’s waveform. The phase angle difference Δϕ and frequency difference Δf must be within tight tolerances, typically defined by standards such as IEEE 1547. If the phase jump is too large, the reconnection event can cause a voltage dip or a frequency deviation that may trigger under-frequency load shedding. Advanced grid-forming inverters are increasingly used to provide the necessary inertia and voltage support to facilitate smoother synchronisation during these transitions.

HVDC Converter Station Synchronisation

High Voltage Direct Current (HVDC) links present unique synchronisation challenges, particularly for Line-Commutated Converter (LCC) systems. The AC side of the converter must be synchronised with the DC voltage magnitude and the firing angle of the thyristors. For Voltage Source Converter (VSC) based HVDC links, the phase-locked loop (PLL) is critical for tracking the grid voltage phase angle. During black-start scenarios or after a major disturbance, the HVDC converter station must synchronise with the receiving end AC grid to restore power flow. This involves adjusting the active and reactive power output to match the grid’s frequency and voltage setpoints, ensuring stable power transfer across the direct current link.

Regulatory standards and grid codes

Grid synchronization is governed by a complex framework of international standards and regional grid codes that define the technical performance requirements for generators connecting to the transmission network. These standards ensure that when a generator is switched on-line, its voltage, frequency, and phase angle are sufficiently aligned with the grid to minimize transient mechanical and electrical stresses on the turbine-generator shaft and the network components.

International Standards: IEC and IEEE

The International Electrotechnical Commission (IEC) and the Institute of Electrical Engineers (IEEE) provide the foundational technical specifications for synchronization performance. IEC 60034-27, titled "Rotating electrical machines - Synchronizing torque and slip power recovery for induction motors," and related parts, outlines the mechanical and electrical criteria for the synchronization process. This standard addresses the synchronizing torque, which is the electromagnetic torque produced when a synchronous machine is connected to an infinite bus bar with a small phase angle difference. The standard defines acceptable limits for the slip and the transient torque to prevent excessive stress on the turbine-generator shaft, particularly during the "cold" and "hot" starts of large steam and gas turbines.

Similarly, IEEE Standard 114, "Recommended Practice for Excitation System Models and Parameters for Power System Stability Analysis," provides critical parameters for modeling the excitation system's role in maintaining voltage stability during and after synchronization. The standard specifies the dynamic response requirements for the automatic voltage regulator (AVR) and the power system stabilizer (PSS) to ensure that the generator can absorb the initial shock of connection without losing synchronism. These models are essential for simulating the transient stability of the grid when new generation capacity is added or when existing units are reconnected after a trip.

Regional Grid Code Requirements

Regional Transmission System Operators (TSOs) translate these international standards into specific grid codes that mandate precise performance metrics for synchronization. These codes vary by region but generally focus on voltage ride-through, frequency response, and phase angle tolerance. For example, in Europe, the ENTSO-E Network Codes require generators to remain connected during voltage dips and to provide reactive power support immediately upon synchronization. The grid codes specify the maximum allowable phase angle difference, typically between 10 to 30 degrees, and the frequency difference, usually within 0.1 Hz, at the moment of breaker closure.

In North America, the North American Electric Reliability Corporation (NERC) standards, such as the Generator Performance standards, define the synchronization requirements for synchronous condensers and generators. These standards emphasize the mechanical integrity of the turbine-generator shaft, requiring detailed torsional analysis to ensure that the synchronizing torque does not exceed the critical torsional natural frequencies of the shaft line. The PER standards also mandate that generators must be able to synchronize within a specified time frame after a trip, ensuring rapid restoration of capacity to the grid.

Emerging markets and developing grids often adopt hybrid grid codes that combine IEC and IEEE standards with local operational experience. These codes may include specific requirements for the synchronization of renewable energy sources, such as wind turbines and photovoltaic inverters, which have different dynamic characteristics compared to traditional synchronous generators. The synchronization of inverter-based resources requires precise control of the phase-locked loop (PLL) to match the grid's frequency and phase angle, ensuring smooth integration and minimal harmonic distortion.
