Overview

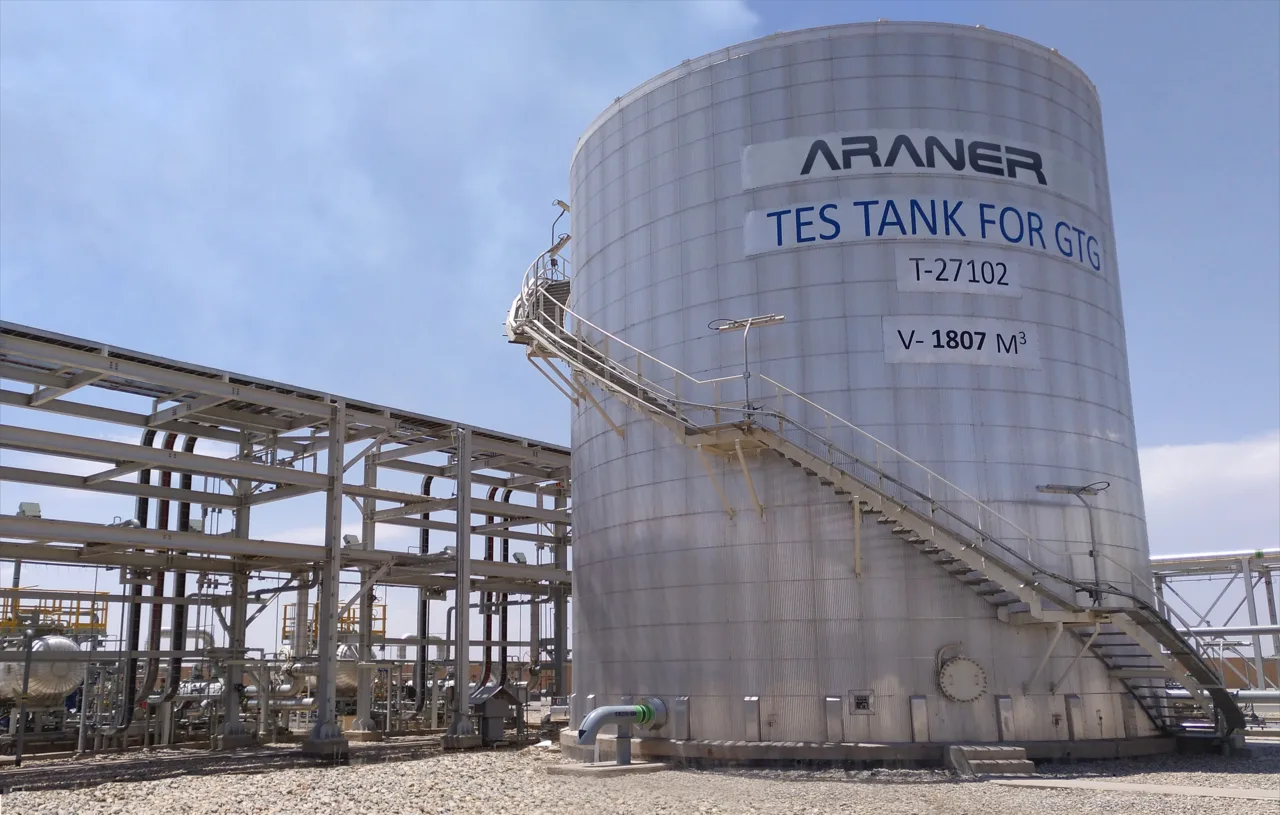

Thermal energy storage (TES) tanks are critical infrastructure components designed to capture, retain, and release thermal energy to optimize the timing of heat and cold delivery in energy systems. As a concept within the broader energy infrastructure, these storage vessels decouple energy production from consumption, allowing for greater flexibility in grid management and industrial processes. The primary function of a TES tank is to store excess thermal energy—either as sensible heat, latent heat, or thermochemical energy—during periods of high supply or low demand, and to discharge it when demand peaks or supply wanes. This capability is essential for integrating variable renewable energy sources, such as solar thermal and wind-to-heat systems, into the broader energy mix.
Operational Principles and Energy Balance
The operation of thermal energy storage tanks relies on fundamental thermodynamic principles. In sensible heat storage, the most common form, energy is stored by raising or lowering the temperature of a storage medium, such as water, molten salt, or rock. The amount of energy stored is determined by the mass of the medium, its specific heat capacity, and the temperature difference. The basic energy balance for a simple TES system can be expressed as:
E = m * c_p * ΔT
Where E is the stored thermal energy, m is the mass of the storage medium, c_p is the specific heat capacity, and ΔT is the temperature change. In latent heat storage, phase change materials (PCMs) are used to store energy during the phase transition, such as from solid to liquid, offering higher energy density per unit volume compared to sensible storage. Thermochemical storage involves reversible chemical reactions to store and release heat, providing long-term storage potential with minimal heat loss.
Role in Energy Infrastructure
Thermal energy storage tanks play a vital role in enhancing the efficiency and reliability of energy infrastructure. In district heating and cooling networks, large-scale TES tanks allow for the smoothing of load profiles, reducing peak demand on boilers and chillers. In power generation, particularly in concentrated solar power (CSP) plants, molten salt storage tanks enable electricity generation even after the sun sets, providing dispatchable power to the grid. The operational status of these systems is generally characterized by high reliability and long service life, with many installations remaining operational for decades. The mixed fuel/source nature of TES means it can integrate with various primary energy carriers, including electricity, natural gas, biomass, and solar radiation, making it a versatile component in the transition towards a more flexible and resilient energy system.
How do thermal energy storage tanks work?
Thermal energy storage (TES) tanks operate on the principle of decoupling heat generation from heat consumption, allowing energy to be stored in a medium and retrieved later with minimal loss. The fundamental thermodynamic mechanism relies on transferring thermal energy from a heat source to a storage medium, maintaining its temperature, and subsequently extracting it for use. This process enhances system flexibility, particularly in power generation and district heating, by smoothing out fluctuations in supply and demand.
Sensible Heat Storage Mechanisms
Sensible heat storage is the most common form of TES, relying on the temperature change of a storage medium without a phase transition. The energy stored is proportional to the mass of the medium, its specific heat capacity, and the temperature difference. The governing equation is Q = m * c_p * ΔT, where Q is the heat energy, m is the mass, c_p is the specific heat capacity, and ΔT is the temperature change. Water is frequently used as the storage medium due to its high specific heat capacity and cost-effectiveness. In a typical stratified tank, hot water enters at the top and cold water at the bottom, creating a thermal gradient that minimizes mixing and maximizes the usable temperature difference. This stratification is critical for efficiency, as it allows the system to draw from the hottest layer during peak demand.
Latent Heat Storage Mechanisms
Latent heat storage utilizes phase change materials (PCMs) to store energy during a phase transition, typically from solid to liquid and vice versa. Unlike sensible storage, the temperature remains relatively constant during the phase change, allowing for higher energy density in a smaller volume. The energy stored is calculated using Q = m * L, where L is the latent heat of fusion or vaporization. Common PCMs include paraffin waxes, salt hydrates, and fatty acids. These materials absorb heat when melting and release it when solidifying. Latent heat storage is particularly advantageous in applications requiring precise temperature control, such as building heating and cooling systems. However, challenges include the relatively low thermal conductivity of many PCMs, which can slow down the charging and discharging rates, and the potential for supercooling, where the material remains liquid below its freezing point.
System Integration and Efficiency
The efficiency of thermal energy storage tanks depends on insulation quality, the choice of storage medium, and the temperature differential maintained within the system. Proper insulation minimizes heat loss to the surroundings, preserving the stored energy over extended periods. In combined heat and power (CHP) systems, TES tanks allow electricity and heat to be produced independently, optimizing fuel usage. For instance, excess heat generated during periods of low electrical demand can be stored and used later, reducing the need for auxiliary boilers. The integration of TES with renewable energy sources, such as solar thermal and geothermal systems, further enhances grid stability by storing intermittent heat outputs for consistent delivery. Effective design ensures that the thermodynamic losses are minimized, maximizing the return on energy invested in the storage process.
What are the main types of thermal energy storage tanks?
Thermal energy storage tanks are categorized primarily by the storage medium and the internal configuration that governs heat retention and retrieval. The choice of medium determines the temperature range and energy density, while the configuration affects the exergy efficiency of the system.
Classification by Storage Medium
Water is the most common medium for sensible heat storage, particularly in district heating and solar thermal systems. Water tanks operate typically between 40°C and 90°C, leveraging the high specific heat capacity of water (cp≈4.18 kJ/kg⋅K). This medium is cost-effective and chemically stable, making it suitable for large-scale, low-to-medium temperature applications.
Molten salt is the dominant medium for high-temperature sensible heat storage, widely used in concentrated solar power (CSP) plants. Common mixtures include sodium nitrate and potassium nitrate, which remain liquid between approximately 220°C and 550°C. Molten salts offer higher energy density than water and can maintain temperatures sufficient to drive steam turbines, providing dispatchable power generation.
Phase change materials (PCMs) utilize latent heat storage, absorbing or releasing energy during a phase transition, typically solid-to-liquid. PCMs such as paraffin waxes, salt hydrates, and metallic alloys store significant energy at nearly constant temperatures. This isothermality reduces temperature gradients during charge and discharge cycles, enhancing the quality of stored thermal energy compared to sensible storage systems.
Classification by Configuration
Stratified tanks are designed to maintain thermal layers within the storage medium. In water tanks, density differences between hot and cold water create natural stratification, with hot water rising to the top and cold water settling at the bottom. This configuration minimizes mixing losses, allowing the tank to function as a series of discrete temperature zones. Proper inlet and outlet diffusers are critical to maintain the thermocline, the transition layer between temperatures.
Mixed tanks, often used with molten salt or well-agitated water systems, assume a uniform temperature throughout the volume. This configuration simplifies the thermodynamic model but may result in higher exergy losses due to the averaging of temperature differences. Mixed storage is common in systems where pumps actively circulate the medium, ensuring thermal homogeneity but requiring careful management of heat losses from the tank walls.
Applications in heating systems
Thermal energy storage tanks serve as critical components in modern heating systems, enabling the decoupling of heat generation and consumption. In residential applications, these tanks are frequently integrated with solar thermal collectors to store excess heat during peak solar irradiance for use during evening hours or overcast periods. This integration reduces reliance on auxiliary electric heaters or gas burners, thereby enhancing the overall efficiency of the domestic hot water and space heating systems. The stored thermal energy allows for a more stable temperature output, improving user comfort and reducing the cycling frequency of heat pumps or boilers.
Commercial and Industrial Integration
In commercial buildings, large-scale storage tanks are often paired with central boilers or chiller plants to manage peak load demands. By storing hot water during off-peak tariff hours or when fuel costs are lower, facilities can reduce operational expenses. Industrial processes with intermittent heat demands, such as batch processing in food manufacturing or textile dyeing, utilize these tanks to smooth out thermal fluctuations. This buffering capacity ensures that the heat source operates near its optimal efficiency point for longer durations, rather than cycling on and off frequently.
Technical Considerations and Formulas
The effectiveness of a thermal storage tank depends on its volumetric capacity, insulation quality, and the temperature differential between the stored fluid and the ambient environment. The basic energy stored in a sensible heat tank can be approximated by the formula E = m * c_p * ΔT, where E is the energy, m is the mass of the storage medium, c_p is the specific heat capacity, and ΔT is the temperature change. Proper stratification within the tank is crucial for maximizing efficiency, as it minimizes mixing losses and maintains a higher temperature at the outlet during discharge. Insulation materials such as polyurethane foam or mineral wool are commonly used to minimize conductive heat losses through the tank walls.
Sizing and process dynamic simulation
Optimal sizing of thermal energy storage tanks requires balancing capital expenditure against operational flexibility, particularly in systems with intermittent heat sources. Research emphasizes that undersized tanks lead to frequent cycling of heat generators, while oversized tanks increase heat loss and initial costs. A pivotal 2018 study focused on biomass boiler heating systems to determine the most effective storage volume relative to boiler capacity.
Key Parameters from the 2018 Biomass Study
| Parameter | Value/Description |
|---|---|
| System Type | Biomass boiler heating system |
| Primary Variable | Storage tank volume relative to boiler capacity |
| Objective | Minimize total annual cost (capital + operational) |
| Key Finding | Optimal sizing depends heavily on fuel price and boiler efficiency curves |
The study utilized process dynamic simulation to model the transient behavior of the heating system. The simulation accounted for the thermal inertia of the tank, the on/off cycling characteristics of the biomass boiler, and the variable heat demand of the building. The total annual cost Ctotal was modeled as the sum of the annualized capital cost Ccap and the annual operational cost Cop:
Ctotal=Ccap+Cop
The capital cost component is directly proportional to the storage volume Vtank, while the operational cost is influenced by the boiler's part-load efficiency and the temperature stratification within the tank. The research demonstrated that a simple rule-of-thumb sizing method often results in suboptimal performance. Instead, a dynamic simulation approach allows for the precise identification of the "sweet spot" where the marginal cost of adding storage volume equals the marginal savings in fuel consumption.
This methodology is critical for biomass systems because biomass boilers often have a higher minimum stable output compared to gas-fired counterparts. Without adequate storage, the boiler may need to modulate down to a less efficient operating point or cycle frequently, leading to increased ash production and heat loss. The 2018 findings provide a framework for engineers to tailor storage sizes to specific fuel costs and building load profiles, ensuring that the thermal energy storage tank acts as an effective buffer rather than a passive cost center.
Comparison with other energy storage technologies
Thermal energy storage (TES) occupies a distinct niche in the energy storage landscape, primarily competing with electrochemical batteries and mechanical systems like pumped hydro. The fundamental difference lies in the stored energy form: TES retains heat or cold, whereas lithium-ion and flow batteries store chemical potential energy, and pumped hydro utilizes gravitational potential. This divergence dictates their respective efficiencies, cost structures, and optimal duration of discharge.
Efficiency and Round-Trip Performance
Round-trip efficiency is a critical metric for evaluating storage technologies. Lithium-ion batteries typically achieve high round-trip efficiencies, often exceeding 85–90%, due to minimal conversion losses during charge and discharge cycles. In contrast, thermal storage systems generally exhibit lower round-trip efficiencies, frequently ranging between 50% and 75%, depending on the medium (e.g., molten salt, water, or phase-change materials) and the quality of insulation. The efficiency η can be expressed as the ratio of energy output to energy input: η=EinEout. While lower than batteries, TES efficiency is often sufficient for applications where the energy source is abundant or the cost of the thermal medium is low.
Cost and Capital Expenditure
Capital expenditure (CapEx) is a primary advantage of thermal storage. The cost per kilowatt-hour (kWh) for TES systems, particularly large-scale molten salt or water tanks, is generally lower than that of lithium-ion batteries. This cost advantage becomes more pronounced as the duration of storage increases. Flow batteries, while more expensive than lithium-ion, offer a decoupled power and energy capacity, making them cost-competitive for longer durations. Pumped hydro remains the most cost-effective option for very large scales but is geographically constrained. TES offers a flexible middle ground, with modular tank designs allowing for scalable capacity additions.
Duration and Scalability
Duration of discharge is where thermal storage excels. While lithium-ion batteries are optimized for short-duration storage (1–4 hours), TES systems can efficiently store energy for days or even weeks, depending on insulation quality and thermal mass. This makes TES ideal for seasonal storage or for smoothing out intermittent renewable energy sources over longer periods. Flow batteries also offer long-duration capabilities but at a higher cost per kWh compared to TES. Pumped hydro provides long-duration storage but requires significant geographical features. TES systems, such as large water tanks or molten salt reservoirs, can be scaled up relatively easily by increasing the volume of the storage medium, offering flexibility in system design.
Worked examples
Thermal energy storage (TES) systems require precise sizing to balance capital expenditure against operational flexibility. The following examples illustrate standard design calculations for sensible heat storage using water as the medium, a common configuration in district heating and industrial processes.
Example 1: Sizing a Hot Water Storage Tank
Consider a district heating substation requiring a thermal capacity of 500 kWh to cover peak demand. The system operates with a supply temperature of 90°C and a return temperature of 60°C. The specific heat capacity of water is approximately 4.18 kJ/kg·K.
First, convert the thermal energy requirement into kilojoules: 500 kWh × 3,600 s/h = 1,800,000 kJ. The temperature difference (ΔT) is 90°C – 60°C = 30 K. Using the formula Q = m × c × ΔT, the mass of water (m) is calculated as: m = 1,800,000 kJ / (4.18 kJ/kg·K × 30 K) ≈ 14,354 kg. Given the density of water is roughly 1,000 kg/m³, the required volume is approximately 14.35 m³. Engineers typically add a 10–15% margin for stratification and dead volume, resulting in a final tank size of roughly 16 m³.
Example 2: Discharge Rate Calculation
A solar thermal plant uses a molten salt storage tank to provide 2 MW of thermal power for 4 hours. The molten salt has a specific heat capacity of 1.5 kJ/kg·K and operates between 300°C and 200°C. The total energy stored is 2 MW × 4 h = 8 MWh, which equals 28,800,000 kJ. The temperature difference is 100 K. The required mass of molten salt is m = 28,800,000 kJ / (1.5 kJ/kg·K × 100 K) = 192,000 kg. If the salt density is 1,500 kg/m³, the tank volume must be at least 128 m³. This calculation ensures the tank can sustain the 2 MW output without dropping below the minimum operating temperature, maintaining heat exchanger efficiency.
Example 3: Heat Loss Estimation
For a 10 m³ cylindrical tank with a surface area of 50 m², insulated with 100 mm of polyurethane foam (thermal conductivity 0.025 W/m·K), we estimate steady-state heat loss. The internal temperature is 80°C, and the ambient temperature is 20°C, giving ΔT = 60 K. The heat loss (Q_loss) is calculated as: Q_loss = (k × A × ΔT) / d, where d is the insulation thickness in meters (0.1 m). Q_loss = (0.025 W/m·K × 50 m² × 60 K) / 0.1 m = 750 W. Over 24 hours, the energy loss is 750 W × 24 h = 18 kWh. This represents a 3.6% loss relative to the 500 kWh capacity from Example 1, indicating effective insulation for short-term storage.
