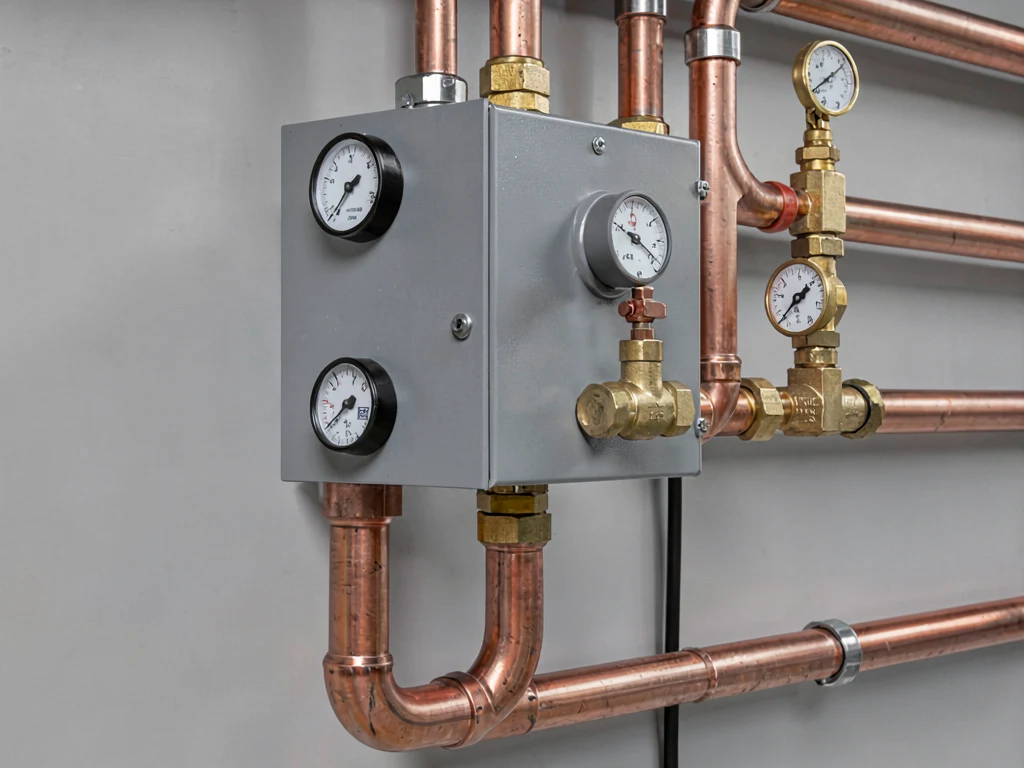

Overview

A district heating substation serves as the critical interface between the centralized thermal energy network and the individual consumer’s internal heating infrastructure. Within the broader architecture of a district heating system, the substation functions as a localized facility responsible for transferring heat from the primary network circulation to the secondary building loop. This component ensures that thermal energy, typically conveyed via hot water or steam through insulated underground pipelines, is efficiently delivered to radiators, underfloor heating systems, or domestic hot water tanks within a residential, commercial, or industrial building.

The primary function of the substation is to manage the hydraulic and thermal separation between the main network and the building’s internal system. In many configurations, the substation houses a heat exchanger that allows thermal transfer without direct mixing of the primary and secondary water circuits. This separation is essential for maintaining pressure stability in the main network while allowing the building’s system to operate at its own optimized pressure and flow rates. The substation also facilitates the regulation of temperature and flow to match the specific heating demand of the building, thereby enhancing energy efficiency and comfort levels for end-users.

Hydraulic and Thermal Regulation

Effective operation of a district heating substation relies on precise control mechanisms. These include pumps, control valves, and sensors that monitor temperature differentials and flow rates. The substation adjusts the volume of primary fluid passing through the heat exchanger based on real-time data from the building’s thermostat or a central control system. This dynamic regulation minimizes energy waste by preventing overheating and ensuring that the delivered thermal power aligns with the actual load requirements. In systems where direct connection is used, the substation may also include balancing valves to ensure equitable distribution of heat among different zones within the building.

The design and placement of substations are critical to the overall efficiency of the district heating network. By decentralizing the point of heat transfer, substations reduce the thermal losses associated with long pipe runs and allow for more flexible expansion of the network. Each substation acts as a modular unit, enabling the system to accommodate varying building sizes and heating demands while maintaining the integrity of the main circulation loop. This modularity supports the scalability of district heating systems, making them adaptable to both dense urban environments and sprawling suburban developments.

What are the core components of a district heating substation?

A district heating substation serves as the critical interface between the centralized primary network and the individual building's secondary heating system. Its primary function is to transfer thermal energy from the hot water circulating in the main supply pipes to the cooler return water of the building's internal radiators or underfloor heating loops. This separation allows for pressure isolation, flow regulation, and accurate energy metering for each consumer.

Core Components and Functions

The substation integrates several mechanical and electronic components to ensure efficient heat transfer and system stability. The following table details the standard parts and their specific roles:

Component Specific Function
Heat Exchanger Transfers thermal energy from the primary circuit to the secondary circuit, often using plate-and-frame technology for high efficiency.
Control Valve Regulates the flow rate of primary water based on temperature demands, modulating heat input.
Heat Meter Measures energy consumption by combining flow rate and temperature difference data.
Strainer Filters out particulate debris from the primary water to protect valves and the heat exchanger.
Shutdown Valve Provides manual or automatic isolation of the primary side for maintenance or emergency stops.
Differential Pressure Controller Maintains a constant pressure difference between the supply and return lines, ensuring stable flow.
Temperature Controller Monitors and adjusts the secondary water temperature to match building requirements.
Temperature Sensor Provides real-time temperature data for the control loop and metering calculations.

Energy Calculation

The heat meter calculates the thermal energy delivered to the building. This is determined by the mass flow rate of the secondary water and the temperature difference between the supply and return lines. The fundamental relationship is expressed as:

Q = m * c_p * (T_supply - T_return)

Where Q is the heat energy, m is the mass flow rate, c_p is the specific heat capacity of water, and T represents the temperatures. Accurate sensor placement and regular calibration of the strainer and valves are essential for maintaining this precision, ensuring fair billing and optimal thermal comfort within the connected building.

Additional equipment and instrumentation

District heating substations often incorporate supplementary equipment to manage hydraulic dynamics, thermal regulation, and system protection. While the core function involves heat exchange, the integration of pumps, valves, and instrumentation ensures stable operation across varying load conditions.

Hydraulic Components

Circulation pumps are frequently installed to maintain flow rates within the secondary circuit, particularly when the building's internal resistance exceeds the primary network's pressure head. These pumps ensure consistent heat delivery to radiators or underfloor systems. Non-return valves are critical for preventing backflow, especially in systems with multiple zones or when the primary network pressure fluctuates. These valves ensure unidirectional flow, reducing turbulence and potential air locks within the piping network.

Safety and Instrumentation

Safety valves are essential for pressure relief, protecting the substation components from overpressure events. These valves automatically open when the system pressure exceeds a predefined threshold, releasing excess fluid or steam. Manometers provide real-time pressure readings, allowing operators to monitor the hydraulic state of both primary and secondary circuits. Accurate pressure monitoring is vital for diagnosing leaks, pump performance, and valve positioning.

The hydraulic balance in a substation can be described using the fundamental pressure drop equation:

ΔP = Q² × R

Where ΔP represents the pressure difference, Q is the volumetric flow rate, and R is the specific resistance of the circuit. This relationship highlights how flow rate variations significantly impact pressure requirements, guiding the selection of pump sizes and valve settings.

Instrumentation may also include temperature sensors, flow meters, and control valves to optimize heat delivery. These devices enable precise regulation of the secondary side temperature, ensuring comfort and energy efficiency. The integration of these components allows for automated control, reducing manual intervention and enhancing system reliability.

How does a district heating substation regulate energy flow?

A district heating substation serves as the critical interface between the primary distribution network and the secondary consumer system, managing the transfer of thermal energy through precise flow regulation and temperature control. The operational logic relies on maintaining a stable heat output despite fluctuations in supply conditions and building demand. This is achieved through the coordination of heat exchangers, circulation pumps, and control valves, which work together to balance hydraulic and thermal parameters.

Flow Regulation and Hydraulic Balance

Flow regulation ensures that the correct volume of heated water is delivered to the consumer's system. In a primary-secondary setup, the flow rate in the primary network is often controlled by a three-way mixing valve or a variable frequency drive (VFD) pump. The controller adjusts the flow based on the temperature difference between the supply and return lines. This maintains the required hydraulic pressure and prevents overheating or underheating in the building. The relationship between heat output, flow rate, and temperature difference is governed by the fundamental thermal equation: Q=m˙⋅cp​⋅ΔT, where Q is the heat output, m˙ is the mass flow rate, cp​ is the specific heat capacity of water, and ΔT is the temperature difference between supply and return.

Temperature Control and Network Balancing

Temperature control is essential for energy efficiency and comfort. The substation monitors the outdoor temperature and adjusts the supply temperature of the secondary network accordingly, a process known as weather compensation. This reduces the temperature of the water entering the building during milder weather, optimizing the performance of radiators or underfloor heating systems. Network balancing involves adjusting the flow distribution across multiple buildings to ensure equitable heat delivery. This is often managed by balancing valves that modulate the flow resistance in each branch of the primary network. Proper balancing minimizes pumping energy and reduces thermal losses in the pipes.

Component Interaction

The heat exchanger is the core component, transferring heat from the primary network to the secondary loop without mixing the fluids. Circulation pumps in both loops maintain the necessary flow rates. Control valves regulate the flow of primary water through the heat exchanger, responding to signals from temperature sensors and flow meters. Modern substations use automated control systems that integrate these components, allowing for real-time adjustments based on demand patterns and supply conditions. This automation enhances efficiency, reduces operational costs, and ensures reliable heat delivery to the end-user.

Applications in building energy systems

District heating substations serve as the critical interface between the centralized thermal network and individual building energy systems. In residential applications, these units facilitate heat exchange for multi-family housing, ensuring that domestic hot water and space heating demands are met efficiently. The substation isolates the hydraulic conditions of the primary network from the secondary building loop, allowing for independent pressure and temperature management. This separation is vital for maintaining system stability, particularly in high-rise residential complexes where static head pressure can significantly exceed the design limits of individual radiator or underfloor heating circuits.

Commercial and Industrial Integration

In commercial buildings, substations support complex load profiles characterized by fluctuating thermal demands. Office towers, hospitals, and shopping centers often require simultaneous space heating and domestic hot water production. Modern substations in these settings frequently incorporate variable speed pumps and modulating control valves to optimize energy consumption. For industrial facilities, the substation’s role expands to include process heating, where precise temperature control is essential for manufacturing efficiency. Industrial substations may handle higher temperature differentials and greater flow rates compared to their residential counterparts, often utilizing plate heat exchangers for enhanced thermal transfer efficiency.

Thermal Performance and Control

The efficiency of a district heating substation is governed by the thermodynamic principles of heat transfer. The rate of heat transfer, Q, can be expressed as Q = U × A × ΔT_lm, where U is the overall heat transfer coefficient, A is the heat exchange surface area, and ΔT_lm is the log mean temperature difference between the primary and secondary fluids. Proper sizing of the heat exchanger ensures that the secondary side delivers the required thermal output while minimizing pumping energy. Advanced control systems within the substation adjust the primary flow rate based on real-time temperature feedback, thereby reducing thermal inertia and improving response times to load variations. This dynamic control is essential for integrating variable renewable energy sources into the district heating network, as it allows the system to absorb excess thermal energy during peak production periods.

Worked examples

District heating substations serve as the critical interface between the high-capacity primary network and the building's secondary heating circuit. The primary function is to transfer thermal energy from the primary side—typically operating at higher temperatures and pressures—to the secondary side, which delivers heat to radiators, underfloor systems, or domestic hot water tanks. This section provides two worked examples illustrating the integration of heat exchangers and control valves in typical residential and commercial scenarios.

Example 1: Residential Building with Plate Heat Exchanger

Consider a residential building requiring 500 kW of heating capacity. The primary network supplies water at 90°C and returns at 70°C. The secondary side operates at 60°C supply and 45°C return. A plate heat exchanger is selected for its high efficiency and compact footprint. The temperature difference (ΔT) on the primary side is 20°C, while the secondary side experiences a ΔT of 15°C. Control valves regulate the primary flow rate to maintain the desired secondary supply temperature. If the building load decreases to 300 kW, the primary control valve modulates to reduce flow, maintaining the 90°C supply temperature while adjusting the return temperature to match the reduced heat extraction. This ensures stable secondary conditions and minimizes thermal shock to the heat exchanger plates.

Example 2: Commercial Complex with Hydraulic Separator

A commercial complex requires 2000 kW of heating. The primary network operates at 110°C supply and 80°C return. The secondary system, serving multiple zones, operates at 70°C supply and 50°C return. Due to the large capacity and varying zone demands, a hydraulic separator is integrated to decouple the primary and secondary flow rates. This prevents pressure fluctuations in the primary network from affecting the secondary pumps. The heat exchanger transfers energy efficiently, with the primary control valve adjusting flow based on the secondary return temperature. If Zone A requires 800 kW and Zone B requires 1200 kW, the hydraulic separator ensures that the primary flow remains stable while secondary pumps adjust individually. This configuration enhances system stability and allows for precise temperature control across diverse thermal loads.

In both examples, the substation's role is to ensure efficient heat transfer, maintain pressure integrity, and provide flexible control to match building demand with network supply. Proper sizing of the heat exchanger and selection of control valves are critical to minimizing energy losses and ensuring long-term operational reliability.

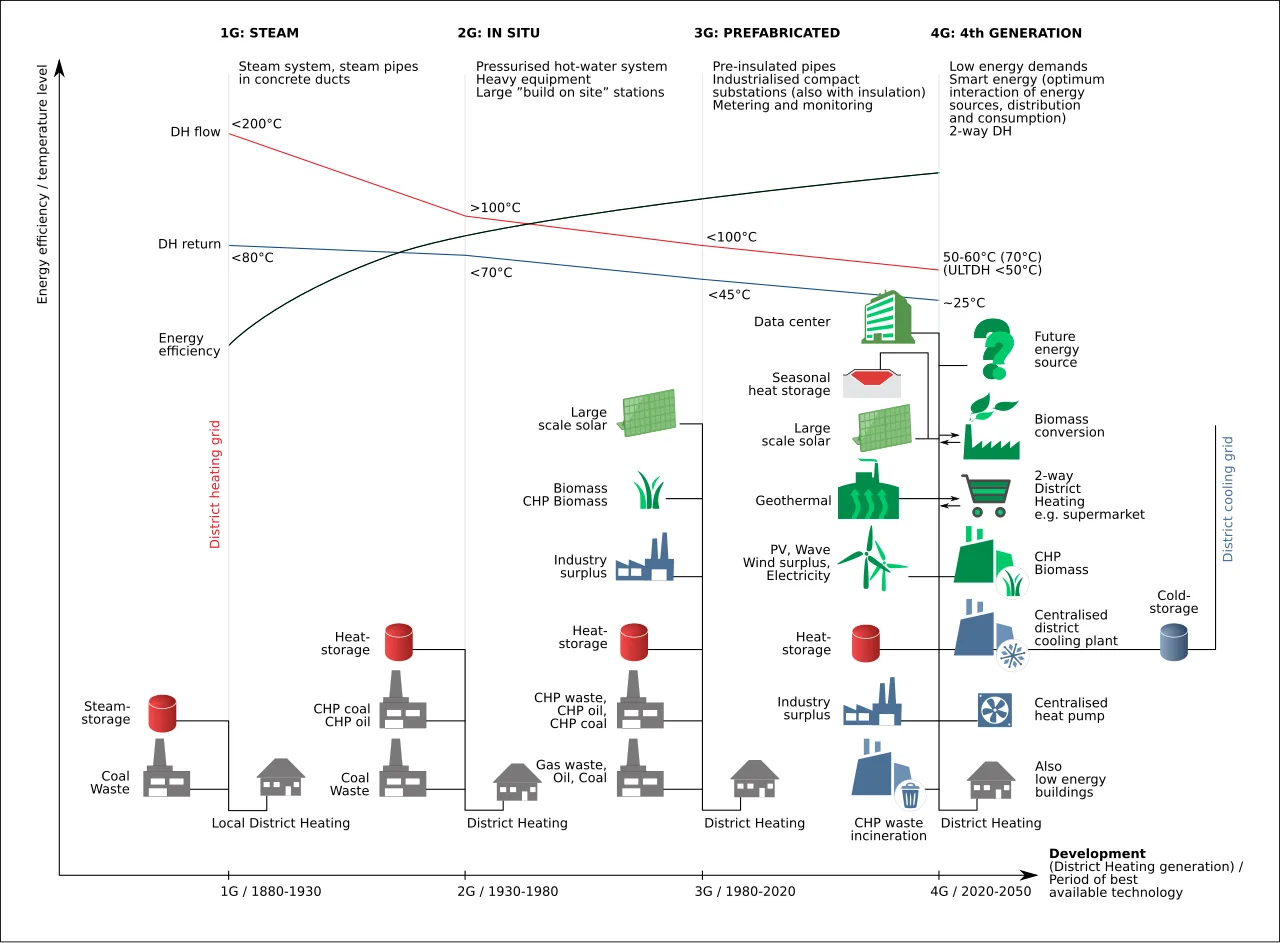

District heating substations function as critical interface nodes within broader thermal energy networks, connecting centralized production facilities to end-user buildings. These systems are often integrated with combined heat and power (CHP) plants, which utilize waste heat from electricity generation to maximize overall thermodynamic efficiency. The integration of CHP allows for a higher degree of fuel utilization compared to separate heat and power production, reducing primary energy consumption and greenhouse gas emissions. Substations facilitate the transfer of thermal energy from the primary network, typically operating at higher temperatures and pressures, to the secondary network serving individual buildings, where temperature and pressure requirements may differ significantly.

Cold District Heating

An emerging variation is cold district heating (CDH), which utilizes low-temperature heat sources such as ambient air, groundwater, or industrial waste heat. In CDH systems, the substation plays a crucial role in upgrading the temperature of the heat source to meet building demands, often employing heat pumps. This technology is particularly effective in regions with abundant low-grade heat sources or where cooling demands are significant, allowing for simultaneous heating and cooling through absorption or compression heat pumps. The efficiency of heat pumps in CDH systems can be expressed using the coefficient of performance (COP), defined as COP=Win​Qout​​, where Qout​ is the heat output and Win​ is the work input. High COP values indicate efficient energy conversion, making CDH a viable option for sustainable urban energy planning.

Heat Pump Integration

Heat pumps are increasingly integrated into district heating substations to enhance flexibility and efficiency. These devices can extract heat from various sources, including the district heating network itself, ambient air, or groundwater, and upgrade it to suitable temperatures for building heating. The use of heat pumps allows for better utilization of renewable energy sources and waste heat, reducing reliance on fossil fuels. Additionally, heat pumps can provide cooling during summer months by reversing the thermodynamic cycle, offering a dual-function solution for building climate control. The integration of heat pumps in substations requires careful design to ensure optimal performance and compatibility with the primary network's temperature profile.

Power Plant Connections

District heating networks are frequently fed by power plants, particularly CHP facilities, which generate both electricity and thermal energy. These plants can utilize various fuel types, including natural gas, biomass, and waste-to-energy, depending on local resource availability and environmental considerations. The substation serves as the point of connection between the power plant's primary network and the building's secondary system, ensuring efficient heat transfer and pressure regulation. The integration of power plants with district heating networks enhances energy security and reduces overall system costs by leveraging economies of scale in heat production. Furthermore, the flexibility of CHP plants allows for better load matching and peak shaving, improving the reliability of the district heating system.
