Technical Specifications
The Vestas V150 4.2 MW is a three-bladed, horizontal-axis wind turbine designed for onshore wind energy generation. As an operational model within the Vestas portfolio, the V150 represents a specific class of utility-scale wind technology optimized for moderate to high wind speed environments. The turbine is classified by its rated electrical capacity of 4.2 MW, a figure that denotes the maximum continuous power output the generator can deliver under standard operating conditions. This capacity places the V150 in the mid-to-high range of onshore turbine sizes, bridging the gap between smaller 3 MW class units and larger 5+ MW platforms. The "V150" designation refers to the rotor diameter of 150 meters, a critical geometric parameter that determines the swept area and, consequently, the amount of kinetic energy captured from the wind stream. The combination of the 150-meter rotor and the 4.2 MW generator creates a specific power density, influencing the turbine's performance characteristics across varying wind regimes.
Rated Capacity and Power Output
The 4.2 MW rated capacity is the primary specification defining the V150's output potential. This value is not a static constant but a threshold determined by the interplay between aerodynamic efficiency, generator rating, and gearbox transmission losses. In wind energy engineering, the rated power is the point at which the turbine's control system begins to regulate the rotor speed or blade pitch to prevent mechanical and electrical overload. Below the rated wind speed, the power output increases approximately with the cube of the wind speed, following the fundamental wind power equation: P=21ρAv3Cp, where P is power, ρ is air density, A is the swept area, v is wind speed, and Cp is the coefficient of performance. For the V150, the 4.2 MW rating indicates that at the rated wind speed—typically between 11 and 13 m/s depending on the specific site conditions—the turbine delivers its full 4.2 MW output. Beyond this speed, the turbine maintains this output through active pitch control, ensuring consistent power delivery to the grid while managing mechanical stress on the drivetrain. This capacity allows the V150 to generate significant annual energy production (AEP), making it suitable for large-scale wind farms where land availability and wind resource quality support higher-capacity units.
Technical Classification and Design

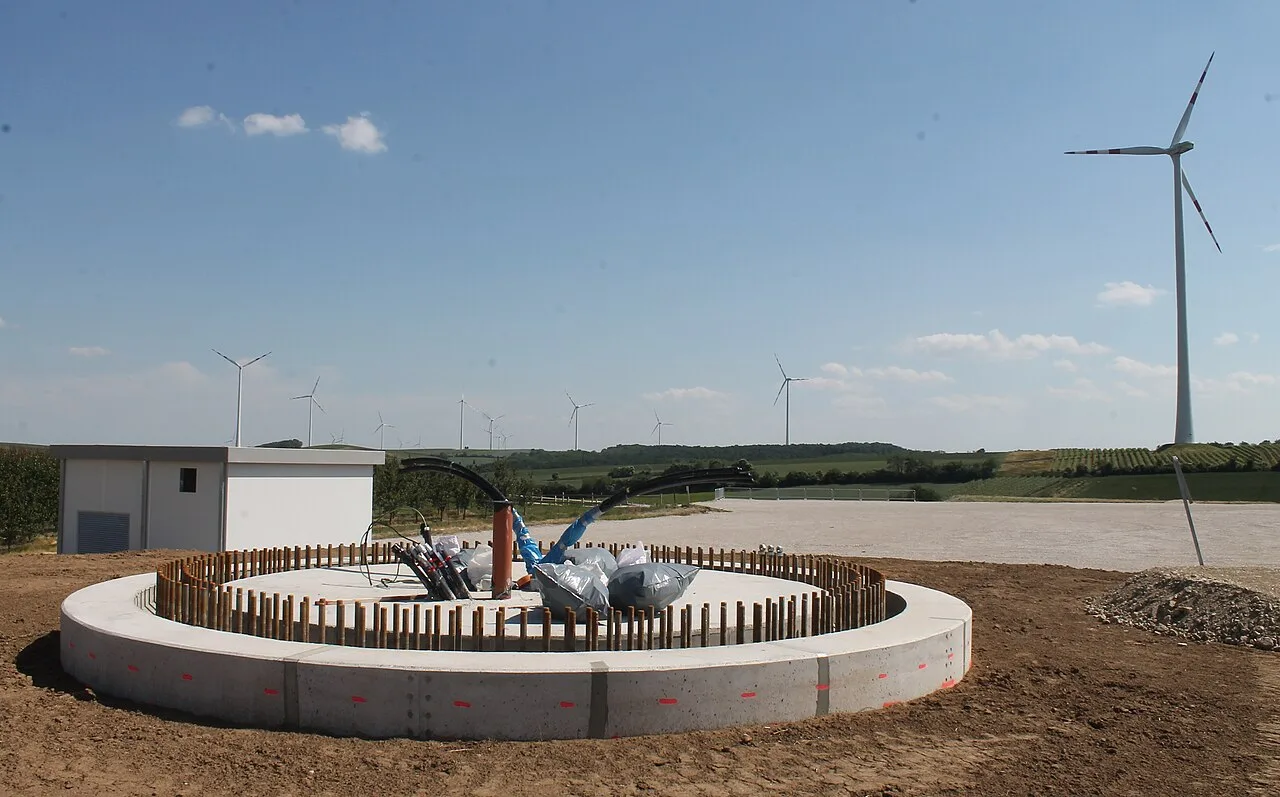

As a wind turbine model, the Vestas V150 4.2 MW adheres to standard industry classifications for modern onshore turbines. It features a three-bladed rotor, which provides a balance between aerodynamic efficiency, noise reduction, and structural simplicity. The horizontal-axis design aligns the rotor shaft parallel to the ground, allowing the turbine to face into the wind via a yaw system. The 150-meter rotor diameter results in a swept area of approximately 17,671 square meters (A=πr2), which is a key factor in capturing wind energy. This large rotor area enables the V150 to achieve a lower cut-in wind speed, allowing it to start generating power at lower wind velocities compared to smaller-rotor turbines. The turbine is designed for operational status in various onshore environments, requiring robust foundation engineering and access roads to accommodate its dimensions. The 4.2 MW capacity is integrated with a generator and power electronics package that converts the mechanical energy from the rotor into electrical energy, typically at a voltage level suitable for step-up transformation and grid integration. The V150's design reflects Vestas' engineering focus on maximizing energy yield while maintaining reliability and ease of maintenance in onshore settings.
How does the V150-4.2 MW generate power?
The Vestas V150-4.2 MW turbine converts kinetic energy from the wind into electrical power through a direct-drive permanent magnet synchronous generator system. This specific model class utilizes a 150-meter rotor diameter to capture wind energy, driving the main shaft which is directly coupled to the generator, eliminating the need for a traditional multi-stage gearbox. The mechanical power captured by the blades is transformed into electrical energy, which is then conditioned and fed into the grid.
The fundamental principle governing the power generation process is the Betz limit, which states that the maximum theoretical efficiency of a wind turbine is approximately 59.3% of the kinetic energy in the wind. The power P extracted from the wind can be expressed by the formula:
P=21ρAv3Cp
Where ρ represents air density, A is the swept area of the rotor (πr2, with r being the 75-meter radius for the V150), v is the wind speed, and Cp is the power coefficient. The V150-4.2 MW is designed to optimize Cp across a range of wind speeds, ensuring efficient energy capture. The turbine's operational status is currently active, with a rated capacity of 4.2 MW, allowing it to generate significant power output under optimal wind conditions.
The direct-drive technology employed in the V150-4.2 MW reduces mechanical complexity and maintenance requirements compared to geared systems. The permanent magnet synchronous generator produces electricity directly from the rotor's rotation, which is then converted from AC to DC and back to AC using power electronics. This process ensures that the electrical output matches the grid's frequency and voltage requirements. The turbine's control system adjusts the blade pitch angle to regulate the rotational speed and power output, maximizing efficiency and minimizing structural loads. This advanced control strategy is crucial for maintaining performance and reliability in varying wind conditions.
Worked examples
The Vestas V150 is a wind turbine model with a rated capacity of 4.2 MW. Annual energy production (AEP) is a critical metric for evaluating the economic viability of wind assets. AEP is calculated by multiplying the rated capacity by the capacity factor and the total number of hours in a year. The capacity factor represents the ratio of actual output over a period to the potential output if the turbine operated at full nameplate capacity continuously.
Example 1: Low Capacity Factor Scenario
Consider a site with moderate wind resources where the Vestas V150 achieves a capacity factor of 0.35 (35%). This scenario is typical for onshore locations with average wind speeds.
The calculation proceeds as follows:
- Rated Capacity: 4.2 MW
- Capacity Factor: 0.35
- Hours in a Year: 8,760 hours
First, calculate the average power output: 4.2 MW × 0.35 = 1.47 MW.
Next, multiply by the annual hours: 1.47 MW × 8,760 hours = 12,877.2 MWh.
In this scenario, the turbine generates approximately 12,877 MWh annually.
Example 2: High Capacity Factor Scenario
Consider a premium offshore or high-wind onshore site where the Vestas V150 achieves a capacity factor of 0.48 (48%). Higher capacity factors reduce the levelized cost of energy (LCOE).
The calculation proceeds as follows:
- Rated Capacity: 4.2 MW
- Capacity Factor: 0.48
- Hours in a Year: 8,760 hours
First, calculate the average power output: 4.2 MW × 0.48 = 2.016 MW.
Next, multiply by the annual hours: 2.016 MW × 8,760 hours = 17,658.24 MWh.
In this scenario, the turbine generates approximately 17,658 MWh annually.
Example 3: Baseline Industry Average
Many industry analyses use a baseline capacity factor of 0.40 (40%) for modern onshore wind turbines. This provides a middle-ground estimate for financial modeling.
The calculation proceeds as follows:
- Rated Capacity: 4.2 MW
- Capacity Factor: 0.40
- Hours in a Year: 8,760 hours
First, calculate the average power output: 4.2 MW × 0.40 = 1.68 MW.
Next, multiply by the annual hours: 1.68 MW × 8,760 hours = 14,716.8 MWh.
In this scenario, the turbine generates approximately 14,717 MWh annually. These examples illustrate how site-specific wind resources significantly impact the annual energy yield of the 4.2 MW Vestas V150.
Frequently asked questions
What is the rated power output of the Vestas V150-4.2 MW turbine?
The Vestas V150-4.2 MW wind turbine has a rated power output of 4.2 megawatts. This specification indicates the maximum electrical power the turbine can generate under optimal wind conditions. It is a key metric for comparing the energy production capacity of different wind turbine models.
How does the Vestas V150-4.2 MW convert wind into electricity?
The turbine generates power by capturing kinetic energy from the wind using its three large blades, which rotate a central hub. This rotation drives a generator inside the nacelle, converting mechanical energy into electrical energy. The system includes a gearbox or direct drive mechanism to optimize the rotation speed for efficient power generation.
What is the rotor diameter of the V150-4.2 MW model?
As indicated by its model name, the Vestas V150-4.2 MW features a rotor diameter of 150 meters. This large sweep area allows the turbine to capture a significant volume of wind, enhancing its energy yield. The 150-meter span is a defining characteristic that distinguishes it from other models in the Vestas lineup.
Why are technical specifications important for the V150-4.2 MW?
Technical specifications provide essential data for site assessment and energy yield predictions for wind farm developers. They include details such as cut-in and cut-out wind speeds, hub height, and noise levels. These metrics help engineers determine the optimal placement and performance expectations of the turbine in specific geographical locations.
What types of calculations are included in the worked examples for this turbine?
Worked examples typically demonstrate how to calculate the theoretical power output based on wind speed and air density. They may also include calculations for annual energy production (AEP) or capacity factor under varying conditions. These examples help students and engineers understand the practical application of wind energy formulas using the V150-4.2 MW's specific parameters.
