Thermal energy storage materials

Overview

Thermal energy storage materials are the fundamental media used to capture, retain, and release heat energy for later use within energy infrastructure systems. These materials enable the decoupling of energy generation from consumption, providing critical flexibility for power plants, industrial processes, and building heating and cooling. The primary function of these materials is to absorb thermal energy during periods of surplus or low demand and release it when energy is needed, thereby smoothing out fluctuations in supply and demand. This capability is essential for integrating variable renewable energy sources, such as solar thermal and wind power, into the broader energy grid. By storing excess heat, these materials help stabilize grid frequency and enhance the overall efficiency of energy conversion systems. The selection of appropriate storage materials depends on several key properties, including specific heat capacity, latent heat of fusion, thermal conductivity, and stability over repeated charge and discharge cycles. These properties determine the energy density, power density, and operational temperature range of the storage system. Thermal energy storage materials are broadly categorized into three main types: sensible heat storage, latent heat storage, and thermochemical storage. Each type offers distinct advantages and challenges, influencing their application in different energy infrastructure contexts. Sensible heat storage relies on the temperature change of a material without a phase change, while latent heat storage utilizes the energy absorbed or released during a phase transition. Thermochemical storage involves reversible chemical reactions to store and release heat. The integration of these materials into energy infrastructure supports the transition to a more resilient and efficient global energy system. They play a vital role in reducing peak load demands, minimizing energy losses, and enhancing the economic viability of various energy technologies. The development and optimization of thermal energy storage materials continue to be a key area of research and innovation in the energy sector. This ongoing progress aims to improve storage capacity, reduce costs, and extend the lifespan of storage systems. The strategic use of these materials is crucial for achieving energy security and sustainability goals worldwide. They provide a versatile solution for managing thermal energy across diverse applications, from large-scale power generation to small-scale residential heating. The effectiveness of thermal energy storage materials is measured by their ability to maintain thermal energy over time with minimal losses. This performance is influenced by the material's thermal properties and the design of the storage system. The choice of material must align with the specific operational requirements of the energy infrastructure. This ensures optimal performance and cost-effectiveness. The continuous advancement of thermal energy storage materials contributes significantly to the modernization of global energy infrastructure. They enable more efficient energy use and support the integration of diverse energy sources. This leads to a more balanced and reliable energy supply for various sectors. The importance of these materials is growing as the world seeks to reduce carbon emissions and enhance energy efficiency. Their role in energy infrastructure is becoming increasingly prominent. This trend is driven by the need for flexible and scalable energy storage solutions. Thermal energy storage materials offer a promising path toward a more sustainable energy future. They provide a reliable method for storing thermal energy with high efficiency. This makes them an essential component of modern energy systems. The ongoing research and development in this field aim to unlock new potential for thermal energy storage. This includes exploring novel materials and innovative storage configurations. These efforts are crucial for meeting the evolving demands of global energy infrastructure. The integration of thermal energy storage materials is a key strategy for enhancing energy resilience. They help mitigate the impact of energy supply disruptions. This contributes to a more stable and secure energy landscape. The widespread adoption of these materials is expected to drive further improvements in energy efficiency. This will have a positive impact on both economic and environmental outcomes. The continued evolution of thermal energy storage materials is vital for the long-term success of global energy infrastructure. They represent a critical technology for managing thermal energy effectively. This ensures that energy is available when and where it is needed most. The strategic deployment of these materials is essential for achieving energy sustainability. They provide a flexible and efficient solution for thermal energy management. This supports the broader goals of energy transition and infrastructure modernization. The importance of thermal energy storage materials cannot be overstated. They are a cornerstone of modern energy infrastructure. Their continued development and application are crucial for a sustainable energy future.

What are the main types of thermal energy storage materials?

Thermal energy storage (TES) materials are classified into three primary categories based on their thermodynamic mechanisms: sensible heat storage, latent heat storage, and thermochemical storage. Each class offers distinct advantages regarding energy density, temperature range, and cost, making them suitable for specific applications in power plants, building HVAC systems, and industrial processes.

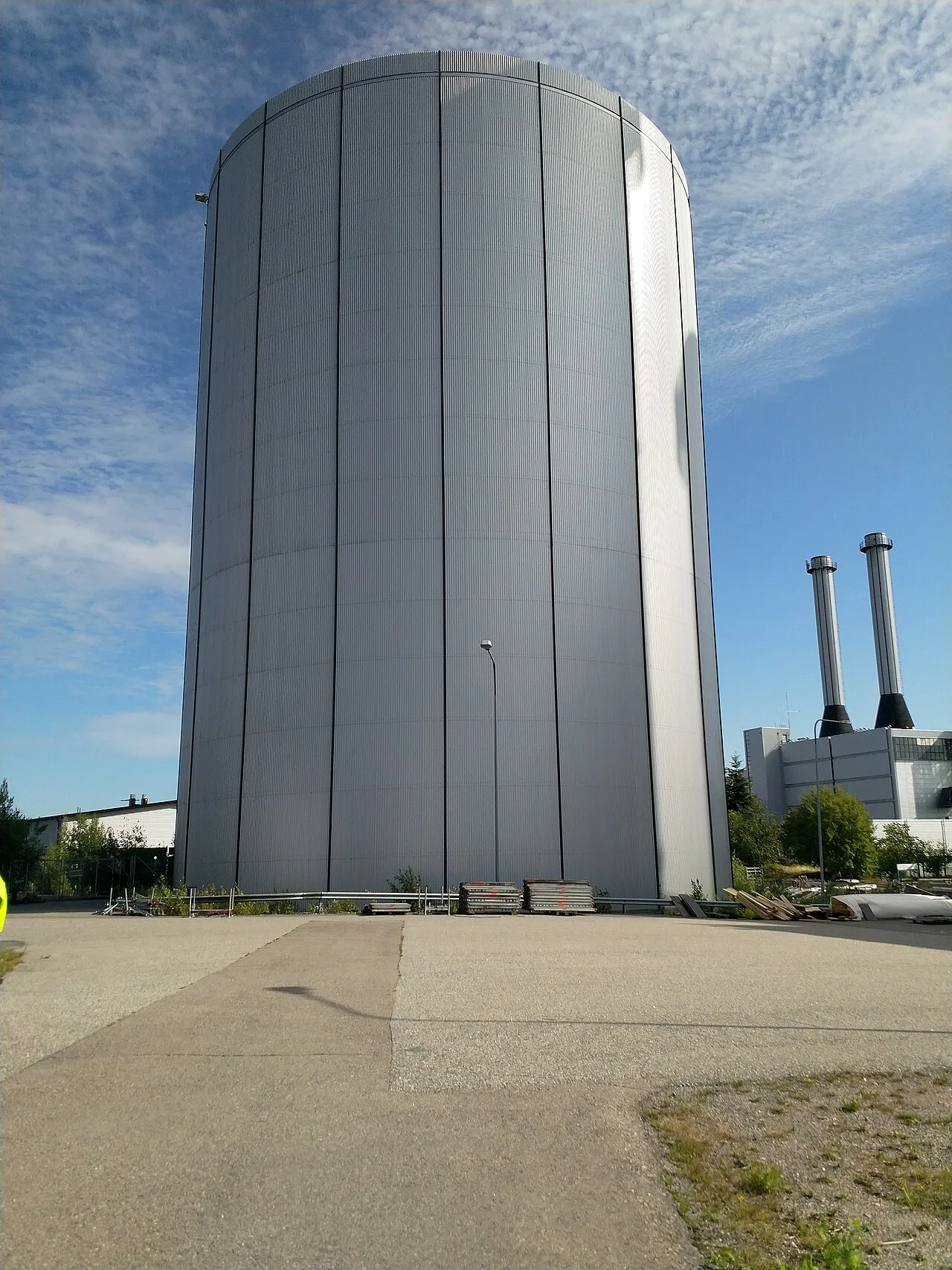

Sensible Heat Storage

Sensible heat storage is the most mature and widely deployed TES technology. It involves raising or lowering the temperature of a storage medium without changing its phase. The energy stored is proportional to the mass of the material, its specific heat capacity, and the temperature difference. The relationship is expressed as Q=m⋅cp⋅ΔT, where Q is the stored energy, m is the mass, cp is the specific heat capacity, and ΔT is the temperature change. Common materials include water, rocks, concrete, and molten salts. Water is frequently used in low-temperature applications due to its high volumetric heat capacity and low cost. Molten salts, such as mixtures of sodium nitrate and potassium nitrate, are standard in concentrated solar power (CSP) plants, operating at temperatures between 293°C and 440°C to provide high-temperature thermal energy for steam generation.

Latent Heat Storage

Latent heat storage utilizes phase change materials (PCMs) that absorb or release large amounts of energy during a phase transition, typically solid-liquid. The energy storage capacity is defined by the enthalpy of fusion. The formula is Q=m⋅L, where L is the latent heat of fusion. PCMs offer higher energy density per unit volume compared to sensible storage and operate at nearly constant temperatures during charging and discharging. Common PCMs include paraffin waxes for low-temperature applications, salt hydrates for medium temperatures, and metallic alloys for high-temperature industrial uses. This technology is particularly effective in building thermal management, where maintaining a stable indoor temperature is critical.

Thermochemical Storage

Thermochemical storage relies on reversible chemical reactions or physical sorption processes to store energy. This method offers the highest energy density among the three types and allows for long-term storage with minimal heat losses, as the energy is stored in the chemical bonds or intermolecular forces. The process involves endothermic charging (heat absorption) and exothermic discharging (heat release). Examples include the dehydration/rehydration of salt hydrates and the carbonation/calcination of lime (CaO+H2O↔Ca(OH)2+Heat). While thermochemical storage provides superior density and longevity, it often requires more complex system designs and higher initial capital costs compared to sensible and latent systems.

How do phase change materials work?

Phase change materials (PCMs) store thermal energy primarily through the absorption and release of latent heat during a phase transition, most commonly between solid and liquid states. Unlike sensible heat storage, which relies on temperature changes within a single phase, latent heat storage occurs at a nearly constant temperature. This characteristic allows PCMs to stabilize system temperatures effectively, making them valuable for thermal energy management in various energy infrastructure applications.

Latent Heat Mechanism

The core mechanism involves the energy required to break or form molecular bonds during phase transitions. When a PCM absorbs heat, it transitions from solid to liquid, storing energy without a significant rise in temperature. Conversely, when releasing heat, the material solidifies, delivering stored energy at a consistent temperature. The amount of energy stored is quantified by the latent heat of fusion, denoted as Lf. The total heat energy Q absorbed or released during the phase change is calculated as Q=m⋅Lf, where m is the mass of the PCM. This formula highlights the direct relationship between mass and energy storage capacity, enabling high energy density in compact volumes.

Temperature Stabilization

PCMs provide temperature stabilization by maintaining a near-isothermal condition during phase transitions. This is particularly useful in applications where temperature fluctuations can impact efficiency or comfort. For instance, in building energy systems, PCMs can absorb excess heat during the day and release it at night, reducing the need for mechanical cooling and heating. The effectiveness of this stabilization depends on the melting point of the PCM, which must be selected to match the target temperature range. Materials with high latent heat capacities and appropriate thermal conductivity are preferred to ensure efficient energy exchange.

Material Considerations

Common PCMs include paraffin waxes, fatty acids, and salt hydrates, each offering different thermal properties. Paraffin waxes are known for their chemical stability and supercooling resistance, while salt hydrates offer higher latent heat capacities but may suffer from phase separation. The choice of PCM depends on the specific application requirements, including temperature range, energy density, and cost. Integrating PCMs into thermal energy storage systems requires careful design to maximize heat transfer rates and minimize thermal losses, ensuring optimal performance in energy infrastructure contexts.

Recycled waste composites in thermal storage

Research published in January 2024 (Wikidata Q130082430) details the development of thermal energy storage materials utilizing recycled Tetra Pak waste composites integrated with paraffin waxes. This approach addresses two critical challenges in latent heat storage: the low thermal conductivity of organic phase change materials (PCMs) and the growing volume of multilayer packaging waste. Tetra Pak containers consist of paper, polyethylene, and aluminum layers, providing a heterogeneous matrix that can enhance heat transfer when combined with PCMs.

Material Composition and Photothermal Efficiency

The study focuses on enhancing the photothermal conversion efficiency of paraffin wax by embedding recycled Tetra Pak particles. Paraffin waxes are widely used as PCMs due to their high latent heat of fusion, chemical stability, and moderate melting points. However, their intrinsic thermal conductivity is typically low, often requiring additives to improve charging and discharging rates. The recycled Tetra Pak composite acts as a conductive filler and a photothermal agent. The aluminum layer within the Tetra Pak waste reflects and absorbs solar radiation, while the polyethylene and paper components help bind the paraffin, reducing leakage during phase transitions.

Photothermal conversion efficiency (η) is a key metric in this context, defined as the ratio of thermal energy stored to the incident solar energy. The composite material demonstrates improved η compared to pure paraffin, owing to the synergistic effect of the multilayer structure. The aluminum foil within the Tetra Pak waste enhances light absorption and scattering, increasing the effective path length of photons within the PCM matrix. This results in faster melting rates under solar irradiation, which is crucial for direct solar thermal storage applications.

Thermal Performance and Stability

Thermal cycling tests indicate that the recycled Tetra Pak-paraffin composite maintains structural integrity over multiple melt-freeze cycles. The paper-polyethylene matrix provides mechanical support, preventing the paraffin from seeping out through micro-cracks. The thermal conductivity of the composite is higher than that of the base paraffin, facilitating more uniform temperature distribution during charging. This reduction in thermal gradients minimizes thermal stress on the storage container, potentially extending the lifespan of the thermal energy storage system.

The research highlights the potential of waste-derived materials in reducing the cost and environmental footprint of thermal storage solutions. By utilizing Tetra Pak waste, the material leverages a readily available resource, while the enhanced photothermal properties make it suitable for low-temperature solar thermal applications. The specific formulation and processing methods described in the January 2024 publication provide a reproducible pathway for scaling these composites for broader energy infrastructure use.

Applications in solar process heat

Thermal energy storage materials are critical for decoupling solar heat collection from process demand, enabling medium-to-high temperature applications in industrial sectors. In solar process heat systems, storage allows continuous operation of thermal loads, reducing reliance on fossil fuel backups. Common applications include pasteurization, drying, and steam generation in food, textile, and chemical industries. These systems typically operate between 100°C and 300°C, utilizing sensible heat storage in materials like molten salts or latent heat storage in phase change materials (PCMs). The integration of storage enhances the capacity factor of solar thermal plants, providing grid stability by shifting excess thermal energy to peak demand periods.

Medium-High Temperature Industrial Uses

Industrial processes requiring medium-high temperatures benefit significantly from thermal energy storage. For instance, in the food industry, pasteurization and sterilization processes often require stable temperatures around 100°C to 150°C. Thermal storage systems can maintain these temperatures using heat collected during peak solar hours, ensuring consistent product quality. Similarly, in textile manufacturing, drying processes operate at temperatures up to 200°C. By storing thermal energy, facilities can reduce natural gas consumption and lower operational costs. The use of phase change materials (PCMs) is particularly effective in these applications, as they absorb and release large amounts of heat at constant temperatures. The energy density of a PCM can be expressed as Q=m⋅L, where Q is the heat stored, m is the mass, and L is the latent heat of fusion.

Grid Stability and Energy Shifting

Thermal energy storage contributes to grid stability by balancing supply and demand fluctuations. Solar thermal plants equipped with storage can dispatch heat during periods of high electrical demand, converting thermal energy back into electricity via steam turbines. This flexibility helps integrate variable renewable energy sources into the grid. For example, molten salt storage systems in concentrated solar power (CSP) plants can store energy for several hours, allowing for evening peak power generation. The thermal power output P can be calculated as P=m˙⋅cp⋅ΔT, where m˙ is the mass flow rate, cp is the specific heat capacity, and ΔT is the temperature difference. This capability reduces the need for peaker plants, enhancing overall grid efficiency and reliability.

Worked examples

Energy Density of a Generic PCM System

Phase Change Materials (PCMs) store thermal energy primarily through latent heat during phase transitions. The total energy stored per unit mass (Q) is calculated using the formula Q=m⋅L, where m is the mass of the PCM and L is the specific latent heat of fusion. For a given volume V, the volumetric energy density (Ev) is Ev=ρ⋅L, where ρ is the density of the PCM.

Example 1: Paraffin Wax for Residential Heating

Consider a residential thermal storage unit using paraffin wax. Paraffin wax typically has a latent heat of fusion (L) of approximately 200 kJ/kg and a density (ρ) of 900 kg/m³. To determine the energy stored in a 10 kg block of paraffin:

1. Identify parameters: m=10 kg, L=200 kJ/kg.

2. Calculate total energy: Q=10 kg×200 kJ/kg=2000 kJ.

3. Convert to kilowatt-hours: 2000 kJ/3600 kJ/kWh≈0.56 kWh.

This demonstrates that a small mass of paraffin can store a significant amount of thermal energy, suitable for buffering daily temperature fluctuations in a home.

Example 2: Salt Hydrate for Industrial Storage

Sodium sulfate decahydrate is a common inorganic PCM with a higher latent heat. Assume L=250 kJ/kg and ρ=1400 kg/m³. For a 100 kg storage tank:

1. Identify parameters: m=100 kg, L=250 kJ/kg.

2. Calculate total energy: Q=100 kg×250 kJ/kg=25,000 kJ.

3. Convert to kilowatt-hours: 25,000 kJ/3600 kJ/kWh≈6.94 kWh.

4. Calculate volumetric density: Ev=1400 kg/m³×250 kJ/kg=350,000 kJ/m³≈97.2 kWh/m³.

The high volumetric density makes salt hydrates efficient for space-constrained industrial applications.

What distinguishes thermal storage from battery storage?

Thermal energy storage (TES) and electrochemical battery storage represent distinct approaches to decoupling energy production from consumption, differing fundamentally in their physical state changes, working fluids, and efficiency metrics. The core distinction lies in the medium used to hold energy: batteries rely on reversible chemical reactions within solid or liquid electrolytes, while TES utilizes the sensible or latent heat capacity of materials such as molten salts, ceramics, or phase-change materials (PCMs).

Energy Density and Material Costs

Electrochemical systems, particularly lithium-ion batteries, offer high energy density, typically ranging from 150 to 250 Wh/kg, making them ideal for space-constrained applications like electric vehicles and grid frequency regulation. In contrast, thermal storage materials generally exhibit lower energy density. Sensible heat storage in molten salts, a common technology in concentrated solar power (CSP) plants, provides approximately 50 to 100 Wh/kg. However, TES often achieves lower levelized cost of storage (LCOS) over long durations because the storage medium—such as sodium nitrate or potassium nitrate mixtures—is significantly cheaper per kilowatt-hour than lithium, cobalt, or nickel. This cost advantage becomes pronounced in multi-day storage scenarios where battery degradation and capital costs accumulate rapidly.

Efficiency and Round-Trip Performance

Round-trip efficiency is a critical differentiator. Lithium-ion batteries typically achieve 85% to 95% efficiency, meaning that for every 100 units of electrical energy input, 85 to 95 units are recovered. Thermal storage systems are inherently less efficient due to thermodynamic losses during the conversion of electricity to heat and back to electricity. A typical molten salt TES system in a CSP plant might achieve 70% to 80% round-trip efficiency. The efficiency η can be approximated by the ratio of output electrical energy Eout to input electrical energy Ein:

η=EinEout×100%

However, in industrial process heat applications where electricity-to-heat conversion is not required, TES efficiency can exceed 90%, as the energy remains in its thermal form throughout the storage cycle. This makes TES particularly advantageous for direct integration with industrial heat loads, such as in steel manufacturing or chemical processing, where the "penalty" of converting heat back to electricity is avoided.

Duration and Degradation

Batteries suffer from cycle life limitations and calendar aging. Lithium-ion cells typically degrade after 3,000 to 5,000 cycles, with capacity retention dropping to 80% of the initial state. Thermal storage materials, particularly molten salts and ceramics, exhibit minimal degradation over thousands of cycles. The primary failure modes in TES are related to material corrosion, thermal stratification, and insulation performance rather than the active material's chemical exhaustion. This longevity makes TES more suitable for long-duration storage (4 to 12 hours or more), whereas batteries are often optimized for short-duration applications (2 to 4 hours). The choice between the two technologies thus depends on the specific temporal profile of the energy demand and the economic trade-off between capital expenditure and operational efficiency.
