Overview
Thermal energy storage (TES) systems are engineered solutions that capture thermal energy—either heat or cold—and retain it for later use, effectively decoupling energy production from consumption. Unlike electrical storage, which often relies on electrochemical cells, TES leverages the thermal mass of materials or phase-change properties to store energy. These systems are critical components in modern energy infrastructure, particularly within district heating and cooling networks, where they enhance grid flexibility, optimize load management, and integrate variable renewable energy sources.
Operational Principles and Technologies
TES technologies are generally categorized into three main types: sensible heat storage, latent heat storage, and thermochemical storage. Sensible heat storage is the most common approach, where energy is stored by raising or lowering the temperature of a storage medium without changing its phase. The amount of energy stored in a sensible heat system can be expressed as:
Q = m * c_p * ΔT

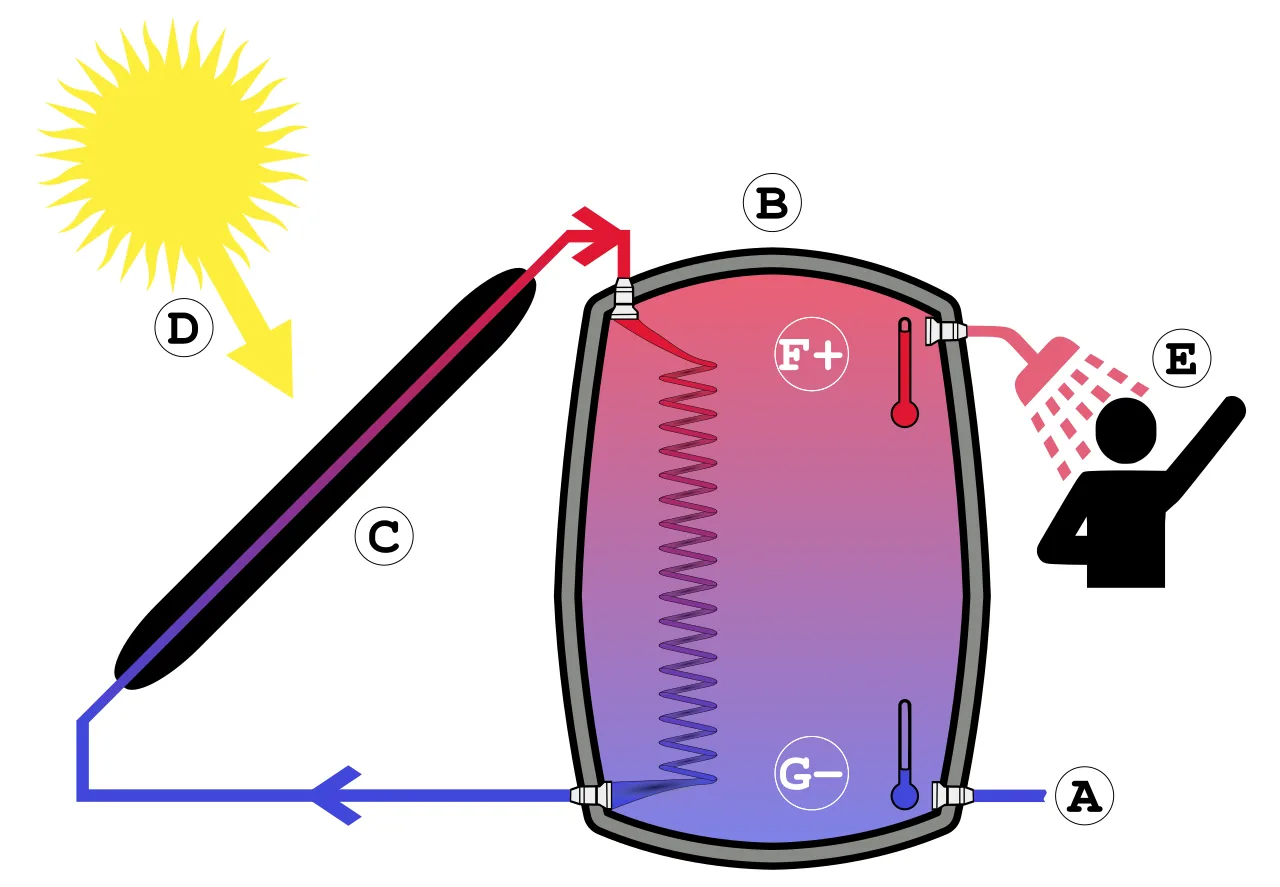

where Q is the thermal energy, m is the mass of the storage medium, c_p is the specific heat capacity, and ΔT is the temperature difference. Water tanks are the predominant medium for sensible storage in district heating due to water's high specific heat capacity and cost-effectiveness.
Latent heat storage utilizes phase-change materials (PCMs) that absorb or release energy during phase transitions, such as melting or solidification. This method offers higher energy density compared to sensible storage, allowing for more compact system designs. Thermochemical storage involves reversible chemical reactions to store energy, offering the potential for long-term storage with minimal heat loss, though it remains less mature in commercial district applications.
Role in District Heating and Cooling
In district heating and cooling systems, TES plays a vital role in balancing supply and demand. By storing excess thermal energy during periods of low demand or high renewable generation, TES systems can release energy during peak hours, reducing the need for peak-load boilers or chillers. This temporal shifting capability enhances the overall efficiency of the network and reduces operational costs. Furthermore, TES facilitates the integration of heat pumps and solar thermal collectors, which can produce heat or cold at times when the end-use demand might be lower, thereby smoothing out the load profile and improving the resilience of the district energy infrastructure.
How do thermal energy storage systems work?
Thermal energy storage systems operate by capturing heat or cold and retaining it for subsequent utilization, effectively decoupling energy generation from consumption. These systems rely on fundamental thermodynamic principles to manage energy flows with minimal losses. The core mechanism involves transferring thermal energy into a storage medium, maintaining its state, and extracting it when demand peaks. This process enhances overall system efficiency and flexibility in energy infrastructure.
Fundamental Storage Mechanisms
Sensible heat storage is the most common approach, where energy is stored by raising or lowering the temperature of a material without changing its phase. The amount of energy stored depends on the material's mass, specific heat capacity, and temperature difference. This relationship is expressed as Q=m⋅cp⋅ΔT, where Q is the thermal energy, m is mass, cp is specific heat capacity, and ΔT is the temperature change. Common media include water, rocks, and molten salts.
Latent heat storage utilizes phase change materials (PCMs) to store energy during phase transitions, such as melting or solidification. This method offers higher energy density compared to sensible storage because the material absorbs or releases large amounts of energy at a nearly constant temperature. The energy stored is calculated using Q=m⋅L, where L represents the latent heat of fusion or vaporization. PCMs are particularly useful for maintaining stable temperatures in building heating and cooling systems.
Thermochemical Storage
Thermochemical storage involves reversible chemical reactions to store thermal energy. Heat is used to drive an endothermic reaction, separating reactants, while an exothermic reaction releases heat when the components recombine. This method provides the highest energy density and allows for long-term storage with minimal heat loss. The process requires precise control of temperature and pressure to ensure efficient energy recovery.
System Integration and Efficiency
Effective thermal energy storage systems require careful integration with heat sources and sinks. Insulation plays a critical role in minimizing thermal losses, especially in sensible and latent storage systems. The choice of storage medium depends on operating temperature ranges, cost, and desired energy density. Proper system design ensures that thermal energy is captured, stored, and retrieved with high efficiency, supporting grid stability and industrial process optimization.
What are the main types of thermal energy storage?
Thermal energy storage (TES) systems are categorized into three primary mechanisms: sensible heat storage, latent heat storage, and thermochemical storage. Each method utilizes distinct physical or chemical properties to store energy, offering different trade-offs in density, cost, and temperature stability.
Sensible Heat Storage
Sensible heat storage is the most straightforward and widely used method. It involves heating or cooling a material without changing its phase. The energy stored is proportional to the mass, specific heat capacity, and temperature change of the medium. The relationship is expressed as:
Q = m * c_p * ΔT
Common media include water, molten salts, rocks, and ceramics. Water is frequently used in short-term applications due to its high specific heat capacity and low cost. Molten salts are preferred in concentrated solar power (CSP) plants for high-temperature storage, often operating between 290°C and 560°C. This method offers simplicity and low cost but typically results in lower energy density compared to other types.
Latent Heat Storage
Latent heat storage utilizes phase change materials (PCMs) to store energy during a phase transition, typically solid-to-liquid or liquid-to-gas. The energy is stored or released at a nearly constant temperature, known as the phase change temperature. The stored energy is calculated as:
Q = m * L
Where L is the latent heat of fusion or vaporization. PCMs can provide higher energy density than sensible storage because the phase change absorbs significant energy with minimal temperature fluctuation. Common PCMs include paraffin waxes, salt hydrates, and metallic alloys. This method is advantageous for applications requiring stable temperature output, such as building thermal regulation and industrial process heat.
Thermochemical Storage
Thermochemical storage involves reversible chemical reactions or physical sorption processes. Energy is stored by driving a chemical reaction (e.g., decomposition or absorption) and released when the reaction is reversed. This method offers the highest energy density and minimal heat loss over long periods, making it suitable for seasonal storage. The energy storage capacity depends on the enthalpy of the reaction. Examples include the decomposition of metal oxides, hydration of salts, and carbonation of lime. While offering high density, thermochemical systems often face challenges related to reaction kinetics and system complexity.
Applications in district heating and cooling
Thermal energy storage (TES) systems are critical components in modern district heating and cooling (DHC) networks, enabling the decoupling of heat production and consumption to enhance operational flexibility. In district heating applications, TES allows for the integration of variable renewable energy sources, such as solar thermal and wind power, by storing excess heat during periods of high generation and releasing it during peak demand. This capability significantly reduces the reliance on peak-load boilers, thereby lowering fuel consumption and operational costs. Similarly, in district cooling systems, TES is often employed to shift the electrical load of chillers to off-peak hours, taking advantage of lower electricity tariffs and improved coefficient of performance (COP) due to lower ambient temperatures at night.
Types of Storage in DHC Networks
Two primary types of TES are utilized in DHC networks: sensible heat storage and latent heat storage. Sensible heat storage, typically using water tanks, is the most common form due to its simplicity and cost-effectiveness. The energy stored in a sensible heat storage system can be expressed as:
E = m * c_p * ΔT
where E is the stored energy, m is the mass of the storage medium, c_p is the specific heat capacity, and ΔT is the temperature difference between the inlet and outlet. Latent heat storage, which utilizes phase change materials (PCMs), offers higher energy density and more isothermal operation, making it suitable for space-constrained urban environments. However, PCMs are generally more expensive and complex to integrate than water-based systems.
Operational Benefits
The integration of TES in DHC networks provides several operational benefits. First, it enhances the efficiency of combined heat and power (CHP) plants by allowing them to operate closer to their optimal load points, reducing part-load inefficiencies. Second, TES systems can help balance the thermal inertia of the building stock, smoothing out temperature fluctuations and improving comfort for end-users. Third, by shifting heat production to times of lower electricity prices or higher renewable generation, TES can significantly reduce the carbon footprint of the DHC network. Additionally, TES can serve as a buffer during maintenance or unexpected outages, ensuring a continuous supply of heat or cooling to subscribers.
Challenges and Considerations
Despite their benefits, the implementation of TES in DHC networks faces several challenges. The initial capital cost of large-scale storage tanks or PCM units can be substantial, requiring careful economic analysis to justify the investment. Space requirements for sensible heat storage tanks can also be a constraint in dense urban areas. Furthermore, the control strategies for optimizing the charge and discharge cycles of TES systems must be sophisticated to maximize efficiency and minimize thermal losses. Proper insulation is critical to reduce standby losses, especially in long-duration storage applications. Finally, the integration of TES with existing DHC infrastructure may require upgrades to pumps, valves, and control systems to handle the additional thermal mass and flow dynamics.
What distinguishes thermal storage from electrical storage?
Thermal energy storage systems and electrical storage systems, such as lithium-ion batteries, differ fundamentally in their physical medium, energy density, and primary application within the energy infrastructure. Thermal storage retains energy in the form of heat or cold, typically within a material’s sensible heat, latent heat (phase change), or thermochemical bonds. In contrast, electrical storage systems like batteries store energy through electrochemical potential differences between electrodes and electrolytes. This distinction dictates their respective roles in grid management, industrial processes, and building efficiency.
Physical Medium and Energy Density
The medium for thermal storage is often a low-cost material such as water, molten salt, or rock. The energy density of thermal storage is generally lower than that of advanced batteries but is highly dependent on the temperature differential. The energy stored in a sensible heat system can be approximated by the formula Q=mcΔT, where Q is the heat energy, m is the mass of the storage medium, c is the specific heat capacity, and ΔT is the change in temperature. This allows for massive, scalable storage volumes at a lower cost per kilowatt-hour compared to the electrochemical cells used in battery systems. Batteries, however, offer higher power density and faster response times, making them ideal for frequency regulation and short-duration grid balancing.
Efficiency and Round-Trip Losses
Round-trip efficiency varies significantly between the two technologies. Battery systems typically achieve round-trip efficiencies of 85% to 95%, meaning a large portion of the electrical energy input is recovered as electrical energy output. Thermal storage systems often involve multiple energy conversions—electrical to thermal, thermal to mechanical, and mechanical to electrical—resulting in lower overall efficiencies, often ranging from 50% to 70% for systems like compressed air energy storage (CAES) or molten salt solar thermal plants. However, when the end-use is thermal (e.g., district heating or industrial process heat), the efficiency can exceed 80% because the conversion back to electricity is bypassed.
Duration and Scalability
Thermal storage excels in long-duration storage. Molten salt tanks can store energy for several hours to days with minimal heat loss, making them suitable for smoothing out solar thermal generation or shifting peak demand in district heating networks. Batteries are generally more cost-effective for short-duration storage (2 to 8 hours), although costs are decreasing for longer durations. The scalability of thermal storage is often limited by physical space and insulation quality, whereas battery scalability is constrained by material availability (e.g., lithium, cobalt) and electrochemical degradation over time.
Significance
Thermal energy storage systems serve as a critical mechanism for enhancing grid flexibility, particularly in power systems with high penetrations of variable renewable energy sources. By decoupling energy generation from consumption, these systems allow electricity produced during peak generation periods—such as midday solar irradiance or windy nights—to be utilized during peak demand hours. This temporal shifting capability reduces the reliance on peaking power plants, which often operate at lower efficiencies and higher marginal costs. The integration of thermal storage helps flatten the load curve, thereby stabilizing frequency and voltage profiles across the transmission network.
Renewable Integration and Load Shifting
In renewable-heavy grids, thermal energy storage addresses the intermittency of solar photovoltaic (PV) and wind power. For solar thermal power plants, molten salt storage is commonly employed to store excess heat, allowing turbines to run for several hours after sunset. In broader grid applications, electric boilers and heat pumps can convert surplus electricity into thermal energy, which is then stored in water tanks, phase change materials, or underground aquifers. This process, often referred to as power-to-heat, provides a flexible load that can absorb excess generation, reducing curtailment rates. The stored thermal energy can be used directly for district heating or converted back to electricity via organic rankine cycles or steam turbines, offering a dual-use value proposition for grid operators.
Grid Flexibility and Economic Value
The economic significance of thermal energy storage lies in its ability to provide multiple revenue streams, including energy arbitrage, capacity payments, and ancillary services. By storing low-cost energy and releasing it during high-price periods, thermal storage systems optimize the levelized cost of energy. Furthermore, these systems contribute to grid inertia and frequency regulation, especially when integrated with compressed air energy storage or pumped hydrothermal systems. The flexibility provided by thermal storage enables a smoother transition from baseload fossil fuel plants to more variable renewable sources, enhancing the overall resilience and reliability of the energy infrastructure. As renewable capacity factors increase, the role of thermal storage in balancing supply and demand becomes increasingly vital for maintaining grid stability.
