Overview

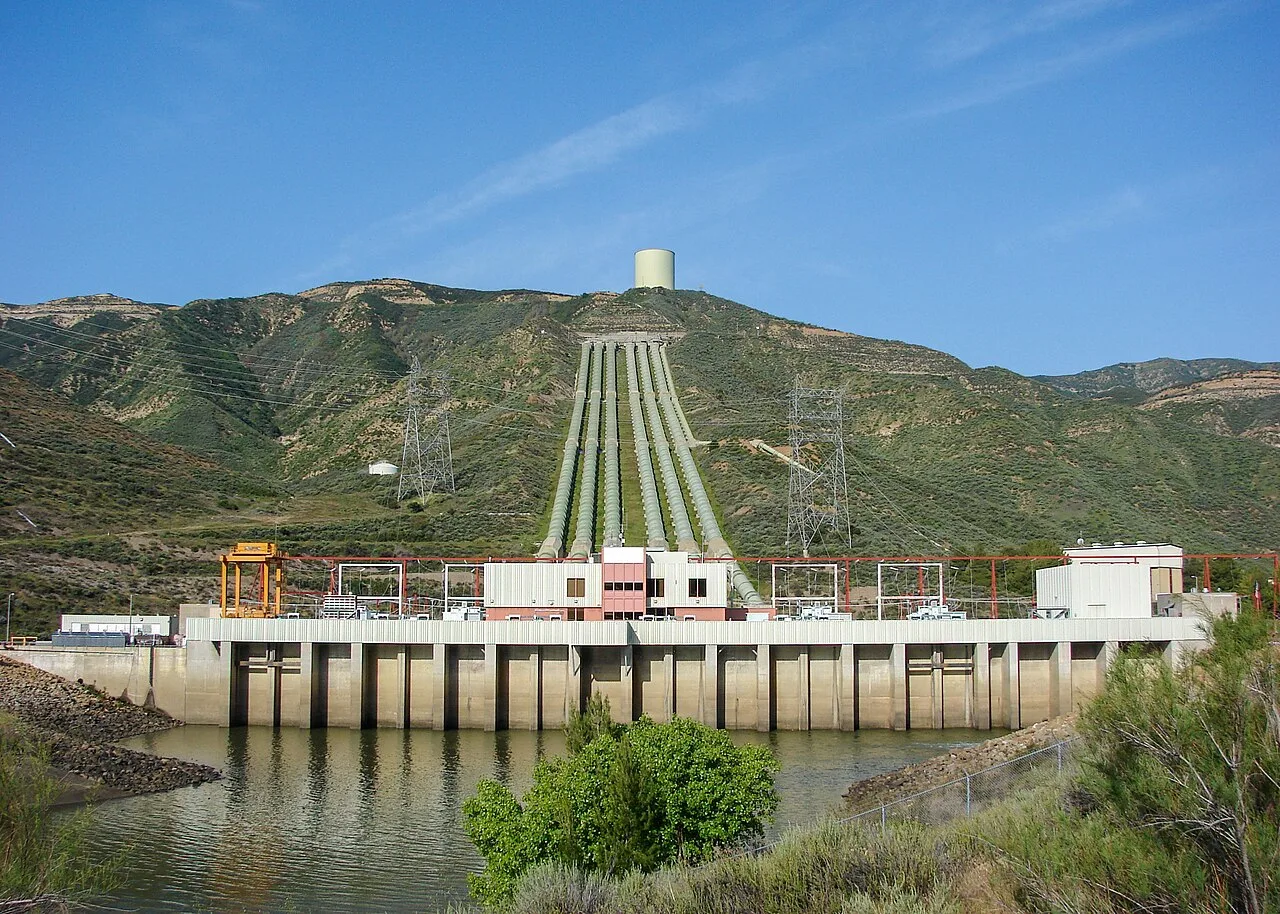

Pumped-storage hydroelectricity (PSH), also known as pumped hydroelectric energy storage (PHES), is a mature technology for large-scale energy storage within electric power systems. It functions primarily as a mechanism for load balancing, allowing grids to manage fluctuations in electricity supply and demand. The system operates by storing energy in the form of gravitational potential energy of water. This process involves moving water between two reservoirs situated at different elevations. The operational cycle relies on the availability of surplus electric power, typically during off-peak hours when electricity costs are lower. This low-cost power drives pumps to move water from a lower elevation reservoir to a higher one. The energy is effectively "stored" as the water sits at a higher altitude, ready for retrieval. The technology has been operational since 1907, making it one of the oldest and most proven forms of energy storage. Its long history underscores its reliability and effectiveness in stabilizing power grids. The fundamental principle is straightforward: energy is expended to lift the water, and that same energy is recovered when the water is allowed to fall back down. This cycle enables the conversion of electrical energy into potential energy and back again. The efficiency of this conversion is critical for the economic viability of PSH systems. The technology plays a vital role in modern energy infrastructure. It helps to smooth out the variability of renewable energy sources like wind and solar power. By storing excess generation during peak production times, PSH ensures that power is available when demand is high. This capability is essential for maintaining grid stability and frequency regulation. The system acts as a giant battery, charging and discharging to meet the dynamic needs of the electrical network. The use of water as the primary medium for storage offers several advantages. Water is abundant, relatively inexpensive, and has a high energy density per unit volume compared to other storage media. The infrastructure required for PSH includes pumps, turbines, penstocks, and reservoirs. These components work together to facilitate the movement of water and the generation of electricity. The design of these systems can vary significantly depending on the local topography and hydrological conditions. Some systems use natural lakes, while others require the construction of artificial reservoirs. The choice of location is crucial for maximizing the efficiency and capacity of the storage system. The gravitational potential energy stored in the water is determined by the mass of the water, the acceleration due to gravity, and the height difference between the two reservoirs. This relationship can be expressed with the formula E = mgh, where E is the potential energy, m is the mass of the water, g is the acceleration due to gravity, and h is the height difference. This simple equation highlights the importance of elevation in PSH systems. A greater height difference allows for more energy to be stored with the same volume of water. The operational status of PSH systems is generally robust, with many plants operating for decades. The technology continues to evolve, with new projects being developed to meet the growing demand for flexible energy storage. PSH remains a cornerstone of global energy infrastructure, providing essential services to power systems around the world. Its ability to store large amounts of energy for extended periods makes it an indispensable tool for energy planners and grid operators. The continued deployment of PSH systems is expected to play a key role in the transition to a more renewable-based energy mix. By providing the flexibility needed to integrate variable renewable energy sources, PSH helps to reduce the overall cost and complexity of the power system. The technology's proven track record and scalability make it a reliable choice for future energy storage needs.
How does pumped storage hydropower work?
Pumped-storage hydroelectricity (PSH) functions as a large-scale battery for electric power systems, utilizing the gravitational potential energy of water to balance electrical load. The system relies on two reservoirs at different elevations. During periods of low electrical demand, typically at night or during off-peak hours, surplus low-cost electricity is used to drive pumps that move water from a lower elevation reservoir to a higher one. This process converts electrical energy into stored gravitational potential energy.
Pumping and Generating Phases
The core operation involves two distinct phases. In the pumping phase, electric motors drive turbines in reverse, acting as pumps to lift water to the upper reservoir. This usually occurs when the grid has excess capacity, allowing utilities to buy electricity at lower marginal costs. In the generating phase, when electrical demand peaks, water is released from the upper reservoir. It flows through turbines, spinning generators to produce electricity, which is then fed back into the grid. This release converts the stored gravitational potential energy back into kinetic energy and subsequently into electrical energy.
Reversible Turbines
Most modern PSH facilities use reversible pump-turbines, such as the Francis or Pelton types, housed within a single unit. These machines can operate in two modes: as a turbine to generate power and as a pump to store energy. The reversible motor-generator set allows the unit to switch between pumping and generating modes relatively quickly, providing flexibility for grid operators. This mechanical integration reduces the footprint and capital cost compared to separate pump and turbine units.
Round-Trip Efficiency
The efficiency of a PSH system is measured by its round-trip efficiency, which compares the electrical energy output during generation to the electrical energy input during pumping. The round-trip efficiency (η) can be expressed as:
η=EinEout×100%
Typical round-trip efficiencies range from 70% to 83%, depending on the head height, turbine type, and system losses. The difference between the energy put in and the energy taken out represents the cost of storage, making PSH a cost-effective solution for load balancing and frequency regulation in power systems.
What are the main types of pumped storage systems?
Pumped-storage hydroelectricity (PSH) is categorized by its hydrological configuration and integration with the broader water system. The primary distinctions lie in the relationship between the upper and lower reservoirs and the degree of interaction with natural river flows.
Closed-Loop Systems
In a closed-loop system, the water circulates between an upper reservoir and a lower reservoir with minimal loss to evaporation or seepage. The water is essentially recycled, meaning the system is largely independent of natural river inflows. This configuration is particularly useful in arid regions or where the natural water table is deep. The energy storage capacity is determined by the volume of water and the elevation difference, or "head," between the two reservoirs. The potential energy E stored can be approximated by the formula E=mgh, where m is the mass of the water, g is the acceleration due to gravity, and h is the height difference.
Pump-Back Systems
A pump-back system typically involves pumping water from a lower source, such as a river or a lake, to an upper reservoir. During generation, the water is released through turbines and returns to the lower source. Unlike closed-loop systems, pump-back systems are more dependent on the availability of water in the lower source. If the lower source is a river, the system can be integrated into the river's natural flow, allowing for additional hydroelectric generation from natural inflows when the pumps are not in operation.
Conventional Hydro Systems with Pumping
Conventional hydro systems with pumping capabilities often utilize existing dams and reservoirs. In these systems, water is pumped from the downstream river to the upstream reservoir during periods of low electricity demand. This allows the system to leverage existing infrastructure, reducing the need for new construction. The integration with the natural river flow means that the system can provide both storage and base-load power generation, depending on the river's flow rate and electricity demand.
| System Type | Water Source | Dependence on Natural Flow | Typical Use Case |
|---|---|---|---|
| Closed-Loop | Recycled water | Low | Arid regions, deep water tables |
| Pump-Back | River or lake | Moderate | Integration with natural water bodies |
| Conventional Hydro with Pumping | Downstream river | High | Leveraging existing dam infrastructure |
Each system type offers unique advantages and challenges, making them suitable for different geographical and operational contexts. The choice of system depends on factors such as the availability of water, the topography of the site, and the existing infrastructure.
Economic efficiency and grid services
Pumped-storage hydroelectricity provides critical economic value through load balancing and ancillary grid services, functioning as a flexible asset in power systems. The technology utilizes low-cost surplus off-peak electric power to pump water from a lower elevation reservoir to a higher elevation, storing energy as gravitational potential energy. During periods of high electrical demand, this stored water is released through turbines to produce electric power, effectively arbitraging price differences between off-peak and peak hours. This operational model allows PSH systems to capture the cost-effectiveness of hydroelectric energy storage, providing a reliable mechanism for managing variable generation and demand fluctuations.
Capital Costs and Service Life
The capital costs for pumped-storage facilities are significant, often involving extensive civil works such as tunnels, penstocks, and reservoirs. However, the service life of PSH systems typically exceeds that of many competing storage technologies, including batteries. While battery storage systems may require replacement every 10 to 20 years, PSH plants can operate for several decades, offering long-term amortization of initial investments. This extended lifespan contributes to the overall cost-effectiveness of PSH, making it a competitive option for large-scale energy storage. The ability to maintain operational status over long periods enhances the return on investment, particularly in grids with increasing shares of variable renewables.
Ancillary Services and Frequency Regulation
Beyond energy arbitrage, PSH systems provide essential ancillary services, including frequency regulation, voltage support, and spinning reserve. These services are crucial for maintaining grid stability and quality. The rapid response time of PSH turbines allows them to adjust output quickly, helping to balance supply and demand in real-time. This capability is particularly valuable for frequency regulation, where the grid frequency must be maintained within a narrow range. The gravitational potential energy of water, pumped from a lower elevation reservoir to a higher elevation, enables PSH systems to respond swiftly to changes in load, providing a reliable source of flexibility. The operational status of PSH as an active component of the grid underscores its importance in modern power systems, where the integration of diverse energy sources requires robust balancing mechanisms.
Global deployment and regional case studies
Pumped-storage hydroelectricity (PSH) serves as a critical mechanism for global load balancing, utilizing gravitational potential energy to store surplus off-peak power and release it during peak demand. While the technology has been operational since 1907, its global deployment varies significantly by region, reflecting diverse grid structures and hydrological advantages.
Regional Deployment Patterns
In China, PSH capacity has expanded rapidly to support the integration of variable renewable energy sources, leveraging extensive river systems and mountainous terrain. The United States maintains one of the largest installed capacities globally, with numerous facilities operating across the Appalachian and Rocky Mountain ranges. In the United Kingdom, PSH plays a pivotal role in grid stability, with major installations such as Cruachan and Dinorwig providing fast-response peaking power. Australia is increasingly deploying PSH projects to complement its growing solar and wind portfolios, particularly in the Snowy Hydro scheme. Indonesia is also emerging as a key market, with several projects under development to stabilize its archipelagic grid.
Major Global Projects
| Project Name | Country | Key Feature |
|---|---|---|
| Snowy Hydro 2.0 | Australia | Major expansion of existing hydro scheme |
| Dinorwig Power Station | United Kingdom | Fast-response peaking power |
| Cruachan Power Station | United Kingdom | Underground turbine hall |
| Yangjiaotan | China | Large-scale capacity addition |
| Palisades PSH | United States | Integration with existing reservoir |
The efficiency of PSH systems is often expressed using the round-trip efficiency formula: η=EinEout, where Eout is the electrical energy generated and Ein is the electrical energy consumed by the pumps. Typical efficiencies range from 70% to 85%, depending on turbine-pump configurations and head height. These systems remain essential for grid inertia and frequency regulation, particularly as the share of inverter-based resources increases.
Environmental impact and location requirements
Pumped-storage hydropower (PSH) systems impose significant land and water requirements, primarily due to the need for two reservoirs at different elevations. The lower reservoir often utilizes existing lakes or rivers, while the upper reservoir may require substantial land clearing, potentially impacting local ecosystems and terrestrial habitats. Water consumption in PSH is generally lower than thermal power plants but can still affect local hydrology, particularly in arid regions where evaporation from the upper reservoir represents a continuous loss. The environmental footprint includes changes to local microclimates, alterations to sediment transport, and potential disruptions to aquatic biodiversity, especially if the lower reservoir is part of a larger river system.
Carbon Emissions and Lifecycle Analysis
While PSH is often considered a low-carbon energy storage solution, its lifecycle carbon emissions are not negligible. The primary source of greenhouse gas emissions occurs during the construction phase, involving the extraction and processing of materials such as concrete, steel, and copper for turbines and generators. According to lifecycle assessments, the carbon intensity of PSH can vary significantly depending on the specific site characteristics and the mix of energy sources used during construction. In some cases, the emission factor is comparable to that of solar photovoltaic systems, while in others, it may be higher due to the extensive civil engineering works required. However, over its operational lifespan, PSH typically emits far less carbon per kilowatt-hour than fossil fuel-based storage solutions, such as gas-fired peaker plants.
Global Greenfield Atlas Potential
The global potential for new PSH installations is substantial, as indicated by various greenfield atlases. These studies identify thousands of potential sites worldwide, taking into account topographical features, water availability, and proximity to existing transmission infrastructure. The European Union, for example, has identified significant potential for PSH expansion to support the integration of variable renewable energy sources. Similarly, regions in Asia and North America show considerable untapped potential. The development of these sites involves complex trade-offs between energy capacity, land use, and environmental preservation. Advanced modeling techniques are increasingly used to optimize site selection, minimizing environmental impact while maximizing energy storage efficiency. The formula for gravitational potential energy, Ep=mgh, underscores the importance of height difference (h) and water mass (m) in determining the storage capacity of a PSH system.
Emerging technologies and alternative reservoirs
Alternative Reservoir Configurations
Traditional pumped-storage hydroelectricity (PSH) relies on two distinct surface reservoirs, but emerging configurations aim to reduce land use and geological constraints. One significant alternative involves the utilization of abandoned underground mines. These voids can serve as lower or upper reservoirs, leveraging existing excavations to minimize civil engineering costs. The water is pumped into or out of these subterranean cavities, effectively using the mine’s geometry as the storage vessel. This approach is particularly relevant in regions with extensive mining histories, allowing for the repurposing of industrial landscapes for grid-scale energy storage.
Another innovative configuration is the use of underwater reservoirs. In coastal areas, the ocean itself can act as the lower reservoir, while an artificial basin or a submerged chamber serves as the upper storage unit. This setup reduces the need for large surface land areas for the lower basin. The gravitational potential energy is still the primary storage mechanism, defined by the height difference between the water levels. The efficiency of these systems depends heavily on the integrity of the seals and the salinity management if seawater is used, which can impact turbine materials.
Seawater and High-Density Fluids
Seawater pumped storage is a specific subset of coastal PSH systems. By using seawater as the working fluid, these plants can be located directly on coastlines, often utilizing existing infrastructure or natural topography. The density of seawater is slightly higher than freshwater, which can marginally increase the energy stored per unit volume. The formula for gravitational potential energy, E=mgh, applies, where m is the mass of the water, g is the acceleration due to gravity, and h is the height difference. The use of seawater introduces challenges related to corrosion and biological fouling, requiring specialized materials for turbines and pipelines.
High-density fluids are also being explored to enhance the energy density of PSH systems. By mixing water with solids or using brine, the density of the working fluid can be increased. This allows for more energy to be stored in the same volume of water, which is particularly useful in locations where the head (height difference) is limited. The increased density means that for a given volume flow rate, the power output can be higher. However, the handling of these fluids requires more robust pumping systems and may involve additional costs for fluid preparation and maintenance.
These emerging technologies aim to expand the geographical viability of pumped storage, reducing the reliance on specific geological formations and large surface areas. By adapting to local conditions, such as coastal lines or mining regions, PSH can become a more flexible and widespread solution for load balancing in electric power systems. The operational status of these systems varies, with some projects in the pilot phase and others moving towards commercial operation, contributing to the diversity of hydroelectric energy storage options.
History of pumped storage hydropower
Pumped-storage hydroelectricity (PSH) emerged as a critical technology for load balancing in electric power systems, with its operational history beginning in 1907. The foundational principle involves storing energy as gravitational potential energy by pumping water from a lower elevation reservoir to a higher one. This process typically utilizes low-cost surplus off-peak electric power. During periods of high electrical demand, the stored water is released through turbines to produce electric power, effectively converting the potential energy back into kinetic energy and then electricity.
Early Development and Technological Evolution
The technology has evolved significantly since its inception. Early systems relied on basic pump-turbine configurations, but modern implementations feature advanced variable speed machines that enhance efficiency and grid stability. These modern systems allow for more precise control over power output and input, adapting to the fluctuating nature of renewable energy sources like wind and solar. The gravitational potential energy stored in the water can be mathematically described by the formula Ep=mgh, where m is the mass of the water, g is the acceleration due to gravity, and h is the height difference between the two reservoirs.
Throughout the 20th century, PSH plants expanded globally, becoming a cornerstone of energy storage infrastructure. The ability to quickly ramp up power generation makes PSH particularly valuable for peak shaving and frequency regulation. As the grid has become more complex, the role of PSH has grown, integrating with other energy sources to provide a reliable and flexible power supply. The technology continues to advance, with ongoing research focused on improving turbine efficiency and reducing environmental impacts.
Frequently asked questions
How does pumped storage hydropower work?
Pumped storage hydropower operates by moving water between two reservoirs at different elevations to store and generate energy. During periods of low electricity demand, water is pumped from the lower to the upper reservoir, and during peak demand, water flows back down through turbines to produce power.
What are the main types of pumped storage systems?
The primary types include closed-loop systems, which use two dedicated reservoirs, and open-loop systems, which often utilize natural bodies of water like lakes or rivers. Some advanced configurations also incorporate variable-speed turbines to enhance grid flexibility and efficiency.
What economic role does pumped storage play in grid balancing?
Pumped storage provides critical grid services such as frequency regulation, peak shaving, and spinning reserve, which help stabilize electricity prices and ensure reliability. Its ability to quickly ramp up or down makes it a cost-effective solution for integrating intermittent renewable energy sources like wind and solar.
What are the environmental impacts and location requirements for PSH?
Location requirements typically involve significant elevation differences and abundant water sources, often leading to land use changes and habitat disruption. Environmental impacts can include altered flow regimes in rivers and potential effects on water quality, though modern designs aim to mitigate these factors through careful site selection.
What emerging technologies are changing the landscape of pumped storage?
Innovations include the use of alternative reservoirs such as abandoned mines, coastal sites, and underground caverns to reduce land footprint. Additionally, advancements in turbine efficiency and the integration of battery hybrid systems are enhancing the performance and deployment potential of pumped storage facilities globally.
