How does pumped hydro storage work?
Pumped hydro energy storage (PHES) operates as a mechanical battery, utilizing the potential energy of water to store and release electrical power. The system relies on two water reservoirs situated at different elevations. During periods of low electricity demand or excess generation, water is pumped from the lower reservoir to the upper reservoir, converting electrical energy into gravitational potential energy. When electricity demand peaks, water is released from the upper reservoir, flowing back down through turbines to generate power.
Energy Conversion and Efficiency
The fundamental physics governing PHES involves the conversion between electrical, mechanical, and potential energy. The potential energy (Ep) stored in the upper reservoir is calculated using the formula Ep=m⋅g⋅h, where m is the mass of the water, g is the acceleration due to gravity (approximately 9.81 m/s2), and h is the effective head (vertical distance) between the two reservoirs. The electrical energy output (Eout) depends on the efficiency of the turbine-generator set and the pump-motor set.
Round-trip efficiency is a critical performance metric, typically ranging from 70% to 85%. This means that for every 100 units of electrical energy used to pump water uphill, approximately 70 to 85 units are recovered during generation. Losses occur due to friction in the penstocks, mechanical friction in the turbine and pump, and electrical resistance in the motors and generators.
Key Components
The infrastructure consists of several critical components. The upper reservoir stores water at a high elevation, while the lower reservoir serves as the source and return point. The penstock is a large-diameter pipe or tunnel that channels water from the upper reservoir to the turbine. The turbine converts the kinetic energy of the flowing water into rotational mechanical energy. Common turbine types include the Francis turbine, well-suited for medium heads, and the Pelton turbine, ideal for high heads.
The generator converts the mechanical rotation into electrical energy. In many modern PHES plants, the same unit acts as both a turbine and a pump, often using a reversible Francis turbine or a separate pump-turbine assembly. The motor drives the pump during charging, and the generator produces electricity during discharging. Control systems manage the flow rate and gate positions to match grid frequency and voltage requirements, providing essential ancillary services such as frequency regulation and spinning reserve.
What are the main types of pumped hydro systems?
Pumped hydro energy storage (PHES) systems are broadly classified by their hydrological configuration, primarily distinguishing between open-loop and closed-loop arrangements. These structural choices dictate the system's interaction with the local water table, the required land area, and the operational flexibility of the reservoirs. Understanding these configurations is essential for evaluating site suitability and long-term performance.
Open-Loop Configurations
In an open-loop PHES system, the upper and/or lower reservoirs are directly connected to a natural water body, such as a river, lake, or the ocean. This configuration is the most common globally due to its relative simplicity and lower initial capital expenditure compared to closed systems. The water cycle is not entirely self-contained; water is drawn from the natural source, pumped to the upper reservoir, and then released back into the same or a downstream body of water during generation. This direct connection means that the water level in the reservoirs can be influenced by external factors, including seasonal rainfall, river flow rates, and tidal variations if the lower reservoir is coastal. Consequently, the available storage capacity may fluctuate, requiring careful management to balance energy storage needs with hydrological conditions.
Closed-Loop Configurations
A closed-loop PHES system features two reservoirs that are largely isolated from the natural hydrological cycle. Water is cycled repeatedly between the upper and lower tanks with minimal loss, primarily through evaporation and seepage. This configuration offers greater operational independence from external water sources, making it suitable for sites where river flow is variable or where minimizing the impact on downstream water users is a priority. Closed-loop systems often require more extensive civil engineering, such as the construction of artificial lakes or the excavation of underground caverns, which can increase the initial investment. However, they provide more predictable storage volumes and can be deployed in a wider variety of geographical settings, including hilly terrains with limited natural water bodies.
Operational Implications
The choice between open and closed-loop systems influences the efficiency and lifespan of the PHES installation. Open-loop systems may experience greater sedimentation and water quality issues due to continuous inflow from natural sources, potentially affecting turbine performance. Closed-loop systems, while more controlled, may require additional infrastructure for water replenishment to compensate for evaporation losses. Both configurations serve the core function of storing gravitational potential energy, where the energy stored E can be approximated by the formula E=mgh, where m is the mass of the water, g is the acceleration due to gravity, and h is the effective head difference between the two reservoirs. This fundamental principle remains consistent across all PHES types, regardless of their hydrological classification.
Worked examples
Efficiency Calculation Example
Pumped hydro energy storage (PHES) efficiency is typically calculated by comparing the electrical energy output during discharge to the electrical energy input during pumping. A standard round-trip efficiency for modern PHES installations ranges between 75% and 80%. Consider a hypothetical facility with a gross head of 100 meters and a water volume of 1,000,000 cubic meters. The potential energy stored is calculated using the formula E = mgh, where m is mass, g is gravitational acceleration (9.81 m/s²), and h is head. For 1,000,000 m³ of water, the mass is 1,000,000,000 kg. The stored energy is 1,000,000,000 kg × 9.81 m/s² × 100 m = 981,000,000,000 Joules, or approximately 272.5 MWh. If the system operates at 75% round-trip efficiency, the electrical energy recovered is 272.5 MWh × 0.75 = 204.4 MWh. This calculation demonstrates how head and volume directly influence energy density.
Capacity Sizing Case Study
Technical reviews often analyze capacity sizing for grid balancing. Suppose a grid requires a 500 MW output for 6 hours. The total energy required is 500 MW × 6 h = 3,000 MWh. Using the same 75% efficiency assumption, the required stored energy is 3,000 MWh / 0.75 = 4,000 MWh. Converting back to Joules: 4,000 MWh × 3.6 × 10⁹ J/MWh = 14.4 × 10¹² J. With a head of 100 m, the required water volume is V = E / (ρgh) = 14.4 × 10¹² J / (1000 kg/m³ × 9.81 m/s² × 100 m) ≈ 1,467,890 m³. This illustrates that increasing head reduces the required reservoir volume, a key factor in site selection for PHES projects commissioned in recent years.
Global deployment and trends
Pumped hydro energy storage (PHES) represents the most mature and widely deployed form of large-scale energy storage globally. As of 2021, PHES accounted for the vast majority of installed storage capacity worldwide, leveraging the potential energy of water to balance supply and demand across power grids. The technology operates by moving water between two reservoirs at different elevations, utilizing the gravitational potential energy stored in the upper reservoir. The energy storage capacity can be conceptually described by the formula E=mgh, where m is the mass of the water, g is the acceleration due to gravity, and h is the head difference between the upper and lower reservoirs.
Global Capacity and Growth

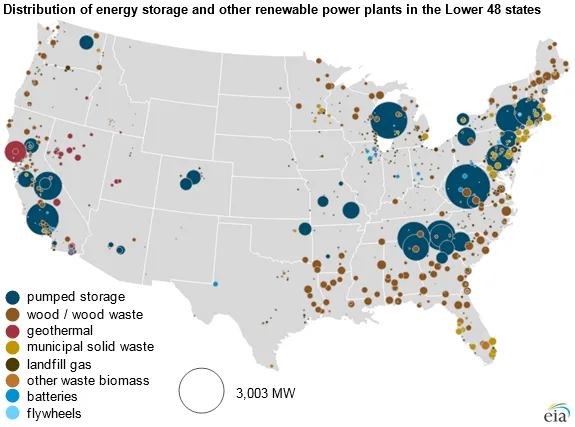

By 2021, the global installed capacity of PHES had reached significant levels, serving as a critical backbone for grid stability, particularly in regions with high penetration of variable renewable energy sources such as wind and solar photovoltaics. The deployment of PHES has been driven by the need for long-duration storage, flexibility, and ancillary services like frequency regulation and voltage control. Major markets include China, the United States, and Europe, where extensive infrastructure investments have expanded the total nameplate capacity. The growth trend reflects a strategic shift towards integrating intermittent generation sources, with PHES providing the necessary inertia and dispatchable power to smooth out fluctuations.
Technological Maturity and Expansion
The technology's longevity and reliability have contributed to its continued dominance in the storage sector. Unlike battery energy storage systems (BESS), which have seen rapid growth in recent years, PHES benefits from lower levelized cost of storage (LCOS) for long-duration applications and a longer operational lifespan. New projects commissioned around 2021 often feature advanced variable-speed pump-turbines, enhancing efficiency and grid responsiveness. The expansion of PHES continues to be influenced by geographical constraints, requiring suitable topography with sufficient head and reservoir volume. Despite these constraints, the global trend indicates sustained investment in both greenfield projects and retrofits of existing hydroelectric facilities to incorporate pumping capabilities, further solidifying PHES as a cornerstone of the global energy transition.
