Onshore wind capacity factor

Overview

Capacity factor (CF) is a dimensionless ratio that quantifies the actual energy output of an onshore wind turbine or farm relative to its theoretical maximum output over a specific period. It is calculated by dividing the actual energy produced (in megawatt-hours, MWh) by the product of the turbine’s rated net capacity (in megawatts, MW) and the total hours in the period. For an annual assessment, the formula is: CF = (Actual Annual Energy Output) / (Net Rated Capacity × 8,760 hours). This metric is central to evaluating the economic viability and grid integration potential of onshore wind projects.

Onshore wind capacity factors typically range from 25% to 45%, depending on site-specific wind resources, turbine technology, and operational efficiency. Higher capacity factors indicate that the turbine is producing closer to its rated output for a larger portion of the year, which directly impacts revenue generation and levelized cost of energy (LCOE). However, the wind resource is inherently variable, meaning that a 35% capacity factor is often considered robust for modern onshore installations in favorable locations.

Net vs. Gross Capacity

A critical distinction in capacity factor calculations is the difference between net and gross capacity. Gross capacity refers to the electrical power output at the generator terminals before any losses within the turbine system. Net capacity, which is the more common basis for reporting capacity factors, accounts for internal parasitic loads such as the gearboxes, generators, transformers, and control systems. For a typical 3 MW onshore turbine, the net capacity might be around 2.8 MW after deducting these internal losses. Using net capacity provides a more accurate reflection of the energy delivered to the grid, making it the preferred metric for investors and grid operators.

Caveat: When comparing capacity factors across different projects, ensure that the same basis (net vs. gross) is used. Mixing net capacity from one project with gross capacity from another can lead to misleading performance assessments.

Role in Performance Evaluation

Capacity factor serves as a primary performance metric because it synthesizes multiple variables—wind speed distribution, turbine aerodynamics, mechanical availability, and grid curtailment—into a single, comparable figure. It allows analysts to benchmark the performance of new turbines against older models or to compare the efficiency of different wind farms located in similar wind regimes. A rising capacity factor over time often signals improvements in turbine design, such as larger rotor diameters and higher hub heights, which capture more energy from the wind profile.

However, capacity factor alone does not capture the full picture of wind farm performance. It does not account for the timing of energy production, which is crucial for grid stability. For instance, a wind farm with a 30% capacity factor might produce most of its energy during peak demand hours, making it more valuable than a farm with a 35% capacity factor that produces primarily during off-peak hours. Therefore, while capacity factor is a vital metric, it is often used in conjunction with other indicators, such as the capacity credit and the levelized cost of energy, to provide a comprehensive assessment of onshore wind performance.

What factors determine onshore wind capacity factor?

Onshore wind capacity factor (CF) is not a static property of a turbine model but a dynamic outcome of site-specific meteorology, technological configuration, and geographical constraints. It represents the ratio of actual energy output over a period to the theoretical maximum output if the turbine ran at nameplate capacity continuously. Understanding the drivers of CF requires dissecting the physics of the wind resource and the engineering responses to it.

Meteorological Drivers

The primary determinant is the Weibull distribution of wind speeds at the hub height. Because power output scales with the cube of wind speed (P∝v3), small variations in mean wind speed yield significant changes in energy yield. However, mean speed alone is insufficient; the shape parameter of the Weibull distribution indicates consistency. A site with high mean speed but high variability may have a lower CF than a site with slightly lower mean speed but steadier flow.

Air density (ρ) directly influences power capture according to the equation P=21​ρACp​v3. Density decreases with altitude and temperature. Consequently, two identical turbines at the same latitude may exhibit different CFs if one is situated in a cold, high-altitude region (higher ρ) and the other in a warm, low-lying area. This physical reality means that high-latitude or high-elevation sites often outperform tropical lowlands, all else being equal.

Background: Wind shear describes how wind speed increases with height. The "1/7th power law" is a common approximation, but in complex terrain, shear can be much steeper, making hub height selection critical for maximizing CF.

Technological and Geographical Factors

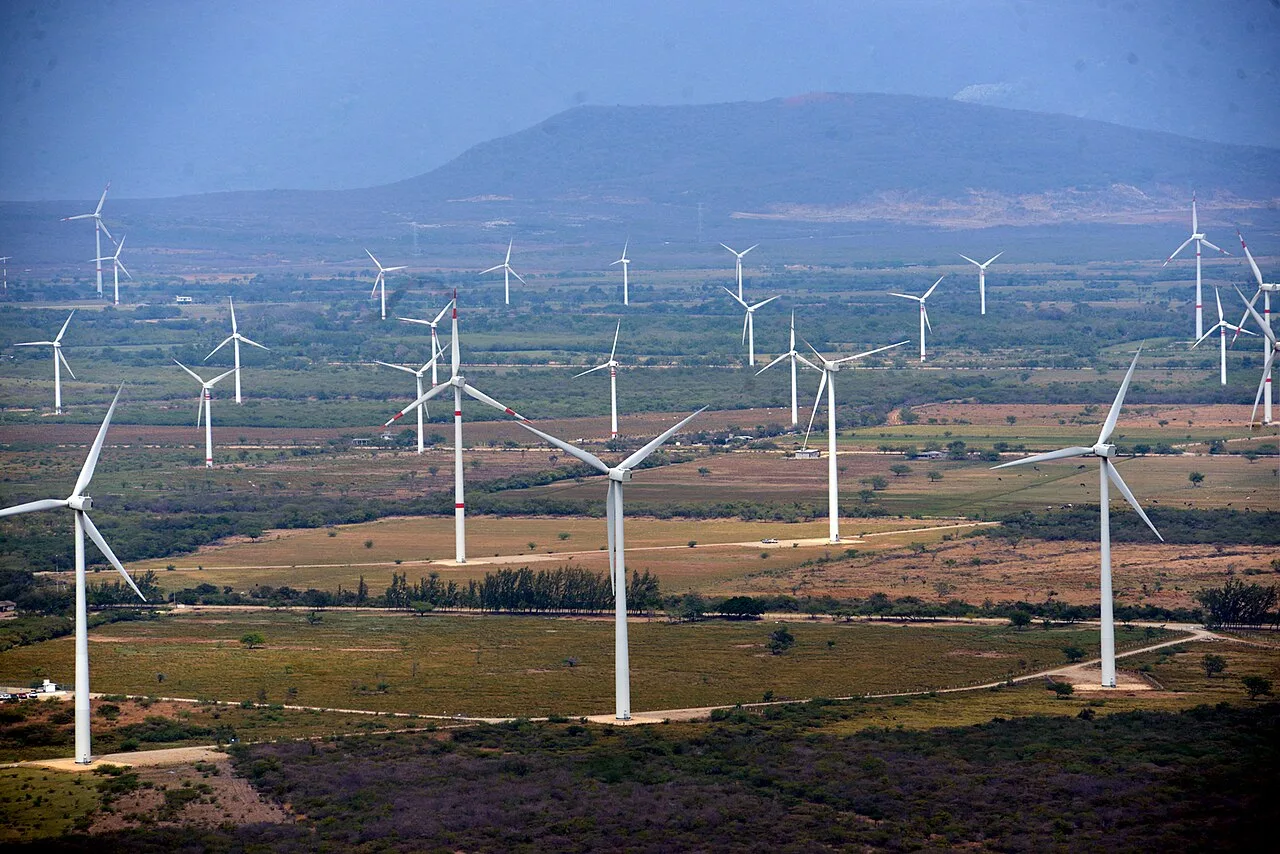

Turbine wake effects represent a major loss mechanism in onshore wind farms. As wind passes through the rotor, it loses kinetic energy and gains turbulence. Downstream turbines operate in this "wake," often experiencing a 10–20% reduction in CF compared to the first row. Advanced wake steering and layout optimization using computational fluid dynamics (CFD) can mitigate this, but the trade-off between land use and spacing remains a key geographical constraint.

Turbulence intensity (TI) affects both the energy capture and the mechanical loading on the turbine. High TI sites, common in complex terrain or near forest edges, may require turbines with higher rated speeds to avoid frequent cut-ins and cut-outs, potentially lowering the CF. Conversely, low TI sites allow for smoother power delivery and higher utilization of the generator.

Geographical obstacles create surface roughness, which influences the wind profile. A smooth grassland site will generally have a higher CF than a site with scattered trees or buildings, assuming similar mean wind speeds. The choice of turbine class (I, II, or III) must match the site's turbulence and extreme wind speeds to avoid derating or excessive maintenance downtime, further influencing the realized capacity factor.

Global trends and regional variations

Onshore wind capacity factors vary significantly across global markets, driven by differences in turbine technology, site quality, and grid integration strategies. While early 2010s averages hovered around 25–30%, modern fleets in prime locations routinely exceed 40%. This evolution reflects a shift from smaller, less efficient turbines to larger, higher-hub-height models with advanced power curve optimization.

Regional Performance Benchmarks

Europe leads in average capacity factors, particularly in the North Sea region and the UK, where consistent wind resources and mature maintenance regimes push averages toward 35–45%. Germany and Spain show slightly lower but improving figures, often in the 30–35% range. The United States exhibits high variability: the Great Plains and Texas achieve 40–50%, while the Southeastern US often sees 25–30% due to more variable wind regimes. China’s vast and diverse geography results in a national average closer to 25–30%, though specific provinces like Inner Mongolia can reach higher.

The formula for capacity factor is straightforward: CF=Pnameplate​×TEactual​​, where Eactual​ is the energy produced over time T, and Pnameplate​ is the installed power. Improvements in CF mean more energy per megawatt of installed capacity, effectively lowering the levelized cost of energy (LCOE).

Caveat: High capacity factors do not always equate to higher annual energy production if the nameplate capacity is significantly up-rated. A 40% CF on a 3 MW turbine may yield less energy than a 35% CF on a 4 MW turbine due to non-linear power curves and wake effects.

Several factors explain these trends. First, turbine size has increased dramatically. Modern onshore turbines often exceed 3 MW, with rotor diameters growing to capture more wind at higher hub heights. Second, data analytics and predictive maintenance have reduced downtime. Third, grid curtailment—where wind is turned on but not fed into the grid—has decreased in mature markets like the US and Europe, though it remains a challenge in parts of China and India.

However, the gains are not uniform. In regions with high wind shear or complex terrain, capacity factors can be lower despite technological advances. Additionally, as wind farms expand into slightly less windy areas to meet demand, the marginal capacity factor may dip slightly, a phenomenon known as "diminishing returns on site quality." This is evident in the US Southeast and parts of Central Europe.

Looking ahead, the trend points toward further increases in capacity factors, potentially reaching 40–50% in the best global sites by 2030. This will be driven by even larger turbines, better wind resource assessment using LiDAR and AI, and improved grid integration through hybridization with solar or storage. However, the rate of improvement may slow as the "low-hanging fruit" of the windiest sites are developed.

How is capacity factor calculated and measured?

Capacity factor (CF) is the ratio of actual energy output to the theoretical maximum output over a specific period. It is calculated using the formula CF = E_actual / (P_nameplate × T). Here, E_actual represents the total energy generated in megawatt-hours, P_nameplate is the installed nameplate capacity in megawatts, and T is the number of hours in the period. For onshore wind, this metric typically ranges from 25% to 45%, depending on site quality and turbine technology. This calculation reveals how efficiently a turbine converts available wind into electricity relative to its rated power.

Data Sources: SCADA vs. Meteorological Masts

Accurate CF measurement relies on high-quality data inputs. Supervisory Control and Data Acquisition (SCADA) systems provide real-time operational data from the turbine itself. SCADA records power output, rotor speed, and ambient temperature at the hub height. This data is direct but can be influenced by turbine-specific mechanical issues. In contrast, meteorological masts measure wind speed and direction at various heights using anemometers and wind vanes. These masts provide a more granular view of the wind resource, often revealing micro-variations in the wind profile that SCADA might miss. Combining SCADA data with met mast readings allows engineers to distinguish between turbine performance and wind resource variability.

Caveat: Nameplate capacity is often a peak rating. A turbine rated at 3 MW may only hit that peak for a few hours a year. This means the "theoretical maximum" in the CF formula is often higher than the turbine’s average continuous output, which can make CF seem lower than expected.

Impact of Downtime and Curtailment

Downtime and curtailment significantly affect the final capacity factor. Downtime refers to periods when the turbine is not generating power due to mechanical failures, grid issues, or scheduled maintenance. If a turbine is down for 10% of the year, its CF drops by approximately 10%, assuming constant wind conditions. Curtailment occurs when the grid operator forces turbines to slow down or stop to balance supply and demand. This is common in mature wind markets where generation exceeds grid absorption capacity. Both factors reduce E_actual, thereby lowering the CF. It is crucial to distinguish between "technical" CF (based on turbine performance) and "economic" CF (which includes curtailment). High curtailment can mask a turbine’s true technical efficiency, making a high-quality site appear less productive than it is.

Understanding these nuances is essential for accurate performance assessment. Engineers must account for downtime and curtailment when comparing different wind farms or evaluating the return on investment. Ignoring these factors can lead to overestimating the energy yield and underestimating the operational risks. The capacity factor is not just a number; it is a composite indicator of wind resource, turbine technology, and grid integration.

Worked examples

Capacity factor is a ratio that compares the actual energy output of a turbine to its theoretical maximum output if it ran at full nameplate capacity continuously. For a 3 MW onshore turbine, the maximum annual energy production is calculated as 3 MW × 24 hours/day × 365 days/year = 26,280 MWh. The actual output depends heavily on the wind speed distribution, typically modeled using a Weibull distribution.

Example 1: Moderate Wind Regime

Consider a 3 MW turbine located in a region with an average annual wind speed of 6.5 m/s at the hub height. This is a typical onshore site in Northern Europe. The turbine has a cut-in speed of 3 m/s and a rated speed of 11 m/s. Using standard power curve integration, the annual energy output might be approximately 7,500 MWh.

The capacity factor is calculated as: (7,500 MWh / 26,280 MWh) × 100 ≈ 28.5%. This figure aligns with industry averages for good onshore sites. The wind is strong enough to push the turbine to its rated power for a significant portion of the year, but not so strong that it frequently reaches cut-out speeds (usually 25 m/s).

Example 2: Low Wind Regime

Now consider the same 3 MW turbine in a more sheltered location, such as the southern plains of Spain or parts of the US Midwest, with an average annual wind speed of 5.0 m/s. The lower wind speed means the turbine spends more time spinning below its rated power. The annual energy output drops to approximately 5,200 MWh.

The capacity factor is: (5,200 MWh / 26,280 MWh) × 100 ≈ 19.8%. This lower efficiency highlights the sensitivity of onshore wind to site selection. A 1.5 m/s difference in average wind speed can reduce the capacity factor by nearly 9 percentage points. This is why detailed wind resource assessment is critical before installation.

Caveat: These examples assume a constant 3 MW nameplate capacity. In reality, newer turbines often have larger rotors, which can improve capacity factors in lower wind speeds, but this increases the capital cost per MW.

Example 3: High Wind Regime

In a high-wind location, such as the coastal plains of Texas or the North Sea coast of Germany, the average annual wind speed might reach 8.0 m/s. The turbine reaches its rated power more frequently. The annual energy output could be around 10,500 MWh.

The capacity factor is: (10,500 MWh / 26,280 MWh) × 100 ≈ 40.0%. This is an excellent capacity factor for onshore wind. It demonstrates that in optimal locations, onshore wind can compete closely with offshore wind in terms of consistency. However, higher wind speeds also mean greater mechanical stress on the turbine components, potentially increasing maintenance costs.

These examples illustrate that capacity factor is not a fixed property of the turbine, but a function of the interaction between the turbine's power curve and the local wind regime. Accurate forecasting requires detailed wind data and turbine-specific performance models.

Strategies for optimizing wind farm yield

Maximizing the capacity factor of onshore wind farms requires moving beyond basic turbine placement. Engineers employ sophisticated control strategies and measurement techniques to capture more energy from the same resource. These methods address the physical and operational inefficiencies that typically limit annual output.

Wake Steering and Farm Control

Wind turbines create a "wake" of slower, turbulent air behind the rotor. When downstream turbines face this wake, their efficiency drops. Wake steering is a control strategy where upstream turbines yaw slightly out of the direct wind path. This deflects the wake, allowing downstream turbines to hit cleaner air. The trade-off is that the upstream turbine produces slightly less power, but the total farm output often increases. This technique relies on real-time anemometry and advanced control algorithms.

Caveat: Wake steering is most effective in moderate wind speeds (around 8–12 m/s). In very high winds, turbines may reach their rated capacity, making the subtle gains from steering less significant relative to the mechanical stress involved.

Implementing wake steering requires accurate modeling of the wind field. Operators use computational fluid dynamics (CFD) to predict how wakes interact across the farm. This approach can improve annual energy production (AEP) by 1% to 5%, depending on turbine density and wind directionality.

Power Curve Optimization

The power curve defines the relationship between wind speed and power output. Traditional curves are static, but modern turbines use variable speed operation to optimize aerodynamic efficiency. Pitch control adjusts the angle of the blades to manage the angle of attack. This allows the turbine to capture more energy at low speeds and shed excess energy at high speeds to prevent mechanical overload.

Optimization also involves minimizing losses in the electrical conversion chain. Power electronics convert the variable frequency AC from the generator to the grid frequency. High-efficiency converters and transformers reduce thermal losses. Engineers analyze the specific power curve of each turbine model to determine the optimal cut-in and cut-out speeds for a given site. This ensures the turbine operates in its most efficient range for the majority of the year.

Advanced Site Assessment: LiDAR and SODAR

Accurate site assessment is the foundation of yield optimization. Traditional cup anemometers measure wind speed at a single height. LiDAR (Light Detection and Ranging) and SODAR (Sound Detection and Ranging) provide vertical profiles of the wind field. LiDAR uses laser pulses to measure the Doppler shift of backscattered light from aerosols. SODAR uses sound waves to detect temperature and wind shear.

These technologies help characterize wind shear and turbulence intensity. Wind shear describes how wind speed changes with height. The power law model is often used: v2​=v1​×(h2​/h1​)α, where α is the shear exponent. Accurate determination of α allows engineers to select the optimal hub height. Higher hub heights often access stronger, more consistent winds, directly boosting the capacity factor.

LiDAR is also used for "met mast" campaigns, where mobile units measure wind conditions at multiple locations before permanent infrastructure is installed. This reduces the risk of underestimating the resource. SODAR is particularly useful for long-term monitoring due to its lower power consumption compared to LiDAR. Combining data from both technologies provides a robust dataset for energy yield assessments.

Integration and Data Analytics

Modern wind farms generate vast amounts of data. Supervisory Control and Data Acquisition (SCADA) systems collect operational data from each turbine. Advanced analytics process this data to identify underperforming assets. Machine learning algorithms can predict maintenance needs, reducing downtime. Predictive maintenance ensures that turbines spend more time in the "operational" state, directly improving the capacity factor.

Integrating these strategies requires a holistic approach. Site assessment determines the potential. Wake steering and power curve optimization unlock that potential. Data analytics ensures sustained performance. As turbine technology evolves, these techniques become increasingly important for maximizing the return on investment in onshore wind energy.

Capacity factor vs. Levelized Cost of Energy (LCOE)

Capacity factor and Levelized Cost of Energy (LCOE) are often treated as direct proxies for one another, but the relationship is more nuanced. A high capacity factor means a wind turbine generates electricity for a larger percentage of the total hours in a year, spreading the fixed capital costs over more megawatt-hours. This generally drives down the LCOE, making the project financially attractive. However, a high capacity factor does not automatically guarantee the lowest cost per kilowatt-hour.

The Mathematical Link

The LCOE formula illustrates why capacity factor matters. It is calculated as:

LCOE = (Total Lifetime Costs) / (Total Lifetime Energy Output)

Where Total Lifetime Energy Output equals (Nameplate Capacity × Hours in Year × Capacity Factor × Lifetime Years). If the capacity factor doubles, the denominator doubles, effectively halving the cost contribution of the initial capital expenditure (CAPEX), assuming operational expenses (OPEX) remain stable. For onshore wind, CAPEX is typically the largest cost component, so increasing the capacity factor has a powerful effect on reducing the final LCOE.

Caveat: A high capacity factor can sometimes mask high capital costs. A site with a 45% capacity factor but extremely difficult terrain might have a higher LCOE than a site with a 35% capacity factor and flat, accessible land.

Why High Capacity Factor Isn't Everything

Several factors can decouple capacity factor from LCOE. First, the quality of the wind resource varies. A site with a very high capacity factor might require taller towers or larger rotors to capture the wind, increasing the CAPEX. If the cost of the turbine increases faster than the energy output, the LCOE can rise despite the higher capacity factor.

Second, grid connection costs play a significant role. A site with an excellent wind resource (high capacity factor) might be located far from the transmission grid. The cost of extending high-voltage lines can add millions to the project budget, increasing the LCOE. Conversely, a site with a moderate capacity factor located right next to a strong grid node might have a lower LCOE due to reduced transmission losses and connection fees.

Third, operational and maintenance (O&M) costs can vary. A site with a high capacity factor might be in a harsh environment, such as a coastal area with high salinity or a mountainous region with complex logistics. These conditions can increase the frequency of turbine failures and the cost of repairs, raising the OPEX and offsetting the benefits of the high capacity factor.

Finally, the value of the electricity generated matters. LCOE is a supply-side metric, meaning it looks at the cost of producing the energy. It does not account for when the energy is produced. If a wind farm with a high capacity factor generates most of its power during hours of low electricity prices (e.g., midday in summer), the revenue per kilowatt-hour might be lower than a farm with a slightly lower capacity factor that generates power during peak evening hours. This is known as the "value of energy" and is distinct from the LCOE.

Engineers and investors must look beyond the capacity factor alone. They need to analyze the full cost structure, including CAPEX, OPEX, grid connection, and the timing of energy production, to determine the true economic viability of an onshore wind project.

Future outlook for onshore wind efficiency

Projections for onshore wind efficiency indicate a steady upward trajectory in capacity factors, driven by the deployment of next-generation turbines and advanced digitalization. The industry is currently transitioning from the 3–4 MW class to turbines exceeding 5–6 MW, particularly in regions with higher wind resources such as Northern Europe and parts of North America. Larger rotors and taller towers allow these machines to capture more energy from the same land area, directly boosting the net capacity factor. This metric, defined as the ratio of actual energy output to the theoretical maximum if the turbine ran at full nameplate capacity continuously, is the primary indicator of operational efficiency.

The increase in turbine size is not the only factor. Digitalization and artificial intelligence are becoming critical in optimizing performance. Modern wind farms utilize sophisticated sensors and data analytics to predict maintenance needs, adjust blade pitch in real-time, and minimize wake effects between adjacent turbines. These technologies can improve annual energy production by several percentage points, which translates to significant revenue gains over the asset's lifespan. The integration of machine learning algorithms allows operators to make data-driven decisions that were previously reliant on historical averages.

Technological Drivers of Efficiency

Next-generation turbines are designed to handle higher wind speeds and variable conditions. The 5–6 MW class turbines often feature direct-drive generators or geared systems with enhanced reliability. These designs reduce mechanical losses and increase the overall efficiency of the energy conversion process. Additionally, the use of composite materials in blade construction allows for longer, lighter blades that can rotate more efficiently. This results in a higher swept area, which captures more kinetic energy from the wind.

Digital twins, virtual replicas of physical assets, are increasingly used to simulate and optimize turbine performance. By feeding real-time data into these models, operators can identify inefficiencies and test adjustments without disrupting the actual operation. This approach helps in fine-tuning the control systems to maximize output under varying wind conditions. The impact of these digital tools is expected to grow as more data is collected and algorithms become more sophisticated.

Caveat: While technological advancements promise higher capacity factors, site-specific conditions such as wind shear, turbulence, and temperature remain critical determinants of actual performance. A 40% capacity factor in one region may only yield 30% in another with similar average wind speeds.

The environmental impact of these efficiency gains is also significant. Higher capacity factors mean more energy is generated per unit of installed capacity, reducing the levelized cost of energy (LCOE) and the carbon footprint per megawatt-hour. This makes onshore wind an increasingly competitive option in the global energy mix. However, the integration of larger turbines into existing grids requires careful planning to manage variability and ensure stability.

Looking ahead, the continued evolution of turbine technology and digital tools suggests that onshore wind capacity factors could see further improvements. Industry analysts project that average capacity factors may rise by 2–5% over the next decade, depending on the region and the rate of technological adoption. This trend supports the broader goal of decarbonizing the power sector and enhancing energy security.
