Overview
A surface condenser functions as a critical component within thermal power stations, operating specifically as a water-cooled shell and tube heat exchanger. Its primary engineering purpose is to condense the exhaust steam generated by a steam turbine, effectively converting the working fluid from its gaseous state back into a liquid state. This phase change occurs at a pressure that is maintained below atmospheric pressure, which is essential for maximizing the thermodynamic efficiency of the Rankine cycle in steam turbine operations. The device relies on the thermal interaction between the exhaust steam and a continuous flow of cooling water, facilitating the transfer of latent heat from the steam to the cooling medium.

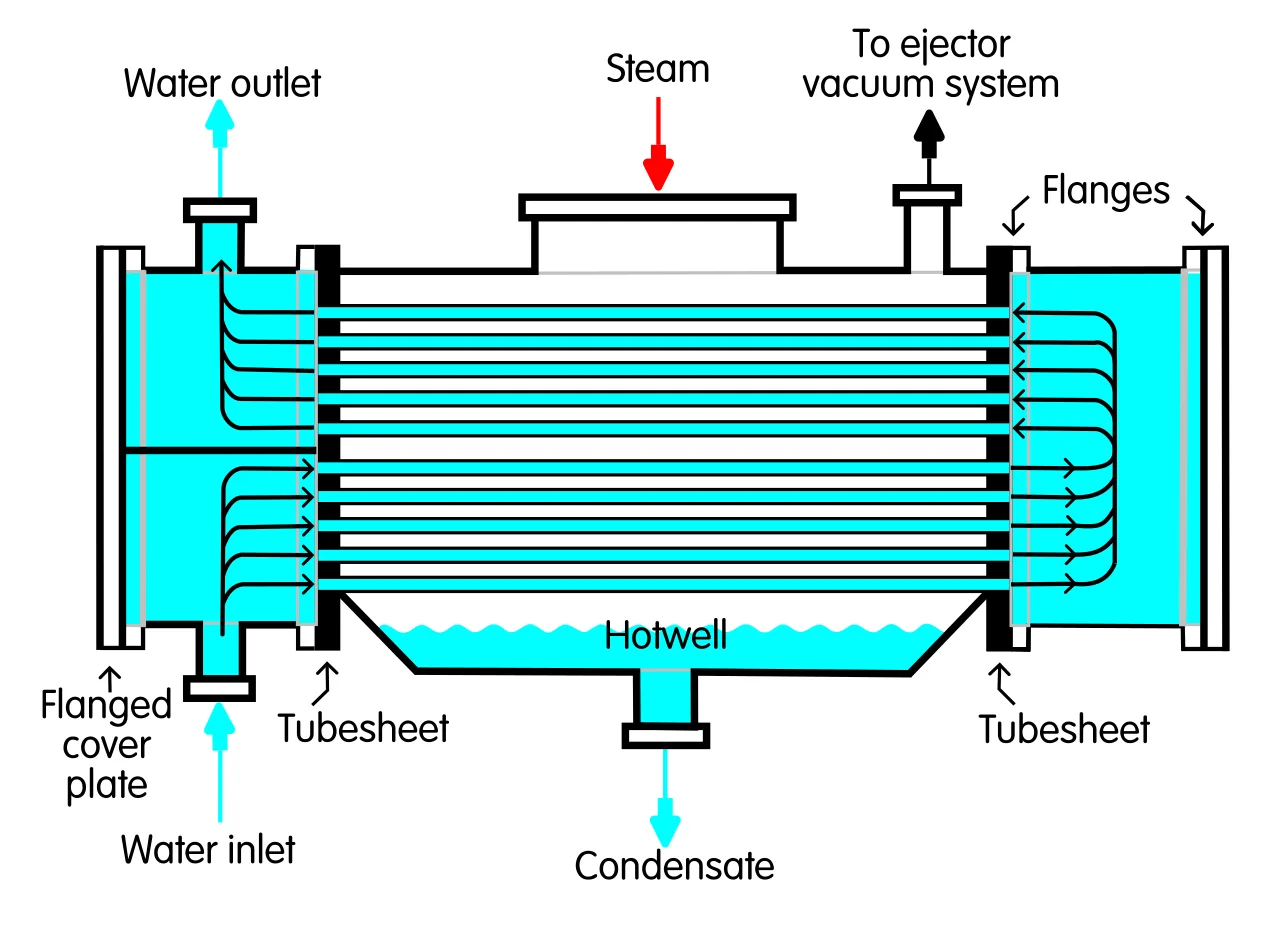

The structural design of a surface condenser typically involves a large cylindrical shell containing a bundle of tubes. Cooling water flows through these tubes, while the exhaust steam surrounds them in the shell side. As the steam comes into contact with the relatively cooler tube surfaces, it releases its latent heat of vaporization and condenses into condensate. This process creates a partial vacuum within the condenser shell, which helps to draw more steam from the turbine, thereby increasing the pressure differential across the turbine blades and enhancing power output. The efficiency of this heat exchange process is fundamental to the overall performance of the power generation unit.
In scenarios where the availability of cooling water is limited or where the cost of water sourcing is high, alternative configurations such as air-cooled condensers may be employed. However, the use of air-cooled condensers introduces specific engineering trade-offs. Air-cooled systems are generally significantly more expensive to install and operate compared to their water-cooled counterparts. Furthermore, air-cooled condensers often struggle to achieve the same low steam turbine exhaust pressures that are readily attainable with water-cooled surface condensers. This limitation can result in a slight reduction in the thermodynamic efficiency of the steam turbine, as the back pressure on the turbine remains higher than it would be in an optimized water-cooled system.
The operational status of surface condensers is generally stable and continuous, reflecting their role as a standard technology in the thermal power generation sector. The choice between water-cooled and air-cooled systems depends heavily on local environmental conditions, water availability, and economic considerations. Despite the higher initial and operational costs associated with air-cooled alternatives, the water-cooled surface condenser remains the predominant choice for many thermal power stations due to its ability to maintain lower exhaust pressures and higher overall efficiency. The technology continues to be a cornerstone of steam turbine performance optimization in the global energy infrastructure landscape.
How does a surface condenser improve thermal efficiency?
Surface condensers are critical components in thermal power stations, specifically designed to maximize the thermodynamic efficiency of the steam cycle. These water-cooled shell and tube heat exchangers are installed to condense exhaust steam from a steam turbine, converting it from its gaseous state to its liquid state at a pressure below atmospheric pressure. This phase change is essential for maintaining a significant pressure differential across the turbine blades, which directly drives the conversion of heat into mechanical power.
Thermodynamic Principles
The primary function of a surface condenser is to create a vacuum in the turbine's exhaust. By reducing the exhaust pressure below atmospheric levels, the condenser allows the steam to expand further through the turbine stages. This expansion increases the enthalpy drop across the turbine, thereby extracting more work from the same amount of steam. The efficiency of this process is governed by the Rankine cycle, where the lower the condenser pressure, the higher the theoretical thermal efficiency of the plant.
The heat transfer causes the steam to condense into water, significantly reducing its volume. This volume reduction helps maintain the low-pressure environment necessary for optimal turbine performance. The condensed water, now known as condensate, is then pumped back into the boiler to repeat the cycle, minimizing water loss and improving overall system stability.
Comparison with Air-Cooled Systems
Where cooling water is in short supply, an air-cooled condenser is often used as an alternative. However, air-cooled condensers are significantly more expensive and cannot achieve as low of a steam turbine exhaust pressure as a water-cooled surface condenser. The lower exhaust pressure achievable with water-cooled systems translates to higher thermal efficiency, making them the preferred choice for most thermal power stations where water availability is not a limiting factor.
The choice between water-cooled and air-cooled condensers depends on various factors, including the cost of cooling water, the climate of the location, and the desired efficiency of the power plant. Water-cooled surface condensers remain the standard for many thermal power stations due to their ability to maintain lower exhaust pressures and higher thermal efficiencies, despite the initial investment and ongoing maintenance costs associated with the water supply system.
Construction and components
Surface condensers are constructed as large cylindrical pressure vessels, commonly referred to as the shell, which houses the heat exchange media. The primary structural components include the shell, tube sheets, tubes, and waterboxes. The shell must withstand the vacuum pressure created during operation, often requiring stiffening rings to prevent buckling under atmospheric load. Tube sheets are thick circular plates welded to the shell, serving as the interface between the steam side and the cooling water side. They hold the tube bundles in place and provide a seal to prevent mixing of the two fluids.
Tubes and Tube Materials
The tubes are the critical heat transfer elements. They are typically thin-walled to maximize thermal conductivity and are expanded or rolled into the tube sheets. The choice of tube material depends on the quality of the cooling water and the required thermal performance. Common materials include Admiralty brass, stainless steel, and titanium. Titanium offers superior corrosion resistance, particularly in seawater applications, while stainless steel provides a balance of cost and durability. The tubes are arranged in a bundle, often in a triangular or square pitch pattern, to optimize flow dynamics and heat transfer coefficients.
| Component | Typical Material | Function |
|---|---|---|
| Tubes | Titanium, Stainless Steel, Brass | Heat exchange surface |
| Tube Sheets | Carbon Steel, Stainless Steel | Seal and support tubes |
| Shell | Carbon Steel | Pressure vessel containment |
| Waterboxes | Cast Steel, Stainless Steel | Cooling water distribution |
Waterboxes
Waterboxes, also known as end tanks, are located at each end of the tube bundle. They distribute the cooling water evenly across the tube inlets and collect it at the outlets. In single-pass condensers, water enters one waterbox and exits the other. In multi-pass designs, baffles within the waterboxes direct the water to flow through the tubes multiple times, increasing the velocity and heat transfer rate. The waterboxes are bolted to the shell or tube sheets to allow for maintenance and inspection of the tube bundle. Proper sealing is essential to prevent air leakage into the vacuum side.
The thermal performance of the condenser is governed by the heat transfer equation: Q = U * A * ΔT, where Q is the heat load, U is the overall heat transfer coefficient, A is the surface area, and ΔT is the logarithmic mean temperature difference. The design aims to maximize A and U while maintaining an optimal ΔT to achieve the desired vacuum level at the turbine exhaust.
Vacuum systems and operation
Maintaining the partial vacuum within the shell is critical for the thermodynamic efficiency of the surface condenser. As exhaust steam enters the shell and condenses on the tube bundle, its volume decreases drastically. Without a continuous removal of non-condensable gases and residual steam, the pressure would rise, reducing the temperature difference between the steam and the cooling water. The vacuum system ensures that the pressure remains below atmospheric levels, maximizing the enthalpy drop across the steam turbine.
Steam Jet Ejectors
Steam jet ejectors are among the most common vacuum systems used in thermal power stations. These devices operate on the principle of momentum transfer. High-pressure motive steam is expanded through a converging-diverging nozzle, creating a high-velocity jet that entrains the vapor-gas mixture from the condenser shell. The mixture then passes through a diffuser, where velocity is converted back into pressure, allowing the condensate and non-condensables to be discharged. Multi-stage ejectors are often employed to achieve higher vacuum levels, with intercoolers placed between stages to reduce the volume of the gas load.
Mechanical Vacuum Pumps
Mechanical vacuum pumps offer an alternative to steam jet systems, particularly where precision control or energy efficiency is prioritized. Liquid ring pumps and dry rotary vane pumps are frequently used. Liquid ring pumps utilize a rotating impeller within an eccentric casing, with a sealing liquid (often water) forming a movable ring that traps and compresses the vapor. These pumps are robust and can handle wet vapors effectively. Dry pumps, such as screw or root blowers, are often used in combination with liquid ring pumps to reduce the carryover of sealing liquid into the turbine exhaust.
Operational Dynamics
The performance of the vacuum system directly influences the condenser pressure, denoted as Pc. A lower Pc corresponds to a lower saturation temperature Ts, increasing the heat transfer driving force. The relationship between pressure and temperature in the steam space follows the saturation curve. Operational adjustments to the vacuum system must balance the energy consumed by the ejectors or pumps against the gain in turbine output. Proper maintenance of the vacuum system is essential to prevent air ingress, which can significantly degrade heat transfer coefficients and increase corrosion rates within the tube bundle.
What causes corrosion and fouling in surface condensers?
Surface condensers operate in thermodynamically demanding environments where the interaction between cooling media and heat transfer surfaces drives degradation. Corrosion and fouling are the two primary mechanisms reducing thermal efficiency and mechanical integrity. Electrolytic corrosion, particularly in sea water applications, arises from galvanic couples formed between dissimilar metals, such as brass tubes and steel tube sheets. The presence of dissolved oxygen and chlorides accelerates anodic dissolution. Sea water pollutants, including suspended solids and chemical effluents, exacerbate this process by altering the electrochemical potential of the tube surfaces.
Tube-Side Fouling Categories
Fouling creates an additional thermal resistance layer on the tube-side, increasing the temperature difference required for condensation. Five distinct categories of fouling are recognized in operational analysis:
- Particulate fouling: Accumulation of suspended inorganic particles, such as silt and sand, which settle in low-velocity zones or deposit due to inertial impaction.
- Biofouling: Colonization by microorganisms, primarily bacteria and algae, which secrete extracellular polymeric substances (EPS) forming a biofilm. This biofilm acts as a nucleation site for further deposition.
- Scaling: Precipitation of dissolved salts, predominantly calcium carbonate (CaCO3) and calcium sulfate (CaSO4), when the local temperature exceeds the solubility limit. Scaling is highly dependent on water hardness and pH.
- Macrofouling: Attachment of larger biological entities, such as mussels, barnacles, and seaweed, which physically obstruct flow and increase surface roughness.
- Corrosion products: Deposition of iron oxides (e.g., magnetite, hematite) and copper compounds shed from the tube surfaces due to ongoing corrosion processes.
The combined effect of these fouling layers increases the overall heat transfer coefficient (U), defined by the relationship U1=hi1+Rf+ho1, where Rf represents the fouling resistance. Increased Rf leads to higher back-pressure on the steam turbine, reducing the net electrical output of the thermal power station. Effective management requires balancing chemical treatment, velocity control, and periodic mechanical cleaning to mitigate these five categories of degradation.
Corrosion protection and maintenance
Corrosion is a primary degradation mechanism in surface condensers, particularly where the tube materials interact with cooling water of varying salinity and temperature. Mitigation strategies focus on electrochemical, chemical, and mechanical barriers to preserve the thermal efficiency and structural integrity of the shell and tube heat exchanger. Cathodic protection is widely employed, especially in condensers using seawater or brackish water. This method involves attaching sacrificial anodes, typically made of zinc, to the tube bundles. The zinc anodes corrode preferentially to the copper-alloy or stainless-steel tubes, thereby reducing the electrochemical potential of the metal surface. The effectiveness of this protection depends on the conductivity of the cooling medium and the surface area ratio between the anode and the cathode.
Chemical Treatment and Marine Growth
Marine growth, including barnacles, mussels, and algae, creates localized corrosion cells and reduces the heat transfer coefficient by adding thermal resistance to the tube walls. Sodium hypochlorite treatment is a standard chemical method to control biological fouling. Sodium hypochlorite (NaOCl) is injected into the cooling water stream, releasing chlorine that oxidizes organic matter and kills microorganisms. The concentration must be carefully controlled; excessive chlorine can cause pitting corrosion in stainless steel tubes, while insufficient dosage allows biofilm formation. The reaction of sodium hypochlorite in water produces hypochlorous acid (HOCl) and hypochlorite ions (OCl⁻), which are the primary biocidal agents.
Mechanical and Coating Barriers
For condensers where cooling water quality is inconsistent, epoxy paint coatings are applied to the tube surfaces. These coatings provide a physical barrier that isolates the metal from the corrosive electrolyte. Epoxy coatings are particularly effective on the shell side or on specific tube sections exposed to higher oxygen concentrations. However, mechanical damage during installation or cleaning can compromise the coating, leading to localized under-film corrosion. Regular maintenance includes visual inspections for coating delamination and potential difference measurements to verify the performance of cathodic protection systems. Proper maintenance ensures the condenser maintains the low exhaust pressure required for optimal steam turbine efficiency.
Applications beyond thermal power plants
Surface condensers are utilized in several energy systems beyond conventional steam turbines. In Ocean Thermal Energy Conversion (OTEC), they are critical for condensing working fluid vapor. This process occurs when warm surface water heats the fluid, and cold deep water cools the condenser tubes. The temperature difference drives the cycle. The heat transfer rate is defined by Q=UAΔTlm. Here, U is the overall heat transfer coefficient, A is the surface area, and ΔTlm is the log-mean temperature difference. In geothermal energy recovery, surface condensers handle exhaust steam from binary cycle plants. The geothermal brine heats a secondary working fluid. The vapor expands through a turbine. The condenser then turns the vapor back into liquid. This maintains the vacuum pressure needed for efficiency. Air-cooled condensers are sometimes used in geothermal sites with limited water. However, water-cooled surface condensers often achieve lower exhaust pressures. This results in higher net power output. Desalination systems also employ surface condensers. In Multi-Effect Distillation (MED), condensers capture latent heat. This heat warms the brine in subsequent effects. The surface condenser at the last effect removes the final vapor load. This maintains the system's vacuum. The efficiency of the heat exchange is vital for reducing energy consumption per cubic meter of freshwater. Vacuum evaporation processes in chemical engineering use surface condensers. They remove vapor from evaporators to maintain low pressure. This lowers the boiling point of the solution. It is useful for heat-sensitive products. The condensate is collected and the non-condensable gases are vented. The design of the shell and tube configuration affects the flow dynamics. Proper maintenance prevents fouling on the tube surfaces. Vacuum refrigeration systems utilize surface condensers as well. These systems use water as the refrigerant. The water evaporates under vacuum, absorbing heat. The vapor is then condensed in a surface condenser. Cooling water removes the latent heat of vaporization. This process is common in large-scale air conditioning. It is also used in industrial cooling towers. The efficiency depends on the cooling water temperature. These applications highlight the versatility of surface condensers. They are essential in systems requiring phase change and vacuum maintenance. The choice between air-cooled and water-cooled depends on local resources. Water-cooled units are generally more efficient but require a steady water supply. Air-cooled units are more expensive but save water. Engineers must balance these factors for optimal performance. The underlying thermodynamics remain consistent across these diverse applications.Testing standards and codes
The performance evaluation of surface condensers and air-cooled steam condensers is governed by established engineering standards, primarily those developed by the American Society of Mechanical Engineers (ASME). These codes provide the methodological framework for quantifying thermal efficiency, pressure drops, and overall heat transfer coefficients, ensuring that condensers meet design specifications under varying operational loads. Standardized testing is critical for validating the thermodynamic performance of the heat exchanger, particularly its ability to maintain the vacuum necessary for optimal steam turbine exhaust pressure.
ASME Performance Test Codes
ASME has published specific performance test codes for steam surface condensers and air-cooled steam condensers. These documents define the procedures for measuring key parameters such as condenser approach, vacuum level, and cooling water temperature differentials. The codes specify the instrumentation requirements, data reduction methods, and uncertainty analyses needed to produce reliable performance reports. Adherence to these standards allows operators to compare actual field performance against design guarantees, facilitating effective maintenance scheduling and efficiency optimization.
Key Performance Metrics
Central to these testing standards is the calculation of the overall heat transfer coefficient, often denoted as U. This coefficient aggregates the thermal resistances of the shell-side steam, the tube wall, and the cooling water film. The fundamental heat transfer equation used in these evaluations is:
Q=U⋅A⋅ΔTlm
Where Q represents the total heat load, A is the effective heat transfer area, and ΔTlm is the log-mean temperature difference between the condensing steam and the cooling water. Testing protocols require precise measurement of these variables to isolate fouling factors and assess the cleanliness of the tube surfaces. Deviations from the design U value often indicate scaling, corrosion, or air ingress, which degrade the condenser's ability to convert steam from its gaseous to its liquid state at a pressure below atmospheric pressure.
For air-cooled condensers, the testing standards account for the significantly higher cost and different thermodynamic behavior compared to water-cooled units. These codes address the impact of ambient air temperature and velocity on the heat transfer process, recognizing that air-cooled systems cannot achieve as low of a steam turbine exhaust pressure as water-cooled surface condensers. The performance metrics for air-cooled units focus heavily on the effectiveness of the finned tube bundles and the fan power consumption relative to the thermal load.
