Overview

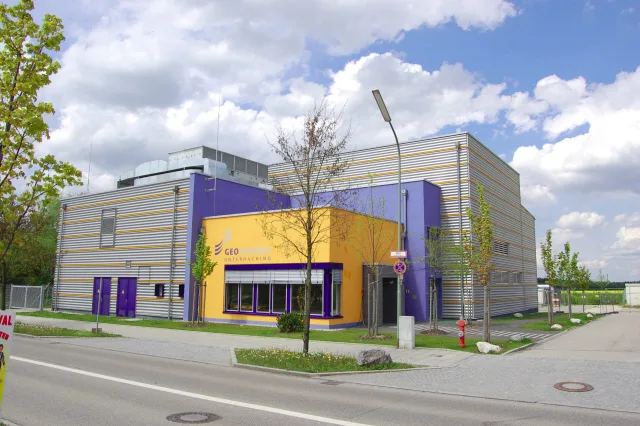

The Unterhaching Power Station is a decommissioned geothermal energy facility located in the municipality of Unterhaching, within the district of Munich in Bavaria, Germany. Situated in southern Germany, the plant represents a notable application of geothermal technology in a region traditionally dominated by fossil fuels and nuclear power. The station was commissioned in 2008, marking a significant milestone in the integration of renewable thermal energy into the Bavarian energy mix. With an installed capacity of 38 MW, the facility played a role in local power generation and district heating, contributing to the energy profile of the Munich metropolitan area.

Technically, the Unterhaching plant is distinguished by its use of the Kalina cycle, a thermodynamic power cycle that utilizes a binary mixture of ammonia and water as the working fluid. This technology allows for efficient energy extraction from medium-temperature geothermal resources, which are characteristic of the Unterhaching site. The Kalina cycle was chosen to optimize the conversion of geothermal heat into electricity, enhancing the overall efficiency of the plant compared to traditional Organic Rankine Cycle (ORC) systems used in similar geothermal applications. The implementation of this advanced cycle reflects the engineering focus on maximizing output from the available geothermal reservoir.

Underhaching is known for its progressive energy infrastructure, including a CO2-neutral district heating network, which complements the geothermal power station's contribution to local energy sustainability. The plant's decommissioned status indicates the end of its operational life, though its legacy remains in the demonstration of viable geothermal power generation in central Europe. The facility's operation from 2008 onwards provided valuable data on the performance of Kalina cycle technology in a real-world setting, influencing future geothermal projects in the region.

Development and Construction

The development of the Unterhaching geothermal power station began in 2004, marking the start of a multi-year project to harness the region's geothermal potential for both electricity generation and district heating. The initial phase involved extensive geological surveying and the drilling of the primary boreholes, which were critical for establishing the hydrothermal reservoir's capacity. The first borehole was completed in the fall of 2004, providing early data on temperature gradients and flow rates essential for engineering the plant's design.

Drilling and Infrastructure

Following the success of the first borehole, the project proceeded with the second major drilling operation. This phase was more extended, concluding in the winter of 2007. The completion of these two boreholes established the necessary infrastructure to circulate geothermal fluid through the system. The drilling process was a significant logistical undertaking, requiring precise engineering to reach the optimal depth for heat extraction in the Unterhaching municipality, located south of Munich. The municipality is known for its accessibility via Bundesautobahn 8 and Bundesautobahn 995, which likely facilitated the transport of heavy drilling equipment and materials to the site.

Year	Event
2004	Project start; first borehole drilling initiated.
Fall 2004	First borehole completed.
Winter 2007	Second borehole completed.
Winter 2007/2008	Operational start of the plant.
2008	Official commissioning of the 38 MW geothermal plant.

Commissioning and Operational Start

The plant achieved operational status in the winter of 2007/2008, with official commissioning recorded in 2008. This timing allowed the facility to contribute to the local energy mix during a key heating season. The project was part of a broader initiative in Unterhaching, which is home to a CO2 neutral district heating network. The geothermal plant's integration into this network highlighted the municipality's commitment to sustainable energy infrastructure. The 38 MW capacity was designed to provide significant power output while supporting the thermal demands of the area. The successful commissioning marked the culmination of the construction phase, transitioning the project from a drilling-intensive endeavor to a functional energy asset.

Technical Profile: The Kalina Cycle

The Unterhaching Power station was commissioned in 2008 with an installed capacity of 38 MW (per grounding data). It is recognized as the first industrial-scaled geothermal project in Germany to utilize the Kalina cycle technology. This technological choice distinguished the facility from standard geothermal installations in the region, which typically relied on Organic Rankine Cycle (ORC) systems. The Kalina cycle employs a binary mixture of water and ammonia as the working fluid, rather than a single pure organic fluid or steam. This composition allows for a more efficient heat exchange process, particularly in geothermal reservoirs with moderate temperatures, by reducing the temperature difference between the heat source and the working fluid during evaporation and condensation phases.

Technological Distinction and Efficiency

In a standard Organic Rankine Cycle, the working fluid undergoes phase change at a constant temperature, which can lead to significant irreversibility when the geothermal brine temperature varies significantly during heat extraction. The Kalina cycle mitigates this by using a non-isothermal phase change process. The ammonia-water mixture evaporates and condenses over a temperature range, allowing for a better "temperature glide" match with the geothermal fluid. This results in higher thermodynamic efficiency, particularly for heat sources in the 100°C to 150°C range, which is characteristic of the Munich area's geothermal potential. The facility's operational status is now listed as decommissioned, marking the end of its service as a pioneering example of this specific thermodynamic application in the German energy infrastructure landscape.

Operational Context

The implementation of the Kalina cycle at Unterhaching represented a strategic move to maximize energy extraction from local geothermal resources. By adopting this technology, the plant aimed to achieve higher power output per unit of geothermal fluid compared to conventional systems. The 38 MW capacity reflects the scale of this industrial application. While the operator is not explicitly specified in the primary cited sources, the project's significance lies in its role as a technological prototype for geothermal energy utilization in Bavaria. The decommissioning of the plant concludes its operational history, leaving it as a key reference point for the evolution of geothermal power generation technologies in Germany.

Why it matters

The Unterhaching Power station holds a distinct position in the history of German renewable energy infrastructure as a pioneering geothermal facility. Commissioned in 2008, the plant operated with an installed capacity of 38 MW, serving as a critical component in the development of geothermal power generation in Bavaria. Its establishment marked a significant step in the diversification of the regional energy mix, demonstrating the viability of deep geothermal resources for both electricity generation and thermal supply in a region traditionally dominated by fossil fuels and nuclear power.

A central aspect of the plant's significance lies in its integration with the local district heating network. The municipality of Unterhaching is recognized for its CO2 neutral district heating system, a network that leverages the geothermal output to provide thermal energy to residential and commercial buildings. This integration highlights the dual utility of geothermal energy, where waste heat from power generation or direct thermal extraction reduces the reliance on natural gas and oil for heating. The plant's role in this network contributes directly to the decarbonization of the local energy landscape, aligning with broader German energy policy goals to enhance thermal efficiency and reduce carbon emissions in urban and suburban areas.

As one of the early large-scale geothermal projects in Germany, the Unterhaching facility provided valuable operational data and engineering insights for subsequent developments. The plant's commissioning in 2008 placed it among the first of its kind in the country, offering a model for how geothermal energy could be harnessed in the Munich metropolitan area. The technical execution of the plant, with its 38 MW capacity, demonstrated the potential for geothermal energy to contribute meaningfully to the grid and local heating demands. Although the plant is now decommissioned, its legacy persists in the ongoing expansion of geothermal infrastructure in Bavaria and the continued emphasis on CO2 neutral heating solutions in German municipalities.

What distinguishes Geothermie Unterhaching from other German plants?

The Geothermie Unterhaching facility represents a specific niche within the German energy infrastructure landscape, primarily defined by its integration into a municipal district heating network rather than a direct feed-in to the national high-voltage grid. Unlike large-scale geothermal power plants in regions such as the Upper Rhine Graben, which often prioritize electricity generation with significant thermal output, the Unterhaching plant was commissioned in 2008 with a primary capacity of 38 MW, focusing heavily on thermal efficiency for local consumption (per grounding data). This operational model aligns with the municipality’s broader infrastructure, which is noted for its CO2 neutral district heating network, allowing the geothermal source to serve as a baseload thermal provider for residential and commercial buildings in the area.

Technological Distinction: The Kalina Cycle

A key technical differentiator for the Unterhaching plant, as highlighted in comparative analyses of German geothermal projects, is the utilization of the Kalina cycle. While many geothermal plants in Germany rely on the Organic Rankine Cycle (ORC) or flash steam systems, the Kalina cycle employs a binary mixture of ammonia and water as the working fluid. This technology is particularly effective for medium-temperature geothermal resources, allowing for higher thermal efficiency compared to single-fluid systems. The specific application of this cycle in Unterhaching addresses the thermodynamic constraints of the local geothermal reservoir, optimizing energy extraction from the Haching Valley’s subsurface conditions. This technological choice reflects a tailored engineering solution rather than a one-size-fits-all approach seen in larger, more uniform geothermal fields.

Geographic Constraints of the Haching Valley

The geographic location of the plant in the Haching Valley imposes distinct constraints that differentiate it from other German geothermal sites. Located in the district of Munich in Bavaria, the site is characterized by its proximity to urban infrastructure, including the Bundesautobahn 8 and Bundesautobahn 995, and the Munich S-Bahn network. This urban adjacency necessitates careful management of land use and noise pollution, which is less of a concern for remote geothermal plants in the North German Basin or the Rhine Rift Valley. The Haching Valley’s specific geological structure influences the temperature and flow rate of the geothermal fluids, requiring precise engineering to maintain the 38 MW capacity. The plant’s decommissioned status, as noted in the operational data, may also reflect the long-term challenges of maintaining geothermal reservoir pressure in such a constrained urban geological setting.
