Ocean thermal energy conversion

Overview

Ocean thermal energy conversion (OTEC) is a renewable energy technology that harnesses the temperature difference between the warm surface waters of the ocean and the cold depths to run a heat engine to produce electricity. It is a unique form of clean energy generation that has the potential to provide a consistent and sustainable source of power. Although it has challenges to overcome, OTEC has the potential to provide a consistent and sustainable source of clean energy, particularly in tropical regions with access to deep ocean water.

History of OTEC development

The conceptual foundation of Ocean Thermal Energy Conversion (OTEC) was established by French physicist Jacques Arsene d'Arsonval in 1881. He proposed using the temperature gradient between warm surface waters and cold deep waters to drive a heat engine. This theoretical framework laid the groundwork for subsequent engineering efforts to harness the ocean’s thermal potential.

Early practical applications emerged in the late 19th and early 20th centuries. In 1901, engineer Georges Irénée Clément Ader conducted one of the first experiments in the Bay of Biscay. Later, in 1912, the first OTEC plant was built in Cuba, marking a significant milestone in the technology’s development. These early projects demonstrated the feasibility of converting thermal energy into electricity, although they faced challenges related to efficiency and cost.

The mid-20th century saw renewed interest in OTEC, driven by advancements in materials science and thermodynamics. In 1930, the technology was formally commissioned, indicating its transition from experimental stages to operational status. This period also saw the development of key theoretical models, including the Carnot efficiency formula, which is critical for understanding the potential output of OTEC systems. The formula, expressed as η=1−Th​Tc​​, where Tc​ is the temperature of the cold source and Th​ is the temperature of the hot source, highlights the importance of maximizing the temperature difference for optimal performance.

Modern OTEC projects have continued to evolve, focusing on improving efficiency and reducing costs. Recent advancements include the development of closed-cycle and open-cycle systems, each with distinct advantages. Closed-cycle systems use a working fluid with a low boiling point, such as ammonia, while open-cycle systems directly use seawater. These innovations have expanded the potential applications of OTEC, particularly in tropical regions with access to deep ocean water.

The history of OTEC development reflects a continuous effort to overcome technical and economic challenges. From its inception in the late 19th century to its modern applications, OTEC has demonstrated significant potential as a renewable energy source. Future developments are likely to focus on enhancing system efficiency and expanding the geographic reach of OTEC plants, particularly in tropical regions where the temperature gradient is most pronounced.

How does ocean thermal energy conversion work?

What are the main types of OTEC systems?

Ocean thermal energy conversion systems are categorized into three primary configurations: closed-cycle, open-cycle, and hybrid systems. Each design leverages the temperature gradient between warm surface seawater and cold deep seawater through distinct thermodynamic processes to generate electricity or produce freshwater.

Closed-Cycle OTEC

Closed-cycle systems utilize a working fluid with a low boiling point, such as ammonia, to drive a turbine. The warm surface water heats the working fluid in an evaporator, causing it to vaporize and expand. This vapor pushes through a turbine connected to a generator. Subsequently, cold deep water flows through a condenser, cooling the vapor back into a liquid state for recirculation. This cycle is analogous to conventional vapor-compression refrigeration cycles.

Open-Cycle OTEC

Open-cycle systems use seawater itself as the working fluid. Warm surface water is drawn into a vacuum chamber, where the reduced pressure causes the water to flash-evaporate at low temperatures. The resulting low-pressure steam drives a turbine. To condense the steam, cold deep water is sprayed over the turbine exhaust or through a condenser, producing freshwater as a byproduct. This method directly integrates desalination with power generation.

Hybrid OTEC

Hybrid systems combine elements of both open and closed cycles. Typically, warm surface water is used to evaporate a working fluid in a closed loop, while cold deep water condenses the vapor. Alternatively, the system may use the vacuum evaporation of warm seawater (open cycle) to drive a turbine, with the resulting vapor condensed by cold water to produce freshwater, while also utilizing a secondary closed loop for additional power extraction. This configuration aims to maximize both electrical output and freshwater production.

Site selection and engineering challenges

Ocean thermal energy conversion (OTEC) systems face significant site selection and engineering challenges that influence their viability. The technology relies on the temperature gradient between warm surface waters and cold deep ocean water, requiring specific geographic and hydrographic conditions. OTEC plants are generally categorized into three configurations: land-based, shelf-based, and floating platforms, each presenting distinct engineering and logistical considerations.

Site Configurations

Land-based OTEC plants are situated on the coastline, utilizing shorelines to support infrastructure. This configuration reduces exposure to marine weather but requires extensive piping to reach deep, cold water. Shelf-based installations are positioned on the continental shelf, offering a compromise between land stability and access to deeper waters. Floating platforms provide the greatest flexibility, allowing deployment in tropical regions with optimal temperature differentials. These floating systems must withstand dynamic oceanic forces, requiring robust mooring systems to maintain position relative to the surface and deep-water intakes.

Engineering Challenges

The core engineering challenge involves the intake pipes for cold and warm water. The cold water pipe must extend to depths where temperatures are sufficiently low, often exceeding several hundred meters. This requires large-diameter pipes to minimize friction losses, which can account for a significant portion of the power output. The warm water intake, while shallower, must handle larger volumes of water to compensate for the lower temperature difference. The heat engine efficiency is directly related to the temperature gradient, governed by thermodynamic principles. The efficiency η of a Carnot cycle heat engine can be approximated by the formula η=1−Twarm​Tcold​​, where temperatures are in Kelvin. This low efficiency necessitates large flow rates, increasing the scale of the piping and pumping infrastructure.

Political and Legal Considerations

Deployment of OTEC systems involves complex political and legal frameworks, particularly under the United Nations Convention on the Law of the Sea (UNCLOS). UNCLOS defines the rights and responsibilities of nations with respect to their use of the world's oceans, establishing guidelines for businesses, the environment, and the management of marine natural resources. OTEC plants may fall under the definition of artificial islands, installations, and structures, impacting jurisdictional claims. The legal status of the Exclusive Economic Zone (EEZ) and the High Seas influences where floating platforms can be deployed and who holds the rights to the generated energy. These legal complexities can affect investment and long-term operational stability, requiring careful negotiation between coastal states and international bodies.

Applications beyond electricity generation

Ocean thermal energy conversion systems offer significant value beyond basic electricity generation, primarily due to the utilization of the cold deep seawater (DSW) and the warm surface seawater (WSW) as thermal reservoirs. The continuous flow of these water masses enables several co-generation applications that enhance the economic viability of OTEC plants, particularly in tropical regions where temperature differentials are most pronounced.

Desalination and Water Supply

One of the most immediate applications of OTEC is desalination. The process leverages the temperature difference to evaporate warm surface water and condense it using cold deep water, producing fresh water as a byproduct of power generation. This method is energy-efficient compared to standalone reverse osmosis or multi-stage flash distillation because it utilizes the thermal gradient already present in the ocean. The resulting fresh water can serve municipal needs or industrial processes, reducing the reliance on energy-intensive pumping and filtration systems.

Seawater Air Conditioning (SWAC)

The cold deep seawater, typically ranging from 4°C to 7°C depending on depth and latitude, is an excellent resource for air conditioning. In SWAC systems, the DSW is pumped to the surface and passed through heat exchangers to cool building air or water loops. This application is particularly effective in tropical coastal cities where the temperature differential between the deep ocean and the ambient air is significant. By using the cold water directly for cooling, OTEC plants can reduce the electrical load required for air conditioning, thereby increasing the net power output available for the grid.

Agriculture and Aquaculture

The nutrient-rich deep seawater contains high concentrations of nitrates, phosphates, and trace minerals, making it ideal for aquaculture and agriculture. In aquaculture, the cold, oxygen-rich water supports the growth of various marine species, including tuna, salmon, and shellfish, which might otherwise require energy-intensive cooling systems. For agriculture, the "chilled-soil" method involves circulating cold seawater through underground pipes to cool the soil, allowing for the cultivation of temperate crops in tropical climates. This technique can extend the growing season and improve crop yields by reducing soil temperature and enhancing nutrient availability.

Hydrogen Production and Mineral Extraction

OTEC systems can also facilitate hydrogen production through electrolysis, where the electricity generated from the thermal gradient powers the splitting of water molecules into hydrogen and oxygen. The hydrogen can be stored or used as a fuel source, providing a clean energy carrier that complements the intermittent nature of other renewable sources. Additionally, the deep seawater is rich in dissolved minerals such as magnesium, potassium, and lithium. These minerals can be extracted using the thermal energy and pressure differentials within the OTEC system, offering a potential revenue stream from the ocean's mineral wealth.

The integration of these applications allows OTEC to function as a multi-purpose energy and resource hub, maximizing the utility of the ocean's thermal and chemical properties. By combining electricity generation with desalination, cooling, and resource extraction, OTEC plants can achieve higher economic returns and greater sustainability compared to single-output renewable energy systems.

Economic viability and cost analysis

The economic viability of Ocean Thermal Energy Conversion (OTEC) remains a central challenge for its widespread adoption. As a concept commissioned in 1930, the technology has evolved from experimental prototypes to operational systems, yet it faces significant cost barriers compared to other renewable energy sources. The primary fuel source for OTEC is water, specifically the temperature difference between warm surface waters and cold deep ocean waters. This unique form of clean energy generation has the potential to provide a consistent and sustainable source of power, particularly in tropical regions with access to deep ocean water. However, the initial capital expenditure and ongoing operational costs have historically made OTEC more expensive than solar or wind power.

Cost Estimates and Comparisons

Various studies have attempted to quantify the levelized cost of energy (LCOE) for OTEC. The University of Hawaii has been a leading researcher in this field, providing detailed cost analyses for different OTEC plant configurations. The International Energy Agency (IEA) and Lazard have also contributed to the understanding of OTEC's economic landscape. These studies highlight the variability in cost estimates based on factors such as plant size, location, and technological advancements.

The cost estimates provided by these institutions show a range that reflects the uncertainties and variability in OTEC technology. The University of Hawaii's estimates are generally lower, possibly due to their extensive experience with OTEC projects in tropical regions. The IEA and Lazard provide broader ranges, accounting for different plant sizes and locations. These costs are still higher than some established renewable energy sources, but they are expected to decrease with technological advancements and economies of scale.

Factors Influencing Economic Viability

Several factors influence the economic viability of OTEC. The initial capital expenditure is a significant component, including the cost of constructing the heat engine, pipelines, and other infrastructure. Operational costs include maintenance, labor, and energy consumption for pumping water. The efficiency of the heat engine and the temperature difference between the surface and deep ocean waters also play crucial roles in determining the overall cost.

The potential for OTEC to provide a consistent and sustainable source of clean energy is particularly attractive in tropical regions with access to deep ocean water. These regions often have high energy demands and limited access to other renewable energy sources. The ability to generate power continuously, unlike solar or wind which are intermittent, adds value to OTEC. However, the challenges of overcoming the initial cost barriers and improving efficiency remain critical for the widespread adoption of OTEC.

Current and proposed OTEC projects

Ocean thermal energy conversion (OTEC) has transitioned from theoretical models to operational demonstrations and proposed commercial deployments, primarily in tropical regions with access to deep, cold ocean water. The technology harnesses the temperature difference between warm surface waters and cold depths to run a heat engine, providing a consistent source of renewable electricity.

Operational Plants

Japan and Hawaii host the most notable operational OTEC facilities. In Japan, the Okinawa OTEC plant, located in Nana-ishi, has demonstrated long-term operational capability. It utilizes a closed-cycle system with ammonia as the working fluid, leveraging the significant temperature gradient available in the Ryukyu Current. The plant has served as a critical testbed for verifying the reliability of heat exchangers and turbogenerators in a marine environment.

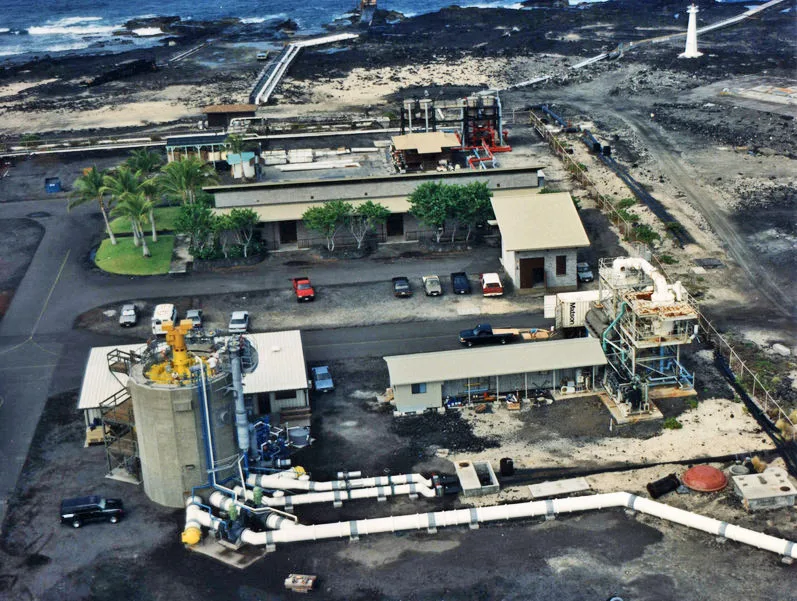

In Hawaii, the Hawaii OTEC Test Site (HOT) on the island of Oahu has been instrumental in proving the viability of OTEC for baseload power. The site has supported multiple phases of testing, including the famous 1930s demonstration by George Craig and later large-scale tests in the 1970s and beyond. The HOT site features a long intake pipe extending to depths where water temperatures are significantly lower than the surface, enabling efficient heat exchange. These operational plants provide real-world data on maintenance, biofouling, and electrical output stability.

Proposed Projects

Several proposed OTEC projects aim to expand the technology's footprint across the Caribbean, Pacific, and Atlantic. The Bahamas has explored OTEC to address energy security and desalination needs, leveraging its shallow continental shelf and access to the Deep Ocean Water. The United States Virgin Islands (USVI) has also identified OTEC as a potential solution for reducing reliance on imported diesel, with studies focusing on the temperature differential available off the coast of St. Thomas.

In the Pacific, Kiribati has considered OTEC to mitigate the impacts of climate change and provide sustainable power to its atolls. The Maldives, facing similar geographic constraints, has evaluated OTEC for both electricity generation and air-conditioning via cold water usage. In the Atlantic, Martinique has proposed OTEC plants to utilize the warm Caribbean Sea surface and cold deep waters. Additionally, Sao Tome and Principe has explored OTEC potential, given its strategic location in the Gulf of Guinea with access to significant thermal gradients.
