Overview
The D battery represents a standardized size classification for dry cell electrochemical power sources, widely recognized under the International Electrotechnical Commission (IEC) designation R20. This format is characterized by its cylindrical geometry, which provides a substantial volume for active materials, making it one of the largest common single-cell formats used in consumer and industrial electronics. The physical design features electrical contacts at both axial ends of the cylinder; the positive terminal is distinctly marked by a central nub or bump, while the negative terminal typically presents as a flat or slightly concave base. This standardized form factor ensures compatibility across a vast array of devices, from simple household gadgets to specialized equipment requiring sustained power delivery.
D cells are primarily deployed in applications characterized by high current drain, where the internal resistance and surface area of the electrodes play critical roles in maintaining voltage stability under load. Common use cases include large flashlights, portable radio receivers, radio transmitters, and other devices that demand extended running times. The high capacity inherent to the D size allows these devices to operate for longer durations compared to smaller cell formats like the AA or AAA, particularly when the load draws significant amperage. The terminal voltage and total energy capacity of a D cell are not fixed constants but depend entirely on the specific cell chemistry employed. Manufacturers offer both non-rechargeable (primary) and rechargeable (secondary) variants, each with distinct voltage profiles and capacity ratings suited to different operational needs.
The versatility of the D battery format stems from its ability to accommodate various chemical systems, including alkaline, zinc-carbon, lithium, and nickel-metal hydride technologies. Each chemistry offers trade-offs in terms of energy density, shelf life, and cost, allowing users to select the optimal power source for their specific application. For instance, alkaline D cells are favored for their high energy density and long shelf life, making them ideal for intermittent use in devices like smoke detectors or remote controls. In contrast, rechargeable nickel-metal hydride D cells are often preferred for high-drain devices such as digital cameras or portable speakers, where the ability to reuse the cell reduces long-term costs and environmental impact. The standardization of the D cell dimensions ensures that these different chemistries can be swapped into the same device housing, providing flexibility for end-users and device designers alike.
History and military designations
The D battery represents one of the earliest standardized forms of dry cell technology, establishing a foundational role in portable power systems. The first D cell was introduced by the National Carbon Company in 1898, marking a significant milestone in the commercialization of cylindrical electrochemical cells (per historical records of battery standardization). This early design featured a cylindrical body with electrical contacts at each end, a configuration that has remained largely consistent in modern iterations. The positive terminal is characterized by a distinct nub or bump, while the negative terminal typically presents a flat surface, facilitating consistent orientation in various devices.
Historical Naming Conventions
Historically, the D cell was widely referred to as the "flashlight battery" due to its predominant use in early electric torches. This nomenclature reflected the high current drain requirements of incandescent bulbs in large flashlights, which demanded the extended running time provided by the D cell's relatively large surface area and capacity. The term "flashlight battery" persisted in common parlance for decades, often serving as a generic descriptor for the size rather than a specific chemical composition. This historical context underscores the D cell's importance in early 20th-century consumer electronics, particularly in radio receivers and transmitters where stable voltage and sustained current were critical for performance.
US Military Designations and Confusion
In military applications, the D cell has been subject to specific designations that have occasionally led to confusion with other battery sizes. The US military designated the D cell as the BA-30, a classification used to standardize power sources for various field equipment. However, this designation has been a source of ambiguity, particularly when compared to the Type C battery, which was designated as the BA-42. The similarity in naming conventions and the visual resemblance between D and C cells have contributed to misidentification in logistical and operational contexts. The Type C battery, while smaller, shares the same cylindrical form factor and terminal configuration, leading to potential interchangeability issues in devices not strictly calibrated for one size. This confusion highlights the importance of precise labeling and standardization in military supply chains, where the correct battery size can significantly impact the performance of critical equipment such as radios and flashlights. The distinction between the BA-30 (D cell) and BA-42 (C cell) remains a notable aspect of military battery nomenclature, reflecting the complexities of standardizing portable power sources across different eras and applications.
Physical dimensions and specifications
The D battery represents a standardized physical form factor within the broader classification of dry cell batteries. As a concept in energy infrastructure and consumer electronics, it is defined by its cylindrical geometry and specific terminal configurations. The operational status of the D cell remains widely utilized across various sectors, having been commissioned as a standard size in 1898. This long-standing presence in the market underscores its role as a foundational energy storage unit for devices requiring consistent power delivery.

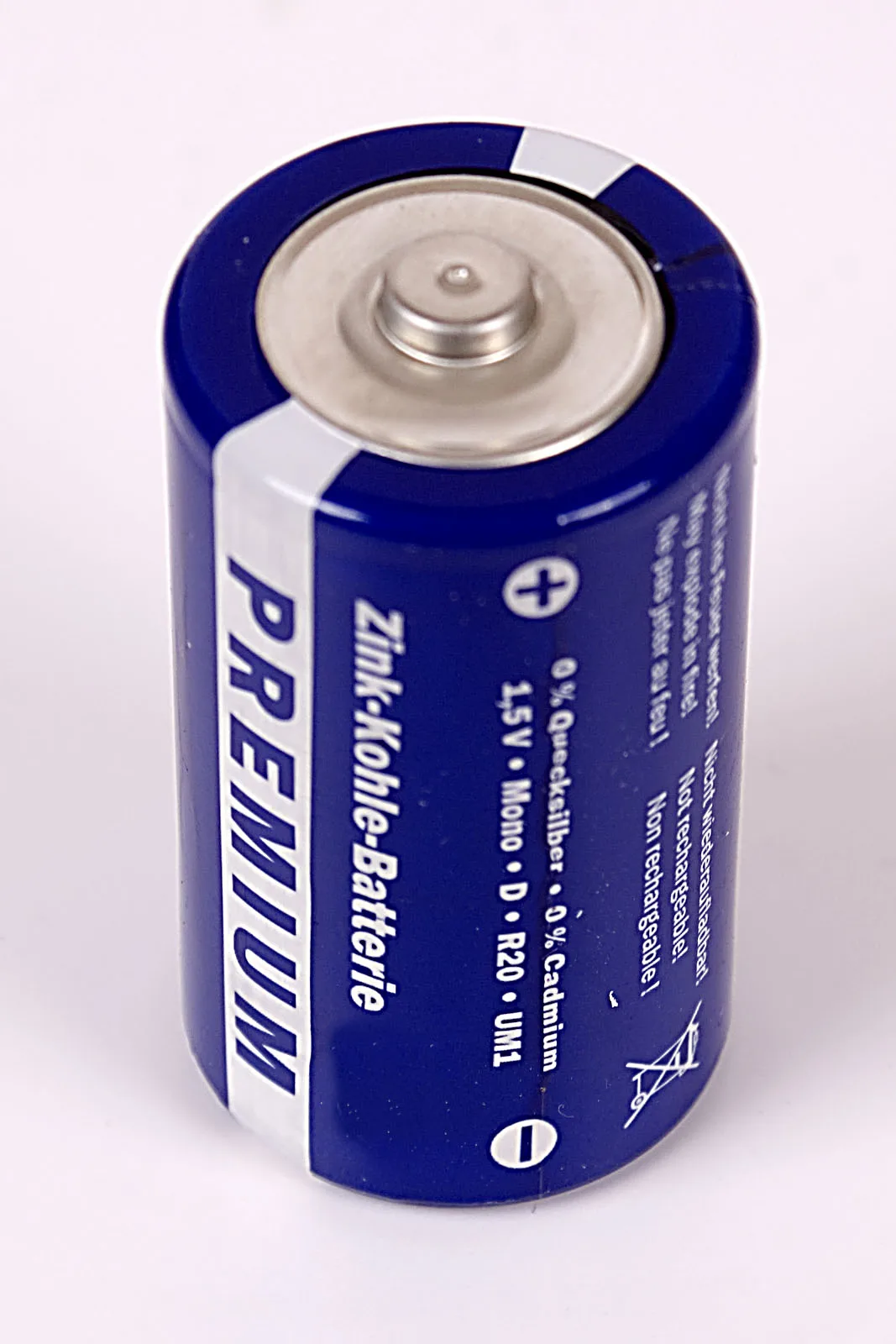

The physical design of a D cell is characterized by a cylindrical body with electrical contacts positioned at each axial end. The positive terminal is distinctly marked by a protruding nub or bump, which facilitates secure electrical connection within device housings. This mechanical feature ensures polarity alignment, reducing the likelihood of short circuits in high-current applications. The negative terminal typically consists of a flat metallic disc covering the base of the cylinder. These structural elements are critical for maintaining reliable electrical contact under varying load conditions.
Standardized Dimensions
The D cell adheres to strict dimensional standards to ensure compatibility across manufacturers and device types. The nominal diameter of the D cell is 33.2 mm, while its overall length is 61.5 mm. These measurements define the external envelope of the battery, excluding minor variations in terminal protrusions or label thickness. Standardization allows for interchangeable use in flashlights, radio receivers, transmitters, and other equipment designed for extended running times.
| Dimension | Value |
|---|---|
| Nominal Diameter | 33.2 mm |
| Nominal Length | 61.5 mm |
| Shape | Cylindrical |
| Positive Terminal | Nub or bump |
| Negative Terminal | Flat disc |
The volume of the D cell can be approximated using the formula for the volume of a cylinder, V=πr2h, where r is the radius (half of the diameter) and h is the height. Using the nominal dimensions, the radius is 16.6 mm and the height is 61.5 mm. This geometric consistency enables predictable packaging and thermal management in battery-operated devices.
Electrical Characteristics
Common chemistries include alkaline, zinc-carbon, lithium, and nickel-metal hydride, each offering different voltage outputs and energy densities. For instance, alkaline D cells typically provide a nominal voltage of 1.5 V, while rechargeable nickel-metal hydride variants may offer 1.2 V. The capacity, measured in ampere-hours (Ah), varies significantly based on the chemical composition and the rate of current drain.
D cells are particularly suited for high current drain applications due to their relatively large surface area and internal volume, which allow for efficient ion transport and heat dissipation. This makes them ideal for devices such as large flashlights, where sustained brightness is required, and radio transmitters, which demand steady power delivery during operation. The ability to support both rechargeable and non-rechargeable configurations further enhances their versatility in different usage scenarios.
The standardization of the D cell size has facilitated its integration into a wide range of electronic devices, ensuring that users can easily replace batteries without needing specialized tools or adapters. This interoperability is a key factor in the continued relevance of the D cell in both consumer and industrial applications. The physical and electrical properties of the D cell are thus closely linked to its widespread adoption and enduring utility in energy infrastructure.
How does battery capacity vary with chemistry and current draw?
Battery capacity is not a fixed constant; it is a function of the cell’s electrochemical chemistry and the magnitude of the current drawn from the terminals. The terminal voltage and total charge output vary significantly depending on the internal chemical composition and the rate at which electrons are consumed by the load. Understanding this relationship is critical for selecting the correct power source for high-drain applications, such as large flashlights or radio transmitters, where extended running time is required.
Impact of Current Draw on Alkaline Capacity
For standard alkaline D cells, the effective capacity decreases as the current draw increases. This phenomenon occurs because higher current draws increase the internal resistance losses and accelerate the depletion of active chemical agents. For example, an alkaline D cell may provide a capacity of 20,000 mAh when discharged at a low rate of 25 mA. However, when the same cell is subjected to a higher current draw of 500 mA, its effective capacity drops to approximately 10,000 mAh. This significant reduction demonstrates that a battery rated for high capacity at low discharge rates may underperform in high-drain devices if the current draw is not accounted for.
Chemical Variations: NiMH and NiCd
D cells are available in multiple chemistries, including rechargeable Nickel-Metal Hydride (NiMH) and Nickel-Cadmium (NiCd) options, each with distinct capacity characteristics. While alkaline cells are typically non-rechargeable, NiMH and NiCd cells offer rechargeability, making them suitable for devices used frequently. The terminal voltage and capacity of these chemistries differ from alkaline cells due to their internal electrochemical structures. NiMH cells generally offer higher capacity than standard NiCd cells, but both chemistries exhibit different discharge curves compared to alkaline cells. The choice between these chemistries depends on the specific requirements of the application, balancing factors such as cost, environmental impact, and the need for extended running time under varying current loads.
What are the main types of D cell batteries?
D cells are available in both rechargeable and non-rechargeable configurations, with performance characteristics dictated by their specific cell chemistry. The terminal voltage and capacity vary significantly depending on the materials used within the standardized cylindrical form factor. This standardization allows for flexibility in power delivery, making D cells suitable for a wide range of applications, from high current drain devices like large flashlights and radio transmitters to those requiring extended running times.
Rechargeable vs. Non-Rechargeable Chemistries
The choice between rechargeable and primary (non-rechargeable) D cells depends on the specific energy density and voltage stability required by the device. Common chemistries include Alkaline, Zinc-Carbon, Nickel-Metal Hydride (NiMH), and Lithium. Each offers distinct advantages in terms of shelf life, cost, and performance under load.
| Chemistry | Type | Nominal Voltage | Typical Capacity |
|---|---|---|---|
| Alkaline | Primary | 1.5 V | High |
| Zinc-Carbon | Primary | 1.5 V | Moderate |
| NiMH | Rechargeable | 1.2 V | High |
| Lithium (Primary) | Primary | 1.5 V | Very High |
Sub-C Cells in D-Sized Holders
A notable phenomenon in D-cell usage involves "sub-C" cells, which are physically smaller than the standard D size but fit within D-sized battery holders. These cells are often used in devices where the full capacity of a D cell is not strictly necessary, or to reduce weight. While they share the same cylindrical shape and electrical contacts—positive end with a nub or bump—their internal volume is reduced. This can lead to variations in terminal voltage and capacity compared to a full-size D cell of the same chemistry. Users must ensure that the device's current drain does not exceed the sub-C cell's capability, particularly in high-drain applications like large flashlights, to prevent premature voltage drop.
Market presence and sales data
The market presence of D batteries is defined by their role as the workhorse of high-drain applications. As standardized dry cells, they dominate segments requiring extended running time, such as large flashlights, radio receivers, and transmitters. Their cylindrical form factor, featuring a distinct positive nub, ensures compatibility across a wide range of consumer and industrial devices. Market analysis reveals that D cells hold a significant, though not dominant, share of the broader alkaline battery market, with performance metrics varying by region and cell chemistry.
Regional Sales Statistics
Statistical data from the late 2007–2008 period provides insight into the relative market share of D batteries in key economies. In the United States, D cells accounted for 8% of alkaline primary sales in 2007. This figure reflects the strong consumer preference for the D size in high-current drain devices in the North American market. In Switzerland, the market structure showed a more fragmented distribution between primary and secondary cells in 2008. D batteries represented 3.4% of primary sales and 1.4% of secondary sales. These figures highlight the varying adoption rates of rechargeable (secondary) versus non-rechargeable (primary) D cells across different geographic regions.
| Country | Year | Primary Sales Share | Secondary Sales Share | Market Segment |
|---|---|---|---|---|
| United States | 2007 | 8% | — | Alkaline Primary |
| Switzerland | 2008 | 3.4% | 1.4% | Primary / Secondary |
The capacity and terminal voltage of these cells depend heavily on their specific chemistry. Whether rechargeable or non-reachable, the D cell's market position is sustained by its ability to deliver consistent power in high-drain scenarios. The 8% share in the US alkaline primary market underscores its importance in consumer electronics, while the Swiss data indicates a growing, albeit smaller, niche for secondary D cells in 2008. These statistics serve as a baseline for understanding the economic impact of this standardized battery size.
Applications and use cases
D cells are engineered specifically for applications characterized by high current drain, distinguishing them from smaller cylindrical formats that may suffer from voltage sag under similar loads. The standardized dimensions of the D battery allow for a larger surface area for the anode and cathode, facilitating efficient electron flow when devices demand sustained power output. This makes the D cell the preferred choice for portable equipment where space constraints are less critical than energy density and current delivery capability.
High-Drain Portable Lighting
Large flashlights represent one of the most common use cases for D batteries. In these devices, the bulb or LED array draws significant current to produce high luminous intensity, often requiring the battery to maintain a stable terminal voltage over an extended period. The cylindrical shape of the D cell fits naturally into the barrel of traditional torch designs, allowing for single-cell or multi-cell configurations. The positive end of the cell, marked by a distinct nub or bump, ensures correct polarity alignment within the flashlight's contact system, preventing short circuits and maximizing light output duration.
Radio Communication Equipment
Radio receivers and transmitters frequently utilize D cells due to the intermittent yet intense power demands of signal processing and transmission. In radio receivers, the D cell powers the amplifier stages and tuning circuits, ensuring clear audio output even in areas with weaker signal strength. For transmitters, the battery must supply sufficient current to drive the output stage, often resulting in a steady drain that smaller cells might not sustain without rapid voltage drop. The extended running time provided by D cells is particularly valuable in portable radio sets used in field operations, where access to recharging infrastructure may be limited.
Extended Runtime Devices and Chemistry Variations
Beyond lighting and radio equipment, D cells are employed in various other devices that require prolonged operation between charges or replacements. The terminal voltage and overall capacity of a D cell are directly dependent on its specific cell chemistry, which can be either rechargeable or non-rechargeable. This variability allows users to select the optimal chemistry for their specific application, balancing factors such as cost, weight, and energy density. Whether powering a portable heater, a large toy, or a specialized scientific instrument, the D battery's standardized size and robust performance make it a versatile solution for high-drain energy needs.
