Overview
Boiling water reactor safety systems are nuclear safety systems constructed within boiling water reactors in order to prevent or mitigate environmental and health hazards in the event of accident or natural disaster. These systems are integral to the operational integrity of the reactor, which utilizes uranium as its primary fuel source. The design philosophy of these safety mechanisms is rooted in the specific thermodynamic and neutronic characteristics of the boiling water reactor (BWR) technology, distinguishing it fundamentally from other light water reactor types such as the pressurized water reactor (PWR).
Thermodynamic and Neutronic Distinctions
A critical aspect of BWR safety analysis involves understanding the behavior of steam pressure transients and the reactor's negative void coefficient. In a BWR, the core is the primary location where water boils to produce steam, which then drives the turbine directly. This contrasts with the PWR, where the primary coolant remains under high pressure to prevent boiling, transferring heat to a secondary loop via steam generators. Consequently, BWR safety systems must manage direct steam generation within the core, leading to different pressure transient profiles during accidents.
The negative void coefficient is a key neutronic parameter in BWR safety. It describes the change in reactor reactivity resulting from a change in the volume fraction of steam (voids) in the core. In a typical BWR, an increase in void fraction (more steam bubbles) generally leads to a decrease in reactivity, providing inherent stability. This relationship can be conceptually represented by the derivative of reactivity (ρ) with respect to void fraction (α):
Δρ/Δα < 0
This negative feedback mechanism helps to naturally counteract power increases during certain transient conditions, reducing the reliance on active control systems. However, the interplay between thermal-hydraulic behavior and neutronics requires robust safety systems to handle scenarios where this coefficient might behave differently or where external disturbances, such as natural disasters or mechanical failures, challenge the reactor's equilibrium. The operational status of these systems is maintained as operational, ensuring continuous protection against potential hazards.
How do BWR safety systems prevent pressure transients?
Boiling water reactor (BWR) safety systems are engineered to manage pressure transients through a unique suppression design, distinct from pressurized water reactors. The core safety feature is the pressure suppression chamber, commonly known as the wetwell or torus. In the event of a steam release, the steam is directed into the wetwell, where it condenses rapidly upon contact with a pool of water. This phase change significantly reduces the volume of the steam, thereby mitigating pressure spikes within the reactor vessel and the primary containment building.
Reactor Protection System (RPS) and SCRAM
The Reactor Protection System (RPS) continuously monitors key parameters to trigger a SCRAM, or emergency shutdown. A SCRAM involves the rapid insertion of control rods into the core to absorb neutrons and halt the fission chain reaction. The RPS is designed to detect anomalies such as low coolant level, high reactor vessel pressure, and high neutron flux. If any parameter exceeds its setpoint, the RPS initiates the shutdown sequence automatically. The following table outlines typical RPS trip parameters.
| Parameter | Typical Trip Setpoint |
|---|---|
| Reactor Vessel Pressure | High pressure threshold |
| Coolant Level | Low level in the downcomer |
| Neutron Flux | High flux indicating power surge |
| Reactor Water Level | Low water level in the core |
Automatic Depressurization System (ADS)
To further control pressure, BWRs employ an Automatic Depressurization System (ADS). The ADS opens safety-relief valves to vent steam from the reactor vessel into the suppression chamber. This system is crucial during a loss-of-coolant accident (LOCA) or when the reactor is at high pressure, allowing for the injection of borated water from the core spray system. The ADS ensures that the pressure drops sufficiently to enable effective cooling of the core. The relationship between pressure and volume in the suppression chamber can be approximated by the ideal gas law, PV=nRT, where the condensation of steam reduces n (moles of gas), thus lowering P (pressure).
Anticipated Transient Without Scram (ATWS)
An Anticipated Transient Without Scram (ATWS) occurs when the reactor power increases, but the control rods fail to insert fully. To mitigate ATWS, BWRs are equipped with an ATWS mitigation system, which may include a separate control rod drive mechanism or a boron injection system. This system ensures that the reactor can be shut down even if the primary SCRAM mechanism is compromised. The ATWS system is designed to inject boron into the core, absorbing neutrons and reducing the reactivity of the fuel, which is primarily uranium. This redundancy is critical for maintaining safety during unexpected operational events.
What are the components of the Emergency Core Cooling System?
The Emergency Core Cooling System (ECCS) is a critical safety feature in boiling water reactors, designed to prevent or mitigate core damage during loss-of-coolant accidents. The system operates through several subsystems, each tailored to specific pressure and flow conditions. These include the High-Pressure Coolant Injection (HPCI), Isolation Condenser (IC), Reactor Core Isolation Cooling (RCIC), Low-Pressure Core Spray (LPCS), and Low-Pressure Coolant Injection (LPCI).
High-Pressure Coolant Injection (HPCI)
HPCI is activated during the initial stages of a loss-of-coolant accident when the reactor pressure remains relatively high. It injects coolant directly into the reactor vessel to maintain core coverage. The system uses steam-driven pumps to deliver water at high pressure, ensuring efficient heat removal. The flow rate and pressure depend on the reactor design, but typical values are around 1500 GPM at 700 psi.
Isolation Condenser (IC)
The Isolation Condenser is a passive safety system that removes decay heat from the reactor core by condensing steam in external condensers. It operates without active power sources, relying on natural circulation. The IC is particularly effective during small-break loss-of-coolant accidents. Its capacity is designed to handle approximately 10% of the reactor's thermal output.
Reactor Core Isolation Cooling (RCIC)
RCIC is a steam-driven pump system that provides continuous coolant injection during medium-to-large break loss-of-coolant accidents. It isolates the reactor core from the main steam lines, maintaining pressure and temperature stability. The system can operate for extended periods, often up to 24 hours, before requiring auxiliary feedwater. Typical flow rates are around 1200 GPM at 600 psi.
Low-Pressure Core Spray (LPCS)
LPCS activates when reactor pressure drops below a certain threshold, typically around 150 psi. It sprays borated water directly onto the core to remove decay heat and provide negative reactivity. The system uses electrically driven pumps and can deliver approximately 2000 GPM. LPCS is crucial for long-term cooling after the initial accident phase.
Low-Pressure Coolant Injection (LPCI)
LPCI complements LPCS by injecting coolant into the reactor vessel at low pressures. It ensures adequate core coverage during extended cooling phases. The system operates with electrically driven pumps and delivers around 1000 GPM at 100 psi. LPCI is essential for maintaining subcooling margins and preventing core uncovering.
| Subsystem | Flow Rate (GPM) | Pressure (psi) |
|---|---|---|
| HPCI | 1500 | 700 |
| IC | ~10% thermal output | Passive |
| RCIC | 1200 | 600 |
| LPCS | 2000 | 150 |
| LPCI | 1000 | 100 |
How do advanced passive safety systems work?
Advanced boiling water reactors, including the Economic Simplified Boiling Water Reactor ((E)SBWR) and the Advanced Boiling Water Reactor (ABWR), utilize passive safety systems designed to mitigate accidents with minimal reliance on active components and external power sources. These systems leverage natural forces such as gravity, natural circulation, and compression to remove decay heat and maintain containment integrity. The Depressurization Valve System (DPVS) is a critical component in these designs, facilitating the automatic release of steam from the reactor vessel to lower pressure and enable cooling water injection. This system operates without the immediate need for motorized valves or external power, enhancing reliability during station blackouts.
Gravity-Driven Cooling System
The Gravity-Driven Cooling System (GDCS) provides a robust method for injecting cooling water into the reactor core. In the event of a loss of coolant accident, high-level storage tanks positioned above the reactor vessel release borated water directly into the core through gravity. This process does not require pump operation, ensuring that cooling continues even if the main circulation pumps fail. The GDCS is designed to maintain core subcooling and prevent fuel rod exposure, thereby reducing the risk of core meltdown. The system's simplicity and reliance on gravitational force make it a key feature in the passive safety philosophy of advanced BWRs.
Passive Containment Cooling System
The Passive Containment Cooling System (PCCS) is responsible for removing heat from the containment building to maintain pressure and temperature within design limits. The PCCS typically consists of heat exchangers located on the outer surface of the containment structure, cooled by a large water storage tank positioned above the containment. As steam and air inside the containment heat up, natural circulation drives the flow of cooling water through the heat exchangers, condensing the steam and reducing internal pressure. This system operates without the need for active pumps or fans, relying on the natural density differences between hot and cold fluids to drive the cooling process. The PCCS ensures that the containment remains intact and that radioactive releases are minimized, even in the absence of external power sources.
What are the containment and shielding standards?
Boiling water reactor (BWR) safety systems are engineered to prevent or mitigate environmental and health hazards resulting from accidents or natural disasters. The containment structures and shielding standards for BWRs have evolved significantly, primarily categorized into Mark I, Mark II, Mark III, and Advanced designs. Each generation addresses specific vulnerabilities identified in prior operational experiences, focusing on pressure suppression and redundancy.
Containment Varieties

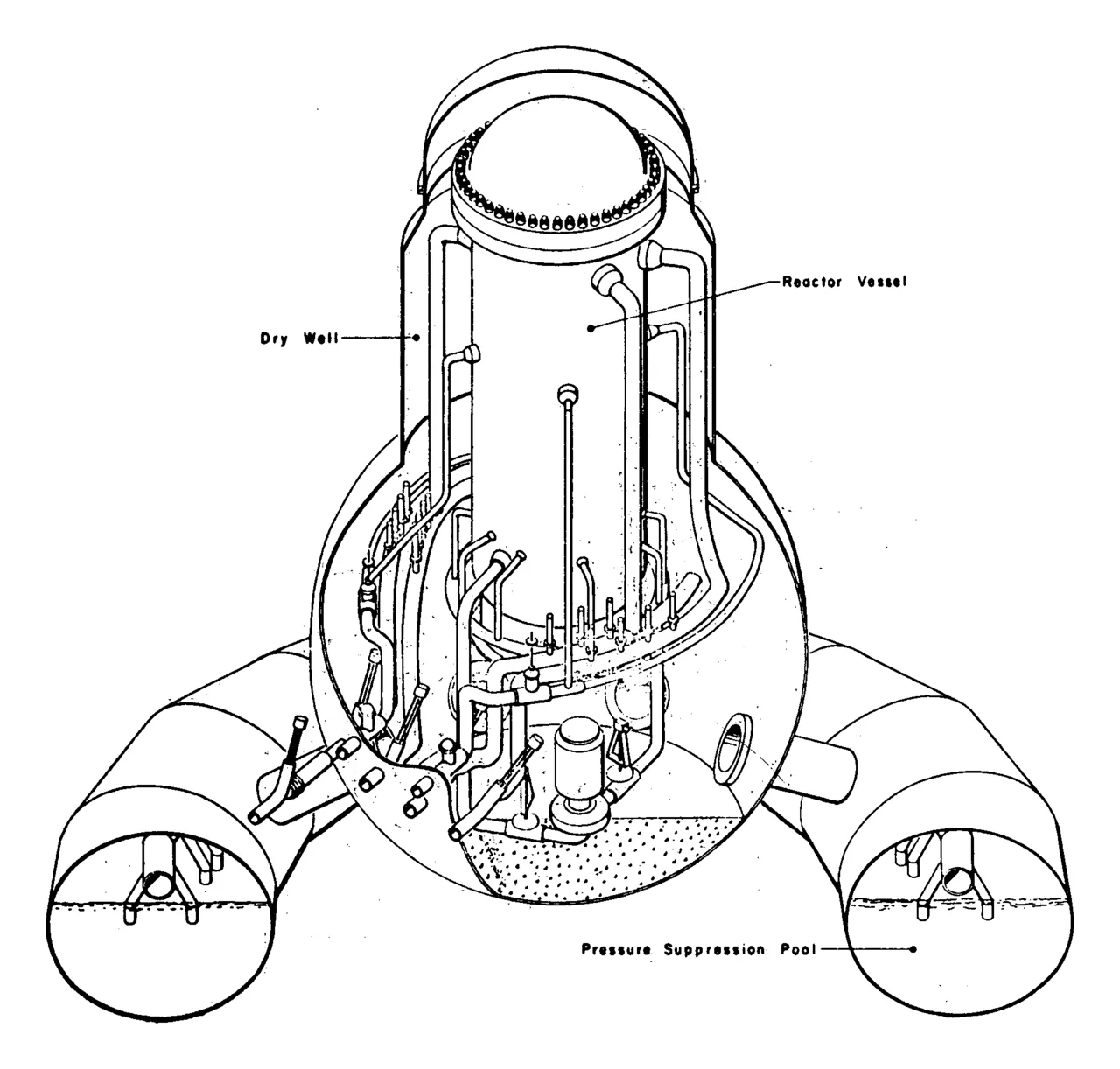

The Mark I containment is a compact, pressure-suppression design featuring a drywell housing the reactor vessel and a torus-shaped wetwell for steam condensation. Mark II containments are larger, cylindrical structures that separate the drywell and wetwell into distinct compartments to improve steam distribution. Mark III containments introduce a double-walled steel vessel with a large annular space, enhancing cooling capacity and providing a secondary barrier against leakage. Advanced BWR containments often utilize a large, single-volume drywell with a simplified suppression pool, reducing complexity and potential failure points.
Shielding Levels
BWR shielding is structured across five levels to protect personnel and the environment. The first level involves the fuel cladding, typically made of zircaloy, which retains fission products. The second level is the reactor pressure vessel, a thick steel cylinder containing the core and coolant. The third level is the primary coolant loop, including pipes and pumps. The fourth level is the containment building itself, which encloses the primary system. The fifth level includes auxiliary systems such as the containment isolation system, which seals off the containment to minimize leakage during accidents.
Containment Isolation and Hydrogen Management
The Containment Isolation System activates when specific parameters, such as pressure or radiation levels, exceed setpoints, closing dampers and valves to isolate the containment. Hydrogen management is critical in BWRs to prevent explosive mixtures. Strategies include hydrogen recombiners, which catalytically combine hydrogen and oxygen into water, and passive autocatalytic recombiners (PARs) that operate without power. In some designs, hydrogen is vented through controlled pathways to the suppression pool, where it dissolves or burns safely. These systems work in tandem to maintain integrity and reduce the risk of overpressure or explosion within the containment structure.
Significance
Boiling water reactor safety systems are fundamental to the operational reliability of nuclear energy infrastructure, serving as the primary defense against environmental and health hazards during accidents or natural disasters. These systems are specifically constructed within boiling water reactors to ensure that the unique thermodynamic characteristics of the BWR design are managed effectively. The significance of these systems lies in their ability to prevent core damage and mitigate radiation release, thereby maintaining public confidence and regulatory compliance in nuclear power generation.
Evolution from Active to Passive Safety Features
The design philosophy of BWR safety systems has evolved significantly, shifting from reliance on active components to the integration of passive safety features in modern designs. Early BWR generations depended heavily on active safety systems, which require external energy sources, such as diesel generators or turbine-driven pumps, to function during a transient event. These active systems, including the core spray system and the high-pressure injection system, are critical for removing decay heat and maintaining core coverage. However, the evolution toward passive safety features aims to reduce complexity and enhance reliability by utilizing natural forces such as gravity, natural circulation, and compressed gas. Modern BWR designs incorporate passive containment cooling systems and passive core flooding mechanisms, which can sustain core cooling for extended periods with minimal operator action or external power. This transition reflects a broader industry trend toward simplifying safety architectures to improve robustness against both internal and external disturbances.
Historical Performance and Reliability
The historical performance of BWR safety systems has been instrumental in shaping current nuclear safety standards. Analysis of past operational experiences and accident sequences has highlighted the importance of redundancy and diversity in safety system design. For instance, the integration of multiple independent safety trains ensures that a single point of failure does not compromise the entire safety function. The reliability of these systems is often quantified using probabilistic risk assessment (PRA) metrics, which evaluate the frequency of core damage events and large early release scenarios. By continuously refining safety systems based on historical data and technological advancements, the nuclear industry has enhanced the overall resilience of BWRs. This ongoing improvement process underscores the critical role of safety systems in sustaining the long-term viability of boiling water reactors in the global energy mix.
