Overview
Monopile foundations represent the most prevalent substructure solution for fixed-bottom offshore wind turbines, particularly in shallow to moderate water depths. As a structural concept, a monopile consists of a single, large-diameter cylindrical steel tube that is driven directly into the seabed to transfer the combined loads of the turbine tower, nacelle, and rotor to the underlying soil strata. This configuration provides a rigid connection between the turbine and the sea floor, minimizing relative movement and ensuring stability against the dynamic forces inherent in offshore environments. The primary role of the monopile is to support the vertical gravity loads, resist horizontal thrust from wind and wave action, and counteract overturning moments generated by the aerodynamic and hydrodynamic pressures acting on the turbine assembly.
Structural Characteristics and Design
The design of a monopile foundation relies on the interplay between the steel structure and the geotechnical properties of the seabed. Typically, these foundations are fabricated from thick-walled steel sections with diameters ranging significantly based on turbine size and soil conditions. The structural integrity is maintained through the bending stiffness of the pile and the lateral resistance provided by the surrounding soil. Engineers must account for the interaction between the monopile and the seabed, often modeling the soil-pile interaction using spring constants that represent the stiffness of the sand, clay, or rock layers. The transition piece, located at the mudline or slightly above, serves as the interface between the monopile and the turbine tower, often housing the bolted flange connection that allows for modular assembly during installation.
Operational Context and Load Transfer
In operational offshore wind farms, monopiles are subjected to complex loading regimes. These include static loads from the weight of the turbine components and dynamic loads resulting from wind gusts, wave impacts, and current drag. The foundation must dissipate these energies to prevent excessive fatigue in the steel structure and to limit the settlement or rotation of the turbine. The efficiency of a monopile foundation is heavily dependent on the water depth; they are most cost-effective in waters where the seabed geology allows for sufficient penetration depth to anchor the structure securely. The simplicity of the monopile design facilitates easier manufacturing and installation compared to more complex multi-legged structures like jackets or tripods, making it the dominant choice for many early and current offshore wind projects. The structural response is often analyzed using beam-on-elastofoundation models, where the deflection y(x) of the pile is a function of the applied moment M, shear force V, and the soil modulus of subgrade reaction k.
How do monopile foundations work?
Monopile foundations are the most common support structure for offshore wind turbines, particularly in water depths up to 30 meters. They consist of a single, large-diameter steel cylinder driven or grouted into the seabed. The primary function of the monopile is to transfer the complex dynamic loads from the turbine tower and rotor down into the soil profile, ensuring stability against vertical compression, lateral bending, and rotational moments.
Mechanical Principles of Load Transfer
The structural integrity of a monopile relies on the interaction between the steel shaft and the surrounding geotechnical medium. Vertical loads, primarily from the dead weight of the turbine and the thrust of the rotor, are transferred through two main mechanisms: skin friction along the shaft and end-bearing at the pile tip. In sandy soils, end-bearing is often dominant, while in clay layers, skin friction plays a more significant role. The total vertical capacity Qv can be conceptually represented as the sum of shaft resistance Qs and toe resistance Qt:
Qv=Qs+Qt
Lateral loads, induced by wind pressure on the rotor and wave action, cause the monopile to bend. This creates a bending moment M that is highest at the mudline (the interface between the seabed and the water column) and decreases with depth. The soil provides a restoring force, often modeled using Winkler spring foundations, where the soil reaction is proportional to the lateral displacement of the pile.
Typical Load Types
| Load Type | Primary Source | Mechanical Effect |
|---|---|---|
| Vertical (Axial) | Turbine weight, Rotor thrust | Compression, Skin friction, End-bearing |
| Lateral (Horizontal) | Wind pressure, Wave drag | Bending moment, Shear force |
| Torsional | Yawing motion, Wave orbital velocity | Twisting of the shaft |
| Cyclic | Rotational speed, Wave periods | Fatigue stress, Soil settlement |
Soil-Structure Interaction
The performance of a monopile is heavily dependent on soil-structure interaction. As the pile deflects laterally, the soil particles compact or dilate, changing the stiffness of the surrounding medium. In cohesive soils (clay), the undrained shear strength Su is a critical parameter. In cohesionless soils (sand), the relative density and the angle of internal friction ϕ determine the lateral resistance. Engineers use p-y curves (pressure-deflection curves) to model this non-linear behavior, allowing for accurate prediction of the monopile's deflection and stress distribution under operational and extreme load conditions. Proper design ensures that the natural frequency of the monopile-tower system avoids resonance with the rotational speed of the rotor and the dominant wave periods.
What are the main components of a monopile?
Monopile foundations for offshore wind turbines consist of a limited set of highly engineered structural components designed to transfer massive aerodynamic and gravitational loads from the turbine to the seabed. The primary element is the monopile itself, a large-diameter steel cylinder driven directly into the soil profile. This cylindrical structure serves as the main load-bearing member, resisting bending moments, shear forces, and axial compression. The steel thickness and diameter are optimized based on water depth and soil conditions, typically ranging from several meters in diameter to accommodate the scale of modern turbines.Transition Piece and Tower Connection
The transition piece (TP) sits atop the monopile, acting as the critical interface between the submerged foundation and the above-water tower. This component houses the flange connection for the turbine tower and often integrates the access ladder, platform, and cable entry points. The TP must withstand significant fatigue loads due to wave action and turbine rotation. It is typically welded or bolted to the top of the monopile, ensuring a rigid connection that minimizes relative movement between the foundation and the rotor-nacelle assembly.Grout Connection and Jacket Interface
In some configurations, particularly when transitioning from a monopile to a jacket substructure or for enhanced stiffness, a grout connection is utilized. This involves filling the annular space between the monopile and the transition piece or jacket leg with high-strength non-shrink grout. The grout transfers shear and axial loads through friction and bearing. The jacket interface, if present, involves bolting or welding the jacket legs to the top of the monopile, creating a hybrid foundation system. This interface is critical for distributing loads evenly across the structure.| Component | Primary Function |
|---|---|
| Steel Cylinder (Monopile) | Main load-bearing structure; transfers loads to seabed soil via skin friction and end-bearing. |
| Transition Piece | Interfaces with turbine tower; houses access and cable entry; transfers loads from tower to monopile. |
| Grout Connection | Transfers shear and axial loads between monopile and TP/jacket via high-strength grout fill. |
| Jacket Interface | Distributes loads from jacket legs to monopile top; enhances stiffness in deeper waters. |
Installation methods and engineering challenges

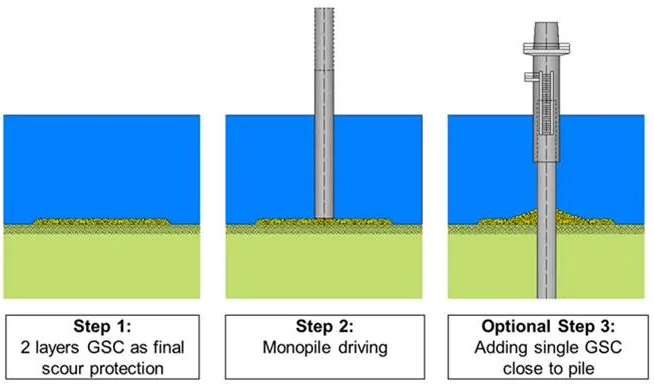

Installation of offshore wind turbine monopile foundations relies on specialized jack-up vessels, which elevate the deck above wave action to ensure precision. These vessels transport the steel monopile, often weighing hundreds of tons, from the fabrication yard to the turbine site. The process begins with seabed preparation, where a leading-edge shoe or cone is attached to the monopile tip to facilitate penetration into the soil. Once positioned, hydraulic hammers drive the pile into the seabed, displacing soil and creating friction along the shaft. The driving sequence is monitored using pile driving analyzers to assess the dynamic response of the pile-soil system.
Seabed Conditions and Soil-Structure Interaction
The engineering challenges are heavily influenced by seabed geology, which varies from dense sand to stiff clay and glacial till. In sandy soils, the monopile derives its bearing capacity primarily from skin friction along the shaft and end-bearing at the tip. In clay, the undrained shear strength of the soil is critical. Engineers must account for soil-pile interaction, where the lateral load from the turbine tower creates bending moments at the mudline. The lateral stiffness of the foundation is often modeled using the Winkler foundation model, where the soil is represented as a series of independent springs. The lateral deflection y of the pile under a moment M and shear force V can be approximated using beam-on-elastic-foundation theory, considering the modulus of subgrade reaction k.
Grouting and Connection Details
After driving, the monopile is connected to the transition piece or the turbine tower. This connection is often achieved through a grouted sleeve. The grout, a high-strength cementitious material, fills the annular space between the inner and outer tubes, transferring shear and moment loads. The grout must be carefully mixed and poured to minimize voids, often using a tremie pipe method. The curing time and temperature of the grout are critical for achieving the required compressive strength, which can exceed 50 MPa. The connection must withstand cyclic loading from wind and wave forces, leading to potential fatigue in the steel and grout interface.
Noise Mitigation
Pile driving generates significant underwater noise, which can disturb marine life, particularly cetaceans. The noise levels can exceed 180 dB re 1 μPa at a distance of 1 meter from the pile. To mitigate this, various techniques are employed. Bubble curtains, which release a column of air bubbles around the pile, absorb and scatter sound waves. Soft-starting involves driving the pile at lower energy levels initially, allowing marine mammals to vacate the area before the noise intensity peaks. Additionally, the use of vibratory hammers instead of impact hammers can reduce noise levels, although they may be less effective in dense soils. The choice of mitigation strategy depends on the local marine ecosystem and the specific seabed conditions.
Worked examples
Example 1: Shallow Water Installation
Consider a 5 MW turbine installed in 15 m of water. The total structural weight (tower, nacelle, blades, and transition piece) is approximately 300 tonnes. The design soil bearing capacity is 200 kPa. To estimate the required diameter, engineers first calculate the projected area needed to support the load. Using the formula Area = Force / Pressure, the required area is roughly 14.7 m². Solving for diameter (D = √(4A/π)), the initial estimate is about 4.3 m. However, monopile diameter is also driven by the bending moment from wind thrust. For a 5 MW unit, a typical industry standard diameter is 4.5 m to accommodate the flange connection and grout pocket.
Wall thickness is determined by the slenderness ratio and buckling resistance. A common rule of thumb is a thickness-to-diameter ratio of 1:100 to 1:120. For a 4.5 m diameter, this yields a wall thickness between 37 mm and 45 mm. In practice, a 40 mm to 50 mm steel plate is selected to account for corrosion allowance and fabrication tolerances.
Example 2: Deep Water Installation
For a larger 12 MW turbine in 30 m of water, the structural weight increases to roughly 600 tonnes. The bending moment is significantly higher due to the longer lever arm of the wind thrust. While the bearing capacity calculation might suggest a smaller diameter, the structural stiffness requirement dominates. Industry data for 12 MW turbines in 30 m water depth typically indicates a monopile diameter of 6.0 m to 7.0 m.
Using a 6.5 m diameter, the wall thickness must resist higher compressive and bending stresses. Applying a thickness-to-diameter ratio of 1:110, the estimated wall thickness is approximately 59 mm. Engineers often select a standard plate thickness of 60 mm or 65 mm. The increased diameter also improves the natural frequency of the turbine-pile system, helping to avoid resonance with the rotor speed and wind turbulence frequencies.
Example 3: Very Large Turbine
In extreme cases, such as a 15 MW turbine in 40 m of water, the monopile diameter may exceed 7.5 m. The weight of the steel itself becomes a significant portion of the total load. For a 7.5 m diameter pile, the wall thickness might range from 70 mm to 80 mm. At these scales, the foundation cost can account for up to 30% of the total turbine cost. The calculation process remains iterative: engineers adjust diameter and thickness to optimize the balance between material cost, geotechnical stability, and dynamic response, ensuring the foundation meets the 25-year design life requirement.
Applications and use cases
Monopile foundations are the dominant structural solution for offshore wind installations in shallow waters, typically defined as depths ranging from 5 to 30 meters. This depth limitation is critical because the monopile consists of a single, large-diameter steel cylinder driven directly into the seabed, transferring the turbine's load through a combination of skin friction and end-bearing. The simplicity of this design makes it the preferred choice for the North Sea and the Baltic Sea, where extensive shallow-water shelf areas provide ideal geotechnical conditions. In these regions, the prevalence of sandy or clayey seabeds allows for efficient installation using large hammer vessels, reducing both capital expenditure and installation time compared to more complex multi-legged structures. The suitability of monopiles is heavily influenced by water depth and soil mechanics. As water depth increases beyond 30 meters, the required diameter and wall thickness of the steel cylinder grow exponentially, leading to significant logistical challenges in fabrication and transportation. Consequently, for deeper waters, developers often transition to jacket foundations or transition pieces, which offer greater stability but at a higher structural complexity and cost. The monopile's efficiency in the 5–30 meter range has solidified its status as the workhorse of the European offshore wind industry, particularly in the mature markets of the North Sea. Comparative analysis with other foundation types highlights the trade-offs involved. While jacket foundations offer superior stiffness and are suitable for deeper waters (up to 40 meters), they require more steel and complex welding processes. Gravity-based foundations, though robust, are often limited to specific soil conditions and require large concrete volumes. Monopiles, by contrast, offer a streamlined supply chain and proven reliability, making them the default option for new projects in shallow, stable seabeds. The choice of foundation type is thus a function of water depth, soil profile, and turbine size, with monopiles remaining the most cost-effective solution for the vast majority of current shallow-water deployments.What distinguishes monopiles from other offshore foundations?
Monopile foundations are the predominant support structure for fixed-bottom offshore wind turbines, particularly in shallow waters. They consist of a single large-diameter steel cylinder driven into the seabed, transferring structural loads directly through the soil. This simplicity contrasts sharply with other foundation types, which are selected based on water depth, soil conditions, and logistical constraints.
Comparative Analysis with Alternative Foundations
Jacket foundations, resembling lattice towers, are typically used in deeper waters where monopiles become excessively thick and heavy. While jackets offer greater flexibility and can handle complex soil profiles, they involve significantly more fabrication and installation complexity due to multiple legs and bracing members. Gravity base foundations rely on massive concrete or steel structures that rest on the seabed, using their own weight to resist overturning moments. These are often chosen for very large turbines in specific soil conditions but require substantial material volumes. Floating platforms, in contrast, decouple the turbine from the seabed entirely, enabling deployment in deep waters beyond the reach of fixed structures. However, floating systems introduce dynamic mooring and power transmission challenges, increasing operational complexity and cost.
| Foundation Type | Typical Depth Range | Relative Cost | Installation Complexity |
|---|---|---|---|
| Monopile | Shallow (5–30 m) | Moderate | Low to Moderate |
| Jacket | Moderate (15–40 m) | Moderate to High | High |
| Gravity Base | Shallow to Moderate (10–30 m) | High | Moderate |
| Floating Platform | Deep (>40 m) | High | Very High |
The choice of foundation involves trade-offs between capital expenditure, installation logistics, and long-term maintenance. Monopiles remain cost-effective in shallow waters due to simpler fabrication and installation processes. Jackets provide versatility in intermediate depths, while gravity bases offer stability in specific geotechnical conditions. Floating platforms unlock deep-water resources but at a higher cost and technical complexity. Engineers select the optimal foundation by analyzing site-specific parameters, including water depth, soil bearing capacity, and turbine size.
Significance
Monopile foundations represent the most widely deployed structural solution for offshore wind turbine support systems, particularly in shallow-water environments. As a concept, the monopile involves driving a single, large-diameter cylindrical steel tube into the seabed to transfer the turbine's gravitational, wind, and wave loads directly into the soil. This simplicity has been the primary driver for its dominance in early offshore wind deployment, enabling rapid installation and predictable engineering behavior compared to more complex multi-legged or floating alternatives.
The widespread adoption of monopiles has significantly driven economies of scale within the offshore wind industry. Standardization of dimensions, wall thicknesses, and transition piece designs allows manufacturers and contractors to optimize supply chains and installation vessels. The structural behavior is often analyzed using beam-on-elastic-foundation models, where the lateral stiffness k and damping characteristics are critical for fatigue life prediction. This predictability reduces financial risk for developers, making monopiles the preferred choice for water depths typically up to 30 meters, although projects have successfully extended this limit.
Industrial Standardization and Scale
The role of monopiles extends beyond individual turbine support; they have become a cornerstone of industrial standardization. The repetitive nature of monopile fabrication in shipyards and their installation using jack-up vessels have created a mature ecosystem of specialized suppliers. This maturity has lowered the levelized cost of energy (LCOE) for offshore wind farms. By reducing the complexity of the substructure, operators can focus capital expenditure on turbine capacity and grid connection, accelerating the overall growth of the sector. The continued reliance on this foundation type underscores its effectiveness in balancing structural integrity with cost-efficiency in the global transition to renewable energy.
