Overview

The Pressurized Water Reactor (PWR) core is the central heat-generating component of the most common type of nuclear power plant worldwide. It consists of a lattice of fuel assemblies submerged in light water, which serves simultaneously as the primary coolant and the neutron moderator. The core is housed within the reactor pressure vessel, a thick steel cylinder that forms the innermost boundary of the primary coolant loop. This distinction is critical: the core generates the heat, the primary loop transports it to the steam generators, and the containment building provides the final physical barrier against radioactive release.

The fuel within a PWR core is typically low-enriched uranium dioxide (UO2​) pellets, stacked into long, slender rods made of zircaloy. These rods are bundled together—often in a 14x14 or 16x16 grid—by spacer grids to maintain geometric precision. The entire assembly is capped with top and bottom nozzles to guide coolant flow. The uranium-235 isotope undergoes fission when struck by a neutron, releasing kinetic energy that manifests as thermal energy. This heat is extracted by the forced circulation of water at high pressure, typically around 155 bar (15.5 MPa), to prevent it from boiling within the core itself.

Background: The PWR design relies on the "pressurized" aspect to keep the core water in a liquid state despite temperatures exceeding 300°C. This allows for a higher thermal efficiency compared to Boiling Water Reactors (BWRs) in certain configurations, as the primary loop remains chemically controlled and separate from the secondary steam cycle.

The neutron economy within the core is managed through a combination of control rods and chemical shim. Control rods, composed of neutron-absorbing materials such as boron carbide (B4​C) or silver-indium-cadmium alloys, are inserted from the top or bottom of the core to regulate the fission rate. Soluble boron, added to the coolant, provides finer control over the reactivity, compensating for fuel burnup and xenon poisoning over the fuel cycle. The balance between neutron production and absorption determines the core’s criticality, defined by the effective multiplication factor (keff​). When keff​=1, the reactor is critical, and the power output remains stable.

Thermal-Hydraulic Characteristics

Thermal-hydraulic performance is paramount in PWR core design. The water flowing through the core absorbs heat, raising its temperature from approximately 290°C at the inlet to 325°C at the outlet. This temperature difference drives the heat exchange in the steam generators. The core must be designed to avoid two-phase flow (boiling) within the active fuel region, which can lead to localized hot spots and potential fuel cladding failure. The most common failure mode is the Departure from Nucleate Boiling (DNB), where a vapor film forms around the fuel rods, insulating them from the coolant and causing a rapid temperature spike.

The power distribution within the core is not uniform. It typically follows a cosine-like shape along the axial direction and a radial profile influenced by the placement of control rods and burnable absorbers. Engineers use core simulation codes to optimize this distribution, ensuring that the peak linear heat generation rate (LHGR) remains within safe limits. This optimization extends fuel life and maximizes the thermal output, often measured in gigawatts-thermal (GWth). For a standard 1,300 MWe PWR, the core thermal power is roughly 3,900 GWth, highlighting the significant conversion efficiency required in the secondary loop.

Maintaining the integrity of the fuel cladding is the first line of defense in nuclear safety. The zircaloy cladding acts as a barrier to fission products, preventing them from leaking into the primary coolant. Under normal operation, the cladding temperature is kept below 325°C to minimize oxidation and hydrogen uptake. However, during transients or accidents, the core’s thermal inertia and the coolant’s heat capacity provide a buffer, allowing operators time to adjust control rods and pump speeds. The design of the PWR core thus balances neutronic efficiency with thermal-hydraulic robustness, ensuring stable power generation and safety margins.

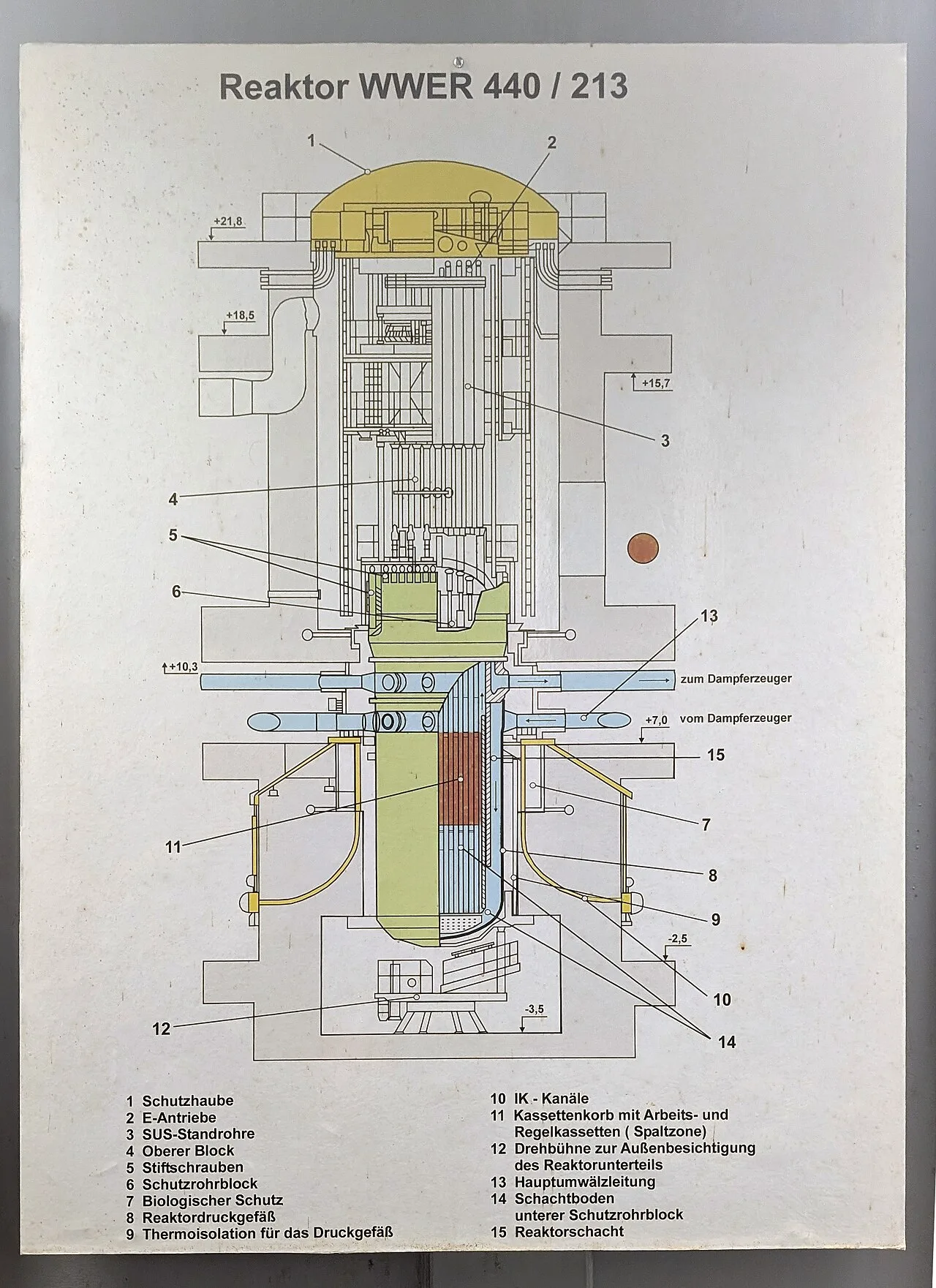

What are the main components of a PWR core?

The core of a Pressurized Water Reactor (PWR) is the heart of the nuclear steam supply system, where the primary fission process generates heat transferred to the primary coolant. It consists of several critical structural and functional components arranged within the reactor vessel. The core is not a monolithic block but a lattice of precisely engineered assemblies designed to optimize neutron economy and thermal-hydraulic performance.

Fuel Assemblies

The primary component is the fuel assembly. Each assembly contains hundreds of fuel rods arranged in a square lattice, typically 14x14 or 15x15. Inside each rod, uranium dioxide (UO2​) pellets are stacked. These pellets are encased in zircaloy cladding, usually Zircaloy-4 or Zircaloy-2, chosen for its low neutron absorption cross-section and resistance to corrosion under high-pressure water. The cladding diameter is typically around 9.5 mm, with a wall thickness of approximately 0.57 mm. Grid spacers made of spring-steel or zircaloy hold the rods in position and maintain the flow channels for the coolant. These grids also provide structural support against vibration and bowing.

Caveat: While zircaloy is the standard, advanced reactors may use silicon carbide (SiC) composites or advanced zirconium alloys to improve performance at higher burnup levels.

Control Rod Assemblies

Control rods regulate the reactor's power output by absorbing neutrons. They are inserted into guide tubes within the fuel assemblies. The absorber material is typically a silver-indium-cadmium (Ag-In-Cd) alloy or boron carbide (B4​C). Ag-In-Cd offers good neutron absorption characteristics and mechanical strength, while B4​C provides higher absorption per unit volume. The control rod drive mechanisms (CRDMs) are located at the top of the reactor vessel and move the rods up and down. In a typical PWR, the control rods are inserted from the top, which is a key design feature distinguishing it from some Boiling Water Reactors (BWRs) where rods may be inserted from the bottom.

Core Barrel and Structural Components

The core barrel, or core shroud, is a large cylindrical structure made of stainless steel that encloses the fuel assemblies. It separates the core flow from the annulus flow, ensuring that most of the primary coolant passes through the fuel rods. The core support plate at the bottom holds the assemblies in place and supports the weight of the core. The top nozzle assembly distributes the coolant evenly into the core. These components ensure structural integrity and optimal coolant distribution.

Component Typical Material Typical Dimensions/Properties
Fuel Pellet Uranium Dioxide (UO2​) ~8 mm diameter, ~10 mm height
Cladding Zircaloy-4 ~9.5 mm OD, ~0.57 mm thickness
Control Rod Absorber Ag-In-Cd or B4​C ~10-15 mm width
Core Barrel Stainless Steel (e.g., 304 or 316) ~4-5 m diameter, ~10-15 mm thickness
Grid Spacers Spring Steel or Zircaloy ~25-30 mm height per grid

The precise arrangement of these components determines the reactor's thermal-hydraulic and neutronic behavior. The fuel assemblies provide the fissionable material, the control rods manage the neutron flux, and the core barrel ensures efficient coolant flow. This integrated design allows PWRs to achieve high thermal efficiency and operational flexibility. The materials are chosen for their performance under high radiation, temperature, and pressure, ensuring long-term reliability and safety. Understanding these components is essential for analyzing PWR performance and safety margins.

How does neutron flux distribution affect core performance?

The spatial distribution of neutron flux within a Pressurized Water Reactor (PWR) core is a critical determinant of thermal-hydraulic stability, fuel economy, and safety margins. Neutrons are not uniformly distributed; instead, they exhibit distinct radial and axial profiles that engineers must manage to prevent localized overheating and ensure efficient uranium utilization. Understanding these profiles is essential for optimizing the core loading pattern and controlling reactivity throughout the fuel cycle.

Radial and Axial Flux Profiles

In an idealized, bare cylindrical core, the radial neutron flux follows a Bessel function of the first kind, peaking at the center and dropping off toward the periphery. This means the central fuel assemblies experience significantly higher power density than those near the edge. Axially, the flux profile is typically cosine-shaped, with the highest neutron density near the mid-plane of the core, assuming a uniform fuel composition. However, real-world cores are more complex. The introduction of control rods, burnable poisons, and the presence of the reactor vessel walls distort these ideal shapes. If left unmanaged, the central peak can lead to high "power peaking factors," where the maximum linear heat generation rate in a single fuel rod becomes much higher than the average, increasing the risk of boiling crises or cladding failure.

Background: A flat flux profile is the "holy grail" of core design. It ensures that no single fuel rod is overworked while others are underutilized, maximizing the total energy extracted from the uranium before refueling.

Flattening the Flux: Reflectors, Poisons, and Shim

Engineers employ several mechanisms to "flatten" these profiles, making the power distribution more uniform. The neutron reflector, typically composed of stainless steel or aluminum surrounding the active core, scatters neutrons back into the fuel. This reduces the radial drop-off, effectively widening the peak and increasing the utilization of peripheral fuel assemblies. Without a reflector, the radial flux would decay much more sharply, leading to significant "end effects" where edge fuel contributes less to total power output.

Burnable poisons are another critical tool. These are neutron-absorbing materials, such as boron carbide (B4​C) pins or gadolinia (Gd2​O3​) mixed-oxide fuel, placed in high-flux regions (usually the core center). They absorb excess neutrons early in the fuel cycle, suppressing the central peak. As the fuel burns up and reactivity decreases, the poisons are also "burned out" (absorbing neutrons and transmuting), allowing the flux to rise in those regions. This dynamic balancing act helps maintain a flatter profile over time. Additionally, shim solutions, primarily boric acid (H3​BO3​) dissolved in the coolant, provide a global means of reactivity control. By adjusting the boron concentration, operators can fine-tune the overall neutron absorption, compensating for changes in fuel enrichment and xenon poisoning.

The desirability of a flat flux profile stems from two main factors: fuel utilization and power peaking. A flatter profile reduces the power peaking factor (Fq​), defined as the ratio of the maximum local power density to the average core power density. A lower Fq​ allows for a higher total thermal power output for the same maximum cladding temperature, or conversely, allows for a lower maximum temperature for the same power. This improves the thermal-hydraulic margin to Departure from Nucleate Boiling (DNB), a key safety limit in PWRs. Furthermore, a more uniform flux ensures that uranium-235 is consumed more evenly across the core, reducing the "hot spots" that can lead to localized fuel burnup variations and extending the effective life of the fuel assemblies.

Thermal-hydraulic challenges in the PWR core

Heat transfer within a pressurized water reactor (PWR) core follows a defined path from the uranium fuel pellets to the primary coolant. Thermal energy generated by fission conducts through the uranium dioxide (UO2​) pellets, crosses the gap between the pellet and the zircaloy cladding, and finally convects into the high-pressure water flowing through the fuel assembly. The temperature gradient across these layers is critical; the fuel centerline temperature can exceed 500°C, while the cladding surface temperature is typically maintained around 300°C to prevent excessive oxidation and thermal stress.

Critical Heat Flux and Dryout

The most significant thermal-hydraulic constraint in a PWR is the Critical Heat Flux (CHF), the point at which the heat transfer coefficient drops sharply, leading to a rapid rise in cladding temperature. This phenomenon is often referred to as Departure from Nucleate Boiling (DNB). In a PWR, the coolant remains subcooled or slightly saturated, meaning bubbles form and collapse on the cladding surface. If the heat flux exceeds the CHF, a continuous vapor film forms, insulating the cladding from the liquid coolant. This "dryout" can cause the cladding temperature to spike, potentially leading to zircaloy oxidation and hydrogen generation.

Engineers manage this risk by maintaining a sufficient Departure from Nucleate Boiling Ratio (DNBR). The DNBR is defined as the ratio of the critical heat flux to the actual local heat flux:

DNBR = q''_CHF / q''_local

A DNBR greater than 1.3 is typically required to provide a safety margin, ensuring that even under transient conditions, the cladding remains wetted. The value of CHF depends on local pressure, quality (vapor fraction), and flow velocity. At higher qualities, the likelihood of dryout increases, which is why core inlet temperatures are carefully controlled.

Flow Distribution and Temperature Gradients

Uniform flow distribution is essential to prevent localized hot spots. In a typical PWR core, thousands of fuel rods are bundled into assemblies, separated by grid spacers. The flow of water is driven by main circulation pumps, creating a pressure drop across the core. Variations in flow resistance between different fuel assemblies can lead to flow maldistribution, where some rods receive more coolant than others. This is managed through careful design of the core barrel, lower plenum, and assembly grids.

Temperature gradients are also influenced by the axial power profile. The power density is not uniform along the height of the fuel rod; it typically peaks near the middle or upper section of the core. This creates an axial temperature gradient that must be accounted for in the thermal expansion of the fuel and cladding. Control rods, made of boron carbide or silver-indium-cadmium, are inserted from the top to modulate the power distribution, further affecting local heat fluxes.

Caveat: While PWRs operate with subcooled boiling, the risk of dryout is not eliminated. It is a primary driver for the "Hot Channel Factor," which accounts for uncertainties in power distribution and flow.

The management of these thermal-hydraulic parameters is a continuous process, monitored by in-core instrumentation and system-wide sensors. The interplay between neutronics and thermal-hydraulics ensures that the core remains within safe operating limits, balancing power output with temperature control.

Fuel management and core loading strategies

PWR fuel management is a complex optimization problem balancing reactivity control, power distribution, and fuel utilization over the core’s operating life. Most commercial pressurized water reactors operate on 12-, 18-, or 24-month cycles, with 18 months becoming the industry standard to maximize capacity factor while minimizing downtime. During each refueling outage, approximately one-third of the fuel assemblies are replaced, a strategy known as a "one-third core" loading pattern. The remaining two-thirds are shuffled to optimize neutron flux distribution and burnup.

Out-In Shuffling and Enrichment Zoning

The "out-in" shuffling strategy is fundamental to PWR core design. Fresh fuel assemblies, which possess the highest excess reactivity, are typically placed in the outer regions of the core. As they burn, they move inward in subsequent cycles, eventually reaching the central "hot spot" in their third cycle before being discharged. This migration pattern helps flatten the radial power profile, reducing peak-to-average power ratios and mitigating thermal-hydraulic margins. Enrichment zoning complements this by using lower-enriched uranium in the periphery and higher enrichment in the center, though modern cores often use multiple enrichment steps to refine this gradient.

Caveat: Over-flattening the power profile can lead to "power peaking factors" that challenge the Departure from Nucleate Boiling Ratio (DNBR), a critical thermal-hydraulic parameter. Engineers must balance reactivity gain with thermal margins.

Burnable Absorbers and Reactivity Control

To manage the significant excess reactivity introduced by fresh fuel, PWRs employ burnable absorbers. These materials, such as boron carbide (B4​C) or hafnium, are integrated into fuel rods or control rod clusters. As the fuel burns, the absorbers deplete at a rate roughly matching the fuel's reactivity loss, thereby flattening the reactivity swing over the cycle. This reduces the required concentration of soluble boron in the coolant, minimizing "boron worth" penalties on the control rods. The use of burnable poison rods (BPRs) allows for finer spatial control of reactivity, particularly in the outer core regions.

Trade-offs: Excess Reactivity vs. Burnup

The core design involves a direct trade-off between initial excess reactivity and end-of-cycle (EOC) burnup. Higher initial enrichment increases the total energy extracted per assembly (measured in gigawatt-days per tonne of uranium, GWD/tU), but it also demands more robust reactivity control mechanisms to prevent the reactor from becoming too "hot" at the beginning of the cycle (BOC). If the BOC reactivity is too high, the control rods must be inserted deeper, reducing their effectiveness at EOC when the fuel is less reactive. This balance is critical for ensuring that the core remains critical throughout the entire cycle without exceeding thermal limits or control rod worth constraints.

Modern core designs also consider axial power shaping, using axial enrichment zoning to flatten the power distribution along the length of the fuel rods. This helps manage the axial offset, a parameter that influences the stability of the neutron flux and the thermal margins of the fuel cladding. The integration of these strategies—shuffling, enrichment zoning, and burnable absorbers—allows operators to maximize fuel utilization while maintaining safe and efficient operation.

Worked examples: Calculating core thermal power

Estimating the thermal power of a Pressurized Water Reactor (PWR) core requires linking microscopic nuclear events to macroscopic engineering parameters. The fundamental relationship relies on the fission rate and the energy released per fission event. This section provides worked examples to demonstrate how to calculate total thermal power, verify core volume requirements, and estimate fuel burnup rates using typical PWR parameters.

Example 1: Calculating Thermal Power from Fission Rate

Consider a PWR core with a steady-state fission rate of 3.12×1020 fissions per second. The average energy released per fission of Uranium-235 is approximately 200 MeV (mega-electronvolts). To find the thermal power (Pth​), convert the energy to joules and multiply by the fission rate.

First, convert the energy per fission:

Now, calculate the power:

Pth​=Fission Rate×Energy per Fission

Pth​=(3.12×1020 s−1)×(3.204×10−11 J)

Pth​≈9.996×109 J/s ≈10,000 MWth.

This calculation shows that a fission rate of roughly 3.12×1020 s−1 yields a thermal power of approximately 10,000 MWth, which is typical for a large 3-loop PWR.

Example 2: Estimating Core Volume from Linear Heat Generation Rate

Suppose a PWR core has a total thermal power of 4,000 MWth and an average linear heat generation rate (LHGR) of 20 kW/m for the fuel rods. The core contains 1,900 fuel assemblies, each with 24 fuel rods. The active fuel rod length is 4.0 meters. We can estimate the total core volume occupied by the fuel.

First, calculate the total length of all fuel rods:

Total Rods = 1,900 assemblies×24 rods/assembly=45,600 rods

Total Length = 45,600 rods×4.0 m/rod=182,400 m

Next, calculate the total thermal power based on LHGR:

Pth​=Total Length×LHGR

Pth​=182,400 m×20 kW/m=3,648,000 kW=3,648 MWth

This result (3,648 MWth) is close to the target 4,000 MWth, indicating that the LHGR or rod count assumptions are reasonable approximations for a mid-sized PWR. The slight difference accounts for end effects and non-uniform power distribution.

Example 3: Fuel Burnup Calculation

For a PWR core with 100 tonnes of Uranium (U) and a thermal power of 4,000 MWth operating for one effective full-power year (EFY), calculate the average fuel burnup in Gigawatt-days per tonne of Uranium (GWd/tU).

First, determine the total energy produced in one year:

1 EFY = 365 days × 24 hours/day = 8,760 hours

Total Energy = 4,000 MWth×8,760 h=35,040,000 MWh=35,040 GWd

Now, calculate the burnup:

Burnup = Mass of UraniumTotal Energy​

Burnup = 100 tU35,040 GWd​=350.4 GWd/tU

This burnup value of ~350 GWd/tU is typical for modern PWR fuel cycles, which often range from 300 to 450 GWd/tU depending on enrichment and cycle length.

Caveat: These examples use simplified, average values. Actual PWR cores exhibit significant spatial and temporal power variations, requiring detailed neutronics codes for precise calculations.

Safety implications of core design

The geometric arrangement and material selection within a Pressurized Water Reactor (PWR) core are fundamental determinants of safety margins. The core consists of fuel assemblies containing thousands of fuel rods, each comprising uranium dioxide pellets encased in zirconium-alloy cladding. This configuration is designed to maintain fuel integrity under normal and transient conditions, preventing the release of fission products into the primary coolant loop. The spacing of fuel rods and the hydraulic diameter of the assembly directly influence the critical heat flux, which is the point at which a vapor film forms on the cladding surface, drastically reducing heat transfer efficiency.

During a Loss of Coolant Accident (LOCA), the primary challenge is managing the temperature of the fuel cladding. As pressure drops, the saturation temperature of the water decreases, leading to rapid boiling. If the cladding temperature exceeds approximately 1,200°C, the zirconium alloy reacts with steam in an exothermic reaction: Zr+2H2​O→ZrO2​+2H2​+Heat. This reaction generates hydrogen gas, a potential source of explosive energy, and adds decay heat to the core. The safety margin is defined by the time available for emergency core cooling systems (ECCS) to submerge the fuel before this temperature threshold is breached. The geometry of the core, specifically the aspect ratio of the fuel rods, affects the surface area-to-volume ratio, thereby influencing the rate of heat dissipation.

Caveat: The distinction between 'hot leg' and 'cold leg' temperatures is critical for understanding thermal stresses on the reactor pressure vessel. The hot leg, carrying steam-water mixture from the core outlet, typically operates around 325°C, while the cold leg, returning water from the steam generators, is near 290°C. This gradient induces thermal shock during transients.

The temperature differential between the hot and cold legs creates significant thermal gradients across the reactor pressure vessel head and the core barrel. In a LOCA, the sudden influx of cooler ECCS water into the hot core can cause thermal shock, potentially leading to cladding rupture or vessel fatigue. The design of the core inlet nozzles and the distribution of flow are optimized to minimize these thermal stresses. Additionally, the presence of control rod drive mechanisms and the core support structure introduces local flow disturbances that must be accounted for in safety analyses to prevent localized hot spots.

In advanced PWR designs, the concept of a 'core catcher' has been introduced to mitigate the consequences of core melt-through. If the fuel assemblies are not adequately cooled, the molten corium can relocate to the lower head of the reactor pressure vessel. A core catcher, often located beneath the vessel, spreads the molten material over a larger area, enhancing heat transfer to the containment building's cooling systems. This feature is particularly relevant in designs like the European Pressurized Reactor (EPR) and some VVER variants, where the core power density is higher. The effectiveness of a core catcher depends on the thermal conductivity of the spreader layer and the capacity of the external cooling system to remove decay heat over an extended period.

The safety implications of core design extend to the behavior of the moderator. In a PWR, water serves as both the coolant and the moderator. The temperature coefficient of reactivity, which describes how reactivity changes with temperature, is influenced by the core geometry and fuel enrichment. A negative temperature coefficient is desirable, as it provides inherent stability: as the core heats up, reactivity decreases, naturally slowing the fission rate. However, in certain burnup conditions or with specific fuel assembly designs, the coefficient can become positive, requiring careful control of boron concentration in the coolant to maintain a net negative feedback.

Material degradation over time also affects safety margins. The zirconium cladding undergoes embrittlement due to neutron irradiation and hydride formation. The orientation of these hydrides, influenced by the thermal gradient across the cladding thickness, affects the ductility of the fuel rods during a LOCA. Modern fuel designs incorporate advanced zirconium alloys, such as Zircaloy-4 or ZIRLO, to improve resistance to oxidation and creep. The core design must accommodate these material properties to ensure that the fuel rods can withstand the mechanical and thermal loads imposed by accident scenarios without excessive deformation or rupture.

Ultimately, the safety of a PWR core is a function of the interplay between geometry, materials, and thermal-hydraulic performance. The design must ensure that under all credible accident conditions, the fuel cladding remains intact long enough for active or passive safety systems to restore cooling. This requires rigorous analysis of heat transfer coefficients, flow distribution, and material behavior under high-temperature, high-pressure environments. The continuous evolution of core design, driven by lessons learned from past accidents and advancements in materials science, aims to widen these safety margins and reduce the probability of core damage.

Evolution of PWR core designs

From First Generation to Advanced Designs

The architecture of the Pressurized Water Reactor (PWR) core has evolved significantly from the 1960s to the current generation of reactors. Early designs, such as the classic Westinghouse 17x17 lattice, established the baseline for fuel assembly geometry, utilizing 289 fuel rods per assembly to optimize the neutron flux distribution. These initial cores prioritized reliability and modularity, setting the stage for decades of incremental improvements. The fundamental physics remained constant, but the engineering execution refined to maximize thermal efficiency and operational lifespan.

Modern designs like the AP1000 and the European Pressurized Reactor (EPR) have expanded upon this foundation. The EPR, for instance, utilizes a 17x17 lattice but with a larger active height and enhanced fuel enrichment to achieve higher power density. This allows for greater output per unit volume, reducing the overall footprint of the reactor vessel. The AP1000 focuses on passive safety systems, which influence core design by requiring specific control rod configurations that can insert into the core without active power for up to 72 hours. These advancements reflect a shift from purely thermal performance to integrated safety and economic efficiency.

Fuel Rod Materials and Burnup

Fuel rod cladding has transitioned from early Zircaloy alloys to advanced zirconium-based materials. Zircaloy-2 and Zircaloy-4 were the standards for decades, offering a low neutron absorption cross-section, denoted as σ, which is critical for maintaining the chain reaction. However, modern reactors often use Zircaloy-4 or zirconium-niobium alloys, which provide better resistance to corrosion and hydrogen uptake at higher temperatures. This material improvement directly impacts the fuel burnup, measured in gigawatt-days per tonne of uranium (GWd/tU). Early PWR cores achieved burnup rates of around 25 GWd/tU, whereas modern designs routinely exceed 45 GWd/tU, reducing the frequency of refueling outages.

Increased burnup is achieved through higher initial uranium enrichment, often reaching 4.5% to 5.0% U-235, and the use of burnable absorbers. These absorbers, such as gadolinium or erbium, are integrated into the fuel matrix to compensate for excess reactivity at the beginning of the cycle. As the fuel burns, the absorbers deplete, flattening the power distribution across the core. This strategy minimizes the peak-to-average power ratio, reducing thermal stress on the fuel rods and extending their operational life. The trade-off is a more complex fuel management strategy, requiring precise modeling to avoid localized power spikes.

Control Rod Drives and Core Management

Control rod drive mechanisms have also seen significant advancements. Early PWRs used magnetic or hydraulic drives, which were reliable but required substantial external power. Modern designs integrate more sophisticated drives that allow for finer control over the reactivity profile. The EPR, for example, uses a combination of control rods and soluble boron in the coolant to manage reactivity. This dual approach provides greater flexibility in adjusting the core's power output and compensating for xenon poisoning, a common byproduct of fission that absorbs neutrons.

The integration of advanced instrumentation has further enhanced core management. Neutron flux detectors are placed at multiple heights within the core to provide real-time data on power distribution. This data feeds into core monitoring systems that use computational models to predict fuel behavior and optimize control rod positioning. Such systems allow operators to respond quickly to transient conditions, improving both safety and efficiency. The evolution of these systems reflects a broader trend in nuclear engineering towards data-driven operation and predictive maintenance.

Caveat: While modern cores offer higher efficiency, they also introduce greater complexity in fuel management and maintenance. The increased burnup rates mean that each fuel assembly holds more radioactive decay heat, requiring more robust cooling systems during outages.

The progression from early PWR cores to modern designs illustrates a continuous effort to balance thermal performance, safety, and economic viability. Each generation of reactors builds on the lessons of its predecessors, incorporating new materials and technologies to optimize the core's performance. This evolution is not merely incremental but represents a fundamental rethinking of how nuclear energy is harnessed and managed.
