Overview

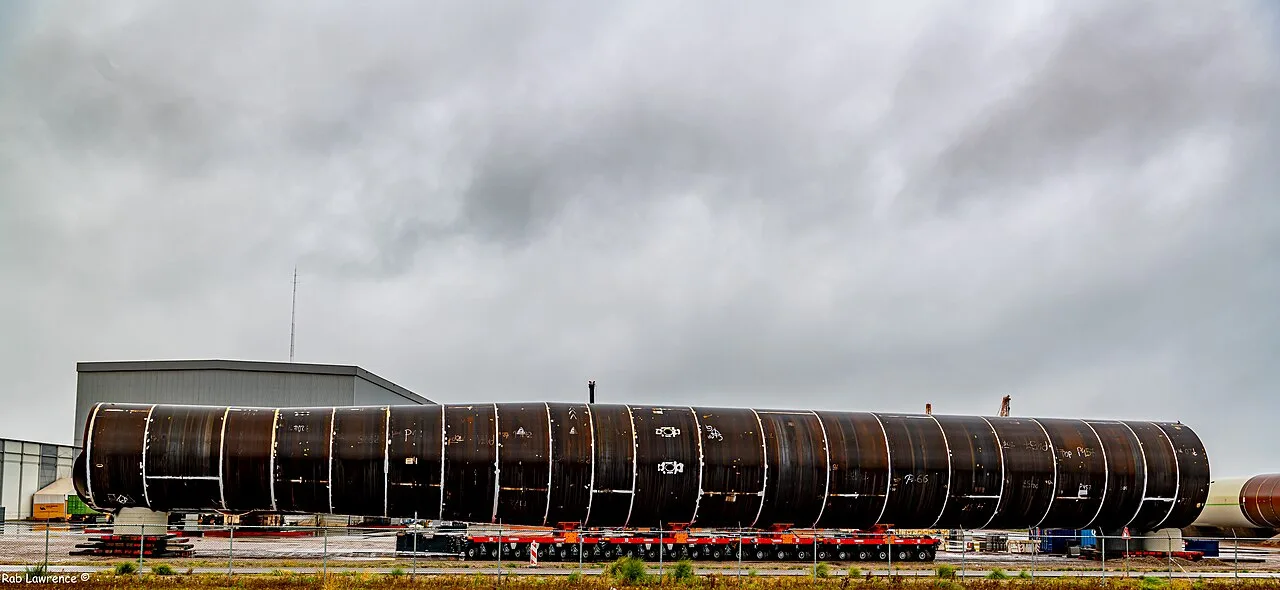

An offshore wind turbine monopile is a single, large-diameter cylindrical steel tube driven into the seabed to support the nacelle and rotor of an offshore wind turbine. It is the most widely used foundation type for fixed-bottom offshore wind farms, particularly in water depths ranging from 5 to 30 meters. The structure consists of a thick-walled steel cylinder, typically with diameters between 3 and 10 meters, depending on the turbine capacity and soil conditions. The monopile is driven deep into the seabed, relying on both skin friction along the shaft and end-bearing at the tip to resist the complex loading from the turbine above.
Structural Mechanics and Loading
The monopile foundation must withstand significant gravitational, aerodynamic, and hydrodynamic loads. The primary forces include the vertical weight of the transition piece and turbine, the horizontal thrust from the wind, and the overturning moment caused by the wind acting on the rotor. The design ensures that the natural frequency of the monopile-turbine system avoids resonance with the rotor speed and wave frequencies. The shear force V and bending moment M at the mudline are critical design parameters, often calculated using beam-on-elastic-foundation models. The soil-structure interaction is typically modeled using p-y curves, which describe the lateral resistance of the soil per unit length of the pile.
Installation and Geotechnical Considerations
Installation involves driving the pre-fabricated steel cylinder into the seabed using large hydraulic hammers or vibratory drivers. The choice between driving and vibration depends on the soil type, such as sand, clay, or glacial till. In sandy soils, driving is common, while in clay or stiff soils, vibration or a combination of both methods may be used. The monopile is often pre-drilled in very hard or rocky seabeds to reduce driving stresses. After installation, the transition piece is bolted or welded to the top of the monopile, connecting the foundation to the tower. The design must account for corrosion, fatigue, and scour around the base, which can expose the pile to wave action and reduce its lateral support. Grout connections are frequently used to ensure a rigid joint between the monopile and the transition piece, transferring loads efficiently from the turbine to the foundation.
What are the main types of offshore wind foundations?
Offshore wind turbine foundations are engineered structures designed to transfer the mechanical loads from the turbine tower to the seabed. While monopiles are the most prevalent solution, the selection of a foundation type depends heavily on water depth, soil conditions, and turbine size. Engineers evaluate several primary categories: monopiles, jackets, tripods, and floating platforms, each with distinct structural characteristics and optimal deployment zones.
Monopiles
Monopiles consist of a single, large-diameter steel cylinder driven directly into the seabed. They are the dominant foundation type for offshore wind farms, particularly in water depths ranging from 5 to 30 meters. Their simplicity allows for efficient installation using large hammer vessels or vibratory hammers. The structural behavior is often modeled as a cantilever beam, where the bending moment M at the mudline is a critical design parameter. Monopiles are cost-effective in shallow waters with cohesive soils, such as the North Sea and the Baltic Sea, where the seabed can support the large diameter required to resist lateral loads from wind and wave action.
Jacket Foundations
Jacket foundations are lattice-like structures made of multiple steel legs braced by diagonal members. They are typically used in deeper waters, generally between 30 and 60 meters, where monopiles would require excessive steel volume. Jackets are often gravity-based or pile-supported, providing high stiffness and stability. They are particularly suitable for areas with rocky seabeds or where high lateral loads are expected. The modular nature of jackets allows for scalability, making them a common choice for larger turbine platforms in the North Sea and increasingly in the US East Coast.
Tripod and Spudcan Foundations
Tripod foundations feature three legs connected to a central hub, offering a compromise between the simplicity of monopiles and the stiffness of jackets. They are effective in water depths of 30 to 45 meters. Spudcan foundations, a variant, use three large, cone-shaped feet that penetrate the seabed, reducing the need for extensive piling. These types are advantageous in specific soil conditions, such as thick clay layers, and can offer faster installation times compared to traditional jacket structures.
Floating Platforms
Floating foundations enable wind energy generation in water depths exceeding 60 meters, where fixed-bottom foundations become economically challenging. These platforms, such as semi-submersibles, tension-leg platforms, and spar buoys, are moored to the seabed using chains or synthetic ropes. Floating technology unlocks vast offshore wind resources in deeper waters, such as those found off the coasts of Portugal, Japan, and the US West Coast. While they offer greater site flexibility, floating platforms generally incur higher levelized cost of energy (LCOE) due to the complexity of mooring systems and dynamic cable connections.
How does a monopile foundation work?
A monopile foundation is a single, large-diameter steel cylinder driven directly into the seabed to support an offshore wind turbine. This structural element serves as the primary interface between the turbine’s tower and the geotechnical conditions of the sea floor, transferring immense operational and environmental loads into the underlying soil strata. The design relies on the structural integrity of the steel tube and the frictional and bearing resistance of the surrounding soil to maintain stability under dynamic loading conditions.
Structural Mechanics and Load Transfer
The monopile functions by combining axial, shear, and bending resistance. The primary loads acting on the foundation include the gravitational weight of the turbine, aerodynamic thrust from the wind, wave and current forces, and dynamic vibrations from the rotor. These loads are transferred through the pile wall into the seabed soil. The structural mechanics depend on the interaction between the steel cylinder and the soil, typically characterized by the soil’s shear strength and modulus of subgrade reaction.
In shallow water depths, the monopile is often embedded to a depth where the soil’s end-bearing capacity and skin friction provide sufficient resistance. The bending moment, M, induced by lateral loads such as wind and waves is a critical design parameter. The maximum bending moment typically occurs at the mudline or slightly below, depending on the soil stiffness profile. The structural design must ensure that the stress, σ, in the steel wall does not exceed the yield strength, accounting for fatigue cycles over the turbine’s operational life.
The installation process involves driving the steel cylinder into the seabed using hydraulic hammers, which compacts the surrounding soil and enhances the skin friction. This geotechnical interaction is crucial for the foundation’s long-term performance, ensuring that the monopile can withstand cyclic loading without excessive settlement or lateral displacement. The simplicity of the monopile design makes it a cost-effective solution for water depths up to approximately 30 meters, where the structural weight and installation logistics remain manageable.
Design and Parameter Sensitivity Analysis
The 2014 scholarly article 'Offshore Wind Turbine Monopile Foundation Modal and Parameter Sensitivity Analysis' provides a critical examination of how various design parameters influence the structural performance of monopile foundations. This study is significant for engineers and researchers aiming to optimize the efficiency and reliability of offshore wind energy infrastructure. The analysis focuses on the modal characteristics and sensitivity of the foundation to changes in key variables.
Key Parameters Analyzed
The research identifies several critical parameters that affect the performance of monopile foundations. These include the pile diameter, wall thickness, embedded length, and soil stiffness. Each of these factors plays a crucial role in determining the natural frequencies and mode shapes of the foundation structure.
Pile diameter is a primary determinant of the foundation's stiffness and mass distribution. Increasing the diameter generally enhances the lateral stiffness, thereby reducing the natural frequency of the system. Wall thickness, on the other hand, influences the cross-sectional area and moment of inertia, which are vital for resisting bending moments and shear forces.
Embedded length refers to the depth of the pile below the seabed. A longer embedded length typically increases the fixity of the pile, leading to a stiffer system. Soil stiffness, characterized by the modulus of subgrade reaction, also significantly impacts the foundation's dynamic response. Softer soils result in greater deflections and lower natural frequencies.
Modal Analysis Findings
The modal analysis conducted in the study reveals the natural frequencies and mode shapes of the monopile foundation under various parameter combinations. The first few modes are particularly important for understanding the dynamic behavior of the structure under wind and wave loads.
The first mode shape usually involves a lateral bending of the pile, with the maximum displacement occurring near the top. The second mode may include a combination of lateral bending and torsion, depending on the symmetry of the foundation and the loading conditions. Higher modes become increasingly complex, involving multiple inflection points along the pile length.
Parameter Sensitivity
The sensitivity analysis quantifies the impact of each parameter on the natural frequencies and mode shapes. This information is valuable for design optimization, allowing engineers to prioritize certain parameters based on their influence on performance.
The study finds that pile diameter and embedded length have the most significant effect on the natural frequencies. Small changes in these parameters can lead to substantial shifts in the dynamic response. Wall thickness and soil stiffness also play important roles, but their impact is generally less pronounced compared to diameter and length.
Implications for Design
The findings from the 2014 article have important implications for the design of offshore wind turbine monopile foundations. By understanding the sensitivity of the foundation to different parameters, engineers can make more informed decisions during the design process. This can lead to more efficient and cost-effective solutions, reducing material usage while maintaining structural integrity.
For example, if the natural frequency of the foundation is too close to the dominant frequency of the wind and wave loads, resonance can occur, leading to increased stresses and potential fatigue damage. By adjusting the pile diameter or embedded length, engineers can shift the natural frequency away from the excitation frequencies, thereby mitigating the risk of resonance.
In conclusion, the 'Offshore Wind Turbine Monopile Foundation Modal and Parameter Sensitivity Analysis' offers valuable insights into the dynamic behavior of monopile foundations. The study highlights the importance of considering multiple parameters in the design process to ensure optimal performance and reliability. These findings contribute to the ongoing efforts to enhance the efficiency and sustainability of offshore wind energy systems.
Installation methods for monopiles
Offshore wind turbine monopiles are typically installed using specialized heavy-lift vessels, primarily jack-up platforms and crane barges. These vessels provide the stability and lifting capacity required to handle large-diameter steel cylinders, often exceeding 1000 tonnes. The installation process begins with site preparation, which may involve seabed leveling or the placement of a transition piece. The monopile is then transported to the foundation location and positioned vertically using the vessel’s main crane.
Driving Method
The most common installation technique involves driving the monopile into the seabed using hydraulic hammers. The hammer delivers high-energy impacts to the pile head, forcing it through the soil layers. This method is particularly effective in sandy or gravelly seabeds. The driving process continues until the pile reaches its target depth, ensuring sufficient embedment length for stability. Engineers monitor the driving data, such as blow count and settlement, to verify the pile’s bearing capacity. The formula for bearing capacity, Qtotal=Qtip+Qshaft, helps determine the total load the monopile can support. This approach is fast and reliable but can generate significant noise, which may affect marine life.
Grouting Method
In softer soils or noise-sensitive areas, grouting is used as an alternative or supplementary method. The monopile is placed into a pre-drilled socket or directly into the seabed, and high-strength grout is pumped into the annular space between the pile and the soil. The grout hardens, creating a strong bond that transfers loads from the turbine to the seabed. This method reduces noise and vibration compared to driving. It is often used in combination with driving, where the pile is partially driven and then grouted to achieve the final position and load-bearing capacity. The choice between driving and grouting depends on soil conditions, environmental factors, and project-specific requirements.
Vessel Selection
The selection of the installation vessel depends on the monopile’s size, weight, and the offshore conditions. Jack-up vessels are preferred for deeper waters and larger monopiles due to their stability and higher lifting capacity. Crane barges are often used in shallower waters or for smaller monopiles. Both vessel types are equipped with advanced positioning systems to ensure precise placement of the monopile. The installation process requires careful coordination between the vessel crew, engineers, and marine surveyors to ensure efficiency and safety.
What distinguishes monopiles from jacket foundations?
Monopiles and jacket foundations represent the two dominant structural solutions for offshore wind turbine support, each optimized for distinct bathymetric and geotechnical conditions. The fundamental distinction lies in their structural topology and load-transfer mechanisms, which directly influence cost efficiency and depth suitability.
Structural Complexity and Load Transfer
A monopile consists of a single, large-diameter steel cylinder driven into the seabed. It transfers lateral and axial loads primarily through soil-pile interaction, relying on the stiffness of the surrounding sediment and the pile's own bending moment resistance. This simplicity results in a lower number of components, reducing fabrication and installation complexity. In contrast, a jacket foundation is a lattice-like steel structure, typically composed of four or more vertical legs connected by horizontal and diagonal bracing. Jackets transfer loads through a combination of pile groups and the structural stiffness of the lattice frame. This configuration offers higher natural frequency and reduced dynamic response but introduces significant fabrication complexity due to the numerous welded nodes and bracing elements.
Depth Suitability and Cost Efficiency
Monopiles are generally the cost-optimal solution for water depths ranging from approximately 5 to 30 meters. As depth increases, the required pile length and diameter grow significantly, leading to exponential increases in steel weight and installation time. Beyond 30 meters, the logistical challenges of transporting and driving oversized monopiles often render them less economical. Jacket foundations become competitive at depths exceeding 25–30 meters and can extend viability up to 40–50 meters. While jackets require more steel per unit of capacity in shallow waters, their modular construction and ability to utilize smaller-diameter piles for each leg reduce foundation costs in deeper waters where monopile dimensions become prohibitive.
Comparative Characteristics
| Characteristic | Monopile | Jacket Foundation |
|---|---|---|
| Optimal Depth Range | 5–30 m | 25–50 m |
| Structural Topology | Single cylindrical shaft | Lattice frame with bracing |
| Primary Load Transfer | Soil-pile interaction (bending moment) | Pile groups + structural stiffness |
| Fabrication Complexity | Low (fewer components) | High (multiple welded nodes) |
| Steel Weight Trend | Increases exponentially with depth | Increases linearly/moderately with depth |
| Dynamic Response | Lower natural frequency | Higher natural frequency |
The selection between these foundations depends on a trade-off between geotechnical conditions, water depth, and lifecycle cost analysis. Monopiles remain the market leader for shallow-water projects due to their proven track record and simpler installation, while jackets are increasingly adopted for deeper-water expansions where monopile dimensions approach logistical limits.
Challenges and future developments
Offshore wind turbine monopiles face significant engineering hurdles, primarily corrosion, fatigue, and increasing water depths. Corrosion remains a persistent threat, particularly in the splash zone where alternating exposure to air and seawater accelerates degradation. Fatigue is another critical concern, as cyclic loading from wind and wave action can lead to micro-cracks in the steel structure over time.
As offshore wind farms expand into deeper waters, the traditional monopile foundation becomes less efficient. The increasing water depth requires larger diameters and thicker walls, leading to higher material and installation costs. This has prompted the exploration of hybrid foundations, which combine monopiles with other foundation types, such as jackets or gravity-based structures, to optimize performance and cost-effectiveness.
Advanced materials are also being developed to address these challenges. High-strength steel alloys and corrosion-resistant coatings are being used to enhance the durability of monopiles. Additionally, composite materials are being explored for their potential to reduce weight and improve fatigue resistance.
The formula for calculating the critical buckling load of a monopile is given by:
Pcr=(KL)2π2EI where E is the modulus of elasticity, I is the moment of inertia, K is the effective length factor, and L is the length of the monopile. This formula helps engineers determine the maximum load a monopile can withstand before buckling.In summary, the future of offshore wind turbine monopiles lies in the integration of hybrid foundations and advanced materials to overcome the challenges of corrosion, fatigue, and increasing water depths. These innovations are crucial for the continued expansion of offshore wind energy into deeper and more challenging environments.
